CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Lian Li EG1000Pv2
Serial NumberG9PEG1000PBY263500004
Lab IDLL10003427
Certification ID263427
  • Test Result Report ID: 26PS3427A
  • Certificate Issue Date: Oct 9, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandLian Li
ModelEG1000Pv2
OEM/ODMHelly Technology (Guangzhou) Co., Ltd.
Serial NumberG9PEG1000PBY263500004
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)100-240
Rated Current (Arms)6-12
Rated Frequency (Hz)50-60
Rated Power (W)1000
Operating Temperature (Continuous Full Load) (°C)0 - 40
TypeATX12V
Cable DesignFully Modular
Warranty10 years
Cybenetics Measurements
Dimensions (W x H x D)150 x 86 x 182 mm
Weight1.69 kg (3.72 lb)
Cooling120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z)
Semi-Passive Operation✓ (selectable)
Cybenetics Testing Information
Lab IDLL10003427
Date of receiptSep 8, 2026
Testing DateOct 9, 2026
Report Issued DateOct 9, 2026
DUT Notes• Hold-up time re-checked on 2026-10-15: the lowest hold-up of all captures was logged (24.20 ms; AC loss to PWR_OK 21.30 ms; PWR_OK inactive to DC loss 2.90 ms).
Engineer NameIoannis Kalyviotis
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 16-22AWG Tinned Copper
4+4 pin EPS12V (700mm) 1 1 18AWG Tinned Copper
8 pin EPS12V (700mm) 1 1 18AWG Tinned Copper
6+2 pin PCIe (550mm) 3 3 18AWG Tinned Copper
12+4 pin PCIe (650mm) (450W) 1 1 16-28AWG Tinned Copper
SATA (405mm+150mm+150mm) / 4-pin Molex (+150mm) 1 3/1 18AWG Tinned Copper
SATA (305mm+15mm+15mm+15mm) 1 4 18AWG Tinned Copper
SATA Y cable, 2 branches (380mm+150mm each) 1 4 18AWG Tinned Copper
USB3.0 + USB2.0 / USB 9-pin (345mm)   1+1/1 - -
USB2.0 Header (470mm) 1 1 28AWG -
4-pin PWM (555mm) 1 1 28AWG -
AC Power Cord (1380mm) - C13 coupler 1 1 3G 1.0 mm² -

Protection Features(Manufacturer)

Over Power Protection✓
Over Current (+12V) Protection✓
Over Temperature Protection✓
Short Circuit Protection✓
Surge Protection✓
Inrush Current Protection✓
Fan Failure Protection✗

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20208330.3
Watts100996153.6
Total Max. Power (W)1000

Parts Description

General Data
Manufacturer (OEM)Helly Technology
PCB TypeDouble-Sided
Primary Side
Transient Filter2x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection1x NTC Thermistor MF73T-1 20/7 (20 ohm) & Relay
Bridge Rectifier(s)2x Kanghong PBU1506L (600V, 15A @ 25°C)
APFC MOSFETs2x Oriental OSG60R099FT3 (600V, 19A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode1x Sanan SDS065J010C3 (650V, 10A @ 155°C)
Bulk Cap(s)1x Nippon Chemi-Con (420V, 470uF, 2,000h @ 105°C, KMR)
1x Nippon Chemi-Con (420V, 390uF, 2,000h @ 105°C, KMW)
Main Switchers4x Oriental Semiconductor OSG55R140F (550V, 14.5A @ 100°C, Rds(on): 0.14 Ohm)
Resonant ControllerChampion CM6901T6X
APFC ControllerChampion CM6500UNX
TopologyPrimary side: APFC, Full-Bridge & LLC Resonant converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs6x Huayi HYG009N04LS1C2 (40V, 233A @ 100°C, Rds(on): 0.96mOhm)
5V & 3.3VDC-DC Converters: 2x XSEMI XP3NA3R4MT (30V, 46A @ 100°C, Rds(on): 3.4mOhm) &
2x Rectron Semiconductor RMN3N5R0DF (30V, 19.7A @ 70°C, Rds(on): 5mOhm)
PWM Controller(s): 1x uPI SEMI uP3861P
Filtering CapacitorsElectrolytic:
4x Nippon Chemi-Con (2-5000h@105°C, KZE)
5x Rubycon (4-10,000h @105°C, YXJ)
1x Rubycon (6-10,000h @105°C, ZLH)
Polymer:
31x Nippon Chemi-Con
Fan ModelHong Hua HA1225M12F-Z (120mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier(s)1x Dongke Semiconductor DK5V60R20S
Standby PWM ControllerExcelliance MOS EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)28-32 / 82.4-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓
Conducted Emissions EN 55032 & CISPR 32Passed

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)90.246%
Average Noise Output (>1450 Load Combinations)22.25dBA
Average PF (>1450 Load Combinations)0.979
Efficiency With 10W (≤500W) or 2% (>500W) Load69.472%
Standby Power Consumption0.0689W
Non-Accredited
12V Ripple (Full Load)43.95mV
5V Ripple (Full Load)28.81mV
3.3V Ripple (Full Load)25.48mV
5VSB Ripple (Full Load)29.67mV
12V Load Regulation0.25%
5V Load Regulation0.50%
3.3V Load Regulation0.67%
5VSB Load Regulation2.73%
Inrush Current13.440A
Accredited
Average Efficiency (>1450 load combinations)92.176%
Average Noise Output (>1450 Load Combinations)22.69dBA
Average PF (>1450 Load Combinations)0.944
Efficiency With 10W (≤500W) or 2% (>500W) Load68.859%
Standby Power Consumption0.1219W
Non-Accredited
12V Ripple (Full Load)43.64mV
5V Ripple (Full Load)30.45mV
3.3V Ripple (Full Load)26.55mV
5VSB Ripple (Full Load)32.22mV
12V Load Regulation0.24%
5V Load Regulation0.48%
3.3V Load Regulation0.70%
5VSB Load Regulation2.73%
Inrush Current28.980A
12V Transient Response (200%)11.37V
5V Transient Response (200%)4.866V
3.3V Transient Response (200%)3.165V
5VSB Transient Response (200%)4.888V
Hold-Up Time & PWR_OK Signal24.20ms
AC Loss to PWR_OK Hold Up Time21.30ms
PWR_OK Inactive to DC Loss Delay2.90ms
PSU Timings: T1 (20% / 100%)76.0ms76.0ms
PSU Timings: T3 (20% / 100%)124.0ms125.0ms
12V OCP (27.9°C / 41.7°C)104.700A (126.14%), 12.137V — shut down104.400A (125.78%), 12.140V — shut down
5V OCP (27.9°C / 41.7°C)29.400A (147.00%), 4.973V — shut down29.500A (147.50%), 4.972V — shut down
3.3V OCP (27.9°C / 41.7°C)28.700A (143.50%), 3.276V — shut down28.600A (143.00%), 3.274V — shut down
5VSB OCP (27.9°C / 41.7°C)3.900A (130.00%), 5.018V — shut down3.900A (130.00%), 5.019V — shut down
OPP (30.03°C / 42.36°C)136.31%120.91%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)24.2
AC Loss to PWR_OK Hold Up Time (ms)21.3
PWR_OK Inactive to DC Loss Delay (ms)2.9

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.01 V 114.98 V 113.85 V 115.05 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.16 % 2.00 % PASS
Real Power: 0.069 W 0.051 W N/A 0.092 W N/A N/A
Apparent Power: 6.888 W 6.763 W N/A 6.931 W N/A N/A
Power Factor: 0.012 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.00 V 229.97 V 227.70 V 230.01 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.122 W 0.083 W N/A 0.200 W N/A N/A
Apparent Power: 21.917 W 21.877 W N/A 21.955 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN 55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

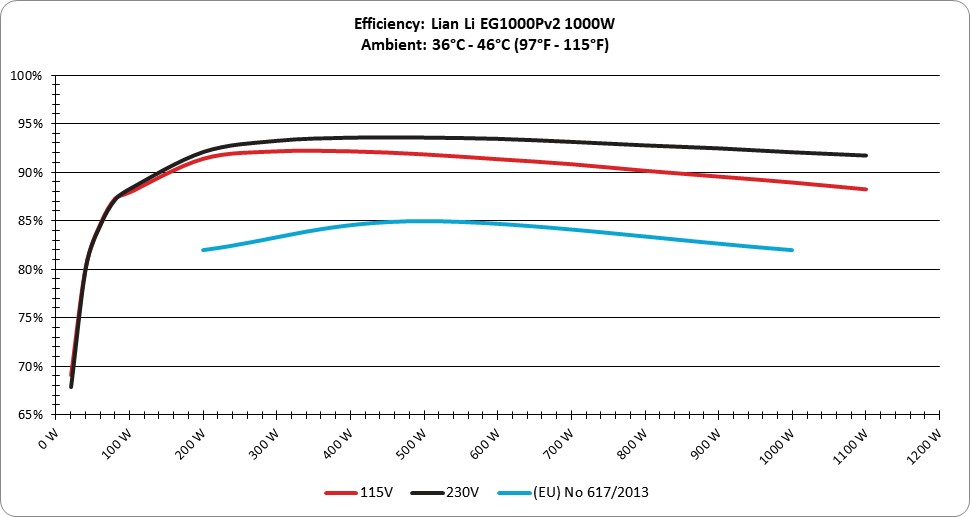

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

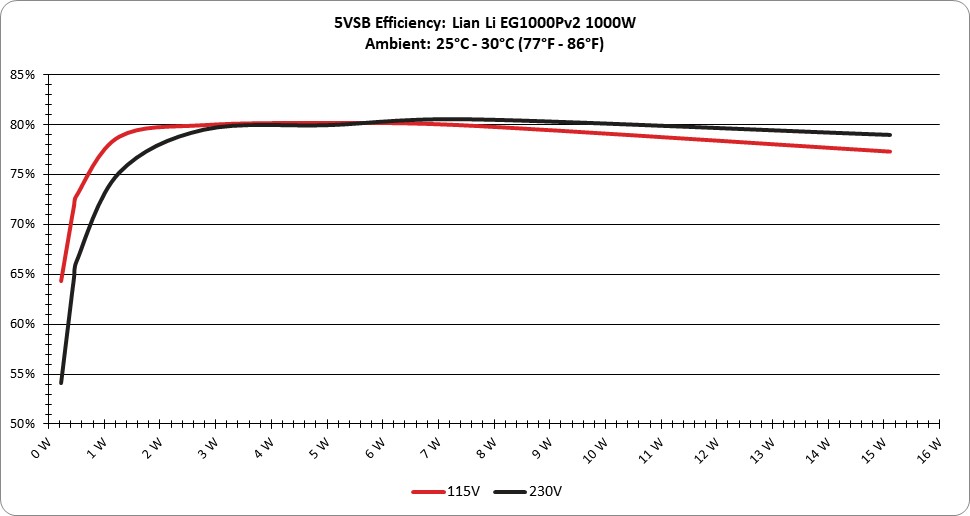

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 64.318% 0.056
5.09V 0.356W 115.05V
2 0.09A 0.458W 71.773% 0.097
5.089V 0.638W 115.05V
3 0.55A 2.794W 79.887% 0.326
5.081V 3.498W 115.04V
4 1A 5.072W 80.093% 0.423
5.072V 6.333W 115.05V
5 1.5A 7.595W 79.826% 0.476
5.063V 9.514W 115.04V
6 3A 15.102W 77.245% 0.541
5.034V 19.551W 115.04V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 54.074% 0.02
5.091V 0.424W 230V
2 0.09A 0.458W 64.525% 0.034
5.09V 0.71W 229.98V
3 0.55A 2.794W 79.417% 0.15
5.081V 3.518W 229.99V
4 1A 5.072W 79.869% 0.231
5.072V 6.351W 230.04V
5 1.5A 7.595W 80.437% 0.296
5.063V 9.442W 230.03V
6 3A 15.102W 78.883% 0.403
5.034V 19.145W 230.04V

Protection Features

OCP (Normal @ 27.9°C)12V: 104.700A (126.14%), 12.137V — shut down
5V: 29.400A (147.00%), 4.973V — shut down
3.3V: 28.700A (143.50%), 3.276V — shut down
5VSB: 3.900A (130.00%), 5.018V — shut down
OCP (Hot @ 41.7°C)12V: 104.400A (125.78%), 12.140V — shut down
5V: 29.500A (147.50%), 4.972V — shut down
3.3V: 28.600A (143.00%), 3.274V — shut down
5VSB: 3.900A (130.00%), 5.019V — shut down
OVP (per rail)12V: 13.880V (✓)
5V: 5.790V (✓)
3.3V: 3.780V (✓)
OPP (Normal @ 30.0°C)1363.09W (136.31%) — shut down
OPP (Hot @ 42.4°C)1209.05W (120.91%) — shut down
OTP✓ (113°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Typical Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN 55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.445A 1.995A 1.991A 0.987A 99.989 87.938% 720 14.3 40.04°C 0.931
12.163V 5.012V 3.315V 5.067V 113.704 43.83°C 115.02V
20% 13.901A 2.994A 2.989A 1.187A 199.937 91.379% 732 15.5 40.64°C 0.968
12.160V 5.009V 3.312V 5.055V 218.8 44.11°C 114.99V
30% 21.710A 3.495A 3.489A 1.388A 299.983 92.129% 777 17.1 41.25°C 0.975
12.157V 5.007V 3.311V 5.043V 325.611 45.76°C 114.95V
40% 29.479A 3.996A 3.989A 1.59A 399.499 92.13% 865 19.0 41.59°C 0.982
12.154V 5.005V 3.309V 5.032V 433.626 48.25°C 114.91V
50% 36.937A 5.001A 4.991A 1.793A 499.329 91.82% 1193 25.7 42.19°C 0.988
12.151V 5V 3.306V 5.019V 543.812 50.32°C 114.88V
60% 44.450A 6.003A 5.994A 1.997A 599.789 91.327% 1236 27.3 42.12°C 0.991
12.148V 4.998V 3.303V 5.007V 656.745 50.7°C 114.84V
70% 51.905A 7.007A 6.999A 2.202A 699.479 90.81% 1314 28.1 41.92°C 0.993
12.145V 4.995V 3.301V 4.995V 770.262 51.13°C 114.82V
80% 59.432A 8.011A 8.004A 2.307A 799.515 90.135% 1652 34.5 43.53°C 0.994
12.142V 4.992V 3.298V 4.984V 887.018 52.74°C 114.78V
90% 67.289A 8.514A 8.493A 2.413A 899.261 89.543% 1741 36.2 44.12°C 0.995
12.139V 4.99V 3.296V 4.974V 1004.283 53.43°C 114.73V
100% 74.950A 9.019A 9.015A 3.028A 999.243 88.933% 1830 37.5 45.23°C 0.996
12.136V 4.988V 3.294V 4.954V 1123.596 55.2°C 114.69V
110% 82.551A 10.028A 10.116A 3.034A 1099.874 88.224% 1839 37.7 46.39°C 0.996
12.133V 4.985V 3.292V 4.944V 1246.682 58.44°C 114.65V
CL1 0.114A 12.055A 12.033A 0A 101.279 82.856% 953 21.2 41.58°C 0.936
12.165V 4.992V 3.299V 5.075V 122.234 46.5°C 115.02V
CL2 0.114A 20.048A 0A 0A 101.332 81.3% 865 19.0 40.38°C 0.936
12.165V 4.985V 3.311V 5.078V 124.64 44.93°C 115.02V
CL3 0.113A 0A 20.06A 0A 67.391 75.848% 839 19.9 40.77°C 0.914
12.165V 5.001V 3.291V 5.078V 88.85 43.26°C 115.02V
CL4 82.066A 0A 0A 0.001A 995.921 89.775% 1830 37.5 45.35°C 0.996
12.136V 5V 3.306V 5.02V 1109.346 56.34°C 114.69V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.445A 1.995A 1.991A 0.987A 99.986 88.273% 674 13.1 40.18°C 0.839
12.163V 5.012V 3.315V 5.067V 113.269 42.85°C 229.99V
20% 13.901A 2.994A 2.989A 1.187A 199.937 92.072% 735 15.5 40.52°C 0.91
12.160V 5.009V 3.312V 5.055V 217.153 42.44°C 230V
30% 21.710A 3.495A 3.489A 1.388A 299.996 93.218% 805 18.1 41.34°C 0.94
12.158V 5.007V 3.31V 5.043V 321.823 43.2°C 229.94V
40% 29.485A 3.996A 3.99A 1.59A 399.56 93.542% 886 20.9 41.63°C 0.954
12.154V 5.005V 3.309V 5.032V 427.143 43.71°C 229.97V
50% 36.935A 4.998A 4.991A 1.793A 499.306 93.547% 1011 22.5 42.47°C 0.964
12.151V 5.003V 3.306V 5.019V 533.75 43.92°C 229.95V
60% 44.456A 6.001A 5.995A 1.998A 599.848 93.417% 1166 26.2 42.63°C 0.97
12.148V 5V 3.303V 5.006V 642.118 43.72°C 229.93V
70% 51.914A 7.005A 7A 2.203A 699.578 93.108% 1333 29.0 43.13°C 0.974
12.144V 4.997V 3.301V 4.994V 751.359 44.66°C 229.9V
80% 59.436A 8.007A 8.005A 2.308A 799.553 92.748% 1668 35.0 43.68°C 0.977
12.142V 4.994V 3.298V 4.983V 862.069 45.72°C 229.9V
90% 67.293A 8.512A 8.495A 2.413A 899.328 92.439% 1831 37.5 44.98°C 0.98
12.139V 4.992V 3.296V 4.973V 972.892 47.42°C 229.87V
100% 74.955A 9.016A 9.016A 3.029A 999.314 92.041% 1839 37.7 45.42°C 0.983
12.136V 4.99V 3.294V 4.953V 1085.726 48.06°C 229.84V
110% 82.560A 10.027A 10.117A 3.034A 1099.928 91.7% 1841 37.7 46.12°C 0.984
12.132V 4.985V 3.291V 4.944V 1199.525 48.29°C 229.81V
CL1 0.114A 12.055A 12.034A 0A 101.282 83.594% 1008 22.5 40.05°C 0.847
12.165V 4.992V 3.299V 5.074V 121.161 44.2°C 229.98V
CL2 0.114A 20.047A 0A 0A 101.335 82.056% 853 19.4 40.88°C 0.849
12.165V 4.986V 3.311V 5.077V 123.494 42.69°C 230V
CL3 0.114A 0A 20.06A 0A 67.392 76.076% 829 18.6 40.03°C 0.801
12.165V 5.001V 3.291V 5.077V 88.586 41.82°C 230.01V
CL4 82.070A 0A 0A 0.001A 995.935 92.904% 1794 37.3 45.33°C 0.982
12.135V 5V 3.306V 5.019V 1071.999 48.26°C 229.83V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.499A 0.498A 0.197A 19.997 69.133% 0 <6.0 38.02°C 0.817
12.166V 5.013V 3.316V 5.089V 28.925 36.63°C 115.05V
40W 2.686A 0.698A 0.697A 0.295A 39.996 80.275% 0 <6.0 38.97°C 0.873
12.165V 5.013V 3.316V 5.085V 49.824 37.15°C 115.04V
60W 4.154A 0.897A 0.895A 0.393A 59.995 84.691% 0 <6.0 39.41°C 0.904
12.164V 5.013V 3.316V 5.082V 70.839 38.05°C 115.04V
80W 5.616A 1.097A 1.094A 0.492A 79.936 87.288% 731 15.5 39.09°C 0.916
12.164V 5.013V 3.316V 5.078V 91.577 41.9°C 115.03V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.499A 0.498A 0.197A 19.995 67.819% 0 <6.0 43.94°C 0.59
12.165V 5.014V 3.316V 5.088V 29.482 36.15°C 230.02V
40W 2.686A 0.698A 0.697A 0.295A 39.995 80.096% 0 <6.0 44.48°C 0.698
12.165V 5.013V 3.316V 5.085V 49.934 37.11°C 230V
60W 4.154A 0.897A 0.895A 0.393A 59.995 84.554% 697 13.6 38.06°C 0.763
12.164V 5.013V 3.317V 5.082V 70.954 41.58°C 229.99V
80W 5.616A 1.097A 1.094A 0.492A 79.936 87.165% 681 13.1 39.17°C 0.806
12.163V 5.013V 3.316V 5.078V 91.707 40.97°C 230.01V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 31.93mV 27.13mV 24.91mV 23.58mV Pass
20% Load 32.94mV 26.06mV 23.53mV 23.73mV Pass
30% Load 40.88mV 27.48mV 24.04mV 27.01mV Pass
40% Load 34.58mV 26.41mV 24.86mV 24.70mV Pass
50% Load 37.24mV 28.05mV 26.85mV 25.22mV Pass
60% Load 38.83mV 29.33mV 28.29mV 26.85mV Pass
70% Load 39.81mV 29.33mV 29.41mV 26.14mV Pass
80% Load 39.19mV 29.73mV 29.46mV 28.49mV Pass
90% Load 41.34mV 29.99mV 26.24mV 28.85mV Pass
100% Load 43.95mV 28.81mV 25.48mV 29.67mV Pass
110% Load 44.87mV 30.30mV 26.60mV 30.69mV Pass
Crossload1 30.03mV 26.77mV 24.76mV 35.35mV Pass
Crossload2 32.44mV 29.17mV 25.63mV 36.42mV Pass
Crossload3 28.91mV 25.90mV 24.91mV 34.27mV Pass
Crossload4 43.38mV 27.95mV 26.29mV 30.13mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 28.75mV 25.75mV 23.63mV 23.12mV Pass
20% Load 31.87mV 25.65mV 23.38mV 23.63mV Pass
30% Load 34.02mV 26.11mV 23.84mV 24.71mV Pass
40% Load 35.51mV 27.38mV 24.86mV 25.68mV Pass
50% Load 37.35mV 28.30mV 27.42mV 25.37mV Pass
60% Load 38.27mV 29.68mV 28.65mV 25.93mV Pass
70% Load 38.93mV 31.63mV 29.93mV 26.96mV Pass
80% Load 39.96mV 29.94mV 31.61mV 27.93mV Pass
90% Load 41.44mV 29.33mV 27.98mV 28.24mV Pass
100% Load 43.64mV 30.45mV 26.55mV 32.22mV Pass
110% Load 43.64mV 29.27mV 25.89mV 31.51mV Pass
Crossload1 29.47mV 26.51mV 23.94mV 23.43mV Pass
Crossload2 30.64mV 29.89mV 26.09mV 23.83mV Pass
Crossload3 29.88mV 25.44mV 25.17mV 24.35mV Pass
Crossload4 42.67mV 28.15mV 26.34mV 28.64mV Pass

The results above are not used in the certification process

Lian Li EG1000Pv2

Top side
Top side
Power specifications label
Power specifications label
Fan
Fan
PSU Internals
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics runs voluntary certification programs for power supplies - ETA for efficiency, LAMBDA for noise and SAFE for safety and correct operation - and for cooling products, with DELTA for chassis soundproofing and PHI for fan airflow and static pressure. THETA rates cooler performance on AMD AM5 and Intel LGA1851 outside ISO 17065 and accreditation scope
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
