CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

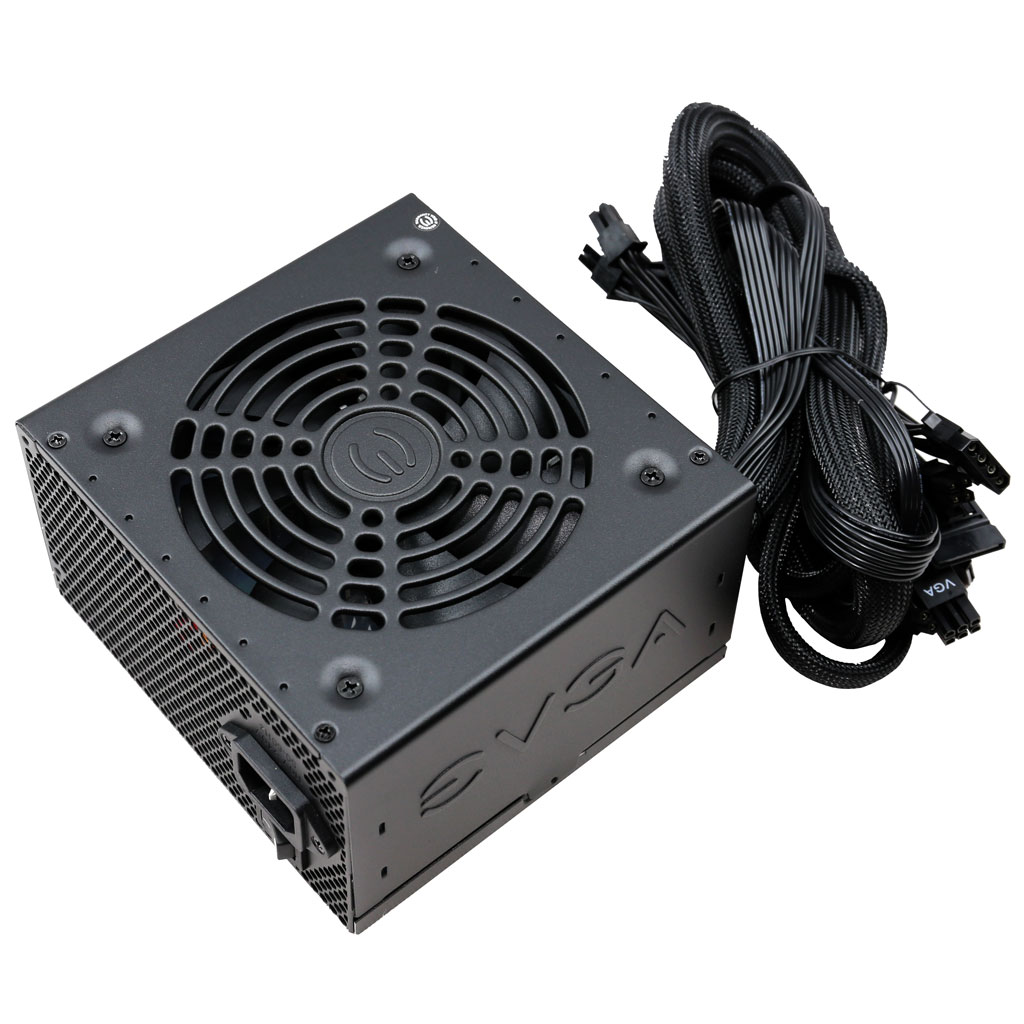

EVGA 450 BT
Serial Number1703430421801322
Lab ID366
Certification ID25366
  • Test Result Report ID:
  • Certificate Issue Date: Feb 5, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandEVGA
Hersteller (OEM)RSY
SeriesBT
Model Number
Serial Number1703430421801322
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6
Rated Frequency (Hz)50-60
Rated Power (W)450
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Sleeve Bearing Fan
(S1202512L)
Semi-Passive Operation✗
Cable DesignFixed cables

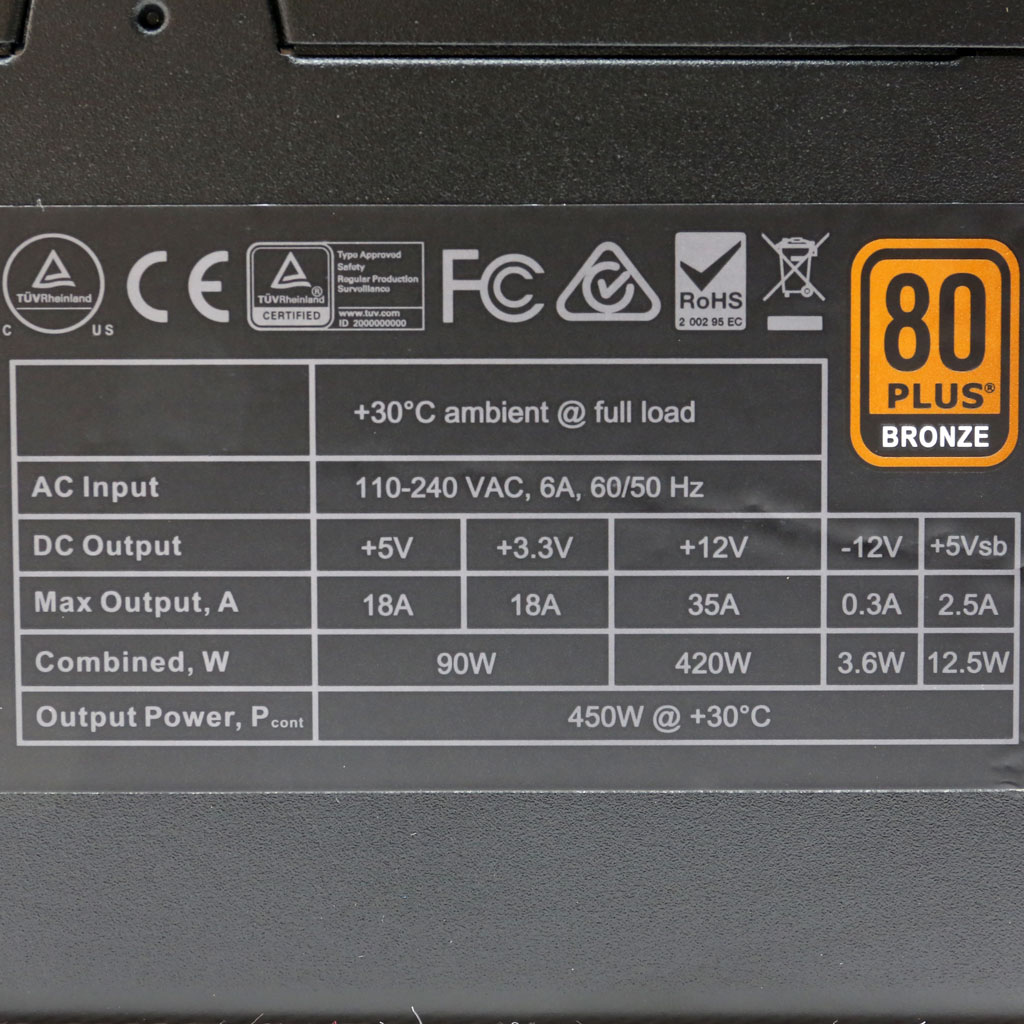

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 18 18 100 2.5 0.3
Watts 90 420 12.5 3.6
Total Max. Power (W) 450

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (560mm) 1 1 20-24AWG No
4+4 pin EPS12V (620mm) 1 1 20AWG No
6+2 pin PCIe (570mm+150mm) 1 2 18-22AWG No
SATA (480mm+120mm) 2 4 20AWG No
4 pin Molex (480mm+120mm+120mm) / FDD (+120mm) 1 3 / 1 20-22AWG No
AC Power Cord (1070mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) RSY (Super Flower design)
Primary Side
Transient Filter 4x Y caps, 4x X caps, 2x CM chokes, 1x MOV (10D561K)
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x GBU806 (600V, 10A @ 100°C)
APFC MOSFETS 2x Infineon IPA50R280CE (550V, 11.4A @ 100°C, 0.28Ohm)
APFC Boost Diode 1x STMicroelectronics STTH8R06D (600V, 8A @ 130°C)
Hold-up Cap(s) 1x Teapo (400V, 270uF, 2000h @ 105°C, LW)
Main Switchers 2x Infineon IPA50R280CE (550V, 11.4A @ 100°C, 0.28Ohm)
Combo APFC/PWM Controller On Semiconductor FAN4800C & CM03X Green PFC controller
Topology Primary side: Double-Forward
Secondary side: Passive Rectification & Group Regulation Design
Secondary Side
+12V MOSFETS 2x Mospec S30M60C SBR (60V, 30A)
5V & 3.3V 2x Mospec S30M45C SBR (45V, 30A)
Filtering Capacitors Electrolytics: Teapo (1-3,000 @ 105°C, SC)
Supervisor IC Grenergy GR8323N (OVP, UVP, OCP, SCP, PG)
Fan Model Globe Fan S1202512L (120mm, 12V, 0.18A, 50 CFM, 34 dB[A], 2000 RPM, Sleeve Bearing)
5VSB Circuit
Rectifier 1x Mospec S30M60C SBR (60V, 30A)
Standby PWM Controller Excelliance EM8564A

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

WirkungsgradBRONZE
LautstärkeklasseStandard+
Average Efficiency (>1450 load combinations)84.035%
Average Noise Output (>1450 Load Combinations)37.79dBA
Average PF (>1450 Load Combinations)0.968
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0449W
12V Ripple (Full Load)23.06mV
5V Ripple (Full Load)20.18mV
3.3V Ripple (Full Load)19.99mV
5VSB Ripple (Full Load)10.95mV
12V Load Regulation0.48%
5V Load Regulation0.80%
3.3V Load Regulation0.39%
5VSB Load Regulation1.77%
Inrush Current40.741A
Wirkungsgrad
LautstärkeklasseStandard+
Average Efficiency (>1450 load combinations)85.996%
Average Noise Output (>1450 Load Combinations)37.74dBA
Average PF (>1450 Load Combinations)0.848
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0877W
12V Ripple (Full Load)20.48mV
5V Ripple (Full Load)20.32mV
3.3V Ripple (Full Load)20.52mV
5VSB Ripple (Full Load)10.84mV
12V Load Regulation0.66%
5V Load Regulation1.00%
3.3V Load Regulation0.36%
5VSB Load Regulation1.71%
Inrush Current86.352A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal10.70ms
AC Loss to PWR_OK Hold Up Time9.80ms
PWR_OK Inactive to DC Loss Delay0.90ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 10.70
AC Loss to PWR_OK Hold Up Time  (ms) 9.80
PWR_OK Inactive to DC Loss Delay (ms) 0.90

Stromverbrauch im Ruhezustand

Tables

Graphs

INFO

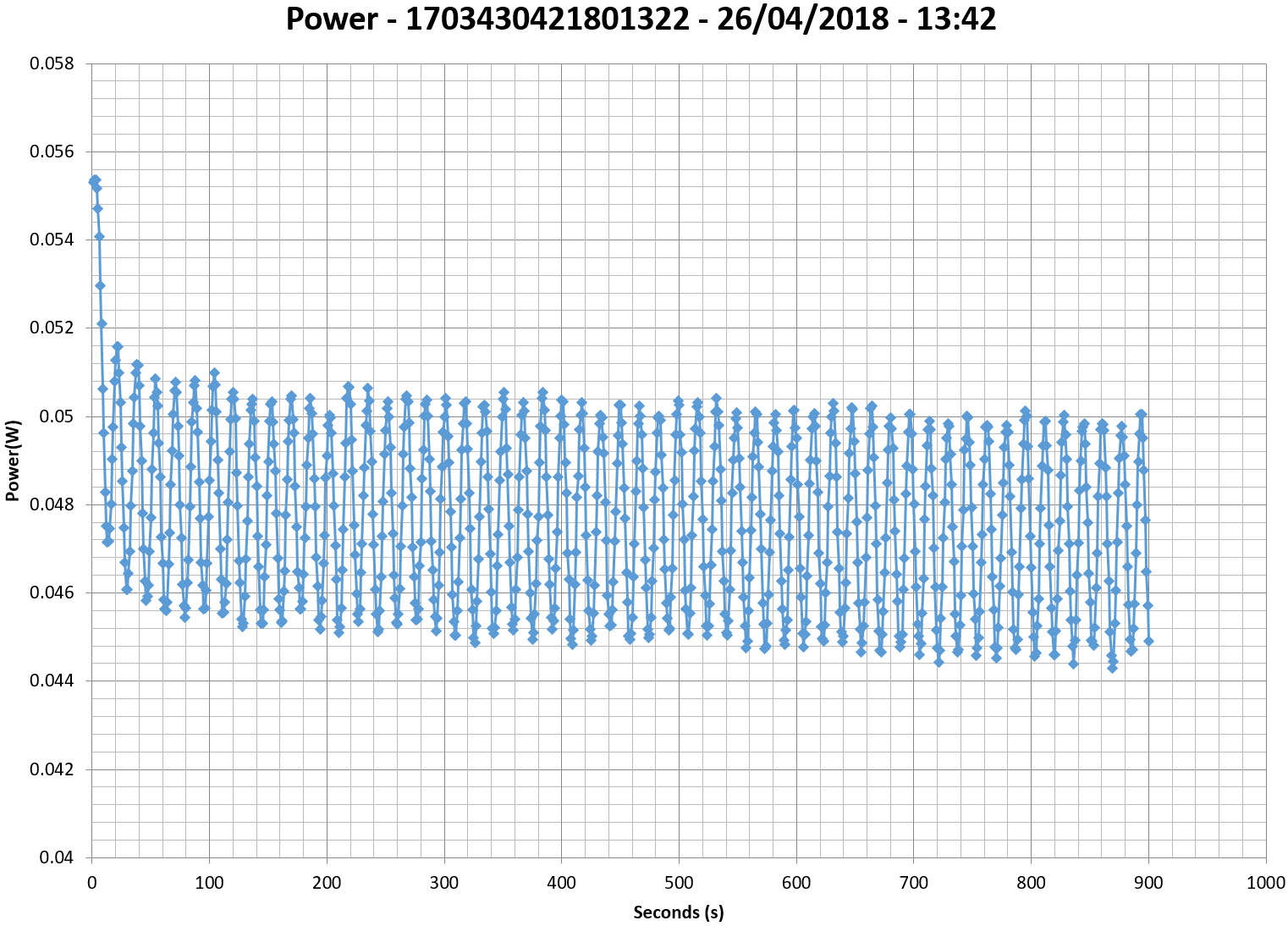

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

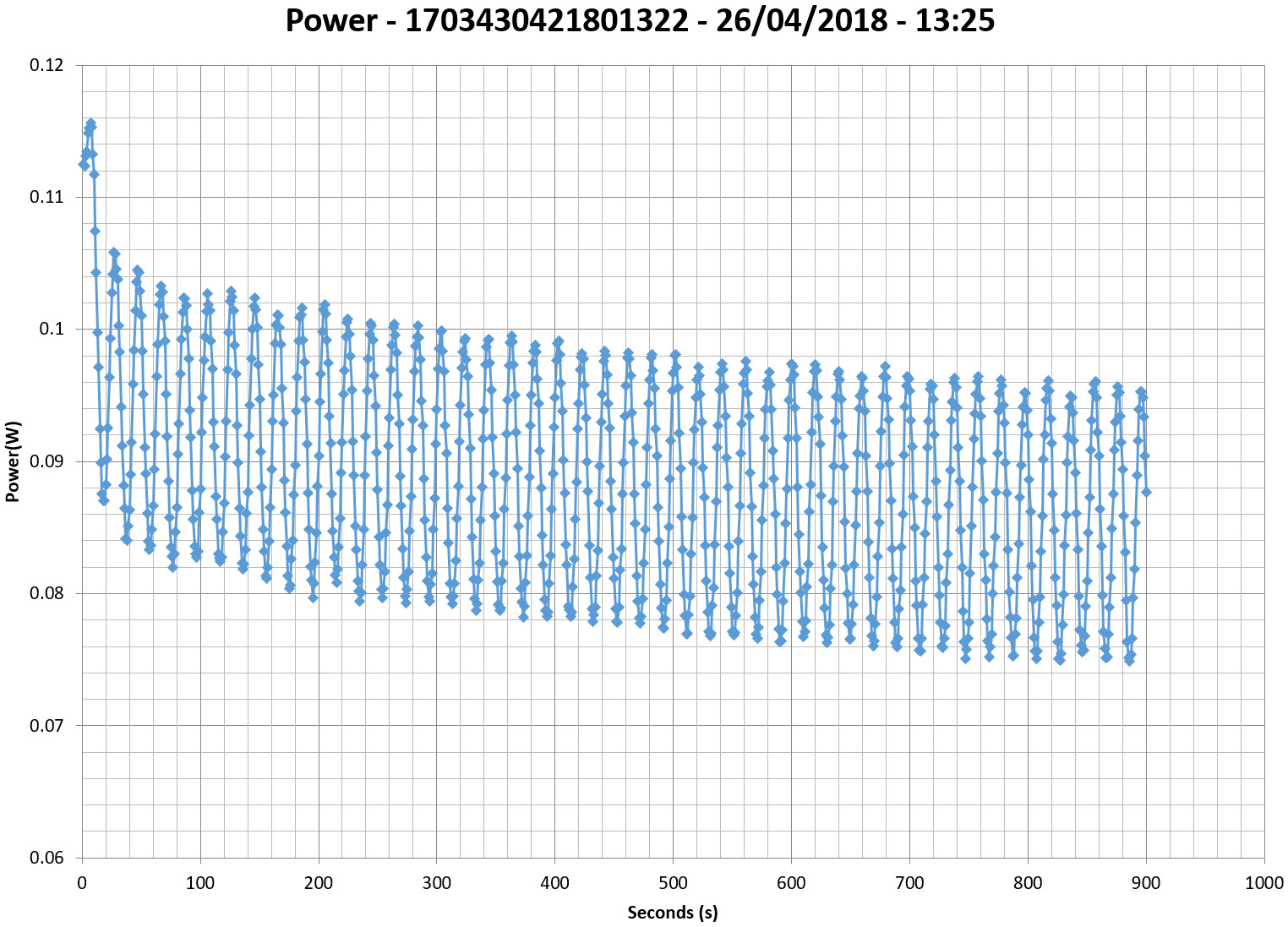

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

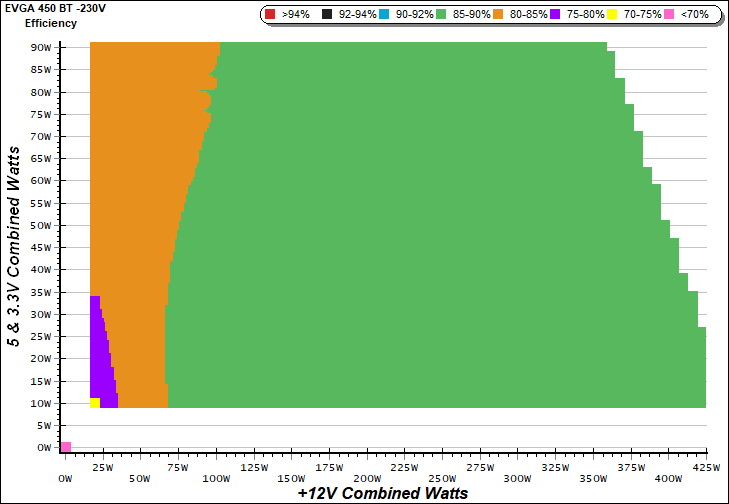

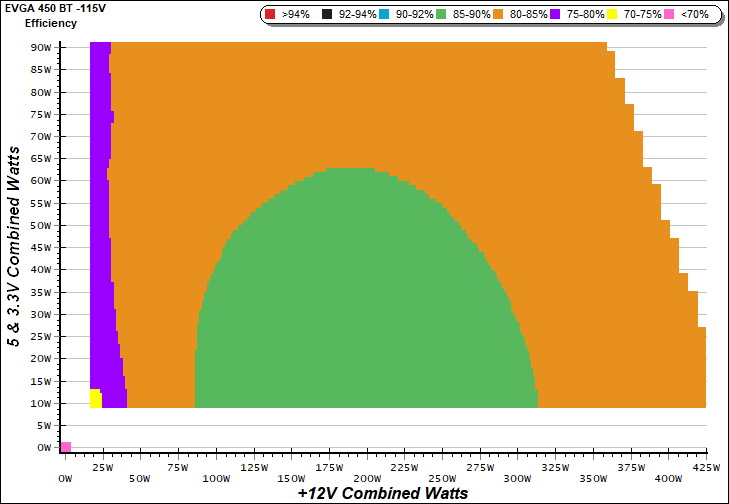

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

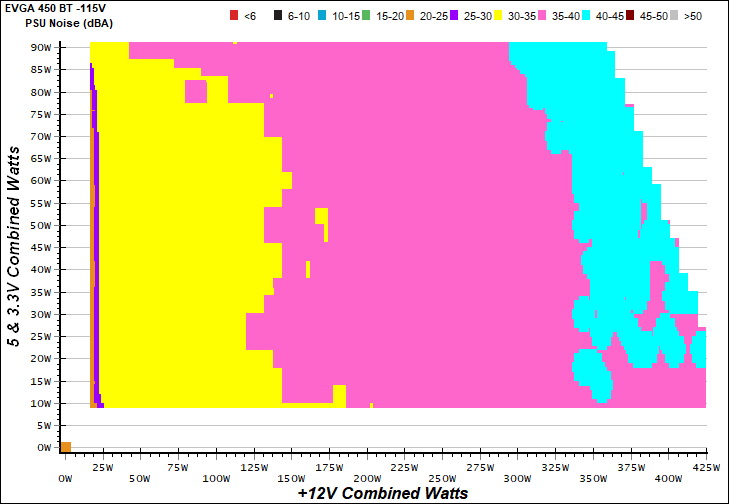

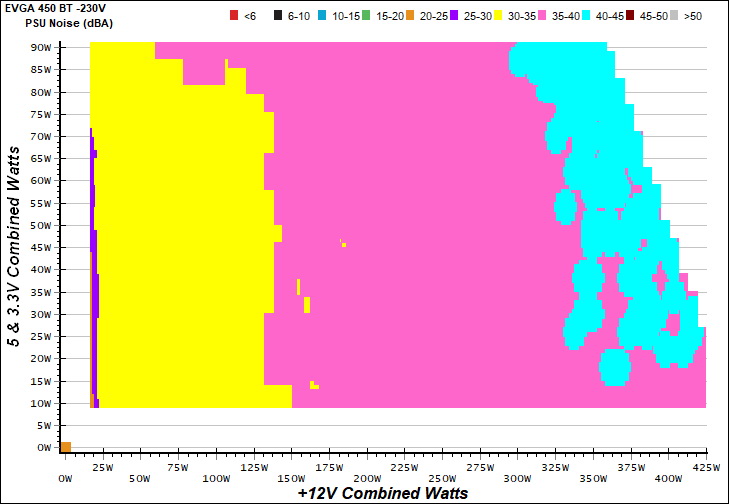

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

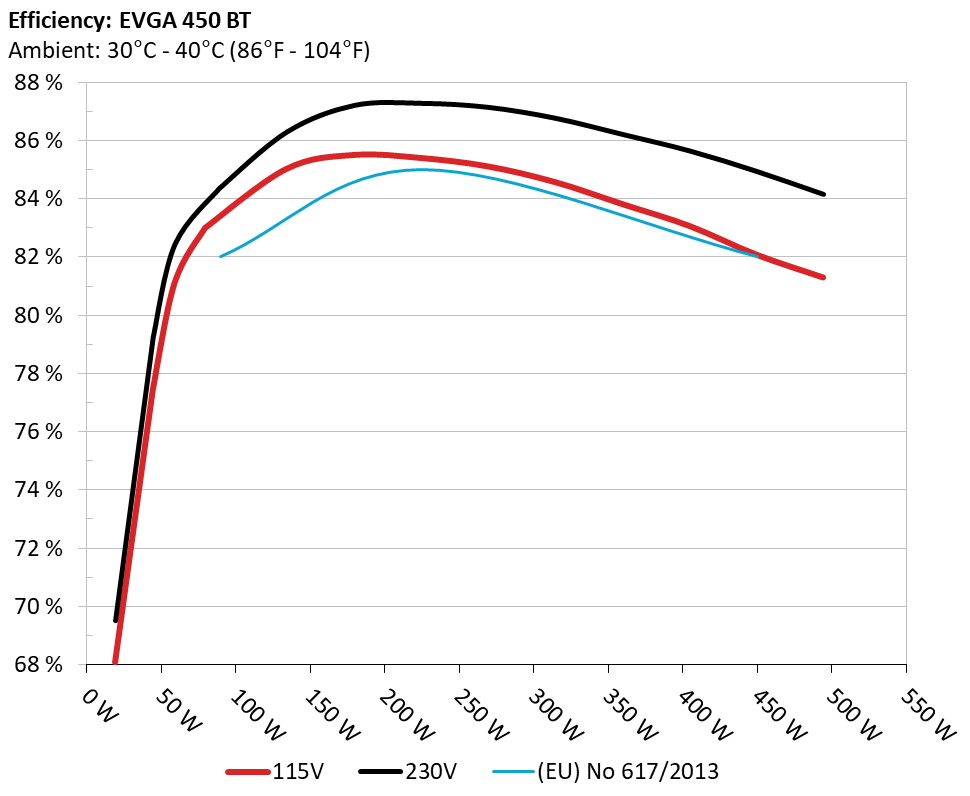

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

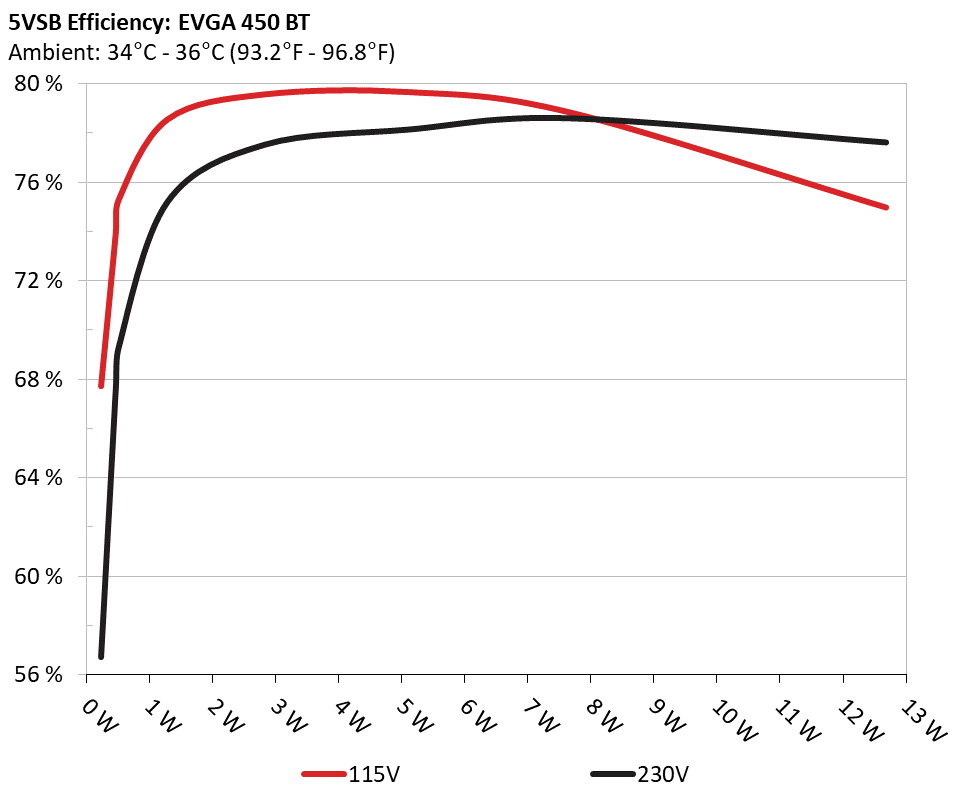

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.233 67.733% 0.020
5.153V 0.344 115.38V
2 0.090A 0.464 73.885% 0.035
5.152V 0.628 115.38V
3 0.550A 2.827 79.589% 0.181
5.138V 3.552 115.37V
4 1.000A 5.125 79.680% 0.282
5.123V 6.432 115.37V
5 1.500A 7.662 78.860% 0.356
5.107V 9.716 115.38V
6 2.501A 12.685 74.993% 0.438
5.072V 16.915 115.36V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 56.724% 0.008
5.153V 0.409 230.97V
2 0.090A 0.464 67.540% 0.012
5.152V 0.687 230.96V
3 0.550A 2.827 77.537% 0.064
5.137V 3.646 230.97V
4 1.000A 5.124 78.157% 0.112
5.123V 6.556 230.97V
5 1.500A 7.663 78.611% 0.160
5.108V 9.748 230.96V
6 2.500A 12.689 77.632% 0.240
5.075V 16.345 230.96V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 1.941A 1.969A 1.974A 0.975A 44.757 77.194% 1090 26.9 32.03°C 0.688
11.939V 5.077V 3.337V 5.127V 57.980 36.05°C 115.32V
2 4.891A 2.956A 2.967A 1.172A 89.294 83.015% 1282 33.2 32.74°C 0.870
11.940V 5.074V 3.336V 5.119V 107.564 37.21°C 115.26V
3 8.254A 3.446A 3.448A 1.370A 134.418 85.044% 1405 34.9 33.19°C 0.961
11.923V 5.080V 3.335V 5.110V 158.057 38.14°C 115.20V
4 11.628A 3.934A 3.960A 1.568A 179.647 85.522% 1460 35.7 33.84°C 0.965
11.906V 5.085V 3.333V 5.102V 210.060 39.61°C 115.14V
5 14.646A 4.922A 4.950A 1.767A 224.945 85.417% 1548 38.3 34.52°C 0.978
11.911V 5.080V 3.332V 5.093V 263.348 41.34°C 115.08V
6 17.593A 5.913A 5.946A 1.967A 269.444 85.130% 1680 39.8 35.59°C 0.986
11.916V 5.074V 3.330V 5.085V 316.508 42.99°C 115.11V
7 20.609A 6.904A 6.940A 2.167A 314.747 84.589% 1715 41.1 36.43°C 0.990
11.919V 5.070V 3.329V 5.077V 372.091 45.35°C 115.04V
8 23.624A 7.895A 7.934A 2.368A 360.086 83.829% 1795 41.6 37.69°C 0.993
11.924V 5.066V 3.327V 5.068V 429.547 48.29°C 114.97V
9 27.081A 8.381A 8.417A 2.369A 404.988 83.079% 1807 41.7 38.62°C 0.995
11.908V 5.072V 3.326V 5.067V 487.471 50.41°C 114.89V
10 30.474A 8.866A 8.933A 2.470A 449.704 82.096% 1825 41.9 39.12°C 0.996
11.895V 5.077V 3.325V 5.061V 547.778 53.91°C 114.92V
11 34.307A 8.850A 8.936A 2.471A 494.510 81.313% 1800 41.7 39.63°C 0.997
11.872V 5.086V 3.324V 5.060V 608.154 55.15°C 114.85V
CL1 0.139A 11.000A 11.000A 0.000A 91.767 77.046% 1765 41.5 36.59°C 0.924
12.388V 4.850V 3.336V 5.151V 119.107 44.14°C 115.24V
CL2 35.003A 1.002A 1.000A 1.000A 416.574 82.744% 1740 41.3 38.67°C 0.995
11.509V 5.275V 3.327V 5.112V 503.449 51.99°C 114.88V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 1.941A 1.969A 1.977A 0.976A 44.772 78.421% 1120 27.6 32.27°C 0.498
11.939V 5.078V 3.337V 5.126V 57.092 35.87°C 230.82V
2 4.891A 2.956A 2.967A 1.173A 89.298 84.236% 1225 31.1 32.77°C 0.594
11.940V 5.074V 3.336V 5.118V 106.009 36.69°C 230.80V
3 8.253A 3.447A 3.450A 1.370A 134.418 86.299% 1350 33.5 33.11°C 0.650
11.924V 5.079V 3.334V 5.110V 155.759 37.44°C 230.75V
4 11.628A 3.934A 3.957A 1.568A 179.636 87.214% 1454 35.6 33.73°C 0.838
11.906V 5.085V 3.333V 5.102V 205.971 38.93°C 230.73V
5 14.642A 4.924A 4.949A 1.767A 224.933 87.286% 1570 38.4 34.50°C 0.882
11.914V 5.077V 3.332V 5.093V 257.696 40.51°C 230.70V
6 17.593A 5.913A 5.944A 1.967A 269.419 87.150% 1635 38.8 35.66°C 0.912
11.915V 5.074V 3.330V 5.085V 309.144 42.47°C 230.67V
7 20.607A 6.905A 6.937A 2.167A 314.716 86.771% 1725 41.2 36.25°C 0.933
11.919V 5.070V 3.329V 5.076V 362.697 44.74°C 230.72V
8 23.620A 7.895A 7.934A 2.369A 360.043 86.213% 1787 41.6 37.25°C 0.945
11.924V 5.066V 3.327V 5.068V 417.622 47.05°C 230.69V
9 27.078A 8.381A 8.415A 2.369A 404.943 85.646% 1807 41.7 38.78°C 0.954
11.908V 5.072V 3.326V 5.066V 472.808 50.05°C 230.65V
10 30.468A 8.866A 8.931A 2.470A 449.648 84.945% 1825 41.9 39.28°C 0.961
11.896V 5.076V 3.325V 5.061V 529.343 52.77°C 230.61V
11 34.315A 8.845A 8.935A 2.471A 494.464 84.156% 1827 42.0 39.69°C 0.966
11.868V 5.089V 3.324V 5.059V 587.554 55.61°C 230.57V
CL1 0.135A 11.001A 10.999A 0.000A 91.708 78.298% 1795 41.6 36.44°C 0.607
12.392V 4.849V 3.336V 5.151V 117.127 44.13°C 230.88V
CL2 35.004A 1.000A 0.999A 1.000A 416.538 85.589% 1745 41.3 37.45°C 0.956
11.508V 5.277V 3.327V 5.111V 486.670 49.55°C 230.65V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.212A 0.486A 0.477A 0.194A 19.448 68.090% 890 20.1 0.505
11.853V 5.123V 3.339V 5.152V 28.562 115.34V
2 2.490A 0.978A 0.987A 0.389A 39.879 77.464% 1034 25.3 0.653
11.883V 5.107V 3.338V 5.145V 51.481 115.32V
3 3.695A 1.470A 1.467A 0.584A 59.347 81.125% 1120 27.6 0.742
11.896V 5.099V 3.337V 5.138V 73.155 115.30V
4 4.974A 1.963A 1.975A 0.780A 79.803 82.994% 1186 30.0 0.796
11.904V 5.094V 3.337V 5.131V 96.155 115.27V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.214A 0.489A 0.477A 0.194A 19.495 69.498% 866 19.0 0.250
11.862V 5.117V 3.338V 5.151V 28.051 230.68V
2 2.493A 0.980A 0.986A 0.389A 39.925 79.252% 875 19.2 0.483
11.885V 5.105V 3.338V 5.144V 50.377 230.82V
3 3.697A 1.471A 1.468A 0.584A 59.377 82.444% 1080 26.6 0.537
11.896V 5.098V 3.337V 5.137V 72.021 230.82V
4 4.976A 1.964A 1.977A 0.780A 79.830 84.369% 1180 29.8 0.580
11.903V 5.094V 3.336V 5.130V 94.620 230.81V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.9 mV 11.2 mV 11.4 mV 7.7 mV Pass
20% Load 5.1 mV 11.6 mV 11.6 mV 9.0 mV Pass
30% Load 6.2 mV 12.4 mV 12.4 mV 8.4 mV Pass
40% Load 7.3 mV 13.2 mV 12.4 mV 9.1 mV Pass
50% Load 8.6 mV 14.3 mV 13.7 mV 9.1 mV Pass
60% Load 11.0 mV 15.1 mV 14.6 mV 8.3 mV Pass
70% Load 13.6 mV 16.4 mV 16.2 mV 9.3 mV Pass
80% Load 16.2 mV 17.6 mV 18.1 mV 9.9 mV Pass
90% Load 19.1 mV 18.7 mV 18.6 mV 10.5 mV Pass
100% Load 23.1 mV 20.2 mV 20.0 mV 11.0 mV Pass
110% Load 27.1 mV 21.6 mV 19.8 mV 10.8 mV Pass
Crossload 1 16.2 mV 17.8 mV 25.1 mV 13.4 mV Pass
Crossload 2 24.4 mV 18.6 mV 13.3 mV 9.3 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 4.6 mV 11.0 mV 11.0 mV 7.8 mV Pass
20% Load 5.3 mV 11.7 mV 12.2 mV 8.9 mV Pass
30% Load 6.3 mV 12.3 mV 12.4 mV 9.6 mV Pass
40% Load 6.9 mV 12.7 mV 12.4 mV 8.4 mV Pass
50% Load 8.2 mV 13.8 mV 13.8 mV 8.4 mV Pass
60% Load 10.4 mV 14.4 mV 14.7 mV 8.4 mV Pass
70% Load 11.7 mV 15.0 mV 15.8 mV 9.2 mV Pass
80% Load 13.8 mV 16.1 mV 18.3 mV 9.3 mV Pass
90% Load 16.9 mV 17.6 mV 18.8 mV 9.6 mV Pass
100% Load 20.5 mV 20.3 mV 20.5 mV 10.8 mV Pass
110% Load 25.3 mV 21.0 mV 20.0 mV 10.3 mV Pass
Crossload 1 20.1 mV 19.7 mV 25.8 mV 14.1 mV Pass
Crossload 2 28.1 mV 19.0 mV 13.1 mV 8.9 mV Pass

The results above are not used in the certification process

EVGA 450 BT

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
