CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

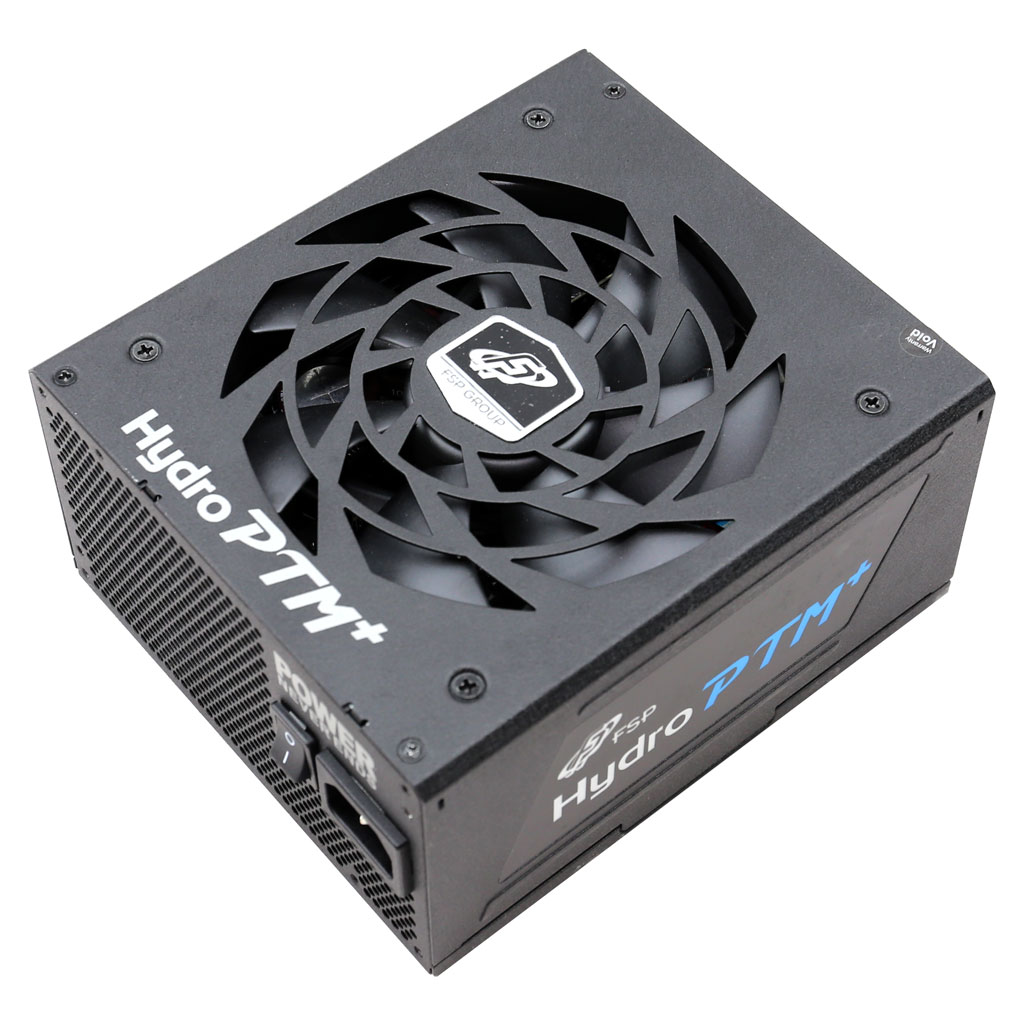

FSP Technology Inc. HPT850M Hydro
Serial Number
Lab ID434
Certification ID25434
  • Test Result Report ID:
  • Certificate Issue Date: Jul 20, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandFSP Technology
Manufacturer (OEM)FSP
SeriesHydro PTM
Model Number
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing Fan
(MGA13512XF-A25)
Semi-Passive Operation✓
Cable DesignFully Modular

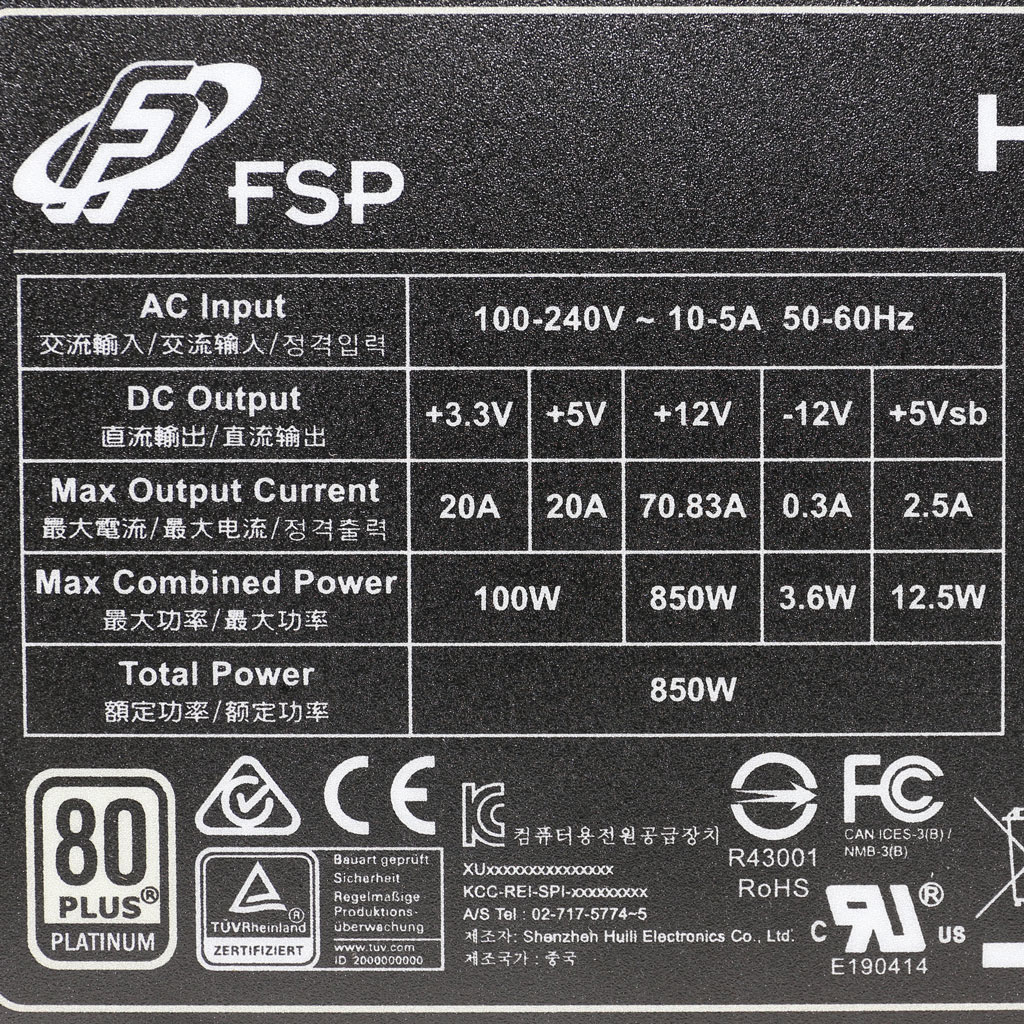

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 70.83 2.5 0.3
Watts 100 850 12.5 3.6
Total Max. Power (W) 850

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-22AWG No
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (650mm+150mm) 2 4 18AWG No
6+2 pin PCIe (500mm+150mm) 2 4 16-18AWG No
SATA (500mm+150mm+150mm+150mm) 2 8 18AWG No
SATA (500mm+160mm) / 4 pin Molex (+160mm+100mm) 1 2 / 2 18AWG No
SATA (500mm+160mm) / 4 pin Molex (+160mm) / FDD (+160mm) 1 2 / 1 / 1 18-22AWG No
LED Light Cable (+600mm) 1 1 26AWG No
AC Power Cord (1360mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) FSP
Platform Model HPT (M)
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 3x GBJ1506 (600V, 15A @ 100°C)
APFC MOSFETS 2x Infineon IPA60R120P7 (650V, 16A @ 100°C, 0.12Ohm)
APFC Boost Diode 1x ROHM SCS308AP (650V, 8A @ 135°C)
Hold-up Cap(s) 2x Chemi-Con (420V, 330uF, 2000h @ 105 °C, KMZ)
Main Switchers 2x STi STF28N60M2
(650V, 14A @ 100°C, 0.15Ohm)
Driver IC: Silicon Labs Si8233BD
APFC Controller Infineon ICE2PCS02
LLC Resonant Controller Champion CM6901T2X
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 6x Infineon BSC010N04LS (40V, 100A @ 100°C, 1mOhm)
5V & 3.3V DC-DC Converters: 4x Infineon BSC0901NS (30V, 94A @ 100°C, 2.4mOhm)
PWM Controller: Anpec APW7159C
Filtering Capacitors Electrolytics: Chemi-Con (1-5,000 @ 105°C, KZE), Chemi-Con (4-10,000 @ 105°C, KY), 3x Rubycon (105°C)
Polymers: Chemi-Con
Supervisor IC SITI PS223H (4-channel OCP, OVP, UVP, OTP, SCP, PG)
Fan Model Protechnic Electric MGA13512XF-A25 (135mm, 12V, 0.38A, Fluid Dynamic Bearing)
5VSB Circuit
Rectifier 1x Infineon IRFR1018E (60V, 56A @ 100°C, 8.4mOhm)
Standby PWM Controller InnoSwitch3-EP INN3674C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)90.589%
Average Noise Output (>1450 Load Combinations)24.90dBA
Average PF (>1450 Load Combinations)0.994
Efficiency With 10W (≤500W) or 2% (>500W) Load70.233%
Standby Power Consumption0.0552W
12V Ripple (Full Load)24.22mV
5V Ripple (Full Load)7.42mV
3.3V Ripple (Full Load)15.99mV
5VSB Ripple (Full Load)18.10mV
12V Load Regulation0.46%
5V Load Regulation0.65%
3.3V Load Regulation0.63%
5VSB Load Regulation1.51%
Inrush Current30.108A
Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)92.672%
Average Noise Output (>1450 Load Combinations)22.75dBA
Average PF (>1450 Load Combinations)0.969
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1603W
12V Ripple (Full Load)23.84mV
5V Ripple (Full Load)7.60mV
3.3V Ripple (Full Load)13.49mV
5VSB Ripple (Full Load)17.21mV
12V Load Regulation0.44%
5V Load Regulation0.65%
3.3V Load Regulation0.66%
5VSB Load Regulation1.57%
Inrush Current58.961A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal16.70ms
AC Loss to PWR_OK Hold Up Time15.80ms
PWR_OK Inactive to DC Loss Delay0.90ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 16.70
AC Loss to PWR_OK Hold Up Time  (ms) 15.80
PWR_OK Inactive to DC Loss Delay (ms) 0.90

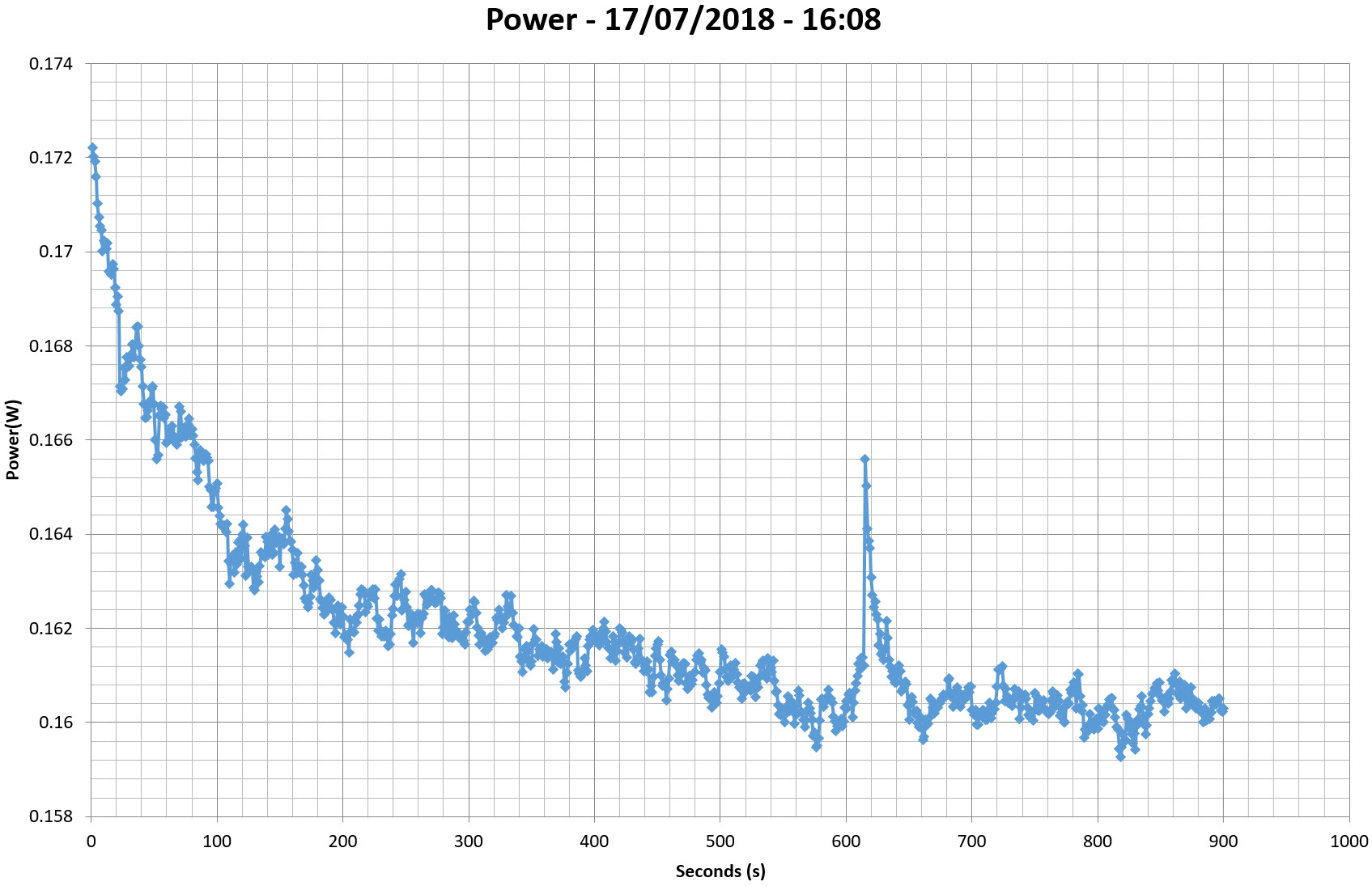

Vampire Power

Tables

Graphs

INFO

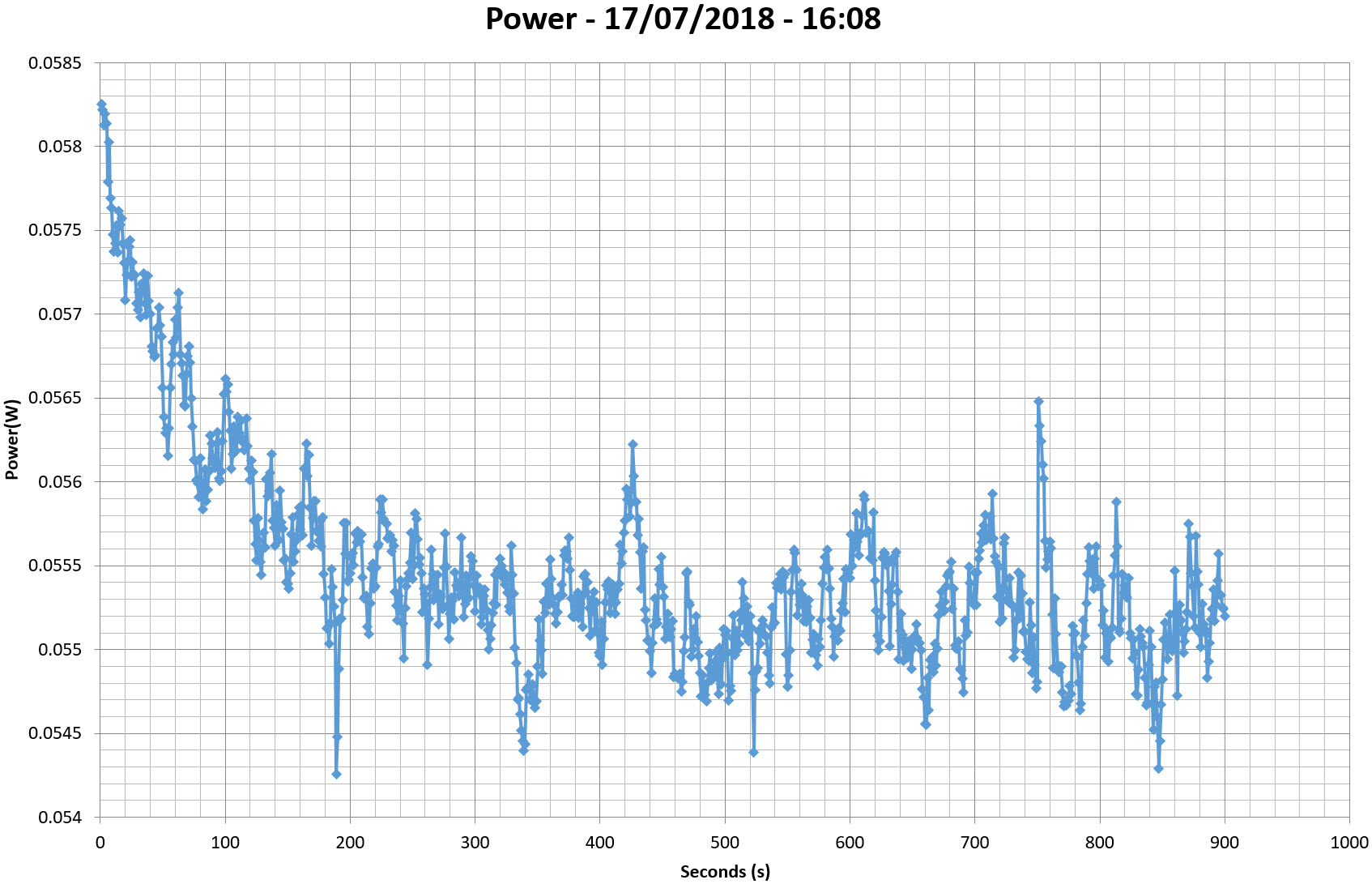

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

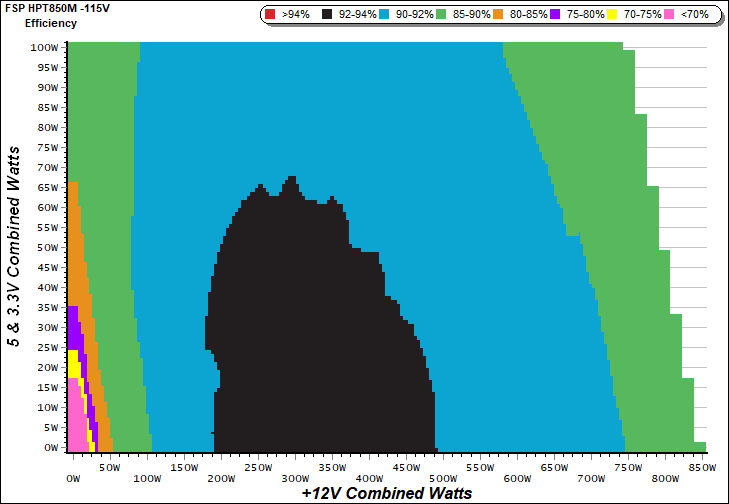

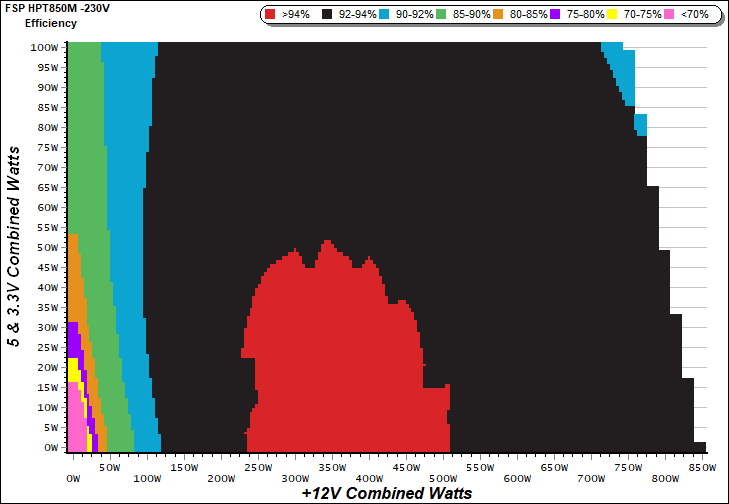

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

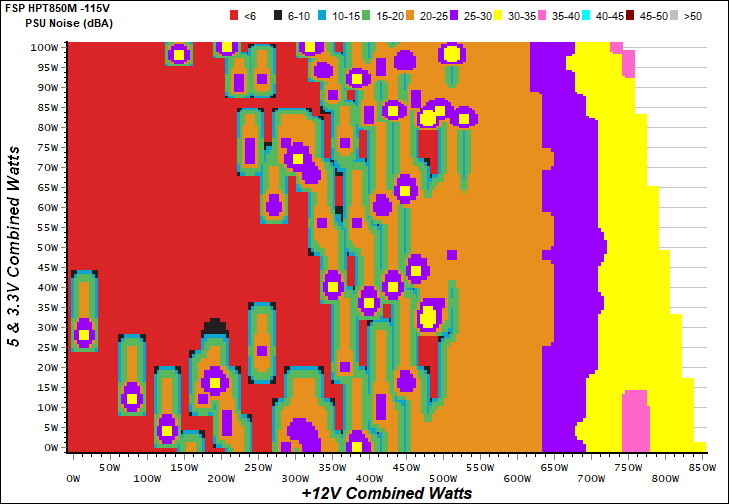

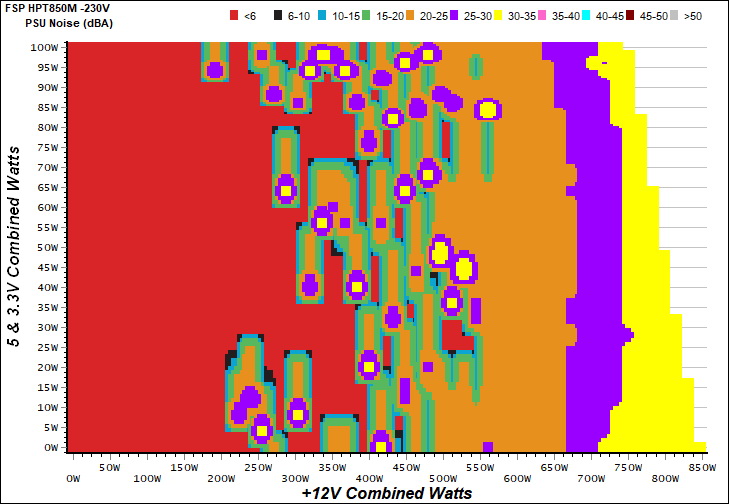

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

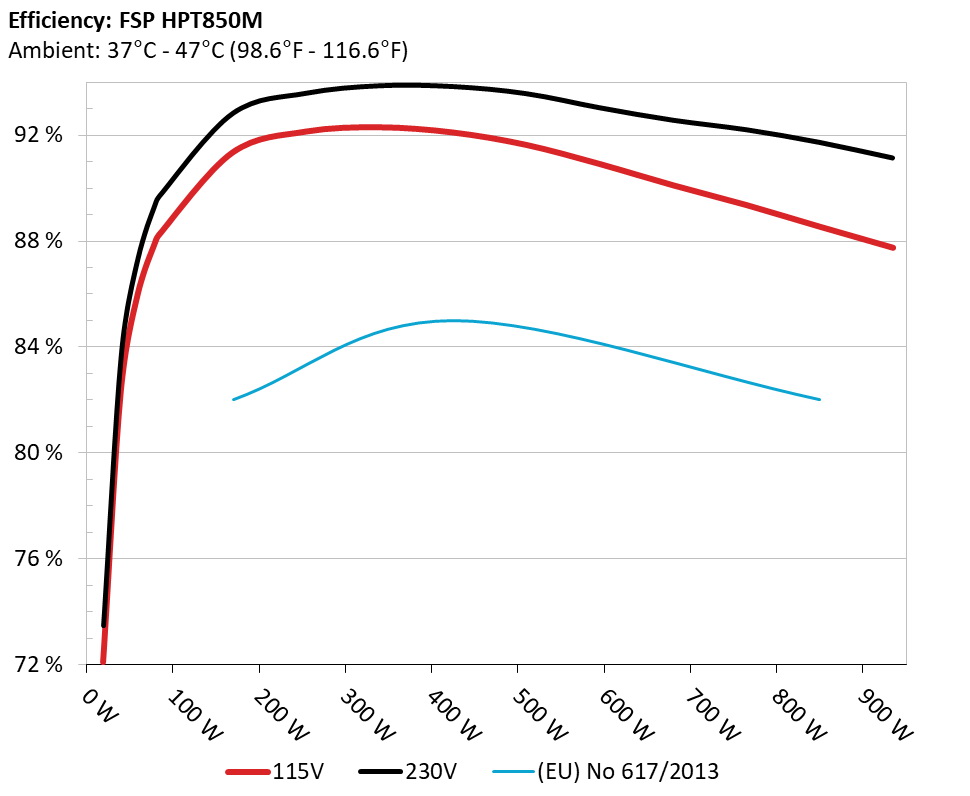

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

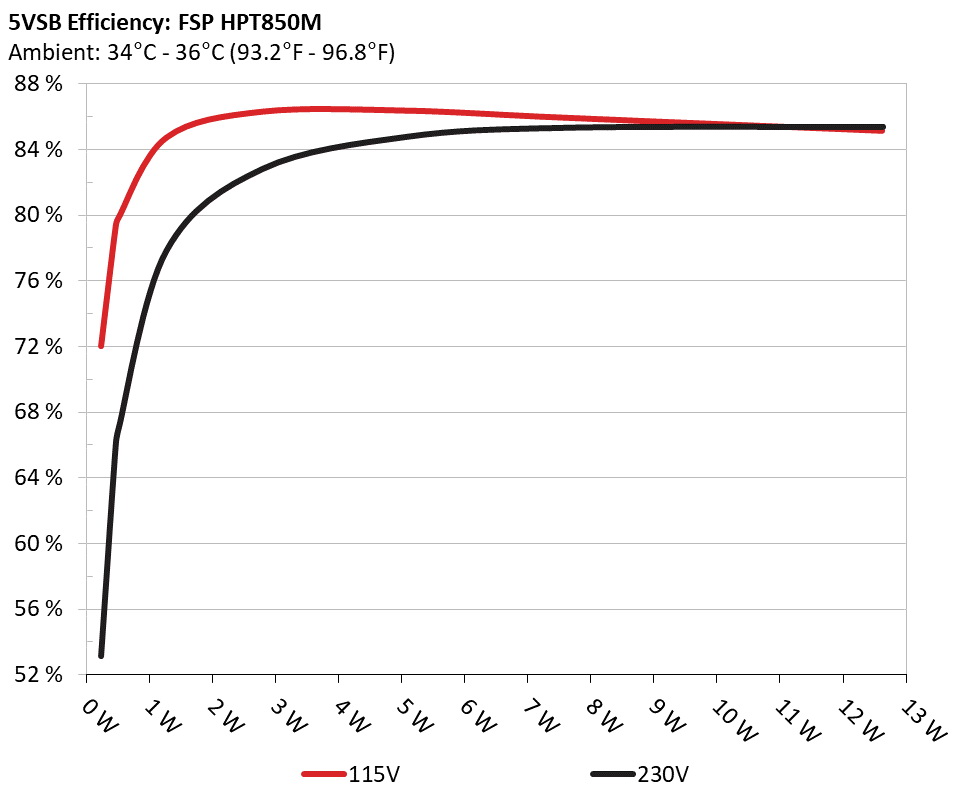

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 72.013% 0.037
5.080V 0.318 115.13V
2 0.090A 0.458 79.239% 0.066
5.079V 0.578 115.15V
3 0.550A 2.792 86.333% 0.273
5.076V 3.234 115.13V
4 1.000A 5.085 86.391% 0.725
5.086V 5.886 115.13V
5 1.500A 7.603 85.958% 0.412
5.067V 8.845 115.13V
6 2.501A 12.620 85.161% 0.461
5.046V 14.819 115.14V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 53.132% 0.015
5.086V 0.431 230.36V
2 0.090A 0.458 65.805% 0.024
5.084V 0.696 230.36V
3 0.550A 2.790 82.814% 0.111
5.072V 3.369 230.36V
4 1.000A 5.077 84.772% 0.179
5.076V 5.989 230.36V
5 1.500A 7.610 85.323% 0.237
5.072V 8.919 230.36V
6 2.500A 12.640 85.382% 0.313
5.055V 14.804 230.36V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.241A 1.966A 1.970A 0.984A 84.819 88.262% 0 <6.0 47.40°C 0.977
12.063V 5.086V 3.348V 5.083V 96.099 40.30°C 115.12V
2 11.480A 2.952A 2.956A 1.182A 169.307 91.346% 0 <6.0 48.32°C 0.995
12.057V 5.083V 3.345V 5.076V 185.346 40.75°C 000.00V
3 18.124A 3.445A 3.437A 1.381A 254.427 92.141% 0 <6.0 49.36°C 0.996
12.052V 5.080V 3.344V 5.071V 276.128 41.24°C 115.11V
4 24.769A 3.941A 3.948A 1.582A 339.592 92.303% 790 21.8 41.37°C 0.997
12.047V 5.076V 3.341V 5.060V 367.909 50.77°C 115.10V
5 31.096A 4.930A 4.941A 1.782A 424.928 92.107% 854 24.2 41.98°C 0.998
12.041V 5.072V 3.338V 5.052V 461.340 51.79°C 115.10V
6 37.363A 5.920A 5.934A 1.984A 509.474 91.640% 1200 34.1 42.82°C 0.998
12.035V 5.069V 3.336V 5.043V 555.954 53.32°C 115.10V
7 43.703A 6.912A 6.927A 2.187A 594.806 90.918% 1435 38.9 43.13°C 0.998
12.029V 5.065V 3.333V 5.032V 654.221 54.04°C 115.10V
8 50.050A 7.904A 7.924A 2.391A 680.158 90.109% 1810 45.7 44.05°C 0.998
12.023V 5.062V 3.331V 5.020V 754.819 55.23°C 115.10V
9 56.796A 8.404A 8.408A 2.394A 765.076 89.363% 1965 47.6 44.41°C 0.998
12.018V 5.058V 3.329V 5.014V 856.148 56.35°C 115.10V
10 63.487A 8.903A 8.927A 2.497A 849.816 88.546% 2110 49.0 45.59°C 0.998
12.012V 5.055V 3.327V 5.008V 959.742 57.87°C 115.10V
11 70.575A 8.908A 8.928A 2.499A 934.605 87.754% 2105 49.0 46.63°C 0.998
12.007V 5.053V 3.326V 5.004V 1065.030 59.59°C 115.10V
CL1 0.145A 12.001A 12.001A 0.000A 102.772 85.747% 1295 36.1 42.92°C 0.983
12.053V 5.078V 3.340V 5.074V 119.855 53.49°C 115.12V
CL2 70.844A 1.001A 0.998A 1.000A 864.907 88.775% 2110 49.0 45.73°C 0.999
12.019V 5.062V 3.333V 5.039V 974.270 57.79°C 115.10V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.246A 1.966A 1.971A 0.984A 84.884 89.724% 0 <6.0 47.88°C 0.816
12.062V 5.088V 3.349V 5.085V 94.606 40.06°C 230.32V
2 11.486A 2.952A 2.957A 1.183A 169.376 92.827% 0 <6.0 49.06°C 0.949
12.056V 5.083V 3.345V 5.075V 182.464 40.86°C 230.32V
3 18.130A 3.446A 3.439A 1.382A 254.488 93.590% 785 21.8 41.18°C 0.971
12.051V 5.079V 3.343V 5.068V 271.917 50.39°C 230.32V
4 24.779A 3.941A 3.950A 1.583A 339.686 93.873% 785 21.8 41.52°C 0.983
12.046V 5.075V 3.340V 5.057V 361.857 51.42°C 230.31V
5 31.105A 4.929A 4.942A 1.783A 425.000 93.842% 833 23.1 42.04°C 0.989
12.040V 5.071V 3.338V 5.050V 452.887 52.48°C 230.32V
6 37.372A 5.920A 5.936A 1.984A 509.541 93.577% 1128 32.9 42.55°C 0.992
12.034V 5.068V 3.336V 5.041V 544.515 53.59°C 230.32V
7 43.716A 6.912A 6.931A 2.188A 594.932 93.042% 1550 40.9 43.28°C 0.994
12.028V 5.065V 3.333V 5.030V 639.421 54.73°C 230.33V
8 50.056A 7.905A 7.926A 2.393A 680.239 92.569% 1675 43.1 43.77°C 0.995
12.023V 5.061V 3.331V 5.017V 734.843 55.85°C 230.31V
9 56.807A 8.405A 8.413A 2.395A 765.172 92.210% 1960 47.6 44.48°C 0.995
12.017V 5.058V 3.329V 5.012V 829.816 57.22°C 230.31V
10 63.496A 8.904A 8.927A 2.498A 849.865 91.734% 2115 49.0 45.22°C 0.995
12.011V 5.055V 3.327V 5.006V 926.441 58.73°C 230.32V
11 70.580A 8.909A 8.930A 2.500A 934.677 91.146% 2120 49.0 46.62°C 0.996
12.007V 5.053V 3.326V 5.002V 1025.467 60.60°C 230.32V
CL1 0.149A 12.001A 12.000A 0.000A 102.817 87.309% 1263 35.4 42.92°C 0.894
12.053V 5.078V 3.340V 5.073V 117.762 54.43°C 230.33V
CL2 70.846A 1.003A 1.001A 1.000A 864.878 91.902% 2115 49.0 45.13°C 0.996
12.018V 5.061V 3.333V 5.038V 941.086 58.08°C 230.33V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.196A 0.492A 0.476A 0.197A 19.532 72.103% 0 <6.0 0.880
12.070V 5.088V 3.349V 5.076V 27.089 115.12V
2 2.455A 0.983A 0.983A 0.394A 39.922 82.295% 0 <6.0 0.945
12.068V 5.088V 3.348V 5.085V 48.511 115.12V
3 3.646A 1.475A 1.461A 0.590A 59.387 85.966% 0 <6.0 0.964
12.066V 5.087V 3.348V 5.084V 69.082 115.12V
4 4.907A 1.966A 1.970A 0.787A 79.789 87.957% 0 <6.0 0.975
12.064V 5.086V 3.347V 5.082V 90.714 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.203A 0.493A 0.476A 0.197A 19.623 73.472% 0 <6.0 0.524
12.068V 5.090V 3.350V 5.083V 26.708 230.32V
2 2.462A 0.982A 0.984A 0.393A 40.000 83.649% 0 <6.0 0.718
12.066V 5.089V 3.350V 5.091V 47.819 230.33V
3 3.652A 1.474A 1.462A 0.590A 59.455 87.329% 0 <6.0 0.789
12.064V 5.088V 3.349V 5.087V 68.082 230.32V
4 4.913A 1.966A 1.970A 0.787A 79.861 89.432% 0 <6.0 0.811
12.062V 5.088V 3.349V 5.084V 89.298 230.32V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 17.0 mV 5.4 mV 10.0 mV 10.1 mV Pass
20% Load 15.0 mV 5.5 mV 10.3 mV 10.4 mV Pass
30% Load 14.6 mV 6.1 mV 10.4 mV 12.6 mV Pass
40% Load 14.6 mV 6.9 mV 12.5 mV 14.0 mV Pass
50% Load 15.7 mV 6.3 mV 22.0 mV 12.1 mV Pass
60% Load 16.4 mV 5.8 mV 11.8 mV 15.2 mV Pass
70% Load 16.6 mV 6.6 mV 11.9 mV 16.5 mV Pass
80% Load 17.1 mV 6.9 mV 13.4 mV 14.6 mV Pass
90% Load 16.9 mV 6.6 mV 14.3 mV 15.2 mV Pass
100% Load 24.2 mV 7.4 mV 16.0 mV 18.1 mV Pass
110% Load 25.1 mV 7.6 mV 16.4 mV 18.5 mV Pass
Crossload 1 17.6 mV 6.1 mV 15.1 mV 7.5 mV Pass
Crossload 2 24.7 mV 7.0 mV 12.9 mV 14.5 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 17.7 mV 6.9 mV 22.2 mV 10.7 mV Pass
20% Load 15.2 mV 6.5 mV 10.0 mV 10.7 mV Pass
30% Load 14.2 mV 5.4 mV 10.0 mV 11.2 mV Pass
40% Load 14.1 mV 5.8 mV 10.2 mV 11.8 mV Pass
50% Load 15.2 mV 5.5 mV 10.2 mV 12.0 mV Pass
60% Load 16.3 mV 5.3 mV 10.9 mV 14.9 mV Pass
70% Load 15.4 mV 5.9 mV 11.2 mV 15.7 mV Pass
80% Load 16.6 mV 6.0 mV 12.6 mV 14.6 mV Pass
90% Load 17.2 mV 6.1 mV 13.1 mV 14.8 mV Pass
100% Load 23.8 mV 7.6 mV 13.5 mV 17.2 mV Pass
110% Load 24.7 mV 7.0 mV 14.0 mV 17.1 mV Pass
Crossload 1 18.2 mV 5.8 mV 14.0 mV 7.5 mV Pass
Crossload 2 23.7 mV 6.3 mV 10.3 mV 13.8 mV Pass

The results above are not used in the certification process

FSP Technology Inc. HPT850M Hydro

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
