CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

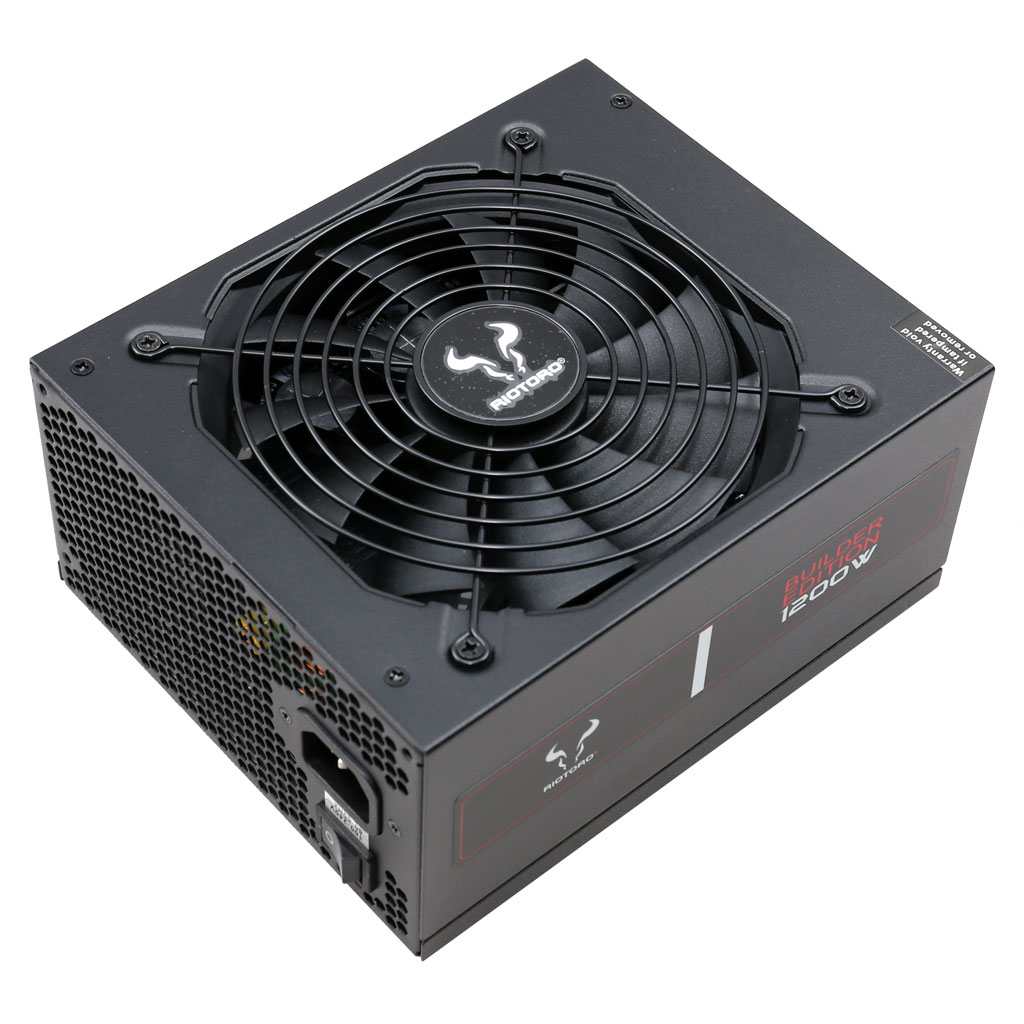

Riotoro Builder Edition 1200W
Serial Number18160400791B00GD91F04000858
Lab ID477
Certification ID25477
  • Test Result Report ID:
  • Certificate Issue Date: Sep 20, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandRiotoro
Hersteller (OEM)High Power
SeriesBuilder Edition
Model NumberPR-GP1200FM
Serial Number18160400791B00GD91F04000858
DUT Notes

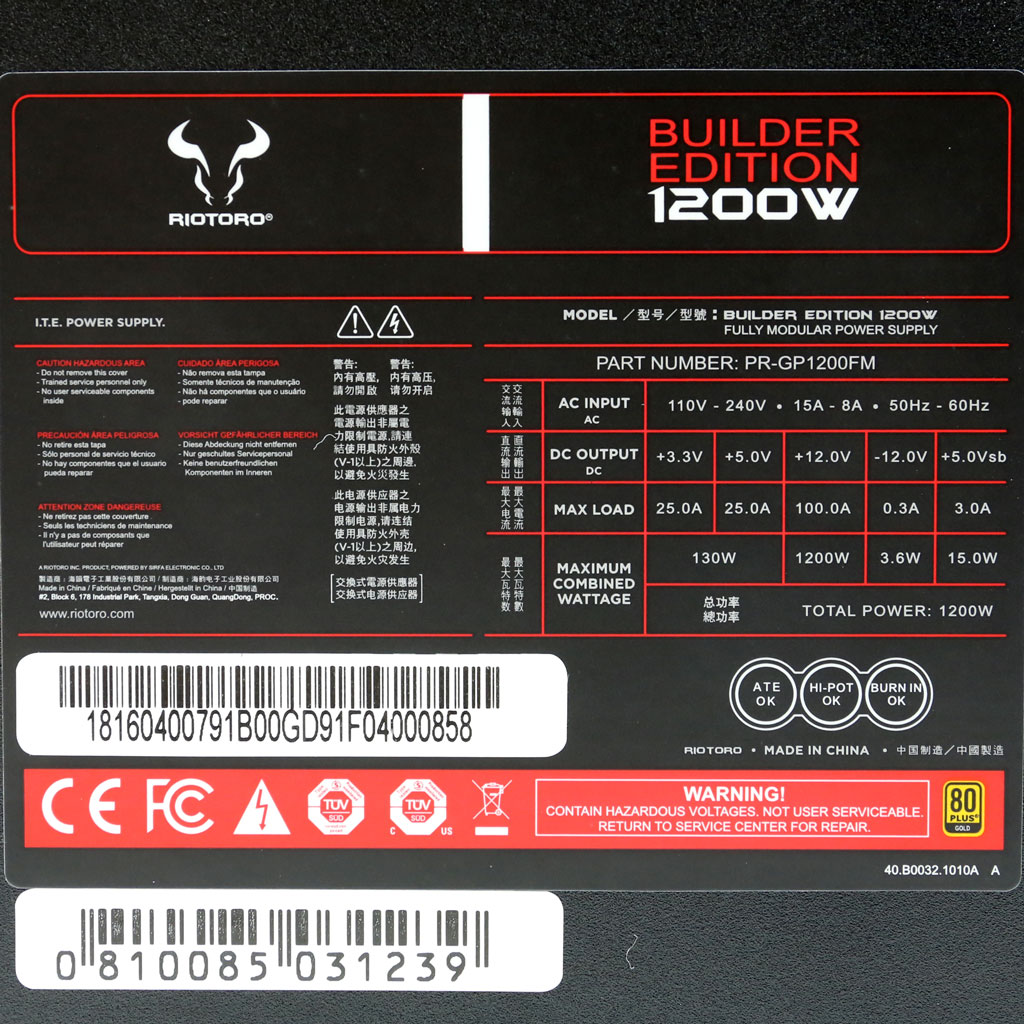

DUT Specifications

Rated Voltage (Vrms)110-240
Rated Current (Arms)15-8
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Double Ball-Bearing Fan
(RL4Z B1352512HH)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 25 25 100 3 0.3
Watts 130 1200 15 3.6
Total Max. Power (W) 1200

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 16-22AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (2x600mm) 2 4 16AWG No
6+2 pin PCIe (2x(600mm+150mm)) 1 4 16-18AWG No
SATA (500mm+100mm+100mm+100mm) 3 12 18AWG No
4-pin Molex (500mm+100mm+100mm) 2 6 18AWG No
FDD Adapter (+160mm) 1 1 22AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 16AWG -

Parts Description

General Data
Manufacturer (OEM) High Power
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x discharge IC
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x GBJ2506 (600V, 25A @ 100°C)
APFC MOSFETS 2x Infineon IPW60R099P6 (650V, 24A @ 100°C, 0.099Ohm)
APFC Boost Diode 1x CREE C3D10060 (600V, 10A @ 153°C)
Hold-up Cap(s) 2x Nichicon (400V, 560uF, 2000h @ 105 °C, GG)
Main Switchers 2x Infineon IPA60R099P6 (650V, 24A @ 100°C, 0.099Ohm)
APFC Controller Infineon ICE3PCS01G
Resonant Controller Champion CM6901X
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 8x APEC AP4N1R8CMT-A (60V, 32A @ 70°C, 1.8mOhm)
5V & 3.3V DC-DC Converters: 8x APEC AP3R303GMT-HF-3 (30V, 24A @ 70°C, 3.3mOhm)
PWM Controller: APW7159C
Filtering Capacitors Electrolytics: Nippon Chemi-Con W (105°C), Nippon Chemi-Con (4-10,000 @ 105°C, KY)
Polymers: Nippon Chemi-Con, FPCAP (FP)
Supervisor IC SITI PS232S (OVP, UVP, 6x Channel OCP, SCP)
Micro Controller STC 15W408AS
Fan Model Globe Fan RL4Z B1352512HH (12V, 0.45A, 129.76 CFM, 1800 RPM, 33.9 dB[A], Double Ball-Bearing)
Fan Power Transistor STi 2SD882 (NPN)
5VSB Circuit
Rectifiers 1x PFC P10V45SP SBR (45V, 10A) & 2x APEC AP3R303GMT-HF-3 (30V, 24A @ 70°C, 3.3mOhm)
Standby PWM Controller Sanken STR-A6069H
-12V Circuit
Rectifier KEC KIA7912PI (-12V, 1A)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 6 2010: ✓
ErP Lot 6 2013: ✓
ErP Lot 3 2014 & CEC: Partially
(EU) No 617/2013 Compliance✓

Performance Summary

WirkungsgradPLATINUM
LautstärkeklasseStandard+
Average Efficiency (>1450 load combinations)89.266%
Average Noise Output (>1450 Load Combinations)35.89dBA
Average PF (>1450 Load Combinations)0.995
Efficiency With 10W (≤500W) or 2% (>500W) Load69.231%
Standby Power Consumption0.0776W
12V Ripple (Full Load)23.77mV
5V Ripple (Full Load)10.95mV
3.3V Ripple (Full Load)27.06mV
5VSB Ripple (Full Load)11.79mV
12V Load Regulation0.24%
5V Load Regulation0.77%
3.3V Load Regulation0.36%
5VSB Load Regulation2.85%
Inrush Current22.939A
WirkungsgradPLATINUM
LautstärkeklasseStandard+
Average Efficiency (>1450 load combinations)91.425%
Average Noise Output (>1450 Load Combinations)35.87dBA
Average PF (>1450 Load Combinations)0.975
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1137W
12V Ripple (Full Load)22.27mV
5V Ripple (Full Load)11.61mV
3.3V Ripple (Full Load)24.51mV
5VSB Ripple (Full Load)13.58mV
12V Load Regulation0.19%
5V Load Regulation0.76%
3.3V Load Regulation0.42%
5VSB Load Regulation2.83%
Inrush Current54.660A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal10.30ms
AC Loss to PWR_OK Hold Up Time10.90ms
PWR_OK Inactive to DC Loss Delay-0.60ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)10.3
AC Loss to PWR_OK Hold Up Time (ms)10.9
PWR_OK Inactive to DC Loss Delay (ms)-0.6

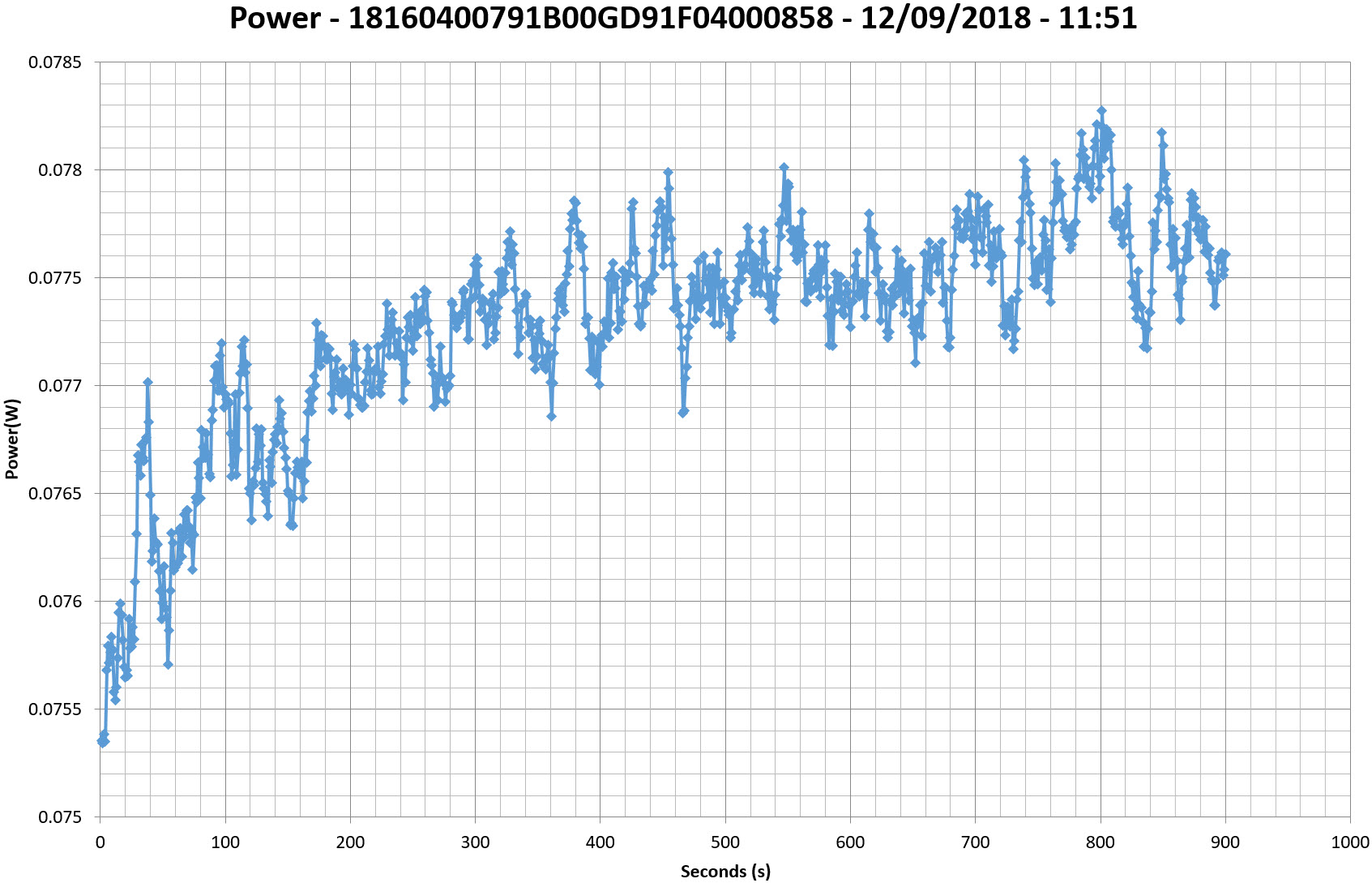

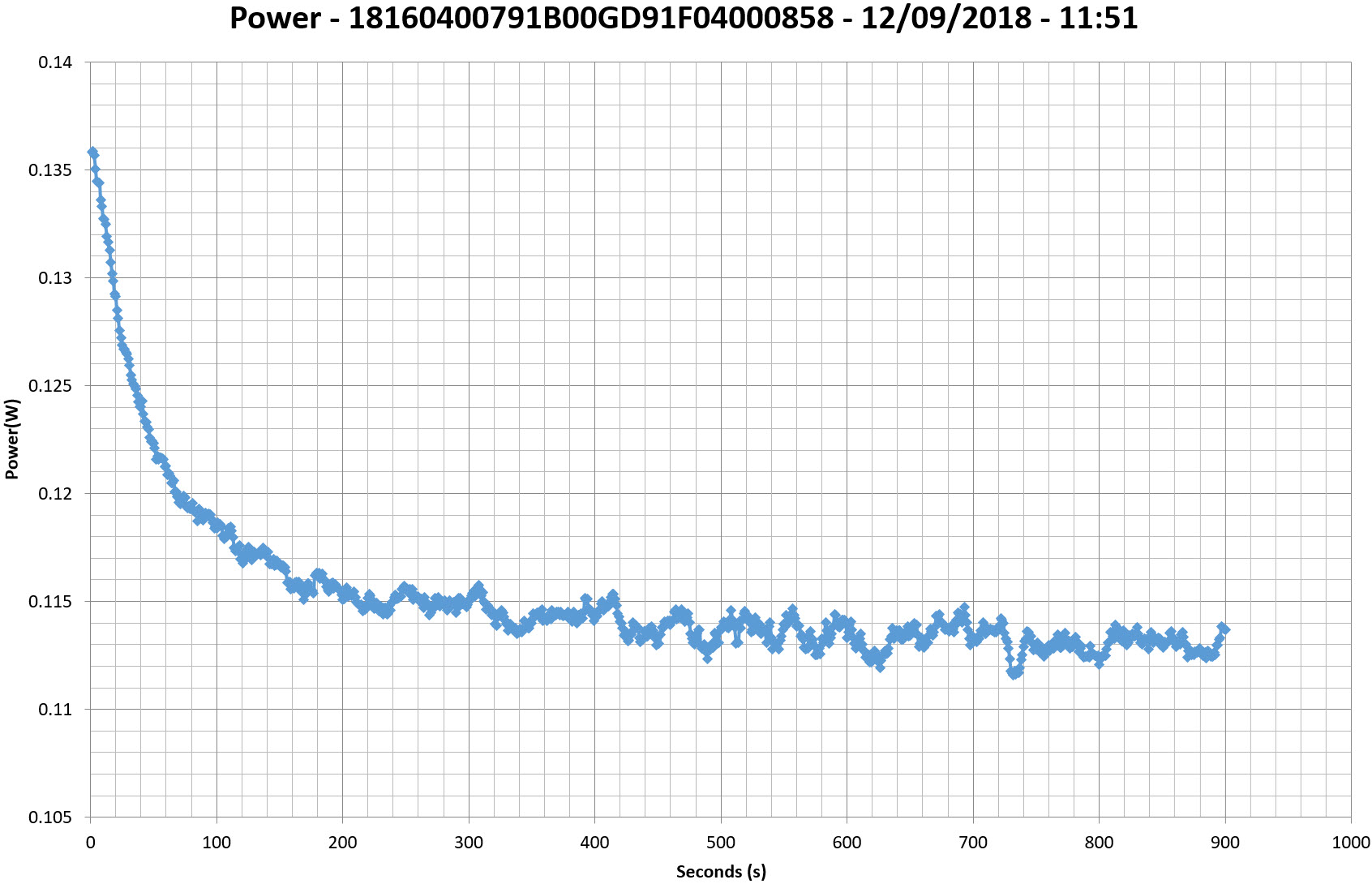

Stromverbrauch im Ruhezustand

Tables

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

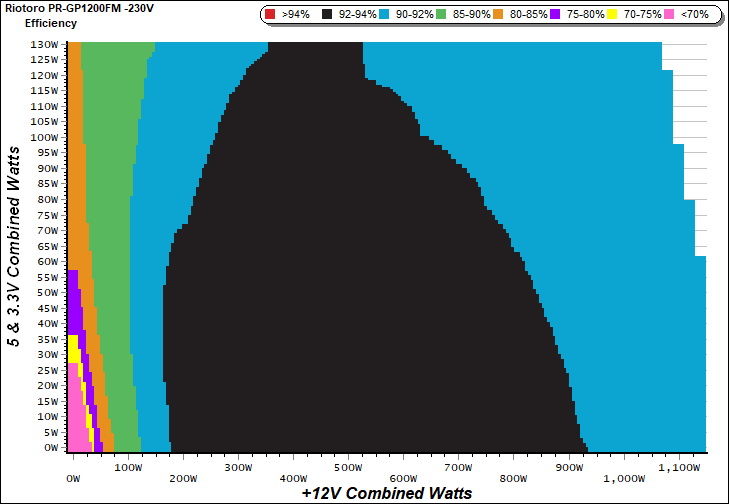

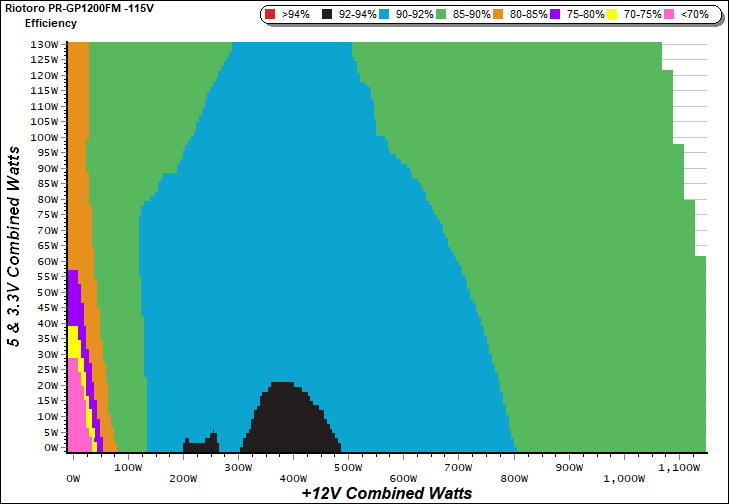

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

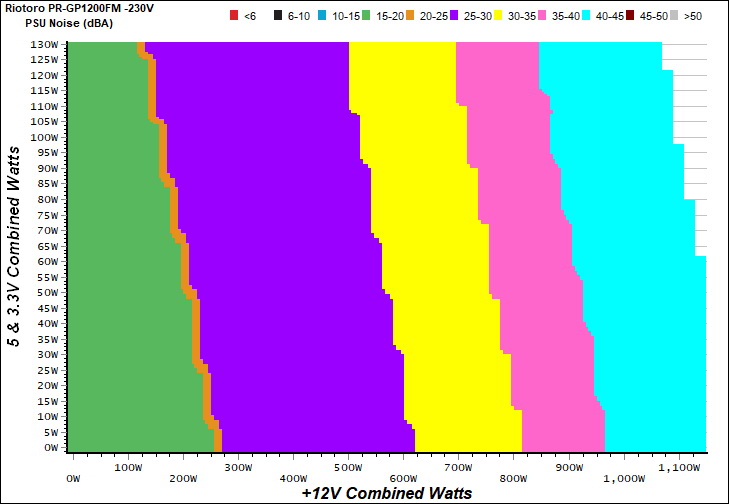

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

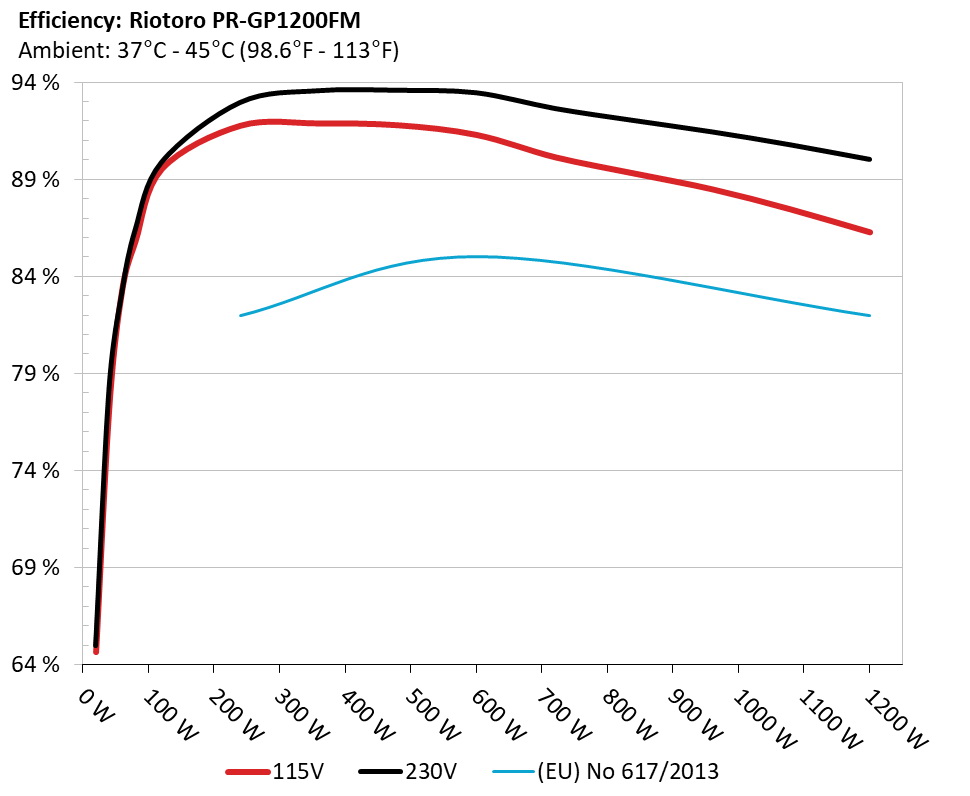

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

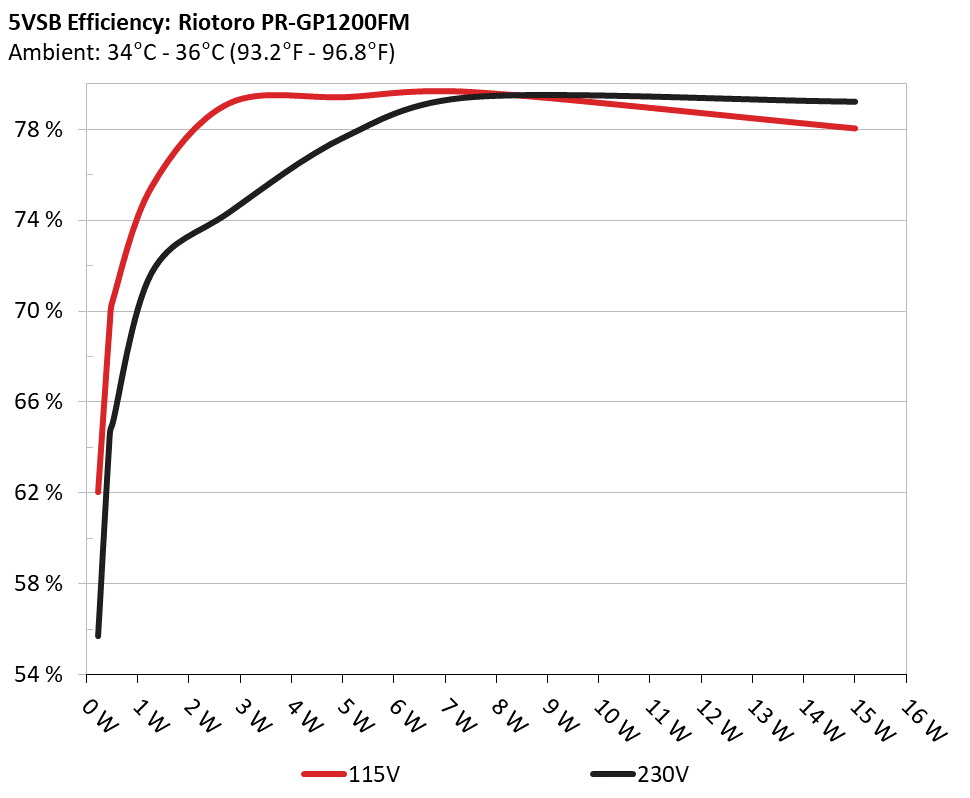

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 62.060% 0.044
5.098V 0.369 115.11V
2 0.090A 0.459 69.545% 0.076
5.097V 0.660 115.11V
3 0.550A 2.796 79.140% 0.290
5.083V 3.533 115.11V
4 1.000A 5.070 79.405% 0.376
5.069V 6.385 115.12V
5 1.500A 7.582 79.618% 0.423
5.054V 9.523 115.10V
6 3.000A 15.002 78.030% 0.479
5.000V 19.226 115.10V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 55.718% 0.015
5.098V 0.411 230.25V
2 0.090A 0.459 64.648% 0.025
5.097V 0.710 230.25V
3 0.550A 2.795 74.355% 0.124
5.081V 3.759 230.25V
4 1.000A 5.068 77.682% 0.194
5.067V 6.524 230.25V
5 1.500A 7.579 79.419% 0.250
5.052V 9.543 230.25V
6 3.000A 15.008 79.206% 0.345
5.002V 18.948 230.25V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.173A 1.988A 1.979A 1.002A 119.969 89.536% 753 18.3 40.07°C 0.983
12.038V 5.029V 3.332V 4.992V 133.990 42.62°C 115.10V
2 17.335A 2.984A 2.970A 1.204A 239.718 91.759% 756 18.3 40.63°C 0.995
12.046V 5.027V 3.332V 4.983V 261.247 43.82°C 115.09V
3 26.855A 3.489A 3.460A 1.410A 359.226 91.878% 1020 26.3 41.48°C 0.996
12.036V 5.016V 3.322V 4.964V 390.980 45.49°C 115.10V
4 36.448A 3.988A 3.971A 1.615A 479.681 91.783% 1025 26.4 41.88°C 0.998
12.031V 5.016V 3.323V 4.956V 522.626 46.65°C 115.10V
5 45.641A 4.987A 4.966A 1.820A 599.831 91.285% 1030 26.4 42.48°C 0.998
12.036V 5.014V 3.322V 4.947V 657.095 49.35°C 115.18V
6 54.927A 6.001A 5.960A 2.031A 719.937 90.133% 1210 30.9 42.71°C 0.998
12.019V 5.000V 3.322V 4.926V 798.747 49.50°C 115.18V
7 64.085A 7.004A 6.956A 2.238A 839.705 89.303% 1525 38.0 43.51°C 0.999
12.025V 4.998V 3.321V 4.916V 940.290 51.02°C 115.09V
8 73.251A 8.008A 7.951A 2.446A 960.138 88.477% 1530 38.0 43.73°C 0.999
12.037V 4.996V 3.320V 4.906V 1085.184 51.50°C 115.09V
9 82.776A 8.509A 8.431A 2.446A 1079.501 87.445% 1700 40.6 44.81°C 0.999
12.044V 4.996V 3.321V 4.906V 1234.492 54.82°C 115.09V
10 92.276A 9.011A 8.945A 3.075A 1200.011 86.270% 1715 40.8 45.34°C 0.999
12.032V 4.995V 3.320V 4.879V 1390.997 59.07°C 115.10V
11 97.377A 9.011A 8.957A 3.071A 1259.722 86.507% 1695 40.6 28.37°C 0.999
12.015V 4.994V 3.316V 4.886V 1456.200 42.37°C 115.09V
CL1 0.142A 16.001A 16.000A 0.000A 135.073 83.302% 760 18.4 40.11°C 0.984
12.068V 5.020V 3.316V 5.029V 162.149 50.09°C 115.12V
CL2 89.297A 1.001A 0.998A 1.000A 1086.254 87.932% 1690 40.5 29.85°C 0.999
12.015V 5.003V 3.318V 4.971V 1235.336 41.13°C 115.10V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.179A 1.990A 1.979A 1.002A 120.051 89.889% 753 18.3 40.27°C 0.892
12.037V 5.028V 3.332V 4.991V 133.554 42.75°C 230.30V
2 17.348A 2.985A 2.970A 1.205A 239.786 92.970% 756 18.3 40.67°C 0.957
12.041V 5.026V 3.331V 4.982V 257.917 43.99°C 230.30V
3 26.870A 3.490A 3.462A 1.411A 359.302 93.578% 1020 26.3 41.22°C 0.977
12.032V 5.015V 3.321V 4.963V 383.960 44.70°C 230.31V
4 36.448A 3.989A 3.973A 1.615A 479.748 93.596% 1025 26.4 41.49°C 0.986
12.032V 5.015V 3.322V 4.955V 512.572 46.52°C 230.31V
5 45.645A 4.989A 4.968A 1.820A 599.894 93.471% 1030 26.4 42.30°C 0.991
12.036V 5.013V 3.321V 4.946V 641.800 48.02°C 230.31V
6 54.918A 6.001A 5.962A 2.031A 720.025 92.659% 1210 30.9 42.47°C 0.995
12.022V 4.999V 3.321V 4.925V 777.067 48.45°C 230.30V
7 64.108A 7.006A 6.958A 2.239A 839.756 92.043% 1525 38.0 43.34°C 0.997
12.021V 4.997V 3.320V 4.915V 912.355 49.82°C 230.30V
8 73.337A 8.009A 7.956A 2.447A 960.288 91.453% 1530 38.0 43.62°C 0.997
12.025V 4.995V 3.319V 4.904V 1050.035 51.31°C 230.30V
9 82.939A 8.513A 8.435A 2.447A 1079.619 90.786% 1685 40.5 44.25°C 0.998
12.022V 4.995V 3.320V 4.904V 1189.195 52.82°C 230.31V
10 92.354A 9.015A 8.947A 3.076A 1200.084 90.037% 1710 40.7 45.44°C 0.998
12.023V 4.993V 3.319V 4.878V 1332.885 55.56°C 230.32V
11 97.406A 9.013A 8.990A 3.072A 1259.945 90.193% 1680 40.4 28.50°C 0.998
12.014V 4.994V 3.303V 4.884V 1396.937 39.12°C 230.32V
CL1 0.156A 16.002A 16.001A 0.000A 135.225 84.053% 760 18.4 42.52°C 0.913
12.069V 5.019V 3.314V 5.028V 160.880 48.58°C 230.32V
CL2 89.294A 1.000A 0.999A 0.000A 1081.293 91.338% 1675 40.4 45.57°C 0.998
12.016V 5.015V 3.325V 5.021V 1183.831 55.47°C 230.30V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.192A 0.497A 0.479A 0.199A 19.458 64.642% 750 18.3 0.859
12.051V 5.029V 3.329V 5.022V 30.101 115.10V
2 2.455A 0.995A 0.989A 0.399A 39.870 77.368% 750 18.3 0.934
12.047V 5.026V 3.331V 5.013V 51.533 115.11V
3 3.651A 1.490A 1.471A 0.599A 59.384 83.305% 753 18.3 0.960
12.048V 5.034V 3.327V 5.013V 71.285 115.10V
4 4.914A 1.987A 1.985A 0.800A 79.782 85.820% 753 18.3 0.970
12.044V 5.031V 3.324V 5.002V 92.964 115.10V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.197A 0.497A 0.479A 0.199A 19.513 64.976% 750 18.3 0.496
12.048V 5.028V 3.328V 5.022V 30.031 230.27V
2 2.459A 0.996A 0.990A 0.399A 39.934 78.230% 750 18.3 0.664
12.051V 5.025V 3.330V 5.012V 51.047 230.28V
3 3.660A 1.489A 1.471A 0.599A 59.471 83.163% 753 18.3 0.761
12.044V 5.034V 3.326V 5.012V 71.511 230.29V
4 4.920A 1.988A 1.979A 0.800A 79.872 86.415% 753 18.3 0.821
12.047V 5.031V 3.334V 5.002V 92.428 230.29V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 7.9 mV 5.7 mV 10.0 mV 6.1 mV Pass
20% Load 10.4 mV 5.9 mV 11.1 mV 5.9 mV Pass
30% Load 11.0 mV 6.5 mV 12.3 mV 6.6 mV Pass
40% Load 11.2 mV 7.1 mV 13.7 mV 7.1 mV Pass
50% Load 12.1 mV 8.1 mV 15.0 mV 7.8 mV Pass
60% Load 11.6 mV 9.3 mV 17.2 mV 8.5 mV Pass
70% Load 12.7 mV 9.5 mV 19.1 mV 8.2 mV Pass
80% Load 13.6 mV 11.0 mV 22.9 mV 10.0 mV Pass
90% Load 13.4 mV 11.2 mV 24.8 mV 10.8 mV Pass
100% Load 23.8 mV 11.0 mV 27.1 mV 11.8 mV Pass
105% Load 16.6 mV 12.7 mV 24.5 mV 12.1 mV Pass
Crossload 1 11.2 mV 7.4 mV 21.3 mV 7.6 mV Pass
Crossload 2 23.2 mV 12.4 mV 23.0 mV 12.2 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 7.7 mV 5.6 mV 10.0 mV 6.4 mV Pass
20% Load 10.3 mV 5.5 mV 11.1 mV 6.8 mV Pass
30% Load 10.3 mV 6.4 mV 12.3 mV 7.6 mV Pass
40% Load 11.3 mV 7.3 mV 13.7 mV 8.0 mV Pass
50% Load 12.0 mV 7.6 mV 14.7 mV 8.4 mV Pass
60% Load 11.2 mV 9.1 mV 17.5 mV 10.1 mV Pass
70% Load 11.4 mV 8.2 mV 16.7 mV 8.4 mV Pass
80% Load 12.9 mV 10.0 mV 22.6 mV 10.1 mV Pass
90% Load 13.2 mV 10.9 mV 24.1 mV 12.0 mV Pass
100% Load 22.3 mV 11.6 mV 24.5 mV 13.6 mV Pass
105% Load 24.6 mV 13.6 mV 25.4 mV 15.1 mV Pass
Crossload 1 11.5 mV 7.6 mV 21.6 mV 8.7 mV Pass
Crossload 2 21.4 mV 11.8 mV 25.3 mV 12.8 mV Pass

The results above are not used in the certification process

Riotoro Builder Edition 1200W

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
