CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

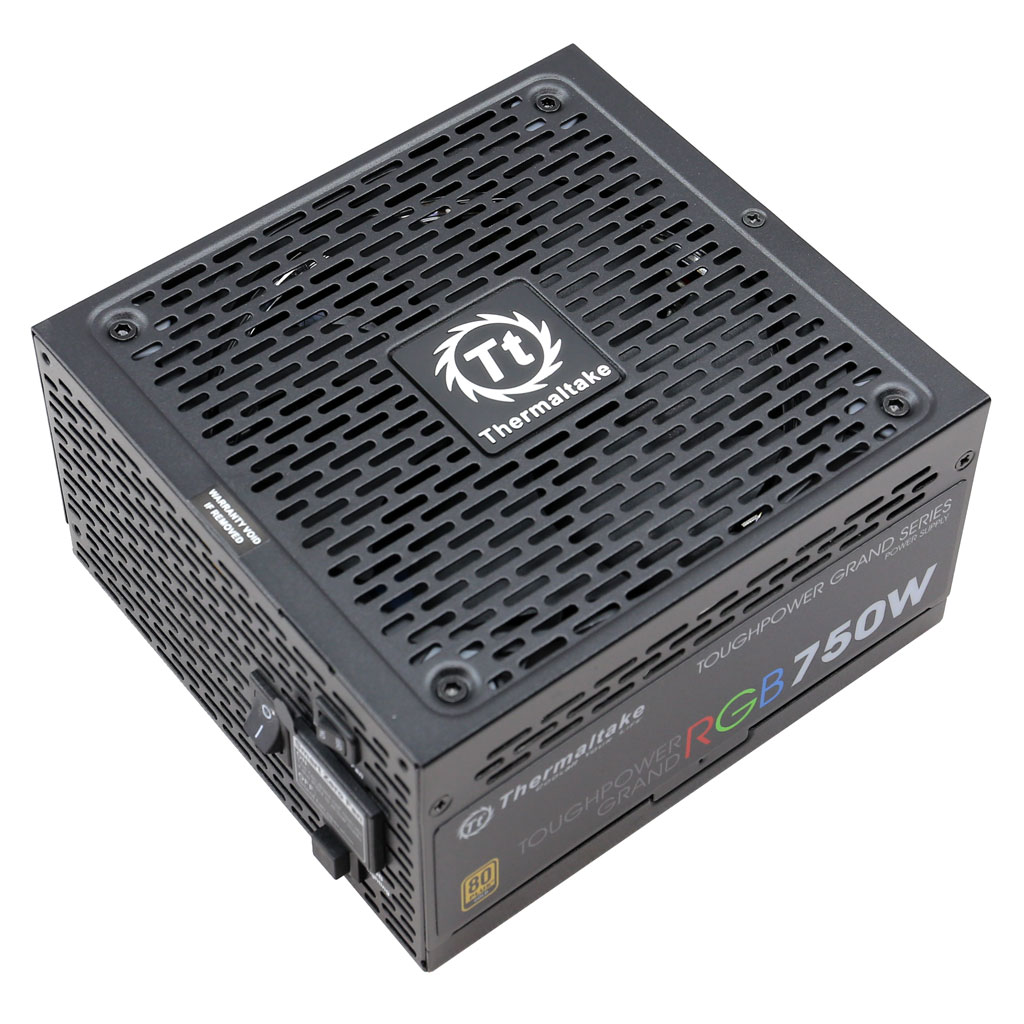

Thermaltake Toughpower Grand Gold 750W
序号PSTPG0750FPCGEUSLA000139
Lab ID482
Certification ID25482
  • Test Result Report ID:
  • Certificate Issue Date: Sep 26, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

被测品资讯

品牌名称Thermaltake
制造商 (OEM)Sirfa
系列名称Toughpower Grand Gold
型号TPG-0750F-S
序号PSTPG0750FPCGEUSLA000139
被测品纪录

被测品规格

额定电压 (Vrms)100-240
额定电流 (Arms)10
额定频率 (Hz)50-60
额定功率 (W)750
类别ATX12V
Dimensions (W x H x D)
散热140mm Hydro Dynamic Bearing Fan
(TT-1425 [A1425L12S])
半被动运转✓ (selectable)
线材设计Fully Modular

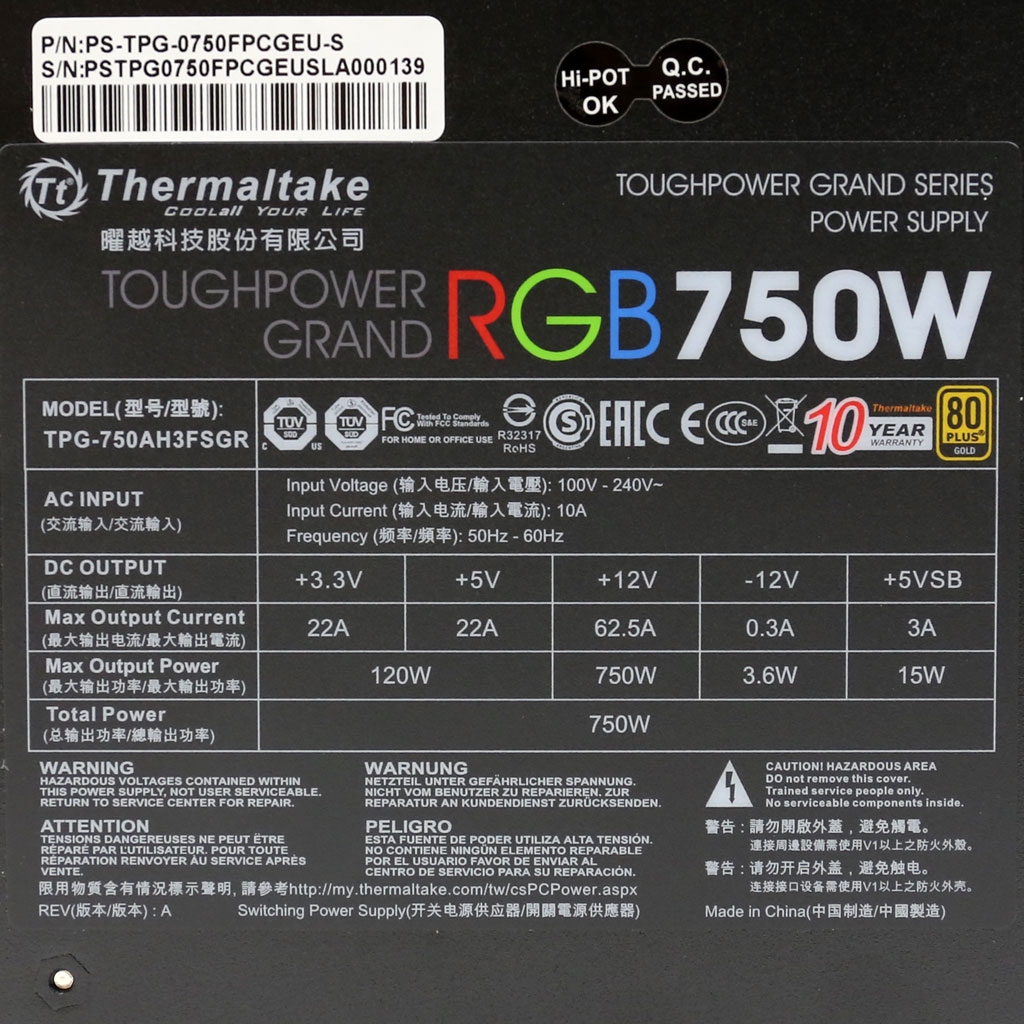

电源规范

组 3.3V 5V 12V 5VSB -12V
最大功率 安培 22 22 62.5 3 0.3
瓦 120 750 15 3.6
最大总功率 (W) 750

测试设备

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

线材与接头

模组化线材
描述 线材数量 总连接器数量 Gauge In Cable Capacitors
ATX 接头 20+4 pin (600mm) 1 1 18AWG 否
4+4 pin EPS 12V 接头 (660mm) 1 1 16AWG 否
6+2pin PCIe接头 (500mm+155mm) 2 4 16-18AWG 否
SATA接头 (510mm+155mm+155mm) 3 9 18AWG 否
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG 否
RGB Cable (580mm+80mm) 1 1 26AWG 否
小4pin 接头 (+160mm) 1 1 22AWG 否
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Sirfa / High Power
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x GBU1506 (600V, 10A @ 100°C)
APFC MOSFETS 2x China Wind CWS20N60AF (600V, 13A @ 100°C, 0.19Ohm)
APFC Boost Diode 1x UnitedSiC UJD06506TS (650V, 6A @ 153°C)
Hold-up Cap(s) 1x Rubycon (400V, 680uF, 2000h @ 105 °C, MXH)
Main Switchers 2x China Wind CWS20N60AF (600V, 13A @ 100°C, 0.19Ohm)
APFC Controller Infineon ICE3PCS01G
Resonant Controller Champion CM6901X
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 6x Infineon BSC027N04LS G (40V, 88A @ 100°C, 2.7mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm)
PWM Controller: APW7159C
Filtering Capacitors Electrolytics: Nippon Chemi-Con (1-5,000 @ 105°C, KZE), Nippon Chemi-Con (4-10,000 @ 105°C, KY), 1x Rubycon (4-10,000 @ 105°C, ZLH)
Polymers: Nippon Chemi-Con, FPCAP
Supervisor IC SITI PS224 (OVP, UVP, OCP,SCP, PG)
EEPROM ATMEL AT24C02N
Fan Model Thermaltake TT-1425 (Hong Sheng OEM, A1425L12S, 140mm, 12V, 0.30A, 1560 RPM, Hydro Dynamic Bearing)
5VSB Circuit
Rectifier 1x PCF P10V45 SBR (45V, 10A)
2x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm)
Standby PWM Controller Sanken STR-A6069H
-12V Circuit
Rectifier KEC KIA7912PI

Test Results

Temperature & Compliance Info

温度范围 (°C /°F)30-32 / 86-89.6
符合ErP Lot3/6规范✓
符合(EU) No 617/2013规范✓

Performance Summary

效率等级GOLD
噪音等级A-
平均效率 (>1450 load combinations)88.863%
Average Noise Output (>1450 Load Combinations)29.31dBA
PF平均值 (>1450 Load Combinations)0.988
Efficiency With 10W (≤500W) or 2% (>500W) Load64.572%
待机功率耗损0.0892W
12V Ripple (Full Load)18.77mV
5V Ripple (Full Load)16.62mV
3.3V Ripple (Full Load)16.74mV
5VSB Ripple (Full Load)10.45mV
12V Load Regulation1.29%
5V Load Regulation2.41%
3.3V Load Regulation4.08%
5VSB Load Regulation5.01%
Inrush Current61.023A
效率等级GOLD
噪音等级A-
平均效率 (>1450 load combinations)90.511%
Average Noise Output (>1450 Load Combinations)29.30dBA
PF平均值 (>1450 Load Combinations)0.943
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
待机功率耗损0.1662W
12V Ripple (Full Load)18.03mV
5V Ripple (Full Load)16.80mV
3.3V Ripple (Full Load)16.81mV
5VSB Ripple (Full Load)10.45mV
12V Load Regulation1.23%
5V Load Regulation2.39%
3.3V Load Regulation4.05%
5VSB Load Regulation5.01%
Inrush Current84.074A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
保持时间 & PG信号16.80ms
AC Loss to PWR_OK Hold Up Time14.80ms
PWR_OK Inactive to DC Loss Delay2.00ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

保持时间 & PG信号

Hold-Up Time (ms)16.8
AC Loss to PWR_OK Hold Up Time (ms)14.8
PWR_OK Inactive to DC Loss Delay (ms)2

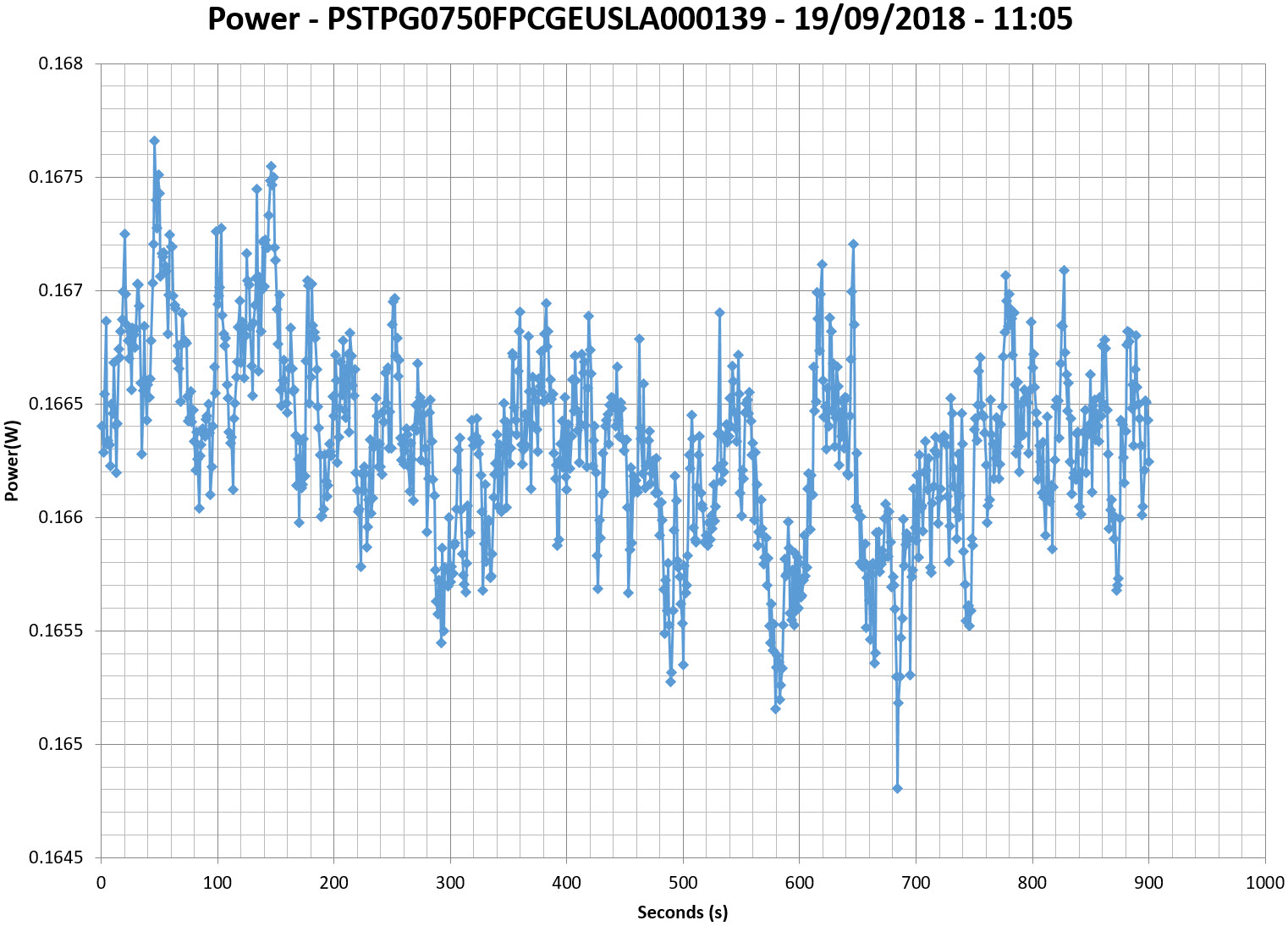

待机电源

Tables

Graphs

资讯

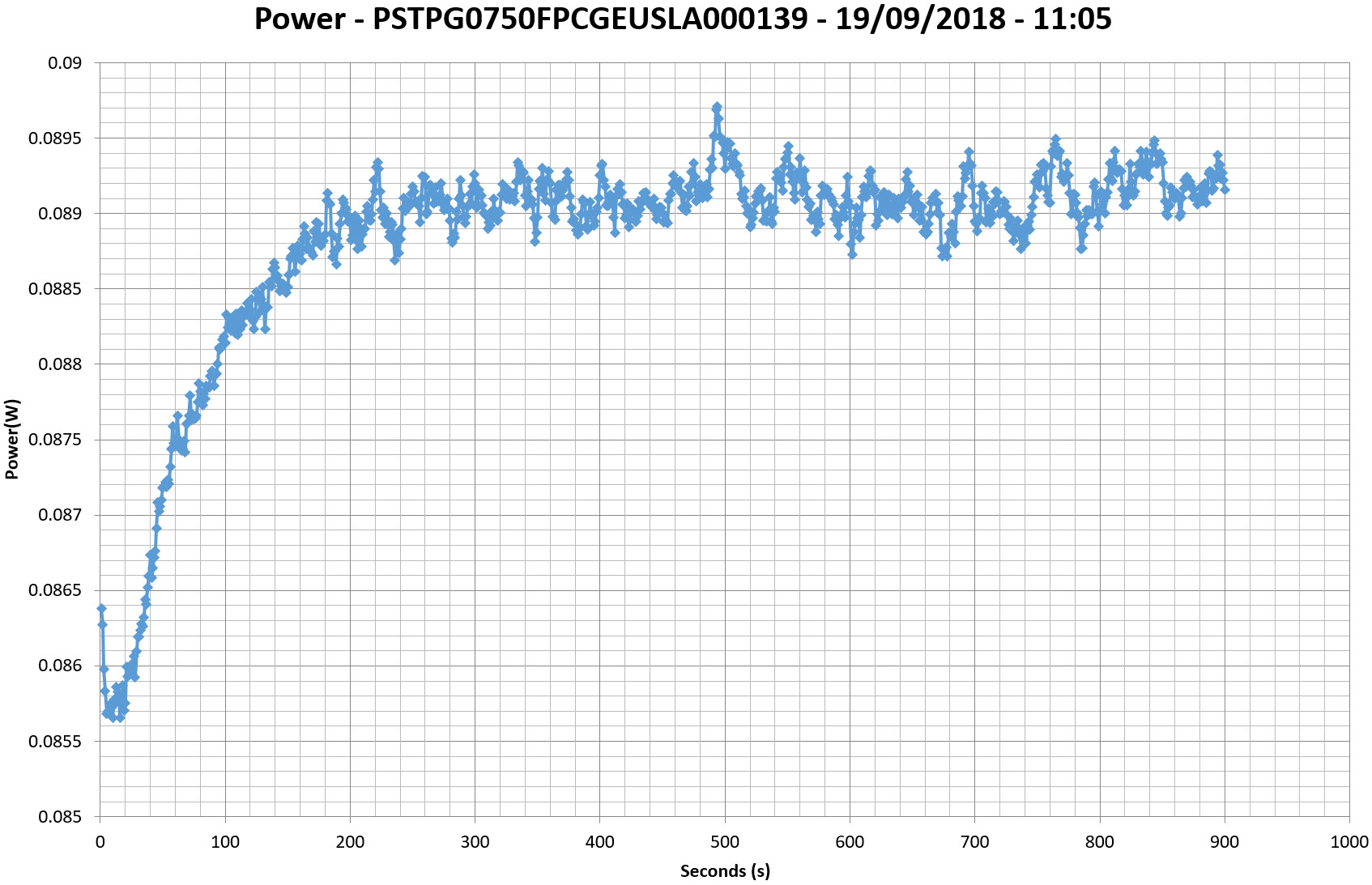

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

资讯

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

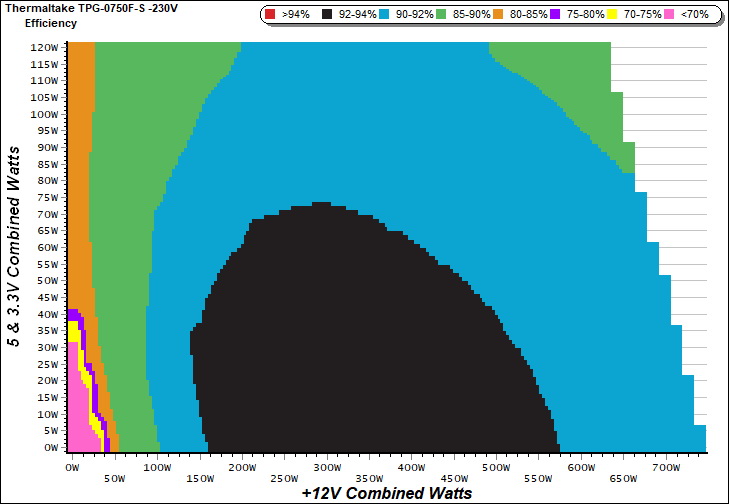

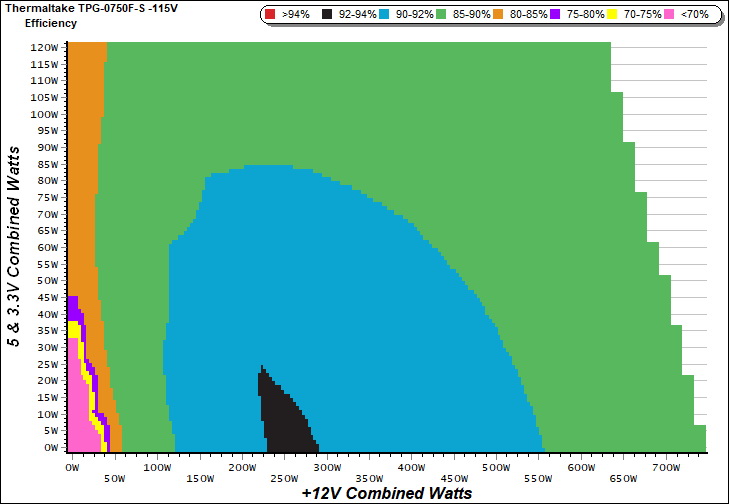

转换效率图表

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

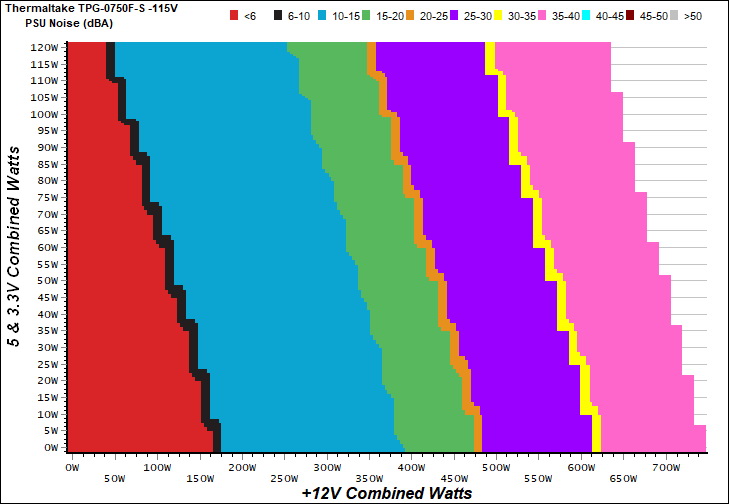

噪音值图表

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

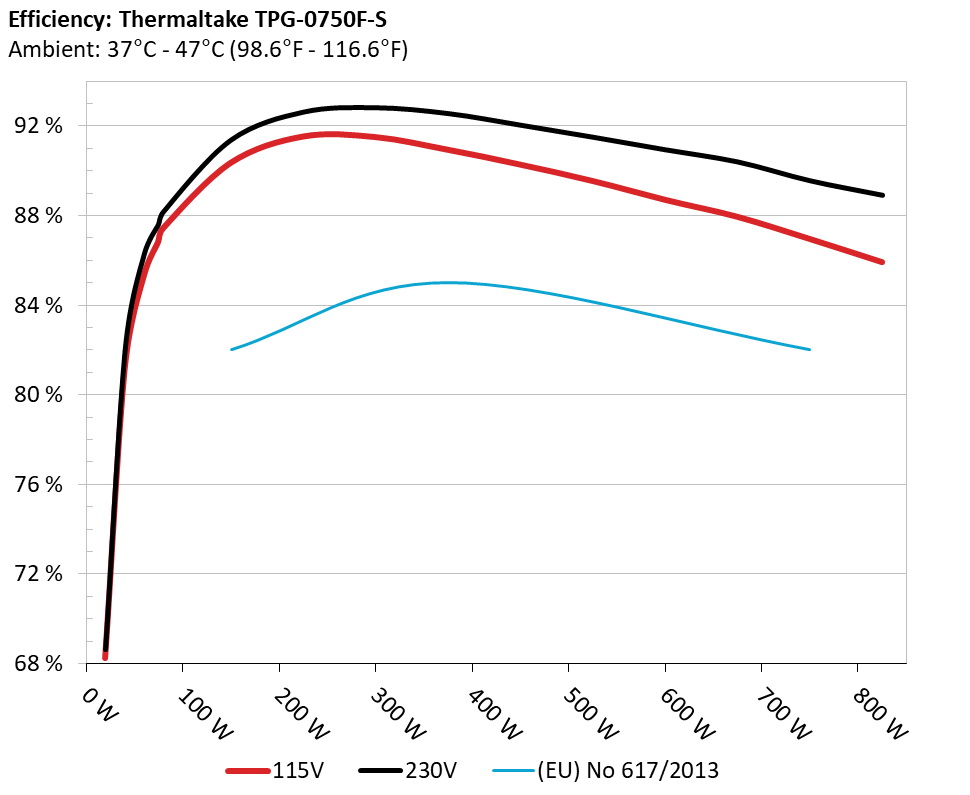

高环温电源转换效率

资讯

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

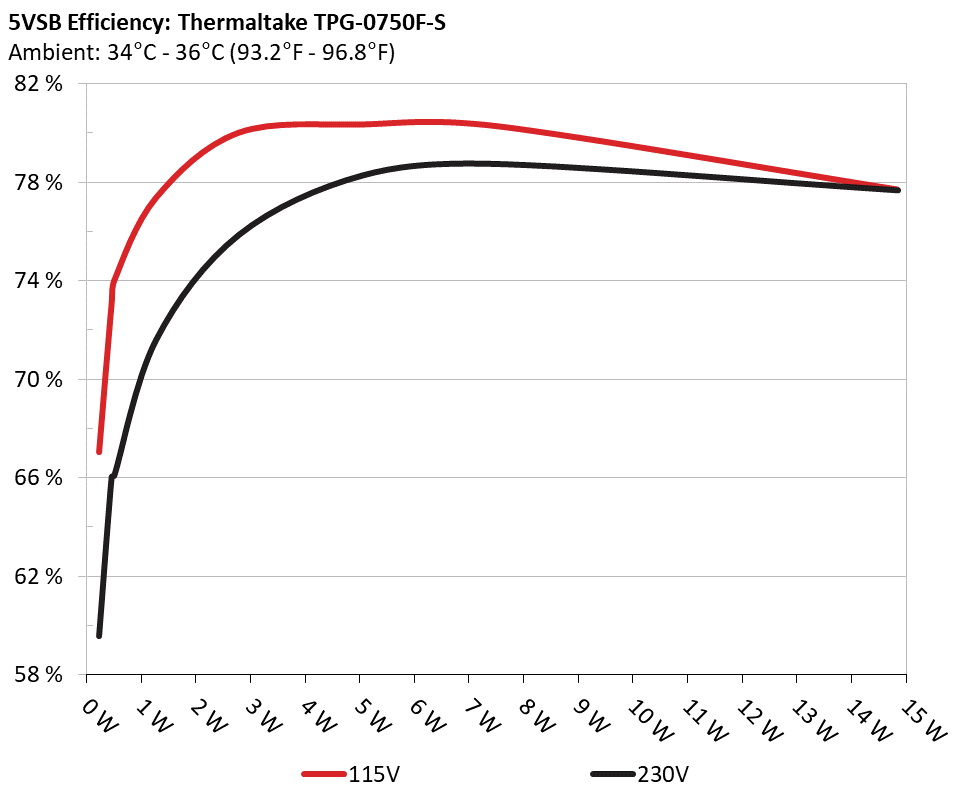

5Vsb转换效率

资讯

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC)

测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.230 67.055% 0.042
5.091V 0.343 115.06V
2 0.090A 0.459 73.089% 0.075
5.089V 0.628 115.06V
3 0.550A 2.788 80.000% 0.250
5.068V 3.485 115.06V
4 1.000A 5.048 80.331% 0.300
5.047V 6.284 115.06V
5 1.500A 7.536 80.256% 0.326
5.023V 9.390 115.06V
6 3.000A 14.843 77.700% 0.364
4.947V 19.103 115.06V
测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.230 59.585% 0.016
5.092V 0.386 230.20V
2 0.090A 0.459 66.043% 0.029
5.089V 0.695 230.20V
3 0.550A 2.787 75.878% 0.131
5.066V 3.673 230.20V
4 1.000A 5.046 78.293% 0.191
5.046V 6.445 230.20V
5 1.500A 7.535 78.760% 0.231
5.022V 9.567 230.20V
6 3.000A 14.852 77.690% 0.287
4.950V 19.117 230.20V

Protection Features

Supplementary Tests (For Reference)

10-110%负载测试

测试 # 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
1 4.371A 1.982A 1.957A 0.999A 74.578 86.843% 0 <6.0 47.85°C 0.947
12.118V 5.051V 3.372V 5.005V 85.877 40.37°C 115.06V
2 9.798A 2.979A 2.950A 1.204A 149.460 90.367% 0 <6.0 48.87°C 0.977
12.099V 5.038V 3.357V 4.985V 165.393 40.83°C 115.06V
3 15.632A 3.484A 3.437A 1.411A 224.871 91.552% 580 9.5 41.04°C 0.990
12.082V 5.025V 3.344V 4.964V 245.620 49.49°C 115.04V
4 21.417A 3.988A 3.962A 1.619A 299.656 91.526% 575 9.5 41.46°C 0.994
12.068V 5.014V 3.331V 4.943V 327.399 50.57°C 115.04V
5 26.889A 5.001A 4.974A 1.829A 374.579 90.961% 575 9.5 42.17°C 0.994
12.052V 5.001V 3.317V 4.923V 411.802 51.90°C 115.04V
6 32.375A 6.017A 5.999A 2.041A 449.513 90.300% 820 19.3 42.81°C 0.995
12.037V 4.987V 3.301V 4.902V 497.802 52.95°C 115.04V
7 37.913A 7.038A 7.029A 2.254A 524.782 89.565% 1010 26.2 43.34°C 0.996
12.019V 4.974V 3.286V 4.881V 585.922 54.24°C 115.03V
8 43.458A 8.067A 8.072A 2.471A 600.128 88.721% 1140 29.9 43.52°C 0.996
12.005V 4.960V 3.270V 4.859V 676.425 55.15°C 115.03V
9 49.398A 8.591A 8.593A 2.475A 674.639 87.966% 1405 36.0 44.59°C 0.997
11.987V 4.949V 3.257V 4.849V 766.933 56.84°C 115.03V
10 55.142A 9.121A 9.157A 3.126A 749.882 86.975% 1400 36.0 45.69°C 0.997
11.972V 4.936V 3.243V 4.800V 862.178 58.70°C 115.03V
11 61.509A 9.140A 9.191A 3.135A 825.120 85.936% 1398 36.0 46.51°C 0.998
11.956V 4.925V 3.231V 4.787V 960.153 60.89°C 115.02V
CL1 0.144A 14.005A 13.998A 0.000A 118.102 82.258% 690 13.8 42.42°C 0.974
12.109V 5.002V 3.308V 5.065V 143.575 52.31°C 115.05V
CL2 62.516A 1.002A 1.001A 1.000A 761.499 87.663% 1395 36.0 45.54°C 0.997
11.970V 4.968V 3.286V 4.916V 868.668 58.44°C 115.03V

The results above are not used in the certification process

测试 # 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
1 4.367A 1.980A 1.956A 1.000A 74.512 87.629% 0 <6.0 48.49°C 0.824
12.117V 5.050V 3.371V 5.004V 85.031 40.49°C 230.18V
2 9.794A 2.979A 2.948A 1.204A 149.391 91.380% 370 6.6 40.82°C 0.873
12.098V 5.037V 3.357V 4.984V 163.484 49.83°C 230.19V
3 15.635A 3.484A 3.438A 1.411A 224.925 92.637% 575 9.5 41.17°C 0.903
12.083V 5.025V 3.344V 4.963V 242.802 50.58°C 230.02V
4 21.420A 3.990A 3.963A 1.619A 299.685 92.831% 575 9.5 41.73°C 0.923
12.067V 5.014V 3.331V 4.943V 322.827 51.58°C 230.19V
5 26.891A 5.001A 4.977A 1.829A 374.607 92.572% 572 9.4 42.05°C 0.972
12.052V 5.001V 3.316V 4.922V 404.666 52.42°C 230.19V
6 32.377A 6.017A 5.998A 2.041A 449.533 92.056% 820 19.3 42.87°C 0.976
12.037V 4.987V 3.301V 4.902V 488.324 53.75°C 230.19V
7 37.912A 7.040A 7.029A 2.255A 524.851 91.516% 1010 26.2 43.27°C 0.983
12.021V 4.974V 3.285V 4.880V 573.508 54.80°C 230.19V
8 43.461A 8.067A 8.074A 2.471A 600.161 90.953% 1137 29.9 43.55°C 0.990
12.005V 4.960V 3.269V 4.858V 659.862 55.60°C 230.00V
9 49.398A 8.592A 8.595A 2.476A 674.695 90.415% 1392 35.9 44.51°C 0.992
11.988V 4.948V 3.257V 4.848V 746.220 57.51°C 230.01V
10 55.146A 9.119A 9.160A 3.127A 749.913 89.574% 1400 36.0 45.76°C 0.994
11.972V 4.935V 3.242V 4.799V 837.204 59.63°C 230.19V
11 61.509A 9.139A 9.193A 3.135A 825.121 88.927% 1395 36.0 46.62°C 0.996
11.956V 4.925V 3.231V 4.787V 927.859 61.03°C 230.17V
CL1 0.144A 14.004A 13.997A 0.000A 118.093 82.853% 690 13.8 42.52°C 0.862
12.109V 5.002V 3.308V 5.065V 142.533 52.75°C 230.19V
CL2 62.514A 1.002A 1.001A 1.000A 761.537 90.341% 1400 36.0 45.56°C 0.994
11.971V 4.968V 3.285V 4.916V 842.959 59.60°C 230.18V

The results above are not used in the certification process

20-80瓦负载测试

测试 # 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) PF/AC 电压
1 1.193A 0.494A 0.474A 0.198A 19.600 68.231% 0 <6.0 0.875
12.149V 5.062V 3.386V 5.053V 28.726 115.07V
2 2.450A 0.989A 0.977A 0.397A 40.019 81.224% 0 <6.0 0.906
12.128V 5.058V 3.381V 5.041V 49.270 115.06V
3 3.642A 1.485A 1.452A 0.597A 59.542 85.298% 0 <6.0 0.934
12.118V 5.054V 3.376V 5.028V 69.805 115.06V
4 4.900A 1.981A 1.959A 0.798A 79.973 87.460% 0 <6.0 0.951
12.115V 5.050V 3.371V 5.015V 91.440 115.05V

The results above are not used in the certification process

测试 # 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) PF/AC 电压
1 1.190A 0.493A 0.473A 0.198A 19.572 68.652% 0 <6.0 0.582
12.162V 5.064V 3.387V 5.054V 28.509 230.19V
2 2.447A 0.989A 0.976A 0.397A 39.997 82.094% 0 <6.0 0.730
12.134V 5.059V 3.382V 5.041V 48.721 230.19V
3 3.639A 1.485A 1.449A 0.597A 59.508 86.271% 0 <6.0 0.790
12.121V 5.054V 3.376V 5.028V 68.978 230.01V
4 4.896A 1.980A 1.956A 0.798A 79.920 88.205% 0 <6.0 0.828
12.117V 5.050V 3.371V 5.015V 90.607 230.19V

The results above are not used in the certification process

纹波测量

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 29.7 mV 6.1 mV 6.6 mV 4.3 mV Pass
20% Load 26.8 mV 7.0 mV 8.5 mV 4.4 mV Pass
30% Load 9.9 mV 7.3 mV 9.3 mV 4.5 mV Pass
40% Load 11.9 mV 8.6 mV 9.9 mV 5.7 mV Pass
50% Load 11.9 mV 10.1 mV 11.0 mV 6.0 mV Pass
60% Load 12.7 mV 13.0 mV 12.9 mV 9.2 mV Pass
70% Load 14.2 mV 12.5 mV 12.9 mV 7.4 mV Pass
80% Load 15.4 mV 14.6 mV 14.7 mV 8.7 mV Pass
90% Load 16.8 mV 15.3 mV 15.8 mV 9.5 mV Pass
100% Load 18.8 mV 16.6 mV 16.7 mV 10.5 mV Pass
110% Load 19.9 mV 17.5 mV 17.4 mV 10.3 mV Pass
Crossload 1 22.7 mV 12.4 mV 14.4 mV 6.1 mV Pass
Crossload 2 18.3 mV 12.3 mV 11.3 mV 8.1 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 30.2 mV 6.4 mV 7.2 mV 4.1 mV Pass
20% Load 26.2 mV 7.0 mV 8.1 mV 5.0 mV Pass
30% Load 10.0 mV 7.6 mV 9.6 mV 4.6 mV Pass
40% Load 12.0 mV 8.6 mV 10.0 mV 5.8 mV Pass
50% Load 10.9 mV 10.1 mV 10.8 mV 5.9 mV Pass
60% Load 12.0 mV 12.9 mV 13.2 mV 8.9 mV Pass
70% Load 13.9 mV 12.9 mV 13.1 mV 7.8 mV Pass
80% Load 14.9 mV 14.6 mV 14.6 mV 8.7 mV Pass
90% Load 16.1 mV 15.8 mV 15.8 mV 9.7 mV Pass
100% Load 18.0 mV 16.8 mV 16.8 mV 10.5 mV Pass
110% Load 20.6 mV 17.5 mV 17.5 mV 10.4 mV Pass
Crossload 1 22.2 mV 12.2 mV 14.7 mV 6.4 mV Pass
Crossload 2 17.6 mV 12.1 mV 11.3 mV 8.1 mV Pass

The results above are not used in the certification process

Thermaltake Toughpower Grand Gold 750W

Top side
Power specifications label
本测试报告中包含的所有数据和图表均可在以下条件下由任何人使用：使用过程需提及测试结果由Cybenetics提供。
在任何情况下都应提供原始测试结果文档的网站链接
Cybenetics提供ETA和Lambda自愿认证计划，透过该计划推广高效率及静音的电源
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
