Cybenetics Test - be quiet! System Power U9 500W

be quiet! System Power U9 500W

Serial Number607L8100000126

Lab ID498

Certification ID25498

Test Result Report ID: 20PS498A
Certificate Issue Date: Nov 10, 2018

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	be quiet!
Hersteller (OEM)	CWT
Series	System Power U9
Model Number	SU9-500
Serial Number	607L8100000126
DUT Notes

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	8-4
Rated Frequency (Hz)	50-60
Rated Power (W)	500
Type	ATX12V
Dimensions (W x H x D)
Cooling	120mm Sleeve Bearing Fan (D12SM-12)
Semi-Passive Operation	✗
Cable Design	Fixed cables

Power Specifications

Rail		3.3V	5V	12V1	12V2	5VSB	-12V
Max. Power	Amps	24	16	24	20	3	0.3
				40
	Watts	110		480		15	3.6
Total Max. Power (W)		500

Test Equipment

Electronic Loads	Chroma 6314A x2 63123A x6 63102A 63101A	Chroma 63601-5 x4 Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
AC Sources	Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers	N4L PPA1530 x2, N4L PPA5530
Oscilloscopes	Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter	Keithley 2015 THD 6.5 Digit
Sound Analyzer	Bruel & Kjaer 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers	Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (550mm)	1	1	18-22AWG	No
4+4 pin EPS12V (610mm)	1	1	18AWG	No
6+2 pin PCIe (520mm)	2	2	18AWG	No
SATA (540mm+120mm+120mm)+4 pin Molex (+120mm)	1	3 / 1	18AWG	No
SATA (340mm+120mm+120mm)+4 pin Molex (+120mm)	1	3 / 1	18AWG	No
AC Power Cord (1400mm) - C13 coupler	1	1	18AWG	-

Parts Description

General Data
Manufacturer (OEM)	CWT
PCB Type	Single Layer
Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM & 1x DM chokes, 1x MOV, 1x CAP004DG Discharge IC
Inrush Protection	NTC Thermistor
Bridge Rectifier(s)	1x GBU806 (600V, 8A @ 100°C)
APFC MOSFETS	2x Champion GP28S50G (500 V, 28 A @ 150 °C, 0.125 Ohm)
APFC Boost Diode	1x STMicroelectronics SSTH8S06 (600V, 8A @ 175°C)
Hold-up Cap(s)	1x Elite (400V, 270uF, 2000h @ 85 °C, GM)
Main Switchers	2x Champion GPT18N50DG (500V, 18A @ 150°C, 0.27Ohm)
Combo APFC/PWM Controller	Champion CM6800TX & CM03X Green PFC controller
Topology	Primary side: Double-Forward topology Secondary side: Passive Rectification & DC-DC converters
Secondary Side
+12V MOSFETS	4x PFC PFR30L60CT SBRs (60V, 15 X 2 A @ 150°C)
5V & 3.3V	DC-DC Converters: 2x UBIQ QM3006D (30V, 57A @ 100°C, 5.5mOhm), 2x UBIQ QM3016D (30V, 68A @ 100°C, 4mOhm) PWM Controller: Anpec APW7159C
Filtering Capacitors	Electrolytics: 9x Elite (3000-6000h, 105°C, EV), 1x Elite (2000 - 5000h, 105°C, EK), 3x Elite (2000 - 5000h, 105°C, ED), 2x Elite (4000 - 10000h, 105°C, EY) Polymers: 5x APAQ
Supervisor IC	Sytronix ST9S429-PG14 (OCP [2x 12V channels, OVP, UVP, PG) & Weltrend WD7518D (OCP [2x 12V channels], SCP)
Fan Model	Yate Loon D12SM-12 (120mm, 12V, 0.30A, 70.5 CFM, 33 dBA, 1650 RPM, Sleeve Bearing)
5VSB Circuit
Standby PWM Controller	TinySwitch-LT TNY289PG (25W @ 85-265VAC)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓

Performance Summary

Wirkungsgrad	SILVER
Lautstärkeklasse	A
Average Efficiency (>1450 load combinations)	84.995%
Average Noise Output (>1450 Load Combinations)	21.80dBA
Average PF (>1450 Load Combinations)	0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load	60.101%
Standby Power Consumption	0.0430W
12V Ripple (Full Load)	34.60mV
5V Ripple (Full Load)	10.95mV
3.3V Ripple (Full Load)	17.58mV
5VSB Ripple (Full Load)	13.77mV
12V Load Regulation	0.78%
5V Load Regulation	0.46%
3.3V Load Regulation	0.48%
5VSB Load Regulation	2.14%
Inrush Current	51.613A

Wirkungsgrad	SILVER
Lautstärkeklasse	A
Average Efficiency (>1450 load combinations)	87.227%
Average Noise Output (>1450 Load Combinations)	20.73dBA
Average PF (>1450 Load Combinations)	0.957
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
Standby Power Consumption	0.0853W
12V Ripple (Full Load)	27.78mV
5V Ripple (Full Load)	10.97mV
3.3V Ripple (Full Load)	17.94mV
5VSB Ripple (Full Load)	12.44mV
12V Load Regulation	0.75%
5V Load Regulation	0.50%
3.3V Load Regulation	0.57%
5VSB Load Regulation	2.10%
Inrush Current	52.151A
Hold-Up Time & Power Ok Signal	11.90ms
AC Loss to PWR_OK Hold Up Time	10.10ms
PWR_OK Inactive to DC Loss Delay	1.80ms
PSU Timings: T1 (20% / 100%)	0.0ms	0.0ms
PSU Timings: T3 (20% / 100%)	0.0ms	0.0ms
OPP (0.00°C / 0.00°C)	0.00%	0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	11.9
AC Loss to PWR_OK Hold Up Time (ms)	10.1
PWR_OK Inactive to DC Loss Delay (ms)	1.8

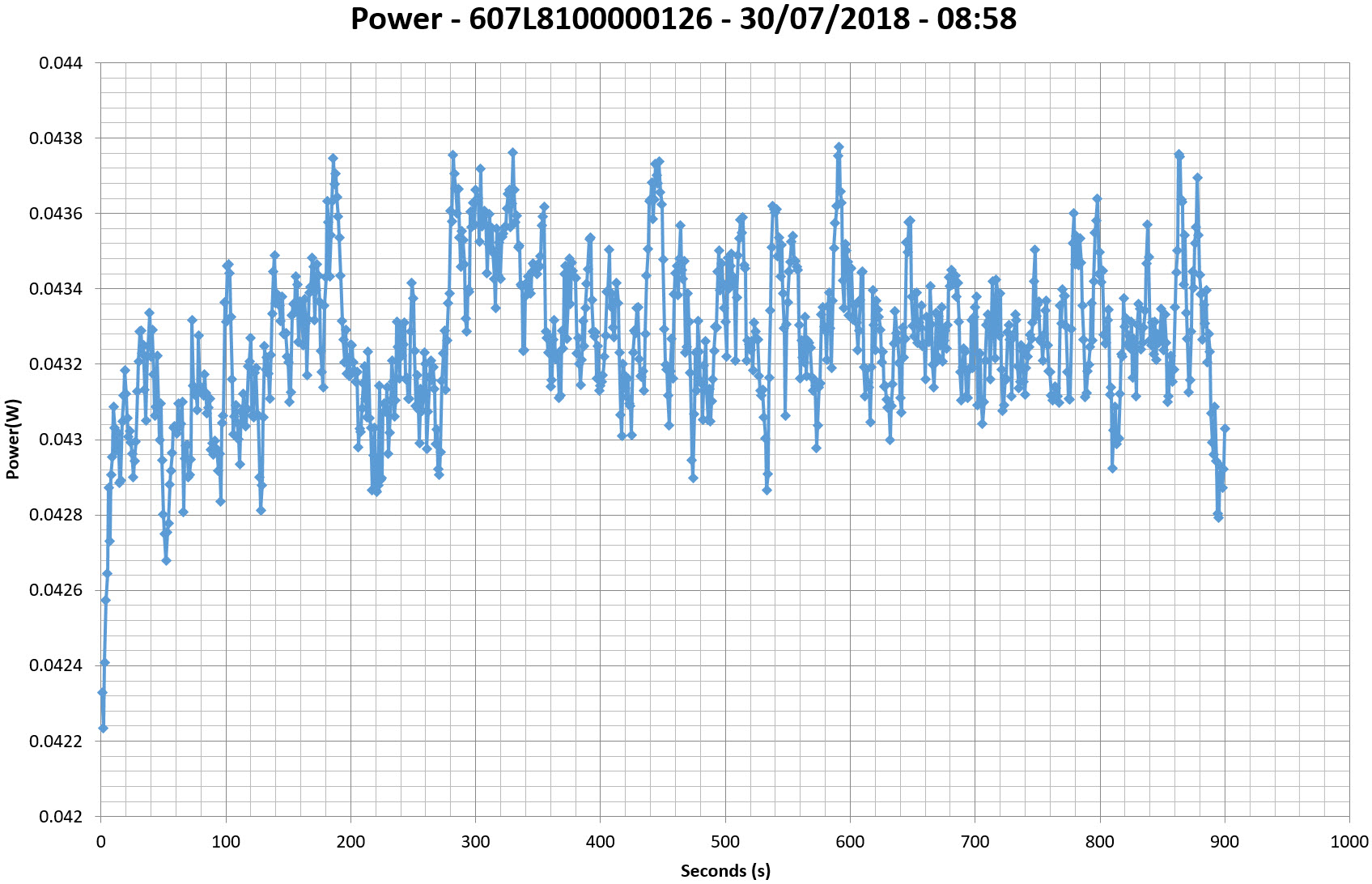

Stromverbrauch im Ruhezustand

Tables

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

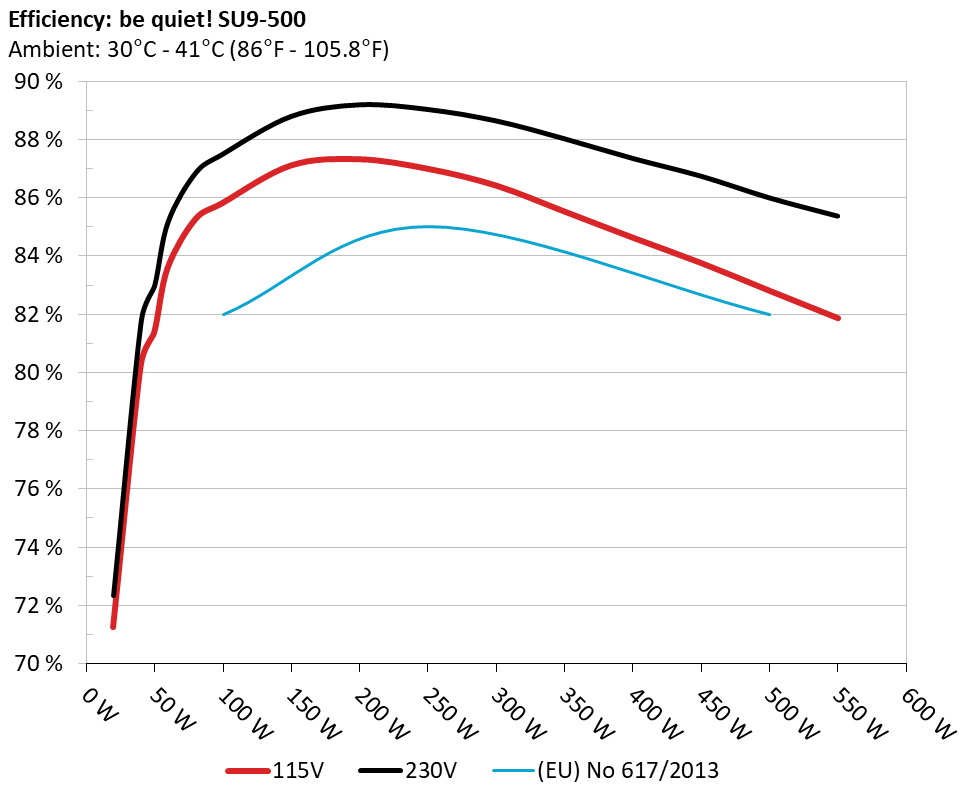

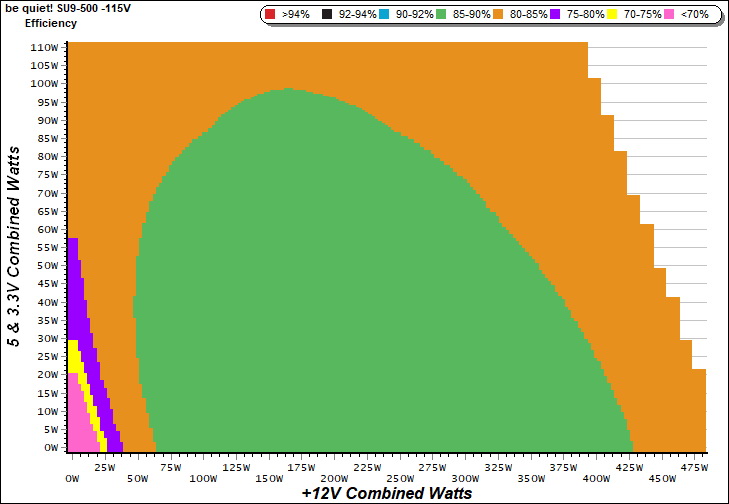

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

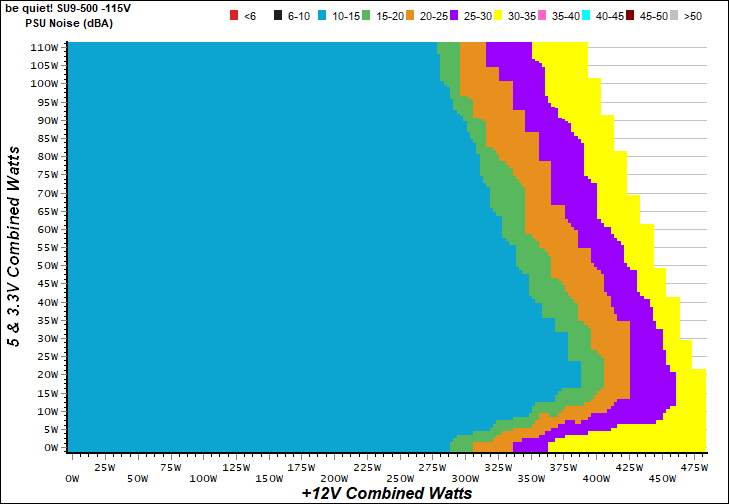

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

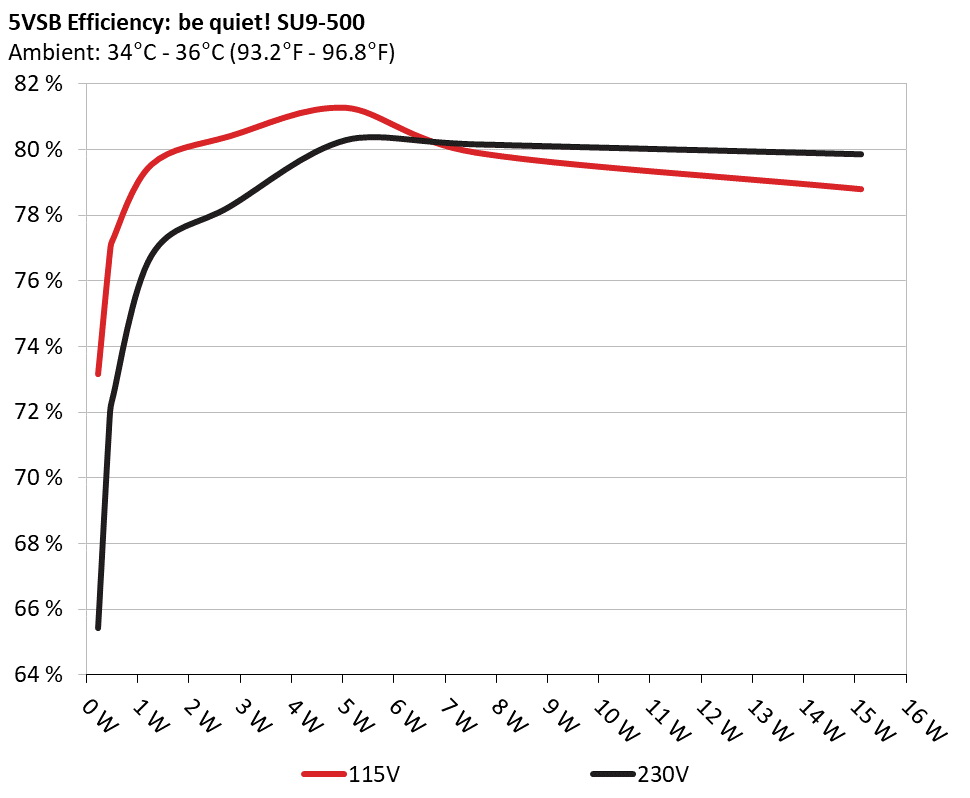

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.229	73.163%	0.044
1	5.092V	0.313	73.163%	115.12V
2	0.090A	0.458	76.846%	0.081
2	5.091V	0.596	76.846%	115.12V
3	0.550A	2.796	80.414%	0.299
3	5.082V	3.477	80.414%	115.12V
4	1.000A	5.075	81.278%	0.368
4	5.074V	6.244	81.278%	115.13V
5	1.500A	7.599	79.914%	0.407
5	5.065V	9.509	79.914%	115.12V
6	3.001A	15.117	78.800%	0.456
6	5.038V	19.184	78.800%	115.12V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.229	65.429%	0.015
1	5.092V	0.350	65.429%	230.26V
2	0.090A	0.458	71.900%	0.027
2	5.091V	0.637	71.900%	230.26V
3	0.550A	2.795	78.247%	0.135
3	5.082V	3.572	78.247%	230.26V
4	1.000A	5.075	80.275%	0.208
4	5.074V	6.322	80.275%	230.26V
5	1.500A	7.599	80.141%	0.264
5	5.065V	9.482	80.141%	230.26V
6	3.000A	15.117	79.840%	0.347
6	5.039V	18.934	79.840%	230.26V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	2.310A	1.983A	1.989A	0.987A	49.553	81.389%	630	10.0	36.59°C	0.960
1	12.104V	5.041V	3.316V	5.068V	60.884	81.389%	630	10.0	39.30°C	115.09V
2	5.688A	2.977A	2.987A	1.186A	99.678	85.842%	622	9.8	36.83°C	0.970
2	12.092V	5.039V	3.314V	5.058V	116.118	85.842%	622	9.8	40.11°C	115.09V
3	9.401A	3.474A	3.469A	1.386A	149.580	87.128%	626	9.9	37.21°C	0.979
3	12.083V	5.037V	3.312V	5.050V	171.678	87.128%	626	9.9	40.85°C	115.09V
4	13.120A	3.973A	3.986A	1.587A	199.596	87.340%	630	10.0	37.50°C	0.984
4	12.073V	5.034V	3.311V	5.041V	228.527	87.340%	630	10.0	41.52°C	115.09V
5	16.515A	4.970A	4.985A	1.789A	249.719	87.011%	622	9.8	37.88°C	0.987
5	12.063V	5.031V	3.309V	5.031V	286.997	87.011%	622	9.8	42.57°C	115.09V
6	19.913A	5.965A	5.986A	1.992A	299.807	86.433%	644	10.4	38.29°C	0.989
6	12.053V	5.029V	3.307V	5.021V	346.868	86.433%	644	10.4	43.31°C	115.09V
7	23.318A	6.964A	6.985A	2.196A	349.947	85.539%	825	15.6	38.77°C	0.991
7	12.044V	5.027V	3.306V	5.011V	409.106	85.539%	825	15.6	44.06°C	115.09V
8	26.732A	7.963A	7.989A	2.400A	400.070	84.638%	1155	26.1	39.11°C	0.992
8	12.033V	5.024V	3.304V	5.001V	472.685	84.638%	1155	26.1	45.05°C	115.08V
9	30.550A	8.462A	8.477A	2.403A	449.771	83.772%	1480	33.8	39.57°C	0.993
9	12.022V	5.022V	3.303V	4.995V	536.902	83.772%	1480	33.8	45.81°C	115.08V
10	34.142A	8.965A	8.997A	3.014A	499.786	82.819%	1790	39.1	40.28°C	0.994
10	12.011V	5.020V	3.301V	4.978V	603.465	82.819%	1790	39.1	46.65°C	115.08V
11	38.332A	8.969A	8.999A	3.017A	549.805	81.879%	1786	39.1	40.58°C	0.994
11	12.003V	5.018V	3.300V	4.973V	671.486	81.879%	1786	39.1	47.19°C	115.08V
CL1	0.140A	13.000A	12.999A	0.000A	110.044	80.616%	645	10.5	37.61°C	0.975
CL1	12.094V	5.029V	3.306V	5.061V	136.504	80.616%	645	10.5	42.74°C	115.10V
CL2	40.010A	1.002A	0.999A	1.000A	494.208	83.879%	1685	36.9	40.15°C	0.993
CL2	12.018V	5.025V	3.308V	5.029V	589.190	83.879%	1685	36.9	46.45°C	115.09V

The results above are not used in the certification process

Light Load Tests

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.188A	0.495A	0.480A	0.197A	19.479	71.263%	633	10.0	0.924
1	12.109V	5.045V	3.318V	5.087V	27.334	71.263%	633	10.0	115.10V
2	2.441A	0.991A	0.992A	0.394A	39.839	80.306%	628	9.9	0.947
2	12.105V	5.043V	3.317V	5.081V	49.609	80.306%	628	9.9	115.09V
3	3.632A	1.487A	1.475A	0.591A	59.338	83.605%	624	9.9	0.964
3	12.101V	5.041V	3.316V	5.075V	70.974	83.605%	624	9.9	115.09V
4	4.891A	1.984A	1.989A	0.789A	79.760	85.286%	635	10.1	0.966
4	12.097V	5.040V	3.315V	5.069V	93.521	85.286%	635	10.1	115.10V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	6.5 mV	5.8 mV	12.1 mV	8.8 mV	Pass
20% Load	8.1 mV	5.5 mV	10.8 mV	8.3 mV	Pass
30% Load	9.0 mV	7.1 mV	11.2 mV	9.1 mV	Pass
40% Load	12.0 mV	7.8 mV	12.4 mV	9.2 mV	Pass
50% Load	12.5 mV	7.6 mV	12.8 mV	15.3 mV	Pass
60% Load	14.1 mV	8.4 mV	12.7 mV	13.6 mV	Pass
70% Load	16.9 mV	9.0 mV	14.0 mV	11.4 mV	Pass
80% Load	19.3 mV	9.1 mV	16.8 mV	12.7 mV	Pass
90% Load	20.8 mV	9.5 mV	16.9 mV	13.2 mV	Pass
100% Load	34.6 mV	11.0 mV	17.6 mV	13.8 mV	Pass
110% Load	38.0 mV	11.2 mV	18.8 mV	13.2 mV	Pass
Crossload 1	12.0 mV	8.6 mV	20.3 mV	8.6 mV	Pass
Crossload 2	31.7 mV	8.3 mV	13.3 mV	10.3 mV	Pass

The results above are not used in the certification process

be quiet! System Power U9 500W

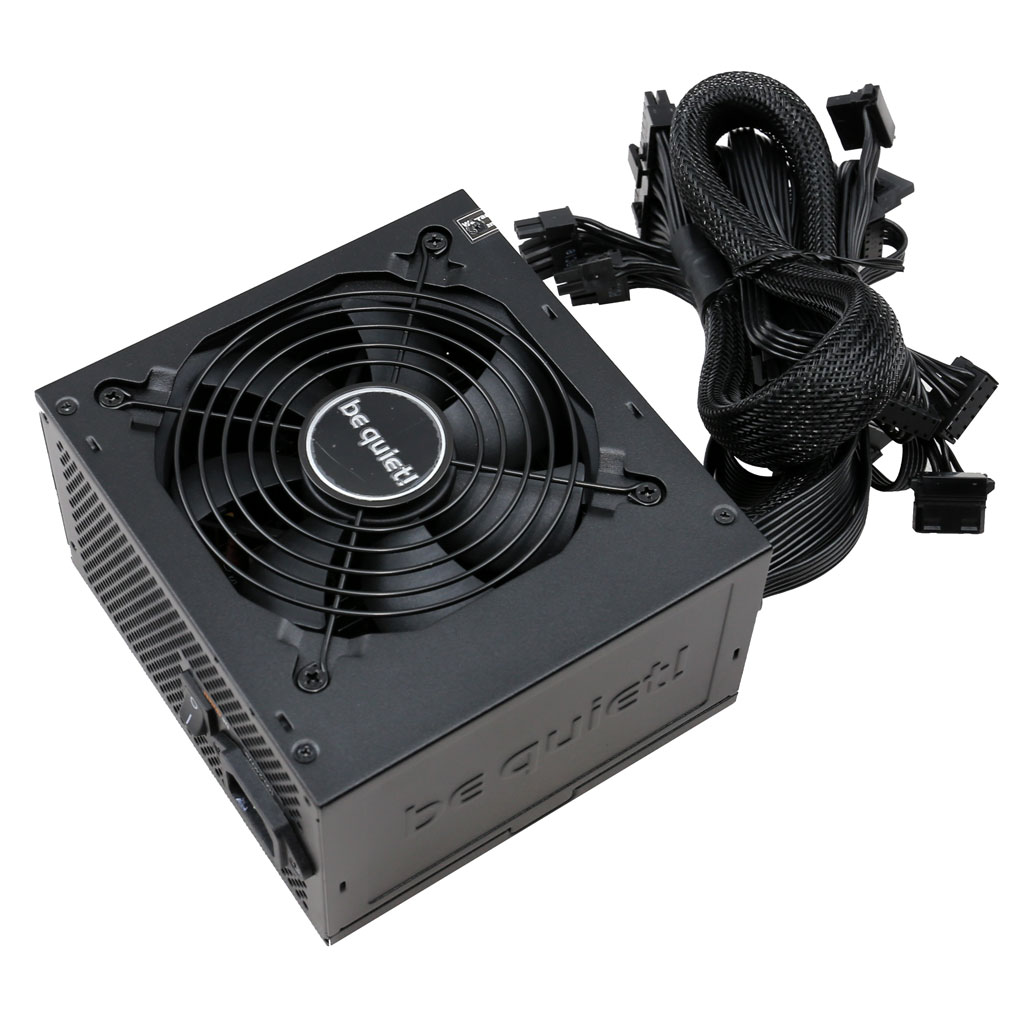

Top side

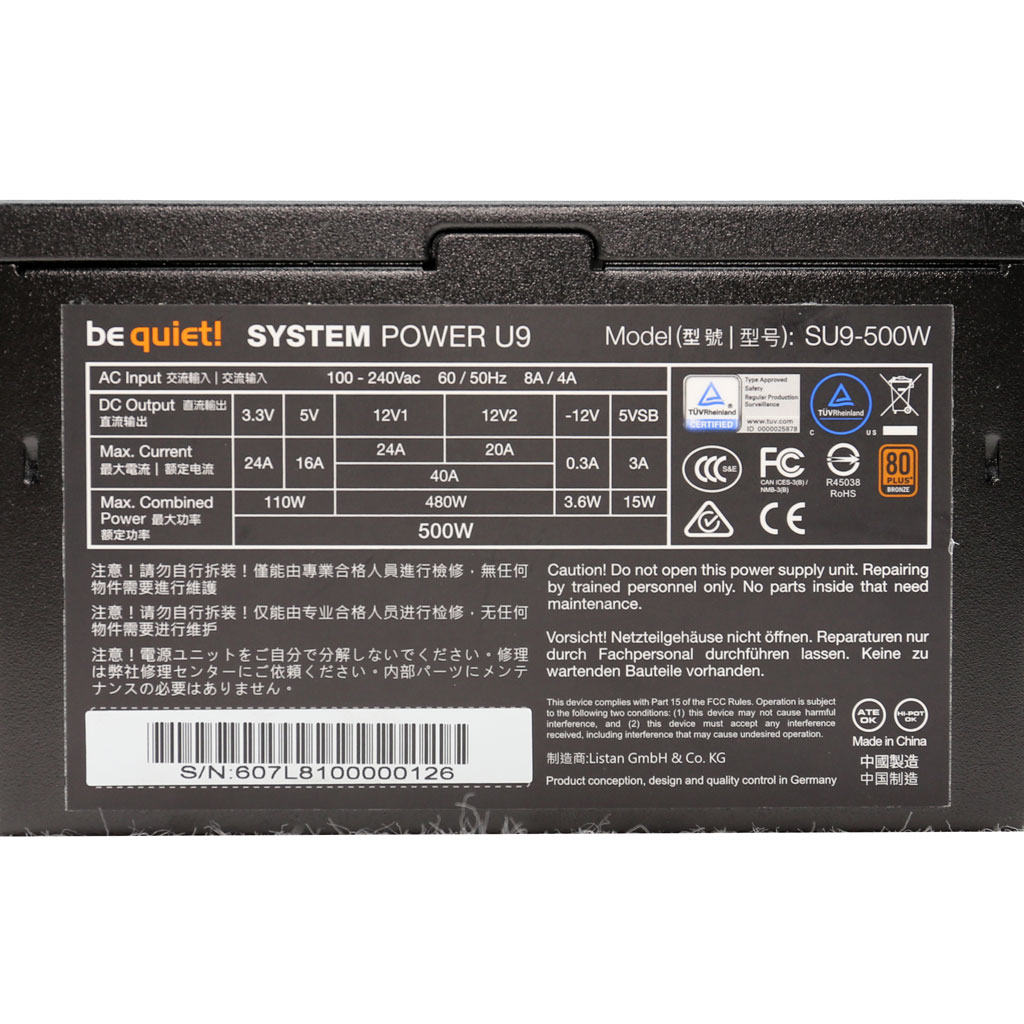

Power specifications label
