Fractal Design ION+ 860P
Serial Number1918FD19270100399
Lab IDFD19860073
Certification ID25764
  • Test Result Report ID:
  • Certificate Issue Date: Jul 18, 2019
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandFractal Design
Manufacturer (OEM)High Power
SeriesION+
Model Number
Serial Number1918FD19270100399
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)860
TypeATX12V
Dimensions (W x H x D)mm
Cooling140mm Fluid Dynamic Bearing Fan
(DYNAMIC X2 GP-14)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222271.630.3
Watts120860153.6
Total Max. Power (W)860

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
8 pin EPS12V (600mm) 1 1 16AWG No
6+2 pin PCIe (560mm+120mm) 3 6 16-18AWG No
SATA (650mm+120mm) 1 2 18AWG No
SATA (400mm+120mm+120mm+120mm) 2 8 18AWG No
4 pin Molex (400mm+120mm+120mm+120mm) 1 4 18AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 16AWG -

Parts Description

General Data
Manufacturer (OEM) High Power
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 3x CM chokes, 1x MOV,1x Discharge IC
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETS 2x Infineon IPA60R099P7 (650V, 20A @ 100°C, 0.099Ohm)
APFC Boost Diode 1x Infineon IDH08G65C5 (650V, 8A @ 145°C)
Hold-up Cap(s) 2x Rubycon (400V, 470uF each or 940uF combined, 2,000h @ 105°C, MXH)
Main Switchers 2x Infineon IPA60R099P7 (650V, 20A @ 100°C, 0.099Ohm)
APFC Controller Infineon ICE3PCS01G
Resonant Controllers Champion CM6901X
Topology Primary side: Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 8x Infineon BSC010N04LS (40V, 100A @ 100°C, 1mOhm)
5V & 3.3V DC-DC Converters:8x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm)
PWM Controllers: ANPEC APW7159C
Filtering Capacitors Electrolytics: 4x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 5x Rubycon (3-6,000h @ 105°C, YXG), 1x Rubycon (6-10,000h @ 105°C, ZLH)
Polymers: 31x FPCAP, 6x NIC
Supervisor IC SITI PS224 (OCP, OVP, UVP, SCP, PG)
Micro Controller STC 15W408AS
Fan Model Fractal Design DYNAMIC X2 GP-14 (140mm, 3-12V, 0.40A, Fluid Dynamic Bearing Fan )
Fan Power Transistor STi 2SD882 (NPN)
5VSB Circuit
Rectifier 1x PFC P10V45SP SBR (45V, 10A) & 2x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mΩ)
Standby PWM Controller Excelliance MOS Corp EM8569
-12V Circuit
Rectifier KEC KIA7912PI (-12V, 1A)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA+
Average Efficiency (>1450 load combinations)89.952%
Average Noise Output (>1450 Load Combinations)18.05dBA
Average PF (>1450 Load Combinations)0.993
Efficiency With 10W (≤500W) or 2% (>500W) Load49.980%
Standby Power Consumption0.1053W
12V Ripple (Full Load)22.35mV
5V Ripple (Full Load)13.05mV
3.3V Ripple (Full Load)16.08mV
5VSB Ripple (Full Load)18.44mV
12V Load Regulation0.89%
5V Load Regulation0.60%
3.3V Load Regulation1.06%
5VSB Load Regulation2.31%
Inrush Current29.398A
Efficiency RatingPLATINUM
Noise RatingA+
Average Efficiency (>1450 load combinations)91.727%
Average Noise Output (>1450 Load Combinations)17.99dBA
Average PF (>1450 Load Combinations)0.961
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1402W
12V Ripple (Full Load)19.82mV
5V Ripple (Full Load)13.22mV
3.3V Ripple (Full Load)15.16mV
5VSB Ripple (Full Load)16.96mV
12V Load Regulation0.87%
5V Load Regulation0.64%
3.3V Load Regulation1.12%
5VSB Load Regulation2.41%
Inrush Current85.699A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal17.60ms
AC Loss to PWR_OK Hold Up Time16.00ms
PWR_OK Inactive to DC Loss Delay1.60ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)136.97%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)17.6
AC Loss to PWR_OK Hold Up Time (ms)16
PWR_OK Inactive to DC Loss Delay (ms)1.6

Vampire Power

Tables

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

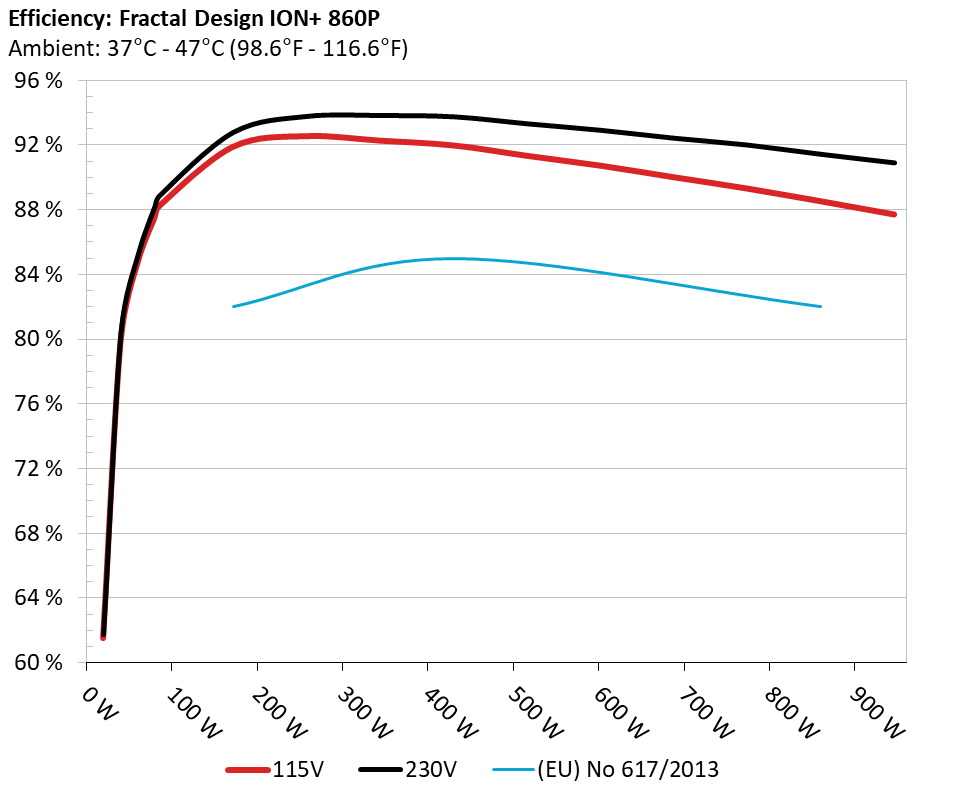

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

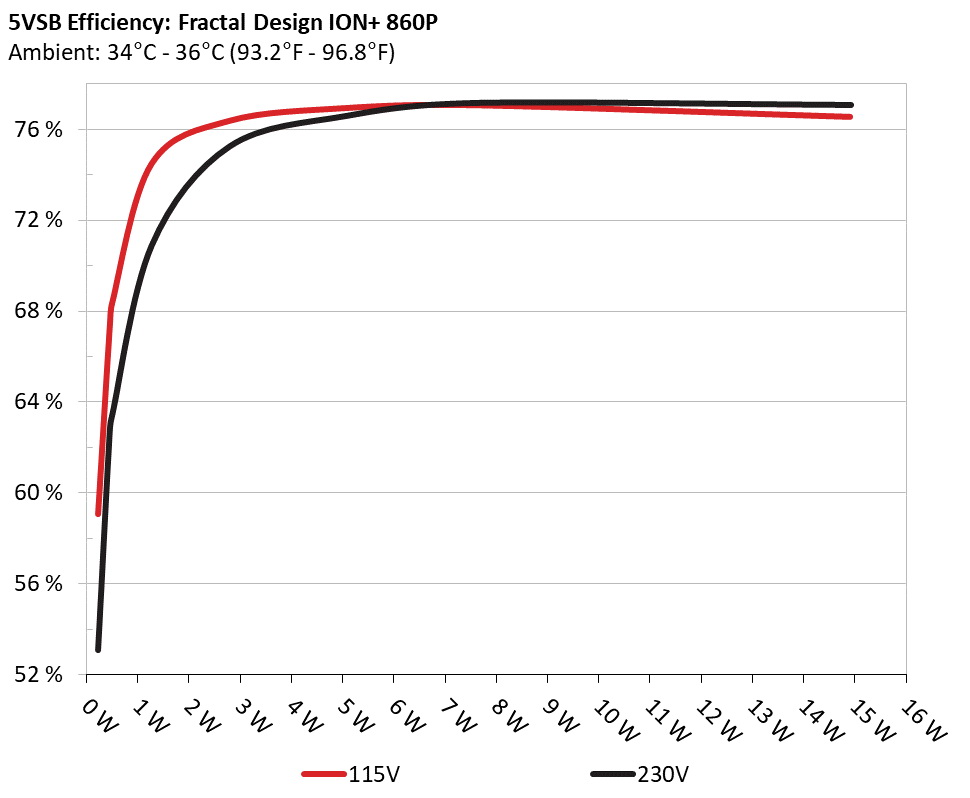

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.046A 0.231 59.079% 0.247
5.040V 0.391 115.12V
2 0.090A 0.460 67.350% 0.092
5.106V 0.683 115.12V
3 0.550A 2.798 76.365% 0.315
5.086V 3.664 115.12V
4 1.000A 5.067 76.924% 0.392
5.066V 6.587 115.12V
5 1.500A 7.566 77.047% 0.434
5.044V 9.820 115.12V
6 3.000A 14.914 76.537% 0.487
4.971V 19.486 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.046A 0.231 53.103% 0.102
5.041V 0.435 230.27V
2 0.090A 0.460 62.756% 0.031
5.106V 0.733 230.27V
3 0.550A 2.798 75.235% 0.143
5.085V 3.719 230.27V
4 1.000A 5.066 76.572% 0.221
5.065V 6.616 230.26V
5 1.500A 7.564 77.144% 0.278
5.042V 9.805 230.27V
6 3.000A 14.918 77.056% 0.365
4.972V 19.360 230.27V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.338A 1.996A 2.004A 1.003A 85.828 88.273% 0 <6.0 43.85°C 0.969
12.028V 5.016V 3.299V 4.985V 97.230 40.30°C 115.12V
2 11.733A 2.997A 3.009A 1.206A 171.908 91.918% 0 <6.0 45.00°C 0.990
12.016V 5.011V 3.292V 4.976V 187.023 40.73°C 115.12V
3 18.476A 3.496A 3.497A 1.409A 257.808 92.573% 0 <6.0 46.29°C 0.997
12.005V 5.008V 3.288V 4.967V 278.492 41.29°C 115.12V
4 25.230A 3.993A 4.008A 1.611A 343.806 92.299% 595 12.5 41.78°C 0.996
11.993V 5.013V 3.295V 4.966V 372.493 47.71°C 115.12V
5 31.667A 4.997A 5.020A 1.817A 429.928 92.001% 598 12.6 42.31°C 0.997
11.981V 5.006V 3.288V 4.956V 467.308 49.40°C 115.11V
6 38.112A 6.003A 6.034A 2.022A 516.020 91.359% 602 12.6 42.60°C 0.998
11.970V 5.001V 3.281V 4.946V 564.825 51.10°C 115.11V
7 44.572A 7.009A 7.056A 2.229A 602.156 90.746% 657 14.6 43.01°C 0.998
11.959V 4.996V 3.274V 4.936V 663.559 52.44°C 115.11V
8 51.042A 8.019A 8.057A 2.437A 688.273 90.032% 847 22.7 43.99°C 0.998
11.948V 4.990V 3.277V 4.926V 764.477 53.67°C 115.10V
9 57.932A 8.526A 8.557A 2.438A 773.999 89.333% 972 26.8 44.58°C 0.998
11.936V 4.987V 3.272V 4.924V 866.424 55.37°C 115.10V
10 64.594A 9.029A 9.090A 3.063A 860.005 88.546% 1332 36.2 45.55°C 0.999
11.925V 4.986V 3.267V 4.899V 971.250 56.85°C 115.10V
11 71.869A 9.030A 9.095A 3.064A 945.971 87.731% 1705 42.9 46.56°C 0.999
11.914V 4.985V 3.266V 4.897V 1078.261 58.27°C 115.10V
CL1 0.154A 14.005A 13.999A 0.000A 117.609 83.815% 0 <6.0 49.30°C 0.981
12.004V 4.994V 3.273V 5.053V 140.319 42.30°C 115.12V
CL2 71.667A 1.002A 1.000A 1.000A 868.900 89.484% 914 24.9 45.51°C 0.999
11.939V 5.005V 3.287V 4.967V 971.017 56.18°C 115.09V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.334A 1.996A 2.000A 1.003A 85.758 88.890% 0 <6.0 42.65°C 0.830
12.027V 5.014V 3.300V 4.984V 96.477 40.01°C 230.25V
2 11.729A 2.990A 3.007A 1.204A 171.831 92.788% 0 <6.0 43.71°C 0.927
12.015V 5.019V 3.292V 4.985V 185.187 40.67°C 230.25V
3 18.471A 3.497A 3.498A 1.410A 257.747 93.769% 0 <6.0 44.63°C 0.959
12.004V 5.007V 3.290V 4.967V 274.873 41.19°C 230.26V
4 25.225A 4.001A 4.017A 1.615A 343.745 93.824% 591 12.5 41.81°C 0.970
11.993V 5.003V 3.286V 4.956V 366.372 45.50°C 230.25V
5 31.666A 4.998A 5.017A 1.817A 429.885 93.747% 596 12.5 42.27°C 0.980
11.980V 5.006V 3.289V 4.956V 458.561 46.27°C 230.26V
6 38.111A 6.001A 6.035A 2.023A 515.980 93.315% 602 12.6 42.76°C 0.984
11.969V 5.002V 3.282V 4.946V 552.947 47.70°C 230.25V
7 44.573A 7.009A 7.056A 2.229A 602.126 92.911% 657 14.6 43.09°C 0.987
11.958V 4.996V 3.274V 4.936V 648.066 49.01°C 230.25V
8 51.051A 8.017A 8.056A 2.437A 688.262 92.423% 848 22.7 43.58°C 0.991
11.946V 4.990V 3.277V 4.925V 744.690 50.17°C 230.25V
9 57.935A 8.526A 8.558A 2.438A 773.988 92.000% 917 24.9 44.70°C 0.994
11.935V 4.987V 3.273V 4.924V 841.287 52.01°C 230.26V
10 64.599A 9.027A 9.093A 3.063A 860.011 91.427% 1335 36.2 45.56°C 0.996
11.924V 4.987V 3.267V 4.900V 940.652 53.28°C 230.26V
11 71.876A 9.031A 9.097A 3.064A 945.983 90.899% 1710 43.0 46.72°C 0.996
11.913V 4.985V 3.265V 4.897V 1040.696 55.02°C 230.26V
CL1 0.149A 14.005A 14.002A 0.000A 117.613 84.414% 0 <6.0 46.71°C 0.886
12.003V 4.996V 3.275V 5.054V 139.328 41.97°C 230.27V
CL2 71.680A 1.003A 1.003A 1.000A 868.838 92.014% 1327 36.1 45.61°C 0.996
11.936V 4.997V 3.286V 4.958V 944.241 53.69°C 230.27V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.208A 0.500A 0.483A 0.200A 19.724 61.509% 0 <6.0 0.866
12.097V 5.021V 3.307V 5.015V 32.067 115.13V
2 2.479A 0.999A 1.000A 0.400A 40.142 79.853% 0 <6.0 0.925
12.032V 5.016V 3.302V 5.004V 50.270 115.12V
3 3.675A 1.499A 1.488A 0.601A 59.620 84.684% 0 <6.0 0.949
12.028V 5.011V 3.296V 4.994V 70.403 115.12V
4 4.939A 1.996A 2.001A 0.801A 80.021 87.555% 0 <6.0 0.966
12.028V 5.016V 3.300V 4.993V 91.395 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.201A 0.498A 0.485A 0.199A 19.630 61.733% 0 <6.0 0.533
12.092V 5.029V 3.306V 5.024V 31.798 230.25V
2 2.472A 0.998A 1.000A 0.400A 40.050 80.388% 0 <6.0 0.651
12.031V 5.015V 3.303V 5.003V 49.821 230.25V
3 3.669A 1.497A 1.483A 0.601A 59.534 85.109% 0 <6.0 0.751
12.027V 5.015V 3.302V 4.998V 69.950 230.25V
4 4.933A 1.995A 1.999A 0.801A 79.937 88.215% 0 <6.0 0.818
12.028V 5.015V 3.301V 4.993V 90.616 230.25V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 11.9 mV 7.2 mV 10.3 mV 9.4 mV Pass
20% Load 9.6 mV 8.0 mV 9.7 mV 10.5 mV Pass
30% Load 10.4 mV 9.7 mV 10.6 mV 12.0 mV Pass
40% Load 13.7 mV 8.9 mV 10.5 mV 13.2 mV Pass
50% Load 12.8 mV 9.8 mV 11.4 mV 14.8 mV Pass
60% Load 14.2 mV 10.3 mV 12.8 mV 15.5 mV Pass
70% Load 15.6 mV 11.3 mV 13.5 mV 16.2 mV Pass
80% Load 16.8 mV 11.9 mV 13.3 mV 16.8 mV Pass
90% Load 17.8 mV 12.1 mV 12.8 mV 16.4 mV Pass
100% Load 22.4 mV 13.1 mV 16.1 mV 18.4 mV Pass
110% Load 23.6 mV 14.5 mV 15.5 mV 19.7 mV Pass
Crossload 1 16.2 mV 9.2 mV 12.8 mV 11.0 mV Pass
Crossload 2 5.4 mV 5.3 mV 7.0 mV 12.8 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 11.4 mV 8.0 mV 10.5 mV 9.4 mV Pass
20% Load 8.6 mV 8.4 mV 10.9 mV 9.8 mV Pass
30% Load 9.0 mV 10.5 mV 11.4 mV 11.2 mV Pass
40% Load 10.3 mV 9.8 mV 11.8 mV 11.7 mV Pass
50% Load 12.5 mV 27.7 mV 33.8 mV 25.0 mV Pass
60% Load 12.5 mV 11.4 mV 13.8 mV 13.1 mV Pass
70% Load 13.5 mV 12.0 mV 13.4 mV 13.8 mV Pass
80% Load 15.2 mV 11.9 mV 13.9 mV 14.6 mV Pass
90% Load 15.1 mV 12.9 mV 14.9 mV 14.7 mV Pass
100% Load 19.8 mV 13.2 mV 15.2 mV 17.0 mV Pass
110% Load 21.0 mV 13.7 mV 16.8 mV 17.4 mV Pass
Crossload 1 15.7 mV 10.0 mV 13.1 mV 10.8 mV Pass
Crossload 2 19.7 mV 12.8 mV 14.3 mV 16.2 mV Pass

The results above are not used in the certification process

Fractal Design ION+ 860P

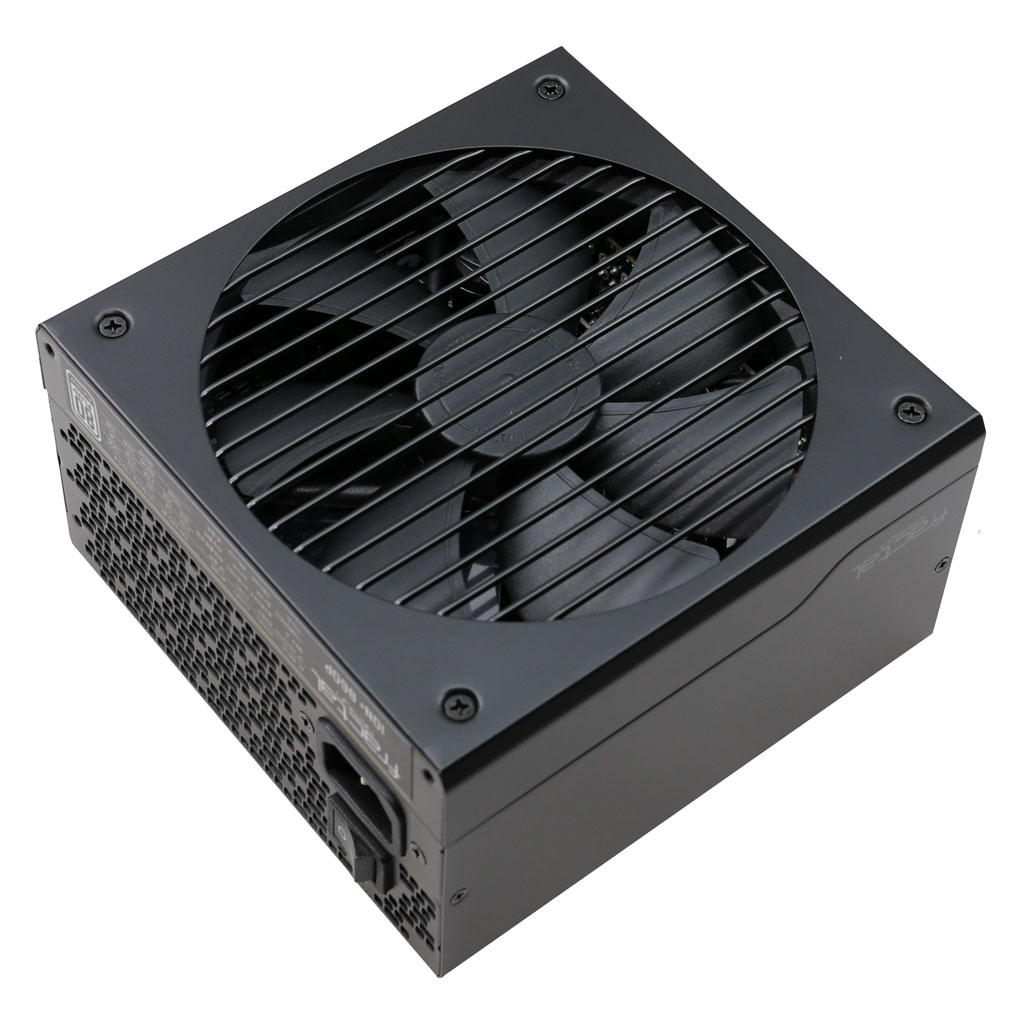

Top side

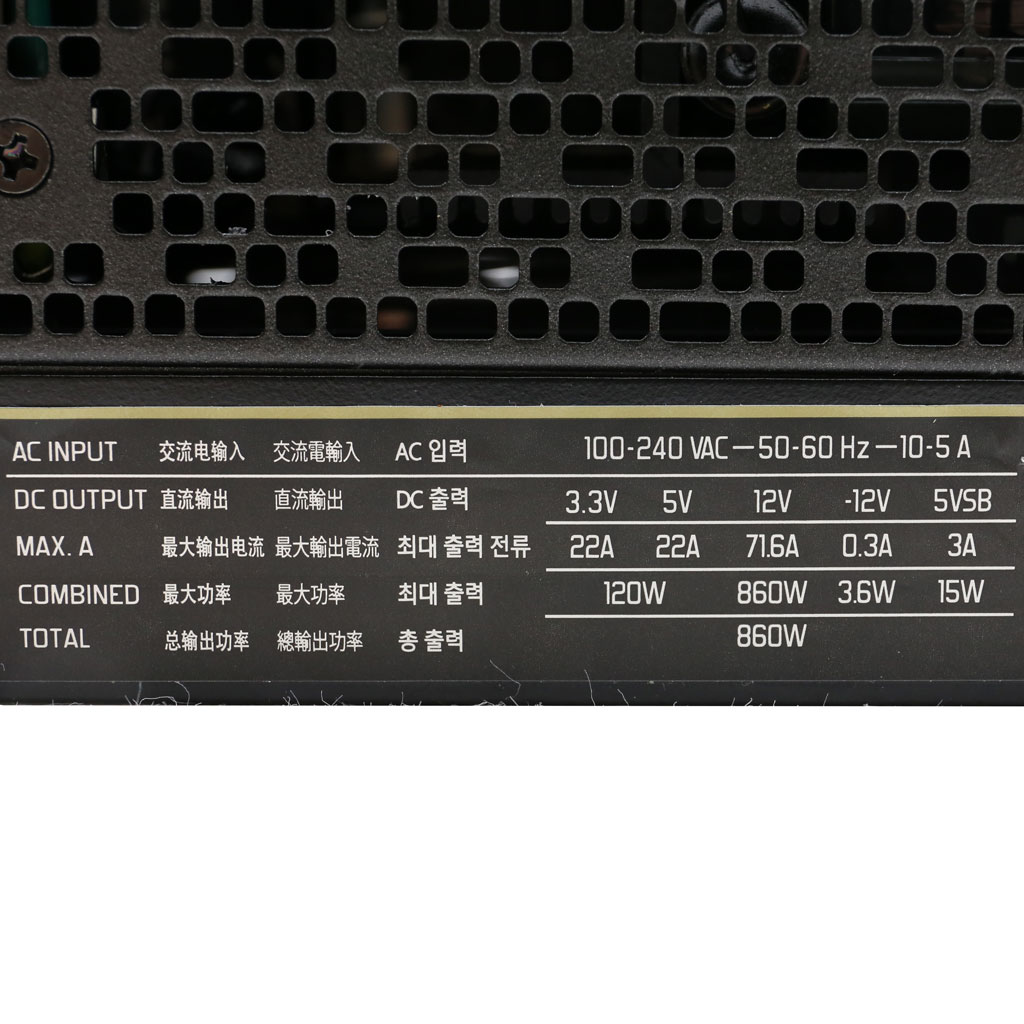

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
