CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Super Flower Leadex III Gold ARGB 850W
Serial NumberS1908199010
Lab IDSF19850104
Certification ID25834
  • Test Result Report ID:
  • Certificate Issue Date: Sep 27, 2019
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSuper Flower
Hersteller (OEM)Super Flower
SeriesLeadex III Gold ARGB
Model NumberSF-850F14RG
Serial NumberS1908199010
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Dimensions (W x H x D)
Cooling130mm Fluid Dynamic Bearing Fan
(S1302412M)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

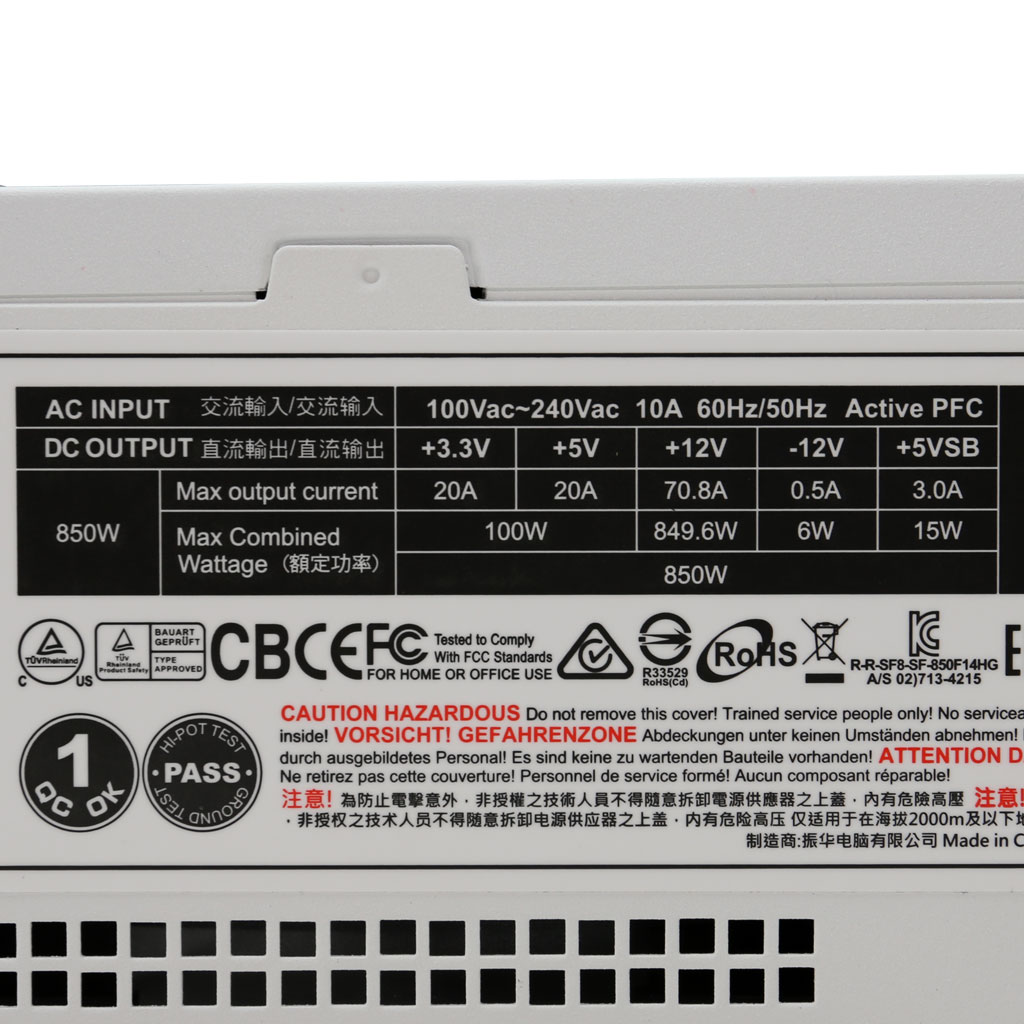

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202070.830.5
Watts100849.6156
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (590mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (690mm) 2 2 18-22AWG Yes
6+2 pin PCIe (540mm+150mm) 3 6 18-22AWG Yes
SATA (550mm+120mm+120mm) 3 9 18AWG No
4-pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No
ARGB Sync cable (550mm+180mm) 1 2 28AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Super Flower
Platform Model Leadex III
PCB Type Single Sided
Primary Side
Transient Filter 3x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x
APFC MOSFETS 2x Infineon IPA50R140CP (550V, 15A @ 100°C, 0.14Ohm) & 1x SPN5003 FET (for reduced no-load consumption)
APFC Boost Diode 1x STMicroelectronics STTH8R06D (600V, 8A @ 130°C)
Hold-up Cap(s) 2x Nippon Chemi-Con (400V, 390uF each or 780uF combined, 2,000h @ 105°C, KMR)
Main Switchers 2x Infineon IPA50R140CP (550V, 15A @ 100°C, 0.14Ohm)
APFC Controller SF29603 & S9602
Resonant Controllers SF29605
Topology Primary side: Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 6x Infineon IPP041N04N (40V, 80A @ 100°C, 4.1mOhm)
5V & 3.3V DC-DC Converters:8x Alpha & Omega AON6516 (30V, 25A @ 100°C, 8mOhm @ 125°C)
PWM Controllers: 2x ON Semiconductor NCP1587A
Filtering Capacitors Electrolytics: 7x Nippon Chemi-Con (105°C, W), 4x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 2x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 2x Nippon Chemi-Con (1-2,000h @ 105°C, KMG), 7x Nichicon (1,000h @ 105°C, RZ)
Polymers: 8x FPCAP, 5x United Chemi-Con, 2x Jamicon
Supervisor IC SF29603 & LM339A
Fan controller STMicroelectronics STM8S003F3
Fan Model Globe Fan S1302412M (130mm, 12V, 0.40A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier 1x PFC PFR20L60CT SBR (60V, 20A)
Standby PWM Controller SF29604

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

WirkungsgradPLATINUM
LautstärkeklasseA-
Average Efficiency (>1450 load combinations)89.082%
Average Noise Output (>1450 Load Combinations)26.27dBA
Average PF (>1450 Load Combinations)0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load71.364%
Standby Power Consumption0.0468W
12V Ripple (Full Load)10.92mV
5V Ripple (Full Load)15.95mV
3.3V Ripple (Full Load)18.59mV
5VSB Ripple (Full Load)12.04mV
12V Load Regulation0.73%
5V Load Regulation0.73%
3.3V Load Regulation1.30%
5VSB Load Regulation3.30%
Inrush Current60.654A
WirkungsgradGOLD
LautstärkeklasseA-
Average Efficiency (>1450 load combinations)91.243%
Average Noise Output (>1450 Load Combinations)25.57dBA
Average PF (>1450 Load Combinations)0.930
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0769W
12V Ripple (Full Load)9.82mV
5V Ripple (Full Load)15.90mV
3.3V Ripple (Full Load)17.00mV
5VSB Ripple (Full Load)9.55mV
12V Load Regulation0.68%
5V Load Regulation0.77%
3.3V Load Regulation1.30%
5VSB Load Regulation3.20%
Inrush Current86.060A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal22.00ms
AC Loss to PWR_OK Hold Up Time19.60ms
PWR_OK Inactive to DC Loss Delay2.40ms
PSU Timings: T1 (20% / 100%)254.0ms242.0ms
PSU Timings: T3 (20% / 100%)204.0ms194.0ms
OPP (0.00°C / 0.00°C)117.27%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22
AC Loss to PWR_OK Hold Up Time (ms)19.6
PWR_OK Inactive to DC Loss Delay (ms)2.4

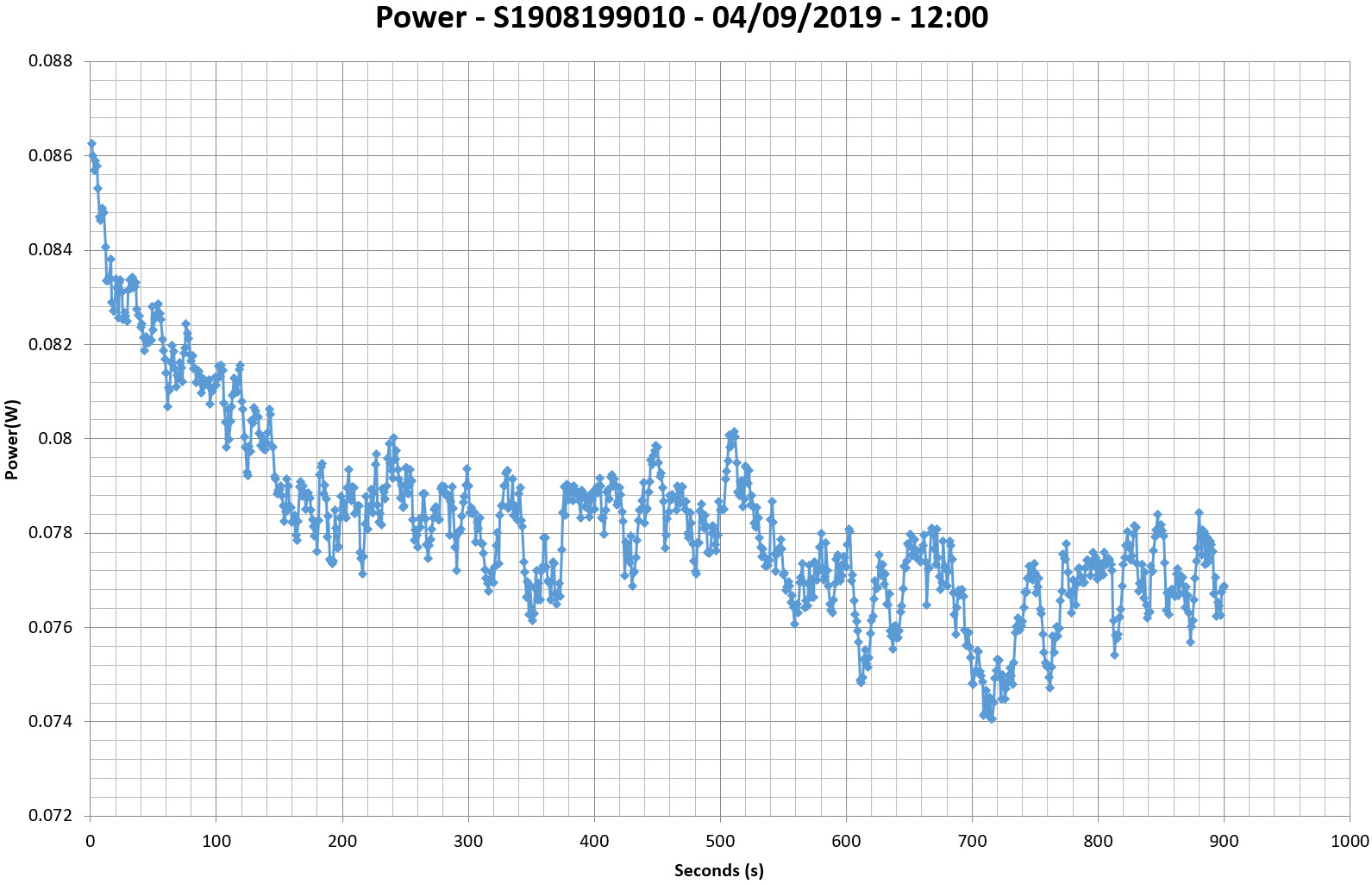

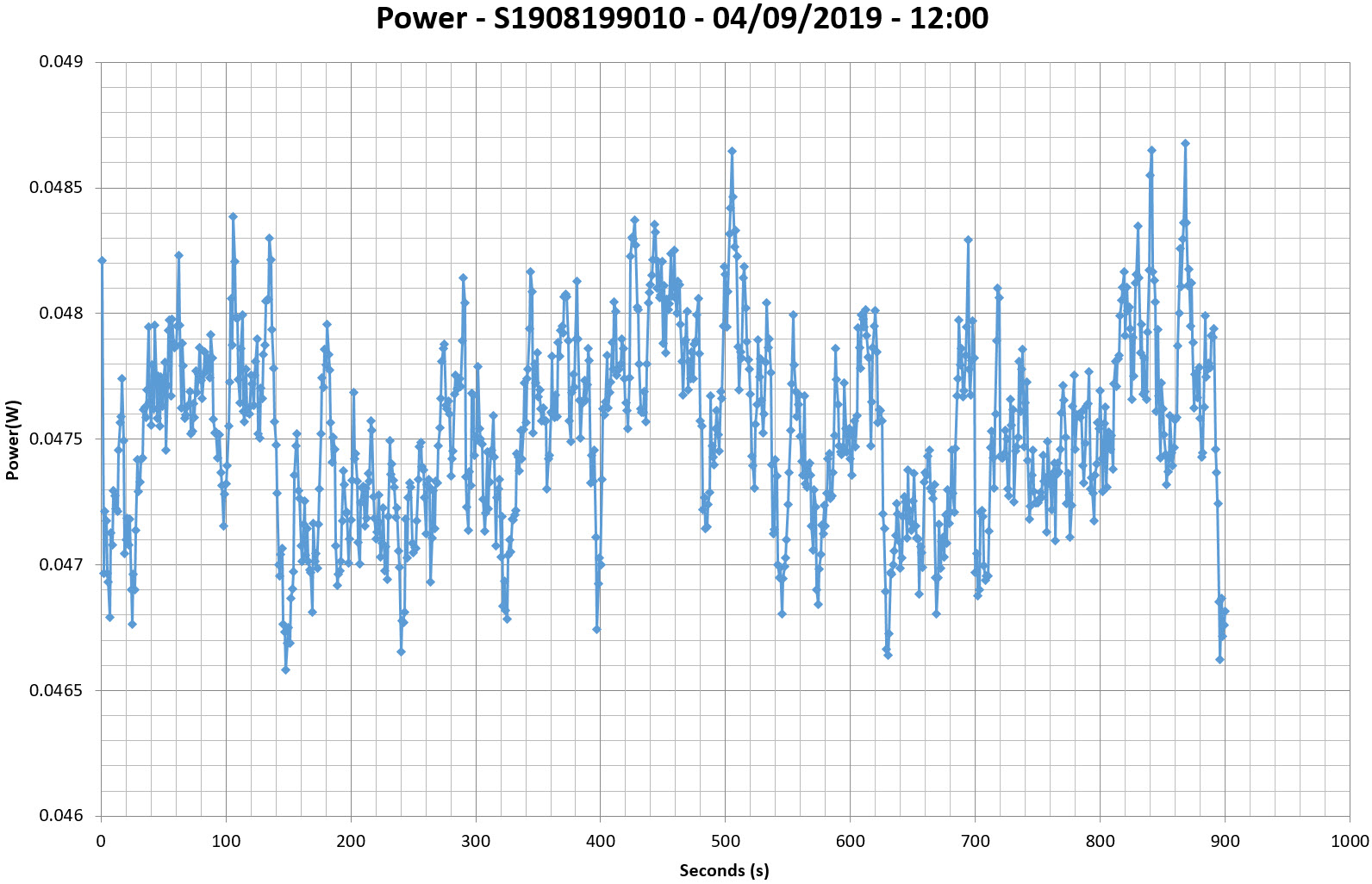

Stromverbrauch im Ruhezustand

Tables

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

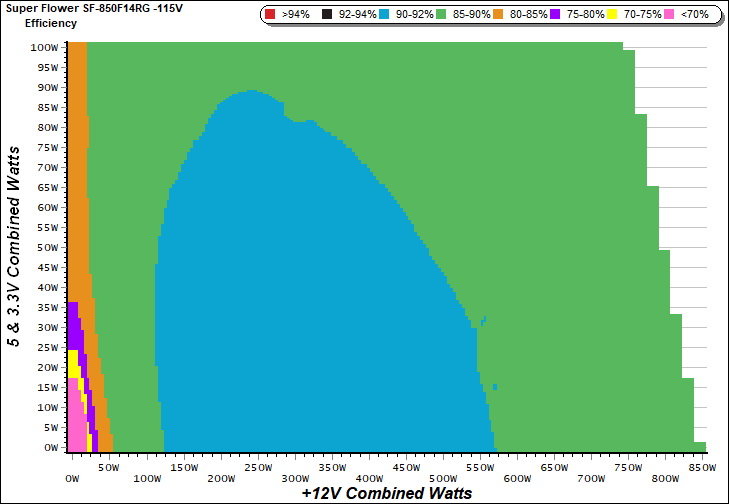

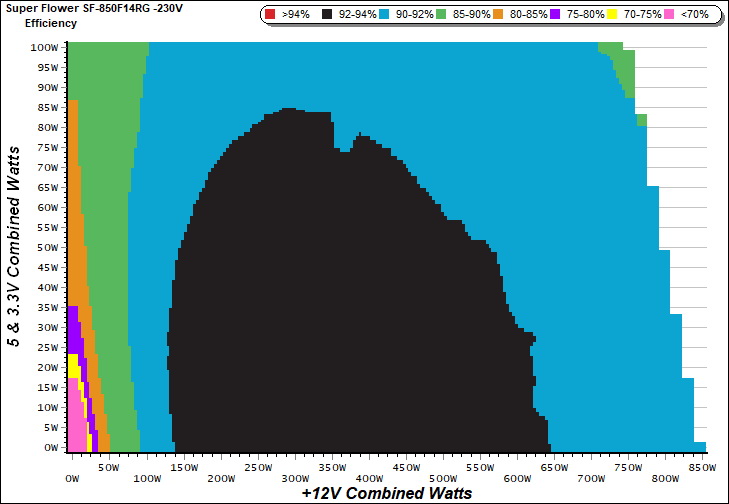

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

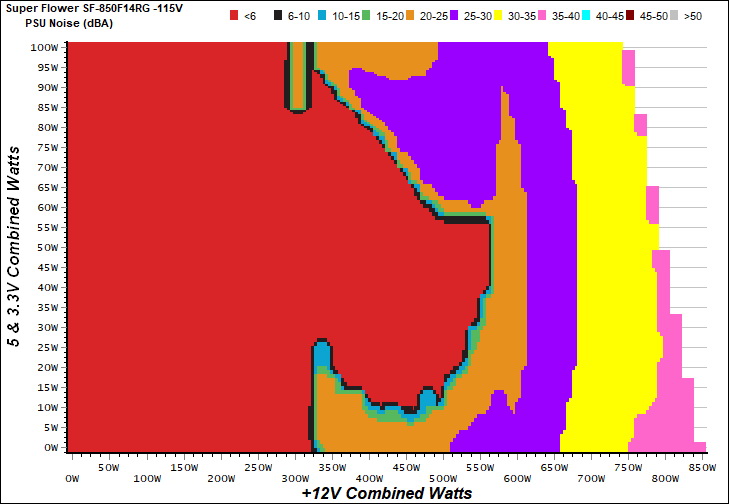

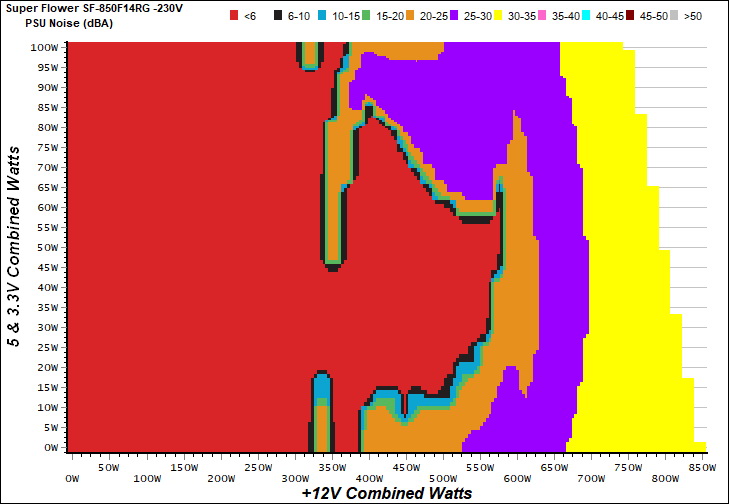

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

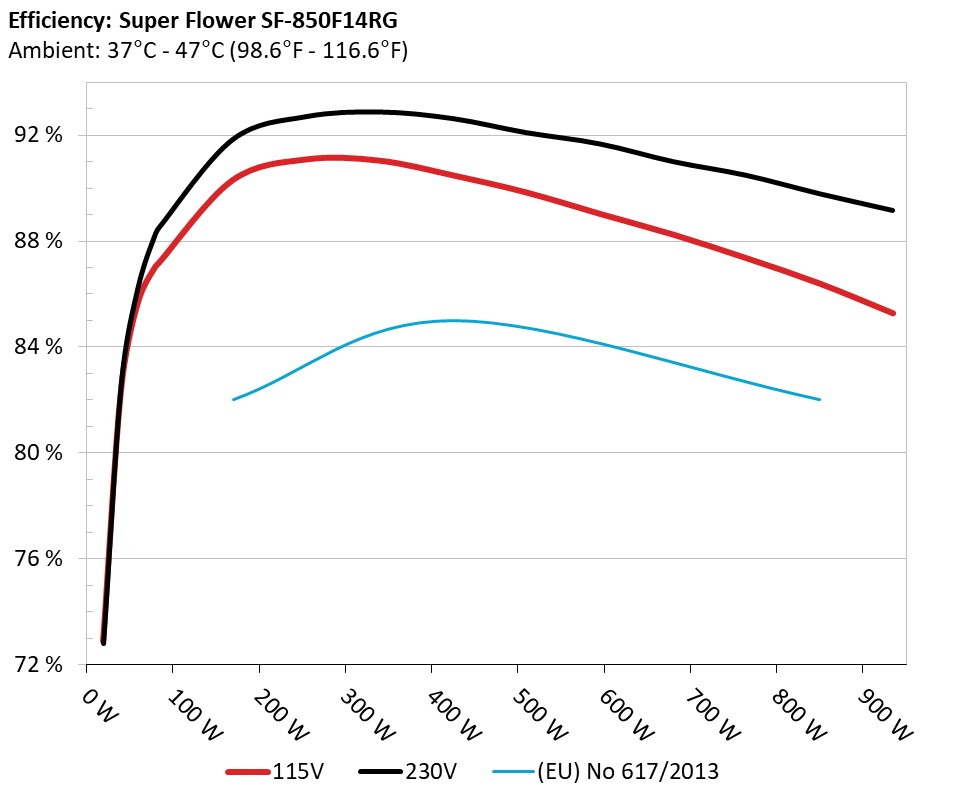

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

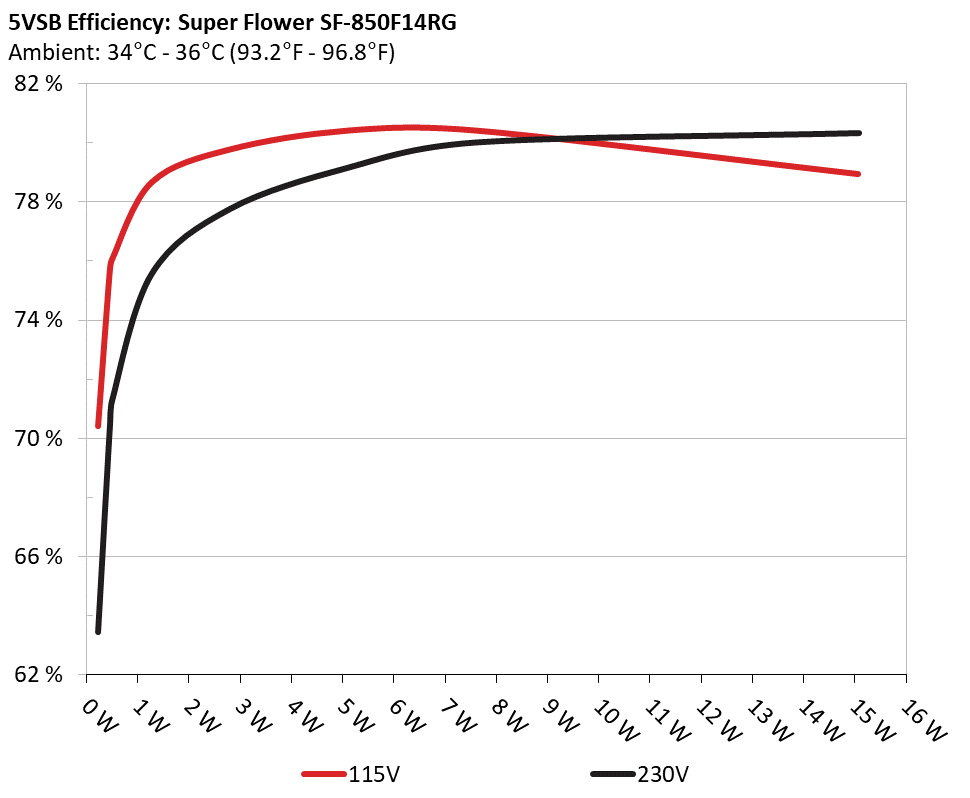

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 70.427% 0.023
5.127V 0.328 115.13V
2 0.090A 0.462 75.738% 0.043
5.125V 0.610 115.13V
3 0.550A 2.812 79.796% 0.214
5.110V 3.524 115.13V
4 1.000A 5.097 80.432% 0.314
5.096V 6.337 115.13V
5 1.500A 7.620 80.431% 0.379
5.079V 9.474 115.14V
6 3.001A 15.064 78.960% 0.466
5.020V 19.078 115.14V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 63.462% 0.008
5.127V 0.364 230.27V
2 0.090A 0.462 70.427% 0.015
5.125V 0.656 230.27V
3 0.550A 2.812 77.765% 0.078
5.110V 3.616 230.27V
4 1.000A 5.097 79.146% 0.132
5.096V 6.440 230.27V
5 1.500A 7.620 80.008% 0.183
5.079V 9.524 230.27V
6 3.000A 15.086 80.322% 0.288
5.028V 18.782 230.28V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.230A 1.988A 1.992A 0.983A 85.031 87.224% 0 <6.0 43.38°C 0.936
12.126V 5.033V 3.316V 5.088V 97.486 40.13°C 115.13V
2 11.437A 2.984A 2.991A 1.183A 169.495 90.315% 0 <6.0 44.66°C 0.971
12.117V 5.029V 3.311V 5.074V 187.670 40.82°C 115.13V
3 18.056A 3.484A 3.477A 1.384A 254.597 91.103% 0 <6.0 45.79°C 0.983
12.106V 5.026V 3.307V 5.060V 279.461 41.47°C 115.13V
4 24.688A 3.984A 3.998A 1.586A 339.792 91.059% 0 <6.0 46.94°C 0.990
12.094V 5.022V 3.303V 5.046V 373.157 41.77°C 115.13V
5 31.009A 4.985A 5.002A 1.789A 425.103 90.500% 0 <6.0 47.97°C 0.994
12.080V 5.018V 3.298V 5.032V 469.725 42.28°C 115.13V
6 37.279A 5.986A 6.011A 1.995A 509.629 89.858% 961 24.8 42.87°C 0.995
12.066V 5.014V 3.294V 5.016V 567.152 49.28°C 115.12V
7 43.574A 6.986A 7.024A 2.200A 594.921 89.048% 1026 27.0 43.07°C 0.995
12.067V 5.011V 3.289V 5.002V 668.090 50.40°C 115.12V
8 49.880A 7.993A 8.039A 2.407A 680.269 88.261% 1206 31.7 43.68°C 0.996
12.066V 5.006V 3.284V 4.987V 770.749 51.74°C 115.12V
9 56.592A 8.501A 8.537A 2.411A 765.208 87.369% 1411 35.6 44.35°C 0.997
12.063V 5.003V 3.280V 4.980V 875.834 52.88°C 115.12V
10 63.060A 9.005A 9.068A 3.031A 849.980 86.408% 1602 38.1 45.48°C 0.997
12.056V 4.999V 3.276V 4.951V 983.678 54.51°C 115.11V
11 70.135A 9.010A 9.076A 3.036A 934.784 85.287% 1682 39.4 46.81°C 0.997
12.049V 4.997V 3.272V 4.943V 1096.050 56.47°C 115.11V
CL1 0.150A 12.006A 12.000A 0.000A 101.516 83.671% 0 <6.0 47.37°C 0.949
12.094V 5.010V 3.296V 5.106V 121.328 42.55°C 115.14V
CL2 70.845A 1.004A 1.001A 1.000A 867.041 86.738% 1653 38.8 45.86°C 0.997
12.050V 5.016V 3.291V 5.028V 999.613 54.85°C 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.230A 1.990A 1.993A 0.983A 85.062 88.554% 0 <6.0 43.38°C 0.717
12.130V 5.032V 3.315V 5.088V 96.057 40.00°C 230.28V
2 11.439A 2.985A 2.992A 1.183A 169.544 91.837% 0 <6.0 44.56°C 0.877
12.119V 5.027V 3.311V 5.074V 184.615 40.41°C 230.28V
3 18.056A 3.486A 3.479A 1.383A 254.657 92.700% 0 <6.0 45.53°C 0.928
12.109V 5.024V 3.307V 5.061V 274.712 41.43°C 230.28V
4 24.689A 3.986A 3.995A 1.585A 339.848 92.875% 0 <6.0 46.82°C 0.948
12.096V 5.021V 3.303V 5.048V 365.920 41.94°C 230.28V
5 31.004A 4.987A 5.006A 1.789A 425.149 92.624% 0 <6.0 47.73°C 0.960
12.083V 5.016V 3.298V 5.033V 459.007 42.33°C 230.28V
6 37.280A 5.988A 6.014A 1.994A 509.678 92.096% 899 22.8 42.69°C 0.970
12.067V 5.012V 3.293V 5.017V 553.419 48.23°C 230.28V
7 43.582A 6.992A 7.025A 2.199A 594.975 91.673% 966 24.9 43.01°C 0.974
12.066V 5.008V 3.288V 5.003V 649.016 49.62°C 230.28V
8 49.892A 7.999A 8.041A 2.406A 680.334 91.003% 1190 31.4 43.32°C 0.979
12.064V 5.004V 3.284V 4.989V 747.594 50.68°C 230.28V
9 56.609A 8.504A 8.538A 2.410A 765.263 90.484% 1379 35.1 44.97°C 0.983
12.061V 5.000V 3.280V 4.982V 845.748 53.15°C 230.29V
10 63.066A 9.010A 9.069A 3.029A 850.062 89.790% 1566 37.7 45.71°C 0.985
12.056V 4.997V 3.276V 4.954V 946.719 54.79°C 230.28V
11 70.146A 9.015A 9.078A 3.034A 934.849 89.160% 1685 39.4 46.65°C 0.987
12.048V 4.994V 3.272V 4.946V 1048.511 56.47°C 230.28V
CL1 0.154A 12.005A 12.000A 0.000A 101.524 85.110% 0 <6.0 47.78°C 0.777
12.095V 5.008V 3.295V 5.107V 119.286 42.76°C 230.29V
CL2 70.851A 1.004A 1.002A 1.000A 867.118 90.219% 1607 38.3 45.52°C 0.986
12.050V 5.015V 3.291V 5.031V 961.130 54.90°C 230.28V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.197A 0.497A 0.483A 0.195A 19.649 72.896% 0 <6.0 0.706
12.149V 5.038V 3.321V 5.120V 26.955 115.13V
2 2.452A 0.994A 0.995A 0.391A 40.086 82.295% 0 <6.0 0.860
12.145V 5.036V 3.319V 5.112V 48.710 115.13V
3 3.636A 1.491A 1.477A 0.588A 59.549 85.654% 0 <6.0 0.923
12.140V 5.035V 3.318V 5.103V 69.523 115.13V
4 4.892A 1.988A 1.993A 0.785A 79.979 87.043% 0 <6.0 0.931
12.135V 5.033V 3.316V 5.095V 91.884 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.202A 0.499A 0.484A 0.195A 19.718 72.814% 0 <6.0 0.372
12.146V 5.037V 3.320V 5.120V 27.080 230.28V
2 2.457A 0.994A 0.996A 0.391A 40.142 82.566% 0 <6.0 0.518
12.142V 5.035V 3.319V 5.112V 48.618 230.28V
3 3.643A 1.490A 1.478A 0.588A 59.618 86.235% 0 <6.0 0.616
12.137V 5.033V 3.317V 5.104V 69.134 230.28V
4 4.897A 1.989A 1.991A 0.785A 80.023 88.287% 0 <6.0 0.699
12.133V 5.032V 3.315V 5.095V 90.640 230.28V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 3.5 mV 4.4 mV 6.0 mV 2.9 mV Pass
20% Load 4.9 mV 5.5 mV 7.4 mV 3.1 mV Pass
30% Load 4.9 mV 6.5 mV 8.9 mV 3.7 mV Pass
40% Load 5.6 mV 8.4 mV 11.3 mV 4.7 mV Pass
50% Load 6.0 mV 9.1 mV 11.0 mV 7.3 mV Pass
60% Load 6.9 mV 10.7 mV 11.8 mV 8.8 mV Pass
70% Load 7.3 mV 11.7 mV 13.8 mV 8.2 mV Pass
80% Load 8.4 mV 13.5 mV 15.2 mV 7.7 mV Pass
90% Load 8.3 mV 14.4 mV 17.3 mV 12.5 mV Pass
100% Load 10.9 mV 16.0 mV 18.6 mV 12.0 mV Pass
110% Load 11.1 mV 15.6 mV 20.1 mV 12.9 mV Pass
Crossload 1 5.2 mV 6.1 mV 8.7 mV 8.0 mV Pass
Crossload 2 10.2 mV 15.6 mV 15.5 mV 11.2 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 3.6 mV 4.5 mV 5.3 mV 3.2 mV Pass
20% Load 4.3 mV 5.6 mV 6.6 mV 3.1 mV Pass
30% Load 4.8 mV 6.4 mV 8.1 mV 3.5 mV Pass
40% Load 5.2 mV 8.3 mV 9.9 mV 3.9 mV Pass
50% Load 5.7 mV 9.3 mV 10.4 mV 5.4 mV Pass
60% Load 6.3 mV 10.4 mV 10.6 mV 7.3 mV Pass
70% Load 6.9 mV 11.1 mV 11.5 mV 6.0 mV Pass
80% Load 7.3 mV 13.3 mV 13.9 mV 6.7 mV Pass
90% Load 7.5 mV 13.4 mV 14.4 mV 7.3 mV Pass
100% Load 9.8 mV 15.9 mV 17.0 mV 9.6 mV Pass
110% Load 10.3 mV 15.5 mV 17.5 mV 11.2 mV Pass
Crossload 1 5.3 mV 6.2 mV 8.0 mV 7.7 mV Pass
Crossload 2 9.7 mV 15.7 mV 13.5 mV 7.4 mV Pass

The results above are not used in the certification process

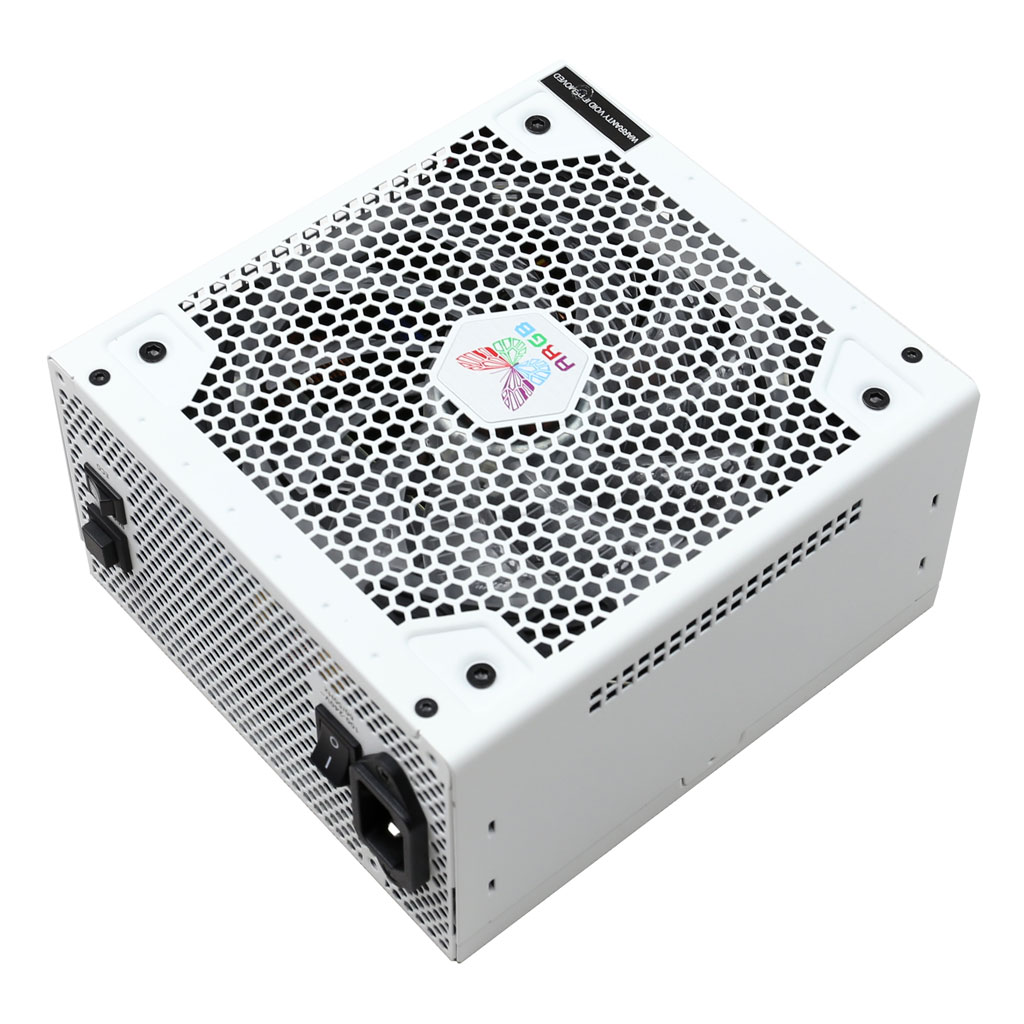

Super Flower Leadex III Gold ARGB 850W

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
