CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

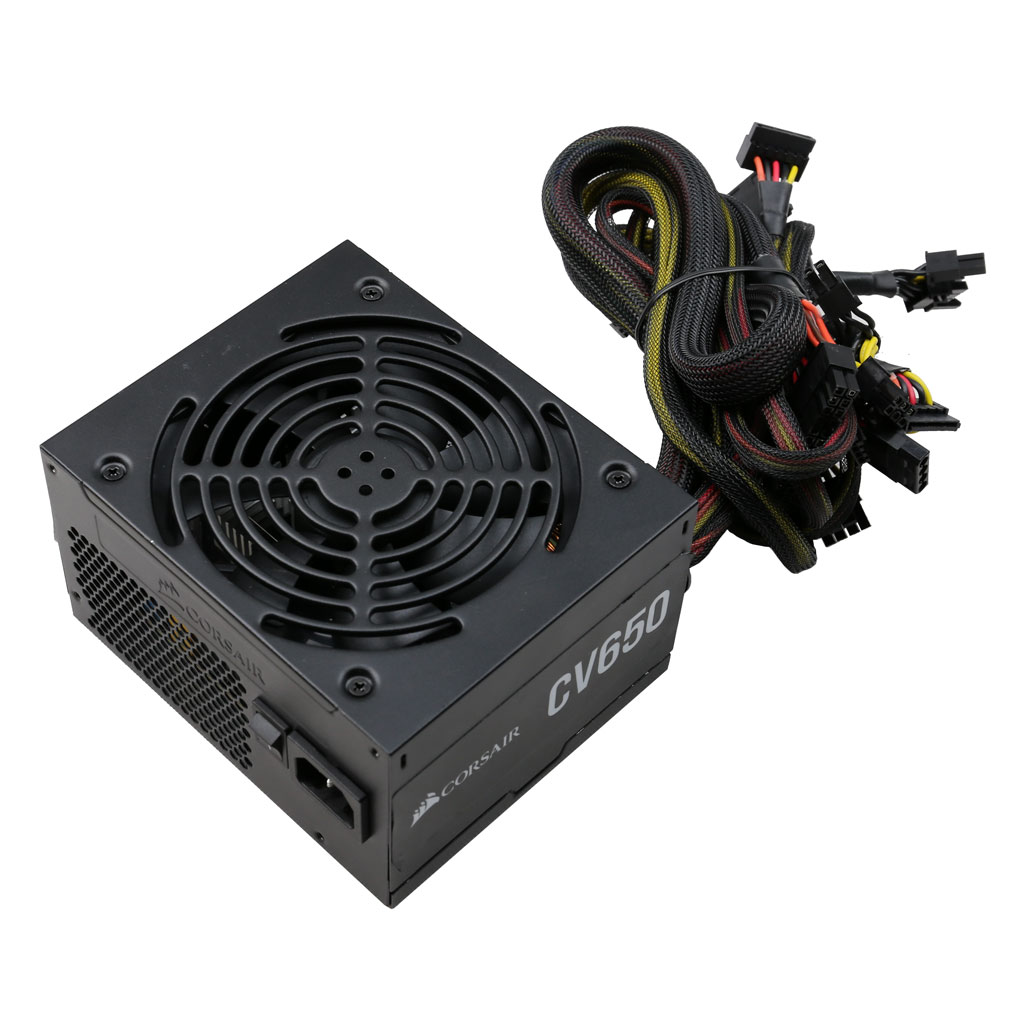

Corsair CV650
Serial NumberC65980681
Lab IDCR19650133
Certification ID25886
  • Test Result Report ID: 19PS886A
  • Certificate Issue Date: Nov 1, 2019
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandCorsair
Hersteller (OEM)HEC
SeriesCV
Model Number
Serial NumberC65980681
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)47-63
Rated Power (W)650
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Sleeve Bearing Fan
(D12SH-12)
Semi-Passive Operation✗
Cable DesignFixed cables

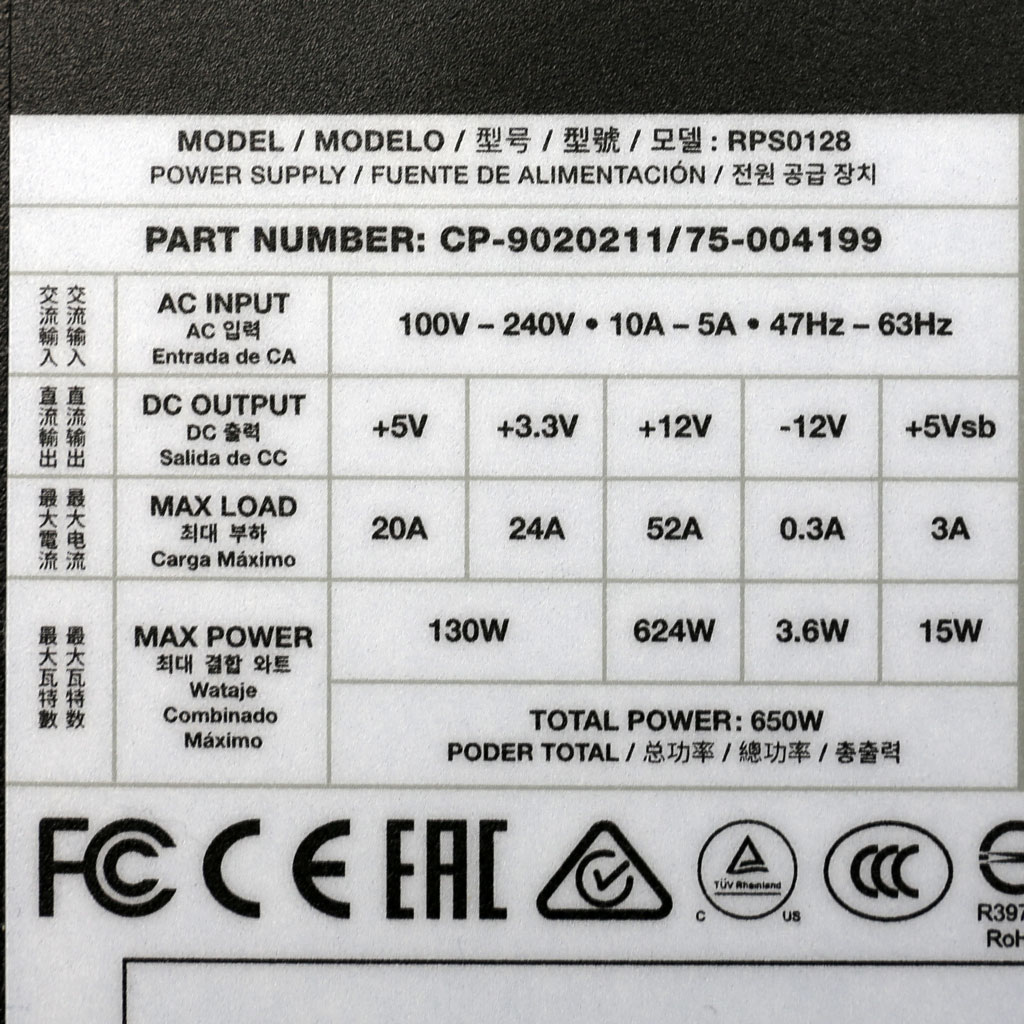

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps24205230.3
Watts130624153.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (570mm) 1 1 18-20AWG No
4+4 pin EPS12V (630mm) 1 1 18AWG No
6+2 pin PCIe (570mm+110mm) 1 2 18AWG No
SATA (490mm+120mm+120mm) 2 6 18AWG No
SATA (480mm) / 4-pin Molex (+120mm+120mm) / FDD (+120mm) 1 1 / 2 / 1 18-20AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) HEC
PCB Type Single Sided
Primary Side -
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV, 1x Discharge IC
Inrush Protection NTC Thermistor
Bridge Rectifier(s) 2x GBU10K (800V, 10A @ 100°C)
APFC MOSFETs 2x Infineon IPAW60R180P7S (650V, 11A @ 100°C, 0.18Ohm)
APFC Boost Diode 1x Hestia H2S060H004 (600V, 4A @ 157°C)
Hold-up Cap(s) 1x Teapo (400V, 330uF, 2,000h @ 105°C, LG)
Main Switchers 2x Champion GPT22N50SYX
Combo APFC/PWM Controller Champion CM6800TX
APFC Disconnect IC Power Integrations SEN012DG
Topology Primary side: Double Forward
Secondary side: Passive Rectification & DC-DC converters
Secondary Side -
+12V SBRs 4x PFC PFR40V60CT SBR (60V, 40A)
5V & 3.3V MOSFETs 5V: 4x Potens Semiconductor PDD3906 (30V, 51A @ 100°C, 6mOhm) 3.3V: 4x Potens Semiconductor PDD3906 (30V, 51A @ 100°C, 6mOhm) PWM Controller: 2x ANPEC APW7164
Filtering Capacitors Electrolytic: 11x Teapo (1-3,000h @ 105°C, SC), 2x Elite (2-5,000h @ 105°C, ED), 2x Elite (1,000h @ 105°C, PS)
Polymer: 2x Elite
Supervisor IC Weltrend WT7527 (OCP, OVP, UVP, PG)
Fan Model Yate Loon D12SH-12 (120mm, 12V, 0.30A, Sleeve Bearing Fan)
5VSB Circuit -
Rectifier 1x PFC PFR10L60CT SBR (60V, 10A)
Standby PWM Controller Power Integrations TNY289PG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

WirkungsgradBRONZE
LautstärkeklasseStandard++
Average Efficiency (>1450 load combinations)83.932%
Average Noise Output (>1450 Load Combinations)31.67dBA
Average PF (>1450 Load Combinations)0.988
Efficiency With 10W (≤500W) or 2% (>500W) Load55.120%
Standby Power Consumption0.0442W
12V Ripple (Full Load)50.07mV
5V Ripple (Full Load)30.72mV
3.3V Ripple (Full Load)23.90mV
5VSB Ripple (Full Load)21.01mV
12V Load Regulation1.88%
5V Load Regulation2.95%
3.3V Load Regulation1.76%
5VSB Load Regulation3.39%
Inrush Current33.662A
WirkungsgradBRONZE
LautstärkeklasseStandard++
Average Efficiency (>1450 load combinations)86.313%
Average Noise Output (>1450 Load Combinations)31.48dBA
Average PF (>1450 Load Combinations)0.958
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0952W
12V Ripple (Full Load)53.97mV
5V Ripple (Full Load)32.18mV
3.3V Ripple (Full Load)27.52mV
5VSB Ripple (Full Load)24.87mV
12V Load Regulation1.81%
5V Load Regulation2.89%
3.3V Load Regulation1.71%
5VSB Load Regulation3.31%
Inrush Current50.229A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal14.30ms
AC Loss to PWR_OK Hold Up Time12.10ms
PWR_OK Inactive to DC Loss Delay2.20ms
PSU Timings: T1 (20% / 100%)56.0ms56.0ms
PSU Timings: T3 (20% / 100%)322.0ms322.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)14.3
AC Loss to PWR_OK Hold Up Time (ms)12.1
PWR_OK Inactive to DC Loss Delay (ms)2.2

Stromverbrauch im Ruhezustand

Tables

Graphs

INFO

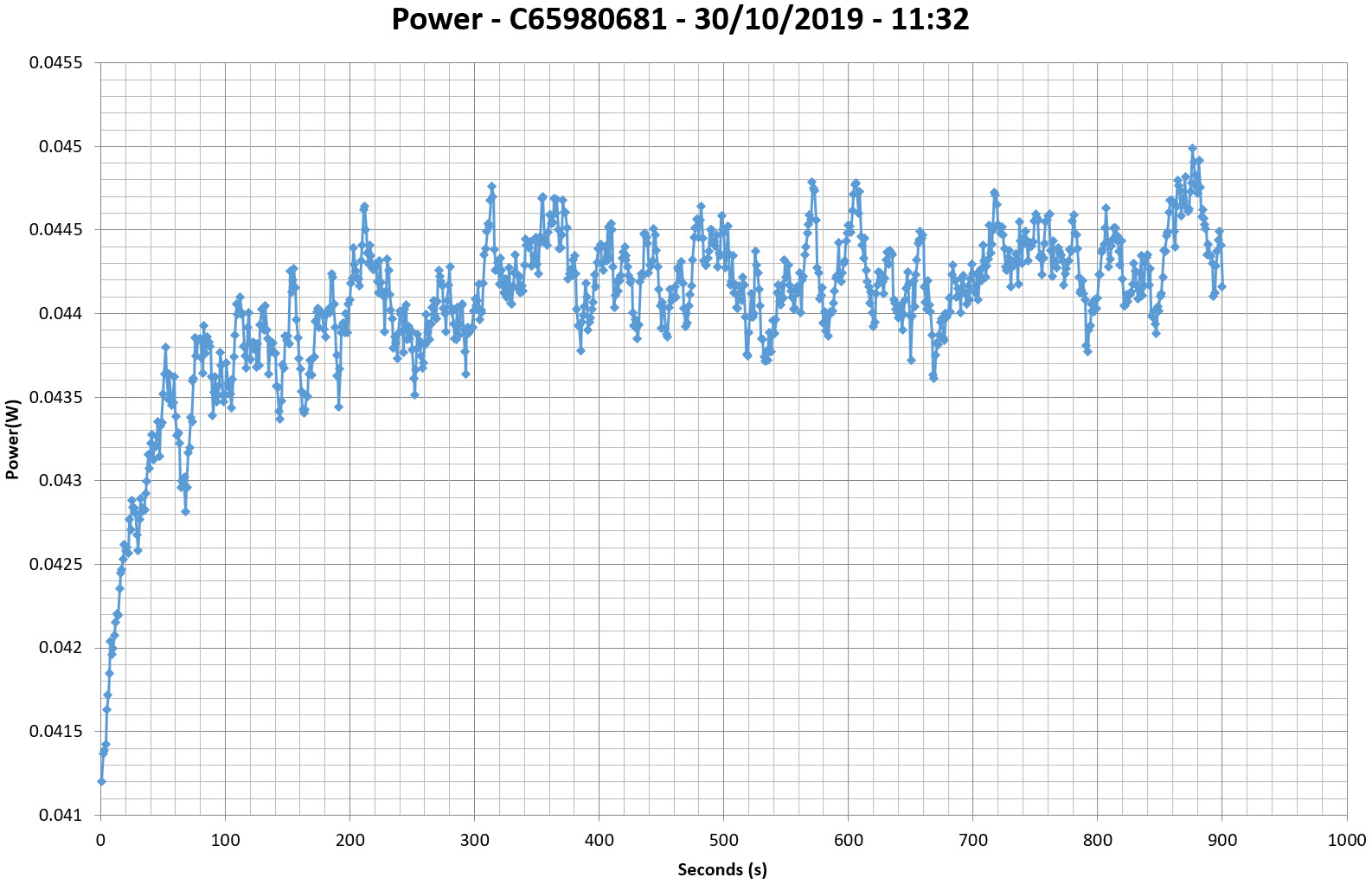

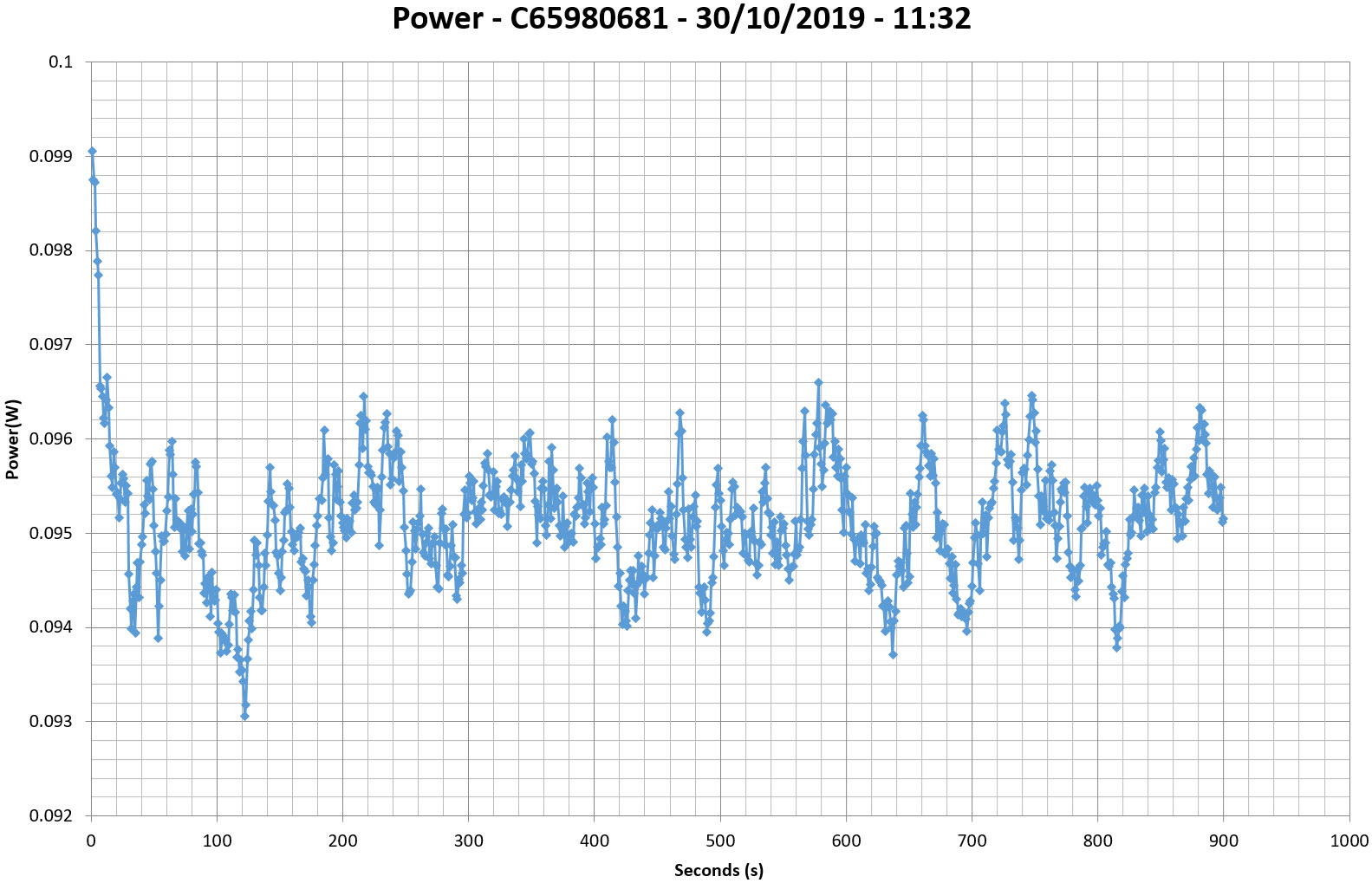

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

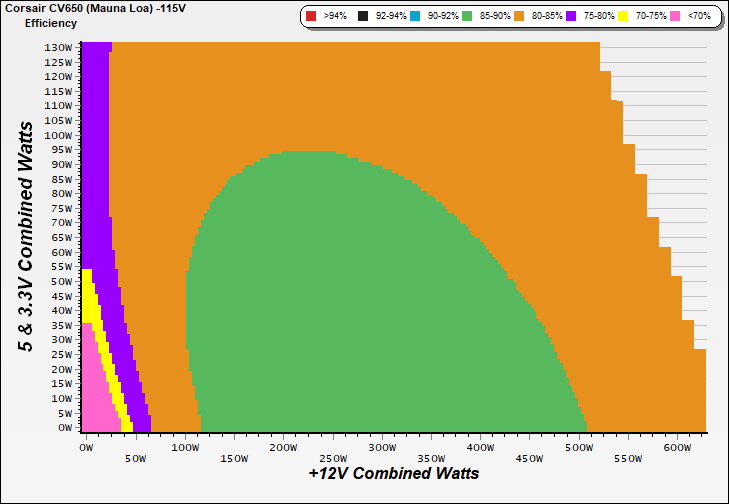

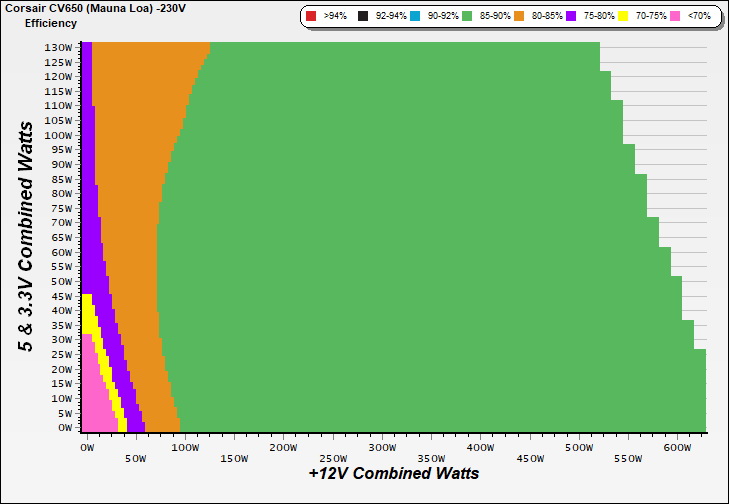

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

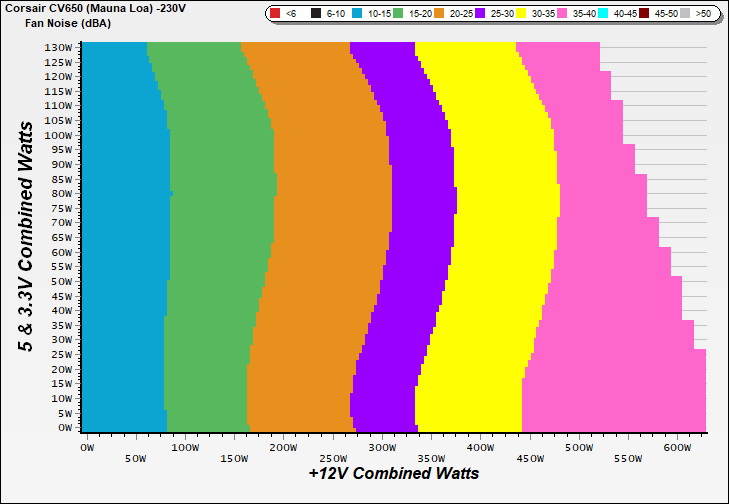

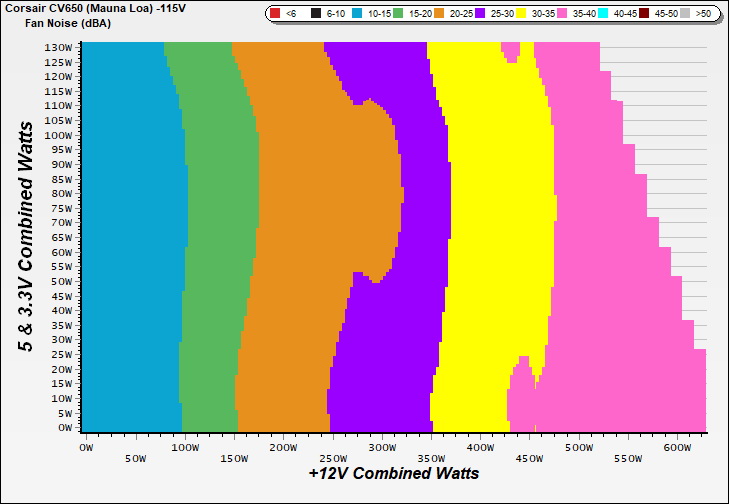

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

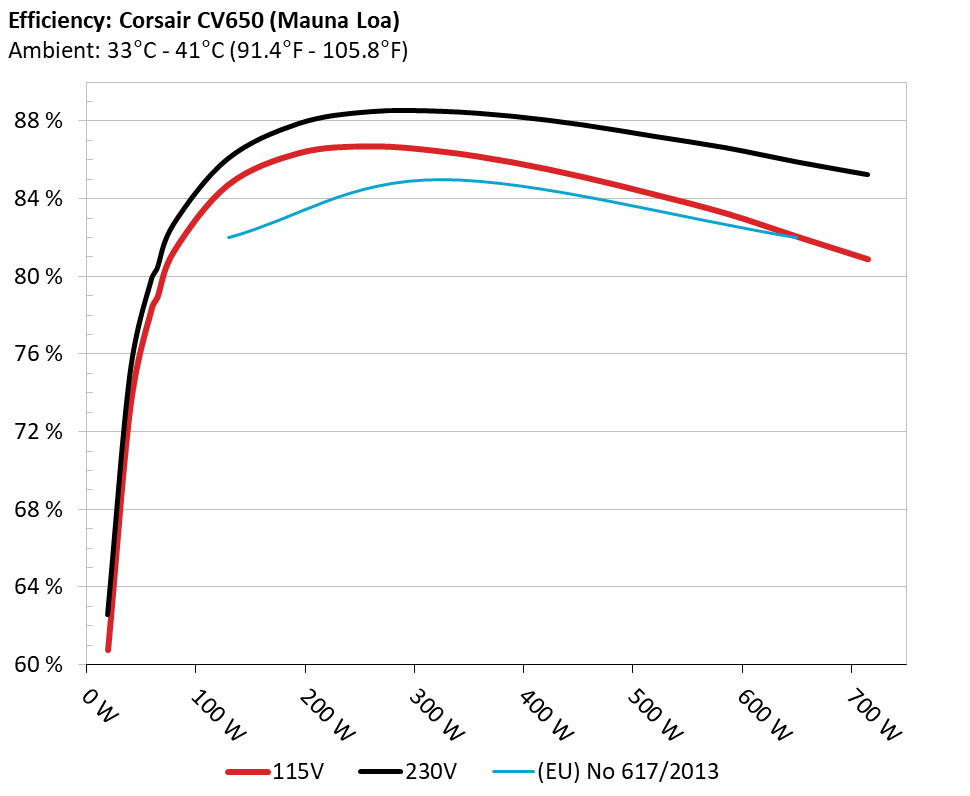

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

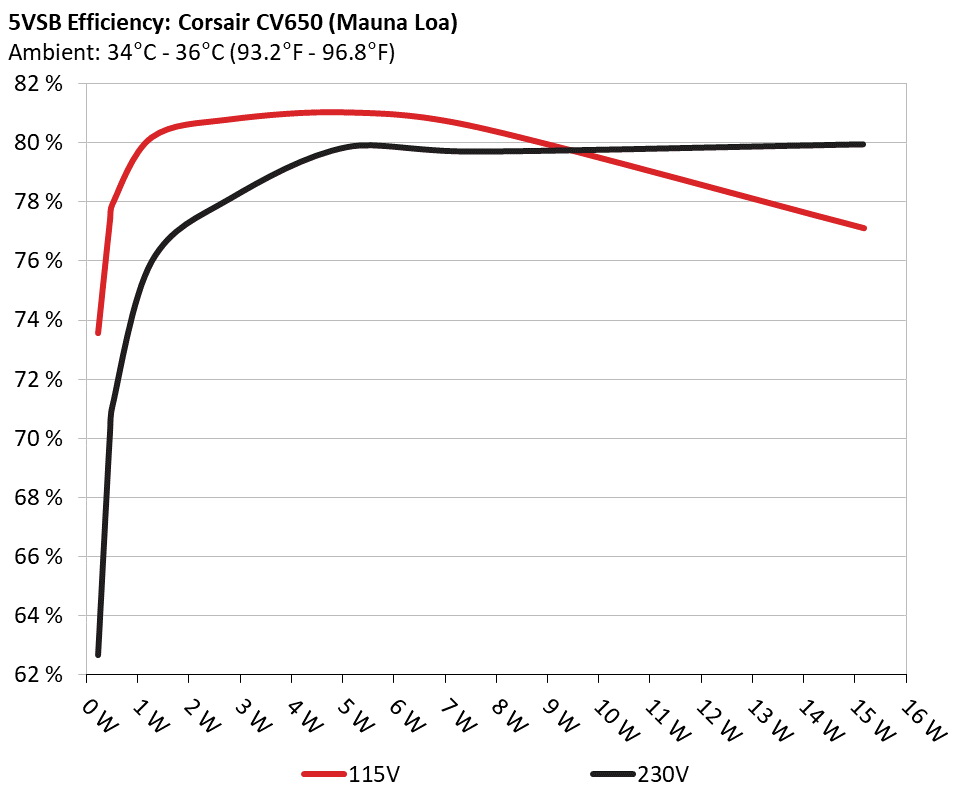

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 73.567% 0.038
5.113V 0.314 115.15V
2 0.090A 0.461 77.349% 0.071
5.112V 0.596 115.15V
3 0.550A 2.808 80.783% 0.280
5.103V 3.476 115.15V
4 1.000A 5.096 81.017% 0.358
5.094V 6.290 115.16V
5 1.500A 7.629 80.517% 0.400
5.085V 9.475 115.15V
6 3.000A 15.173 77.110% 0.457
5.057V 19.677 115.15V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 62.670% 0.013
5.112V 0.367 230.39V
2 0.090A 0.460 70.122% 0.024
5.111V 0.656 230.39V
3 0.550A 2.807 78.102% 0.121
5.103V 3.594 230.37V
4 1.000A 5.095 79.846% 0.191
5.094V 6.381 230.38V
5 1.500A 7.629 79.693% 0.248
5.085V 9.573 230.38V
6 3.000A 15.169 79.938% 0.336
5.056V 18.976 230.39V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.543A 1.968A 1.973A 0.984A 64.835 78.921% 695 16.6 35.49°C 0.970
12.206V 5.078V 3.342V 5.083V 82.152 39.50°C 115.14V
2 8.080A 2.964A 2.968A 1.184A 129.354 84.693% 723 16.9 35.81°C 0.975
12.184V 5.063V 3.336V 5.067V 152.732 40.17°C 115.14V
3 13.037A 3.466A 3.453A 1.386A 194.466 86.331% 821 20.3 36.64°C 0.982
12.155V 5.049V 3.330V 5.053V 225.255 41.39°C 115.13V
4 18.026A 3.974A 3.969A 1.588A 259.704 86.675% 974 23.8 36.77°C 0.988
12.121V 5.036V 3.325V 5.038V 299.630 42.47°C 115.13V
5 22.700A 4.985A 4.972A 1.793A 325.008 86.406% 1148 28.5 37.41°C 0.991
12.092V 5.019V 3.318V 5.021V 376.142 43.72°C 115.13V
6 27.322A 5.997A 5.979A 1.999A 389.532 85.853% 1316 32.6 38.15°C 0.993
12.068V 5.003V 3.312V 5.005V 453.721 45.20°C 115.13V
7 32.027A 7.020A 6.990A 2.206A 454.865 85.088% 1474 35.1 38.59°C 0.994
12.045V 4.985V 3.305V 4.988V 534.579 46.63°C 115.12V
8 36.731A 8.054A 8.005A 2.415A 520.172 84.185% 1628 37.8 39.01°C 0.995
12.027V 4.967V 3.298V 4.970V 617.888 47.73°C 115.12V
9 41.873A 8.581A 8.504A 2.421A 585.109 83.223% 1798 40.3 39.45°C 0.995
12.003V 4.954V 3.292V 4.957V 703.058 48.81°C 115.13V
10 46.749A 9.115A 9.039A 3.042A 649.962 82.026% 1925 42.7 40.15°C 0.995
11.984V 4.938V 3.286V 4.934V 792.390 50.26°C 115.15V
11 52.224A 9.134A 9.056A 3.049A 714.789 80.864% 2000 42.8 40.57°C 0.995
11.969V 4.927V 3.281V 4.921V 883.935 51.13°C 115.13V
CL1 0.151A 16.000A 16.000A 0.000A 134.511 78.260% 1043 28.4 38.52°C 0.977
12.176V 4.975V 3.317V 5.052V 171.878 44.80°C 115.16V
CL2 52.020A 1.002A 0.999A 1.000A 637.083 83.071% 1919 42.6 40.91°C 0.996
11.991V 5.004V 3.304V 4.997V 766.910 50.83°C 115.15V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.536A 1.971A 1.974A 0.984A 64.763 80.428% 696 16.6 35.34°C 0.871
12.206V 5.077V 3.341V 5.082V 80.523 39.42°C 230.32V
2 8.075A 2.964A 2.966A 1.184A 129.278 86.082% 724 16.9 35.98°C 0.923
12.184V 5.061V 3.335V 5.067V 150.180 40.62°C 230.31V
3 13.029A 3.466A 3.454A 1.386A 194.385 87.903% 797 18.8 36.28°C 0.946
12.156V 5.049V 3.330V 5.053V 221.136 41.24°C 230.31V
4 18.016A 3.974A 3.969A 1.588A 259.618 88.512% 962 23.7 36.38°C 0.959
12.123V 5.036V 3.325V 5.038V 293.313 42.23°C 230.31V
5 22.690A 4.980A 4.972A 1.793A 324.909 88.531% 1159 31.5 37.56°C 0.967
12.094V 5.019V 3.318V 5.022V 366.999 44.20°C 230.31V
6 27.312A 5.998A 5.977A 1.998A 389.426 88.280% 1295 32.3 37.75°C 0.973
12.069V 5.002V 3.312V 5.005V 441.127 44.89°C 230.31V
7 32.014A 7.022A 6.991A 2.206A 454.746 87.827% 1452 34.5 38.06°C 0.978
12.046V 4.984V 3.305V 4.988V 517.774 45.77°C 230.31V
8 36.715A 8.053A 8.006A 2.415A 520.051 87.238% 1637 37.9 38.84°C 0.981
12.029V 4.967V 3.298V 4.970V 596.128 47.25°C 230.30V
9 41.855A 8.581A 8.504A 2.421A 584.979 86.655% 1772 40.1 39.47°C 0.984
12.005V 4.954V 3.292V 4.958V 675.067 48.80°C 230.30V
10 46.730A 9.114A 9.038A 3.041A 649.818 85.924% 1908 42.6 39.69°C 0.986
11.986V 4.938V 3.286V 4.935V 756.274 49.60°C 230.32V
11 52.195A 9.133A 9.052A 3.048A 714.635 85.270% 1994 42.8 40.52°C 0.987
11.973V 4.927V 3.281V 4.923V 838.085 51.03°C 230.32V
CL1 0.142A 16.000A 15.999A 0.000A 134.366 79.639% 1047 26.1 37.51°C 0.932
12.177V 4.974V 3.316V 5.053V 168.718 44.40°C 230.30V
CL2 52.007A 1.002A 0.997A 1.000A 637.023 86.880% 1877 42.5 39.06°C 0.985
11.993V 5.003V 3.303V 4.998V 733.219 49.85°C 230.31V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.182A 0.491A 0.477A 0.196A 19.545 60.750% 689 16.2 0.924
12.223V 5.093V 3.347V 5.107V 32.173 115.14V
2 2.427A 0.979A 0.986A 0.392A 39.920 73.249% 694 16.5 0.949
12.213V 5.088V 3.345V 5.100V 54.499 115.14V
3 3.606A 1.475A 1.465A 0.589A 59.411 78.310% 706 16.8 0.968
12.207V 5.082V 3.343V 5.092V 75.866 115.14V
4 4.856A 1.970A 1.973A 0.787A 79.841 81.274% 697 16.6 0.972
12.201V 5.076V 3.341V 5.084V 98.237 115.14V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.181A 0.490A 0.473A 0.196A 19.519 62.599% 683 15.9 0.689
12.225V 5.095V 3.347V 5.107V 31.181 230.33V
2 2.423A 0.983A 0.985A 0.392A 39.891 74.987% 677 15.6 0.812
12.214V 5.088V 3.345V 5.099V 53.197 230.33V
3 3.602A 1.476A 1.465A 0.589A 59.365 79.841% 687 16.1 0.862
12.207V 5.081V 3.342V 5.092V 74.354 230.33V
4 4.851A 1.970A 1.974A 0.787A 79.779 82.712% 696 16.6 0.890
12.201V 5.075V 3.340V 5.084V 96.454 230.32V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.4 mV 15.8 mV 14.8 mV 11.7 mV Pass
20% Load 15.4 mV 17.1 mV 15.8 mV 13.6 mV Pass
30% Load 16.5 mV 18.4 mV 17.5 mV 13.8 mV Pass
40% Load 20.2 mV 19.7 mV 17.9 mV 13.5 mV Pass
50% Load 23.6 mV 21.0 mV 18.3 mV 14.8 mV Pass
60% Load 24.3 mV 23.0 mV 20.1 mV 15.7 mV Pass
70% Load 27.1 mV 24.0 mV 21.2 mV 18.3 mV Pass
80% Load 31.1 mV 26.1 mV 24.0 mV 23.4 mV Pass
90% Load 32.3 mV 26.5 mV 23.7 mV 23.4 mV Pass
100% Load 50.1 mV 30.7 mV 23.9 mV 21.0 mV Pass
110% Load 56.5 mV 31.0 mV 24.3 mV 23.4 mV Pass
Crossload 1 25.0 mV 31.3 mV 25.3 mV 19.4 mV Pass
Crossload 2 49.8 mV 22.6 mV 20.3 mV 16.8 mV Pass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load11.60mV15.80mV15.40mV12.00mVPass
20% Load17.20mV16.90mV16.00mV13.40mVPass
30% Load16.70mV18.60mV17.40mV14.50mVPass
40% Load21.40mV20.10mV17.40mV14.40mVPass
50% Load21.90mV21.00mV18.40mV16.10mVPass
60% Load24.30mV23.50mV20.00mV16.10mVPass
70% Load27.80mV24.40mV21.30mV17.70mVPass
80% Load29.10mV26.00mV24.80mV20.90mVPass
90% Load31.70mV27.70mV26.90mV23.80mVPass
100% Load54.00mV32.20mV27.50mV24.90mVPass
110% Load57.70mV32.10mV27.80mV24.90mVPass
Crossload141.60mV32.40mV27.30mV20.60mVPass
Crossload251.70mV24.30mV21.00mV18.60mVPass

The results above are not used in the certification process

Corsair CV650

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
