Super Flower Leadex III Gold ARGB 550W (#2)
Serial NumberS1908199003
Lab IDSF19550139
Certification ID25893
  • Test Result Report ID: 19PS893A
  • Certificate Issue Date: Nov 30, 2019
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSuper Flower
Hersteller (OEM)Super Flower
SeriesLeadex III Gold ARGB
Model NumberSF-550F14RG
Serial NumberS1908199003
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)550
TypeATX12V
Dimensions (W x H x D)
Cooling130mm Fluid Dynamic Bearing Fan
(RL4C S1302412L)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202045.830.5
Watts100549.6156
Total Max. Power (W)550

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (590mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (690mm) 2 2 18-22AWG Yes
6+2 pin PCIe (540mm+150mm) 1 2 18-22AWG Yes
SATA (550mm+120mm+120mm) 2 6 18AWG No
4-pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No
ARGB Sync cable (550mm+180mm) 1 2 28AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Super Flower
Platform Model Leadex III
PCB Type Single Sided
Primary Side
Transient Filter 3x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x
APFC MOSFETS 2x Infineon IPA50R280CE (550V, 11.4A @ 100°C, 0.28Ohm) & 1x SPN5003 FET (for reduced no-load consumption)
APFC Boost Diode 1x STMicroelectronics STTH8R06D (600V, 8A @ 130°C)
Hold-up Cap(s) 1x Nippon Chemi-Con (400V, 470uF, 2,000h @ 105°C, KMQ)
Main Switchers 2x Infineon IPA50R199CP (550V, 11A @ 100°C, 0.199Ohm)
APFC Controller SF29603 & S9602
Resonant Controllers SF29605
Topology Primary side: Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Infineon IPP041N04N (40V, 80A @ 100°C, 4.1mOhm)
5V & 3.3V DC-DC Converters:4x Alpha & Omega AON6516 (30V, 25A @ 100°C, 8mOhm @ 125°C)
PWM Controllers: 2x ON Semiconductor NCP1587A
Filtering Capacitors Electrolytics: 6x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 9x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 2x Nippon Chemi-Con (1-2,000h @ 105°C, KMG), 6x Nichicon (1,000h @ 105°C, RZ)
Polymers: 5x FPCAP, 2x United Chemi-Con, 2x Jamicon
Supervisor IC SF29603 & LM339A
Fan controller STMicroelectronics STM8S003F3
Fan Model Globe Fan S1302412L (130mm, 12V, 0.25A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier 1x PFC PFR20L60CT SBR (60V, 20A)
Standby PWM Controller SF29604

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

WirkungsgradPLATINUM
LautstärkeklasseA+
Average Efficiency (>1450 load combinations)89.229%
Average Noise Output (>1450 Load Combinations)19.35dBA
Average PF (>1450 Load Combinations)0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load68.252%
Standby Power Consumption0.0428W
12V Ripple (Full Load)10.64mV
5V Ripple (Full Load)6.25mV
3.3V Ripple (Full Load)18.38mV
5VSB Ripple (Full Load)12.99mV
12V Load Regulation0.38%
5V Load Regulation0.54%
3.3V Load Regulation0.87%
5VSB Load Regulation2.46%
Inrush Current32.302A
WirkungsgradPLATINUM
LautstärkeklasseA+
Average Efficiency (>1450 load combinations)91.219%
Average Noise Output (>1450 Load Combinations)16.25dBA
Average PF (>1450 Load Combinations)0.946
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0676W
12V Ripple (Full Load)10.85mV
5V Ripple (Full Load)6.40mV
3.3V Ripple (Full Load)17.50mV
5VSB Ripple (Full Load)13.17mV
12V Load Regulation0.32%
5V Load Regulation0.50%
3.3V Load Regulation0.81%
5VSB Load Regulation2.40%
Inrush Current63.976A
Hold-Up Time & Power Ok Signal24.80ms
AC Loss to PWR_OK Hold Up Time23.20ms
PWR_OK Inactive to DC Loss Delay1.60ms
PSU Timings: T1 (20% / 100%)232.0ms232.0ms
PSU Timings: T3 (20% / 100%)190.0ms190.0ms
OPP (0.00°C / 0.00°C)116.29%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 24.80
AC Loss to PWR_OK Hold Up Time  (ms) 23.20
PWR_OK Inactive to DC Loss Delay (ms) 1.60

Stromverbrauch im Ruhezustand

Tables

Graphs

INFO

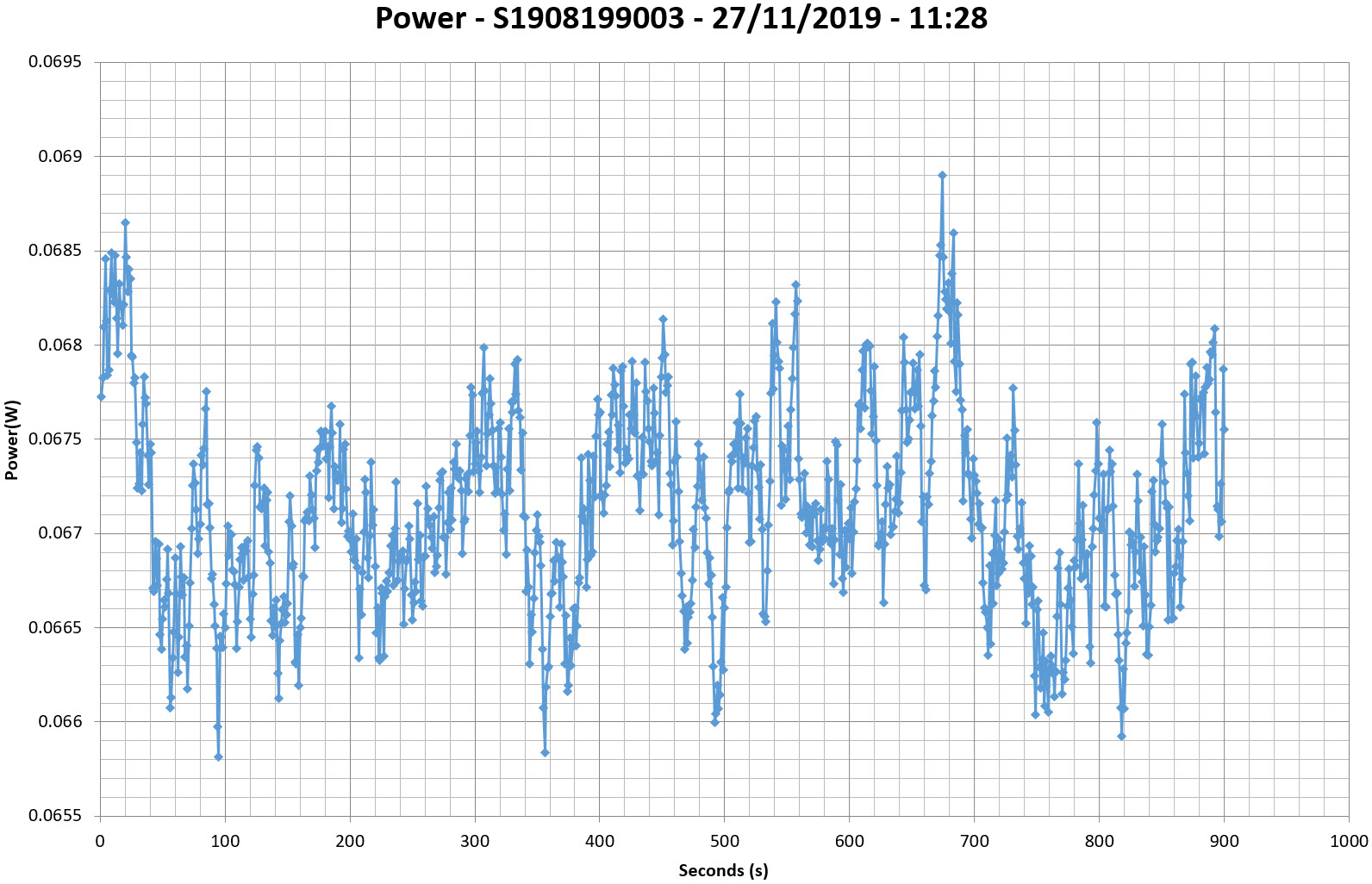

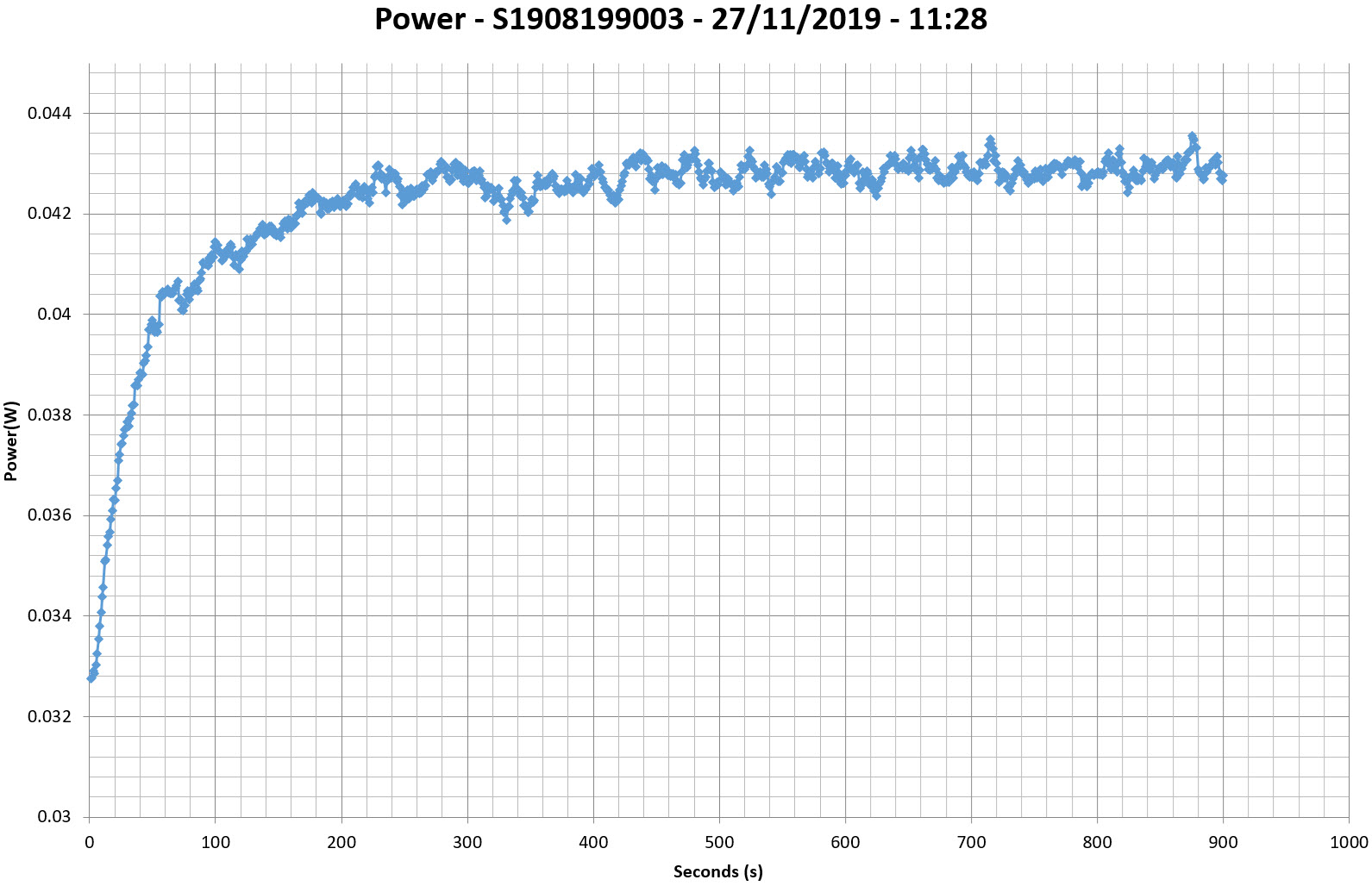

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

Efficiency Graph

INFO

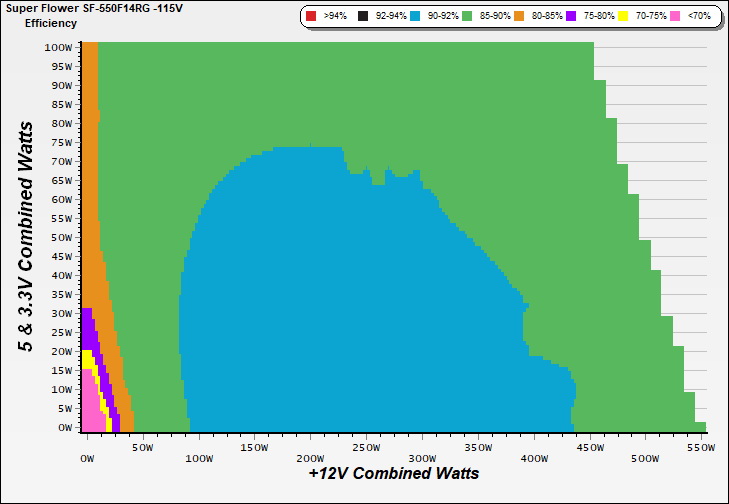

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

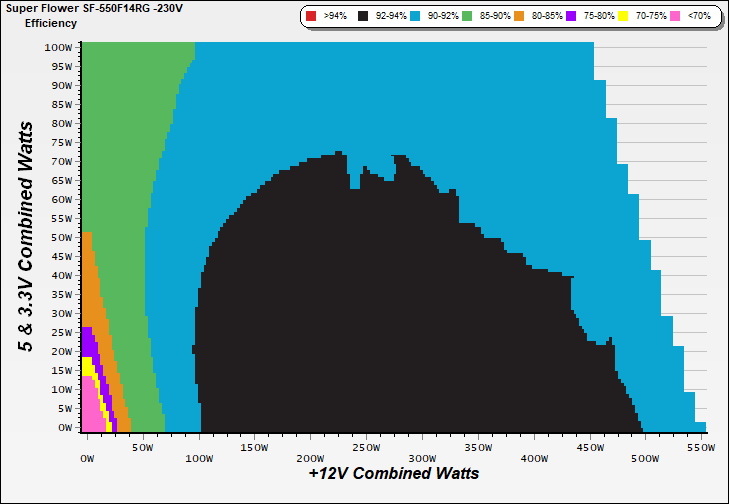

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

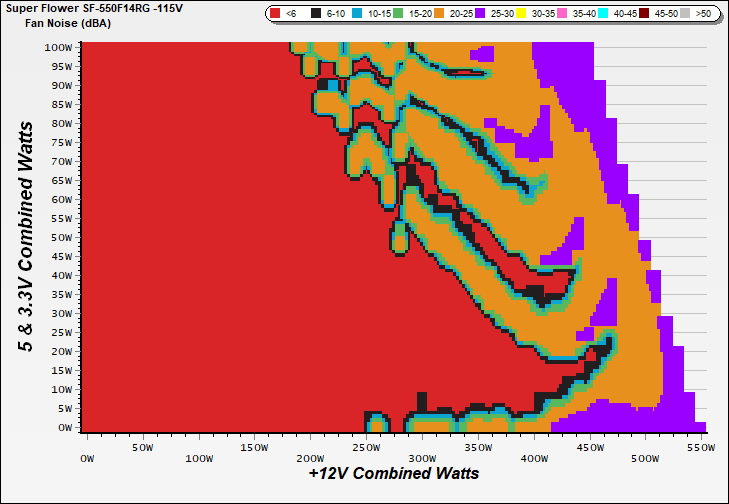

Noise Graph

INFO

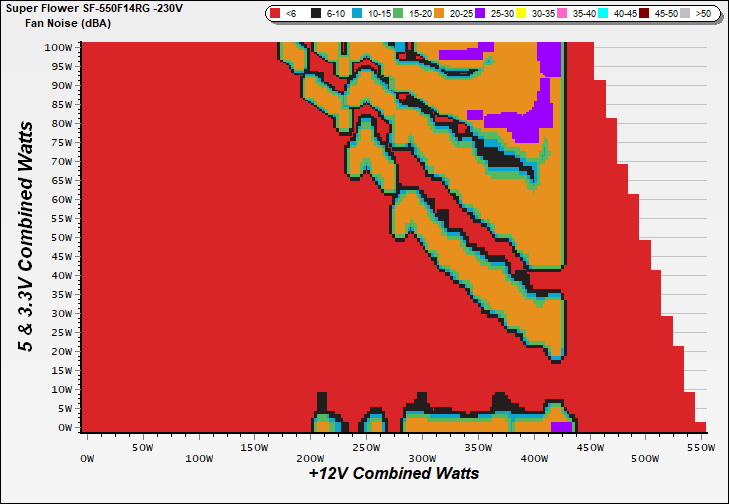

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

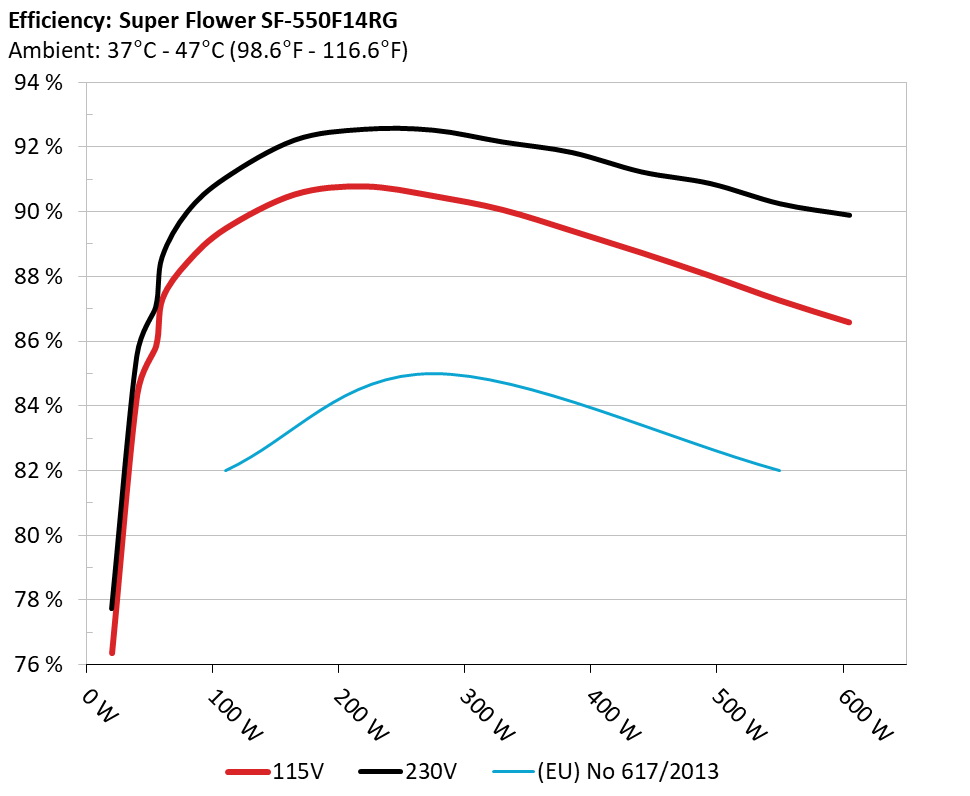

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

5VSB Efficiency

INFO

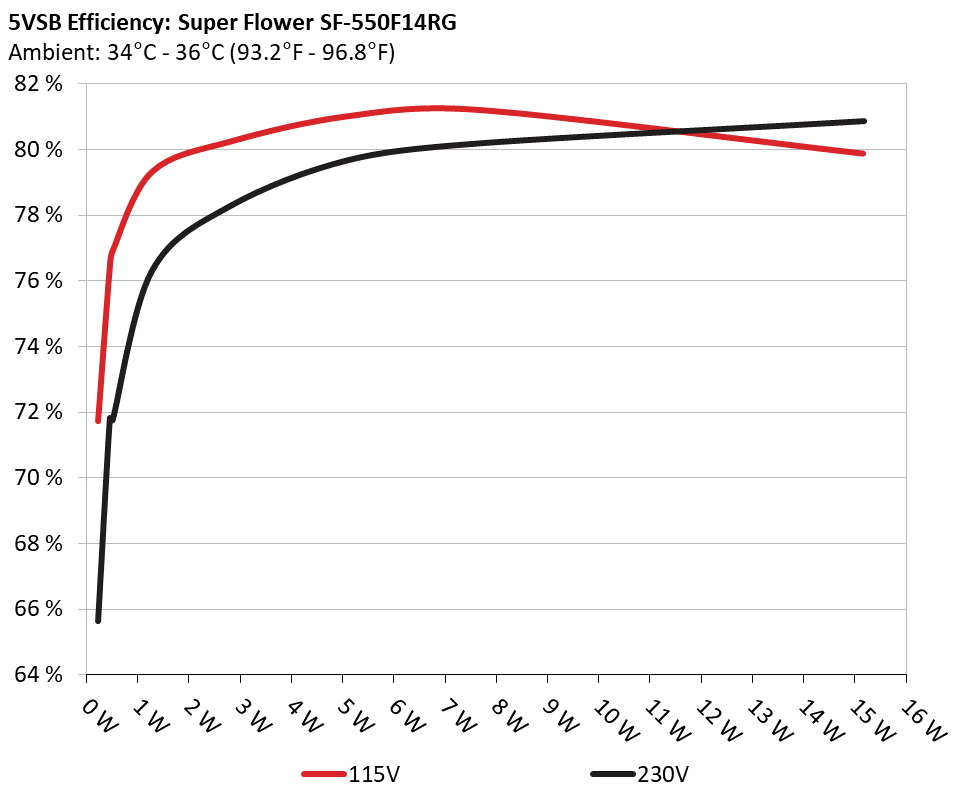

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 71.739% 0.038
5.128V 0.322 115.16V
2 0.090A 0.461 76.451% 0.070
5.127V 0.603 115.16V
3 0.550A 2.815 80.245% 0.286
5.117V 3.508 115.14V
4 1.000A 5.108 81.015% 0.366
5.108V 6.305 115.14V
5 1.500A 7.645 81.209% 0.410
5.096V 9.414 115.14V
6 3.000A 15.169 79.879% 0.467
5.057V 18.990 115.14V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 65.625% 0.013
5.127V 0.352 230.37V
2 0.090A 0.461 71.807% 0.023
5.127V 0.642 230.39V
3 0.550A 2.815 78.281% 0.118
5.117V 3.596 230.37V
4 1.000A 5.108 79.676% 0.190
5.107V 6.411 230.37V
5 1.500A 7.644 80.185% 0.246
5.095V 9.533 230.38V
6 3.000A 15.181 80.866% 0.336
5.061V 18.773 230.37V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.743A 1.984A 1.989A 0.981A 54.959 85.855% 0 <6.0 43.46°C 0.958
12.162V 5.042V 3.316V 5.096V 64.014 40.13°C 115.17V
2 6.510A 2.976A 2.989A 1.180A 110.025 89.487% 0 <6.0 44.93°C 0.974
12.155V 5.039V 3.312V 5.085V 122.951 40.52°C 115.16V
3 10.619A 3.475A 3.489A 1.380A 165.023 90.547% 0 <6.0 46.16°C 0.985
12.146V 5.035V 3.309V 5.074V 182.251 41.28°C 115.16V
4 14.731A 3.975A 3.993A 1.580A 220.023 90.794% 0 <6.0 47.51°C 0.990
12.139V 5.032V 3.306V 5.063V 242.333 41.89°C 115.16V
5 18.505A 4.973A 4.995A 1.782A 275.012 90.498% 877 22.8 42.01°C 0.993
12.132V 5.029V 3.303V 5.052V 303.889 48.50°C 115.16V
6 22.277A 5.968A 6.001A 1.984A 330.017 90.068% 977 25.8 42.42°C 0.994
12.129V 5.028V 3.301V 5.042V 366.410 49.38°C 115.16V
7 26.058A 6.966A 7.006A 2.187A 385.096 89.420% 994 26.4 43.09°C 0.995
12.126V 5.026V 3.298V 5.030V 430.660 50.67°C 115.16V
8 29.824A 7.966A 8.011A 2.392A 440.083 88.744% 1056 28.3 43.39°C 0.996
12.127V 5.023V 3.294V 5.019V 495.904 51.58°C 115.15V
9 33.963A 8.465A 8.507A 2.394A 494.582 88.033% 1243 32.7 44.17°C 0.996
12.133V 5.021V 3.292V 5.013V 561.814 52.80°C 115.15V
10 37.914A 8.969A 9.026A 3.005A 549.824 87.269% 1428 35.5 45.34°C 0.996
12.136V 5.018V 3.289V 4.994V 630.032 54.49°C 115.15V
11 42.455A 8.973A 9.035A 3.008A 605.039 86.590% 1621 38.4 46.69°C 0.996
12.138V 5.016V 3.288V 4.988V 698.742 56.58°C 115.14V
CL1 0.115A 11.998A 12.000A 0.000A 101.286 84.413% 0 <6.0 48.36°C 0.974
12.137V 5.031V 3.294V 5.095V 119.989 42.33°C 115.16V
CL2 45.830A 1.001A 0.999A 1.000A 570.266 87.981% 1473 36.2 45.67°C 0.996
12.151V 5.026V 3.305V 5.053V 648.169 54.91°C 115.16V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.744A 1.984A 1.991A 0.981A 54.960 87.049% 0

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.222A 0.495A 0.496A 0.195A 19.990 76.365% 0 <6.0 0.832
12.149V 5.047V 3.320V 5.120V 26.177 115.18V
2 2.439A 0.991A 0.993A 0.391A 39.981 84.364% 0 <6.0 0.930
12.172V 5.045V 3.318V 5.113V 47.391 115.18V
3 3.666A 1.487A 1.492A 0.588A 60.011 87.319% 0 <6.0 0.967
12.155V 5.043V 3.317V 5.106V 68.726 115.18V
4 4.884A 1.984A 1.992A 0.785A 79.960 88.453% 0 <6.0 0.965
12.152V 5.042V 3.315V 5.099V 90.398 115.18V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.220A 0.495A 0.498A 0.195A 19.990 77.722% 0

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.9 mV 4.1 mV 15.5 mV 11.5 mV Pass
20% Load 6.3 mV 3.8 mV 17.0 mV 11.2 mV Pass
30% Load 6.7 mV 4.2 mV 16.9 mV 11.2 mV Pass
40% Load 6.8 mV 4.3 mV 15.4 mV 11.2 mV Pass
50% Load 7.6 mV 4.4 mV 15.1 mV 11.0 mV Pass
60% Load 7.5 mV 4.7 mV 15.4 mV 11.5 mV Pass
70% Load 7.6 mV 5.0 mV 15.9 mV 11.8 mV Pass
80% Load 8.3 mV 5.2 mV 17.5 mV 18.0 mV Pass
90% Load 8.1 mV 5.6 mV 16.7 mV 11.6 mV Pass
100% Load 10.6 mV 6.3 mV 18.4 mV 13.0 mV Pass
110% Load 10.7 mV 6.3 mV 18.1 mV 13.3 mV Pass
Crossload 1 7.9 mV 4.5 mV 17.0 mV 15.1 mV Pass
Crossload 2 10.7 mV 6.0 mV 17.4 mV 13.6 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.2 mV 3.5 mV 14.0 mV 11.6 mV Pass
20% Load 5.9 mV 3.6 mV 15.4 mV 11.6 mV Pass
30% Load 6.1 mV 4.1 mV 16.9 mV 12.2 mV Pass
40% Load 6.8 mV 4.4 mV 14.2 mV 11.4 mV Pass
50% Load 6.8 mV 4.4 mV 14.5 mV 11.7 mV Pass
60% Load 7.1 mV 4.8 mV 15.5 mV 10.9 mV Pass
70% Load 7.2 mV 4.8 mV 15.2 mV 11.6 mV Pass
80% Load 8.1 mV 5.3 mV 17.3 mV 11.4 mV Pass
90% Load 8.5 mV 6.0 mV 16.3 mV 11.8 mV Pass
100% Load 10.9 mV 6.4 mV 17.5 mV 13.2 mV Pass
110% Load 10.8 mV 6.7 mV 18.5 mV 12.7 mV Pass
Crossload 1 8.3 mV 4.6 mV 18.1 mV 15.3 mV Pass
Crossload 2 10.3 mV 5.5 mV 16.4 mV 12.5 mV Pass

The results above are not used in the certification process

Super Flower Leadex III Gold ARGB 550W (#2)

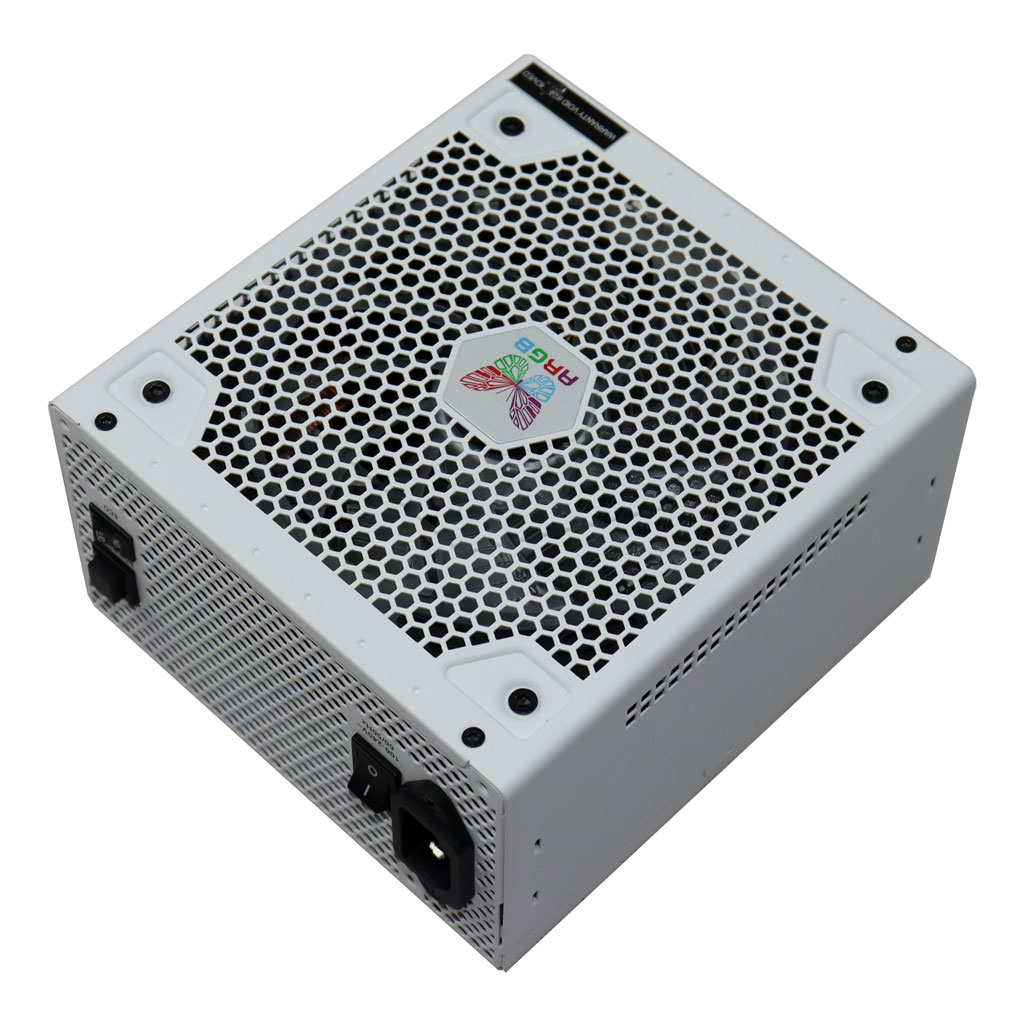

Top side

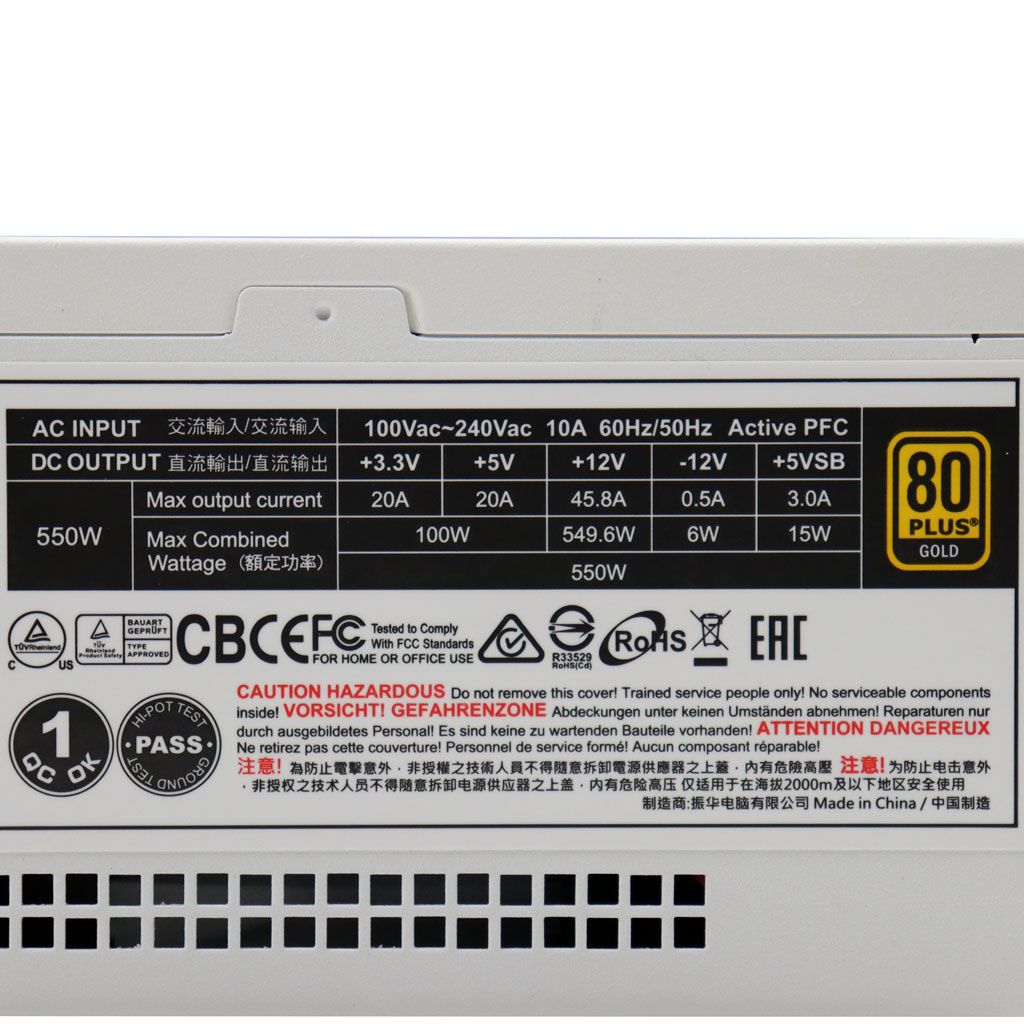

Power specifications label
