CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Corsair AX850
Serial Number18437001000059540002
Lab ID552
Certification ID25552
  • Test Result Report ID:
  • Certificate Issue Date: Nov 28, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandCorsair
Manufacturer (OEM)Seasonic
SeriesAX
Model Number
Serial Number18437001000059540002
DUT NotesCP-9020151

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)11-5.5
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525L12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 70 3 0.3
Watts 100 840 15 3.6
Total Max. Power (W) 850

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 16-20AWG Yes
4+4 pin EPS12V (650mm) 2 2 18AWG Yes
6+2 pin PCIe (670mm+100mm) 4 8 16-18AWG Yes
SATA (460mm+110mm+110mm+110mm) 4 16 18AWG No
4 pin Molex (550mm+100mm+100mm) 2 6 18AWG No
FDD Adapter (110mm) 1 1 22AWG No
AC Power Cord (1400mm) 1 1 14AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Efficiency RatingTITANIUM
Noise RatingA+
Average Efficiency (>1450 load combinations)92.543%
Average Noise Output (>1450 Load Combinations)15.37dBA
Average PF (>1450 Load Combinations)0.988
Efficiency With 10W (≤500W) or 2% (>500W) Load75.879%
Standby Power Consumption0.0477W
12V Ripple (Full Load)10.79mV
5V Ripple (Full Load)5.76mV
3.3V Ripple (Full Load)11.80mV
5VSB Ripple (Full Load)9.60mV
12V Load Regulation0.25%
5V Load Regulation0.42%
3.3V Load Regulation0.38%
5VSB Load Regulation1.17%
Inrush Current44.445A
Efficiency RatingTITANIUM
Noise RatingA++
Average Efficiency (>1450 load combinations)94.077%
Average Noise Output (>1450 Load Combinations)14.66dBA
Average PF (>1450 Load Combinations)0.944
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0795W
12V Ripple (Full Load)10.85mV
5V Ripple (Full Load)5.93mV
3.3V Ripple (Full Load)11.52mV
5VSB Ripple (Full Load)10.64mV
12V Load Regulation0.23%
5V Load Regulation0.42%
3.3V Load Regulation0.36%
5VSB Load Regulation1.15%
Inrush Current63.621A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal22.10ms
AC Loss to PWR_OK Hold Up Time20.40ms
PWR_OK Inactive to DC Loss Delay1.70ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.1
AC Loss to PWR_OK Hold Up Time (ms)20.4
PWR_OK Inactive to DC Loss Delay (ms)1.7

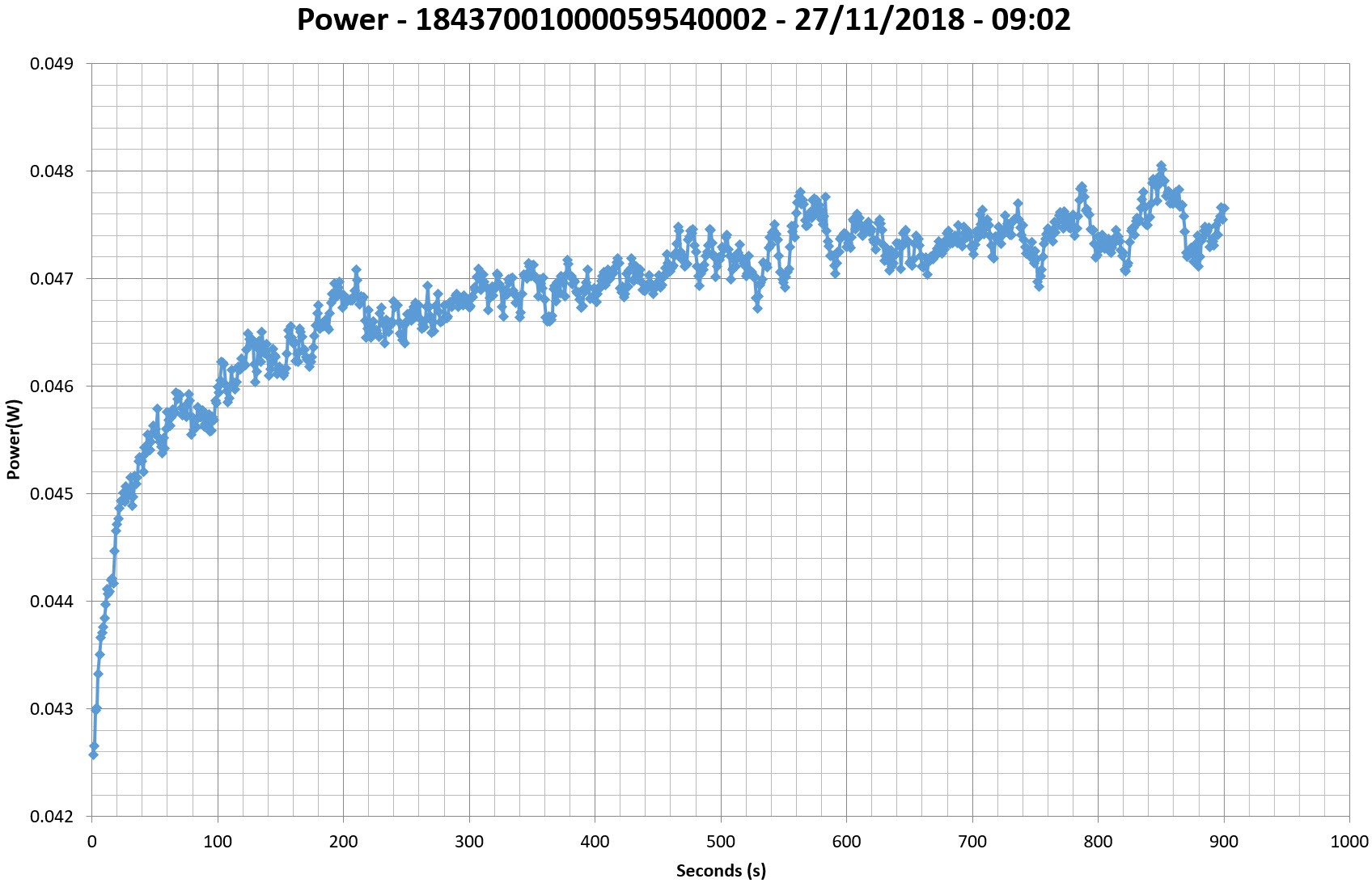

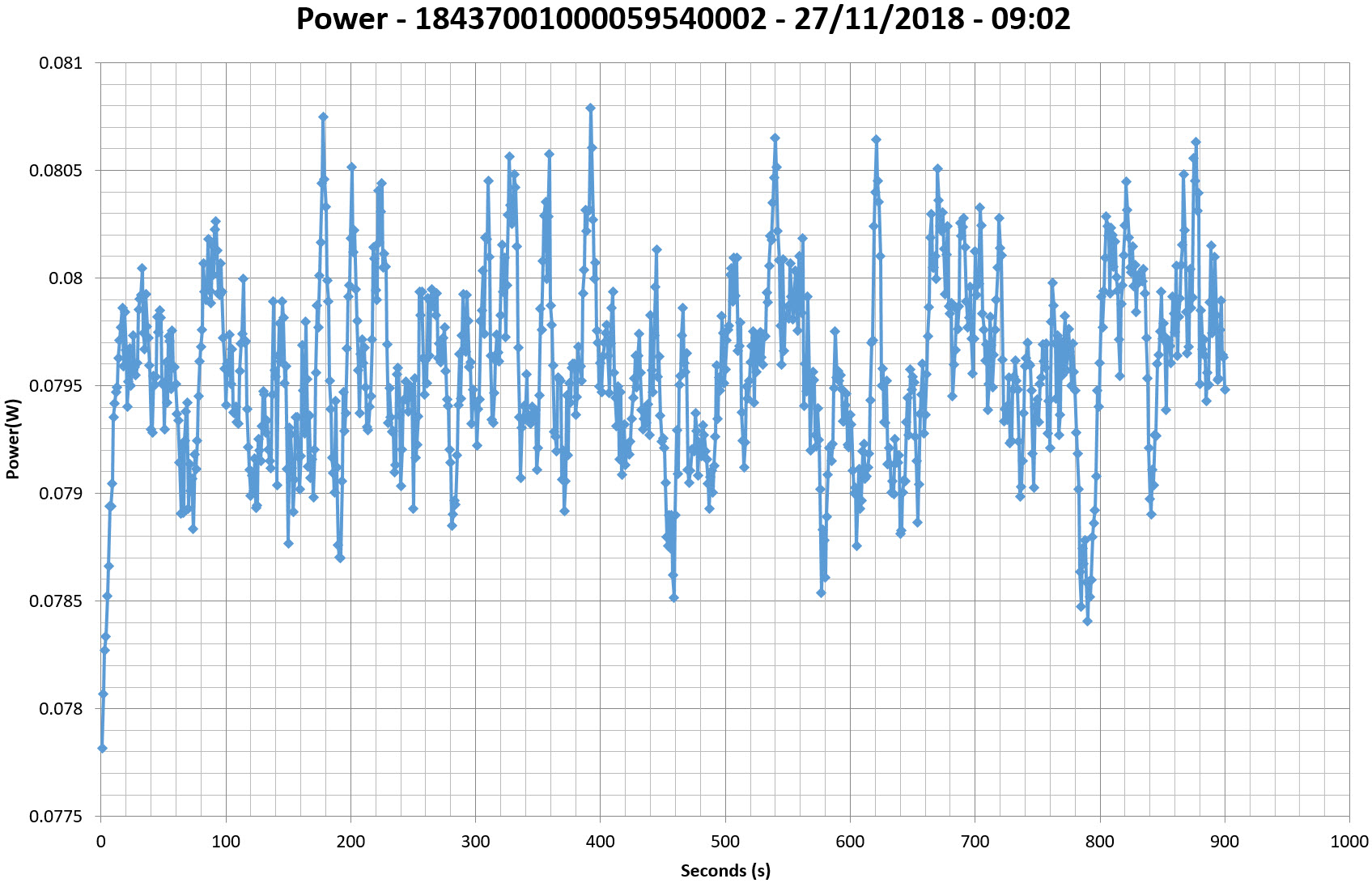

Vampire Power

Tables

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

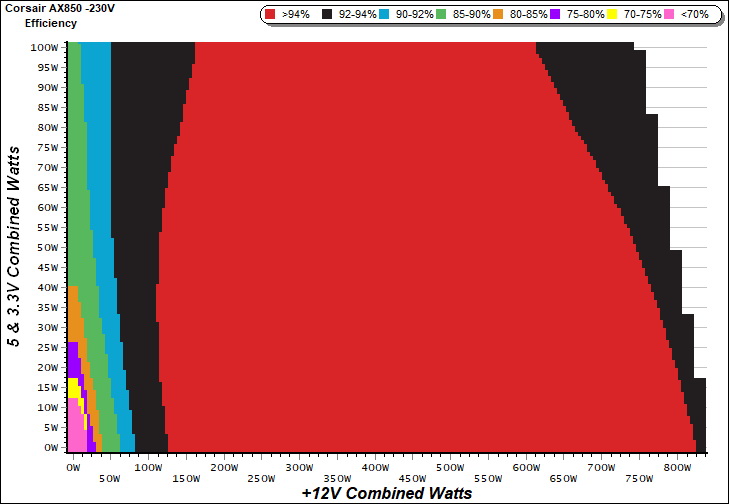

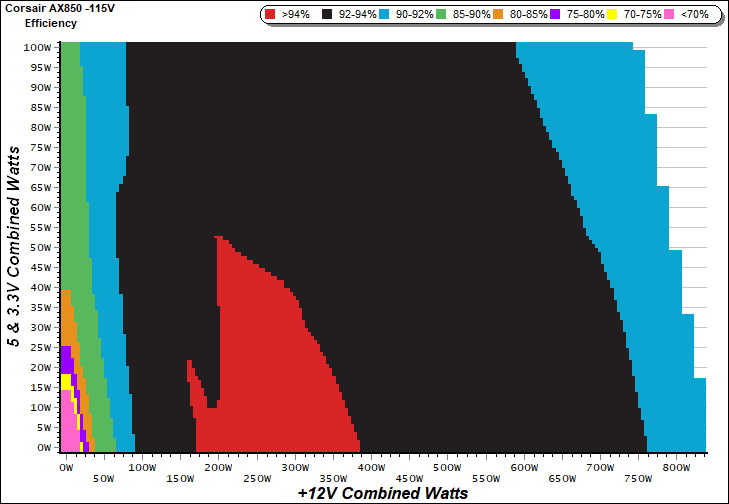

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

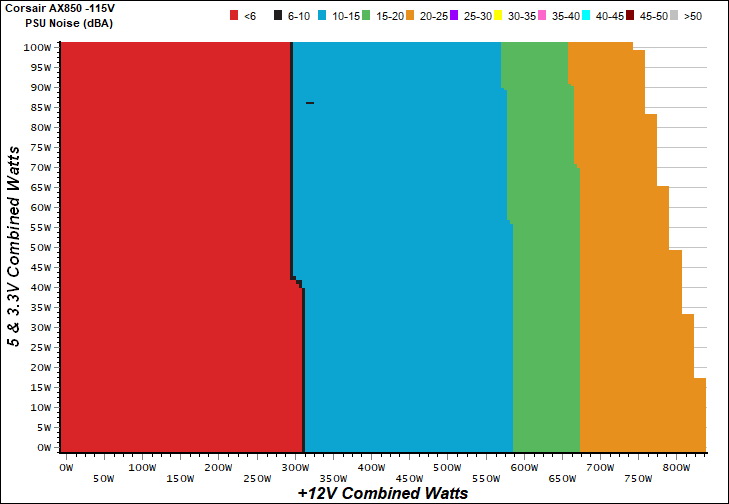

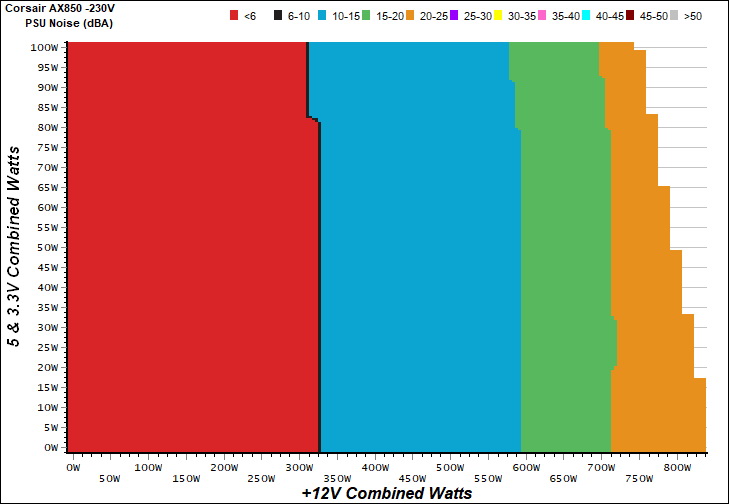

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

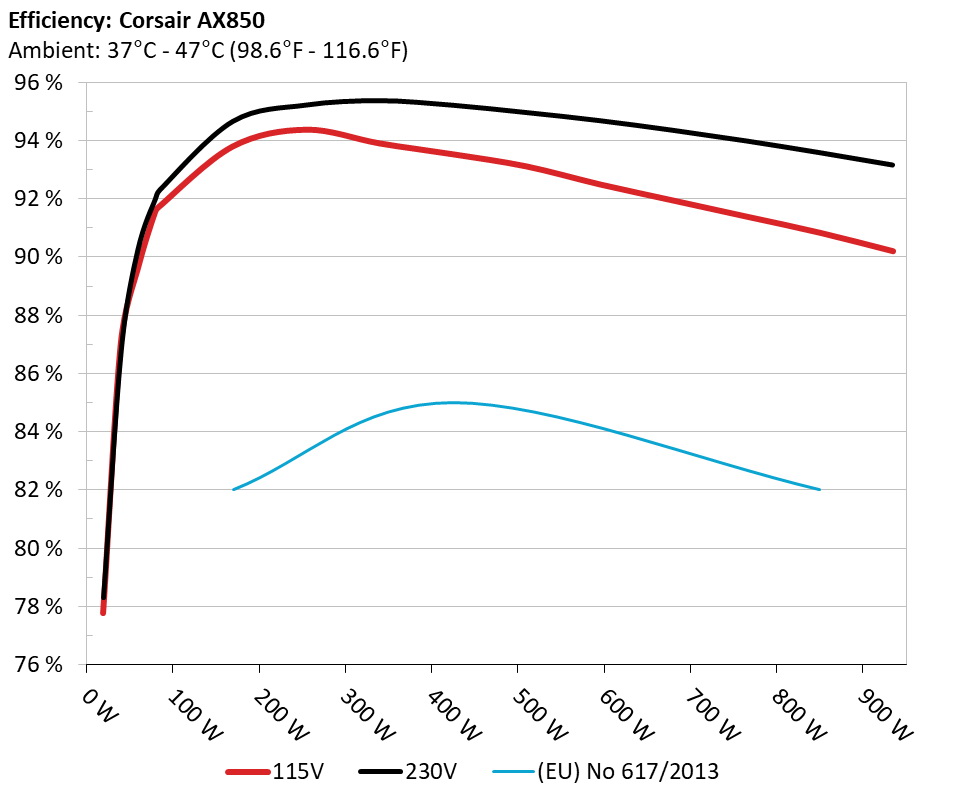

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

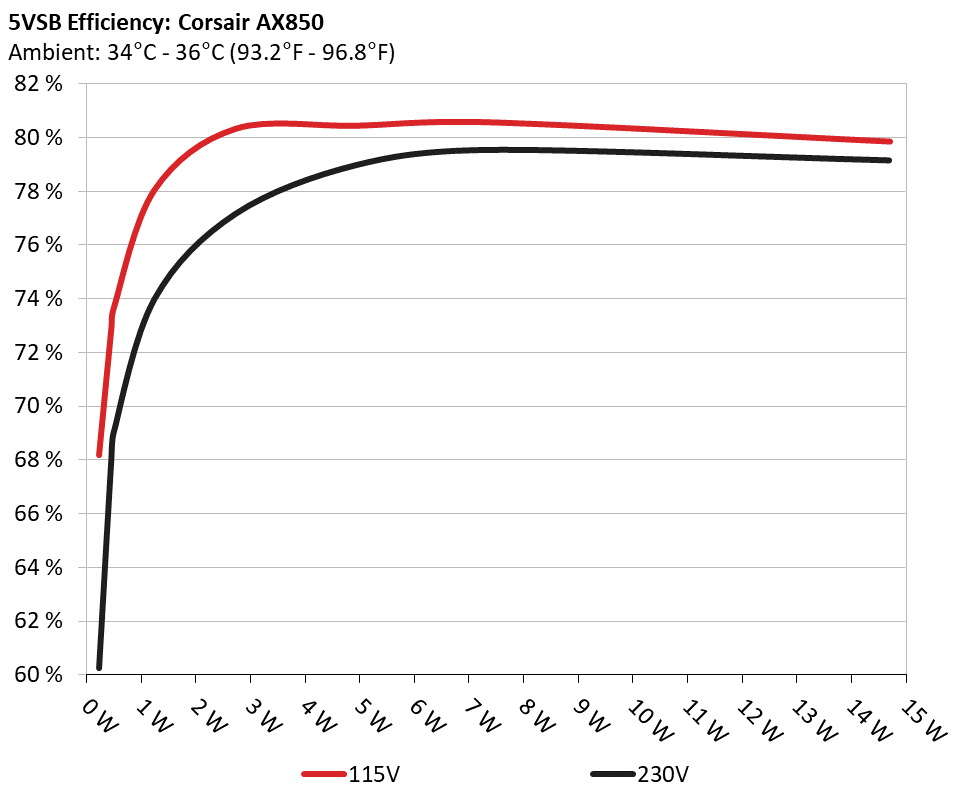

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.223 68.196% 0.000
4.957V 0.327 115.08V
2 0.090A 0.446 72.876% 0.058
4.956V 0.612 115.08V
3 0.550A 2.722 80.342% 0.250
4.948V 3.388 115.13V
4 1.000A 4.940 80.456% 0.345
4.939V 6.140 115.13V
5 1.500A 7.395 80.582% 0.401
4.929V 9.177 115.13V
6 3.001A 14.703 79.869% 0.474
4.900V 18.409 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.223 60.270% 0.011
4.957V 0.370 230.22V
2 0.090A 0.446 67.988% 0.019
4.956V 0.656 365.12V
3 0.550A 2.720 77.163% 0.097
4.946V 3.525 230.22V
4 1.000A 4.938 78.983% 0.160
4.937V 6.252 230.22V
5 1.500A 7.392 79.544% 0.217
4.927V 9.293 230.22V
6 3.000A 14.690 79.153% 0.326
4.896V 18.559 230.22V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.158A 1.977A 1.953A 0.992A 84.759 91.742% 0 <6.0 46.67°C 0.957
12.248V 5.056V 3.376V 5.044V 92.388 39.72°C 115.10V
2 11.302A 2.967A 2.932A 1.191A 169.272 93.792% 0 <6.0 47.61°C 0.983
12.244V 5.054V 3.374V 5.040V 180.476 40.29°C 115.11V
3 17.840A 3.466A 3.407A 1.391A 254.382 94.374% 0 <6.0 49.13°C 0.992
12.241V 5.051V 3.373V 5.035V 269.547 41.23°C 115.11V
4 24.390A 3.960A 3.912A 1.591A 339.654 93.904% 609 13.6 41.66°C 0.991
12.237V 5.050V 3.372V 5.031V 361.704 50.10°C 115.11V
5 30.609A 4.955A 4.893A 1.791A 424.971 93.528% 617 14.0 42.11°C 0.993
12.234V 5.047V 3.370V 5.027V 454.377 51.54°C 115.11V
6 36.766A 5.947A 5.877A 1.991A 509.488 93.116% 665 16.3 42.74°C 0.995
12.231V 5.045V 3.369V 5.023V 547.157 52.67°C 115.12V
7 42.992A 6.941A 6.857A 2.192A 594.807 92.497% 718 18.9 43.20°C 0.996
12.228V 5.043V 3.368V 5.020V 643.058 53.46°C 115.12V
8 49.224A 7.936A 7.841A 2.393A 680.174 91.940% 804 24.0 43.49°C 0.997
12.225V 5.041V 3.367V 5.016V 739.806 54.50°C 115.12V
9 55.856A 8.436A 8.319A 2.393A 765.116 91.388% 865 25.9 44.59°C 0.997
12.221V 5.039V 3.365V 5.014V 837.221 55.93°C 115.13V
10 62.220A 8.937A 8.827A 2.999A 849.915 90.836% 928 27.1 45.80°C 0.997
12.218V 5.037V 3.364V 5.002V 935.657 57.55°C 115.13V
11 69.177A 8.939A 8.830A 3.001A 934.705 90.202% 1141 33.7 46.60°C 0.998
12.215V 5.035V 3.363V 5.000V 1036.237 58.75°C 115.13V
CL1 0.147A 11.999A 12.000A 0.000A 102.847 89.010% 776 22.4 42.73°C 0.969
12.245V 5.052V 3.369V 5.076V 115.545 51.65°C 115.14V
CL2 70.013A 1.003A 0.998A 1.000A 868.794 91.108% 905 26.7 45.44°C 0.998
12.217V 5.040V 3.369V 5.028V 953.588 57.46°C 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.167A 1.978A 1.954A 0.992A 84.872 92.300% 0 <6.0 46.14°C 0.779
12.245V 5.056V 3.376V 5.044V 91.952 39.33°C 230.32V
2 11.307A 2.968A 2.933A 1.191A 169.319 94.647% 0 <6.0 47.58°C 0.899
12.242V 5.054V 3.374V 5.040V 178.895 40.15°C 230.32V
3 17.844A 3.464A 3.406A 1.390A 254.380 95.211% 0 <6.0 48.66°C 0.940
12.239V 5.052V 3.373V 5.035V 267.174 40.87°C 230.31V
4 24.384A 3.959A 3.912A 1.590A 339.546 95.360% 0 <6.0 49.46°C 0.960
12.236V 5.050V 3.372V 5.031V 356.068 41.42°C 230.29V
5 30.602A 4.951A 4.892A 1.790A 424.837 95.203% 618 14.0 41.83°C 0.970
12.233V 5.048V 3.371V 5.027V 446.244 50.37°C 230.28V
6 36.761A 5.944A 5.872A 1.991A 509.366 94.955% 631 14.7 42.63°C 0.976
12.230V 5.046V 3.369V 5.024V 536.430 51.62°C 230.28V
7 42.986A 6.938A 6.858A 2.191A 594.639 94.676% 695 17.5 42.80°C 0.981
12.226V 5.044V 3.368V 5.020V 628.077 52.45°C 230.29V
8 49.216A 7.934A 7.837A 2.393A 680.003 94.343% 777 22.4 43.36°C 0.985
12.224V 5.041V 3.367V 5.016V 720.775 53.47°C 230.28V
9 55.849A 8.433A 8.319A 2.393A 764.972 93.979% 852 25.1 44.52°C 0.986
12.220V 5.039V 3.366V 5.015V 813.982 55.05°C 230.29V
10 62.217A 8.935A 8.825A 2.999A 849.811 93.578% 921 27.0 45.55°C 0.988
12.217V 5.037V 3.365V 5.003V 908.135 56.56°C 230.29V
11 69.174A 8.937A 8.828A 3.000A 934.589 93.152% 1172 34.5 46.61°C 0.990
12.214V 5.035V 3.364V 5.001V 1003.300 57.87°C 230.30V
CL1 0.140A 11.997A 11.998A 0.000A 102.756 89.822% 729 19.8 42.15°C 0.829
12.243V 5.053V 3.369V 5.076V 114.399 50.88°C 230.29V
CL2 70.004A 1.000A 0.997A 1.000A 868.596 93.849% 891 26.1 45.29°C 0.989
12.216V 5.040V 3.369V 5.029V 925.522 56.39°C 230.30V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.170A 0.493A 0.471A 0.198A 19.421 77.771% 0 <6.0 0.778
12.249V 5.062V 3.380V 5.061V 24.972 115.09V
2 2.416A 0.988A 0.974A 0.396A 39.881 87.016% 0 <6.0 0.901
12.249V 5.058V 3.377V 5.054V 45.832 115.10V
3 3.588A 1.480A 1.449A 0.594A 59.328 89.580% 0 <6.0 0.936
12.249V 5.057V 3.377V 5.051V 66.229 115.10V
4 4.828A 1.977A 1.952A 0.793A 79.721 91.555% 0 <6.0 0.954
12.248V 5.056V 3.376V 5.048V 87.074 115.10V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.178A 0.491A 0.472A 0.198A 19.510 78.303% 0 <6.0 0.439
12.247V 5.062V 3.380V 5.061V 24.916 230.30V
2 2.422A 0.990A 0.976A 0.396A 39.965 86.780% 0 <6.0 0.612
12.246V 5.058V 3.377V 5.054V 46.053 230.30V
3 3.595A 1.483A 1.448A 0.594A 59.413 90.252% 0 <6.0 0.705
12.245V 5.058V 3.377V 5.051V 65.830 230.31V
4 4.838A 1.978A 1.952A 0.793A 79.837 92.007% 0 <6.0 0.766
12.245V 5.057V 3.376V 5.048V 86.773 230.30V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 6.7 mV 4.3 mV 8.6 mV 6.8 mV Pass
20% Load 8.3 mV 4.6 mV 9.0 mV 7.1 mV Pass
30% Load 9.2 mV 5.2 mV 9.6 mV 7.2 mV Pass
40% Load 5.7 mV 5.8 mV 9.9 mV 8.0 mV Pass
50% Load 5.6 mV 4.7 mV 9.7 mV 8.0 mV Pass
60% Load 6.0 mV 5.1 mV 9.7 mV 8.5 mV Pass
70% Load 6.7 mV 5.0 mV 10.3 mV 8.3 mV Pass
80% Load 6.9 mV 5.1 mV 10.6 mV 8.9 mV Pass
90% Load 6.8 mV 5.1 mV 10.4 mV 8.1 mV Pass
100% Load 10.8 mV 5.8 mV 11.8 mV 9.6 mV Pass
110% Load 10.9 mV 5.7 mV 12.5 mV 10.1 mV Pass
Crossload 1 8.9 mV 5.1 mV 12.0 mV 7.8 mV Pass
Crossload 2 10.9 mV 5.5 mV 10.7 mV 9.6 mV Pass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load7.10mV4.80mV8.80mV7.10mVPass
20% Load8.80mV4.70mV8.90mV7.00mVPass
30% Load10.00mV4.90mV8.90mV7.40mVPass
40% Load5.70mV5.70mV10.40mV8.40mVPass
50% Load5.40mV5.20mV9.50mV7.90mVPass
60% Load6.20mV5.00mV10.40mV9.50mVPass
70% Load6.70mV5.30mV10.00mV8.90mVPass
80% Load7.10mV5.00mV10.80mV9.20mVPass
90% Load7.30mV5.30mV10.30mV9.60mVPass
100% Load10.90mV5.90mV11.50mV10.60mVPass
110% Load11.50mV5.80mV11.40mV11.70mVPass
Crossload110.10mV4.70mV11.50mV8.30mVPass
Crossload210.80mV5.90mV10.30mV10.20mVPass

The results above are not used in the certification process

Corsair AX850

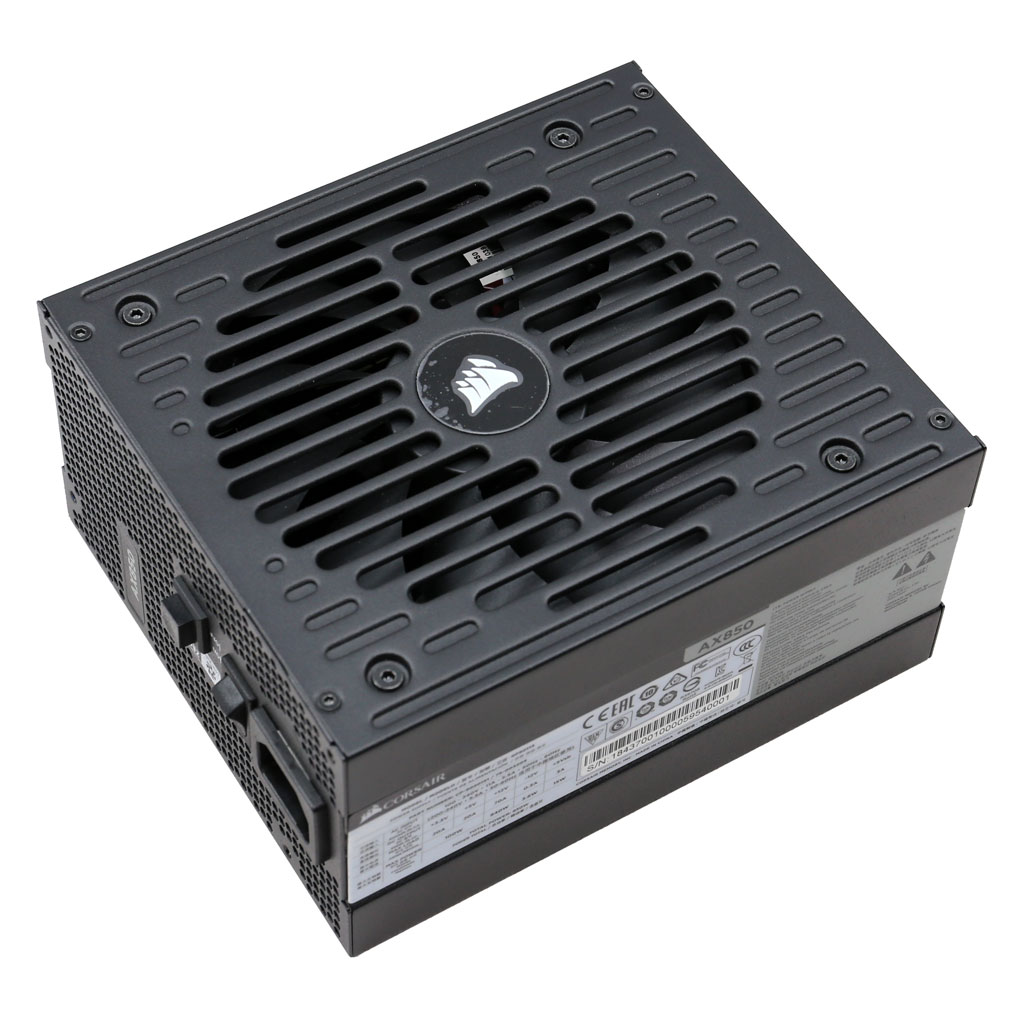

Top side

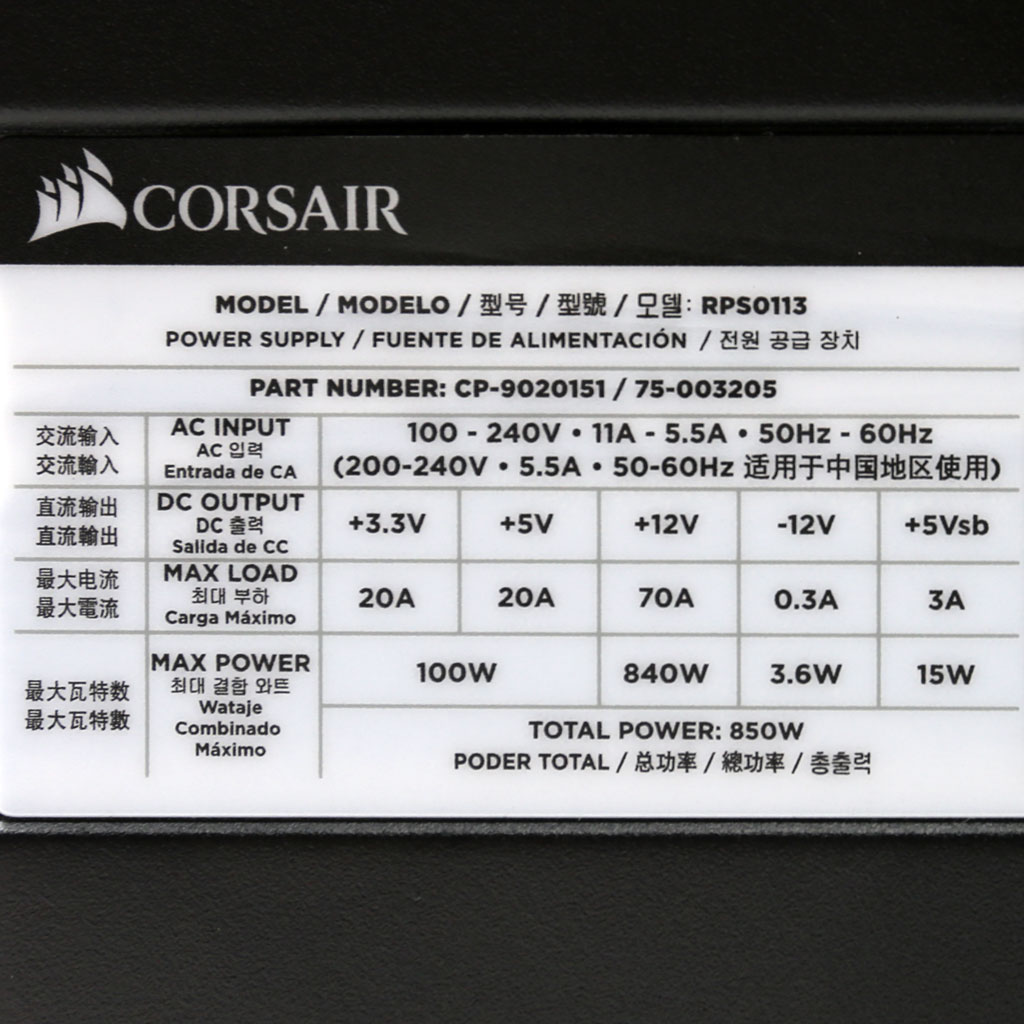

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
