ACG750
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015, Rohde & Schwarz NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger |
Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA | Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 88.160% | 90.161% |

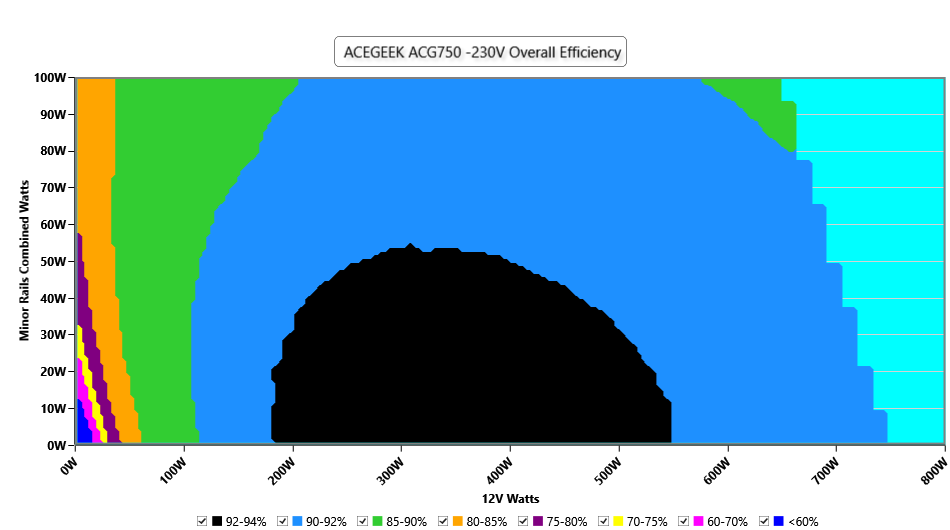

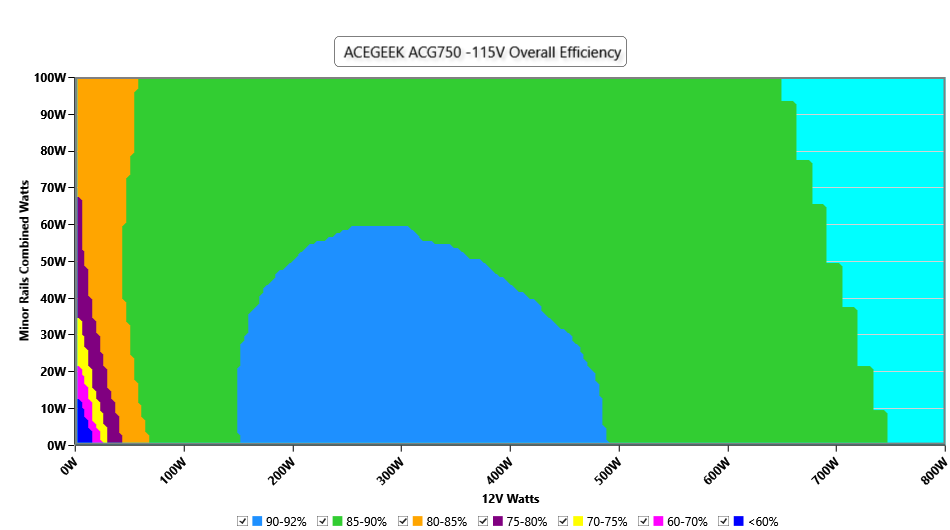

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.979 | 0.939 |
| Standby Power Consumption | 0.1056W | 0.1388W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 79.749% | 79.581% |
| Conducted Emissions EN55032 & CISPR 32 | Passed | |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 40.20dBA | 39.53dBA |

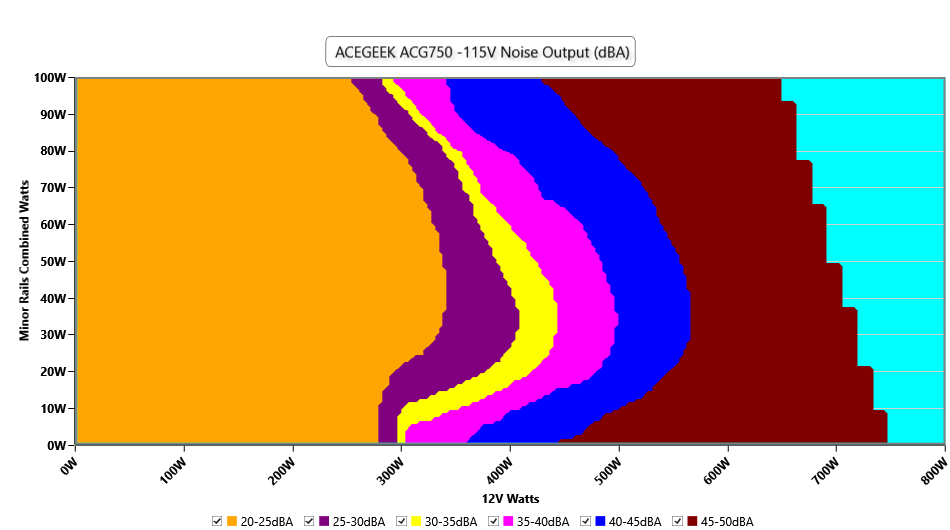

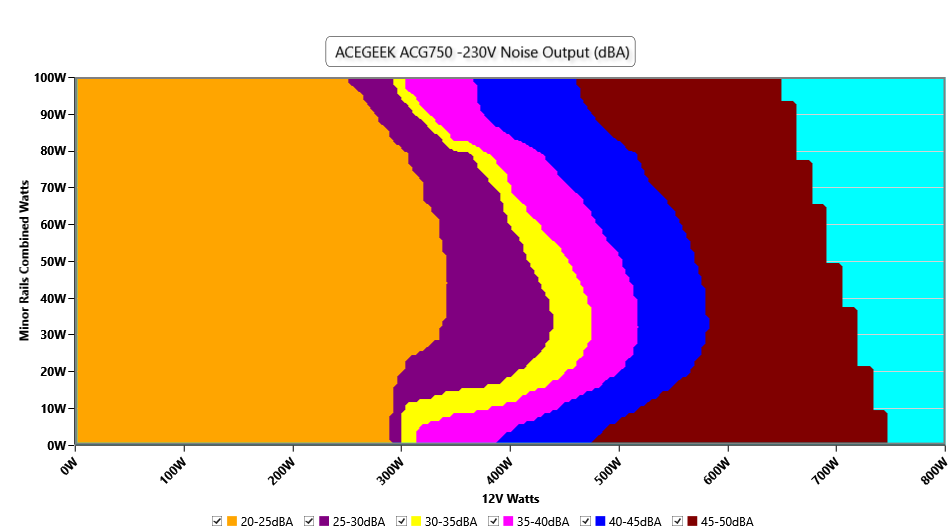

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 62.781 |
| Hold Up Time | 15.30 |
| Power OK | 13.50 |
| Power OK to DC Loss | 1.80 |
| Model Name | ACEGEEK |
| Lab ID | AG75002890 |
| Serial Number | - |
| Date of receipt | Jun 17, 2025 |
| Testing Date | Jul 16, 2025 |
| Report Issued Date | Jul 17, 2025 |
| DUT Notes | 2890 |
| Engineer Name | |
| Authorized By the Laboratory General Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | In Cable Capacitors |
| ATX connector 24 pin (600mm) | 1 | 1 | 18AWG | No |
| 4+4 pin ATX12V (700mm) | 2 | 2 | 18AWG | No |
| 6+2 pin PCIe (600mm) | 3 | 3 | 18AWG | No |
| 12+4 pin PCIe (600mm) (600W) | 1 | 1 | 16-26AWG | No |
| SATA (500mm+150mm+150mm+150mm) | 1 | 4 | 18AWG | No |
| SATA (500mm+150mm) / 4-pin Molex (+150mm+150mm) | 1 | 2 / 2 | 18AWG | No |
| AC Power Cord (1060mm) - C13 coupler | 1 | 1 | 18AWG | - |
| Manufacturer (OEM) | Andyson |
| Max. DC Output | 750W |
| Efficiency (115V) | Cybenetics Gold (88.160%) |
| Efficiency (230V) | Cybenetics Gold (90.161%) |
| Noise (115V) | Cybenetics Standard (40.20 dB[A]) |
| Noise (230V) | Cybenetics Standard+ (39.53 dB[A]) |
| Modular | ✓ (Fully) |
| Intel C6/C7 Power State Support | ✓ |
| Operating Temperature (Continuous Full Load) | 0 - 50°C |
| Over Voltage Protection | ✓ |
| Under Voltage Protection | ✓ |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| No Load Operation | ✓ |
| Cooling | 120mm Sleeve Bearing Fan (PY-1225M12S) |
| Semi-Passive Operation | ✗ |
| Dimensions (W x H x D) | 150 x 85 x 140mm |
| Weight | 1.29 kg (2.84 lb) |
| Form Factor | ATX12V v3.1, EPS 2.92 |
| ATX 3.1 & PCIe 5.1 ready | ✓ |
| Alternative Low Power Mode (ALPM) compatible | ✓ |
| Warranty | No info |
| General Data | |
| Manufacturer (OEM) | Andyson |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor SCK056 (5 Ohm @ 25°C) & Relay |
| Bridge Rectifier(s) | 2x GBU1006 (600V, 10A @ 100°C) |
| APFC MOSFETs | 2x Perfect PWE180N65MFS (650V, 13A @ 100°C, Rds(on): 180mOhm) |
| APFC Boost Diode | 1x Global Power G4S06508AT (650V, 8A @ 153°C) |
| Bulk Cap(s) | 1x Nippon Chemi-con (400V, 470uF, 2000h @ 105°C, KMW) |
| Main Switchers | 2x SI24N50F |
APFC Controller | 1x Champion CM6500UNX & |
| Resonant Controller | AT2003SSP8 |
| Topology | Primary side: APFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 4x Pingwei PWC012N04ES (40V, 132A @ 100°C, Rds(on): 1.2mOhm) |
| 5V & 3.3V | DC-DC Converters: 2x Way-On WMO190N03TS (30V, 120A @ 100°C, Rds(on): 3mOhm) & 2x Way-On WMB150N03TS (30V, 95A @ 100°C, Rds(on): 2.6mOhm) PWM Controller(s): 2x ANPEC APW7164 |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | Esthome EST.7630FS (OCP, FPOB, PGO, OVP, UVP) |
| Fan Model | PY-1225M12S (120mm, 12V, 0.26A, Sleeve Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | 1x Pingwei PS1045L (45V, 10A) |
| Standby PWM Controller | Esthome EST.3026M |
| Rated Voltage (Vrms) | 10-240 |
| Rated Current (Arms) | 4.5-9 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 750 |
| Type | ATX12V |
| Dimensions (W x H x D) | |
| Cooling | 120mm Sleeve Bearing Fan (PY-1225M12S) |
| Semi-Passive Operation | ✗ |
| Cable Design | Fully Modular |
