Toughpower i 1650W
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015, Rohde & Schwarz NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA | Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 91.371% | 0.000% |

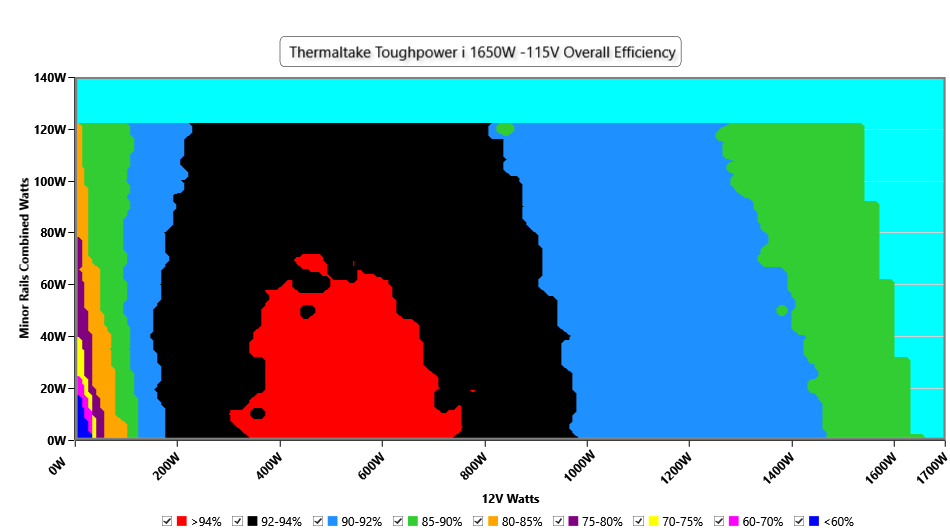

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.995 | 0.000 |
| Standby Power Consumption | 0.0578W | 0.0000W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 83.182% | 0.000% |
| Conducted Emissions EN55032 & CISPR 32 | Failed | |
| Voltage | 115V | 230V |
|---|---|---|

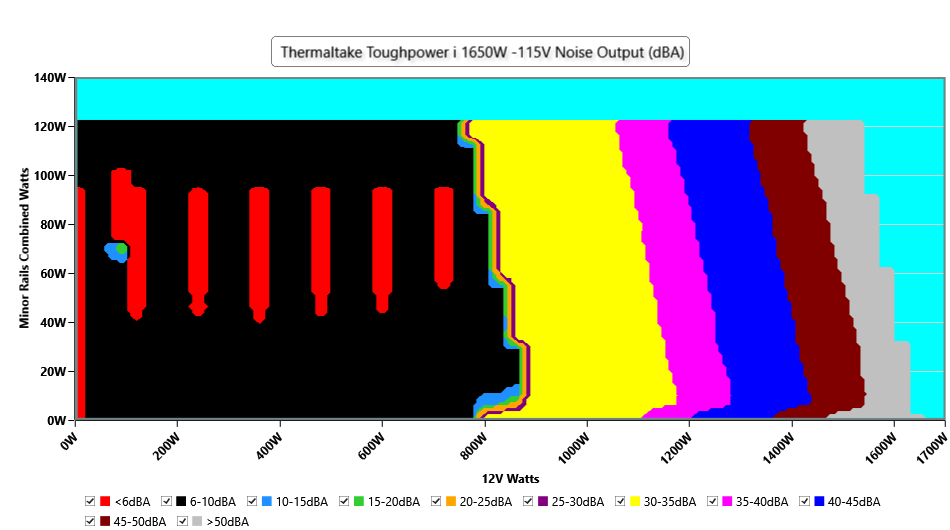

| Noise Rating (>1450 Load Combinations) | 36.44dBA | 0.00dBA |
| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 73.477 |
| Hold Up Time | 20.60 |
| Power OK | 16.60 |
| Power OK to DC Loss | 4.00 |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 12.000 | 5.016 | 3.198 | 4.977 |
| 10ms | 11.751 | 5.019 | 3.260 | 4.967 |
| 1ms | 11.684 | 5.015 | 3.255 | 4.960 |
| 0.1ms | 11.624 | 5.004 | 3.251 | 4.809 |
| Model Name | Thermaltake |
| Lab ID | TT16502986 |
| Serial Number | PSTPI1650FNFDTU1BLCW00005 |
| Date of receipt | Sep 9, 2025 |
| Testing Date | Sep 26, 2025 |
| Report Issued Date | Oct 6, 2025 |
| DUT Notes | 2986 |
| Engineer Name | Georgios Theodoros Sarimpalas |
| Authorized By the Laboratory General Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (600mm) | 1 | 1 | 16AWG | Tinned Copper |
| 4+4 pin ATX12V (700mm) | 2 | 2 | 16AWG | Tinned Copper |
| 2x 6+2 pin PCIe (500mm) | 8 | 8 | 16-18AWG | Tinned Copper |
| 12+4 pin PCIe (600mm) (600W) | 4 | 4 | 16-24AWG | Tinned Copper |
| SATA (500mm+150mm+150mm+150mm) | 3 | 12 | 16-24AWG | Tinned Copper |
| 4-pin Molex (500mm+150mm+150mm+150mm) | 2 | 8 | 18AWG | Tinned Copper |
| AC Power Cord (1360mm) - C13 coupler | 1 | 1 | 14AWG | - |
| Manufacturer (OEM) | CWT |
| Max. DC Output | 1650W |
| Efficiency (115V) | Cybenetics Titanium (91.371%) |
| Noise (115V) | Cybenetics Standard+ (36.44 dB[A]) |
| Modular | ✓ (Fully) |
| Intel C6/C7 Power State Support | ✓ |
| Operating Temperature (Continuous Full Load) | 0 - 50°C |
| Over Voltage Protection | ✓ |
| Under Voltage Protection | ✓ |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✓ |
| No Load Operation | ✓ |
| Cooling | 140mm Fluid Dynamic Bearing Fan (ZFF142512D AAP4) |
| Semi-Passive Operation | ✓ |
| Dimensions (W x H x D) | 150 x 85 x 180mm |
| Weight | 2.35 kg (5.18 lb) |
| Form Factor | ATX12V v3.1, EPS 2.92 |
| ATX 3.1 & PCIe 5.1 ready | ✓ |
| Alternative Low Power Mode (ALPM) compatible | ✓ |
| Warranty | 10 Years |
| General Data | |
| Manufacturer (OEM) | CWT |
| Platform | TTA |
| PCB Type | Double-Sided |
| Primary Side | |
| Transient Filter | 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor SCK-25150 (15 Ohm @ 25°C) & Relay |
| Bridge Rectifier | |
| APFC MOSFETs | |
| APFC Boost Diode | 2x Vishay VS-3C10ET07T-M3 (650V, 10A @ 147°C) |
| Bulk Cap(s) | |
| Main Switchers | 4x Infineon IPT60R105CFD7 (650V, 15A @ 100°C, Rds(on): 0.105Ohm) |
| IC Driver | Novosense NSI6602BD |
| Digital Controllers | |
| Topology | Primary side: Semi-Digital, Interleaved PFC, Full-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters |
| Secondary Side | |
| +12V MOSFETs | 8x Infineon IPT007N06N (60V, 371A @ 100°C, Rds(on): 0.75mOhm) |
| 5V & 3.3V | DC-DC Converters: 4x UBIQ Semi QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm) PWM Controller(s): 1x |
| Filtering Capacitors | Electrolytic: |
| Supervisor IC | IN1S313I-SAG |
| Fan Controller / Micro Controller | Nuvoton M252SD2AE |
| Fan Model | Thermaltake TT-1425 ZFF142512D (140mm, 12V, 0.65A, Fluid Dynamic Bearing Fan) |
| 5VSB Circuit | |
| Rectifier | Dongke DK5V45R10V (45V, 10mOhm) |
| Standby PWM Controller | GR9877B |
| Rated Voltage (Vrms) | 115-220 |
| Rated Current (Arms) | 15 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1650 |
| Type | ATX12V |
| Dimensions (W x H x D) | |
| Cooling | 140mm Fluid Dynamic Bearing Fan (ZFF142512D AAP4) |
| Semi-Passive Operation | ✓ |
| Cable Design | Fully Modular |
The Efficiency Measurement’s Uncertainty is ±0.15%
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
Efficiency Measurement Uncertainty Budget
| Source of Uncertainty | Standard Uncertainty, u(xi) | Relative Standard Uncertainty, u(xi)/xi |
| Intralab Reproducibility | 0.0310 | 0.00031 |
| Electronic loads Calibration | 0.0500 | 0.00050 |
| Power Analyzer Calibration | 0.0250 | 0.00025 |
| Operator and Test Fixture | 0.0350 | 0.00035 |
| Relative Combined Standard Uncertainty (RSS): | 0.00073 | |
| % Expanded Uncertainty U (k=2, norm): | 0.15 | |
The Noise Measurement’s Uncertainty is ±1.23 dBA
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
| Source of Uncertainty |
Standard Uncertainty, u(xi)/xi (dBA) |
| Intralab Reproducibility | 0.031 |
| Mic Calibrator 4231 calibration | 0.200 |
| Microphone frequency response | 0.577 |
| Temperature | 0.12 |
| Position error | 0.058 |
| Relative Combined Standard Uncertainty (RSS): | 0.61 |
| Expanded Uncertainty U (k=2, norm): | 1.23 |
The Conducted EMI Emissions Measurement’s Uncertainty is ±1.75 dB
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
| Source of Uncertainty |
Standard Uncertainty, u(xi)/xi (dB) |
| Spectrum Analyzer total measurement uncertainty | 0.250 |
| Spectrum Analyzer calibration | 0.500 |
| Noise and Signal Quality | 0.577 |
| Bandwidth and Resolution Bandwidth (RBW) | 0.289 |
| Measurement time and Averaging | 0.115 |
| Environmental Factors | 0.115 |
| Relative Combined Standard Uncertainty (RSS): | 0.87 |
| Expanded Uncertainty U (k=2, norm): | 1.75 |
