Customer: FSP Technology
NO.22,Jianguo E. Rd., Taoyuan Dist., Taoyuan City 330, Taiwan (R.O.C.)
NO.22,Jianguo E. Rd., Taoyuan Dist., Taoyuan City 330, Taiwan (R.O.C.)

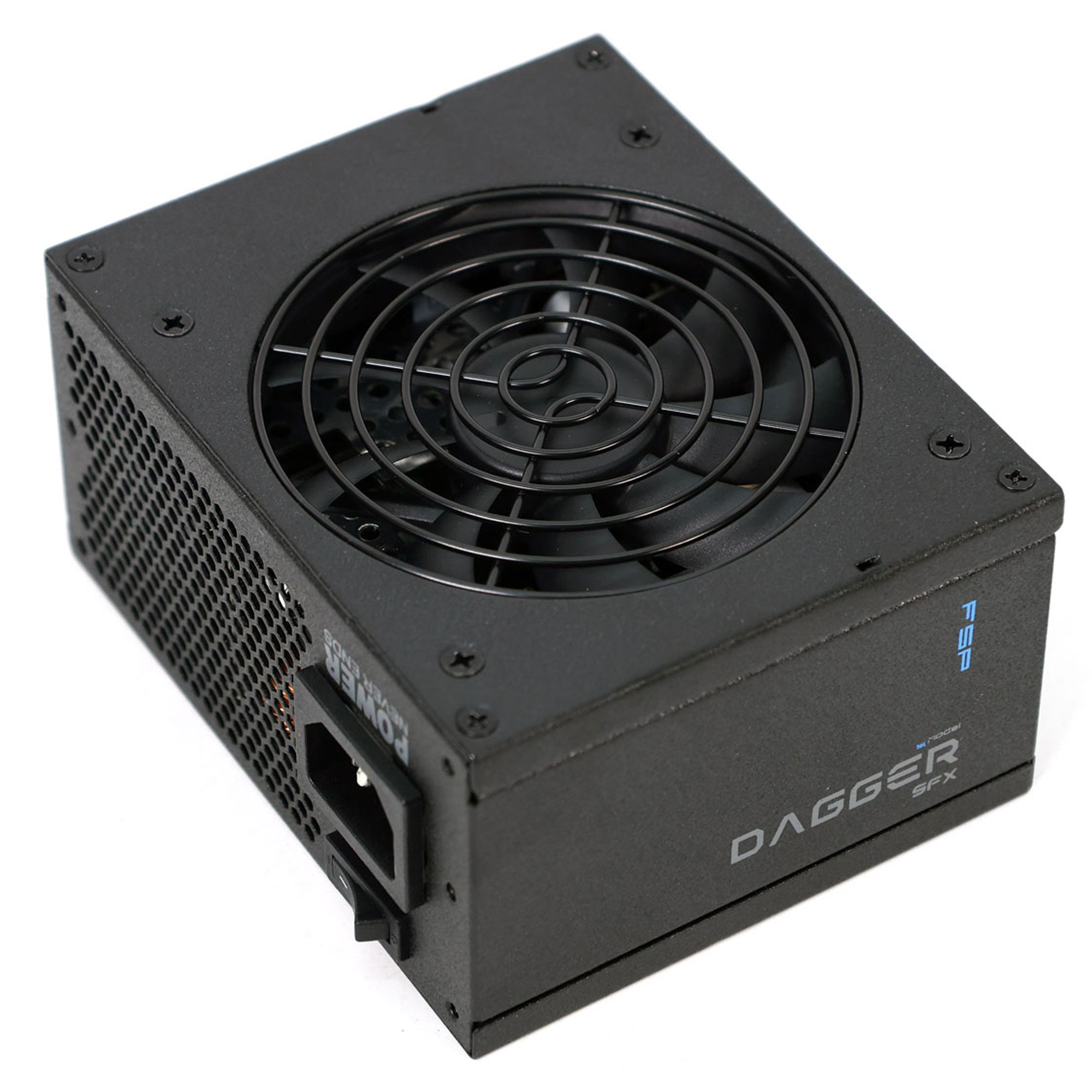

DAGGER PM 1000W
| Electronic Loads | Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20 |
| AC Sources | Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500 |
| Power Analyzers | Rohde & Schwarz HMC8015, Rohde & Schwarz NPA701 |
| Oscilloscopes | Picoscope 4444, Siglent SDS2104X PLUS |
| Sound Analyzer | Bruel & Kjaer 2270 G4 |
| Microphone | Bruel & Kjaer Type 4955-A |
| Temperature Logger | Picoscope TC-08 |
| Tachometer | UNI-T UT372 |
| Multimeters | Keysight 34465A |
| EMI Analyzer | TekBox TBMR-110M-EU |
| Isolation Transformer | 4kVA |
| UPS | FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA | Testing Methodology | Cybenetics PSU Test Protocol |
| Voltage | 115V | 230V |
|---|---|---|
| Efficiency (>1450 Load Combinations) | 90.288% | 92.021% |

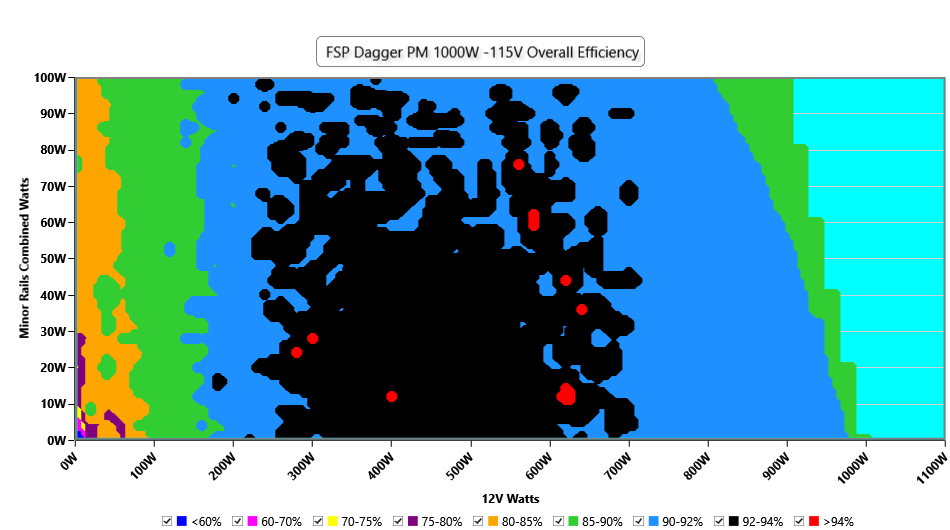

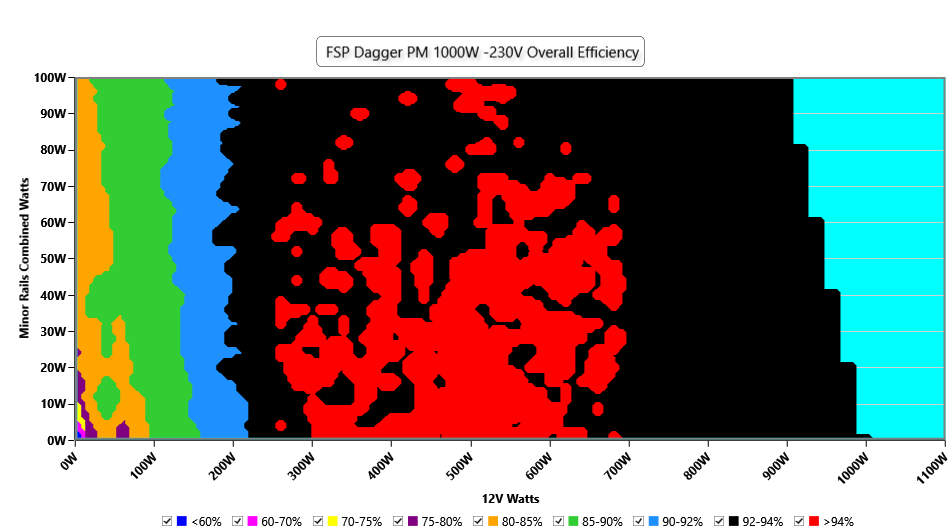

| Efficiency Graphs |  |  |
| Average PF (>1450 Load Combinations) | 0.978 | 0.940 |
| Standby Power Consumption | 0.0905W | 0.1717W |
| ErP Lot 3/6 Ready | ✓ | |
| (EU) No 617/2013 Compliance | ✓ | |
| Average Efficiency VSB | 83.574% | 81.534% |
| Conducted Emissions EN55032 & CISPR 32 | Passed | |
| Voltage | 115V | 230V |
|---|---|---|
| Noise Rating (>1450 Load Combinations) | 20.23dBA | 20.02dBA |

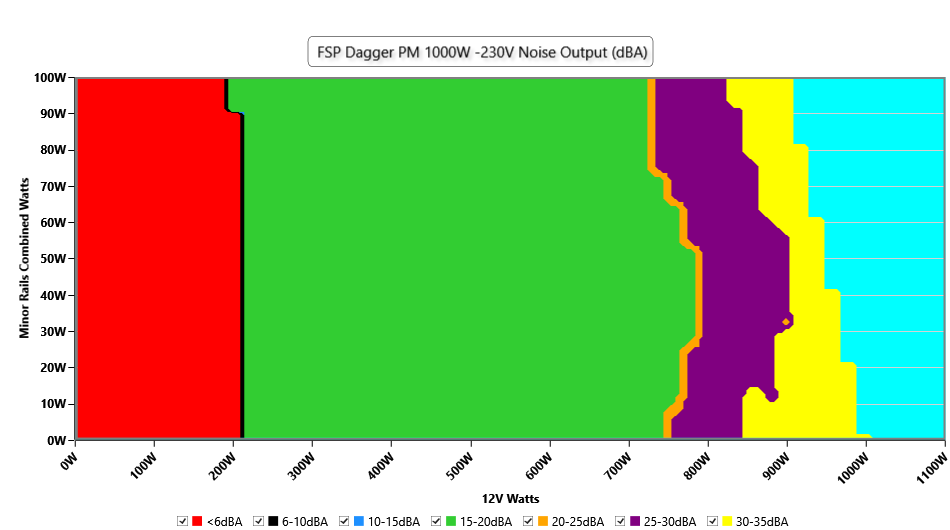

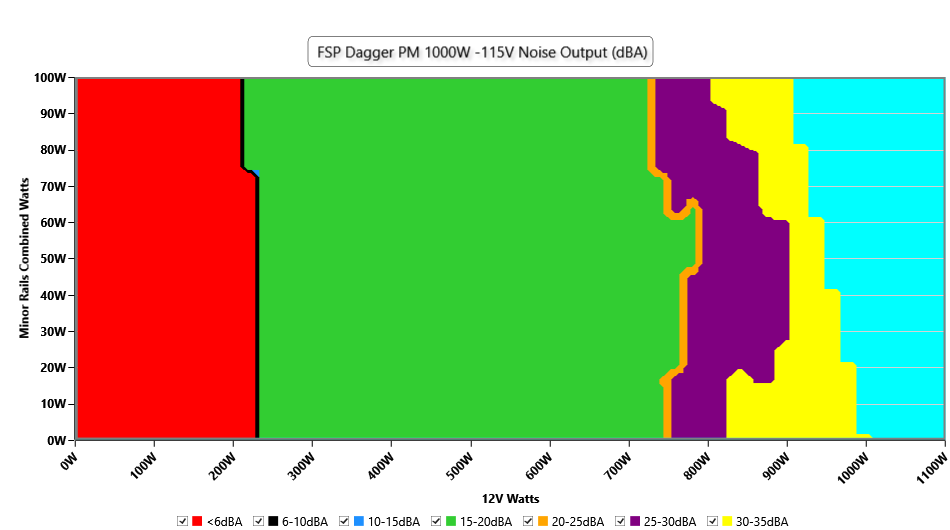

| Noise Graphs |  |  |
| Efficiency With 10W (≤500W) or 2% (>500W) Load | 75.793 |
| Hold Up Time | 22.10 |
| Power OK | 19.40 |
| Power OK to DC Loss | 2.70 |
| Test\Rail | +12V | 5V | 3.3V | 5VSB |
| 100ms | 11.981 | 4.987 | 3.283 | 4.977 |
| 10ms | 11.781 | 4.962 | 3.240 | 4.950 |
| 1ms | 11.691 | 4.951 | 3.219 | 4.933 |
| 0.1ms | 11.598 | 4.940 | 3.203 | 4.921 |
| Model Name | FSP Technology |
| Lab ID | FS10003092 |
| Serial Number | S5311030018 |
| Date of receipt | Nov 28, 2025 |
| Testing Date | Jan 5, 2026 |
| Report Issued Date | Jan 14, 2026 |
| DUT Notes | 3092 |
| Engineer Name | Georgios Theodoros Sarimpalas |
| Authorized By the Laboratory General Manager | Aristeidis Bitziopoulos |
| Signature |  |
| Modular Cables | ||||
| Description | Cable Count | Connector Count (Total) | Gauge | Cable Type |
| ATX connector 20+4 pin (350mm) | 1 | 1 | 16-22AWG | Tinned Copper |
| 4+4 pin EPS12V (500mm) | 2 | 2 | 16AWG | Tinned Copper |
| 6+2 pin PCIe (350mm+160mm) | 2 | 4 | 16-18AWG | Tinned Copper |
| 12+4 pin PCIe (500mm) (600W) | 1 | 1 | 16-24AWG | Tinned Copper |
| SATA (500mm+155mm+155mm+155mm) | 1 | 4 | 18AWG | Tinned Copper |
| SATA (500mm+155mm) / 4-pin Molex (+155mm+155mm) | 1 | 2 / 2 | 18AWG | Tinned Copper |
| Manufacturer | FSP |
| Model | DAGGER PM 1000W |
| Max DC Output | 1000W |
| Efficiency (115V) | 90.288% |
| Efficiency (230V) | 92.021% |
| Noise (115V) | 20.23 dB[A] |
| Noise (230V) | 20.02 dB[A] |
| Modular | Fully Modular |
| Operating Temperature (Continuous Full Load) | 0 - 50℃ |
| Over Power Protection | ✓ |
| Over Current (+12V) Protection | ✓ |
| Over Temperature Protection | ✓ |
| Short Circuit Protection | ✓ |
| Surge Protection | ✓ |
| Inrush Current Protection | ✓ |
| Fan Failure Protection | ✗ |
| No Load Operation | ✓ |
| Cooling | 92mm Fluid Dynamic Bearing Fan (HA9215SH12FD-F00) |
| Semi-Passive Operation | ✓ |
| Dimensions (W x H x D) | 125 x 63.5 x 100mm |
| Weight | 1.01 kg (2.23 lb) |
| Form Factor | SFX |
| ATX 3.1 & PCIe 5.1 ready | ✓ |
| Alternative Low Power Mode (ALPM) compatible | ✓ |
| Warranty | No Info |
| Rated Voltage (Vrms) | 100-240 |
| Rated Current (Arms) | 6-13 |
| Rated Frequency (Hz) | 50-60 |
| Rated Power (W) | 1000 |
| Type | SFX |
| Dimensions (W x H x D) | 125 x 63.5 x 100mm |
| Cooling | 92mm Fluid Dynamic Bearing Fan (HA9215SH12FD-F00) |
| Semi-Passive Operation | ✓ |
| Cable Design | Fully Modular |
The Efficiency Measurement’s Uncertainty is ±0.15%
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
Efficiency Measurement Uncertainty Budget
| Source of Uncertainty | Standard Uncertainty, u(xi) | Relative Standard Uncertainty, u(xi)/xi |
| Intralab Reproducibility | 0.0310 | 0.00031 |
| Electronic loads Calibration | 0.0500 | 0.00050 |
| Power Analyzer Calibration | 0.0250 | 0.00025 |
| Operator and Test Fixture | 0.0350 | 0.00035 |
| Relative Combined Standard Uncertainty (RSS): | 0.00073 | |
| % Expanded Uncertainty U (k=2, norm): | 0.15 | |
The Noise Measurement’s Uncertainty is ±1.23 dBA
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
| Source of Uncertainty |
Standard Uncertainty, u(xi)/xi (dBA) |
| Intralab Reproducibility | 0.031 |
| Mic Calibrator 4231 calibration | 0.200 |
| Microphone frequency response | 0.577 |
| Temperature | 0.12 |
| Position error | 0.058 |
| Relative Combined Standard Uncertainty (RSS): | 0.61 |
| Expanded Uncertainty U (k=2, norm): | 1.23 |
The Conducted EMI Emissions Measurement’s Uncertainty is ±1.75 dB
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
| Source of Uncertainty |
Standard Uncertainty, u(xi)/xi (dB) |
| Spectrum Analyzer total measurement uncertainty | 0.250 |
| Spectrum Analyzer calibration | 0.500 |
| Noise and Signal Quality | 0.577 |
| Bandwidth and Resolution Bandwidth (RBW) | 0.289 |
| Measurement time and Averaging | 0.115 |
| Environmental Factors | 0.115 |
| Relative Combined Standard Uncertainty (RSS): | 0.87 |
| Expanded Uncertainty U (k=2, norm): | 1.75 |
