1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, audio/mic combo jack, Reset Button, Power Button
Pre-installed Fan(s)
Front: 3x 140 mm
Fan Support
Front: 3x 120 mm / 3x 140 mm Top: 3x 120 mm / 2x 140 mm Rear: 1x 120 mm / 1x 140 mm
Fan Power Connector
3-Pin
Radiator Support
Front: 120 / 140 / 240 / 280 / 360 / 420 mm Top:120 / 140 / 240 / 280 / 360 mm Rear: 120 / 140 mm
CPU Cooler Height (Max)
190mm
VGA Length (Max)
435mm
PSU Length (Max)
195 / 250 mm (4 HDD bottom brackects used / 2 HDD bottom brackects used )
Dust Filters
Top, Front, Bottom
PSU Support
Bottom Mount, ATX
Weight
8.9 kg
Warranty
5-years
Noise Measurements Test Set Up

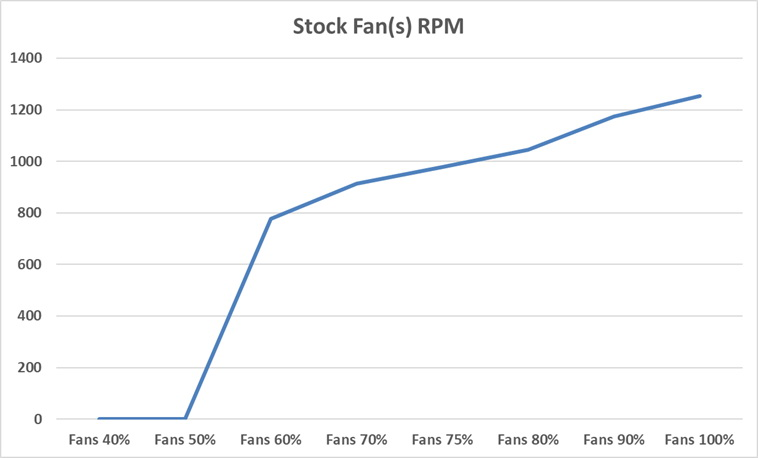

Stock Fan(s) RPM
Stock Fan(s) Noise Output – LAeq
INFO
Stock Fan Noise Output from 40% to 100%

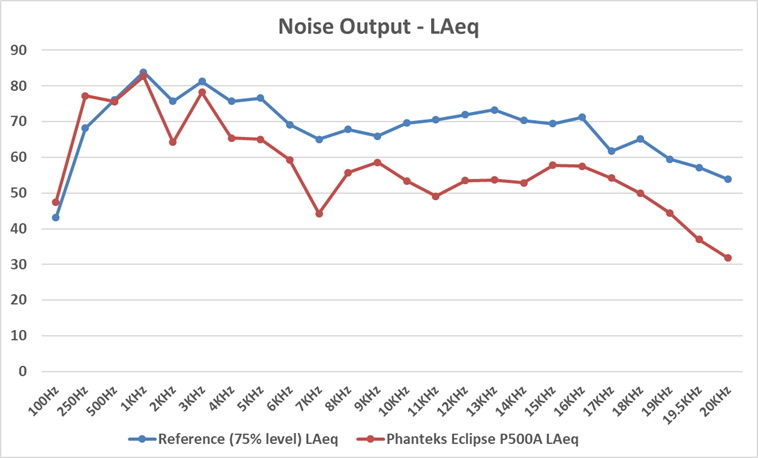

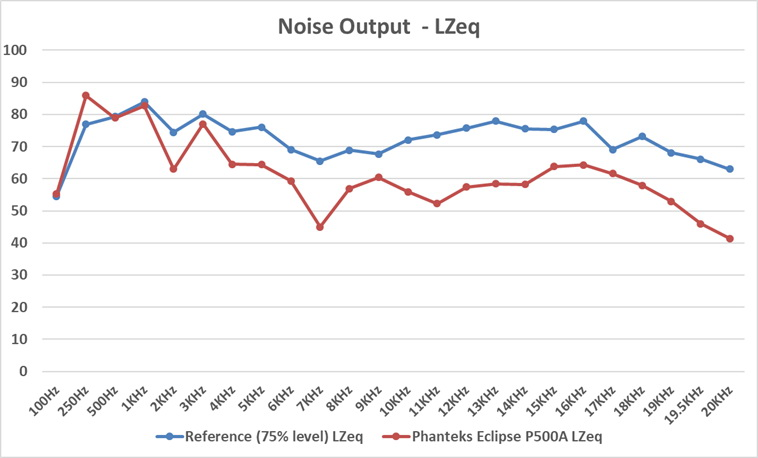

Noise Output

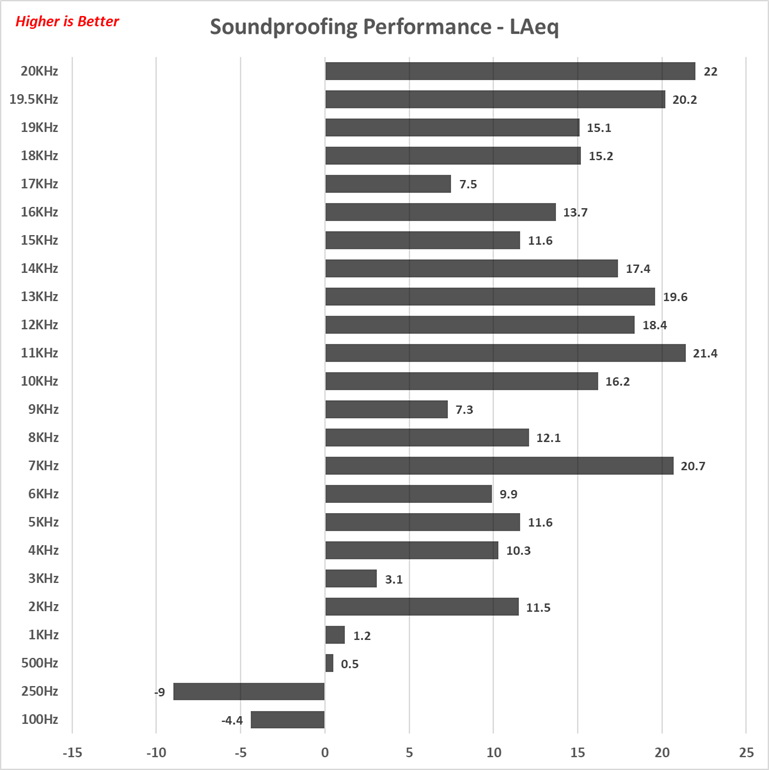

Noise Dampening Performance – Test Tones

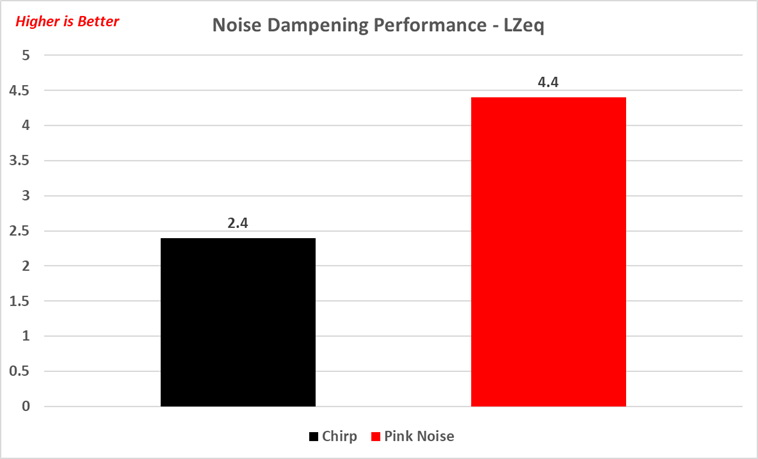

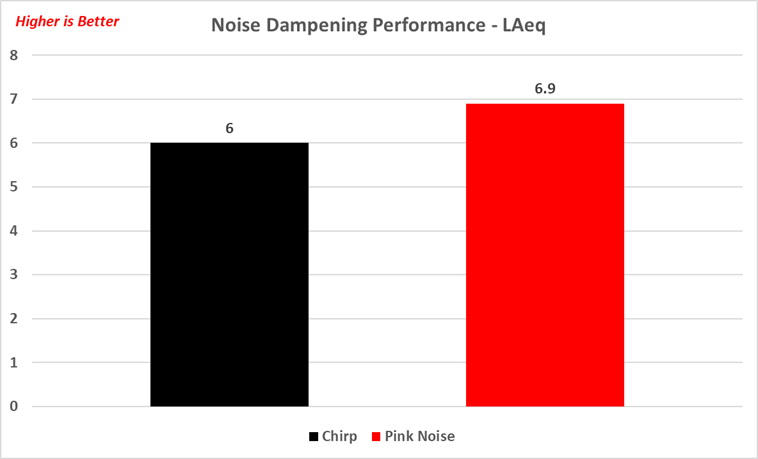

Noise Dampening Performance – Pink & Chirp
GPU Fan(s) Noise Output – Laeq
Phanteks Eclipse P500A

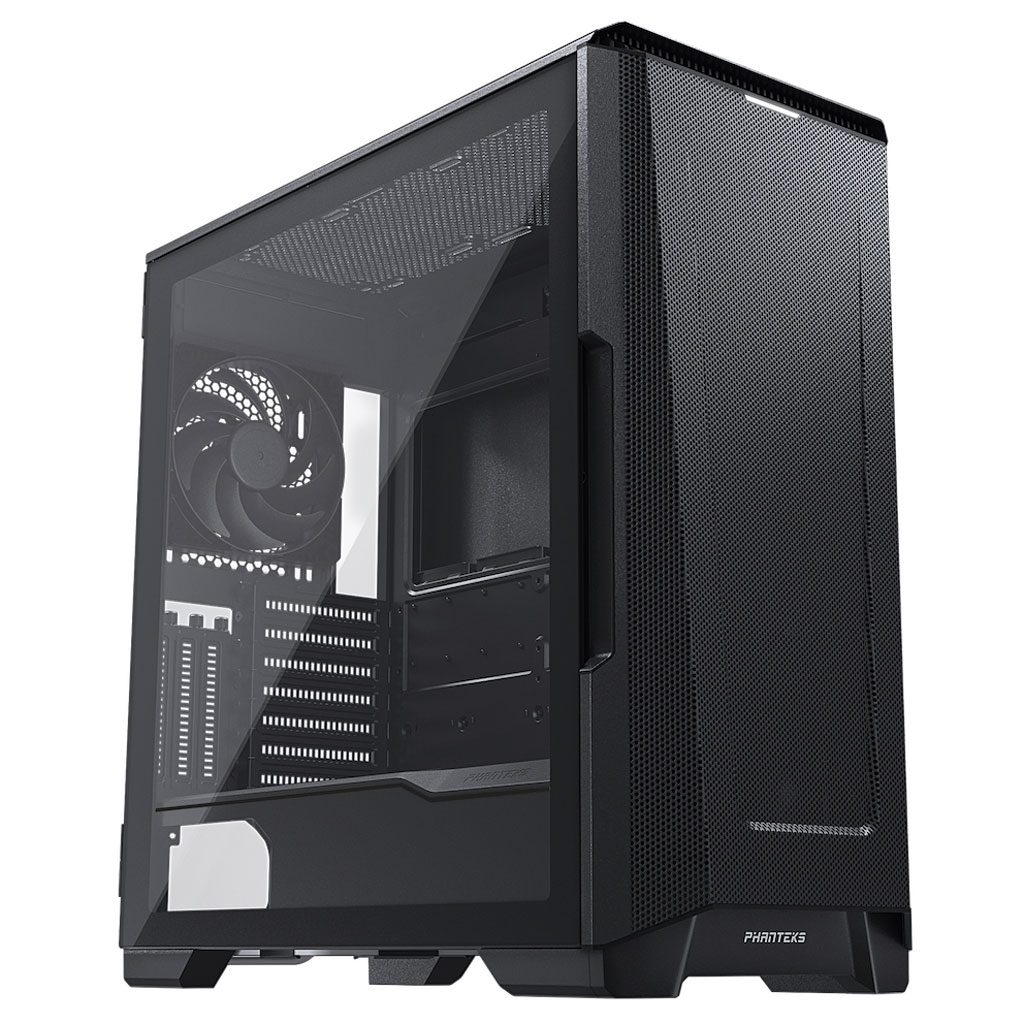

Case Photo

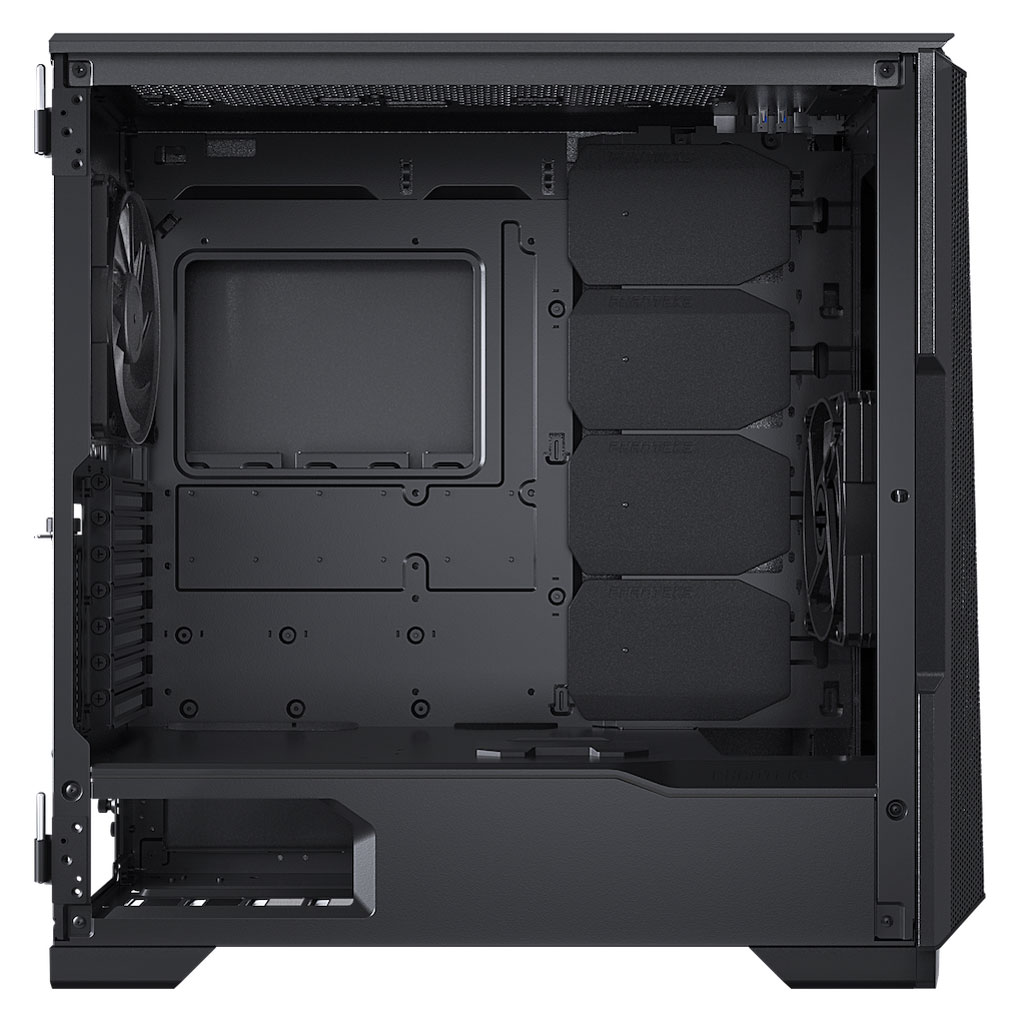

Case Photo #2
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics runs voluntary certification programs for power supplies - ETA for efficiency, LAMBDA for noise and SAFE for safety and correct operation - and for cooling products, with DELTA for chassis soundproofing and PHI for fan airflow and static pressure
