Cybenetics Test - Cooler Master Qube 540

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

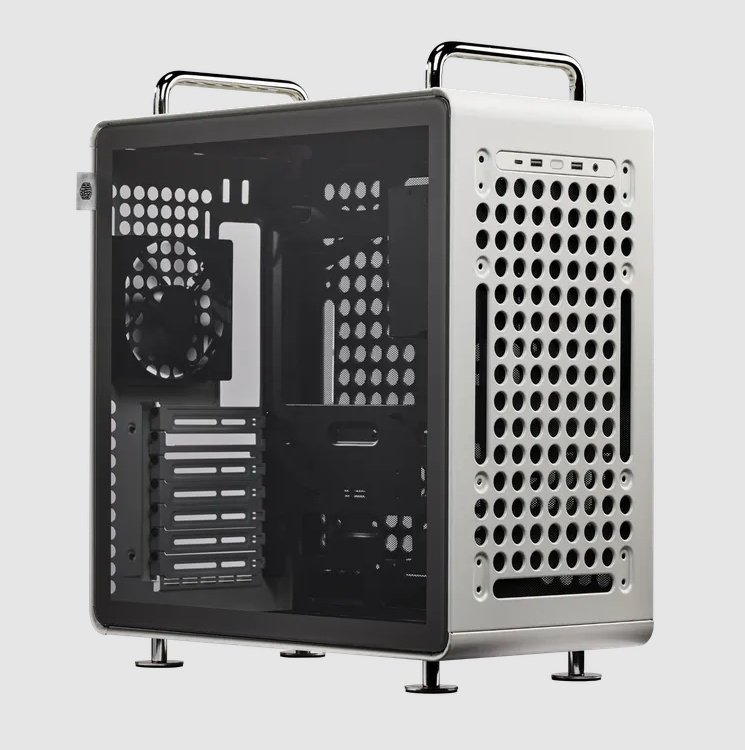

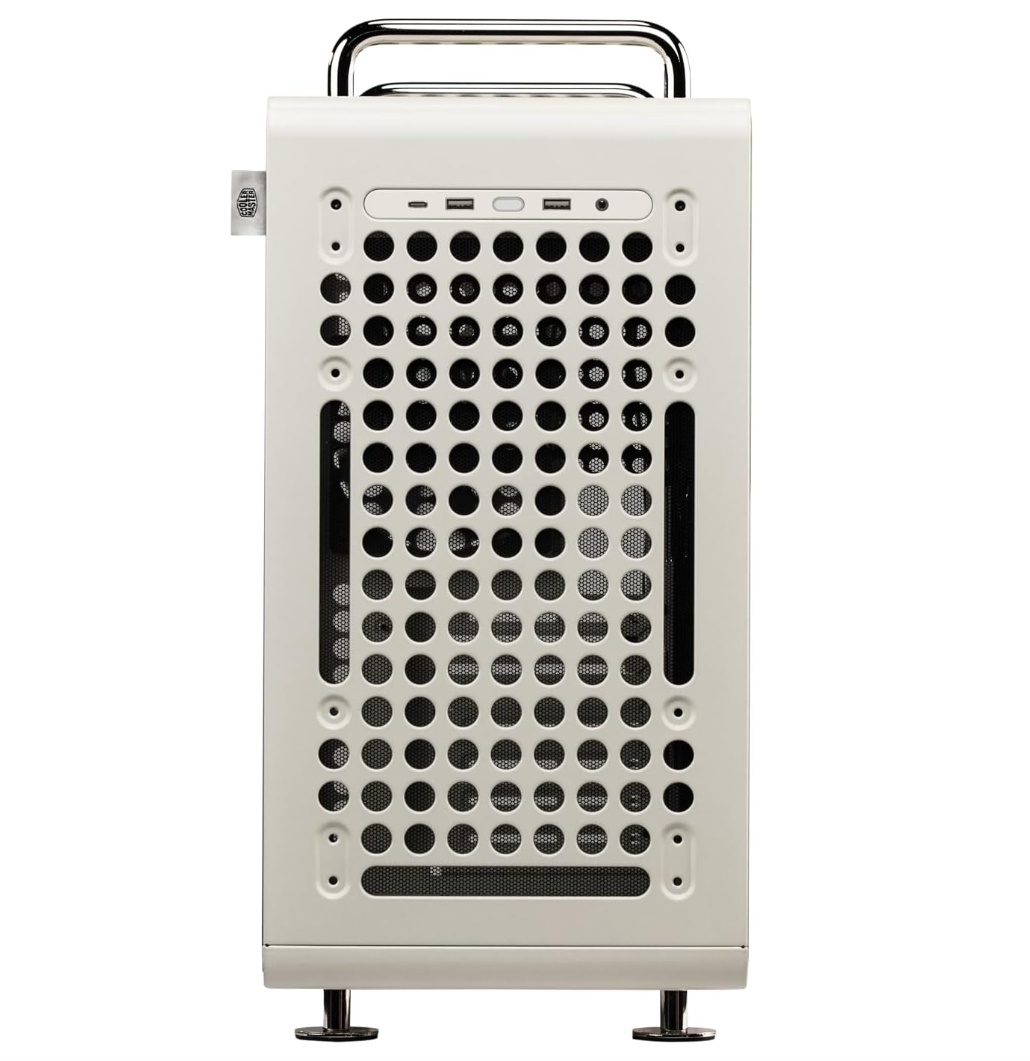

Cooler Master Qube 540

Lab IDCMCAS00166

Certification ID

噪音等级

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

测试 Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	be quiet!
Product Name	Dark Base Pro 900 rev. 2
Type	Full Tower
Dimensions (LxWxH)	577 x 243 x 586mm
Motherboard Support	Mini-ITX, Micro-ATX, ATX, E-ATX, XL-ATX
Removable Motherboard Tray	是
Front Door/Cover	是
Materials	Steel, ABS, Aluminum, Tempered Glass
Materials Side Panel	Left: Tempered Glass Right: Steel, ABS
Expansion Slots	8x
Drive Bays	5.25": 2x External 3.5 " : 5x Internal (can be used for 2x 2.5" each) 2.5" : 2x Internal
I/O Panel	2x USB 3.0, 1x USB 3.1 Gen 2 Type-C, 1x USB quick charge, 1x Headphone, 1x Microphone, 1x Qi Charger
Pre-installed Fan(s)	Front: 2x 140mm (SilentWings 3, 1600 RPM) Rear: 1x 140mm (SilentWings 3, 1600 RPM)
Fan Support	Top: 4x 120mm / 3x 140mm / 1x 180mm Bottom: 2x 120/140mm Front: 4x 120/3x 140mm Rear: 1x 120/140mm
Fan Bearing Type	Fluid Dynamic Bearing (FDB)
Fan Power Connector	4-Pin (PWM)
Fan/LED Controller	2-stage fan controller (8x 4-pin)
Radiator Support	Front: 120 / 140 / 240 / 280 / 360 / 420mm Top: 120 / 140 / 180 / 240 / 280 / 360 / 420mm Rear: 120 / 140mm
CPU Cooler Height (Max)	185mm
VGA Length (Max)	323mm (472mm without HDD cage)
PSU Length (Max)	284mm (150mm with bottom fan installed)
Dust Filters	Front, Bottom, Side
PSU Support	Bottom mount, ATX
Weight	14.39 kg
Warranty	3
