Cybenetics Test - SilverStone Precision PS14-E

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

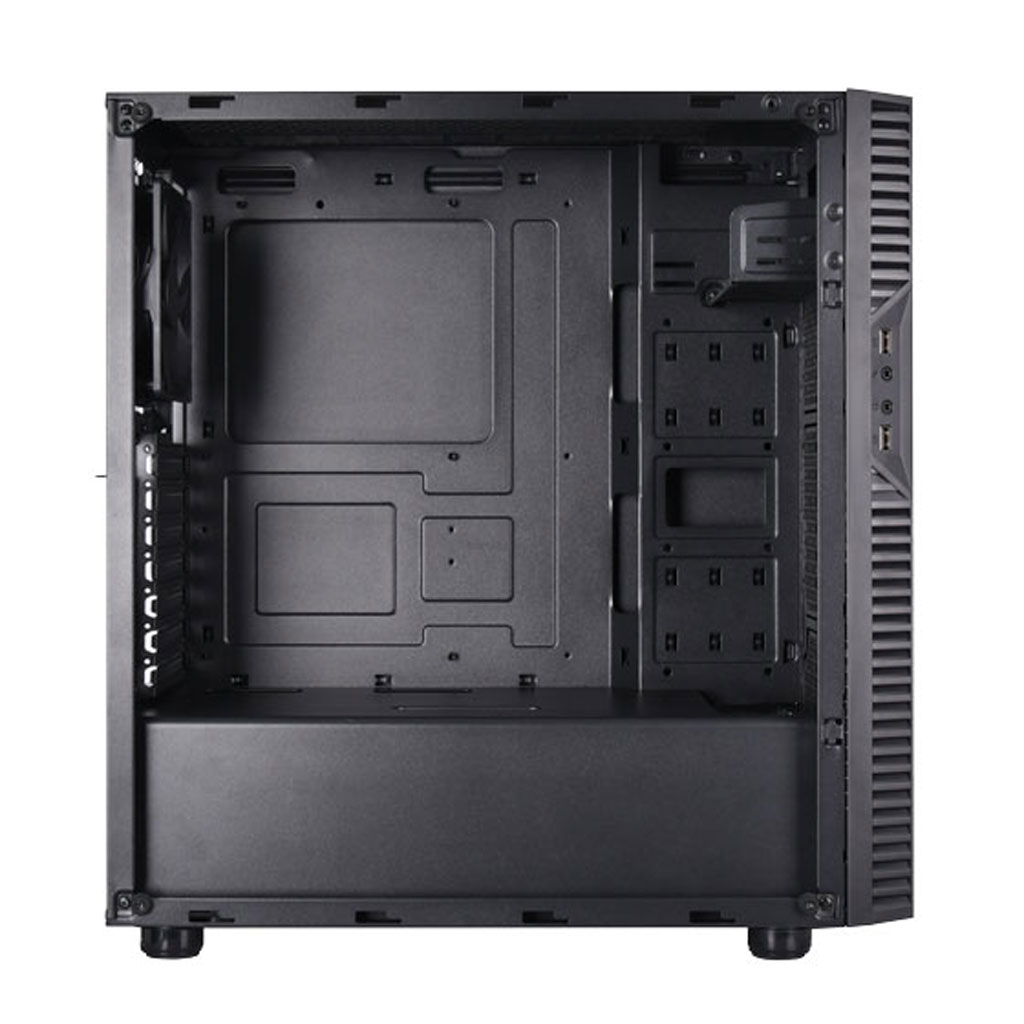

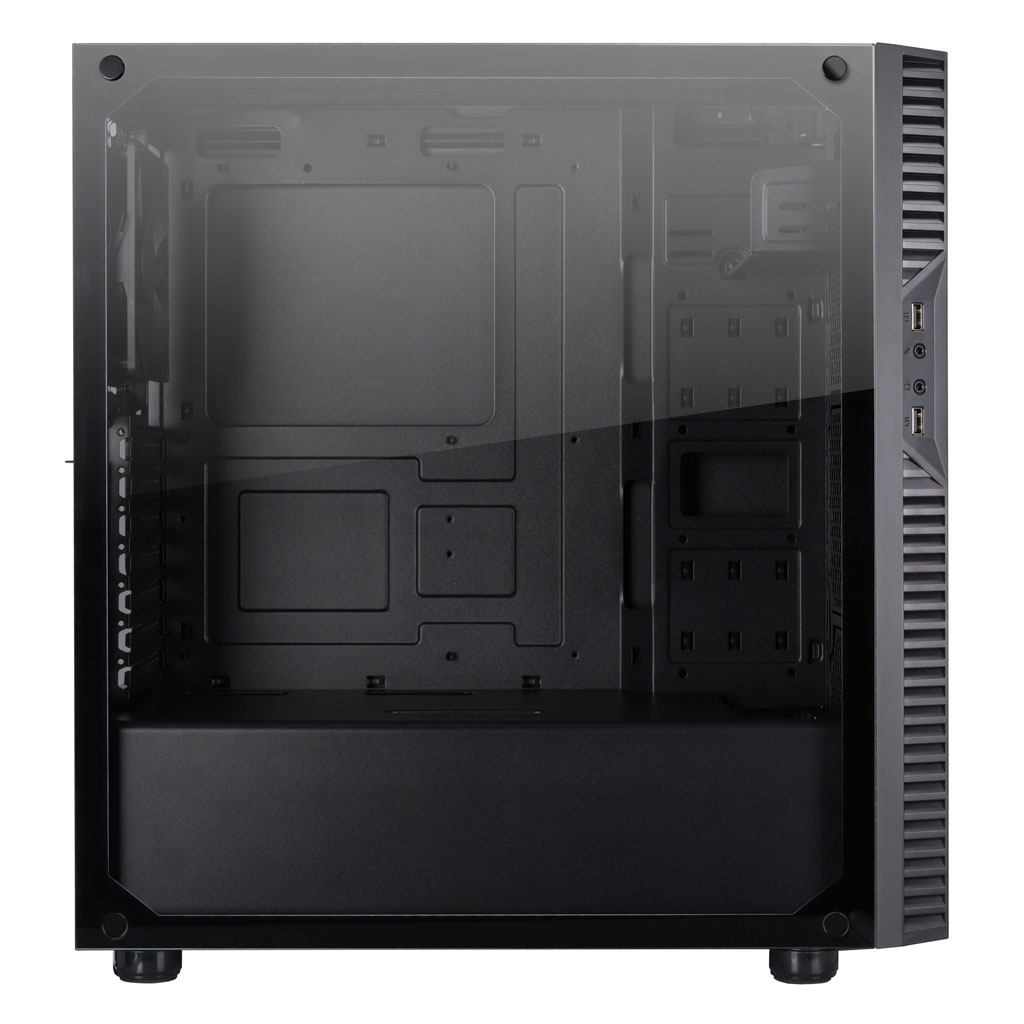

SilverStone Precision PS14-E

Lab IDSLCAS00044

Certification ID

噪音評比

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Brand	SilverStone
Product Name	SST-PS14B-EG
Type	Midi Tower
Dimensions (LxWxH)	438 x 210 x 469mm
Motherboard Support	Mini-ITX, Micro-ATX, ATX
Removable Motherboard Tray	No
Front Door/Cover	No
Materials Body	Plastic front panel, steel body
Materials Side Panel	Left: Tempered Glass Right: Steel
Expansion Slots	7x (plus two vertical)
Drive Bays	5.25": 1x External 3.5 " : 2x Internal 2.5" : 2x Internal
I/O Panel	2x USB 3.0 Type-A, 1x Audio, 1x MIC
Pre-installed Fan(s)	Rear: 1x 120mm (ZT12025L12S, 12V, 0.45A)
Fan Support	Front: 3x 120mm / 2x 140mm Top: 2x 120mm / 2x 140mm Rear: 1x 120mm / 1x 140mm
Fan Bearing Type	Sleeve Bearing
Fan Power Connector	3-Pin
Fan/LED Controller	No
Radiator Support	Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120/140mm
CPU Cooler Height (Max)	177mm
VGA Length (Max)	357mm
PSU Length (Max)	210mm
Cable Management Support	Yes
Dust Filters	Top, Bottom
PSU Support	Bottom, ATX
Weight	5.7 kg
Warranty	2-years
