CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Phanteks Eclipse P600s (With Soundproof Panels)
Serial Number1
Lab IDPHCAS00079
Certification ID
  • Date: 2020-03-26
Lautstärkeklasse
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Test Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

Brand Phanteks
Product Name Eclipse P600S
Type Mid Tower
Dimensions (LxWxH) 510 x 240 x 520mm
Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX
Removable Motherboard Tray No
Front Door/Cover Yes
Materials Body Steel, Plastic, Sound Dampening Material
Materials Side Panel Left:Sound-Dampened Steel
Right: Sound-Dampened Steel
Expansion Slots 7x (plus three vertical)
Drive Bays 5.25": -
3.5 " : 10x Internal (4 included)
2.5" :3x Internal (3 included)
I/O Panel 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x audio jack, 1x mic jack, 1x Power Button, 1x Reset Button
Pre-installed Fan(s) Front: 2x 140mm
Rear: 1x 140mm
Top: -
Fan Support Front: 3x 120mm / 3x 140mm
Top: 3x 120mm / 2x 140mm
Rear: 1x 120mm / 1x 140mm
Fan Bearing Type no info
Fan Power Connector 3-Pin
Fan Controller Yes
Radiator Support Front: 120/140/240/280/360/420mm
Top: 120/140/240/280/360mm
Rear: 120/140mm
CPU Cooler Height (Max) 190mm
VGA Length (Max) 435mm
PSU Length (Max) 195mm (with all 3.5" bays) / 250mm (with one 3.5" bay)
Behind MB Tray Clearance/Cable Management Support 18-27mm
Dust Filters Top, Front, Bottom
PSU Support Bottom Mount, ATX
Weight 12.1 kg
Warranty 5-years

Noise Measurements Test Set Up

Stock Fan(s) RPM

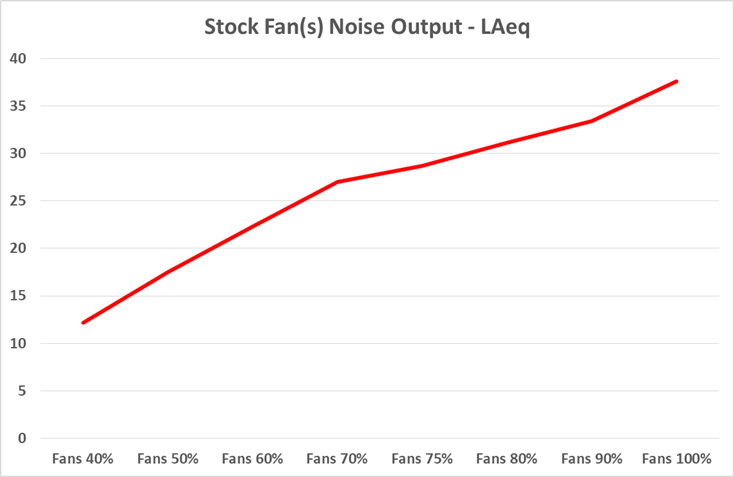

Stock Fan(s) Noise Output – LAeq

INFO

Stock Fan Noise Output from 40% to 100%

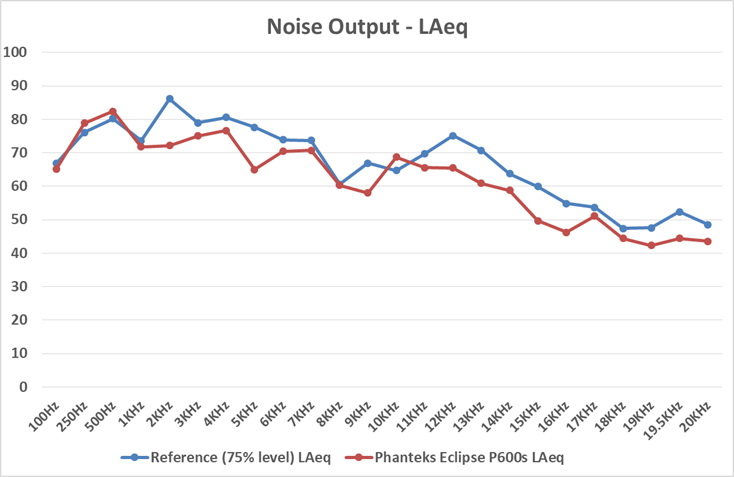

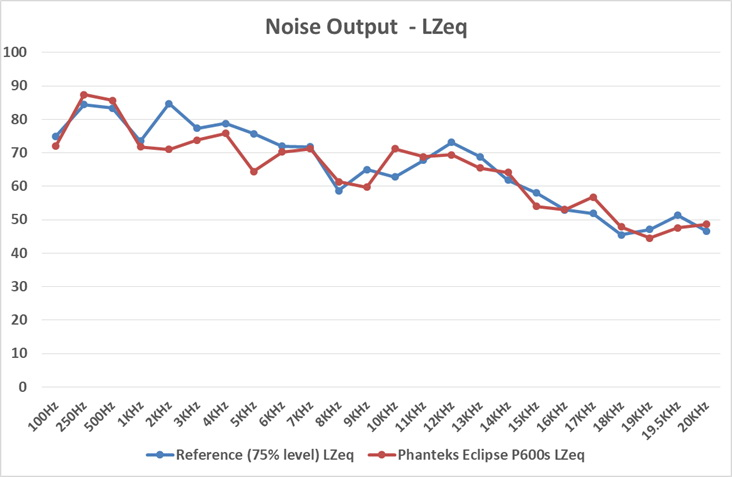

Noise Output

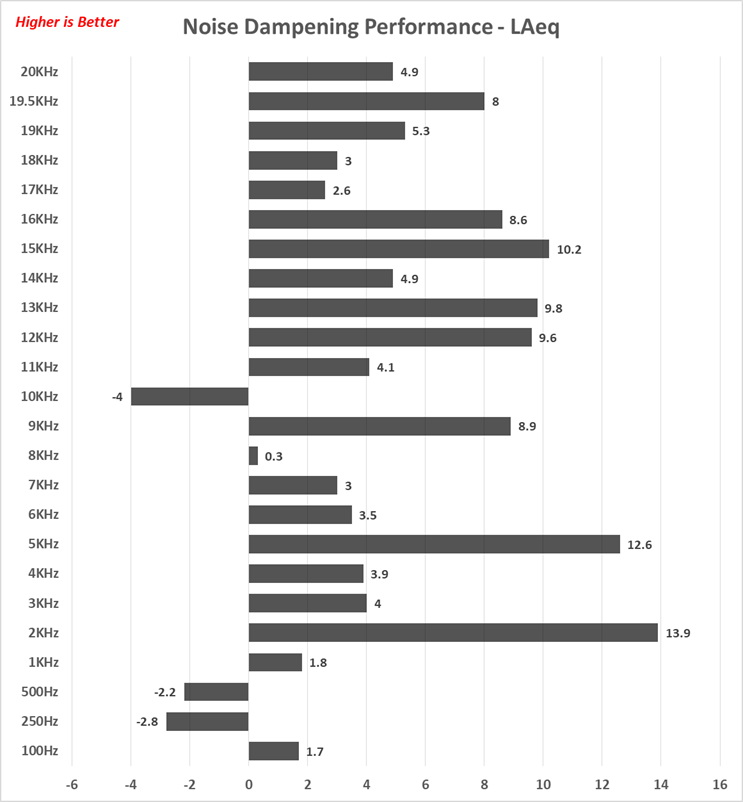

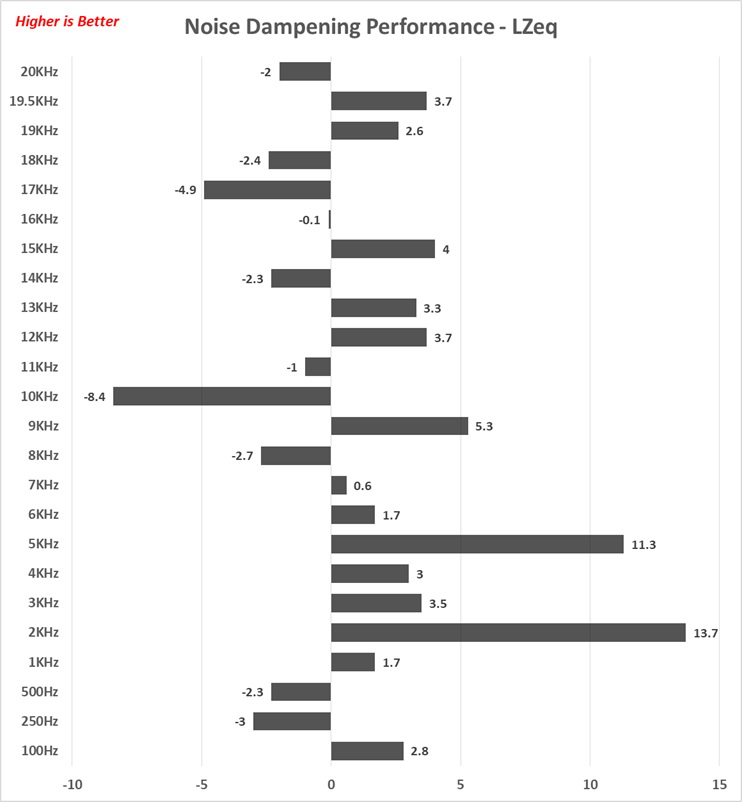

Noise Dampening Performance – Test Tones

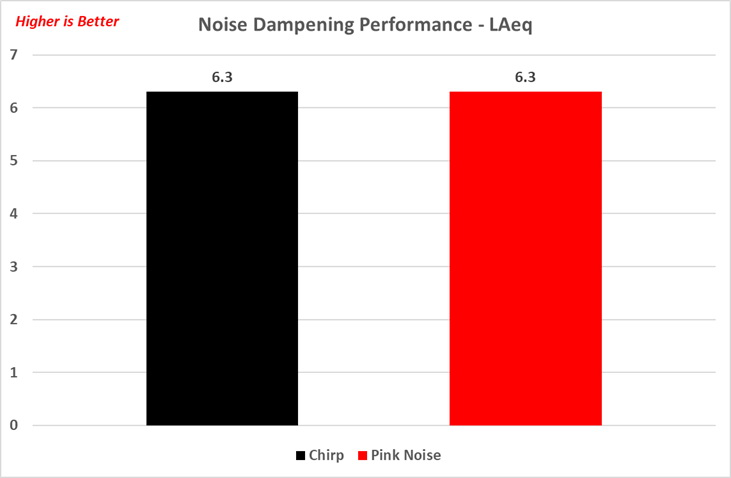

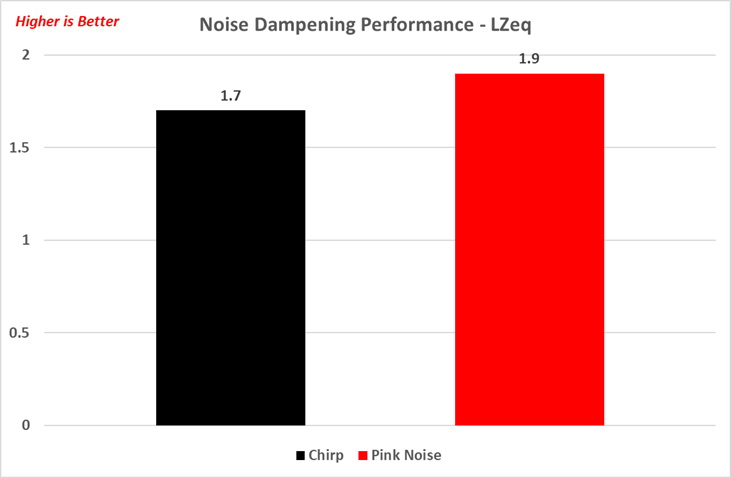

Noise Dampening Performance – Pink & Chirp

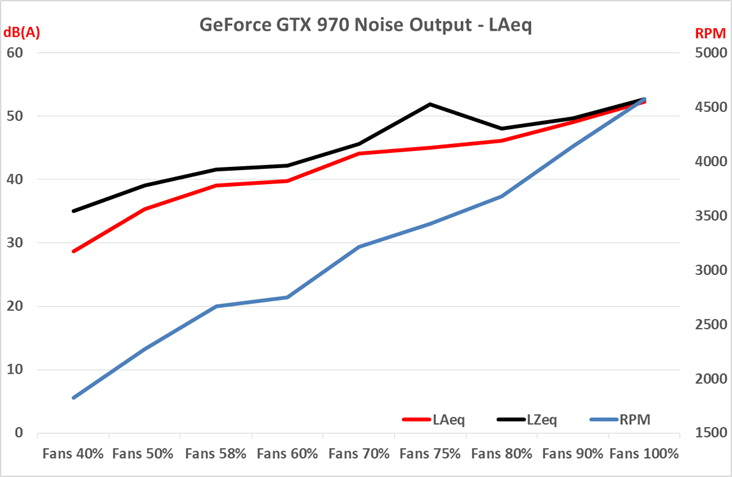

GPU Fan(s) Noise Output – Laeq

INFO

NVIDIA GeForce GTX 970 Noise Output from 40% to 100% Fan Speed

Phanteks Eclipse P600s (With Soundproof Panels)

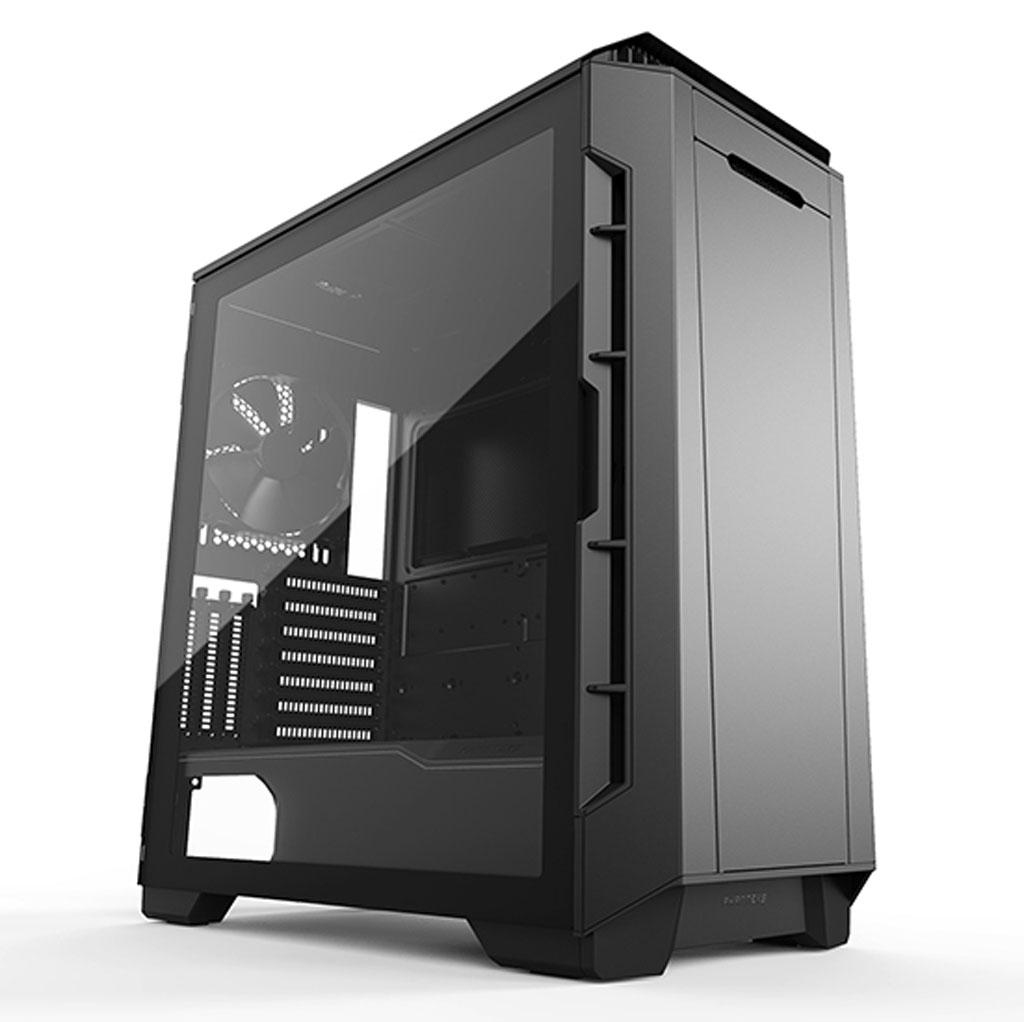

Case Photo

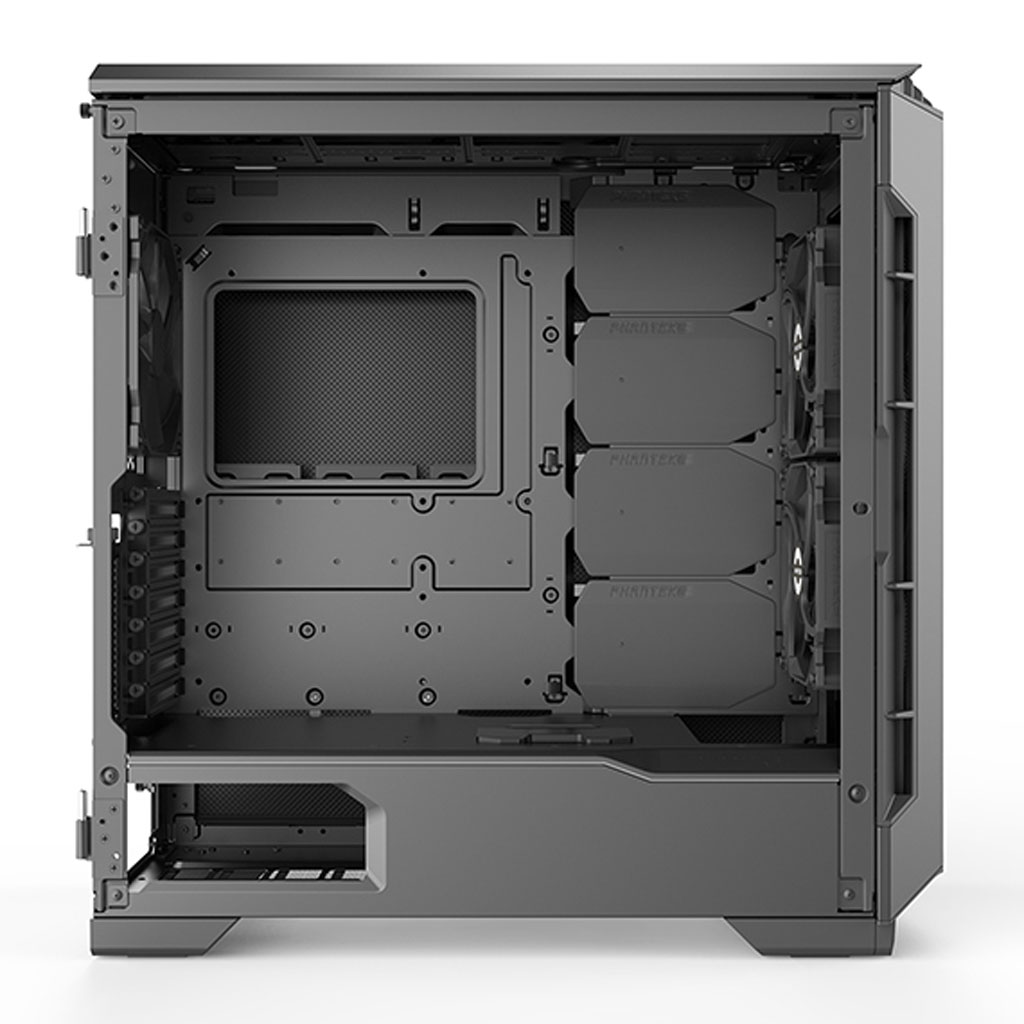

Case Photo #2
Cybenetics bietet freiwillige Zertifizierungsprogramme für Netzteile – ETA für Effizienz, LAMBDA für Lautstärke und SAFE für Sicherheit und korrekten Betrieb – sowie für Kühlprodukte mit DELTA für die Schalldämmung von Gehäusen und PHI für Luftstrom und statischen Druck von Lüftern
