Phanteks Eclipse P600s (Without Soundproof Panels)

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

Lab IDPHCAS00080

Certification ID

Date: 2020-03-26

Noise Rating

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Test Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Technical Specifications Table

Brand	Phanteks
Product Name	Eclipse P600S
Type	Mid Tower
Dimensions (LxWxH)	510 x 240 x 520mm
Motherboard Support	Mini-ITX, Micro-ATX, ATX, E-ATX
Removable Motherboard Tray	No
Front Door/Cover	Yes
Materials Body	Steel, Plastic, Sound Dampening Material
Materials Side Panel	Left:Sound-Dampened Steel Right: Sound-Dampened Steel
Expansion Slots	7x (plus three vertical)
Drive Bays	5.25": - 3.5 " : 10x Internal (4 included) 2.5" :3x Internal (3 included)
I/O Panel	1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x audio jack, 1x mic jack, 1x Power Button, 1x Reset Button
Pre-installed Fan(s)	Front: 2x 140mm Rear: 1x 140mm Top: -
Fan Support	Front: 3x 120mm / 3x 140mm Top: 3x 120mm / 2x 140mm Rear: 1x 120mm / 1x 140mm
Fan Bearing Type	no info
Fan Power Connector	3-Pin
Fan Controller	Yes
Radiator Support	Front: 120/140/240/280/360/420mm Top: 120/140/240/280/360mm Rear: 120/140mm
CPU Cooler Height (Max)	190mm
VGA Length (Max)	435mm
PSU Length (Max)	195mm (with all 3.5" bays) / 250mm (with one 3.5" bay)
Behind MB Tray Clearance/Cable Management Support	18-27mm
Dust Filters	Top, Front, Bottom
PSU Support	Bottom Mount, ATX
Weight	12.1 kg
Warranty	5-years

Noise Measurements Test Set Up

Stock Fan(s) RPM

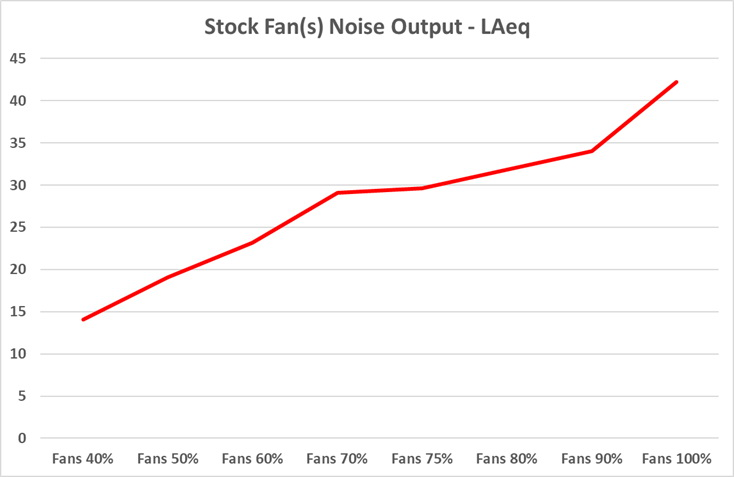

Stock Fan(s) Noise Output – LAeq

INFO

Stock Fan Noise Output from 40% to 100%

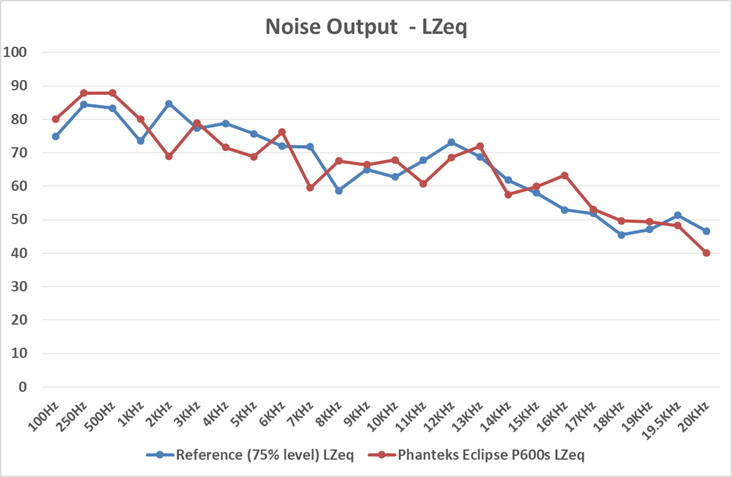

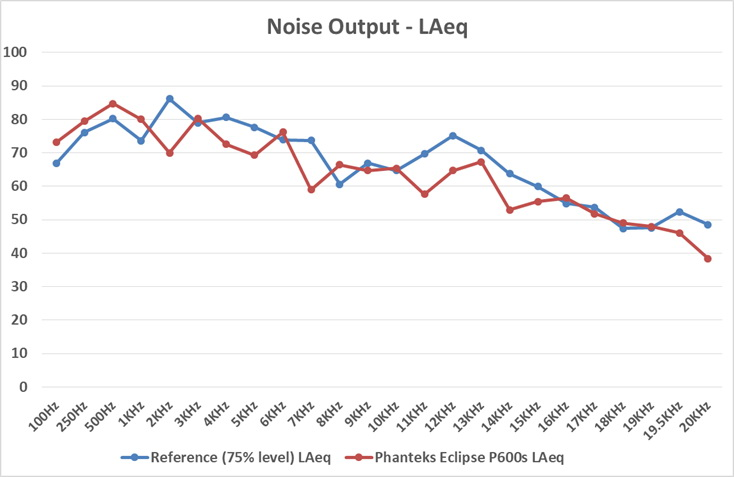

Noise Output

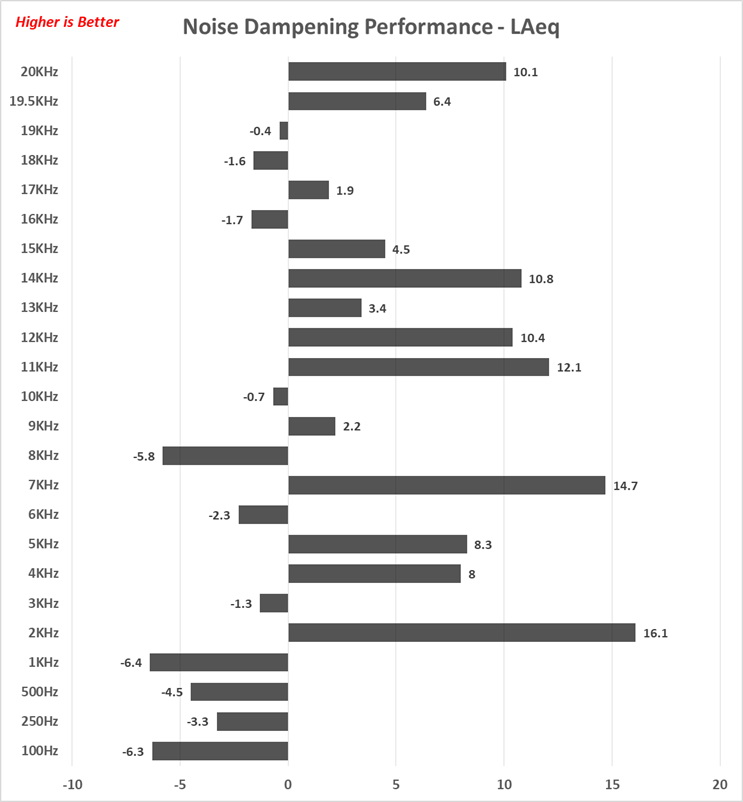

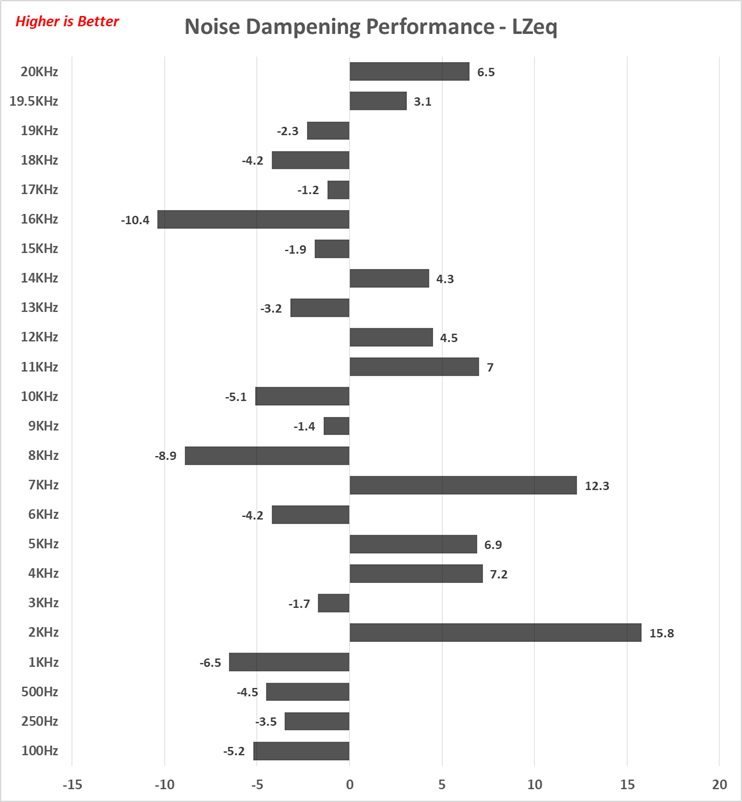

Noise Dampening Performance – Test Tones

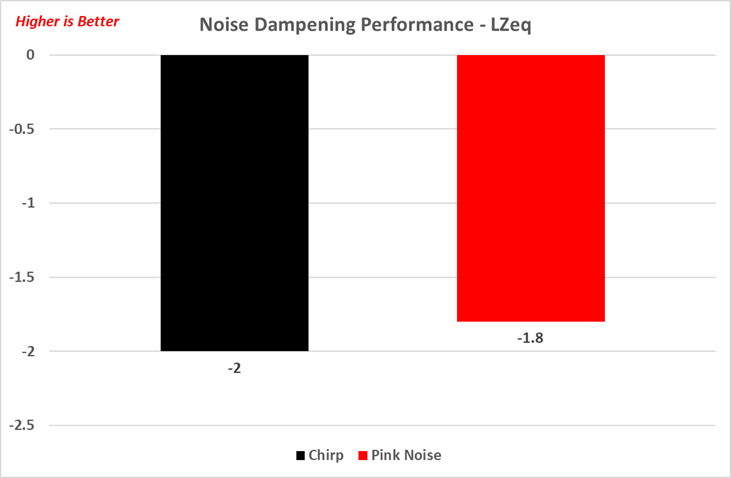

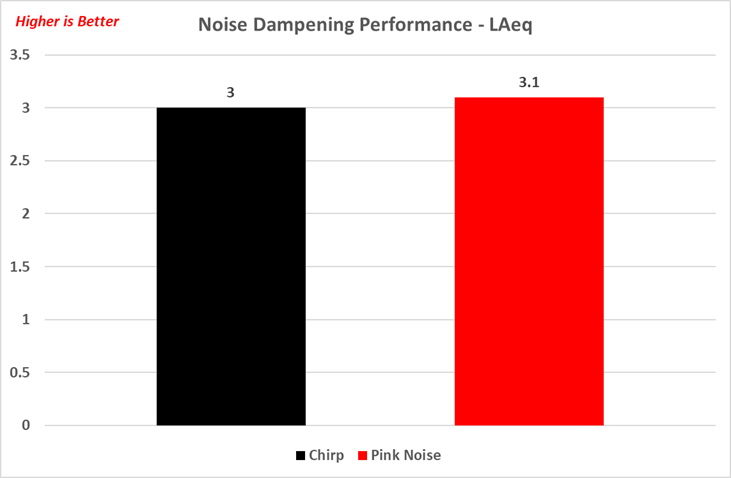

Noise Dampening Performance – Pink & Chirp

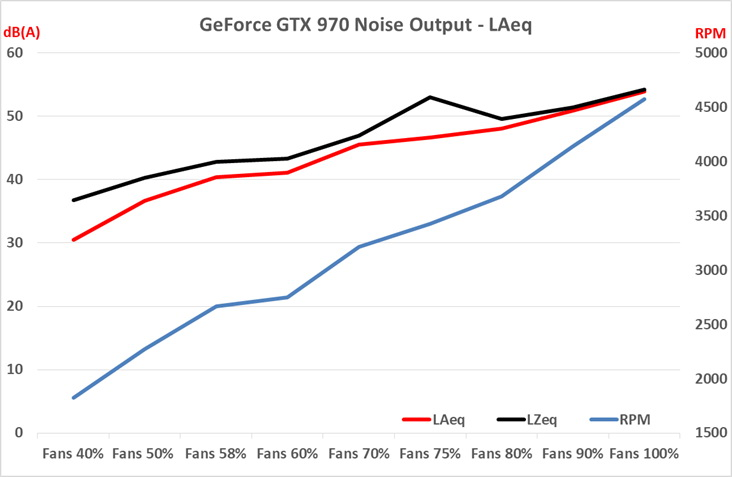

GPU Fan(s) Noise Output – Laeq

INFO

NVIDIA GeForce GTX 970 Noise Output from 40% to 100% Fan Speed

Phanteks Eclipse P600s (Without Soundproof Panels)

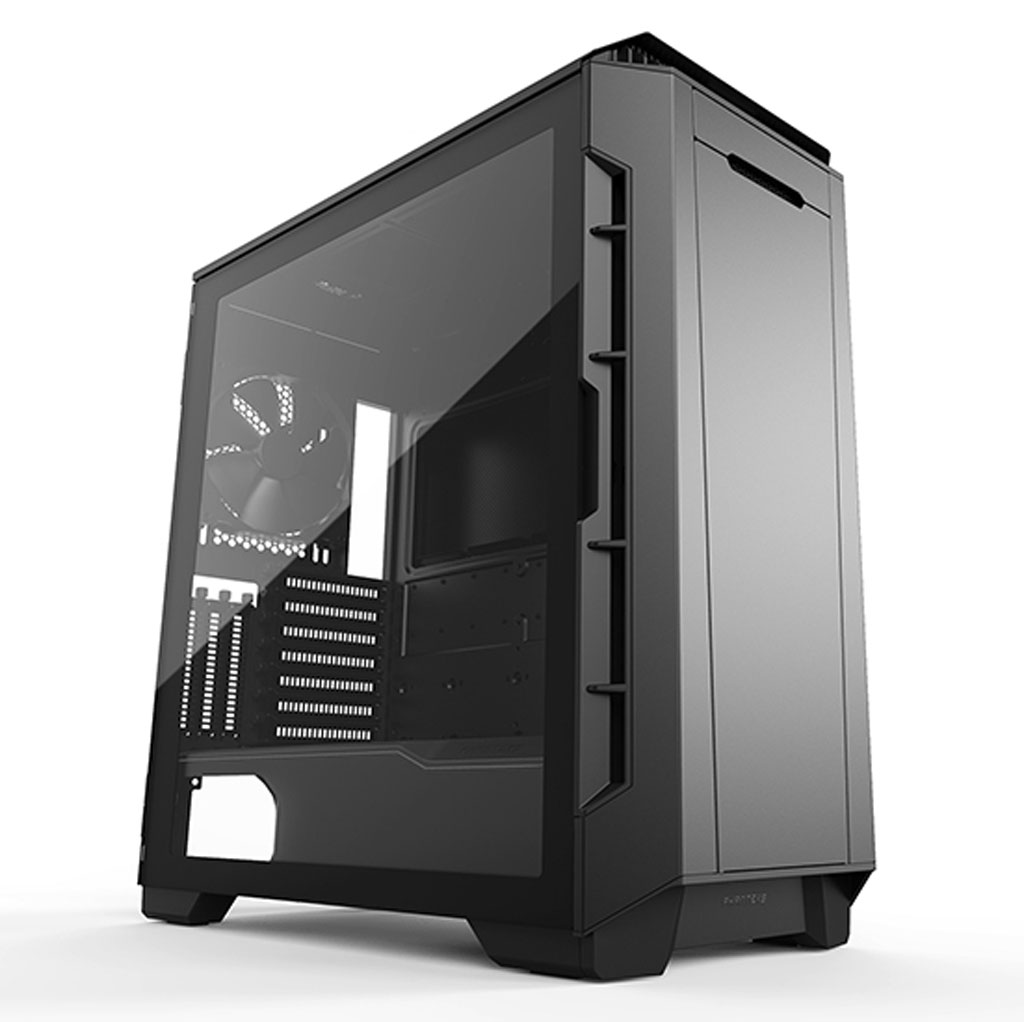

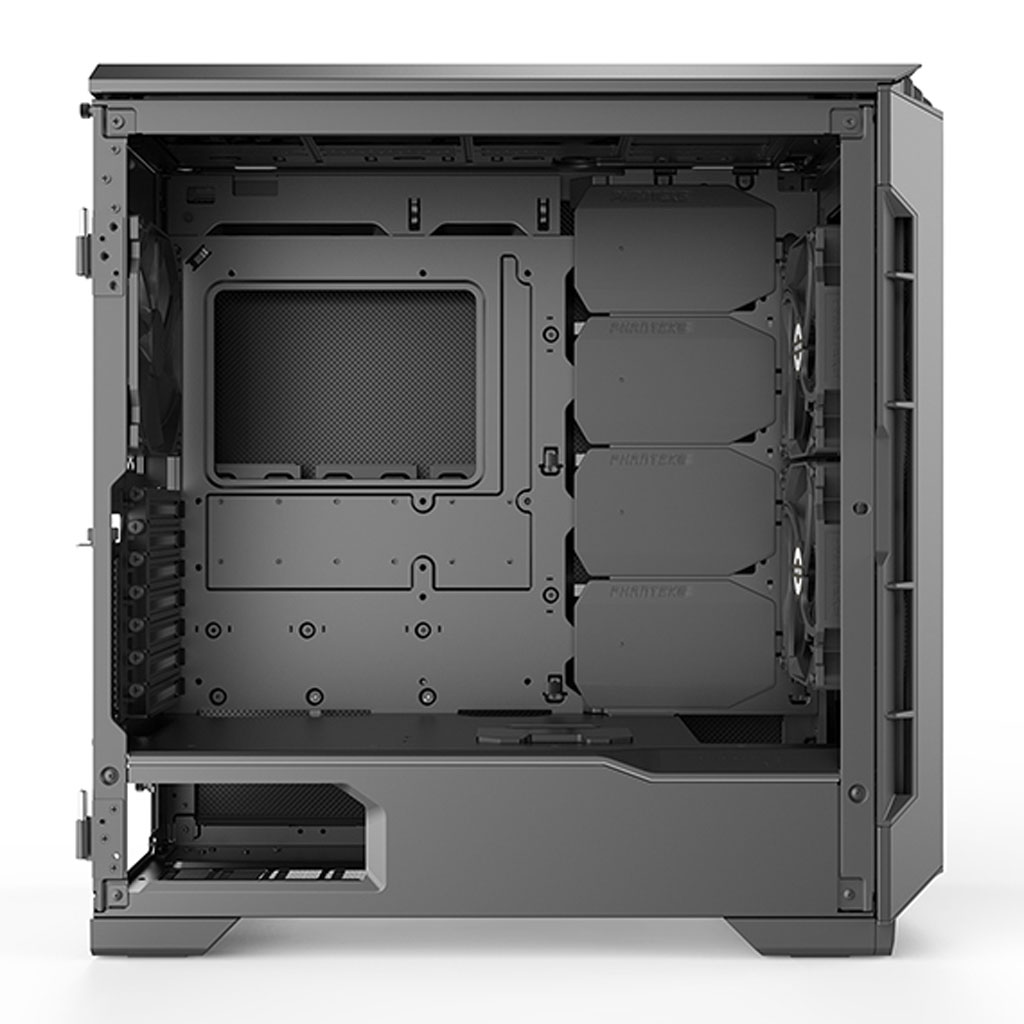

Case Photo

Case Photo #2
