0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions
0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source
220VAC, 5A, Single Phase, 50/60Hz
Based on Standards
ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200
PHI Performance Levels
Pressure at 25dBA
P (mmAq)
1.55
Airflow at 25dBA
Q (CFM)
47.45
Information about DUT
Product Identification Details
Brand
Scythe
Model
Grand Tornado 120mm 3000RPM
Serial Number
-
Product Specifications
Manufacturer
Bearing
Fluid Dynamic
Connector
PWM
Cable length (mm)
280
Daisy-chain
Cable
RGB Connector
None
RGB Daisy-chain
None
Cybenetics
Max Speed (RPM)
3030
Max Airflow (CFM)
95.61
Max Static Pressure (mmAq)
4.96
Max Fan Noise Level (dBA)
41.60
Fan Max Current (A)
0.35
Fan Weight (gr)
202
Dimensions (W x H x D)
120mm x 120mm x 26mm
Cybenetics Testing Information
Lab ID
SY12000102
Date of receipt
-
Testing Date
-
Report Issued Date
-
Engineer Name
Georgios Theodoros Sarimpalas
Long Win LW-9266 - Pressure and Airflow

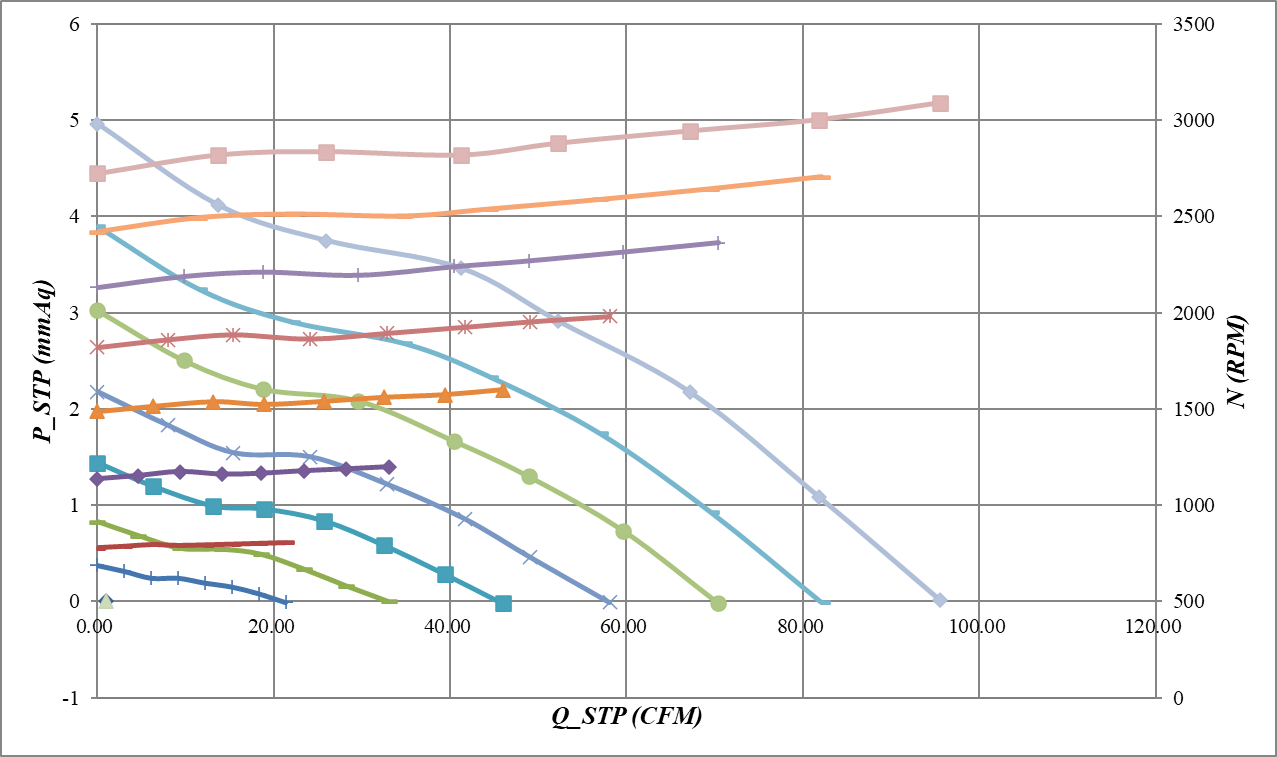

PQ Chart All Speed

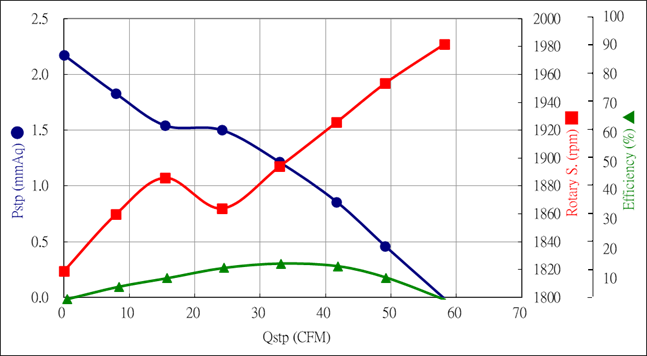

PQ Chart 30% Speed
PQ Chart 40% Speed
PQ Chart 50% Speed
PQ Chart 60% Speed
PQ Chart 70% Speed
PQ Chart 80% Speed
PQ Chart 90% Speed

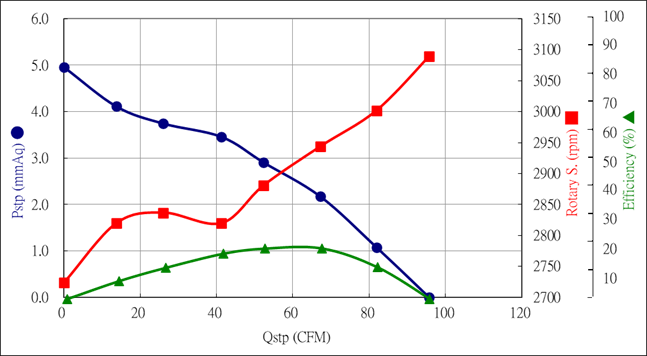

PQ Chart 100% Speed
General Performance

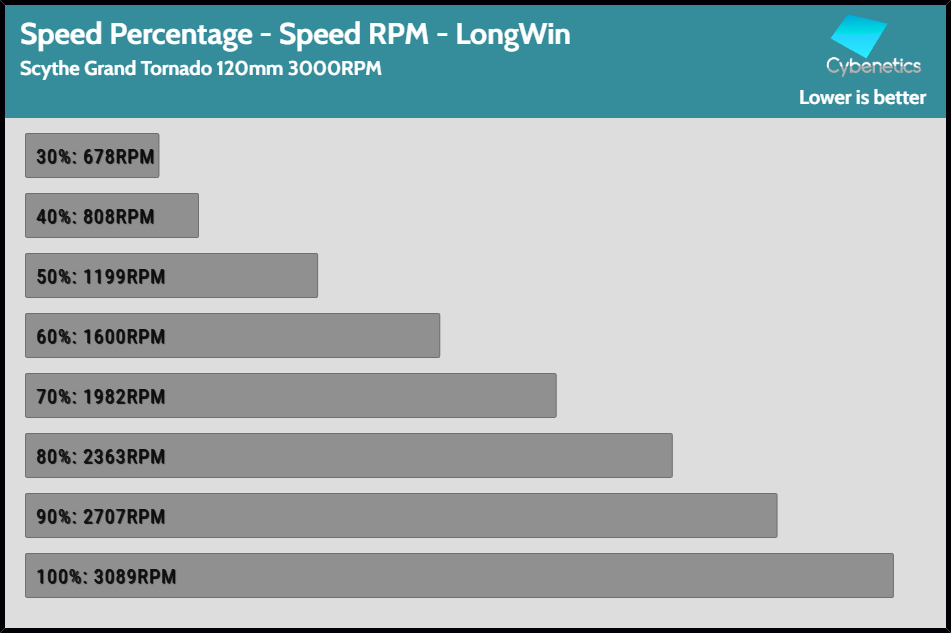

Fan Percentage RPM LongWin

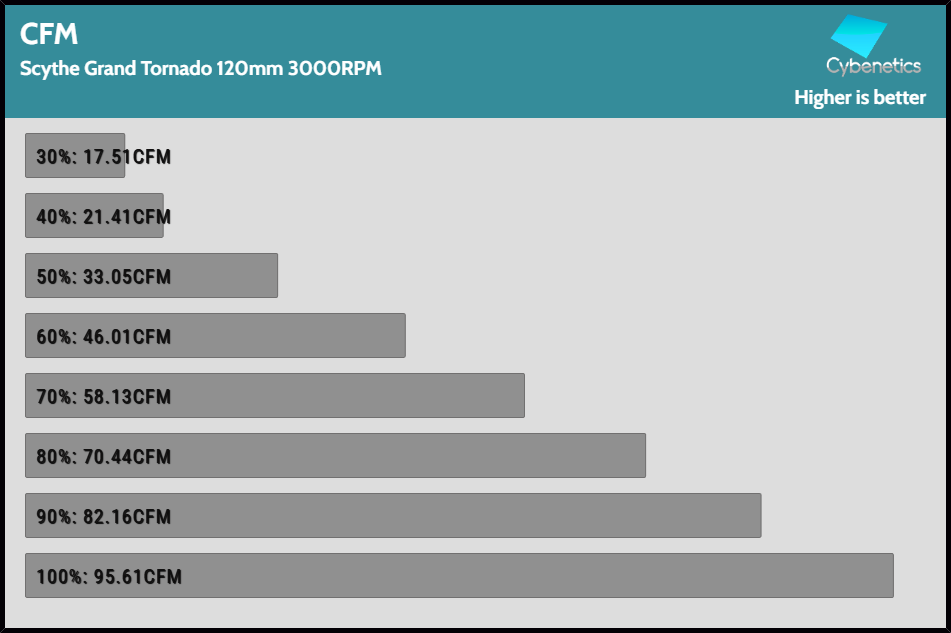

Fan Percentage CFM

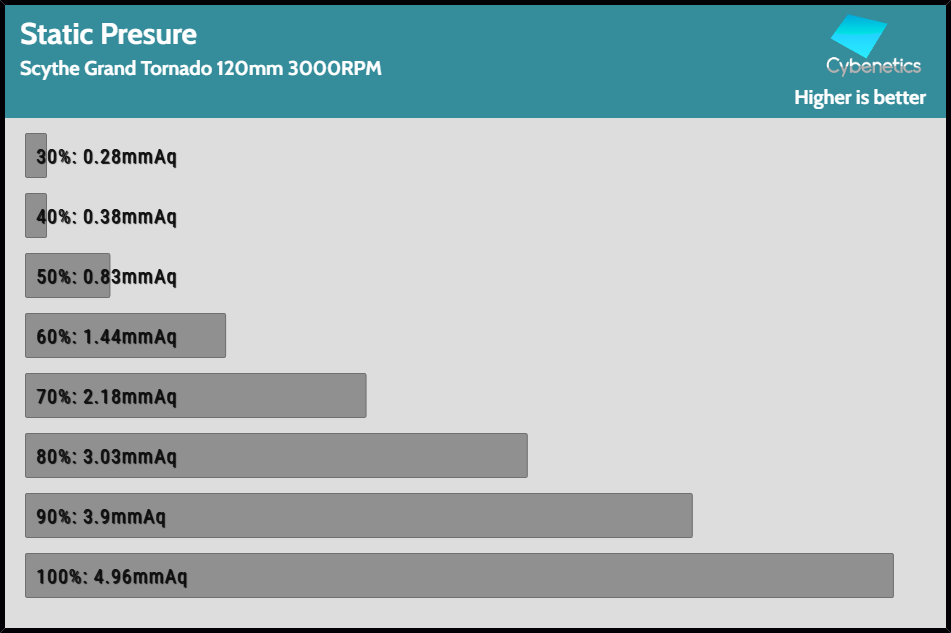

Fan Percentage Pressure

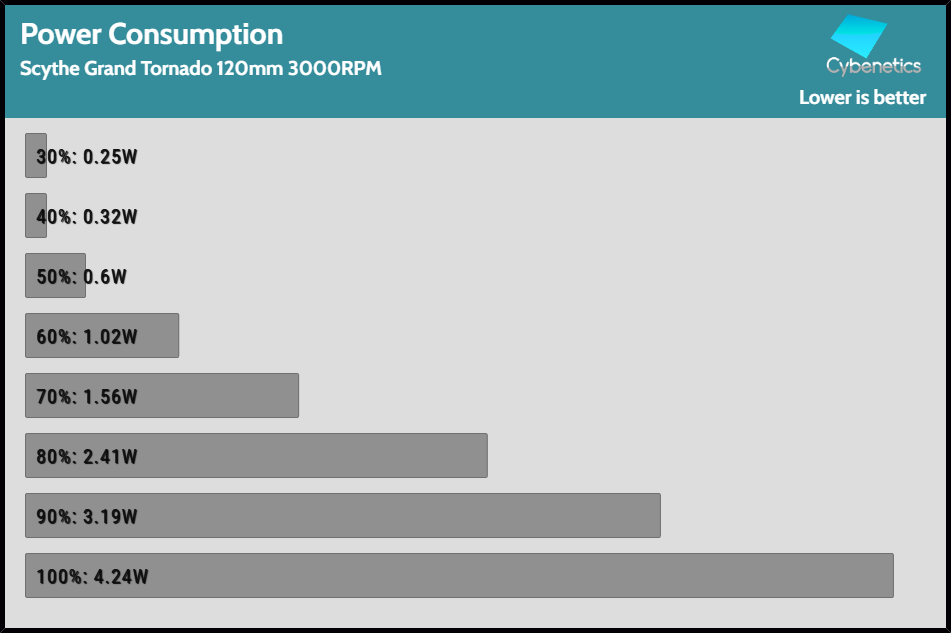

Fan Percentage Power

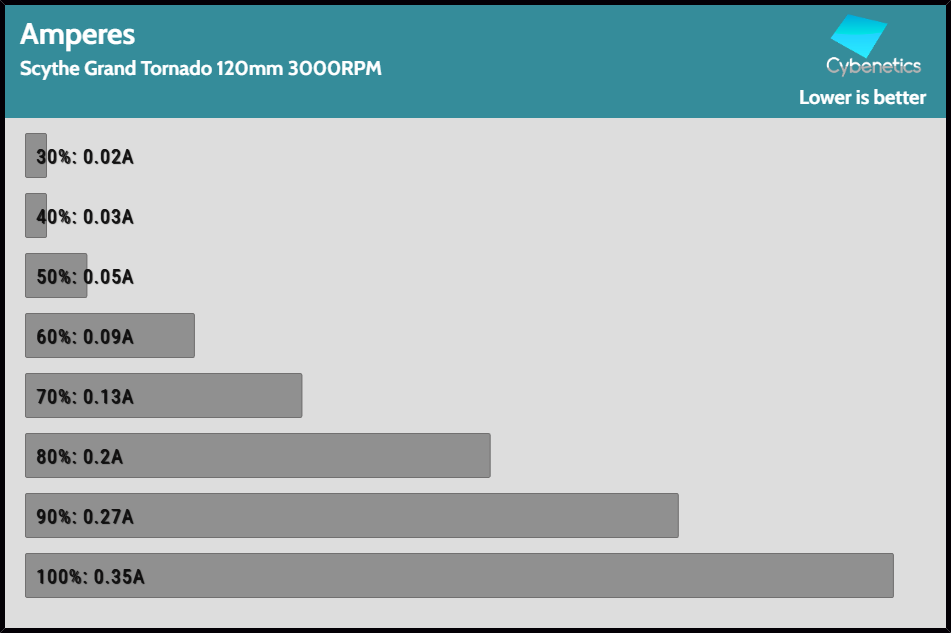

Fan Percentage Amps

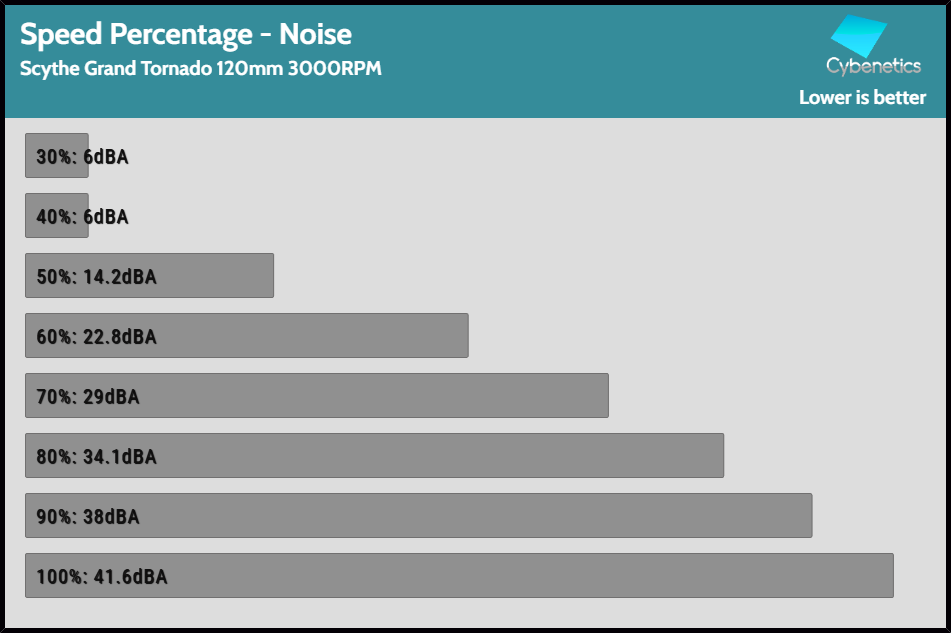

Fan Percentage Noise

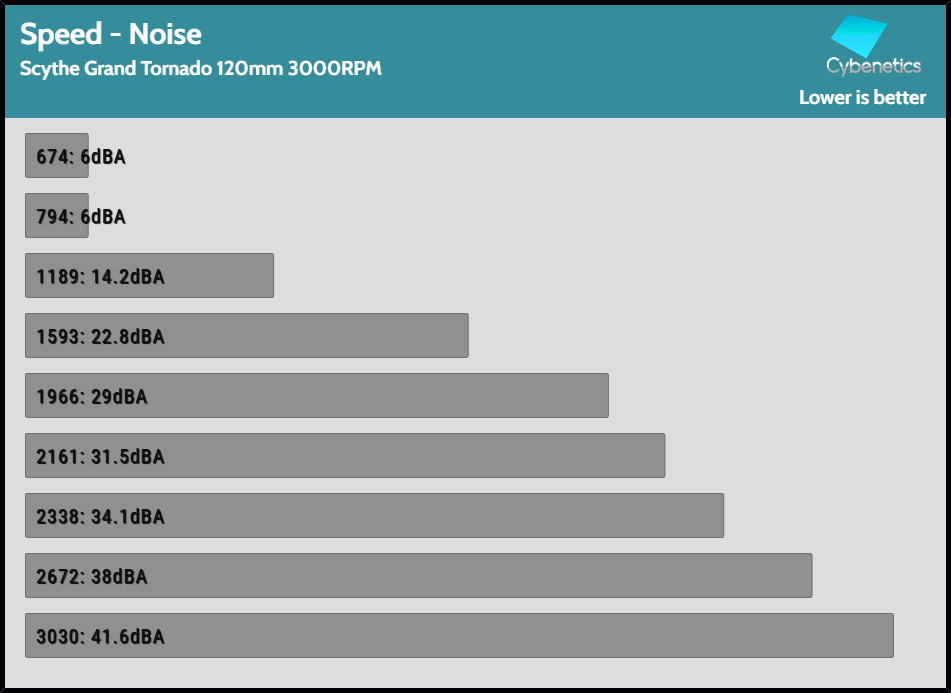

Fan Speed Noise

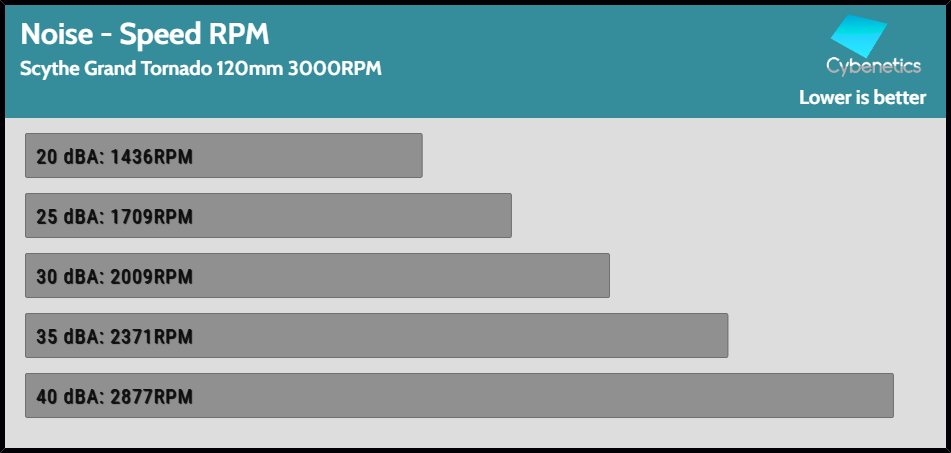

Fan Noise Speed
Uncertainty
Fan Performance - Static Pressure
The Fan Static Pressure Measurement’s Uncertainty is ±0.68 Pa
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
Static Pressure Uncertainty Budget
Source of Uncertainty
Standard Uncertainty, u(xi) (Pa)
LW-9266 Instrument Accuracy
0.260
Repeatability
0.075
Calibration
0.012
Temperature influence
0.208
Relative Combined Standard Uncertainty (RSS):
0.34
% Expanded Uncertainty U (k=2, norm):
0.68
Fan Performance - Airflow
The Fan Airflow Measurement’s Uncertainty is ±3.94 CFM
The reported expanded uncertainty (U) was derived as the product of the combined standard uncertainty (u) and the coverage factor k = 2, corresponding to a confidence interval of approximately 95%. Measurement uncertainty was determined in accordance with JCGM Guide 100:2008, "Guide to the Expression of Uncertainty in Measurements". The estimate of the reported uncertainty pertains to values obtained during the measurements and does not account for possible long-term changes.
