CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Corsair NR140HP
Serial Number
Lab IDCR14000113
Certification IDFN25113
  • Test Result Report ID: 25FN113A
  • Certificate Issue Date: -
Airflow Rating
Static Pressure Rating
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Fan Testing Instrument Technical Specifications

Manufacturer Long Win Science & Technology Corporation
Model Number LW-9266
Air Flow Rate 2.4 – 250 CFM
Accuracy of Air Flow Rage < 3.5% INFS
Repeatability error < 2%
Static pressure 0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions 0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source 220VAC, 5A, Single Phase, 50/60Hz
Based on Standards ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Test Equipment

Test Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

BrandCorsair
ModellNR140HP
Max Speed (RPM)2445
Max Airflow (CFM)101.38
Max Static Pressure (mmAq)4.49
Max Fan Noise Level (dBA)44.10
Fan Bearing TypeFluid Dynamic
Fan ConnectorPWM
Fan Max Current (A)0.34
Fan Weight (gr)160
Dimensions (W x H x D)140x140x25
Fan daisy-chain connector✗
Cable length (mm)80

Pressure and Airflow

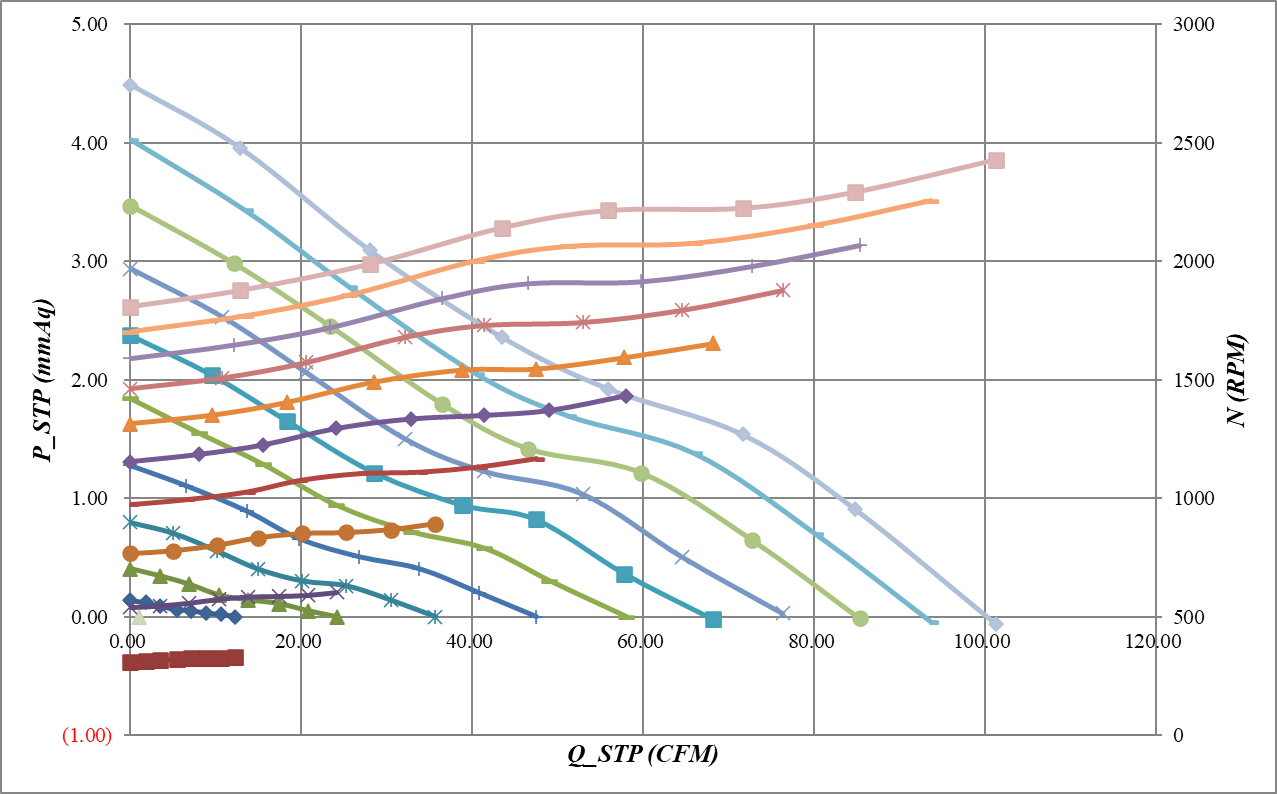

PQ Chart All Speed

PQ Chart 10% Speed

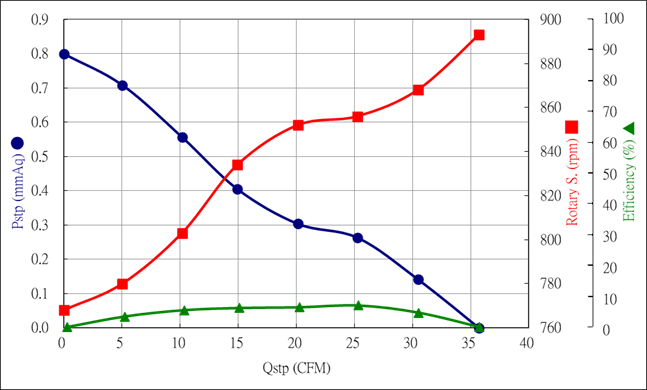

PQ Chart 30% Speed

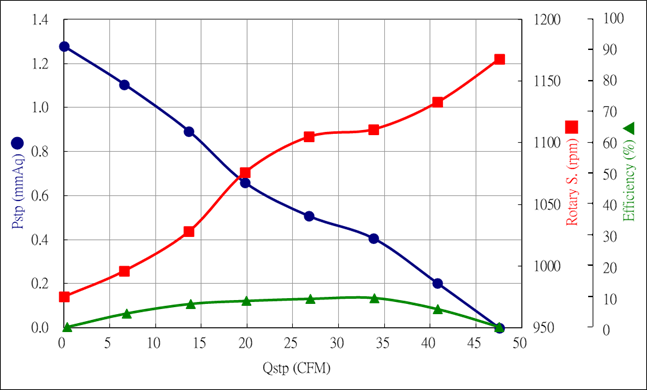

PQ Chart 40% Speed

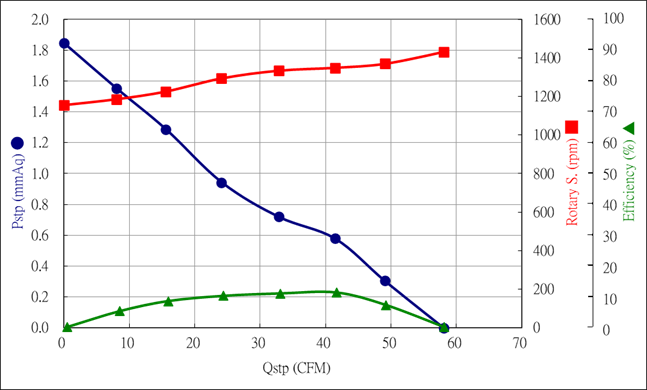

PQ Chart 50% Speed

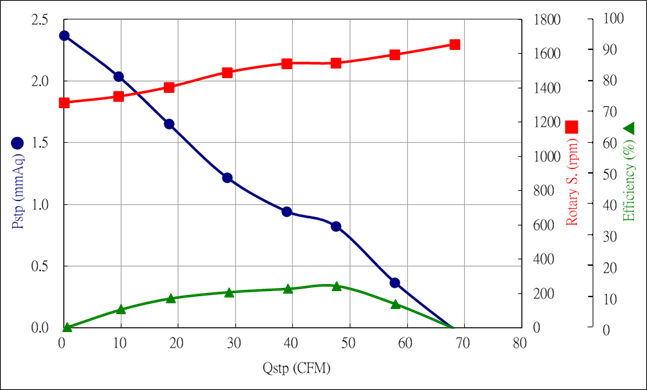

PQ Chart 60% Speed

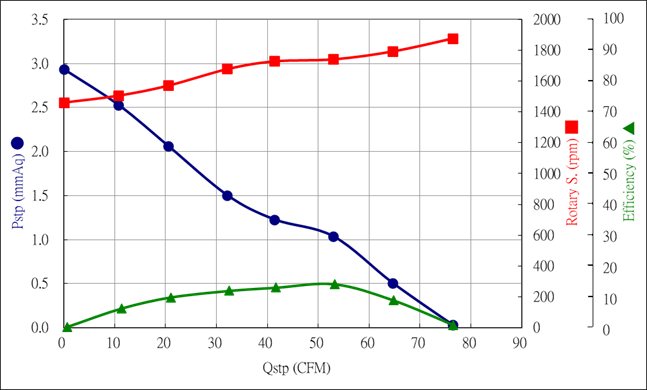

PQ Chart 70% Speed

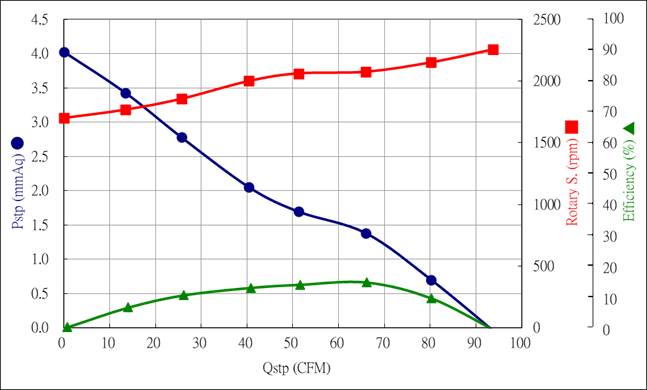

PQ Chart 90% Speed

PQ Chart 100% Speed

General Performance

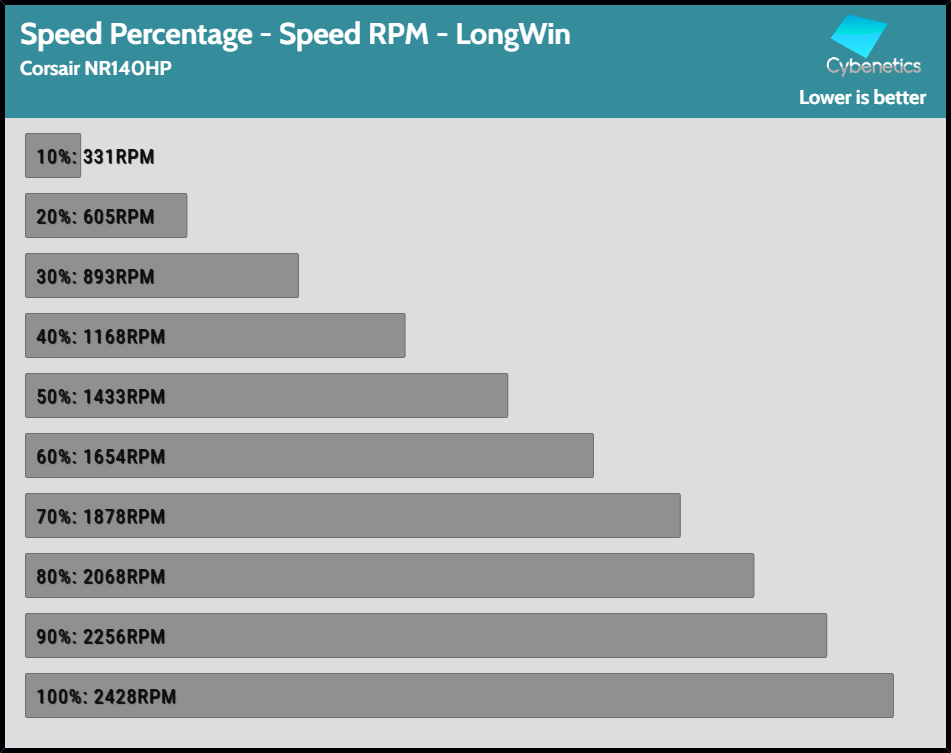

Fan Percentage RPM LongWin

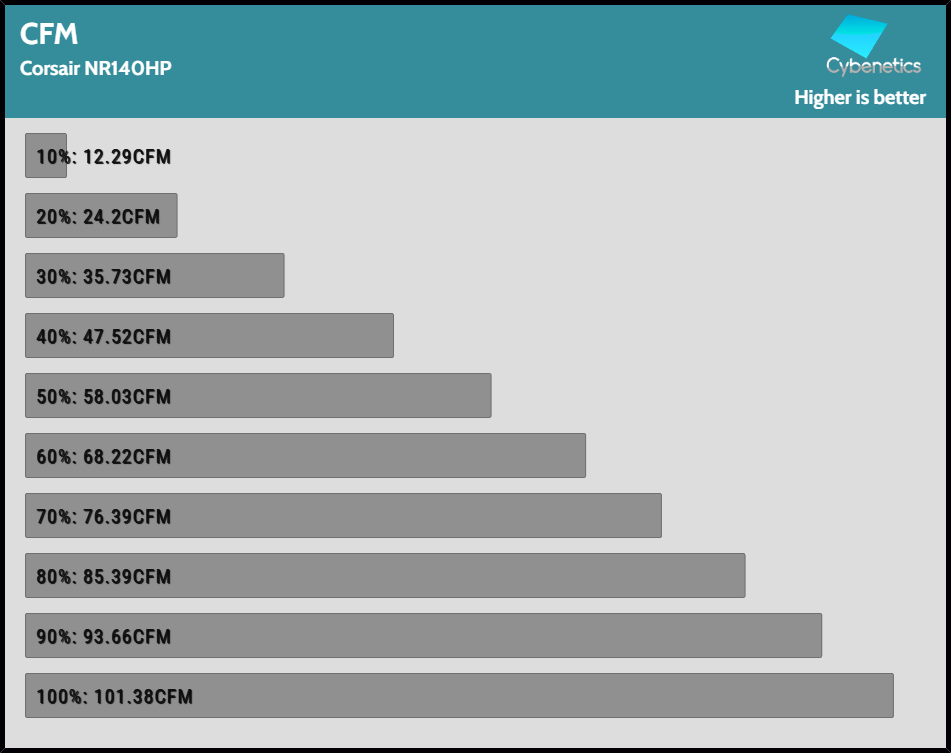

Fan Percentage CFM

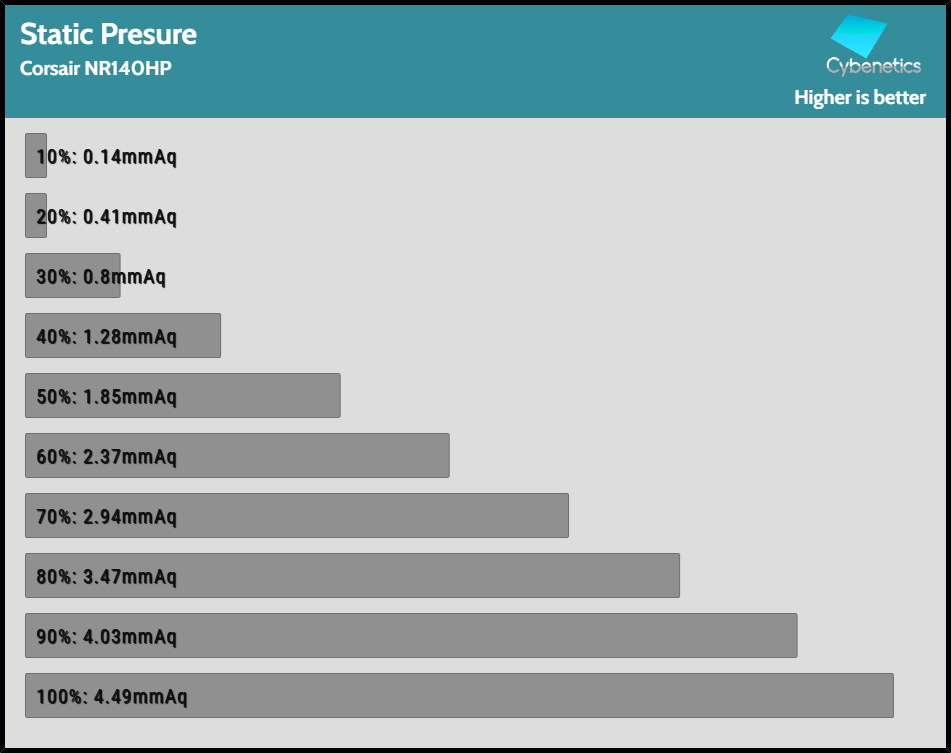

Fan Percentage Pressure

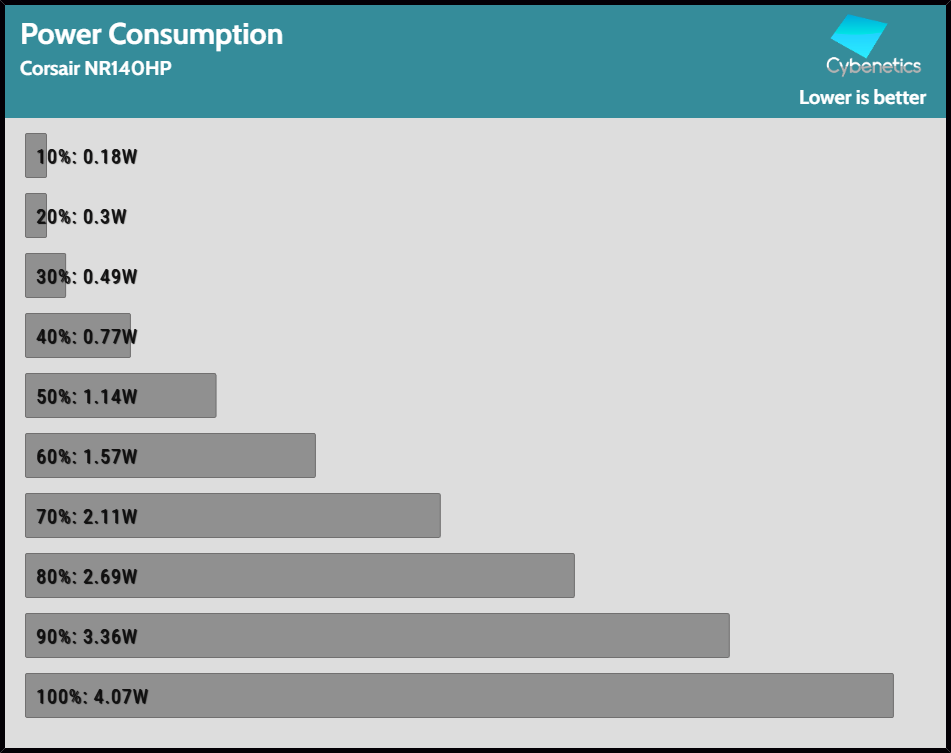

Fan Percentage Power

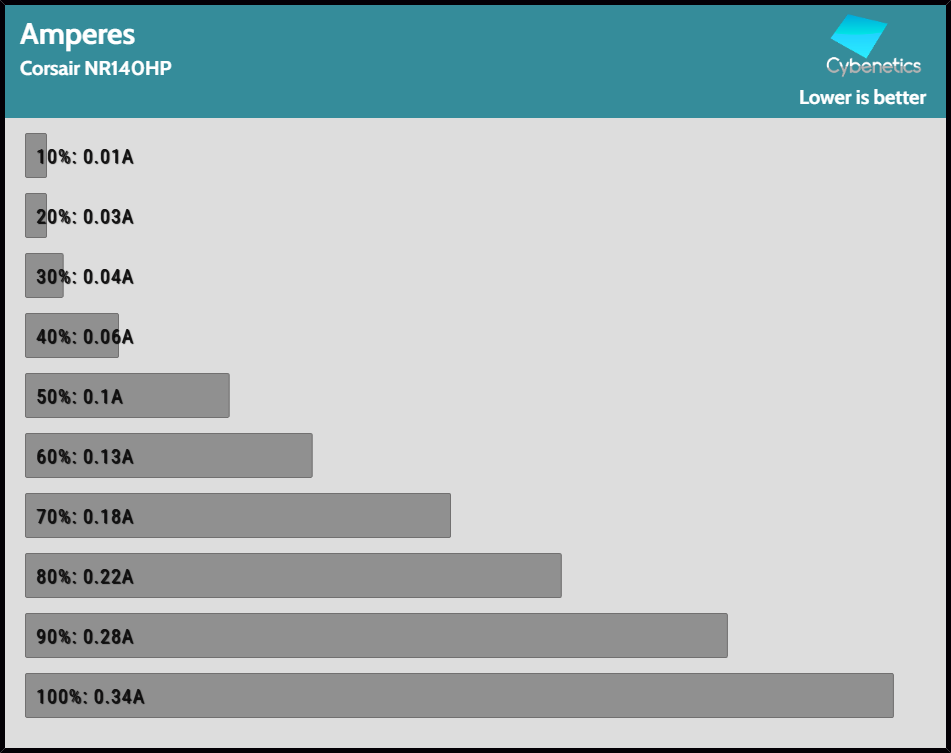

Fan Percentage Amps

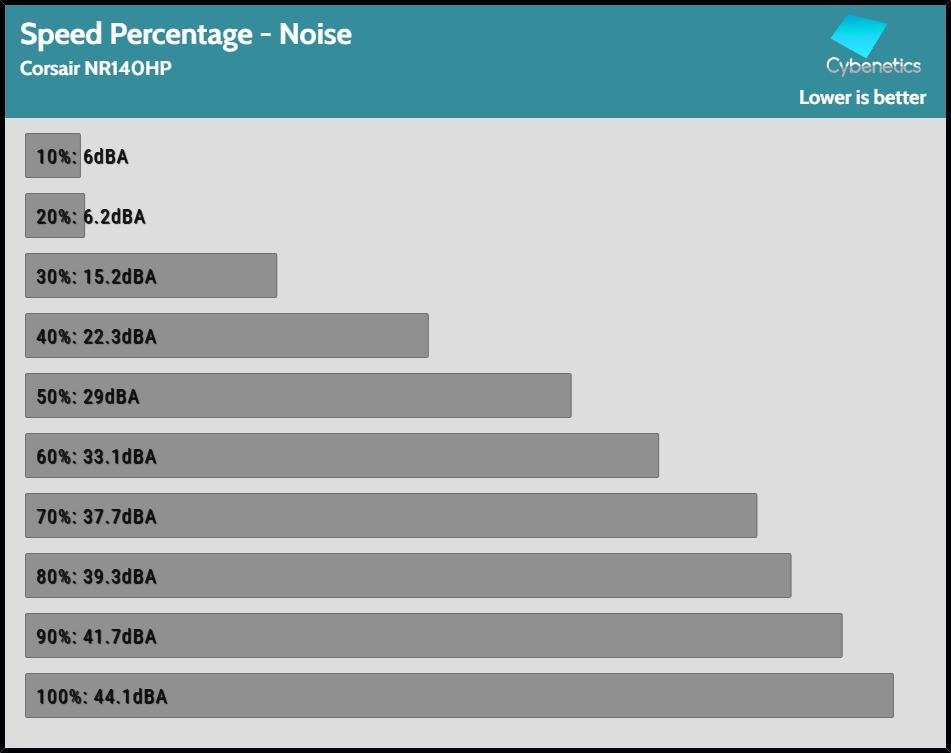

Fan Percentage Noise

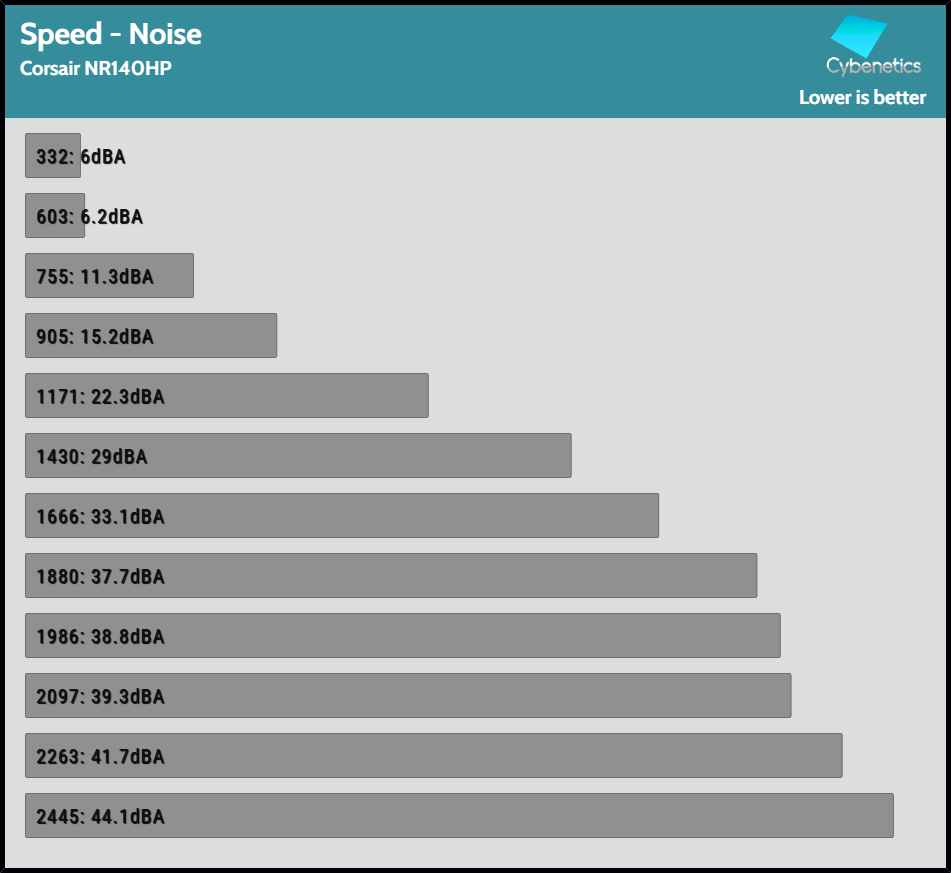

Fan Speed Noise

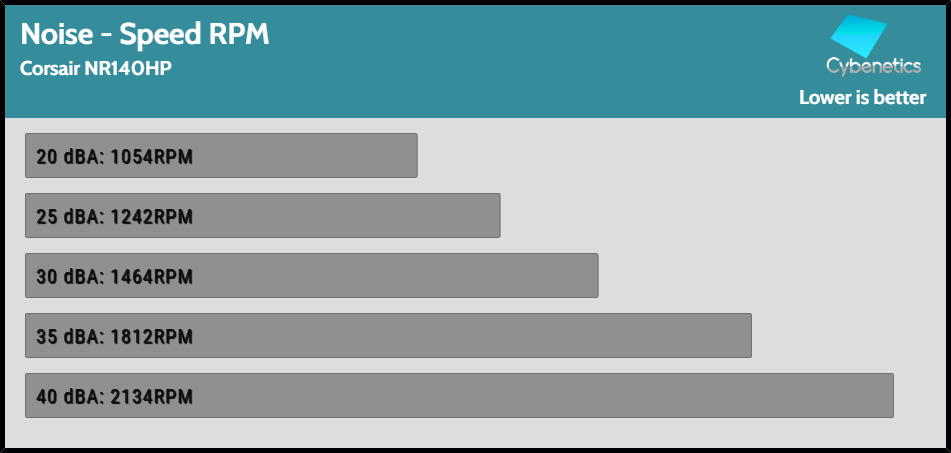

Fan Noise Speed

Corsair NR140HP

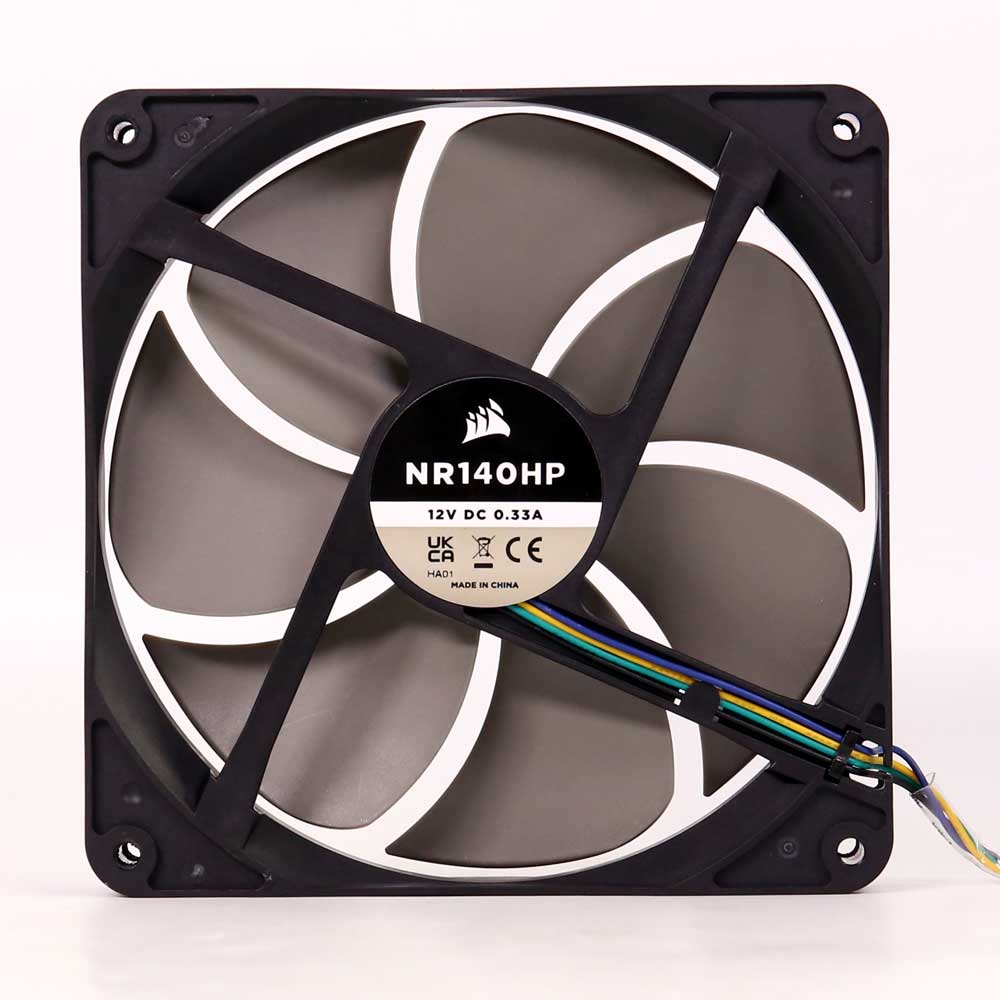

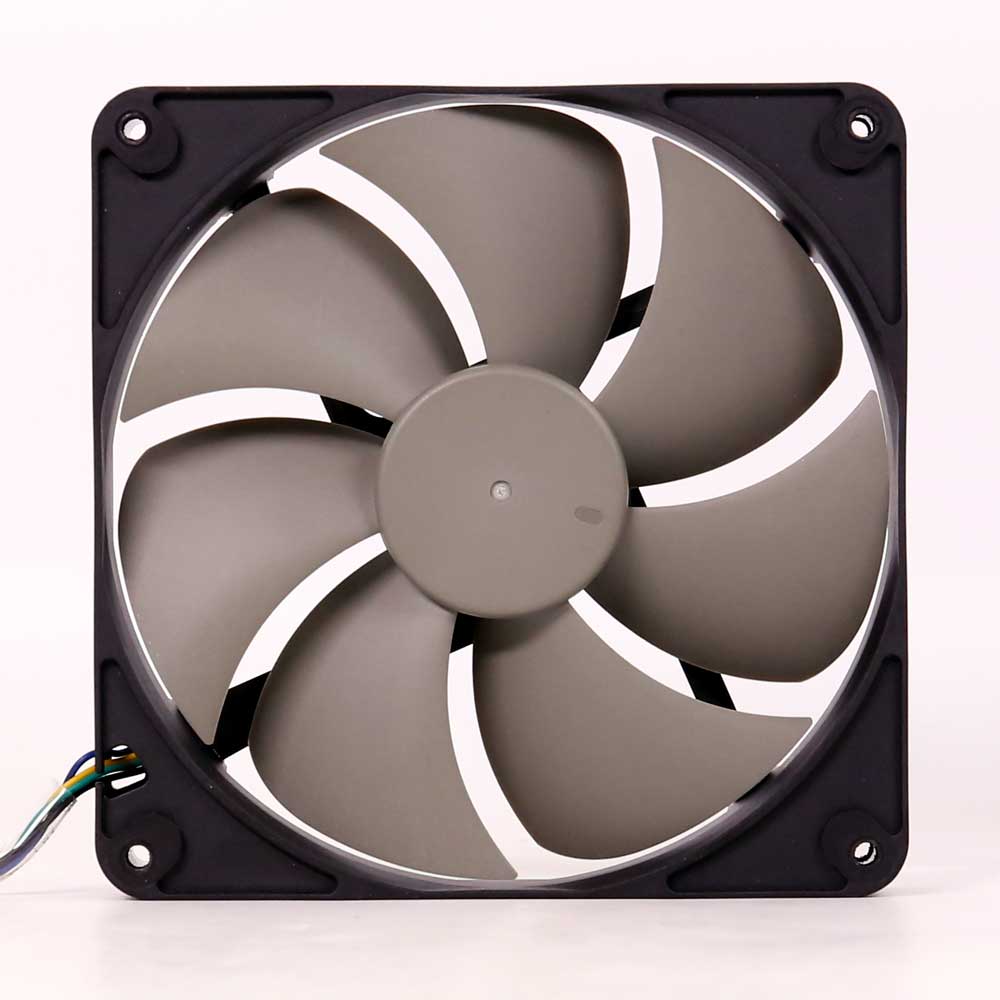

Front
Rear
