Fan Testing Instrument Technical Specifications
Test Equipment
Technical Specifications Table
Pressure and Airflow
General Performance
Download

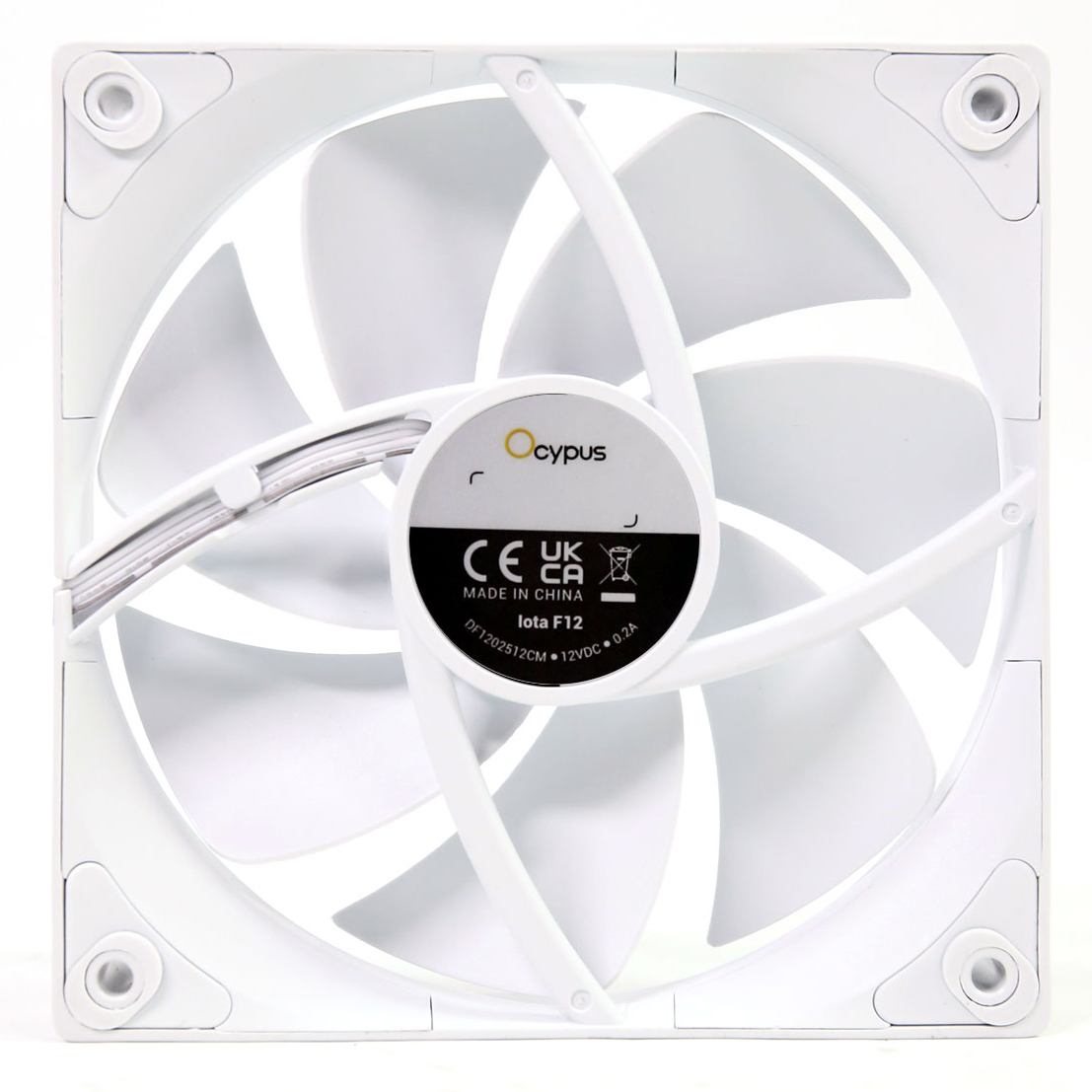

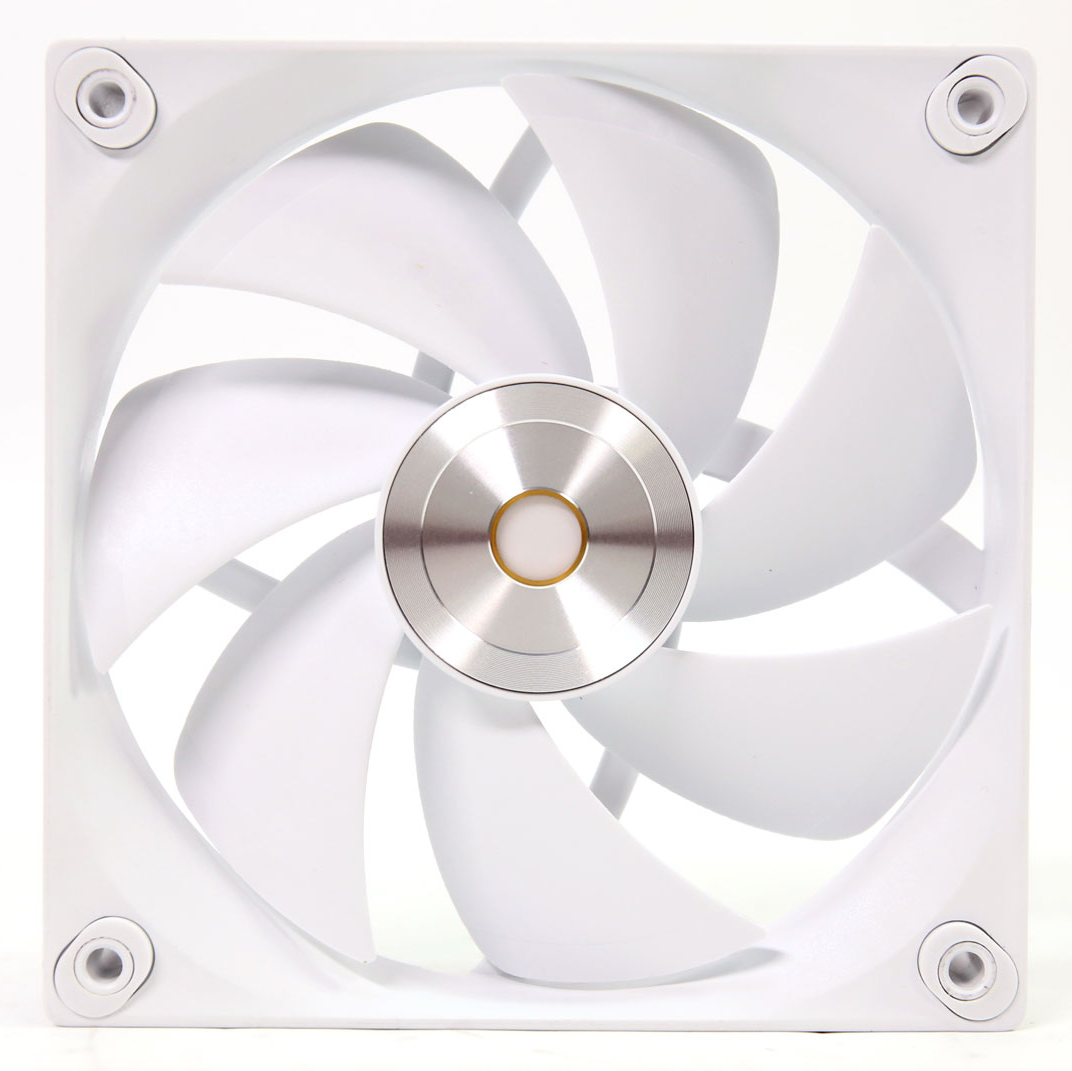

Ocypus Iota F12
English
Deutsch
繁體中文
简体中文
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Ocypus Iota F12
Serial Number
Lab ID
CY12000156
Certification ID
FN25156
Test Result Report ID: 25FN156A
Certificate Issue Date:
Nov 28, 2024
Airflow Rating
Static Pressure Rating
Aristeidis Bitziopoulos, Certification Body General Manager
General Information
Fan Testing Instrument Technical Specifications
tech-specs
Manufacturer
Long Win Science & Technology Corporation
Model Number
LW-9266
Air Flow Rate
2.4 – 250 CFM
Accuracy of Air Flow Rage
< 3.5% INFS
Repeatability error
< 2%
Static pressure
0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions
0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source
220VAC, 5A, Single Phase, 50/60Hz
Based on Standards
ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200
Test Equipment
(Non-accredited measurements)
test-equip
Test Environment
Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions
25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer
Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone
Bruel & Kjaer Type 4955-A
Mic Calibrator
Bruel & Kjaer Type 4231
Data Logger
Picoscope TC-08
Technical Specifications Table
(Non-accredited measurements)
tech-specs2
Brand
Ocypus
Modell
Iota F12
Max Speed (RPM)
2069
Max Airflow (CFM)
69.54
Max Static Pressure (mmAq)
4.14
Max Fan Noise Level (dBA)
36.50
Fan Bearing Type
Fluid Dynamic
Fan Connector
PWM
Fan Max Current (A)
0.36
Fan Weight (gr)
165
Dimensions (W x H x D)
120x120x25
Fan daisy-chain connector
✗
Cable length (mm)
255
Pressure and Airflow
PWM

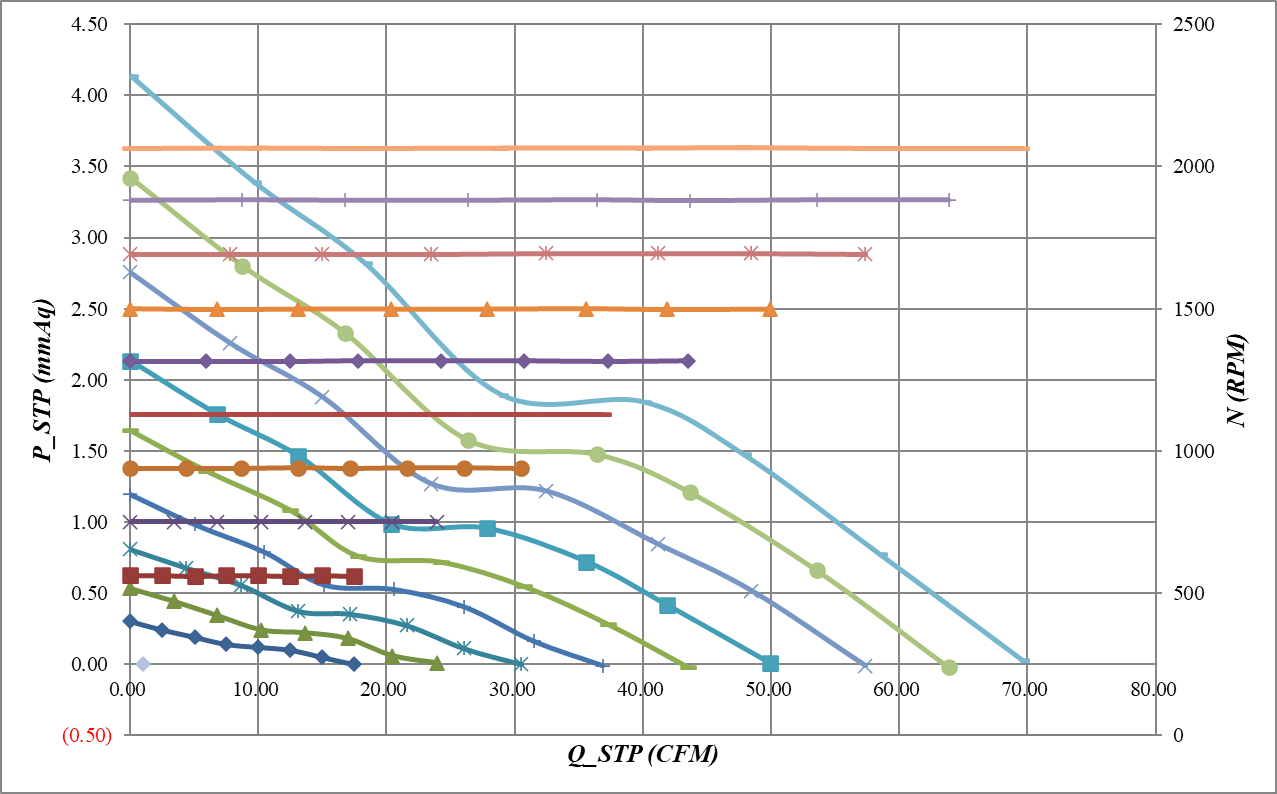

PQ Chart All Speed

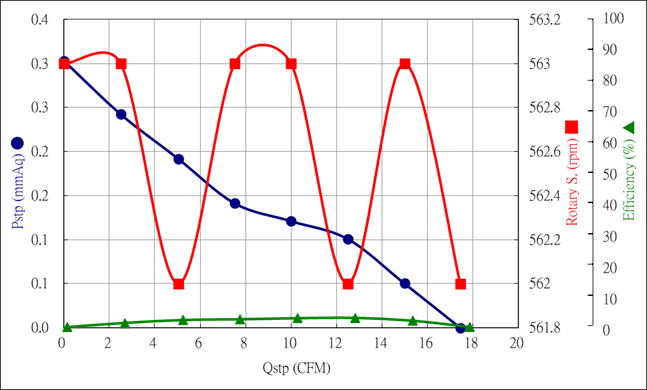

PQ Chart 20% Speed

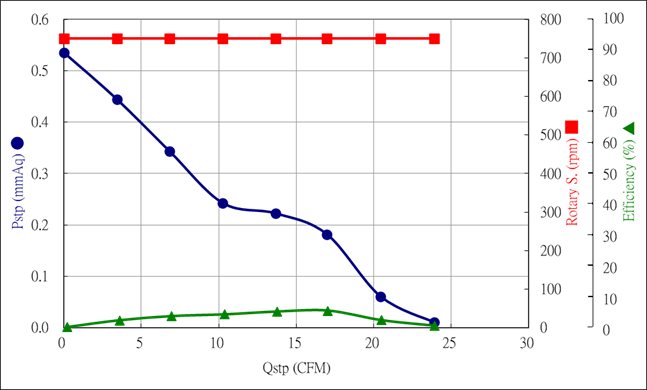

PQ Chart 30% Speed

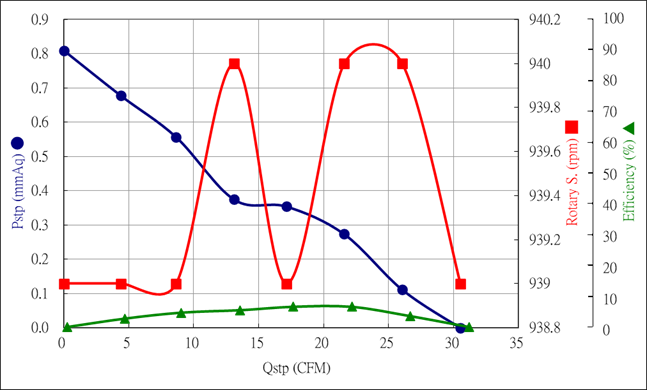

PQ Chart 40% Speed

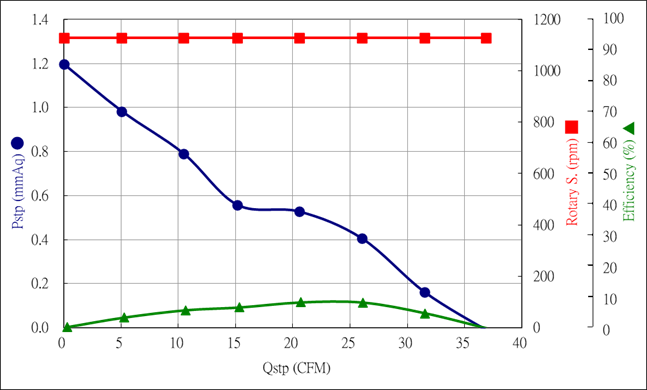

PQ Chart 50% Speed

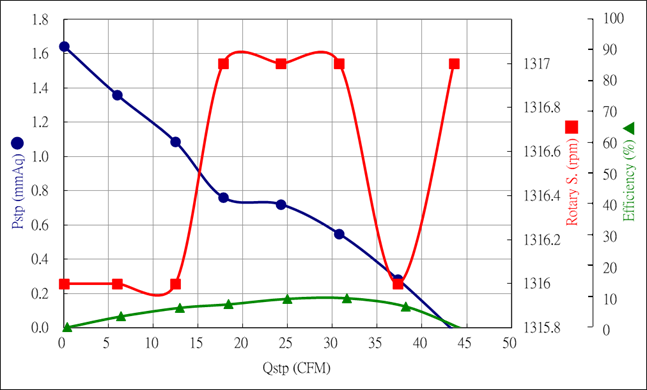

PQ Chart 60% Speed

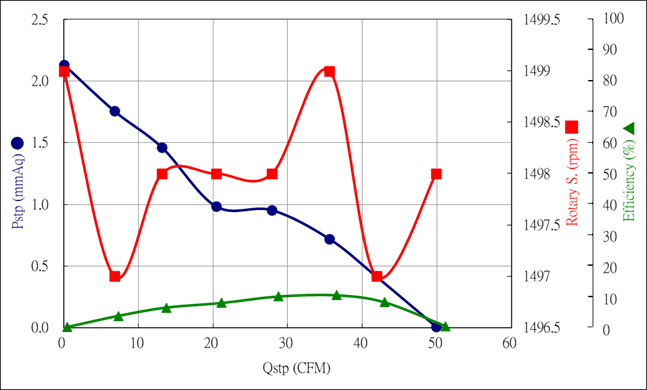

PQ Chart 70% Speed

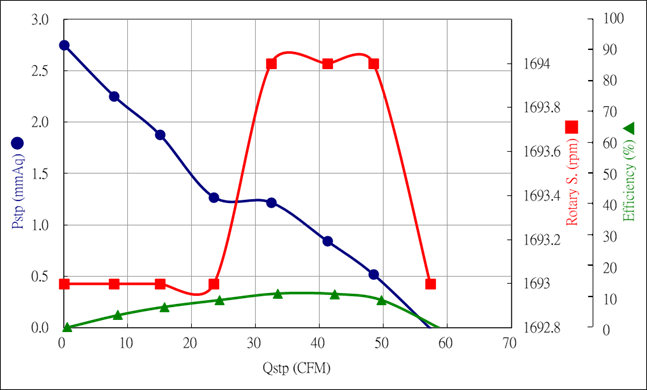

PQ Chart 80% Speed

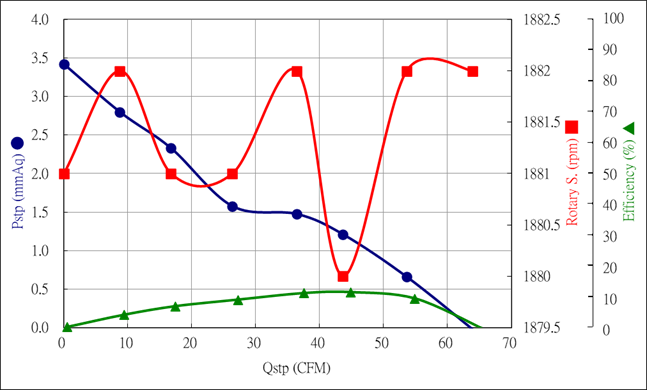

PQ Chart 90% Speed

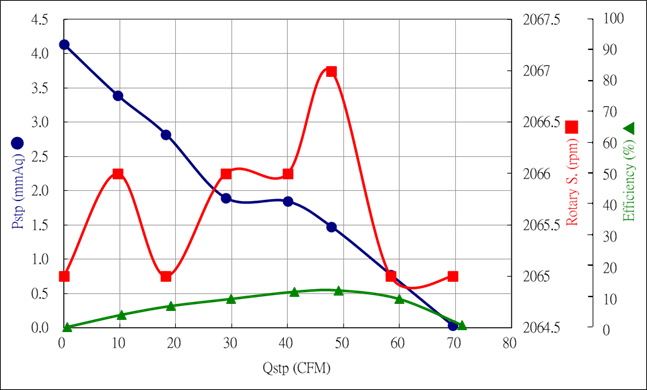

PQ Chart 100% Speed
General Performance
WTF

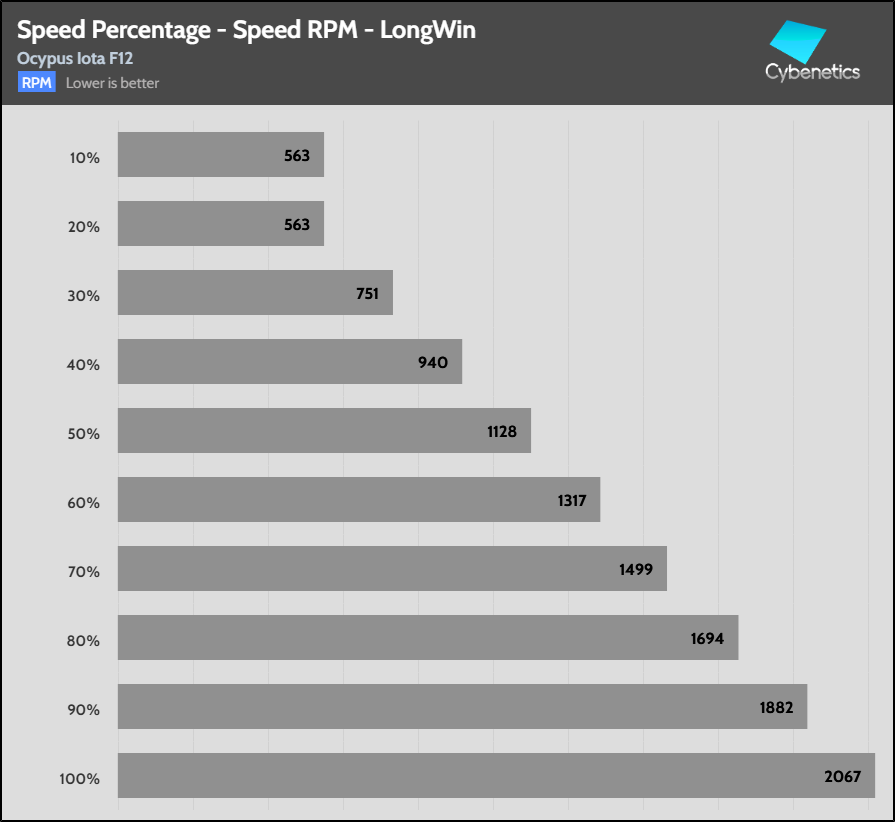

Fan Percentage RPM LongWin

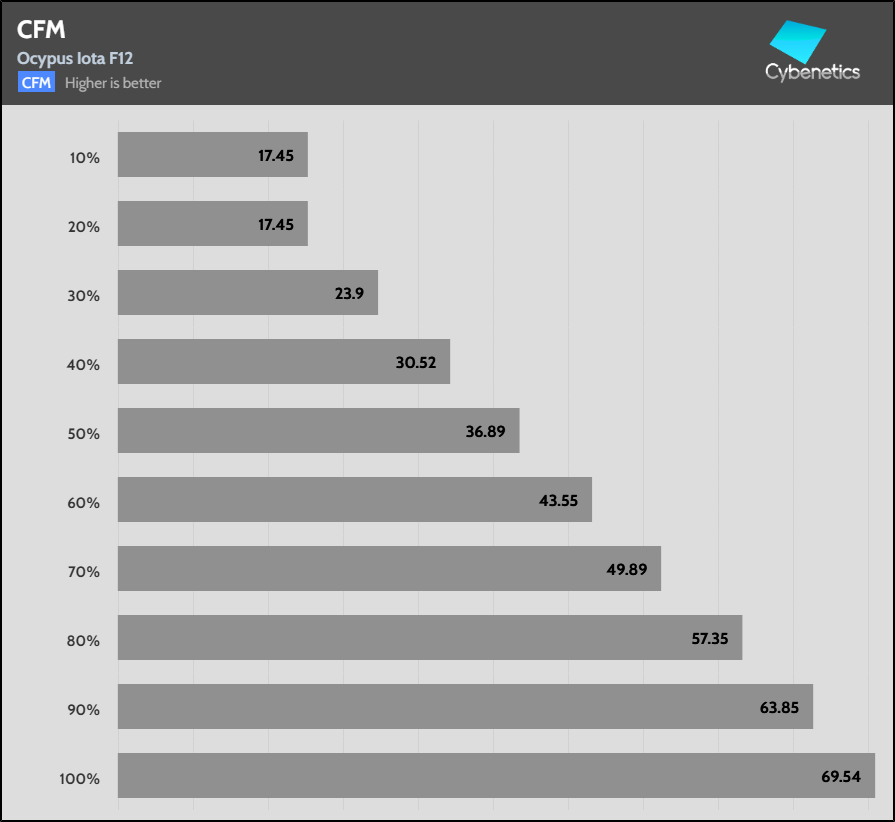

Fan Percentage CFM

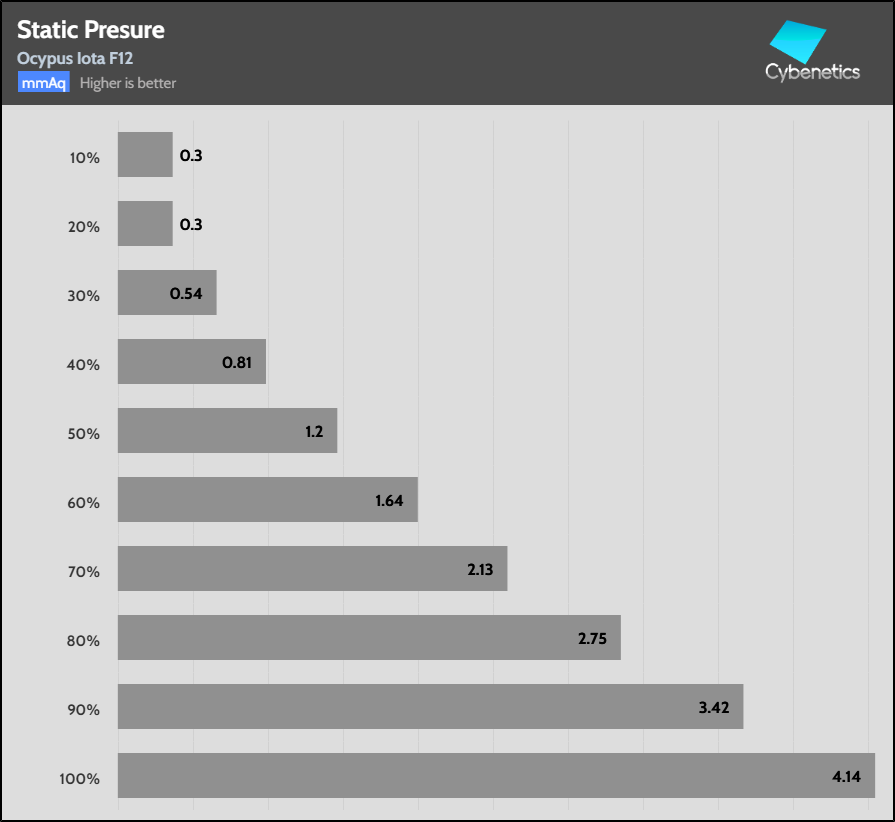

Fan Percentage Pressure

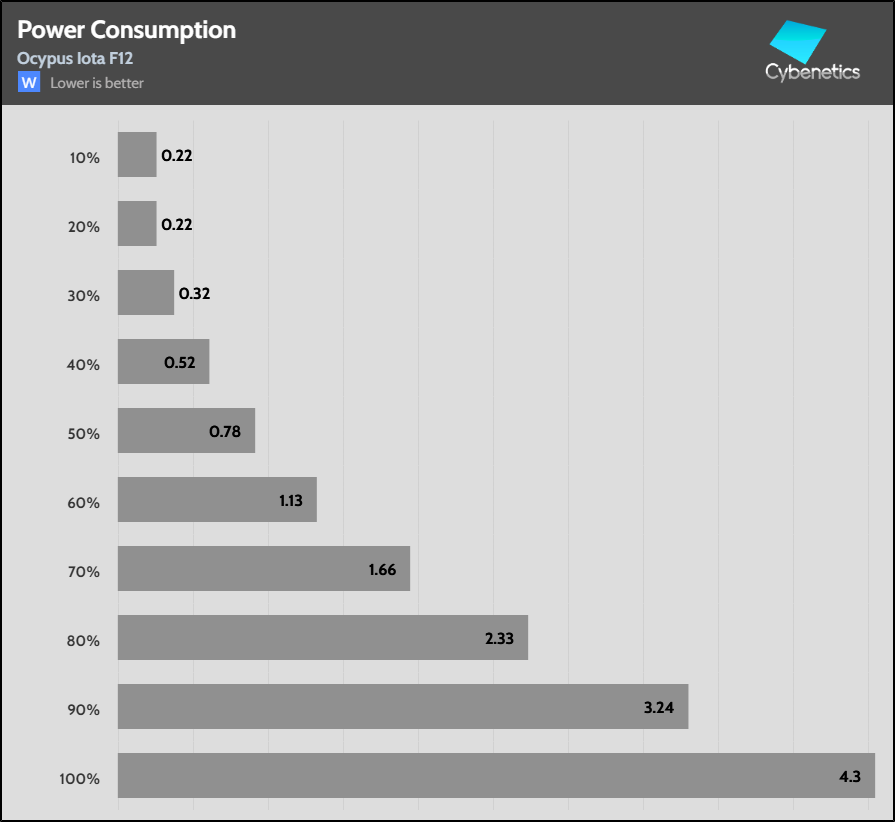

Fan Percentage Power

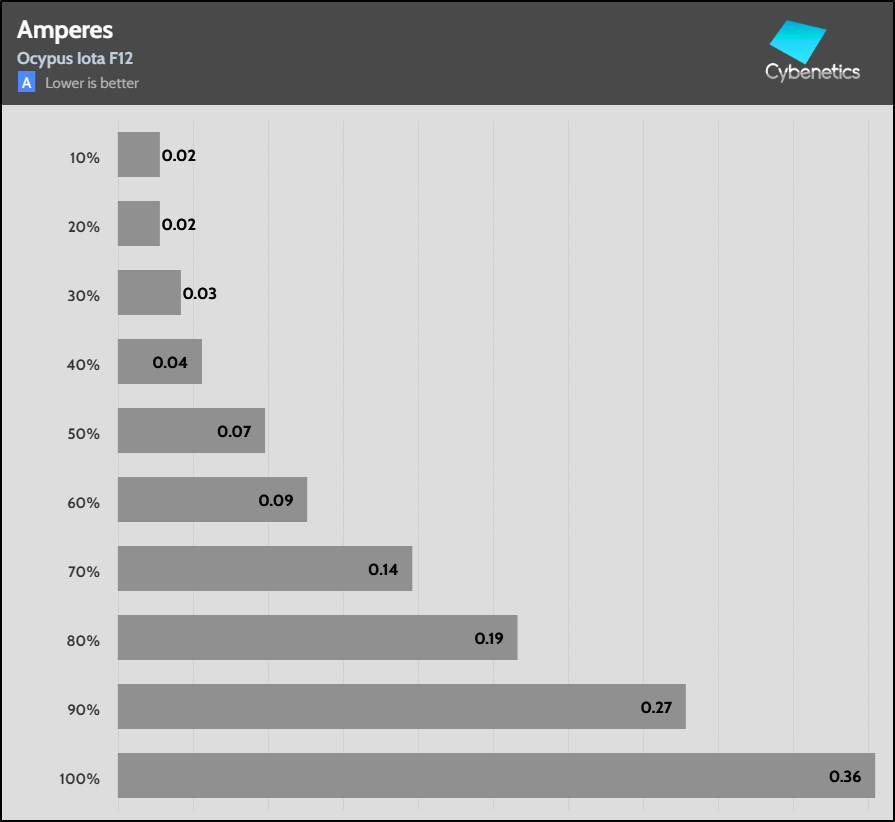

Fan Percentage Amps

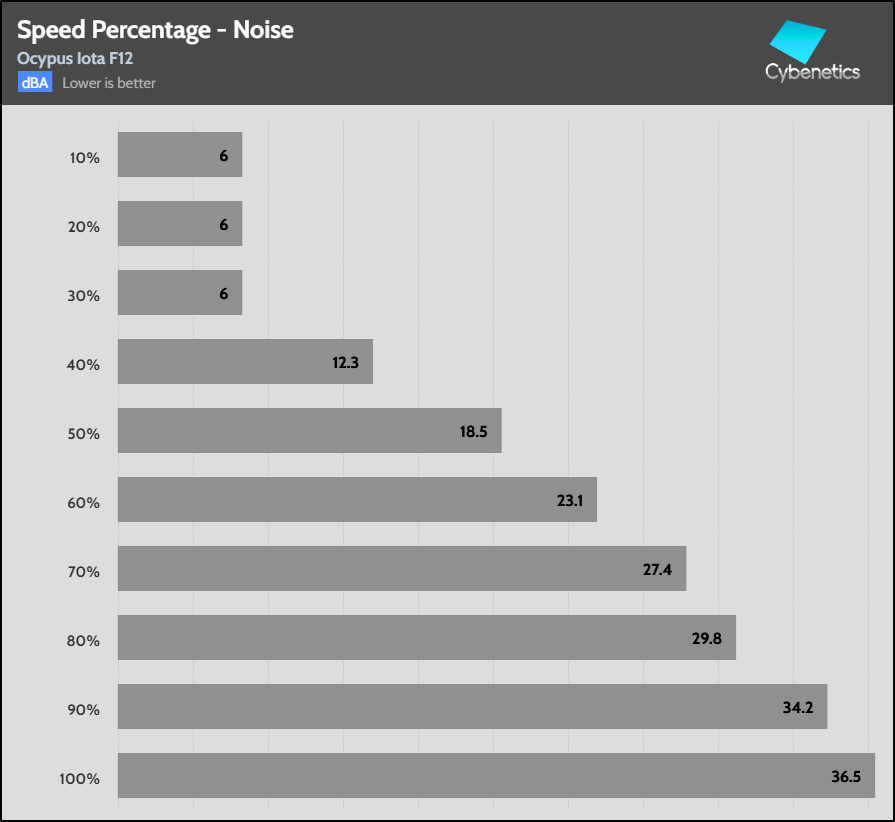

Fan Percentage Noise

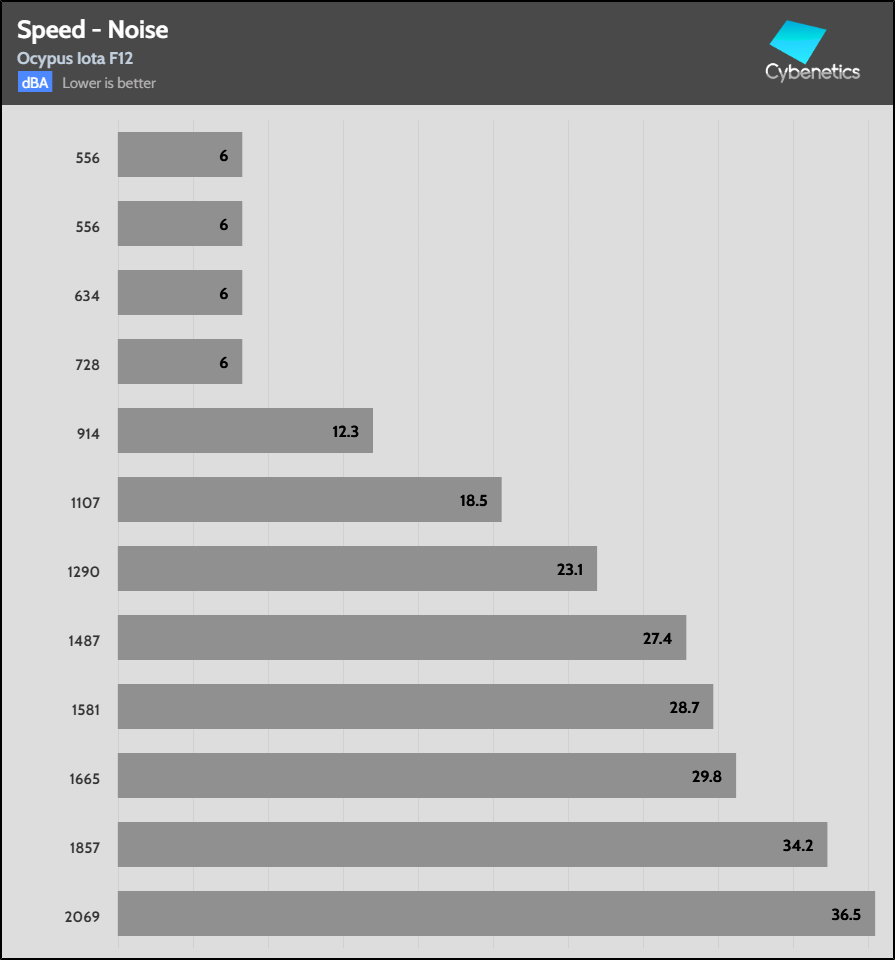

Fan Speed Noise

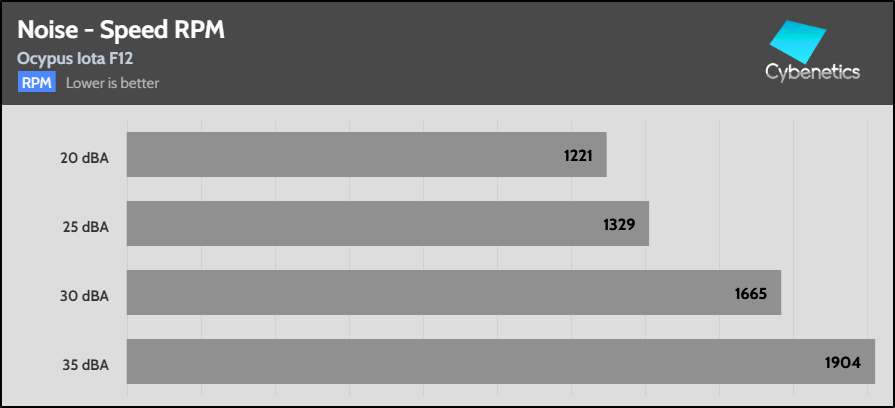

Fan Noise Speed
Ocypus Iota F12
Front
Rear
