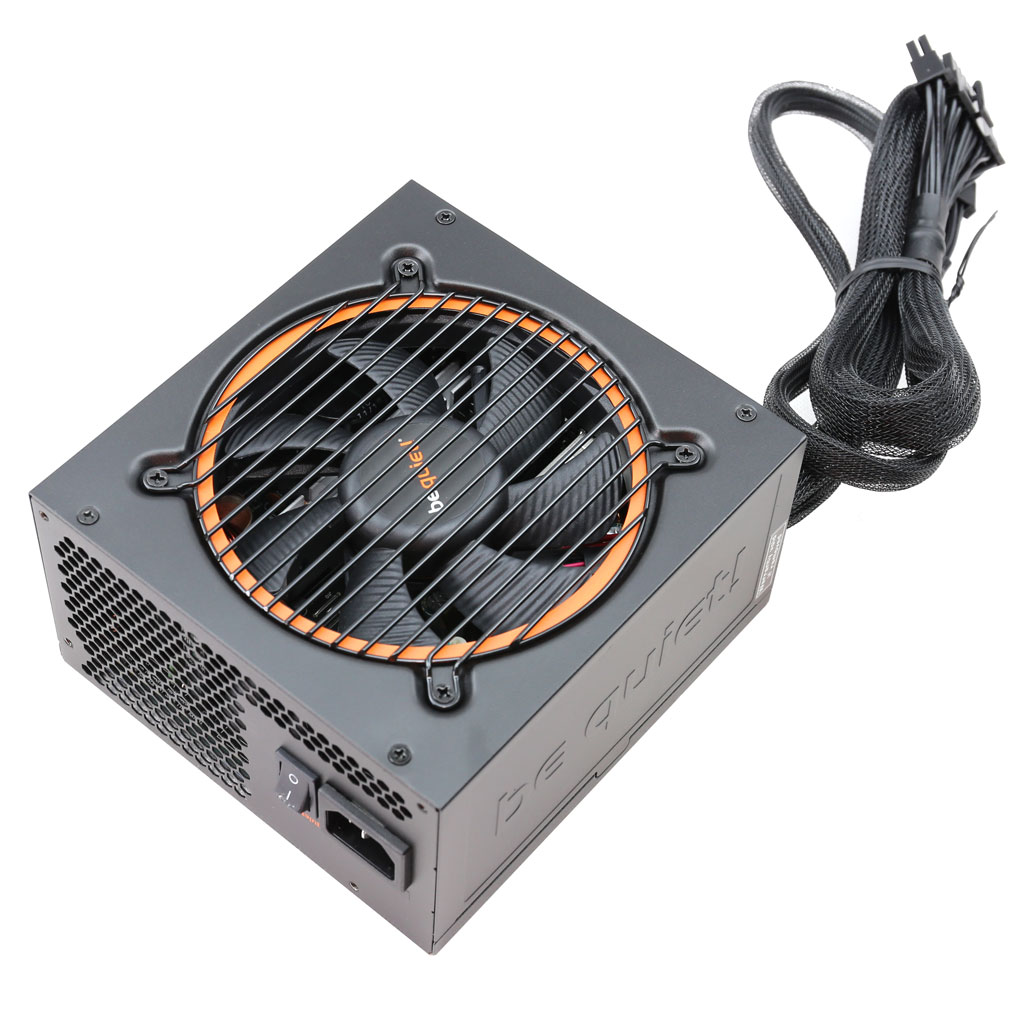

be quiet! Pure Power 10 600W

Serial Number278S7031000446

Lab ID112

Certification ID25112

Test Result Report ID: 20PS112A
Certificate Issue Date: May 20, 2018

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brand	be quiet!
Model	Pure Power 10 600W
OEM	FSP
Serial Number	278S7031000446
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)	100-240
Rated Current (Arms)	8-5
Rated Frequency (Hz)	50-60
Rated Power (W)	600
Operating Temperature (Continuous Full Load) (°C)
Type	ATX12V
Cable Design	Semi Modular
Warranty	-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling	120mm Rifle Bearing Fan (BQ QF1-12025-MS)
Semi-Passive Operation	✗
Cybenetics Testing Information
Lab ID	112
Date of receipt	May 10, 2018
Testing Date	May 16, 2018
Report Issued Date	May 20, 2018
DUT Notes	BN274
Engineer Name	-
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Native Cables
Description	Cable Count	Connector Count (Total)	Gauge
ATX connector 20+4 pin (560mm)	1	1	18-24AWG
4+4 pin EPS12V (620mm)	1	1	18AWG
Modular Cables
6+2 pin PCIe (500mm+150mm)	2	4	18AWG
SATA (500mm+150mm+150mm)	1	3	18AWG
SATA (500mm) / 4 pin Molex (+150mm+150mm)	1	1 / 2	18AWG
SATA (500mm+150mm) / 4 pin Molex (+150mm) / FDD (+150mm)	1	2 / 1 / 1	18-22AWG

Protection Features(Manufacturer)

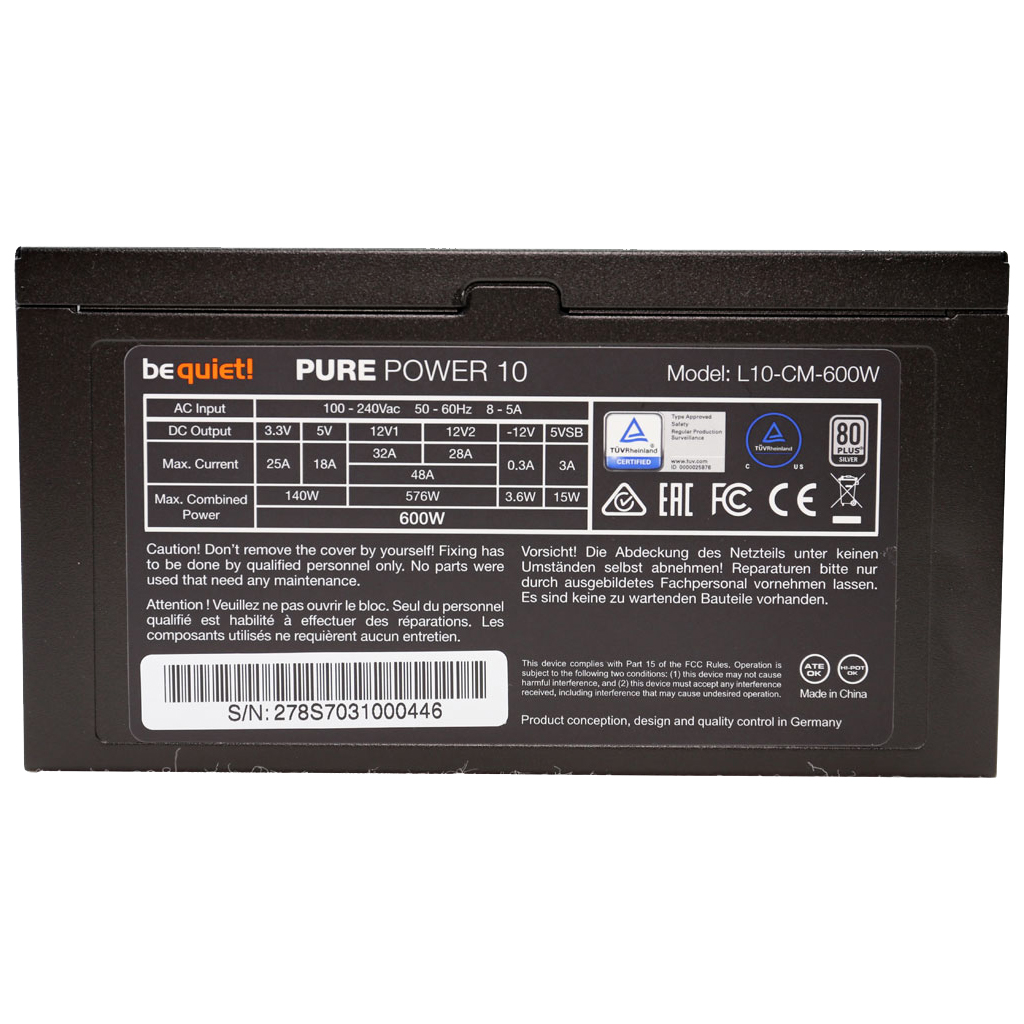

Power Specifications

Rail		3.3V	5V	12V1	12V2	5VSB	-12V
Max. Power	Amps	25	18	32	28	3	0.3
Max. Power	Watts	140		576		15	3.6
Total Max. Power (W)		600

Parts Description

General Data
Manufacturer (OEM)	FSP
Platform Model	Raider
Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x DM chocke
Inrush Protection	NTC Thermistor & Diode
Bridge Rectifier(s)	1x
APFC MOSFETS	2x JCS18N50FH (500V, 11A @ 100°C, 0.27Ohm)
APFC Boost Diode	1x STMicroelectronics STTH8R06FP (600V, 8A @ 130°C)
Hold-up Cap(s)	1x Teapo (420V, 330uF, 2000h @ 85 °C, LH)
Main Switch	1x Infineon IPA80R460CE (800V, 6.8A @ 100°C, 0.46Ohm)
Reset Switch	1x CET CEF03N8 (800V, 2A @ 100°C, 4.8 ohm)
Combo APFC/Switching Controller	FSP 6600 IC
Topology	Primary side: Active Clamp Reset Forward Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS	2x
5V & 3.3V	DC-DC Converters: 4x Infineon IPD060N03L G (30V, 50A @ 100°C, 6mOhm) PWM Controller: 2x FSP6601
Filtering Capacitors	Electrolytics: Teapo (1-3,000 @ 105°C, SC) Polymers: Teapo, 5x CapXon (modular board)
Supervisor IC	Weltrend WT7527 (OVP, UVP, OCP, SCP, PG)
Fan Model	BQ QF1-12025-MS (120mm, 12V, 0.30A, 52 CFM, 1800 RPM, Sleeve Bearing)
5VSB Circuit
Switching FET	CET CEF02N7G (700V, 1.3A @ 100°C, 6.75Ohm)
Rectifier	1x PS30U60CTR

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)	86.954%
Average Noise Output (>1450 Load Combinations)	19.64dBA
Average PF (>1450 Load Combinations)	0.988
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
Standby Power Consumption	0.0978W
Non-Accredited
12V Ripple (Full Load)	35.10mV
5V Ripple (Full Load)	29.69mV
3.3V Ripple (Full Load)	35.36mV
5VSB Ripple (Full Load)	26.02mV
12V Load Regulation	0.81%
5V Load Regulation	1.96%
3.3V Load Regulation	2.79%
5VSB Load Regulation	2.75%
Inrush Current	77.720A

Accredited
Average Efficiency (>1450 load combinations)	88.375%
Average Noise Output (>1450 Load Combinations)	20.76dBA
Average PF (>1450 Load Combinations)	0.964
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
Standby Power Consumption	0.1618W
Non-Accredited
12V Ripple (Full Load)	23.31mV
5V Ripple (Full Load)	32.25mV
3.3V Ripple (Full Load)	34.47mV
5VSB Ripple (Full Load)	18.30mV
12V Load Regulation	0.70%
5V Load Regulation	1.53%
3.3V Load Regulation	2.42%
5VSB Load Regulation	2.54%
Inrush Current	58.334A
12V Transient Response (150%)	0.00V
5V Transient Response (150%)	V
3.3V Transient Response (150%)	V
5VSB Transient Response (150%)	V
Hold-Up Time & PWR_OK Signal	22.30ms
AC Loss to PWR_OK Hold Up Time	24.00ms
PWR_OK Inactive to DC Loss Delay	-1.70ms
PSU Timings: T1 (20% / 100%)	0.0ms	0.0ms
PSU Timings: T3 (20% / 100%)	0.0ms	0.0ms
OPP (0.00°C / 0.00°C)	0.00%	0.00%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)	22.3
AC Loss to PWR_OK Hold Up Time (ms)	24
PWR_OK Inactive to DC Loss Delay (ms)	-1.7

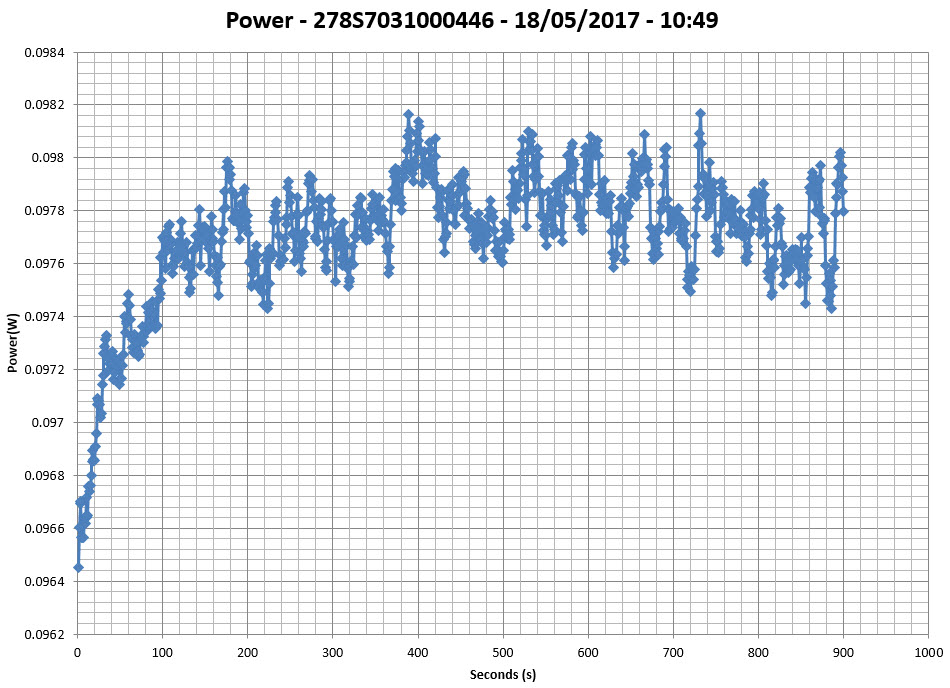

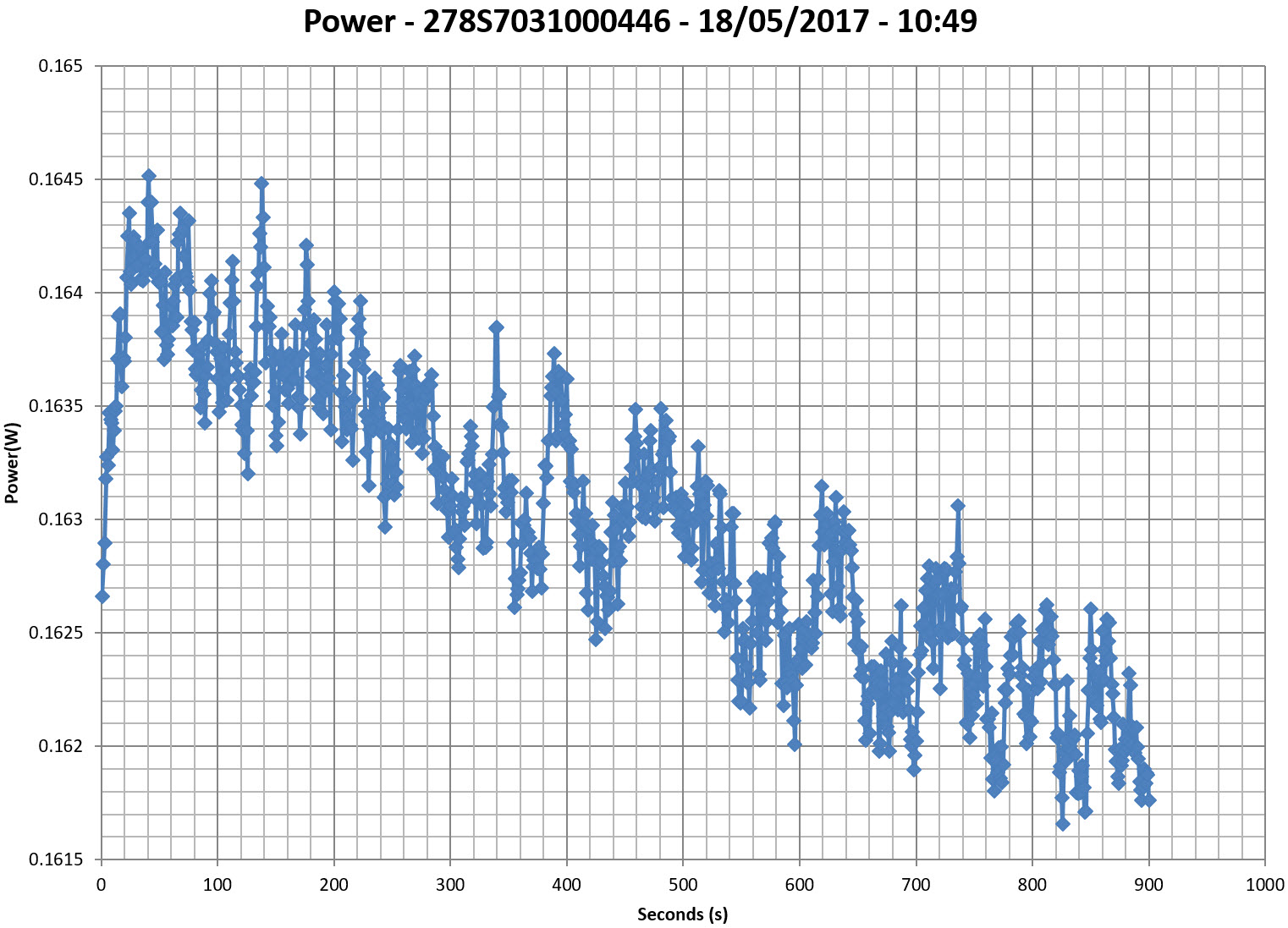

Stromverbrauch im Ruhezustand

Tables

Graphs

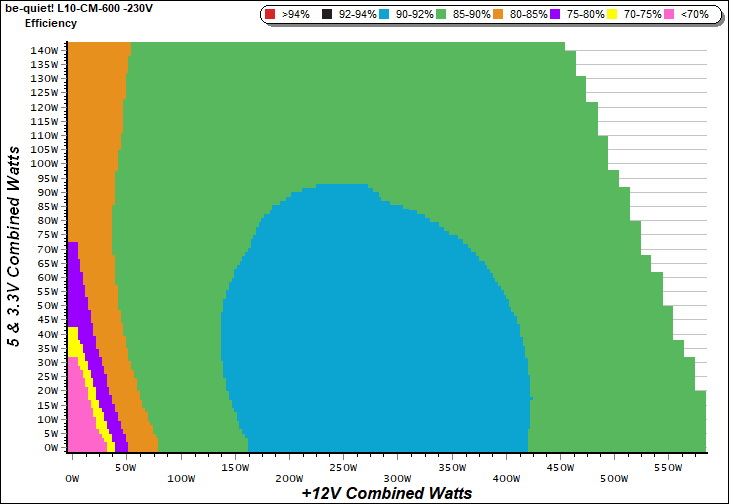

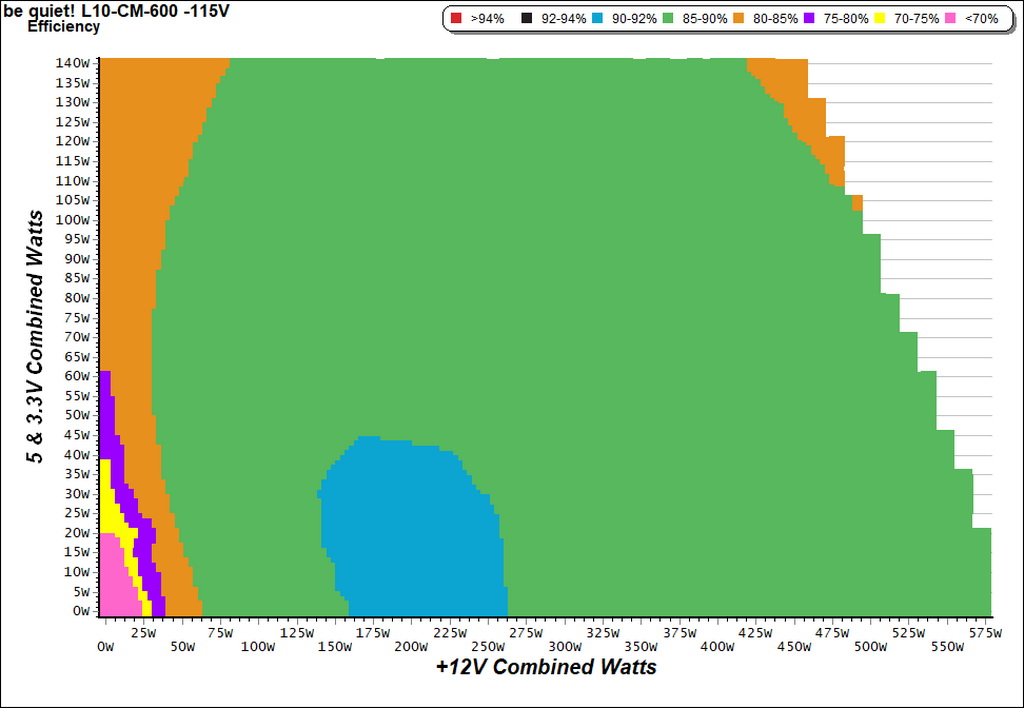

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

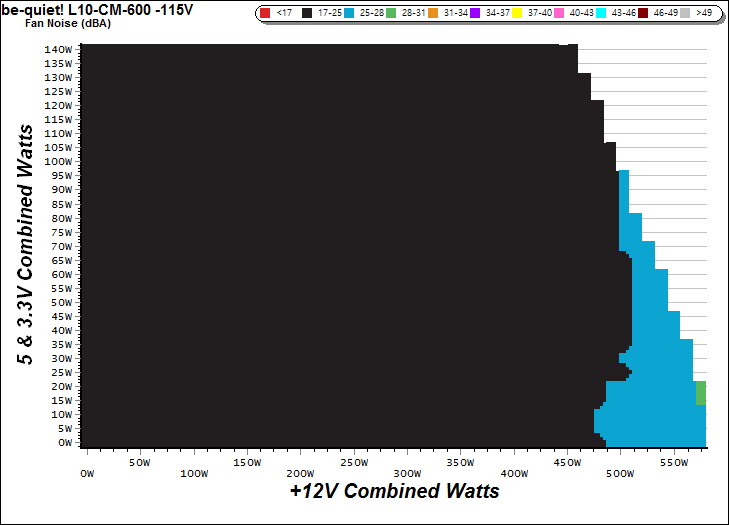

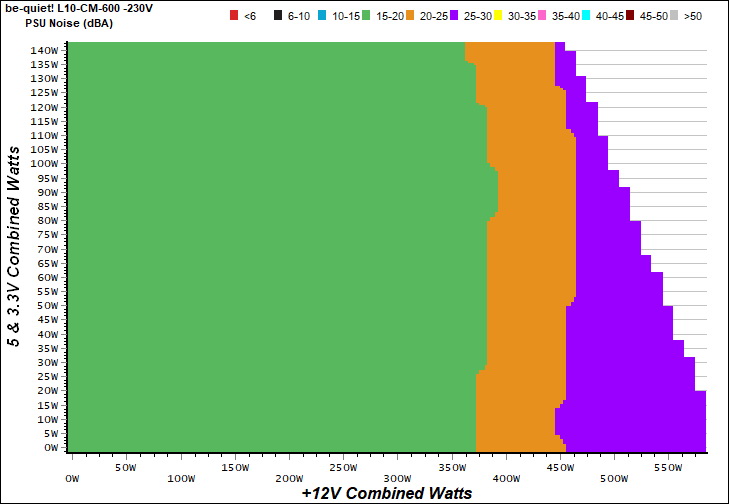

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

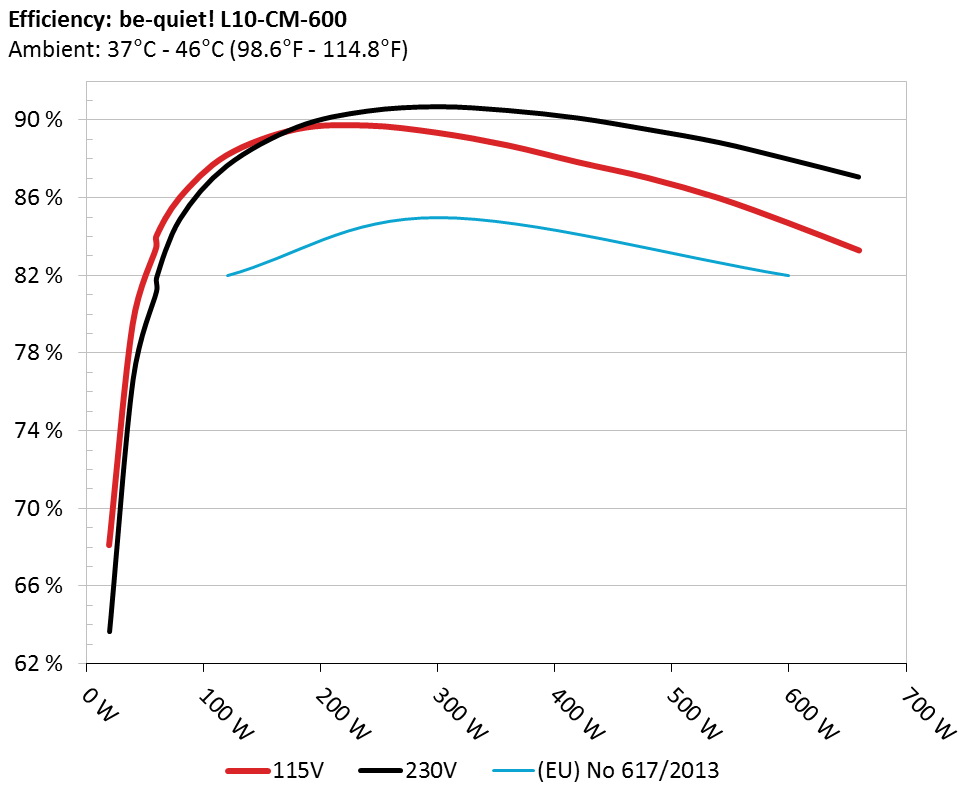

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

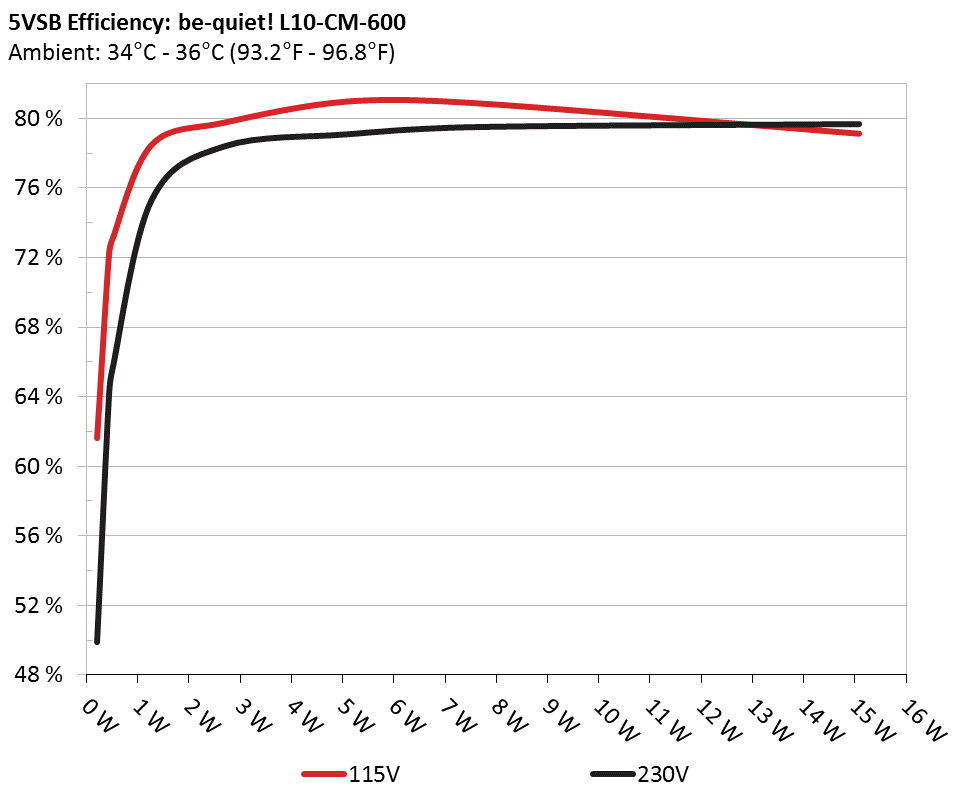

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.042A	0.212	61.628%	0.064
1	5.090V	0.344	61.628%	115.11V
2	0.087A	0.443	72.150%	0.111
2	5.089V	0.614	72.150%	115.11V
3	0.532A	2.702	79.752%	0.324
3	5.080V	3.388	79.752%	115.10V
4	1.002A	5.080	80.956%	0.378
4	5.069V	6.275	80.956%	115.10V
5	1.502A	7.597	80.862%	0.406
5	5.059V	9.395	80.862%	115.10V
6	3.001A	15.084	79.111%	0.449
6	5.026V	19.067	79.111%	115.10V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.042A	0.212	49.882%	0.024
1	5.090V	0.425	49.882%	230.30V
2	0.087A	0.443	64.017%	0.039
2	5.089V	0.692	64.017%	230.29V
3	0.532A	2.701	78.403%	0.167
3	5.080V	3.445	78.403%	230.28V
4	1.002A	5.080	79.091%	0.247
4	5.069V	6.423	79.091%	230.28V
5	1.502A	7.596	79.506%	0.295
5	5.058V	9.554	79.506%	230.28V
6	3.002A	15.083	79.678%	0.358
6	5.025V	18.930	79.678%	230.28V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	Fan Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	3.145A	1.980A	1.958A	0.985A	59.772	83.428%	568	17.4	38.23°C	0.964
1	12.147V	5.050V	3.364V	5.061V	71.645	83.428%	568	17.4	41.57°C	115.11V
2	7.327A	2.970A	2.946A	1.187A	119.772	88.196%	568	17.4	38.72°C	0.980
2	12.136V	5.042V	3.355V	5.049V	135.802	88.196%	568	17.4	42.21°C	115.11V
3	11.861A	3.481A	3.462A	1.385A	179.884	89.548%	568	17.4	39.17°C	0.987
3	12.126V	5.029V	3.344V	5.036V	200.881	89.548%	568	17.4	43.08°C	115.10V
4	16.392A	3.982A	3.949A	1.591A	239.782	89.733%	568	17.4	39.37°C	0.992
4	12.117V	5.021V	3.336V	5.024V	267.216	89.733%	568	17.4	44.21°C	115.10V
5	20.587A	4.985A	4.952A	1.796A	299.681	89.357%	568	17.4	40.19°C	0.995
5	12.107V	5.010V	3.325V	5.008V	335.376	89.357%	568	17.4	45.76°C	115.10V
6	24.800A	5.997A	5.960A	2.001A	359.724	88.708%	568	17.4	41.16°C	0.997
6	12.096V	5.000V	3.316V	4.995V	405.514	88.708%	568	17.4	47.89°C	115.11V
7	29.016A	7.014A	6.979A	2.204A	419.656	87.840%	910	19.7	41.90°C	0.998
7	12.084V	4.988V	3.304V	4.983V	477.750	87.840%	910	19.7	48.92°C	115.11V
8	33.234A	8.042A	8.003A	2.414A	479.596	87.025%	1165	22.3	42.98°C	0.998
8	12.074V	4.973V	3.291V	4.970V	551.101	87.025%	1165	22.3	49.98°C	115.10V
9	37.898A	8.554A	8.544A	2.415A	539.660	85.991%	1380	26.6	43.63°C	0.998
9	12.063V	4.965V	3.282V	4.963V	627.575	85.991%	1380	26.6	51.01°C	115.10V
10	42.307A	9.079A	9.056A	3.030A	599.494	84.694%	1600	31.6	44.44°C	0.998
10	12.053V	4.954V	3.270V	4.943V	707.836	84.694%	1600	31.6	52.52°C	115.12V
11	47.325A	9.089A	9.074A	3.034A	659.457	83.289%	1685	32.6	45.55°C	0.998
11	12.042V	4.948V	3.263V	4.940V	791.770	83.289%	1685	32.6	54.49°C	115.12V
CL1	0.101A	17.022A	17.004A	0.004A	142.348	79.857%	935	19.7	43.27°C	0.985
CL1	12.115V	4.985V	3.308V	5.040V	178.253	79.857%	935	19.7	49.27°C	115.10V
CL2	48.307A	1.003A	1.003A	1.002A	596.137	84.638%	1535	30.0	44.45°C	0.998
CL2	12.065V	4.979V	3.295V	5.005V	704.340	84.638%	1535	30.0	51.71°C	115.11V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	3.152A	1.984A	1.970A	0.987A	59.939	81.062%	590	17.4	40.30°C	0.839
1	12.166V	5.038V	3.348V	5.067V	73.942	81.062%	590	17.4	45.16°C	230.89V
2	7.303A	2.979A	2.960A	1.187A	119.665	87.581%	590	17.4	40.75°C	0.928
2	12.156V	5.033V	3.342V	5.057V	136.633	87.581%	590	17.4	46.36°C	230.85V
3	11.817A	3.486A	3.449A	1.388A	179.534	89.771%	590	17.4	41.32°C	0.955
3	12.147V	5.020V	3.332V	5.044V	199.990	89.771%	590	17.4	47.35°C	230.81V
4	16.345A	3.997A	3.973A	1.589A	239.570	90.485%	590	17.4	41.86°C	0.970
4	12.137V	5.003V	3.321V	5.034V	264.761	90.485%	590	17.4	48.57°C	230.77V
5	20.546A	5.005A	4.974A	1.793A	299.652	90.701%	568	17.4	42.03°C	0.977
5	12.127V	4.995V	3.315V	5.020V	330.374	90.701%	568	17.4	49.08°C	230.56V
6	24.751A	6.005A	5.986A	1.998A	359.742	90.458%	685	17.6	42.82°C	0.983
6	12.119V	4.994V	3.307V	5.005V	397.691	90.458%	685	17.6	50.54°C	230.69V
7	28.934A	7.019A	7.005A	2.203A	419.461	90.001%	980	19.4	43.15°C	0.987
7	12.109V	4.987V	3.297V	4.993V	466.063	90.001%	980	19.4	51.39°C	230.64V
8	33.188A	8.036A	8.034A	2.410A	479.971	89.440%	1265	23.3	43.72°C	0.988
8	12.100V	4.977V	3.286V	4.980V	536.639	89.440%	1265	23.3	52.44°C	230.60V
9	37.775A	8.550A	8.536A	2.413A	539.231	88.900%	1340	25.6	44.64°C	0.990
9	12.091V	4.971V	3.279V	4.974V	606.556	88.900%	1340	25.6	53.88°C	230.66V
10	42.213A	9.071A	9.086A	3.027A	599.671	87.942%	1632	32.3	45.79°C	0.991
10	12.081V	4.961V	3.268V	4.956V	681.897	87.942%	1632	32.3	55.43°C	230.61V
11	47.220A	9.084A	9.104A	3.030A	659.694	87.160%	1685	32.6	46.36°C	0.992
11	12.071V	4.955V	3.261V	4.951V	756.874	87.160%	1685	32.6	56.75°C	230.56V
CL1	0.128A	17.001A	16.999A	0.000A	142.553	81.193%	717	17.6	43.25°C	0.949
CL1	12.136V	4.992V	3.302V	5.050V	175.572	81.193%	717	17.6	51.47°C	230.81V
CL2	48.000A	1.000A	1.001A	1.000A	593.846	87.821%	1643	32.4	45.72°C	0.991
CL2	12.095V	4.982V	3.289V	5.012V	676.199	87.821%	1643	32.4	55.58°C	230.60V

The results above are not used in the certification process

Light Load Tests

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	Fan Noise (dB[A])	PF/AC Volts
1	1.198A	0.491A	0.472A	0.196A	19.632	68.089%	568	17.4	0.580
1	12.155V	5.057V	3.368V	5.083V	28.833	68.089%	568	17.4	115.14V
2	2.428A	0.981A	0.978A	0.390A	39.731	79.481%	568	17.4	0.745
2	12.152V	5.053V	3.364V	5.076V	49.988	79.481%	568	17.4	115.14V
3	3.659A	1.477A	1.484A	0.590A	59.887	84.020%	568	17.4	0.964
3	12.148V	5.050V	3.362V	5.069V	71.277	84.020%	568	17.4	115.14V
4	4.876A	1.978A	1.959A	0.787A	79.765	86.006%	568	17.4	0.969
4	12.141V	5.051V	3.363V	5.064V	92.743	86.006%	568	17.4	115.12V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.180A	0.495A	0.475A	0.197A	19.459	62.946%	590	17.4	0.470
1	12.174V	5.045V	3.355V	5.088V	30.914	62.946%	590	17.4	230.97V
2	2.429A	0.990A	0.983A	0.394A	39.850	76.359%	590	17.4	0.647
2	12.171V	5.041V	3.351V	5.080V	52.188	76.359%	590	17.4	230.90V
3	3.614A	1.487A	1.461A	0.591A	59.358	81.572%	590	17.4	0.836
3	12.168V	5.039V	3.348V	5.073V	72.768	81.572%	590	17.4	230.89V
4	4.858A	1.977A	1.965A	0.789A	79.687	84.162%	590	17.4	0.884
4	12.167V	5.053V	3.353V	5.071V	94.683	84.162%	590	17.4	230.76V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	6.4 mV	13.9 mV	11.0 mV	11.8 mV	Pass
20% Load	10.6 mV	17.3 mV	15.3 mV	13.4 mV	Pass
30% Load	10.5 mV	19.4 mV	17.8 mV	15.4 mV	Pass
40% Load	11.5 mV	20.1 mV	20.5 mV	16.4 mV	Pass
50% Load	13.2 mV	21.6 mV	22.2 mV	17.3 mV	Pass
60% Load	15.9 mV	22.9 mV	24.7 mV	19.0 mV	Pass
70% Load	19.5 mV	24.2 mV	27.2 mV	20.2 mV	Pass
80% Load	23.0 mV	25.4 mV	29.9 mV	21.6 mV	Pass
90% Load	28.5 mV	28.7 mV	32.6 mV	22.9 mV	Pass
100% Load	35.1 mV	29.7 mV	35.4 mV	26.0 mV	Pass
110% Load	46.9 mV	31.6 mV	38.8 mV	27.9 mV	Pass
Crossload 1	18.3 mV	24.5 mV	18.7 mV	20.2 mV	Pass
Crossload 2	31.3 mV	31.2 mV	37.8 mV	24.4 mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	6.9 mV	12.5 mV	9.3 mV	18.5 mV	Pass
20% Load	8.6 mV	14.5 mV	11.8 mV	20.5 mV	Pass
30% Load	9.2 mV	16.8 mV	14.4 mV	21.5 mV	Pass
40% Load	11.0 mV	18.3 mV	17.1 mV	22.7 mV	Pass
50% Load	11.7 mV	20.0 mV	18.9 mV	13.9 mV	Pass
60% Load	12.7 mV	25.4 mV	21.9 mV	14.7 mV	Pass
70% Load	14.9 mV	28.1 mV	24.0 mV	18.3 mV	Pass
80% Load	20.0 mV	28.1 mV	27.7 mV	19.5 mV	Pass
90% Load	22.0 mV	28.2 mV	30.1 mV	19.5 mV	Pass
100% Load	23.3 mV	32.3 mV	34.5 mV	18.3 mV	Pass
110% Load	26.4 mV	32.7 mV	38.1 mV	19.7 mV	Pass
Crossload 1	10.0 mV	25.9 mV	21.7 mV	22.7 mV	Pass
Crossload 2	24.4 mV	30.1 mV	31.1 mV	21.7 mV	Pass

The results above are not used in the certification process

be quiet! Pure Power 10 600W

Top side

Power specifications label
