CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

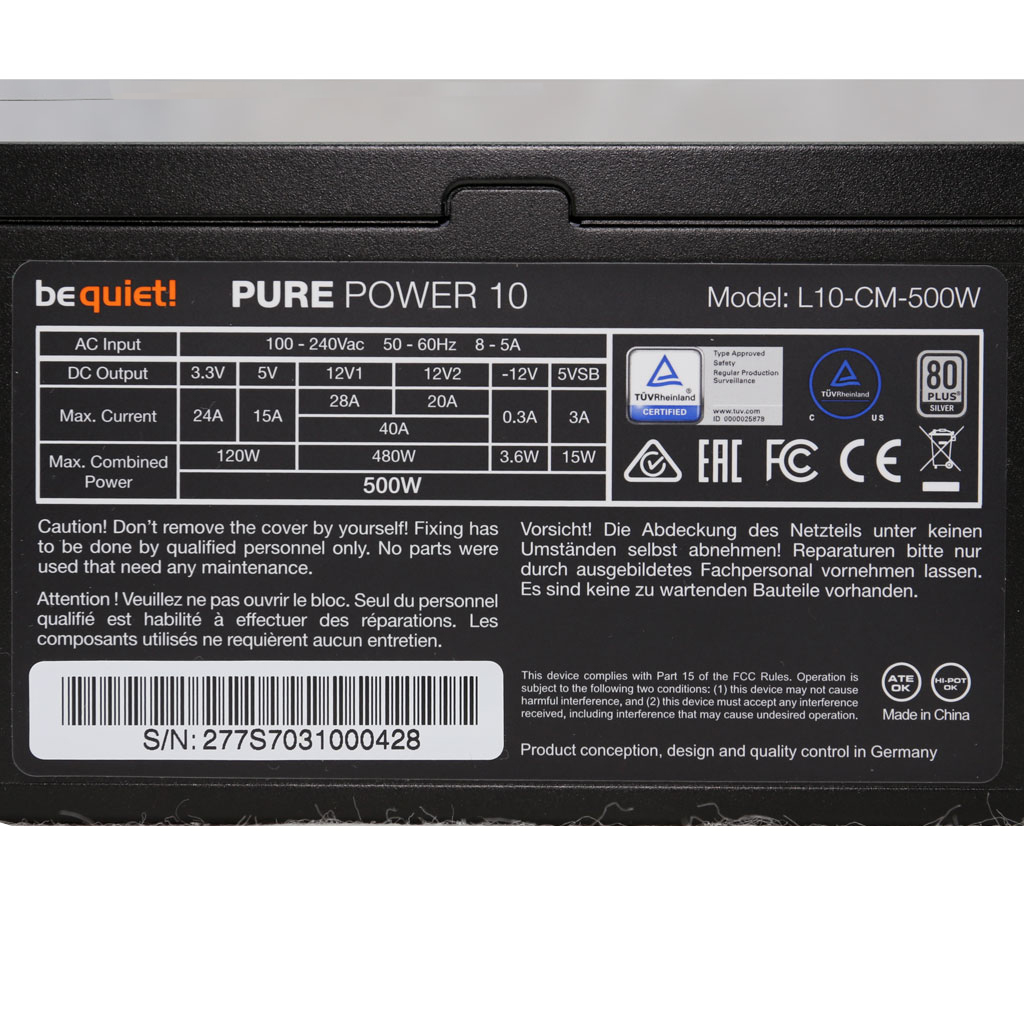

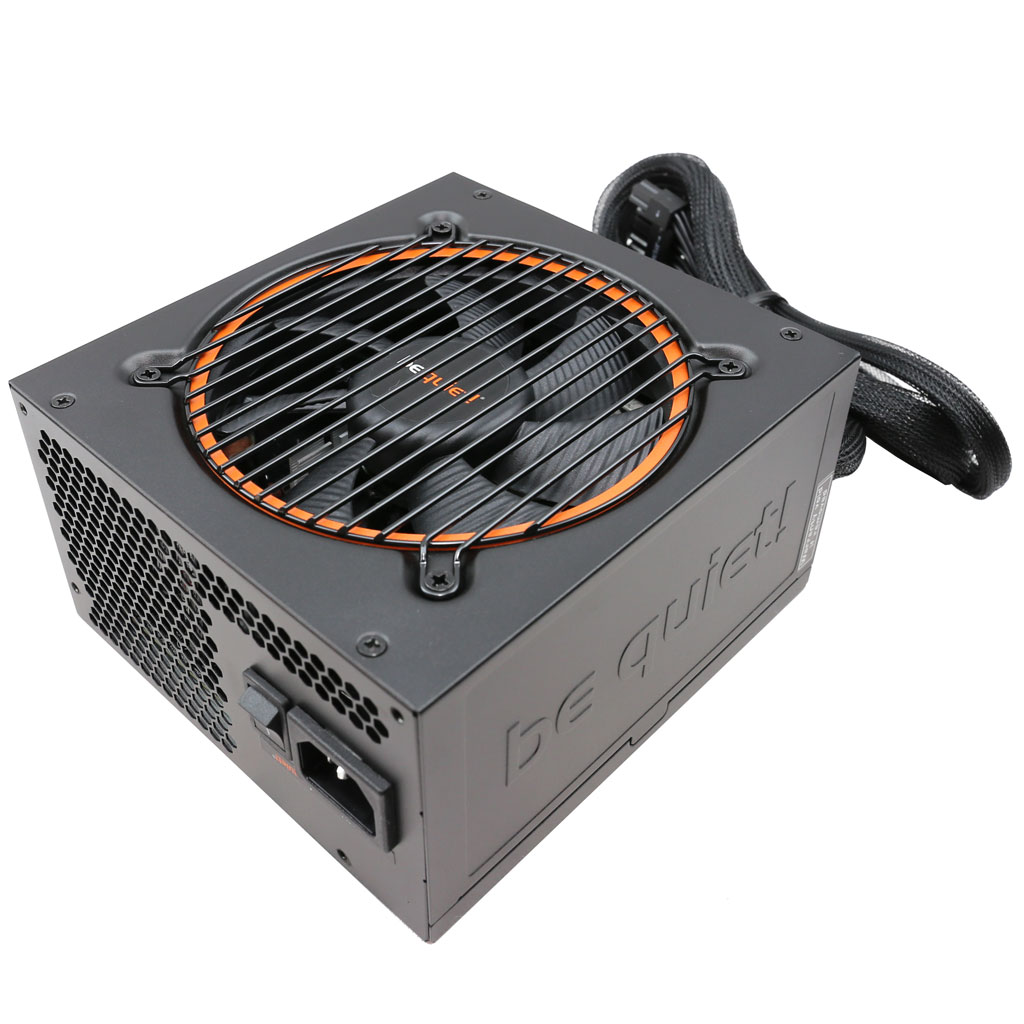

Be quiet! Pure Power 10 500W
Serial Number277S7031000428
Lab ID115
Certification ID25115
  • Test Result Report ID: 20PS115A
  • Certificate Issue Date: May 27, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brandbe quiet!
製造商 (OEM)FSP
SeriesPure Power 10
Model NumberL10-CM-500
Serial Number277S7031000428
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)8-5
Rated Frequency (Hz)50-60
Rated Power (W)500
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Rifle Bearing Fan
(BQ QF1-12025-MS)
Semi-Passive Operation✗
Cable DesignSemi Modular

Power Specifications

Rail 3.3V 5V 12V1 12V2 5VSB -12V
Max. Power Amps 25 15 28 20 3 0.3
Watts 120 480 15 3.6
Total Max. Power (W) 500

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Native Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (560mm) 1 1 18-24AWG
4+4 pin EPS12V (610mm) 1 1 18AWG
Modular Cables
6+2 pin PCIe (500mm) 2 2 18AWG
SATA (500mm+150mm+150mm) 1 3 18AWG
SATA (500mm) / 4 pin Molex (+150mm+150mm) 1 1 / 2 18AWG
SATA (500mm+150mm) / 4 pin Molex (+150mm) / FDD (+150mm) 1 2 / 1 / 1 18-22AWG

Parts Description

General Data
Manufacturer (OEM) CWT
Platform Model -
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Diode
Bridge Rectifier(s) 2x GBU1006 (600V, 10A @ 100°C)
APFC MOSFETS 2x Infineon IPW50R280CE (550V, 11.4A @ 100°C, 0.28Ohm)
APFC Boost Diode 1x Power Integrations QH08TZ600 (600V, 8A @ 150°C)
Hold-up Cap(s) 1x Nichicon (400V, 390uF, 2000h @ 105 °C, GG)
Main Switchers 2x Vishay SiHG20N50C
(560V, 11A @ 100°C, 0.27Ohm)
Combo APFC/PWM Controller Champion CM6800TX & CM03X Green PFC controller
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x APEC AP9990GH-HF (60V, 100A @ 25°C, 6mOhm)
5V & 3.3V DC-DC Converters: 6x APEC AP72T03GP (30V, 47A @ 100°C, 9.5mOhm)
PWM Controller: APW7159C
Filtering Capacitors Electrolytics: Nippon Chemi-Con (1-5,000 @ 105°C, KZE), Su' scon (2-5,000h @ 105°C, MF), TAICON (105°C)
Polymers: APAQ, EneSol
Supervisor IC Weltrend WT7502 (OVP, UVP, SCP, PG)
Fan Model Power Logic PLA13525S12M (12V, 0.40A, 111.1CFM, 41.6 dBA, Hydro Dynamic Bearing)
5VSB Circuit
Rectifier 1x MBR2045CT SBR (45V, 20A) & CEF04N7G (700V, 4A, 3.3Ohm)
Standby PWM Controller On-Bright OB5269CP
-12V Circuit
Rectifier UTC 2SB834L

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

效率評比GOLD
噪音評比A
Average Efficiency (>1450 load combinations)87.174%
Average Noise Output (>1450 Load Combinations)20.46dBA
Average PF (>1450 Load Combinations)0.993
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1006W
12V Ripple (Full Load)33.15mV
5V Ripple (Full Load)24.21mV
3.3V Ripple (Full Load)36.43mV
5VSB Ripple (Full Load)25.93mV
12V Load Regulation0.78%
5V Load Regulation1.88%
3.3V Load Regulation2.79%
5VSB Load Regulation2.56%
Inrush Current77.898A
效率評比SILVER
噪音評比A+
Average Efficiency (>1450 load combinations)88.498%
Average Noise Output (>1450 Load Combinations)19.66dBA
Average PF (>1450 Load Combinations)0.970
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1611W
12V Ripple (Full Load)25.75mV
5V Ripple (Full Load)26.07mV
3.3V Ripple (Full Load)37.52mV
5VSB Ripple (Full Load)20.59mV
12V Load Regulation0.56%
5V Load Regulation1.57%
3.3V Load Regulation2.32%
5VSB Load Regulation2.39%
Inrush Current62.069A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal22.80ms
AC Loss to PWR_OK Hold Up Time24.60ms
PWR_OK Inactive to DC Loss Delay-1.80ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.8
AC Loss to PWR_OK Hold Up Time (ms)24.6
PWR_OK Inactive to DC Loss Delay (ms)-1.8

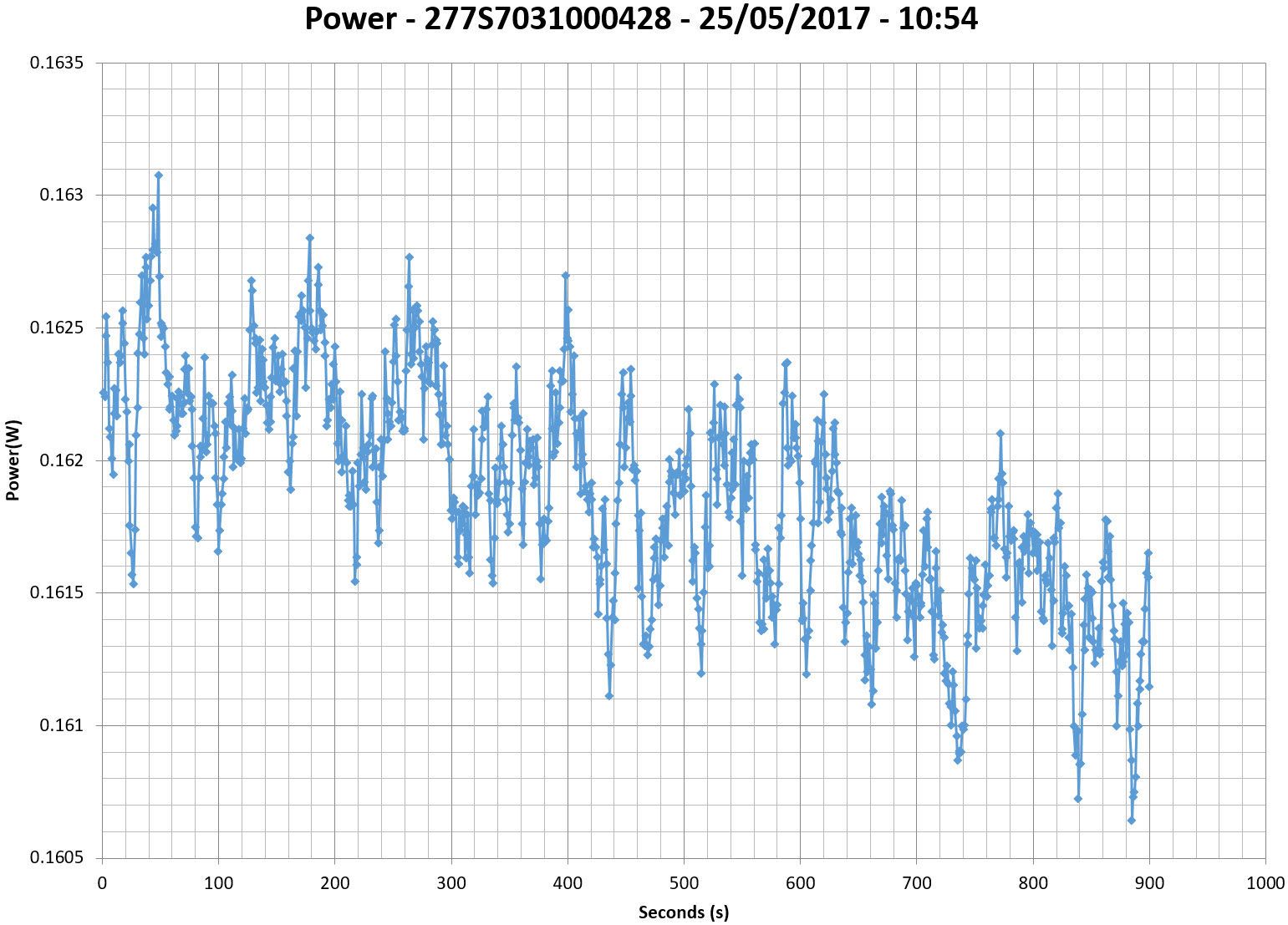

待機電源消耗

Tables

Graphs

INFO

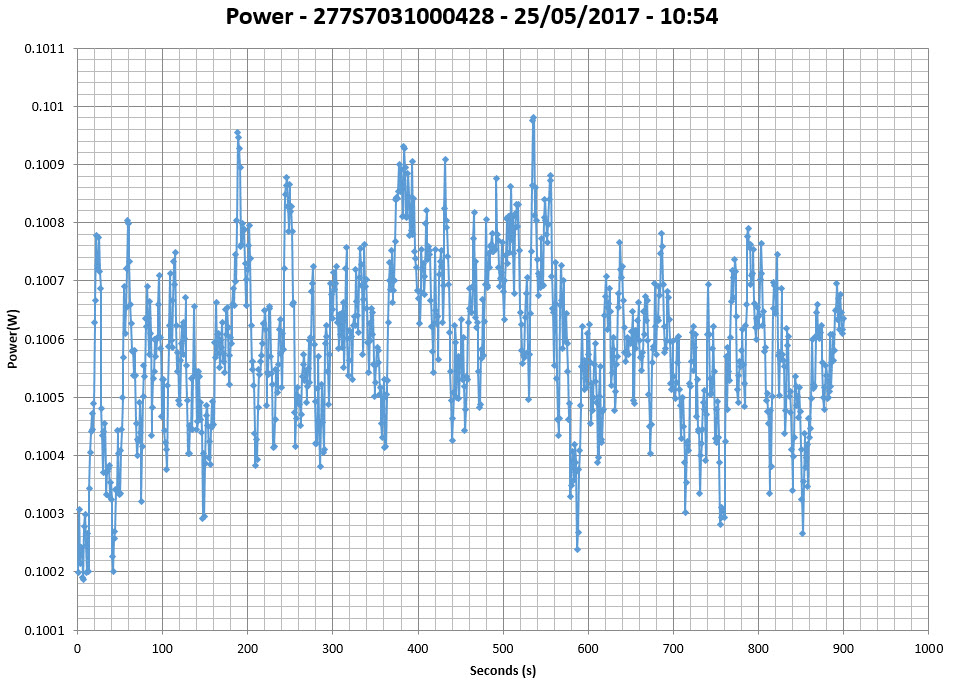

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

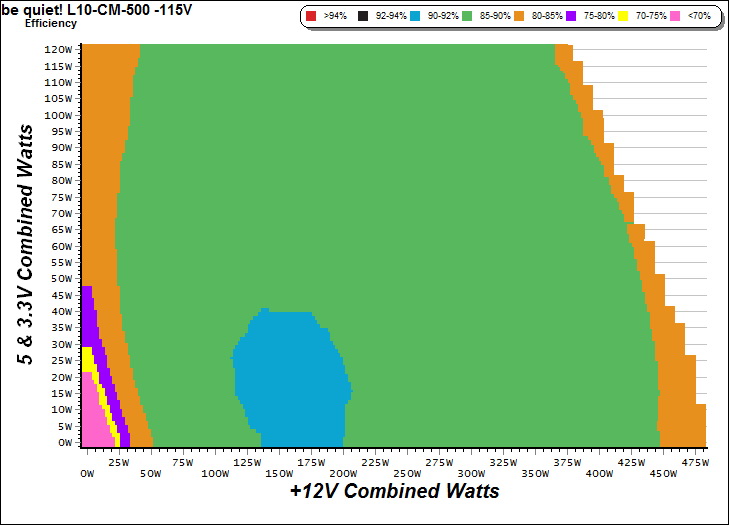

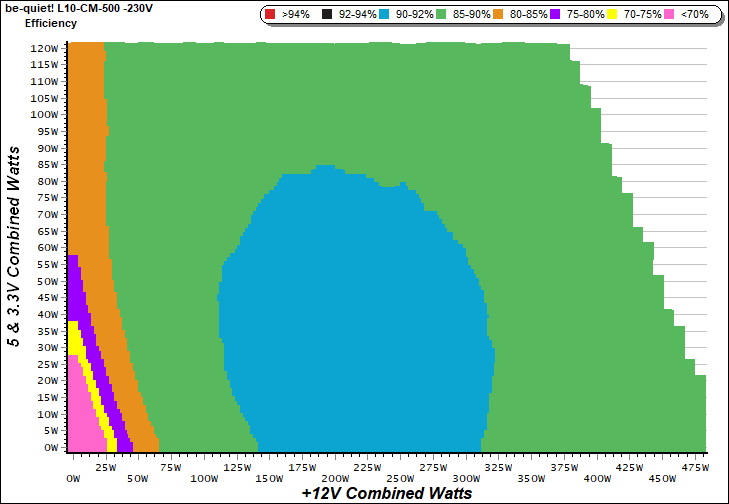

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

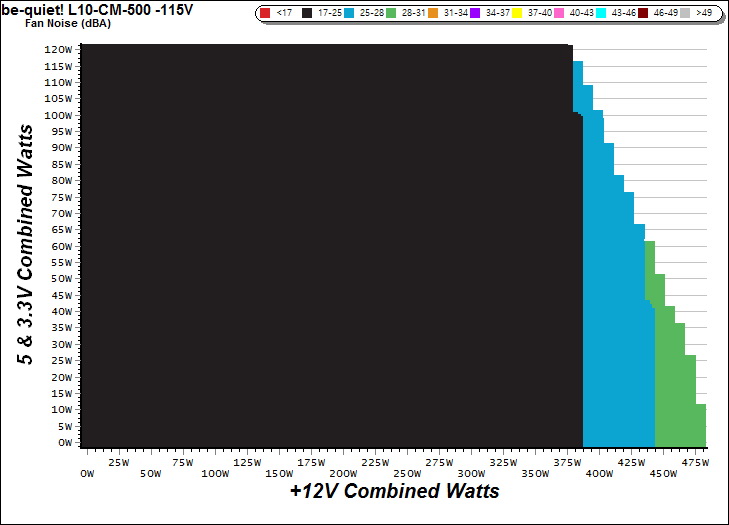

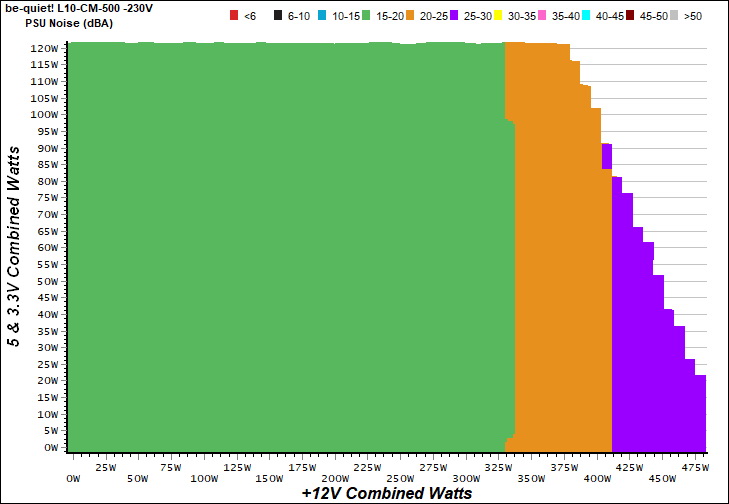

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

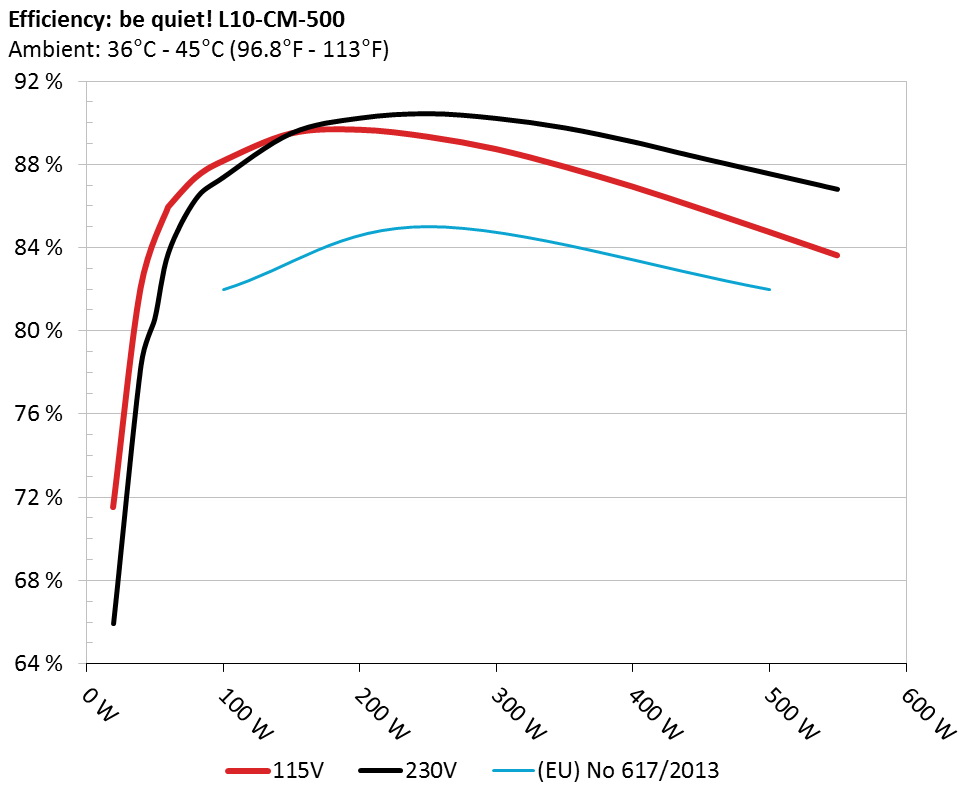

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

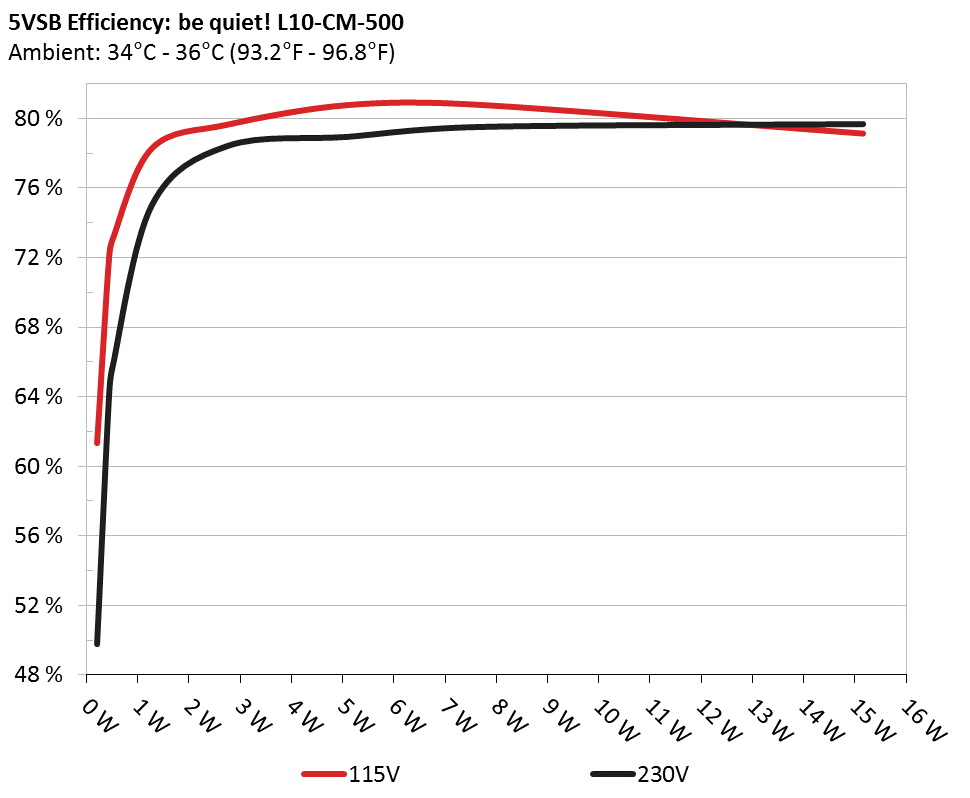

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.041A 0.211 61.337% 0.065
5.115V 0.344 115.14V
2 0.087A 0.444 71.961% 0.112
5.115V 0.617 115.14V
3 0.542A 2.765 79.660% 0.329
5.104V 3.471 115.13V
4 1.002A 5.103 80.782% 0.382
5.095V 6.317 115.13V
5 1.502A 7.634 80.800% 0.410
5.084V 9.448 115.13V
6 3.001A 15.161 79.141% 0.455
5.052V 19.157 115.13V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.213 49.766% 0.025
5.116V 0.428 230.31V
2 0.087A 0.445 64.029% 0.040
5.115V 0.695 230.31V
3 0.542A 2.767 78.452% 0.171
5.105V 3.527 230.32V
4 1.002A 5.104 78.973% 0.250
5.095V 6.463 230.32V
5 1.502A 7.634 79.537% 0.297
5.084V 9.598 230.31V
6 3.001A 15.162 79.704% 0.359
5.052V 19.023 230.31V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.324A 1.978A 1.958A 0.981A 49.781 83.194% 568 17.4 38.03°C 0.966
12.138V 5.051V 3.365V 5.089V 59.837 40.83°C 115.13V
2 5.683A 2.970A 2.943A 1.181A 99.764 88.156% 568 17.4 38.46°C 0.984
12.126V 5.041V 3.358V 5.079V 113.168 41.58°C 115.12V
3 9.393A 3.476A 3.458A 1.379A 149.876 89.487% 568 17.4 38.50°C 0.990
12.117V 5.033V 3.349V 5.066V 167.484 41.81°C 115.12V
4 13.098A 3.979A 3.945A 1.579A 199.758 89.663% 568 17.4 39.01°C 0.994
12.109V 5.024V 3.341V 5.056V 222.788 42.67°C 115.12V
5 16.471A 4.980A 4.948A 1.783A 249.714 89.325% 568 17.4 39.96°C 0.997
12.099V 5.013V 3.330V 5.042V 279.557 43.86°C 115.12V
6 19.852A 5.996A 5.957A 1.985A 299.734 88.735% 568 17.4 41.14°C 0.998
12.089V 5.003V 3.317V 5.030V 337.787 45.53°C 115.12V
7 23.236A 7.010A 6.978A 2.190A 349.689 87.890% 765 17.7 41.64°C 0.998
12.078V 4.991V 3.306V 5.018V 397.870 46.20°C 115.13V
8 26.630A 8.033A 8.004A 2.394A 399.674 86.930% 1040 20.2 42.65°C 0.998
12.067V 4.978V 3.293V 5.006V 459.764 47.45°C 115.13V
9 30.452A 8.549A 8.539A 2.399A 449.672 85.864% 1235 24.3 43.02°C 0.999
12.057V 4.969V 3.284V 4.998V 523.704 48.96°C 115.13V
10 34.028A 9.072A 9.059A 3.009A 499.521 84.760% 1280 24.7 44.13°C 0.999
12.046V 4.959V 3.273V 4.979V 589.334 51.11°C 115.13V
11 38.198A 9.083A 9.075A 3.015A 549.423 83.635% 1300 25.0 44.70°C 0.999
12.037V 4.953V 3.267V 4.974V 656.929 51.92°C 115.13V
CL1 0.102A 14.025A 14.004A 0.005A 117.794 81.997% 855 18.2 42.54°C 0.988
12.111V 4.998V 3.316V 5.074V 143.657 45.64°C 115.13V
CL2 39.958A 1.003A 1.004A 1.001A 495.376 84.749% 1085 21.4 42.85°C 0.999
12.063V 4.987V 3.300V 5.042V 584.522 47.20°C 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.326A 1.984A 1.965A 0.981A 49.816 80.490% 568 17.4 40.29°C 0.858
12.140V 5.039V 3.352V 5.092V 61.891 43.76°C 230.24V
2 5.682A 2.970A 2.954A 1.181A 99.761 87.447% 568 17.4 40.80°C 0.932
12.131V 5.034V 3.345V 5.081V 114.082 44.60°C 230.24V
3 9.389A 3.488A 3.474A 1.376A 149.909 89.555% 568 17.4 41.23°C 0.958
12.124V 5.017V 3.336V 5.079V 167.393 45.31°C 230.25V
4 13.090A 3.984A 3.956A 1.581A 199.794 90.284% 568 17.4 41.75°C 0.972
12.118V 5.018V 3.331V 5.060V 221.295 46.28°C 230.24V
5 16.461A 4.983A 4.959A 1.781A 249.799 90.488% 568 17.4 42.22°C 0.979
12.111V 5.010V 3.322V 5.054V 276.057 47.27°C 230.24V
6 19.828A 6.002A 5.972A 1.985A 299.797 90.230% 615 17.4 42.85°C 0.984
12.105V 4.999V 3.312V 5.036V 332.257 48.75°C 230.24V
7 23.205A 7.015A 6.988A 2.186A 349.738 89.749% 855 18.2 43.39°C 0.987
12.097V 4.987V 3.300V 5.024V 389.685 49.89°C 230.24V
8 26.584A 8.035A 8.010A 2.394A 399.708 89.229% 1040 20.2 43.90°C 0.990
12.088V 4.978V 3.292V 5.010V 447.957 50.81°C 230.25V
9 30.392A 8.547A 8.541A 2.396A 449.716 88.601% 1165 22.3 44.02°C 0.990
12.081V 4.972V 3.285V 5.007V 507.575 51.41°C 230.25V
10 33.952A 9.065A 9.048A 3.005A 499.583 87.879% 1380 26.6 45.04°C 0.991
12.074V 4.965V 3.277V 4.988V 568.490 52.82°C 230.25V
11 38.111A 9.065A 9.052A 3.008A 549.574 87.096% 1440 27.9 46.01°C 0.993
12.069V 4.963V 3.274V 4.982V 630.995 54.53°C 230.26V
CL1 0.102A 14.027A 14.004A 0.005A 117.861 83.080% 568 17.4 43.08°C 0.950
12.115V 5.002V 3.316V 5.084V 141.864 50.47°C 230.26V
CL2 39.967A 1.003A 1.003A 1.002A 496.693 87.277% 1380 26.6 45.57°C 0.992
12.093V 4.990V 3.302V 5.045V 569.099 53.71°C 230.27V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) PF/AC Volts
1 1.200A 0.491A 0.472A 0.196A 19.651 71.544% 590 17.4 0.914
12.146V 5.058V 3.370V 5.110V 27.467 115.12V
2 2.427A 0.980A 0.980A 0.391A 39.713 82.052% 590 17.4 0.951
12.141V 5.054V 3.367V 5.102V 48.400 115.12V
3 3.660A 1.477A 1.484A 0.587A 59.858 85.953% 568 17.4 0.971
12.136V 5.050V 3.363V 5.095V 69.640 115.12V
4 4.880A 1.983A 1.958A 0.785A 79.792 87.358% 568 17.4 0.977
12.131V 5.048V 3.364V 5.089V 91.339 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.202A 0.491A 0.475A 0.196A 19.671 65.981% 590 17.4 0.703
12.146V 5.044V 3.356V 5.112V 29.813 230.26V
2 2.430A 0.989A 0.982A 0.391A 39.781 78.428% 568 17.4 0.825
12.143V 5.041V 3.353V 5.104V 50.723 230.26V
3 3.661A 1.475A 1.491A 0.586A 59.856 83.817% 568 17.4 0.878
12.139V 5.039V 3.350V 5.099V 71.413 230.25V
4 4.880A 1.984A 1.968A 0.786A 79.813 86.431% 568 17.4 0.910
12.137V 5.036V 3.349V 5.092V 92.343 250.00V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.2 mV 11.5 mV 11.4 mV 11.9 mV Pass
20% Load 13.5 mV 16.2 mV 17.6 mV 15.7 mV Pass
30% Load 14.0 mV 15.4 mV 18.0 mV 14.4 mV Pass
40% Load 15.2 mV 16.7 mV 21.8 mV 15.4 mV Pass
50% Load 16.3 mV 18.7 mV 23.4 mV 16.8 mV Pass
60% Load 18.6 mV 19.1 mV 24.7 mV 18.0 mV Pass
70% Load 21.2 mV 18.5 mV 27.0 mV 19.2 mV Pass
80% Load 24.2 mV 20.0 mV 30.2 mV 22.1 mV Pass
90% Load 28.2 mV 22.5 mV 32.4 mV 22.4 mV Pass
100% Load 33.2 mV 24.2 mV 36.4 mV 25.9 mV Pass
110% Load 39.9 mV 24.7 mV 38.4 mV 26.5 mV Pass
Crossload 1 19.0 mV 18.3 mV 21.3 mV 16.7 mV Pass
Crossload 2 30.0 mV 23.2 mV 37.2 mV 23.7 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 7.4 mV 13.3 mV 13.1 mV 13.1 mV Pass
20% Load 10.0 mV 12.7 mV 17.4 mV 14.6 mV Pass
30% Load 10.1 mV 15.6 mV 17.6 mV 14.6 mV Pass
40% Load 9.7 mV 15.4 mV 18.9 mV 15.1 mV Pass
50% Load 10.8 mV 15.8 mV 21.1 mV 15.9 mV Pass
60% Load 11.3 mV 16.5 mV 48.0 mV 26.8 mV Pass
70% Load 13.5 mV 19.1 mV 27.3 mV 18.4 mV Pass
80% Load 14.2 mV 20.3 mV 28.0 mV 20.5 mV Pass
90% Load 22.1 mV 23.0 mV 32.5 mV 20.7 mV Pass
100% Load 25.8 mV 26.1 mV 37.5 mV 20.6 mV Pass
110% Load 27.9 mV 26.0 mV 40.1 mV 20.5 mV Pass
Crossload 1 10.6 mV 18.4 mV 19.7 mV 23.2 mV Pass
Crossload 2 23.7 mV 24.5 mV 36.2 mV 20.8 mV Pass

The results above are not used in the certification process

Be quiet! Pure Power 10 500W

Top side
Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
