CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

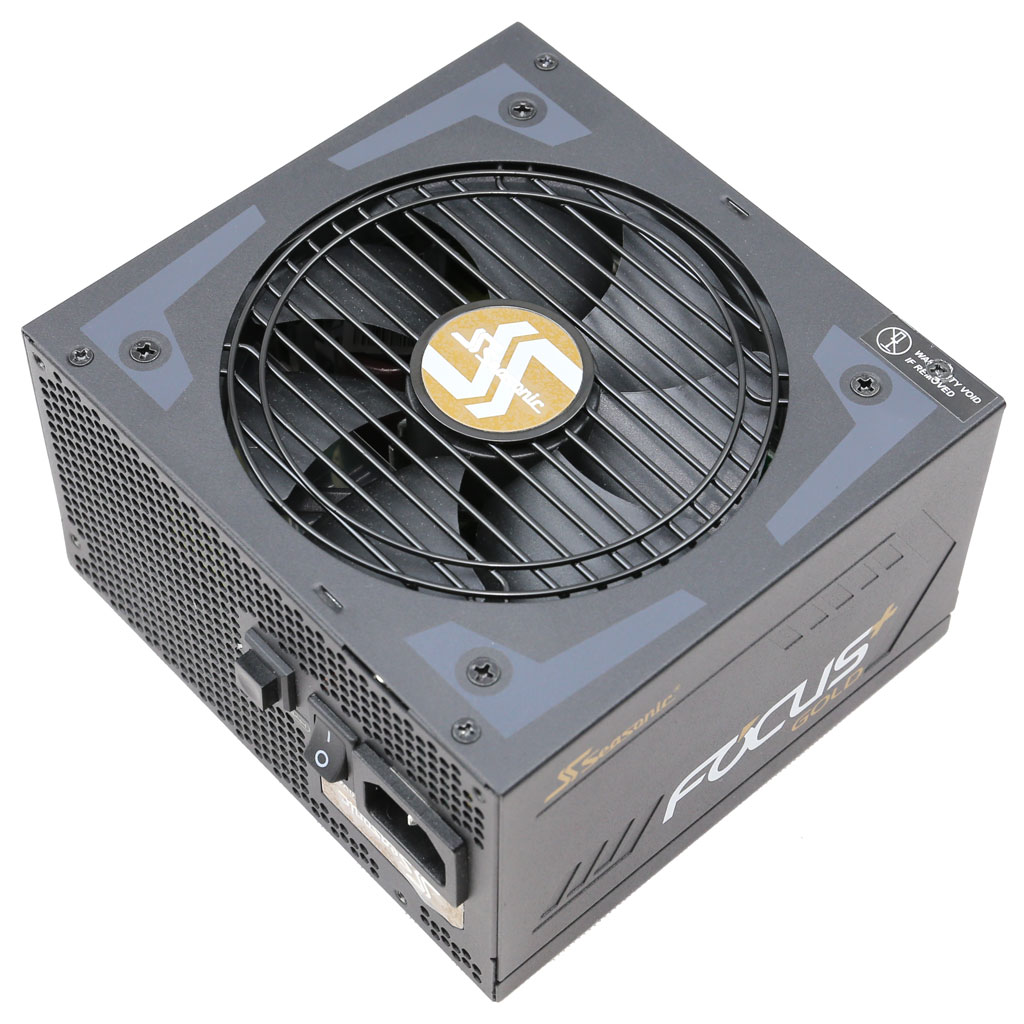

Seasonic Focus Plus Gold 550W
Serial NumberR1705AA135750743
Lab ID133
Certification ID25133
  • Test Result Report ID: 19PS133A
  • Certificate Issue Date: Jun 29, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandSeasonic
ModelFocus Plus Gold 550W
OEMSeasonic
Serial NumberR1705AA135750743
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)100-240
Rated Current (Arms)8-4
Rated Frequency (Hz)50-60
Rated Power (W)550
Operating Temperature (Continuous Full Load) (°C)
TypeATX12V
Cable DesignFully Modular
Warranty-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling120mm Fluid Dynamic Bearing Fan
(HA1225H12F-Z)
Semi-Passive Operation✓ (selectable)
Cybenetics Testing Information
Lab ID133
Date of receiptJun 21, 2018
Testing DateJun 25, 2018
Report Issued DateJun 29, 2018
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (610mm) 1 1 18-22AWG
4+4 pin EPS12V (655mm) 1 1 18AWG
6+2 pin PCIe (680mm+80mm) 1 2 18AWG
SATA (460mm+115mm+115mm+115mm) 1 4 18AWG
SATA (460mm+120mm) 1 2 18AWG
4 pin Molex (460mm+120mm+120mm) 1 3 18AWG
FDD Adapter (+110mm) 1 1 22AWG

Protection Features(Manufacturer)

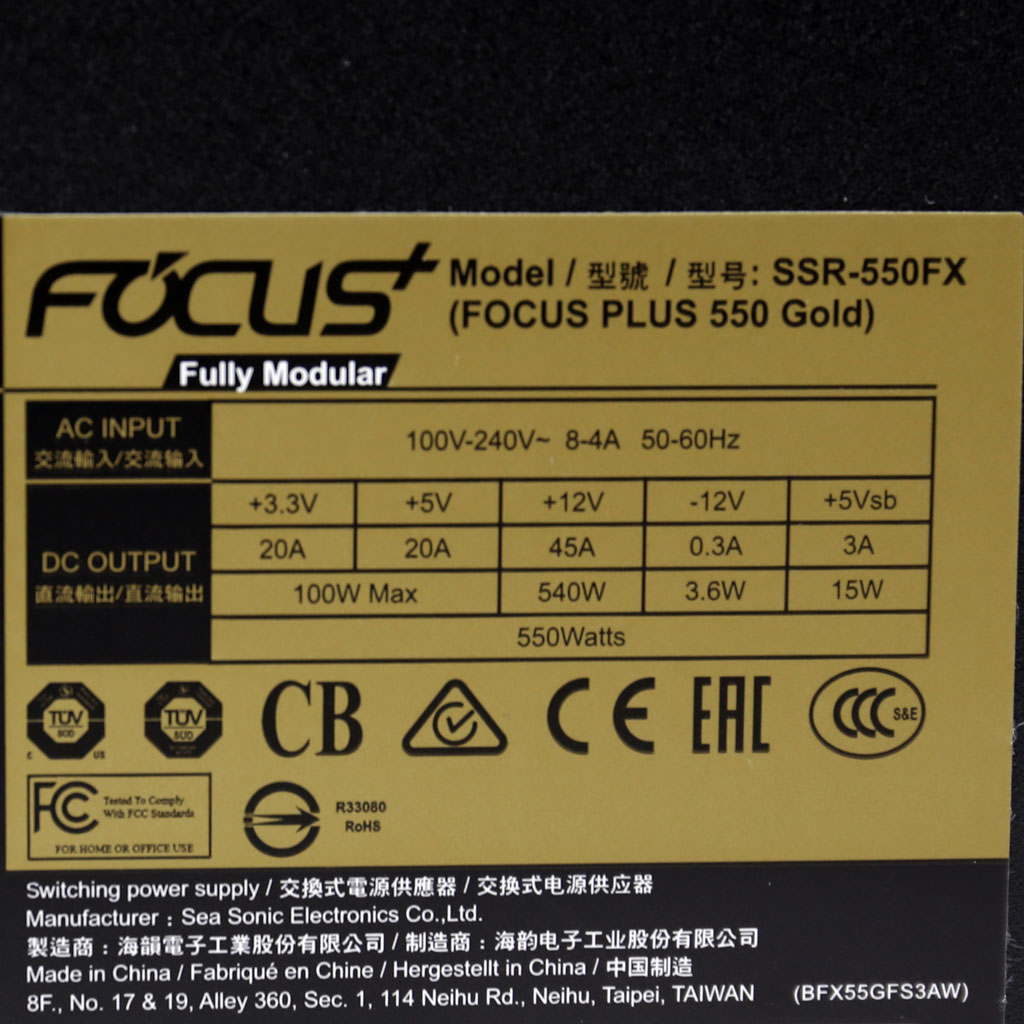

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 45 3 0.3
Watts 100 540 15 3.6
Total Max. Power (W) 550

Parts Description

General Data
Manufacturer (OEM) Seasonic
Platform Model FX
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Diode
Bridge Rectifier(s) 2x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETS 2x UTC GPT18N50DG (500V, 18A @ 100°C, 0.265Ohm)
APFC Boost Diode 1x STMicroelectronics STTH8S06D (600V, 8A @ 125°C)
Hold-up Cap(s) 1x Nippon Chemi-Con (400V, 560uF, 2000h @ 105°C, CE)
Main Switchers 4x UTC GBT10N50ADG
(500V, 10A @ 25°C, 0.61Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CM6901T6X
Topology Primary side: Full-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Nexperia PSMN2R6-40YS (40V, 100A @ 25°C, 2.8mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm)
PWM Controller: APW7159
Filtering Capacitors Electrolytics: Chemi-Con (1-5,000 @ 105°C, KZE), Chemi-Con (4-10,000 @ 105°C, KY), W
Polymers: Chemi-Con
Supervisor IC Weltrend WT7527V (OVP, UVP, OCP, SCP, PG)
Fan Model Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, 2200 RPM, Fluid Dynamic Bearing)
5VSB Circuit
Standby PWM Controller Excelliance EM8569

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)88.048%
Average Noise Output (>1450 Load Combinations)23.19dBA
Average PF (>1450 Load Combinations)0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0456W
Non-Accredited
12V Ripple (Full Load)24.83mV
5V Ripple (Full Load)12.48mV
3.3V Ripple (Full Load)12.30mV
5VSB Ripple (Full Load)9.31mV
12V Load Regulation0.07%
5V Load Regulation0.46%
3.3V Load Regulation0.12%
5VSB Load Regulation3.04%
Inrush Current41.972A
Accredited
Average Efficiency (>1450 load combinations)90.768%
Average Noise Output (>1450 Load Combinations)18.68dBA
Average PF (>1450 Load Combinations)0.926
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0756W
Non-Accredited
12V Ripple (Full Load)22.87mV
5V Ripple (Full Load)13.50mV
3.3V Ripple (Full Load)13.51mV
5VSB Ripple (Full Load)7.95mV
12V Load Regulation0.11%
5V Load Regulation0.32%
3.3V Load Regulation0.54%
5VSB Load Regulation2.67%
Inrush Current54.244A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & PWR_OK Signal23.70ms
AC Loss to PWR_OK Hold Up Time19.50ms
PWR_OK Inactive to DC Loss Delay4.20ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)23.7
AC Loss to PWR_OK Hold Up Time (ms)19.5
PWR_OK Inactive to DC Loss Delay (ms)4.2

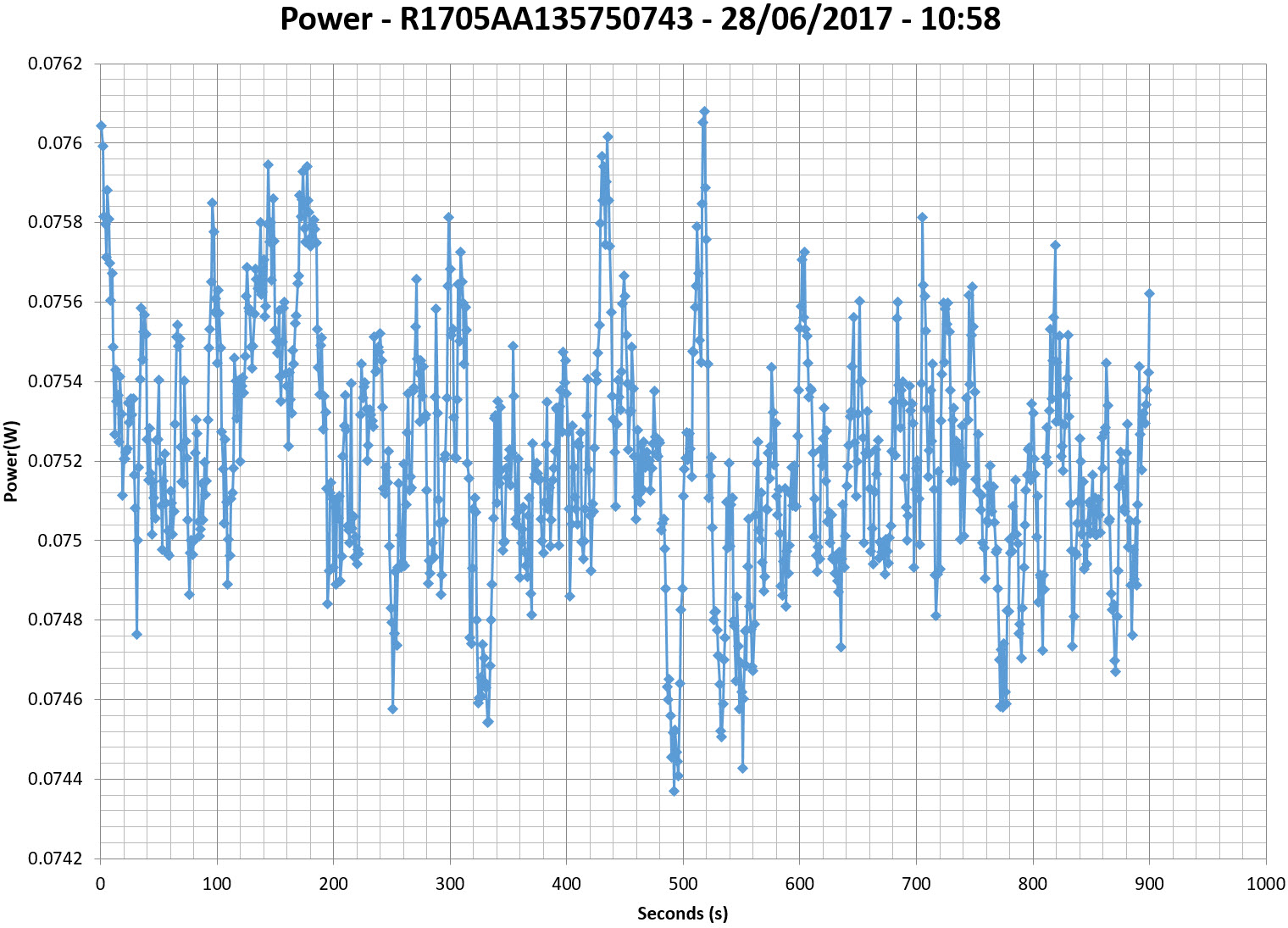

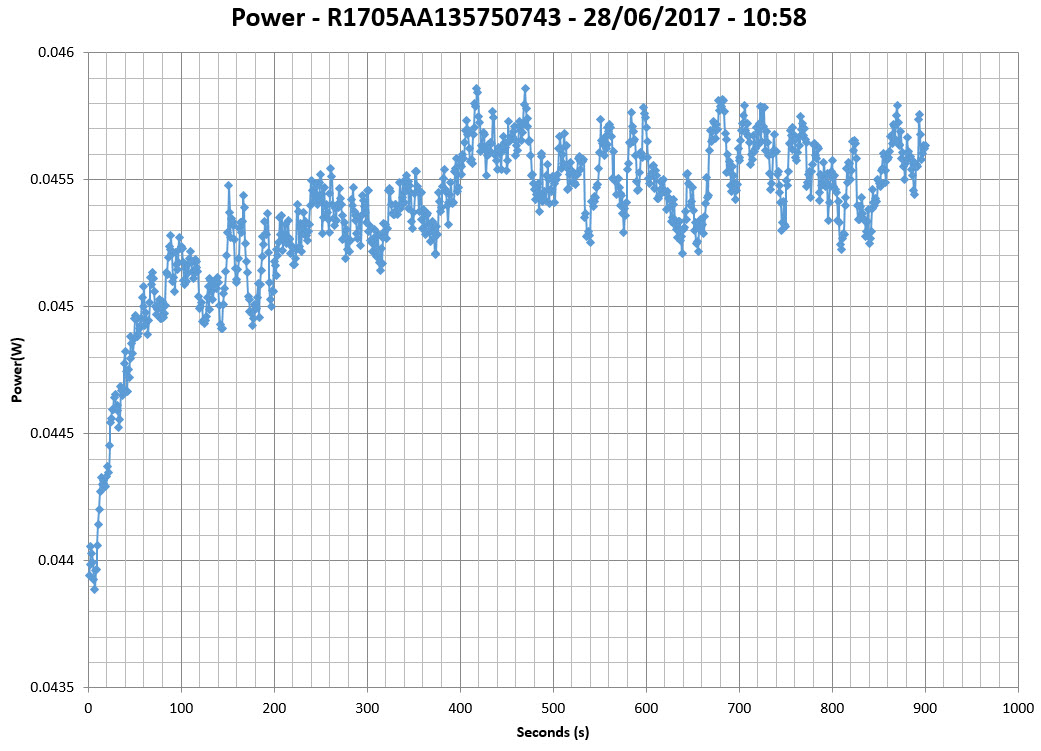

Stromverbrauch im Ruhezustand

Tables

Graphs

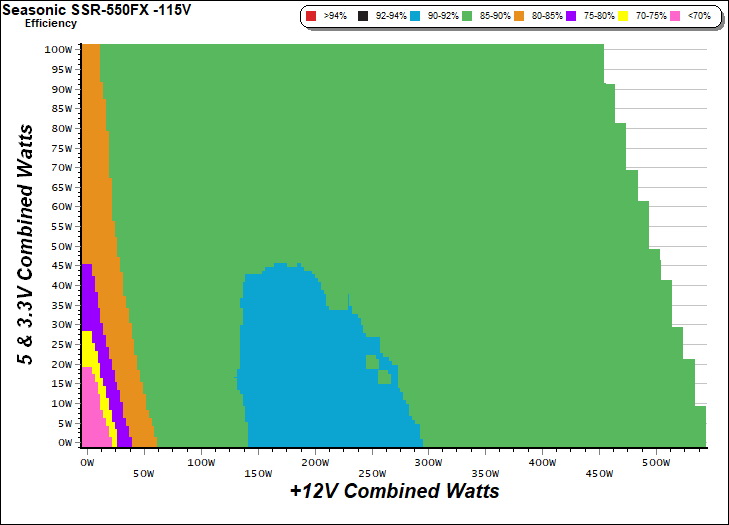

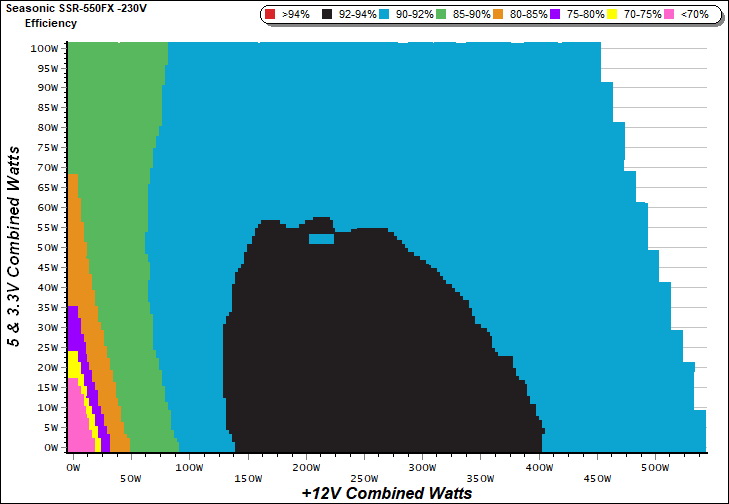

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

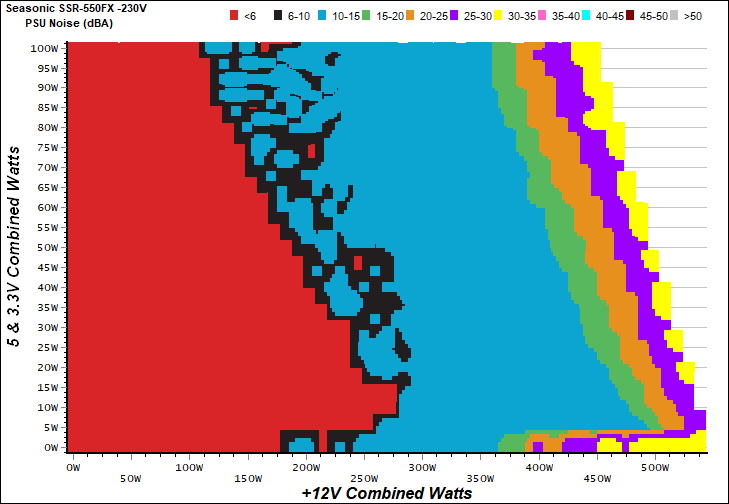

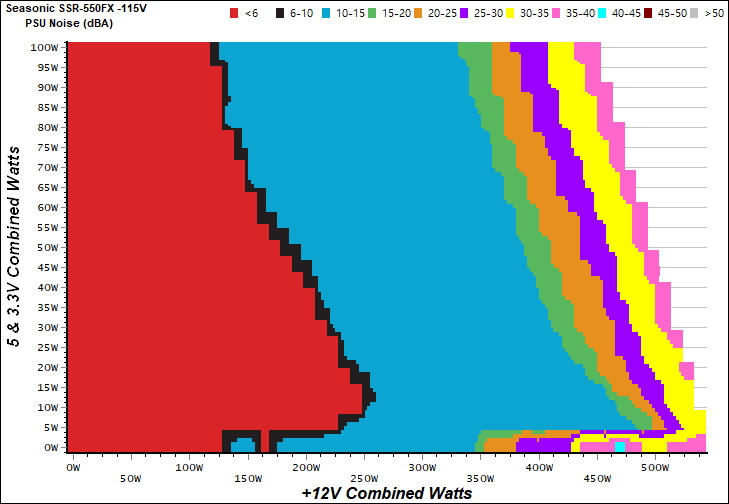

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

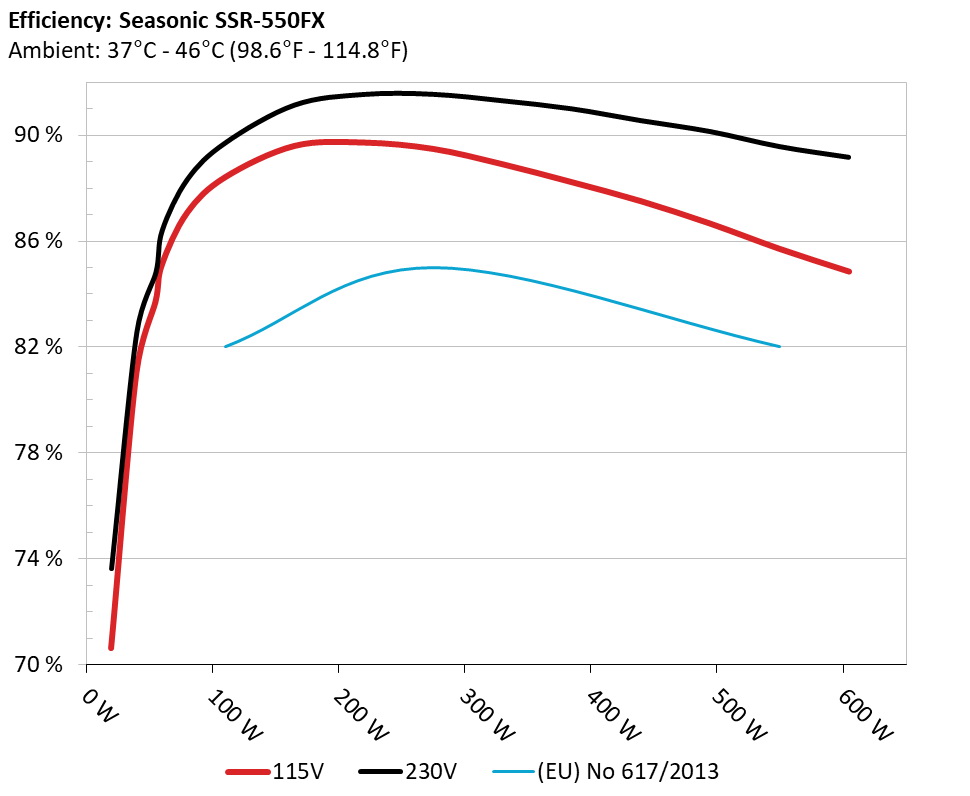

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

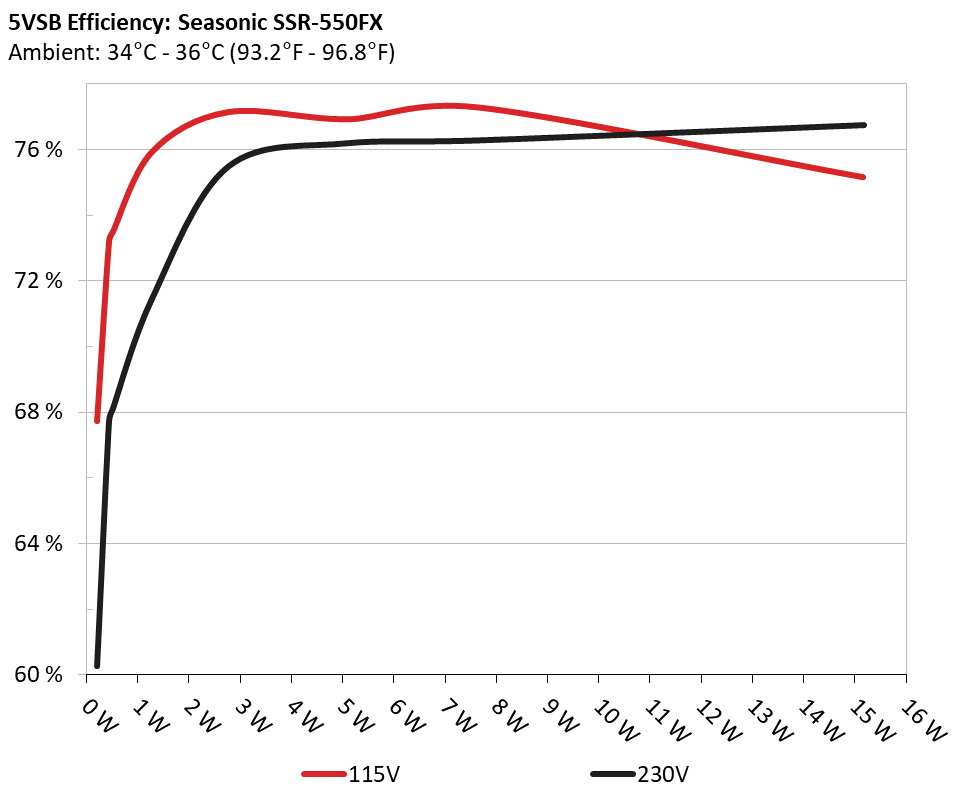

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.214 67.722% 0.053
5.133V 0.316 115.15V
2 0.087A 0.448 73.203% 0.099
5.132V 0.612 115.16V
3 0.542A 2.776 77.133% 0.332
5.120V 3.599 115.16V
4 1.002A 5.121 76.915% 0.401
5.109V 6.658 115.16V
5 1.502A 7.655 77.276% 0.436
5.098V 9.906 115.16V
6 3.002A 15.168 75.152% 0.483
5.053V 20.183 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.214 60.282% 0.018
5.133V 0.355 230.40V
2 0.087A 0.447 67.727% 0.033
5.131V 0.660 230.40V
3 0.542A 2.776 75.476% 0.162
5.120V 3.678 230.39V
4 1.002A 5.119 76.187% 0.245
5.109V 6.719 230.40V
5 1.502A 7.653 76.271% 0.299
5.096V 10.034 230.40V
6 3.002A 15.186 76.736% 0.371
5.059V 19.790 230.40V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.730A 1.994A 1.984A 0.980A 54.808 83.708% 0 | 6.0 45.00°C 0.939
12.165V 5.024V 3.318V 5.098V 65.475 38.78°C 115.19V
2 6.486A 2.982A 2.978A 1.178A 109.739 88.402% 0 | 6.0 46.60°C 0.975
12.164V 5.021V 3.318V 5.085V 124.136 39.53°C 115.20V
3 10.588A 3.488A 3.492A 1.379A 164.875 89.589% 0 | 6.0 47.93°C 0.984
12.164V 5.019V 3.317V 5.071V 184.034 40.10°C 115.18V
4 14.685A 3.986A 3.975A 1.580A 219.771 89.716% 700 14.6 41.30°C 0.988
12.162V 5.017V 3.316V 5.059V 244.963 50.56°C 115.18V
5 18.438A 4.981A 4.973A 1.780A 274.687 89.479% 550 10.4 41.47°C 0.990
12.162V 5.014V 3.316V 5.044V 306.985 50.75°C 115.18V
6 22.196A 5.987A 5.967A 1.986A 329.709 88.901% 560 10.5 41.98°C 0.990
12.161V 5.012V 3.316V 5.030V 370.872 52.26°C 115.18V
7 25.952A 6.990A 6.964A 2.190A 384.664 88.226% 880 20.6 43.32°C 0.990
12.160V 5.009V 3.316V 5.015V 435.998 53.00°C 115.17V
8 29.705A 7.991A 7.961A 2.399A 439.578 87.505% 1325 31.4 43.51°C 0.991
12.159V 5.007V 3.315V 4.999V 502.349 52.32°C 115.17V
9 33.891A 8.489A 8.474A 2.400A 494.604 86.656% 1880 40.2 44.10°C 0.992
12.158V 5.005V 3.315V 4.991V 570.765 51.76°C 115.17V
10 37.824A 9.004A 8.961A 3.015A 549.515 85.704% 2310 45.1 44.97°C 0.992
12.156V 5.003V 3.314V 4.969V 641.178 52.00°C 115.16V
11 42.344A 9.006A 8.962A 3.020A 604.455 84.852% 2320 45.2 46.06°C 0.992
12.156V 5.002V 3.313V 4.961V 712.362 53.42°C 115.16V
CL1 0.098A 12.012A 12.003A 0.004A 101.375 85.128% 720 14.9 45.85°C 0.973
12.165V 5.011V 3.330V 5.096V 119.086 48.74°C 115.20V
CL2 44.966A 1.004A 1.003A 1.002A 559.997 86.334% 2320 45.2 45.17°C 0.992
12.156V 5.009V 3.306V 5.036V 648.643 52.51°C 115.18V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.730A 1.995A 1.989A 0.981A 54.838 84.975% 0 <6.0 53.92°C 0.702
12.171V 5.022V 3.314V 5.099V 64.534 39.59°C 230.24V
2 6.486A 2.980A 2.986A 1.176A 109.762 89.871% 0 <6.0 54.56°C 0.854
12.169V 5.020V 3.312V 5.089V 122.133 39.57°C 230.24V
3 10.586A 3.488A 3.502A 1.376A 164.894 91.180% 0 <6.0 41.34°C 0.912
12.168V 5.019V 3.310V 5.076V 180.844 52.37°C 230.25V
4 14.681A 3.986A 3.988A 1.576A 219.800 91.689% 440 10.5 40.86°C 0.936
12.167V 5.018V 3.308V 5.065V 239.723 56.92°C 230.25V
5 18.435A 4.979A 4.989A 1.781A 274.760 91.708% 560 10.5 40.88°C 0.952
12.166V 5.017V 3.307V 5.054V 299.602 57.13°C 230.25V
6 22.196A 5.985A 5.989A 1.981A 329.777 91.487% 560 10.5 41.13°C 0.961
12.164V 5.014V 3.304V 5.042V 360.464 57.83°C 230.25V
7 25.950A 6.991A 6.991A 2.186A 384.722 91.166% 755 16.1 41.15°C 0.967
12.162V 5.012V 3.302V 5.030V 422.001 58.42°C 230.25V
8 29.705A 7.987A 8.000A 2.391A 439.623 90.763% 1120 27.7 41.81°C 0.972
12.160V 5.010V 3.300V 5.017V 484.362 57.31°C 230.25V
9 33.892A 8.484A 8.516A 2.394A 494.677 90.421% 1695 37.7 41.31°C 0.975
12.159V 5.009V 3.299V 5.010V 547.081 55.64°C 230.26V
10 37.834A 8.993A 9.009A 3.006A 549.701 89.924% 1935 42.1 42.16°C 0.978
12.158V 5.007V 3.296V 4.988V 611.298 54.03°C 230.24V
11 42.349A 8.992A 9.010A 3.008A 604.519 89.461% 2320 45.2 42.54°C 0.980
12.157V 5.005V 3.295V 4.983V 675.738 54.53°C 230.24V
CL1 0.101A 12.013A 12.004A 0.005A 101.222 86.540% 0 <6.0 46.19°C 0.846
12.170V 5.015V 3.309V 5.109V 116.965 41.29°C 230.26V
CL2 44.982A 1.003A 1.001A 1.002A 560.286 90.576% 1990 42.8 39.66°C 0.978
12.158V 5.011V 3.302V 5.053V 618.578 52.32°C 230.24V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) PF/AC Volts
1 1.199A 0.493A 0.480A 0.195A 19.663 70.646% 0 | 6.0 0.776
12.166V 5.033V 3.321V 5.125V 27.833 115.19V
2 2.422A 0.992A 0.992A 0.391A 39.740 81.049% 0 | 6.0 0.907
12.165V 5.026V 3.317V 5.117V 49.032 115.19V
3 3.652A 1.488A 1.504A 0.585A 59.883 85.108% 0 | 6.0 0.948
12.165V 5.025V 3.318V 5.109V 70.361 115.19V
4 4.864A 1.994A 1.988A 0.781A 79.767 87.060% 0 | 6.0 0.963
12.165V 5.024V 3.318V 5.099V 91.623 115.19V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.203A 0.490A 0.480A 0.196A 19.705 73.799% 0 <6.0 0.486
12.172V 5.030V 3.318V 5.126V 26.701 230.22V
2 2.424A 0.990A 0.994A 0.391A 39.773 82.721% 0 <6.0 0.607
12.172V 5.023V 3.314V 5.118V 48.081 230.24V
3 3.652A 1.487A 1.506A 0.586A 59.904 86.535% 0 <6.0 0.721
12.171V 5.023V 3.314V 5.111V 69.225 230.23V
4 4.866A 1.994A 1.989A 0.781A 79.812 88.480% 0 <6.0 0.789
12.171V 5.022V 3.313V 5.102V 90.203 230.24V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.7 mV 5.5 mV 6.9 mV 5.8 mV Pass
20% Load 11.9 mV 6.8 mV 9.3 mV 6.3 mV Pass
30% Load 13.8 mV 7.4 mV 9.6 mV 5.9 mV Pass
40% Load 15.8 mV 7.3 mV 11.3 mV 5.6 mV Pass
50% Load 17.2 mV 8.0 mV 9.7 mV 7.0 mV Pass
60% Load 19.1 mV 9.5 mV 8.2 mV 6.0 mV Pass
70% Load 20.5 mV 9.5 mV 8.2 mV 6.6 mV Pass
80% Load 21.8 mV 10.9 mV 9.2 mV 7.7 mV Pass
90% Load 23.6 mV 11.9 mV 9.7 mV 8.3 mV Pass
100% Load 24.8 mV 12.5 mV 12.3 mV 9.3 mV Pass
110% Load 26.3 mV 14.6 mV 12.4 mV 9.3 mV Pass
Crossload 1 13.2 mV 10.9 mV 9.8 mV 8.0 mV Pass
Crossload 2 24.4 mV 10.4 mV 11.6 mV 8.6 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 7.4 mV 5.1 mV 7.4 mV 5.4 mV Pass
20% Load 10.8 mV 5.7 mV 8.0 mV 5.3 mV Pass
30% Load 13.4 mV 5.9 mV 7.8 mV 5.6 mV Pass
40% Load 14.9 mV 6.5 mV 8.9 mV 5.7 mV Pass
50% Load 16.0 mV 7.2 mV 8.8 mV 6.0 mV Pass
60% Load 17.4 mV 8.1 mV 8.6 mV 6.0 mV Pass
70% Load 18.8 mV 9.4 mV 8.6 mV 6.1 mV Pass
80% Load 19.8 mV 9.3 mV 9.3 mV 6.3 mV Pass
90% Load 20.8 mV 10.6 mV 10.2 mV 6.8 mV Pass
100% Load 22.9 mV 13.5 mV 13.5 mV 8.0 mV Pass
110% Load 23.9 mV 14.6 mV 14.7 mV 7.9 mV Pass
Crossload 1 11.1 mV 10.0 mV 9.9 mV 7.2 mV Pass
Crossload 2 22.8 mV 9.3 mV 13.4 mV 7.2 mV Pass

The results above are not used in the certification process

Seasonic Focus Plus Gold 550W

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
