CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Bitfenix Whisper 750W
序号706Q00093
Lab ID135
Certification ID25135
  • Test Result Report ID:
  • Certificate Issue Date: Mar 7, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandBitfenix
ModelWhisper 750W
OEM/ODMChannel Well Technology
Serial Number706Q00093
Product Specifications
Manufacturer-Provided Information
额定电压 (Vrms)100-240
额定电流 (Arms)10
额定频率 (Hz)47-63
额定功率 (W)750
Operating Temperature (Continuous Full Load) (°C)
类别ATX12V
线材设计Fully Modular
Warranty-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
散热135mm Hydro Dynamic Bearing Fan
(DF1352512SEHN)
半被动运转✗
Cybenetics Testing Information
Lab ID135
Date of receiptFeb 25, 2018
Testing DateMar 3, 2018
Report Issued DateMar 7, 2018
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

线材与接头(Non-accredited measurements)

模组化线材
描述 线材数量 总连接器数量 Gauge
ATX 接头 20+4 pin (610mm) 1 1 18AWG
4+4 pin EPS 12V 接头 (650mm) 2 2 18AWG
6+2pin PCIe接头 (650mm+150mm) 2 4 18AWG
6+2pin PCIe接头 (650mm) 2 2 18AWG
SATA接头 (500mm+150mm+150mm+150mm) 3 12 18AWG
大4pin Molex接头 (500mm+150mm+150mm+150mm) 1 3 18AWG

电源规范

组 3.3V 5V 12V 12V 12V 12V 5VSB -12V
最大功率 安培 22 22 25 25 35 35 2.5 0.5
瓦 120 750 12.5 6
最大总功率 (W) 750

Test Results

Temperature & Compliance Info

温度范围 (°C /°F)28-32 / 82.4-89.6
符合ErP Lot3/6规范✓
符合(EU) No 617/2013规范✓

Performance Summary

Accredited
平均效率 (>1450 load combinations)88.790%
Average Noise Output (>1450 Load Combinations)36.03dBA
PF平均值 (>1450 Load Combinations)0.981
Efficiency With 10W (≤500W) or 2% (>500W) Load-
待机功率耗损0.0502W
Non-Accredited
12V Ripple (Full Load)18.28mV
5V Ripple (Full Load)15.74mV
3.3V Ripple (Full Load)9.85mV
5VSB Ripple (Full Load)24.49mV
12V Load Regulation0.76%
5V Load Regulation1.39%
3.3V Load Regulation1.43%
5VSB Load Regulation1.32%
Inrush Current39.305A
Accredited
平均效率 (>1450 load combinations)91.104%
Average Noise Output (>1450 Load Combinations)31.79dBA
PF平均值 (>1450 Load Combinations)0.932
Efficiency With 10W (≤500W) or 2% (>500W) Load-
待机功率耗损0.0869W
Non-Accredited
12V Ripple (Full Load)19.41mV
5V Ripple (Full Load)11.09mV
3.3V Ripple (Full Load)5.70mV
5VSB Ripple (Full Load)27.56mV
12V Load Regulation0.62%
5V Load Regulation0.32%
3.3V Load Regulation0.54%
5VSB Load Regulation1.47%
Inrush Current48.197A
保持时间 & PG信号14.90ms
AC Loss to PWR_OK Hold Up Time13.20ms
PWR_OK Inactive to DC Loss Delay1.70ms
OPP (0.00°C / 0.00°C)--

保持时间 & PG信号

Hold-Up Time (ms)14.9
AC Loss to PWR_OK Hold Up Time (ms)13.2
PWR_OK Inactive to DC Loss Delay (ms)1.7

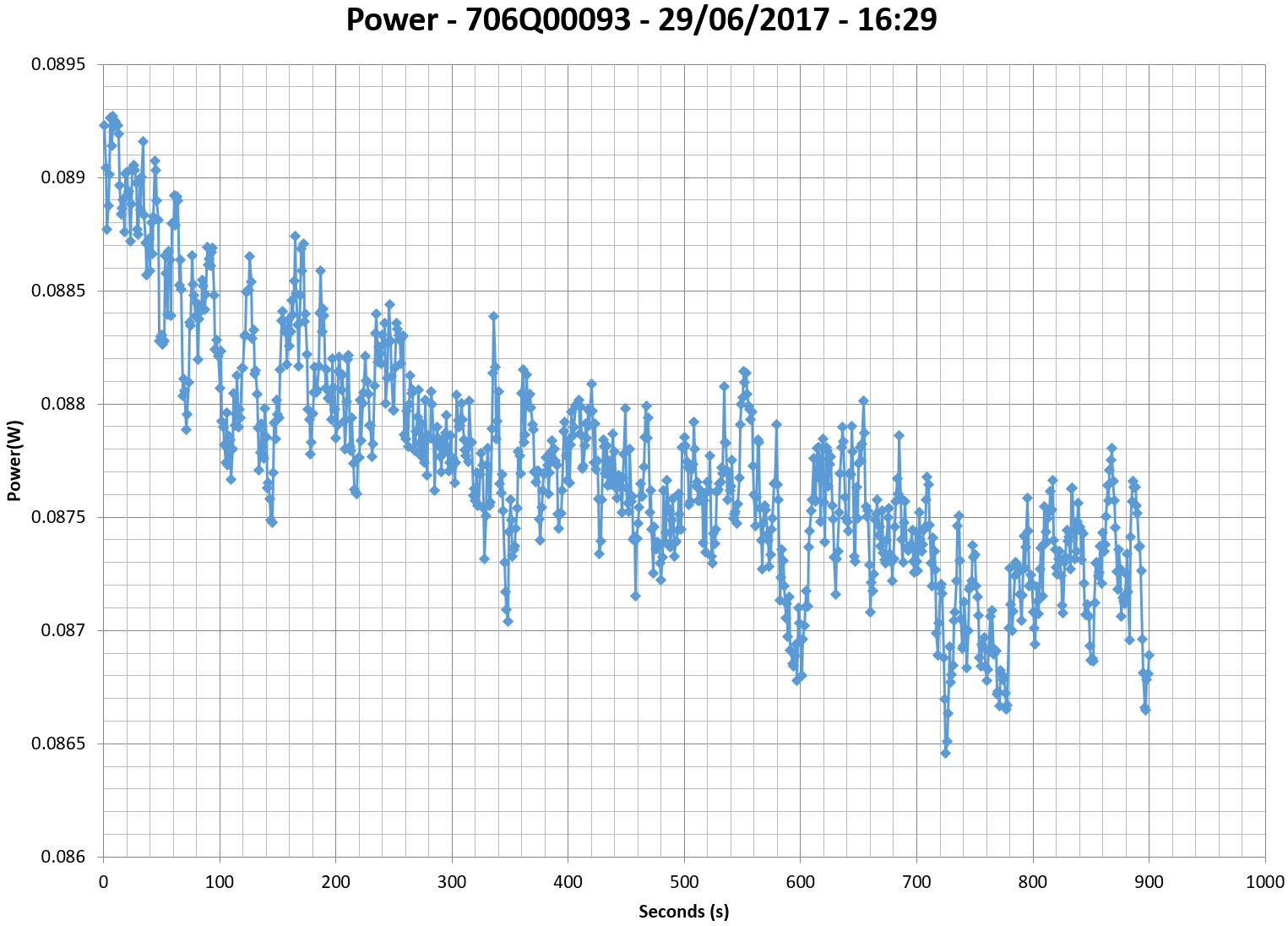

待机电源

Tables

Graphs

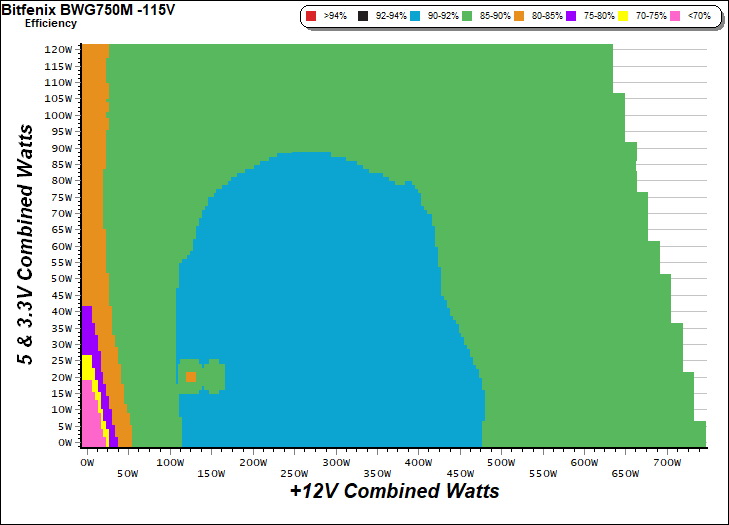

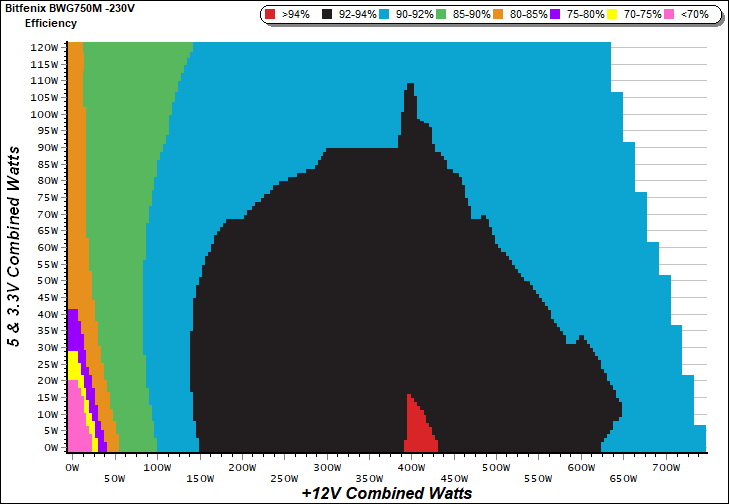

转换效率图表

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

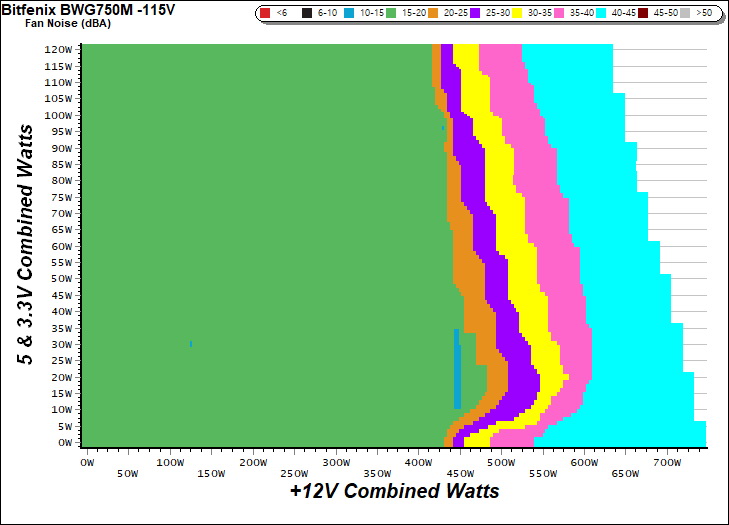

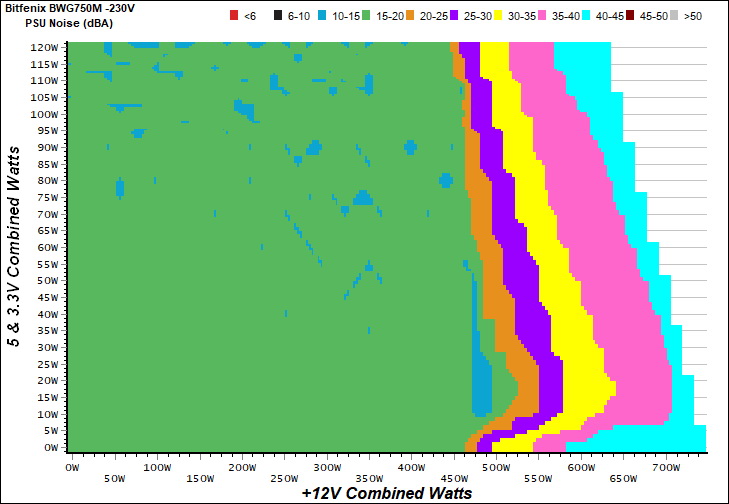

噪音值图表

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

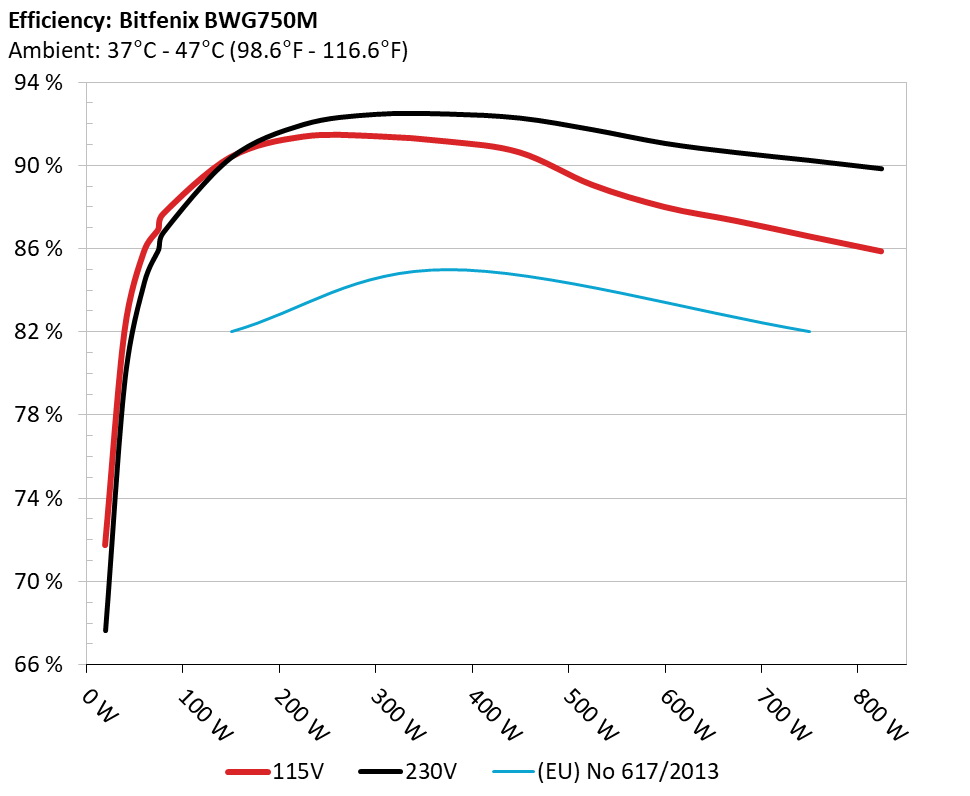

高环温电源转换效率

资讯

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

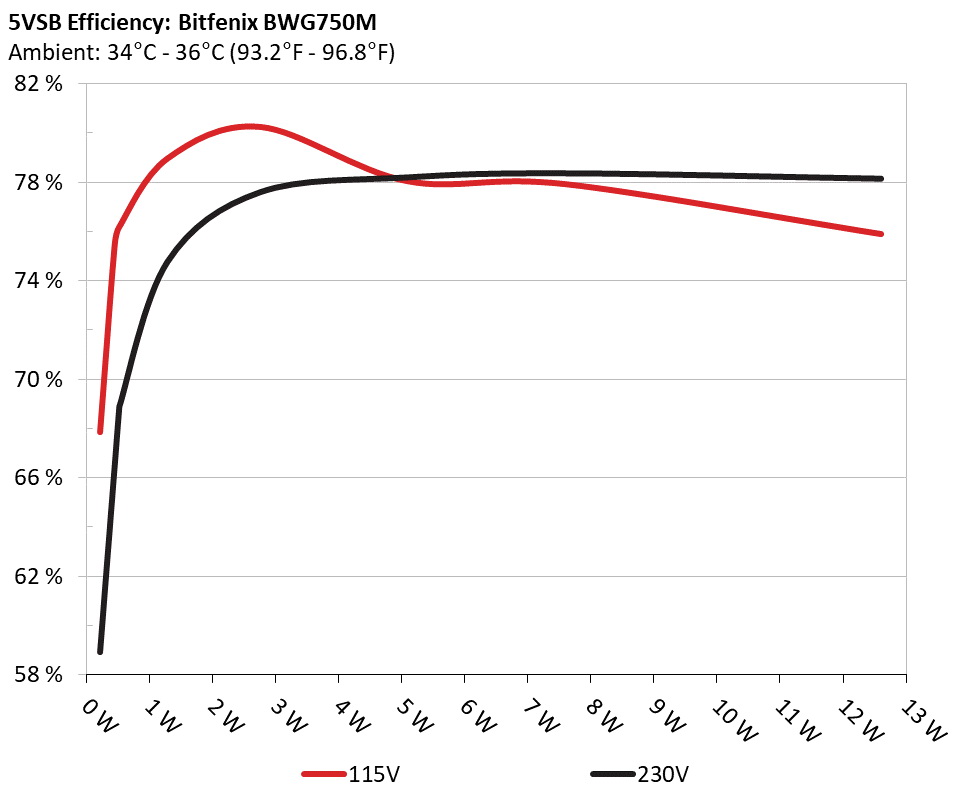

5Vsb转换效率

资讯

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC)

测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.041A 0.211 67.846% 0.031
5.098V 0.311 115.19V
2 0.087A 0.442 75.427% 0.057
5.097V 0.586 115.19V
3 0.542A 2.755 80.251% 0.257
5.086V 3.433 115.19V
4 1.002A 5.084 78.047% 0.358
5.075V 6.514 115.19V
5 1.501A 7.603 77.924% 0.411
5.064V 9.757 115.20V
6 2.501A 12.605 75.897% 0.456
5.040V 16.608 115.22V
测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.041A 0.211 58.939% 0.011
5.098V 0.358 230.47V
2 0.087A 0.443 68.896% 0.019
5.097V 0.643 230.47V
3 0.541A 2.753 77.593% 0.100
5.086V 3.548 230.47V
4 1.002A 5.084 78.191% 0.169
5.075V 6.502 230.47V
5 1.501A 7.602 78.355% 0.227
5.064V 9.702 230.47V
6 2.501A 12.606 78.138% 0.303
5.040V 16.133 230.49V

Protection Features

Supplementary Tests (For Reference)

10-110%负载测试

测试 # 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 风扇噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
1 4.436A 1.984A 1.972A 0.985A 74.787 86.932% 455 10.9 38.43°C 0.956
11.992V 5.043V 3.341V 5.073V 86.029 41.24°C 115.21V
2 9.922A 2.970A 2.963A 1.181A 149.716 90.401% 470 11.5 38.86°C 0.980
11.982V 5.035V 3.338V 5.069V 165.614 42.12°C 115.20V
3 15.765A 3.478A 3.477A 1.380A 224.811 91.384% 455 10.9 39.12°C 0.985
11.972V 5.030V 3.334V 5.062V 246.007 43.12°C 115.21V
4 21.605A 3.984A 3.961A 1.580A 299.693 91.406% 435 9.9 39.65°C 0.986
11.965V 5.025V 3.328V 5.056V 327.869 44.80°C 115.20V
5 27.117A 4.982A 4.960A 1.780A 374.650 91.152% 455 10.9 40.03°C 0.985
11.955V 5.017V 3.323V 5.050V 411.016 46.31°C 115.20V
6 32.630A 5.990A 5.965A 1.980A 449.554 90.626% 455 10.9 40.74°C 0.984
11.945V 5.010V 3.318V 5.044V 496.052 48.25°C 115.19V
7 38.147A 7.003A 6.970A 2.180A 524.547 89.071% 1225 34.4 41.96°C 0.984
11.939V 5.003V 3.313V 5.038V 588.908 49.87°C 115.20V
8 43.688A 8.013A 7.978A 2.383A 599.508 88.010% 1795 44.4 43.01°C 0.985
11.928V 4.994V 3.308V 5.031V 681.180 51.03°C 115.19V
9 49.677A 8.522A 8.503A 2.384A 674.533 87.335% 1795 44.4 44.38°C 0.986
11.916V 4.988V 3.303V 5.029V 772.349 52.53°C 115.19V
10 55.615A 9.048A 9.006A 2.485A 749.403 86.599% 1795 44.4 45.10°C 0.987
11.906V 4.980V 3.298V 5.026V 865.374 54.73°C 115.19V
11 61.965A 9.057A 9.016A 2.485A 824.297 85.877% 1795 44.4 46.76°C 0.989
11.895V 4.974V 3.293V 5.024V 959.863 56.72°C 115.19V
CL1 0.094A 14.027A 14.004A 0.004A 117.535 84.170% 570 13.6 44.56°C 0.977
11.974V 4.987V 3.316V 5.094V 139.640 55.07°C 115.21V
CL2 62.470A 1.003A 1.002A 1.002A 757.438 87.227% 1795 44.4 46.64°C 0.988
11.910V 5.012V 3.313V 5.063V 868.348 55.82°C 115.19V

The results above are not used in the certification process

测试 # 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
1 4.417A 1.982A 1.974A 0.985A 74.543 86.016% 470 11.5 40.22°C 0.769
11.984V 5.049V 3.345V 5.075V 86.662 44.90°C 231.01V
2 9.894A 2.973A 2.962A 1.184A 149.450 90.422% 470 11.5 40.83°C 0.891
11.981V 5.047V 3.343V 5.070V 165.280 45.69°C 230.96V
3 15.778A 3.470A 3.442A 1.382A 224.951 92.064% 470 11.5 41.25°C 0.929
11.975V 5.046V 3.341V 5.065V 244.342 46.42°C 230.91V
4 21.607A 3.965A 3.952A 1.582A 299.755 92.558% 470 11.5 41.80°C 0.945
11.966V 5.045V 3.340V 5.059V 323.855 47.94°C 230.85V
5 27.112A 4.958A 4.944A 1.782A 374.694 92.565% 470 11.5 42.30°C 0.955
11.957V 5.044V 3.338V 5.053V 404.788 49.05°C 230.80V
6 32.620A 5.951A 5.935A 1.982A 449.596 92.170% 895 25.4 42.82°C 0.960
11.949V 5.043V 3.337V 5.047V 487.791 49.95°C 230.75V
7 38.178A 6.946A 6.926A 2.183A 524.924 91.639% 1415 38.2 43.08°C 0.964
11.939V 5.041V 3.335V 5.041V 572.820 50.38°C 230.70V
8 43.732A 7.941A 7.922A 2.384A 600.192 91.088% 1690 42.5 43.78°C 0.966
11.931V 5.039V 3.333V 5.036V 658.915 51.68°C 230.65V
9 49.676A 8.441A 8.408A 2.385A 674.769 90.700% 1795 44.4 44.48°C 0.968
11.922V 5.037V 3.331V 5.034V 743.953 52.66°C 230.59V
10 55.424A 8.940A 8.921A 2.990A 749.992 90.227% 1795 44.4 45.19°C 0.970
11.913V 5.036V 3.329V 5.019V 831.231 53.55°C 230.53V
11 61.690A 8.940A 8.924A 2.989A 824.831 89.758% 1795 44.4 46.53°C 0.970
11.916V 5.036V 3.329V 5.019V 791.112 55.48°C 230.54V
CL1 0.144A 14.005A 14.002A 0.000A 118.978 84.226% 570 13.6 44.69°C 0.872
11.967V 5.036V 3.337V 5.096V 141.261 52.96°C 230.96V
CL2 62.523A 1.002A 1.001A 1.000A 758.789 90.936% 1795 44.4 45.73°C 0.970
11.921V 5.042V 3.332V 5.065V 834.423 54.29°C 230.54V

The results above are not used in the certification process

20-80瓦负载测试

测试 # 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 风扇噪音 (dB[A]) PF/AC 电压
1 1.215A 0.493A 0.476A 0.196A 19.664 71.769% 470 11.5 0.797
12.001V 5.053V 3.348V 5.093V 27.399 115.21V
2 2.456A 0.985A 0.986A 0.391A 39.727 82.033% 455 10.9 0.908
11.997V 5.050V 3.346V 5.088V 48.428 115.21V
3 3.700A 1.477A 1.495A 0.590A 59.832 85.854% 455 10.9 0.947
11.994V 5.048V 3.344V 5.083V 69.690 115.21V
4 4.936A 1.983A 1.973A 0.786A 79.771 87.674% 435 9.9 0.960
11.991V 5.043V 3.341V 5.078V 90.986 115.21V

The results above are not used in the certification process

测试 # 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) PF/AC 电压
1 1.210A 0.497A 0.480A 0.196A 19.629 67.442% 455 10.9 0.425
11.993V 5.054V 3.349V 5.094V 29.105 231.03V
2 2.481A 0.991A 0.986A 0.393A 40.055 79.826% 435 16.8 0.600
11.990V 5.052V 3.347V 5.090V 50.178 231.03V
3 3.683A 1.486A 1.464A 0.590A 59.552 84.308% 435 16.8 0.711
11.987V 5.051V 3.346V 5.085V 70.636 231.01V
4 4.952A 1.982A 1.973A 0.788A 79.949 86.812% 415 16.9 0.784
11.983V 5.049V 3.345V 5.080V 92.094 231.00V

The results above are not used in the certification process

纹波测量

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 11.4 mV 9.1 mV 7.3 mV 6.6 mV Pass
20% Load 14.7 mV 9.4 mV 6.8 mV 7.0 mV Pass
30% Load 14.2 mV 9.5 mV 7.1 mV 6.8 mV Pass
40% Load 14.6 mV 10.5 mV 8.1 mV 7.7 mV Pass
50% Load 15.5 mV 11.2 mV 8.9 mV 11.2 mV Pass
60% Load 17.0 mV 10.6 mV 10.0 mV 15.1 mV Pass
70% Load 17.3 mV 11.6 mV 10.0 mV 17.9 mV Pass
80% Load 18.0 mV 12.0 mV 10.2 mV 22.4 mV Pass
90% Load 17.4 mV 12.9 mV 9.3 mV 26.5 mV Pass
100% Load 18.3 mV 15.7 mV 9.9 mV 24.5 mV Pass
110% Load 19.2 mV 16.6 mV 9.8 mV 22.0 mV Pass
Crossload 1 15.8 mV 13.0 mV 8.8 mV 7.0 mV Pass
Crossload 2 17.5 mV 15.0 mV 10.3 mV 18.5 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 3.5 mV 7.3 mV 2.7 mV 3.6 mV Pass
20% Load 22.3 mV 7.9 mV 3.5 mV 4.3 mV Pass
30% Load 19.4 mV 8.1 mV 3.3 mV 5.9 mV Pass
40% Load 16.6 mV 7.7 mV 3.7 mV 6.7 mV Pass
50% Load 15.4 mV 8.1 mV 3.6 mV 9.1 mV Pass
60% Load 16.9 mV 8.6 mV 4.3 mV 13.0 mV Pass
70% Load 18.3 mV 9.2 mV 4.4 mV 18.2 mV Pass
80% Load 18.6 mV 9.3 mV 4.6 mV 24.5 mV Pass
90% Load 18.4 mV 10.2 mV 5.5 mV 28.8 mV Pass
100% Load 19.4 mV 11.1 mV 5.7 mV 27.6 mV Pass
110% Load 18.8 mV 11.0 mV 5.7 mV 27.7 mV Pass
Crossload 1 14.7 mV 10.1 mV 6.3 mV 2.3 mV Pass
Crossload 2 19.5 mV 11.1 mV 4.2 mV 19.0 mV Pass

The results above are not used in the certification process

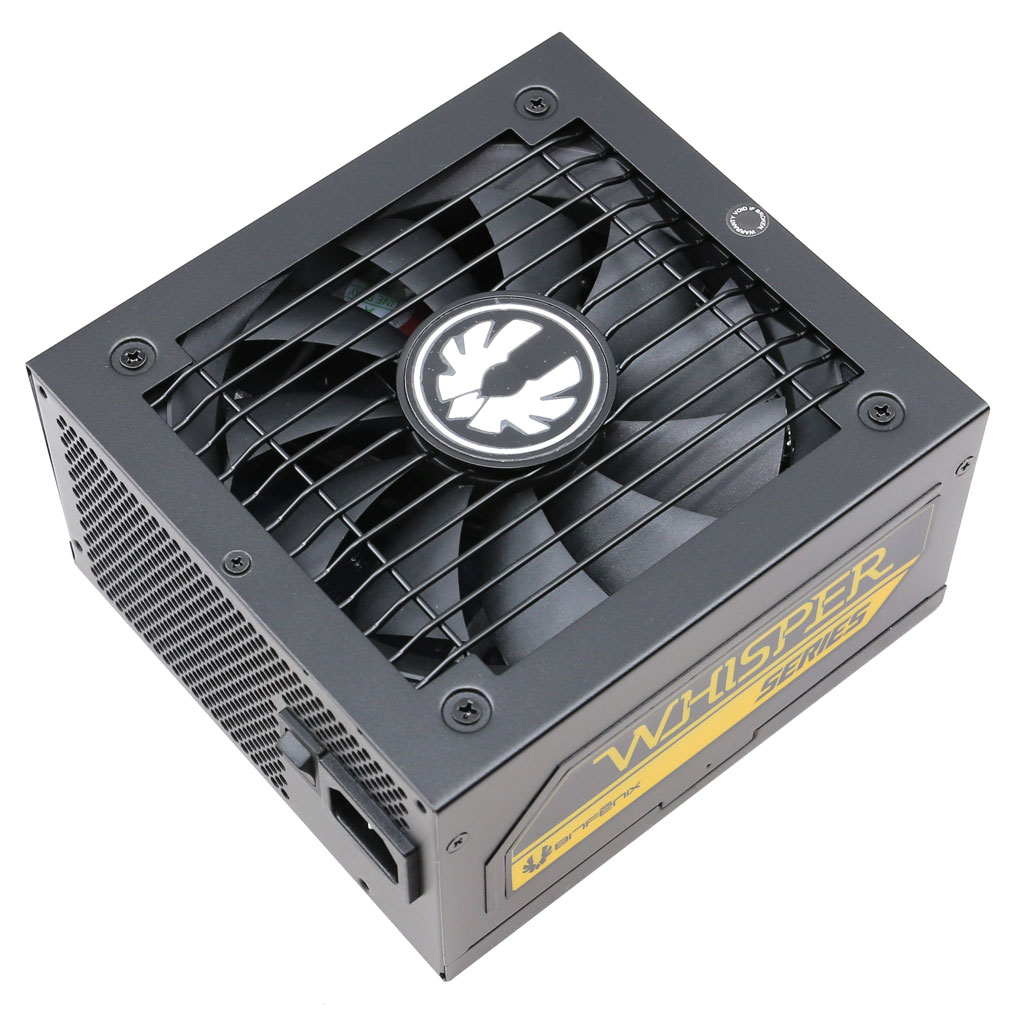

Bitfenix Whisper 750W

Top side

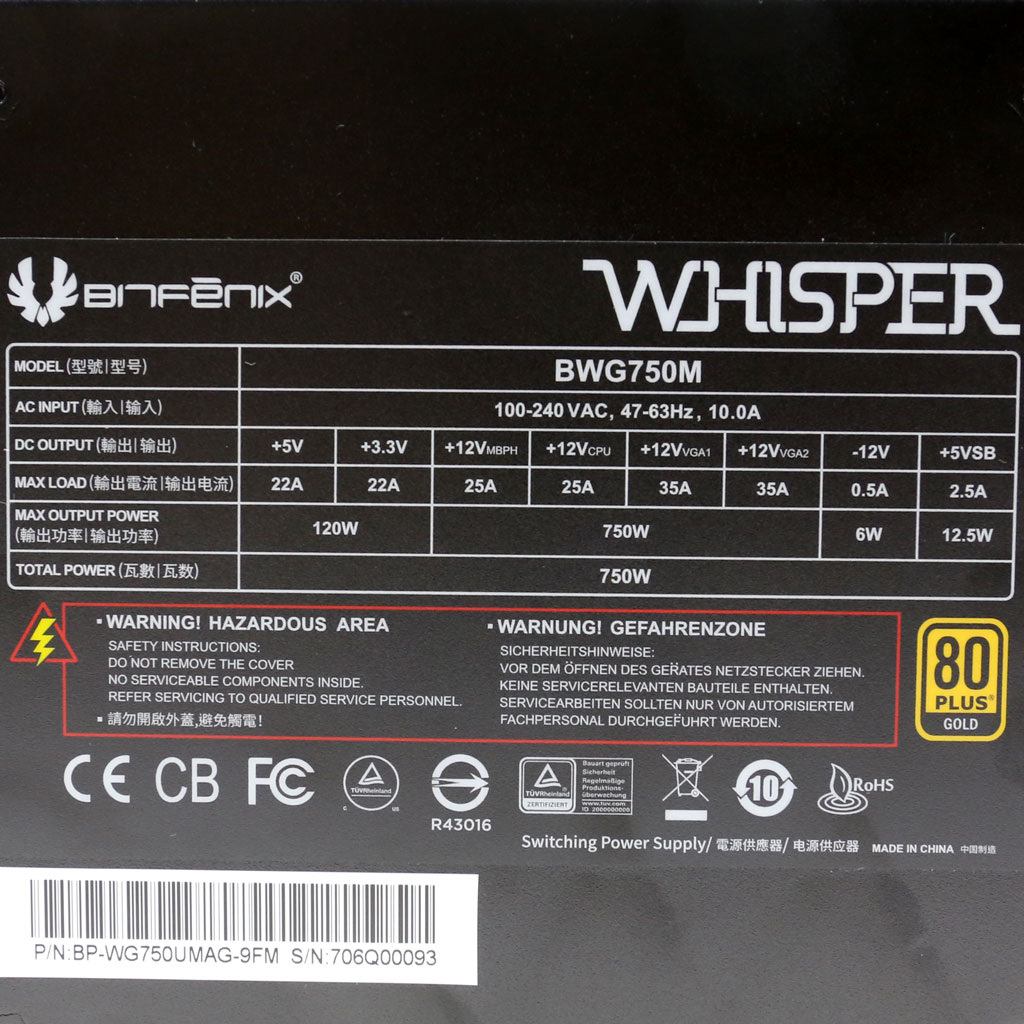

Power specifications label
本测试报告中包含的所有数据和图表均可在以下条件下由任何人使用：使用过程需提及测试结果由Cybenetics提供。
在任何情况下都应提供原始测试结果文档的网站链接
Cybenetics 提供自愿性认证计划：电源方面有 ETA（效率）、LAMBDA（噪声）与 SAFE（安全与正确运行）；散热产品方面有 DELTA（机箱隔音）与 PHI（风扇风量与静压）
