CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Rosewill Tokamak 1500W
Serial Number17182384091600008
Lab ID139
Certification ID25139
  • Test Result Report ID:
  • Certificate Issue Date: Jul 13, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandRosewill
Manufacturer (OEM)Enhance Electronics
SeriesTokamak
Model Number
Serial Number17182384091600008
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)16-8
Rated Frequency (Hz)50-60
Rated Power (W)1500
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Double Ball-Bearing Fan
(DFB132512H)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 25 22 125 3 0.3
Watts 120 1500 15 3.6
Total Max. Power (W) 1500

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (700mm) 1 1 16-24AWG
4+4 pin EPS12V (610mm) 2 2 16AWG
6+2 pin PCIe (605mm+150mm) 6 12 16-18AWG
SATA (550mm+145mm+145mm+150mm+150mm) 2 10 18AWG
SATA (555mm+145mm) / 4 pin Molex (+150mm+150mm) 2 4 / 4 18AWG
SATA (555mm+145mm) / 4 pin Molex (+150mm+150mm) / FDD (+150mm) 1 2 / 2/ 1 18-22AWG

Parts Description

General Data
Manufacturer (OEM) Enhance Electronics
Platform Model ...
Primary Side
Transient Filter 4x Y caps, 5x X caps, 2x CM chokes, 1x MOV, 1x CM02X
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x
APFC MOSFETS 4x Infineon IPP50R140CP (550V, 15A @ 100°C, 0.14Ohm)
APFC Boost Diode 1x CREE C3D10060A (600 V, 10A @ 153°C)
Hold-up Cap(s) 4x Nippon Chemi-Con (420V, 390uF each or 1560uF combined, 2000h @ 105°C, KMR)
Main Switchers 4x Infineon IPP50R140CP (550V, 15A @ 100°C, 0.14Ohm)
FET Drivers 2x Silicon Labs Si8230BD
APFC Controller Champion CM6502S & CM03X Green PFC controller
Switching Controller Champion CM6901
MCU STMicroelectronics STM32F030F4P6
Topology Primary side: Full-Bridge & LLC Resonant Converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 16x Infineon BSC014N04LS (40V, 100A @ 100°C, 1.4mOhm)
5V & 3.3V DC-DC Converters: 4x Infineon BSC018NE2LS (25V, 97A @ 100°C, 1.8 mOhm)
PWM Controller: 2x APW7073
Filtering Capacitors Electrolytics: Unicon (TW), Nippon Chemi-Con ( KY, 4000-1000h @105°C ), Rubycon (ZLM, YXG, 105°C)
Polymers: Unicon (UPT, 5000h @105°C)
Supervisor IC SITI PS223 (OVP, UVP, OCP, SCP, OTP )
Fan Model Power Logic PLA13525S12M (12V, 0.40A, 111.1CFM, 41.6dBA, Hydro Dynamic Bearing)
5VSB Circuit
Rectifier 1x PFR10V45CT (45V, 10A)
Standby PWM Controller Sanken STR-A6053M (28W max)
-12V Circuit
PWM Controller STMicroelectronics L7912CV

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Efficiency RatingTITANIUM
Noise RatingStandard
Average Efficiency (>1450 load combinations)91.386%
Average Noise Output (>1450 Load Combinations)40.99dBA
Average PF (>1450 Load Combinations)0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0657W
12V Ripple (Full Load)95.10mV
5V Ripple (Full Load)31.78mV
3.3V Ripple (Full Load)36.50mV
5VSB Ripple (Full Load)30.54mV
12V Load Regulation1.14%
5V Load Regulation0.59%
3.3V Load Regulation1.46%
5VSB Load Regulation2.06%
Inrush Current46.063A

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)14.6
AC Loss to PWR_OK Hold Up Time (ms)20.1
PWR_OK Inactive to DC Loss Delay (ms)-5.5

Vampire Power

Tables 115V

Graphs 115V

INFO

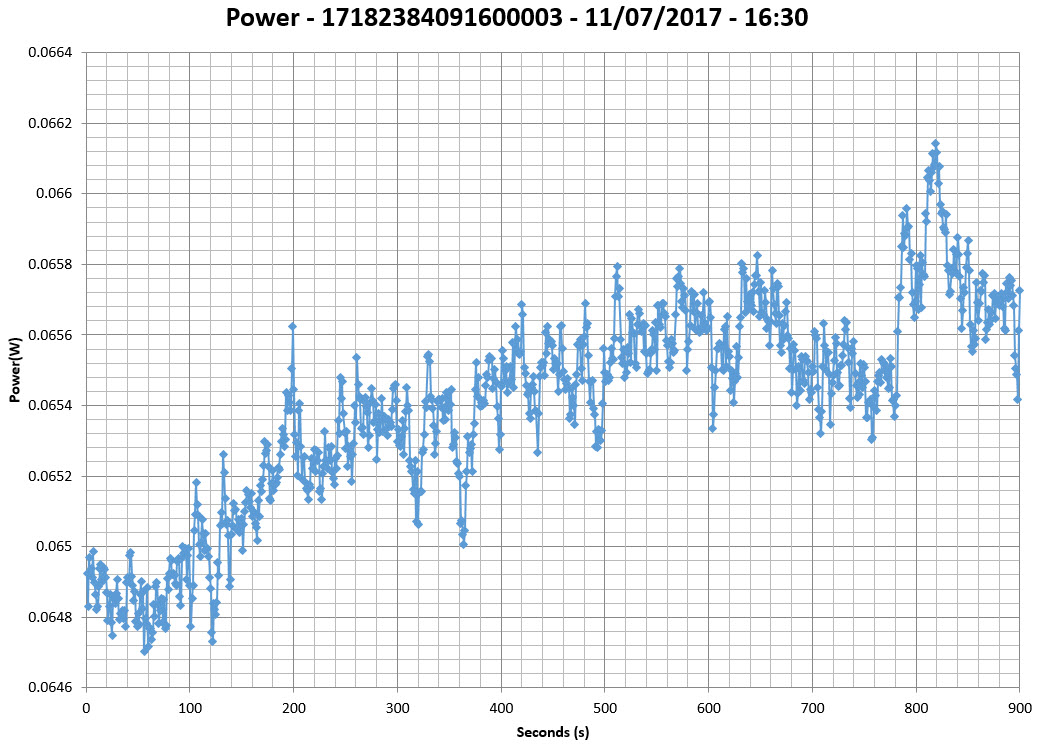

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

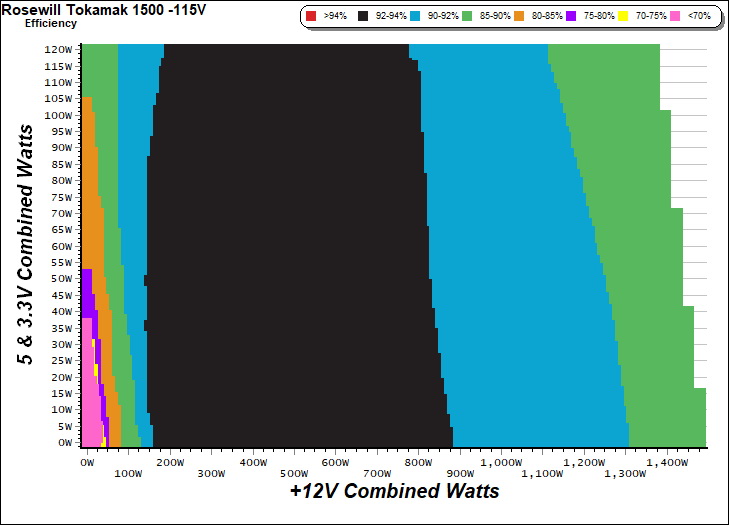

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

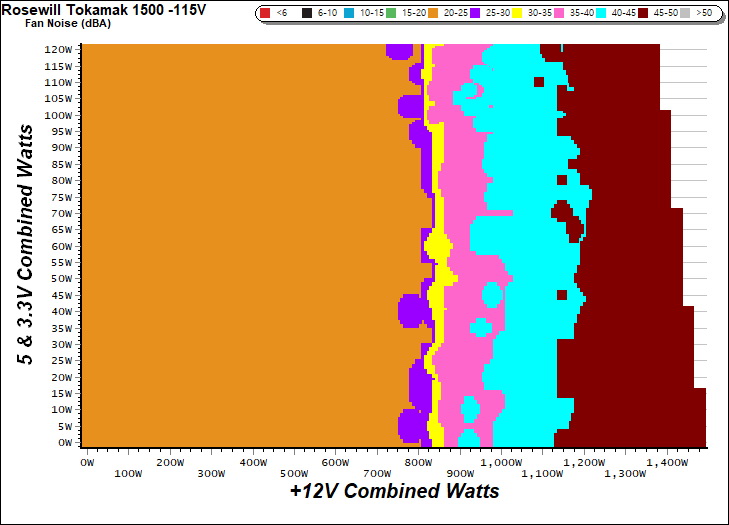

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

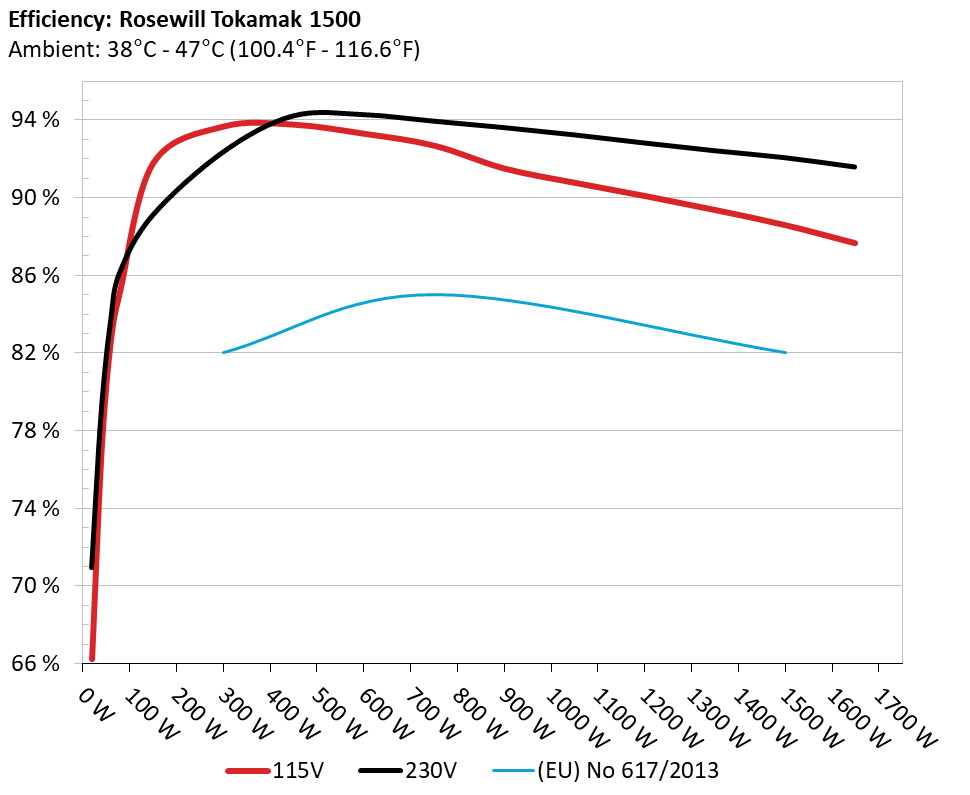

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

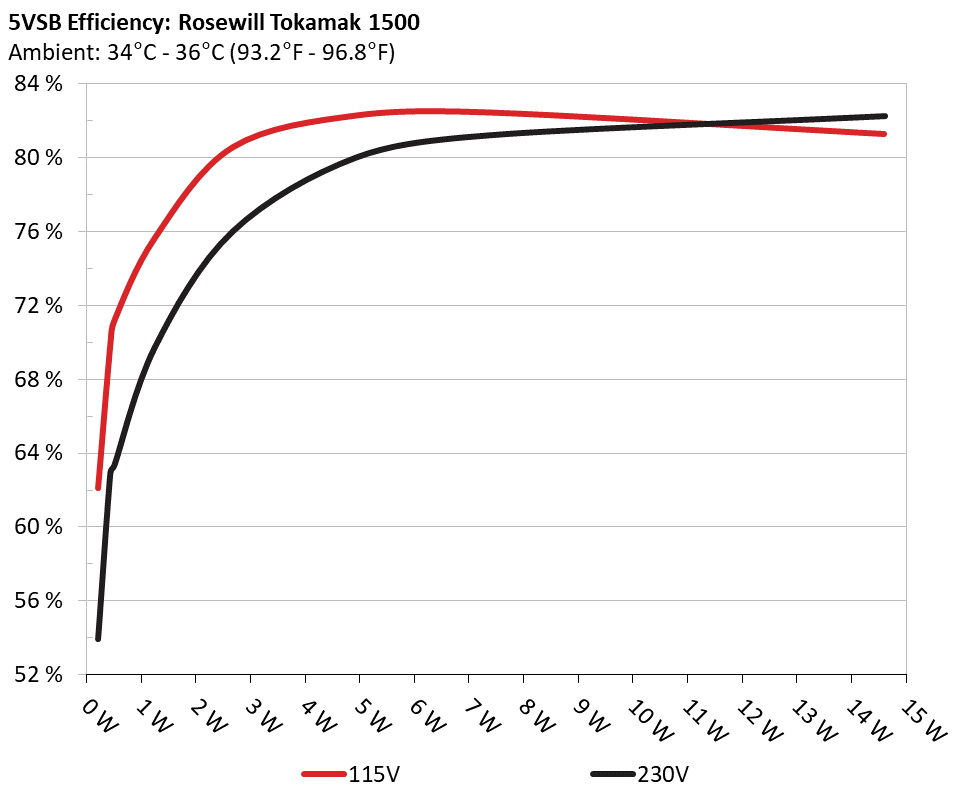

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.101A 0.501 71.165% 0.030
4.945V 0.704 115.16V
2 0.251A 1.242 75.639% 0.069
4.939V 1.642 115.16V
3 0.542A 2.672 80.555% 0.134
4.931V 3.317 115.17V
4 1.002A 4.928 82.270% 0.224
4.919V 5.990 115.17V
5 1.501A 7.366 82.431% 0.301
4.906V 8.936 115.17V
6 3.001A 14.589 81.267% 0.436
4.861V 17.952 115.17V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 10.566A 1.977A 1.959A 0.996A 149.747 91.762% 870 25.1 38.27°C 0.937
12.131V 5.051V 3.361V 5.020V 163.190 40.80°C 115.17V
2 22.189A 2.970A 2.944A 1.195A 299.726 93.663% 870 25.1 38.44°C 0.964
12.117V 5.048V 3.356V 5.012V 320.006 41.56°C 115.16V
3 34.177A 3.468A 3.454A 1.395A 449.669 93.766% 1000 29.1 38.79°C 0.977
12.102V 5.045V 3.353V 5.004V 479.566 42.77°C 115.15V
4 46.190A 3.963A 3.939A 1.600A 599.508 93.300% 1260 35.7 39.18°C 0.983
12.088V 5.042V 3.348V 4.996V 642.559 43.59°C 115.15V
5 57.890A 4.971A 4.932A 1.801A 749.421 92.691% 1790 43.9 39.79°C 0.987
12.073V 5.038V 3.343V 4.988V 808.519 44.25°C 115.16V
6 69.617A 5.956A 5.929A 2.005A 899.208 91.511% 2205 48.8 40.55°C 0.990
12.058V 5.035V 3.338V 4.981V 982.623 45.57°C 115.15V
7 81.386A 6.959A 6.928A 2.210A 1049.146 90.778% 2350 50.1 41.79°C 0.991
12.042V 5.031V 3.333V 4.974V 1155.726 47.21°C 115.16V
8 93.185A 7.953A 7.929A 2.415A 1199.106 90.101% 2480 51.5 43.00°C 0.992
12.027V 5.028V 3.328V 4.967V 1330.850 49.14°C 115.17V
9 105.471A 8.462A 8.455A 2.415A 1349.220 89.375% 2490 51.7 44.35°C 0.993
12.009V 5.026V 3.323V 4.966V 1509.612 51.44°C 115.18V
10 117.501A 8.966A 8.949A 3.031A 1499.018 88.599% 2500 51.9 45.19°C 0.993
11.994V 5.023V 3.318V 4.943V 1691.912 53.25°C 115.19V
11 130.200A 8.969A 8.956A 3.035A 1648.852 87.665% 2490 51.7 46.91°C 0.993
11.975V 5.020V 3.315V 4.940V 1880.858 56.58°C 115.20V
CL1 0.096A 14.028A 14.004A 0.004A 118.799 82.893% 2490 51.7 43.95°C 0.934
12.124V 5.044V 3.346V 5.078V 143.316 48.53°C 115.21V
CL2 124.901A 1.004A 1.003A 1.002A 1511.961 88.670% 2500 51.9 46.35°C 0.993
11.998V 5.027V 3.332V 5.000V 1705.147 54.95°C 115.20V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) PF/AC Volts
1 1.202A 0.494A 0.470A 0.195A 19.650 66.258% 855 23.8 0.740
12.135V 5.055V 3.367V 5.047V 29.657 115.18V
2 2.430A 0.981A 0.980A 0.395A 39.728 76.879% 870 25.1 0.843
12.132V 5.053V 3.367V 5.040V 51.676 115.18V
3 3.662A 1.478A 1.484A 0.596A 59.882 82.656% 870 25.1 0.884
12.130V 5.053V 3.365V 5.035V 72.447 115.18V
4 4.882A 1.975A 1.959A 0.796A 79.779 85.207% 870 25.1 0.905
12.128V 5.053V 3.363V 5.028V 93.630 115.18V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 25.4 mV 10.7 mV 9.8 mV 9.3 mV Pass
20% Load 27.3 mV 15.5 mV 14.8 mV 12.2 mV Pass
30% Load 31.3 mV 17.2 mV 16.8 mV 14.8 mV Pass
40% Load 38.0 mV 19.4 mV 18.6 mV 17.5 mV Pass
50% Load 44.9 mV 19.8 mV 18.5 mV 17.6 mV Pass
60% Load 58.0 mV 23.8 mV 29.4 mV 26.9 mV Pass
70% Load 65.4 mV 24.0 mV 30.4 mV 25.1 mV Pass
80% Load 75.7 mV 25.6 mV 33.2 mV 28.0 mV Pass
90% Load 83.1 mV 30.1 mV 34.8 mV 29.2 mV Pass
100% Load 95.1 mV 31.8 mV 36.5 mV 30.5 mV Pass
110% Load 95.7 mV 37.2 mV 41.3 mV 37.6 mV Pass
Crossload 1 48.9 mV 15.8 mV 15.6 mV 13.1 mV Pass
Crossload 2 93.0 mV 34.0 mV 34.7 mV 31.9 mV Pass

The results above are not used in the certification process

Rosewill Tokamak 1500W

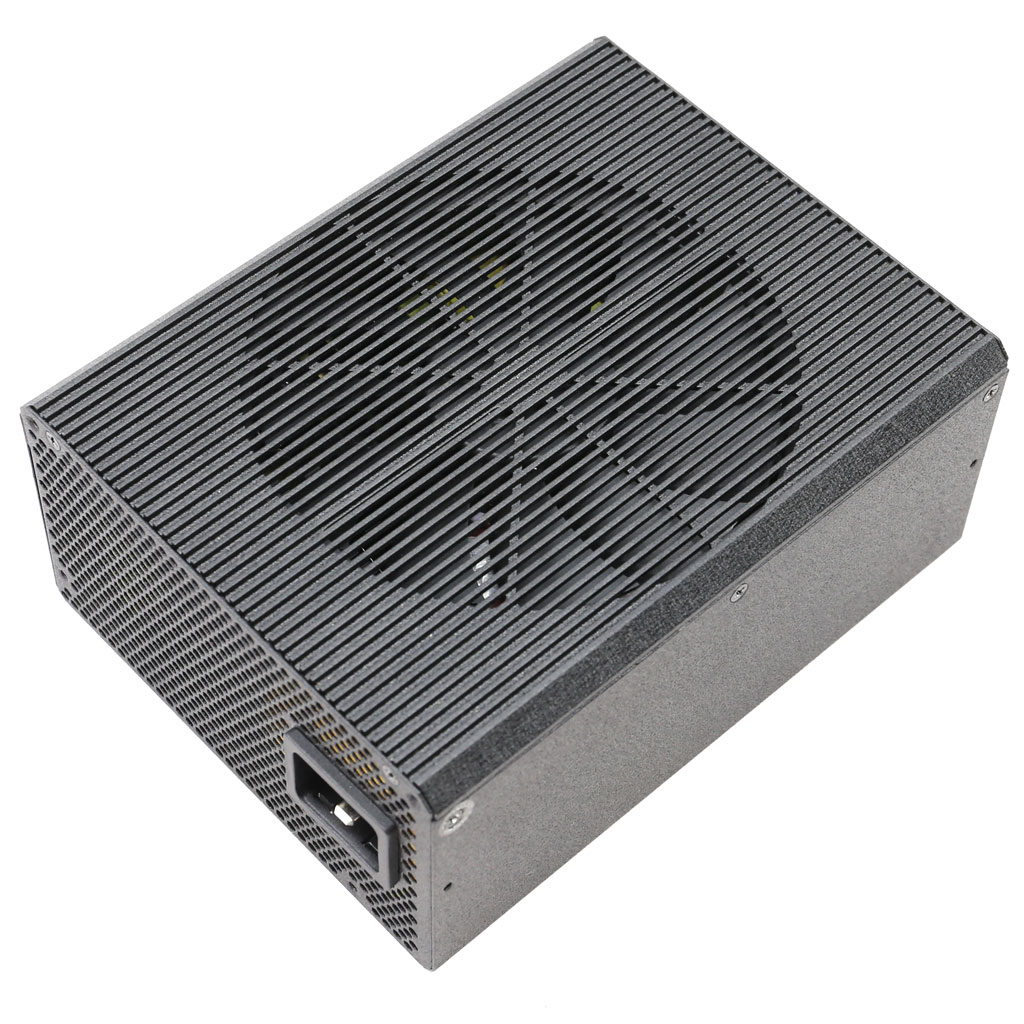

Top side

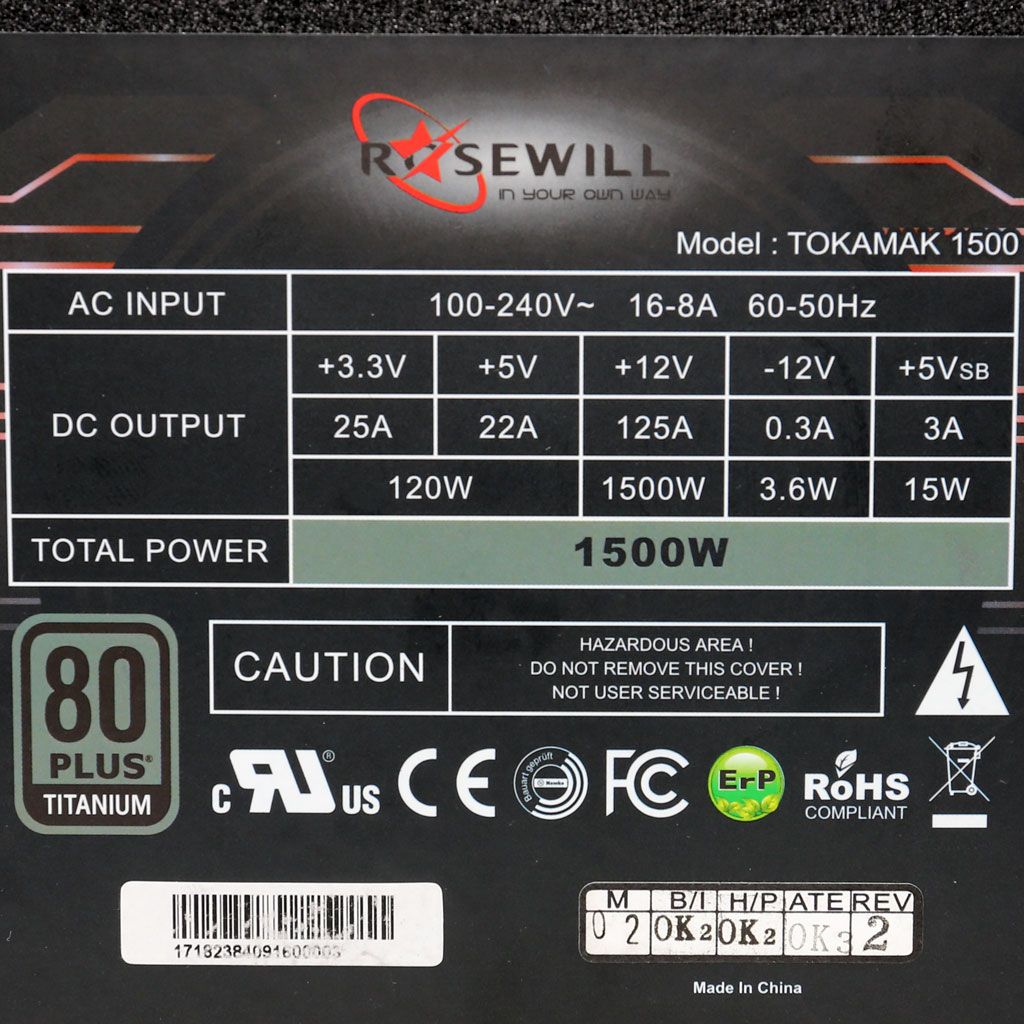

Power specifications label
