Super Flower Leadex Titanium 1000W
Serial NumberS1506102134
Lab ID154
Certification ID25154
  • Test Result Report ID: 19PS154A
  • Certificate Issue Date: Mar 8, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
This product certification body is accredited in accordance with the recognized International Standard ISO/IEC 17065:2012 Requirements for bodies certifying products, processes and services. This product certification body also meets the A2LA R308 - Specific Requirements - ISO-IEC 17065 - Telecommunication Certification Body Accreditation Program and R322 - Specific Requirements - Notified Body Accreditation Requirements. This accreditation demonstrates technical competence for a defined scope and the operation of a management system
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesLeadex Titanium
Model NumberSF-1000F14HT
Serial NumberS1506102134
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling140mm Double Ball-Bearing Fan
(RL4Z-B1402512HH)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 83.3 2.5 0.5
Watts 100 999.6 12.5 6
Total Max. Power (W) 1000

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (590mm) 1 1 16-22AWG
4+4 pin EPS12V (750mm) 2 2 16-22AWG
6+2 pin PCIe (750mm) 4 4 16-22AWG
6+2 pin PCIe (750mm+150mm) 2 4 16-22AWG
SATA (550mm+100mm+100mm+100mm) 3 12 18-20AWG
4 pin Molex (550mm+100mm+100mm) 2 6 18AWG
FDD Adapter (+100mm) 1 1 20AWG

Parts Description

Primary Side
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Electromagnetic Relay
Bridge Rectifier(s) Bridgeless Design - 1x US30K80R & 4x Infineon Mosfets
APFC Mosfets 4x Infineon Mosfets
APFC Boost Diode 4x Infineon IDH06G65C5
Hold-up Cap(s) 3x Nippon Chemi-Con
(400 V, 2x 390 uF & 1x 330 uF, 1110 uF combined, 105°C, KMW)
Main Switchers 4x IPP50R199CP (550V, 11A @ 100C, 0.199 Ohm)
APFC Controller SF29603
Switching Controller SFAA9013
Topology Primary side: Bridgeless PFC & Full-Bridge LLC & Resonant Converter
Secondary side: Syncronous Rectification & DC-DC converters
Secondary Side
+12V Mosfets 8x Infineon BSC027N04LS
5V & 3.3V DC-DC Converters: 8x Infineon IPD060N03 fets
Filtering Capacitors Electrolytics: Chemi-Con, 105°C, KY, KRG & KMG
Polymers: Chemi-Con
Supervisor IC AA9013 & LM324ADG
Fan Model Globe Fan RL4Z-B1402512HH
(140 mm, 12 V, 0.5 A, 1800 RPM, 70.000 MTBF)
5VSB Circuit
Rectifying Diode Mospec S10C60C
Standby PWM Controller 29604

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 3/6 2010: ✓
ErP Lot 3/6 2013: Partially
ErP Lot 3/6 2014, CEC: ✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Efficiency RatingTITANIUM
Noise RatingA-
Average Efficiency (>1450 load combinations)91.621%
Average Noise Output (>1450 Load Combinations)26.26dBA
Average PF (>1450 Load Combinations)0.993
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1164W
12V Ripple (Full Load)21.60mV
5V Ripple (Full Load)25.02mV
3.3V Ripple (Full Load)30.07mV
5VSB Ripple (Full Load)16.10mV
12V Load Regulation0.40%
5V Load Regulation0.67%
3.3V Load Regulation0.75%
5VSB Load Regulation1.52%
Inrush Current40.016A

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 20.14
AC Loss to PWR_OK Hold Up Time  (ms) 18.12
PWR_OK Inactive to DC Loss Delay (ms) 2.02

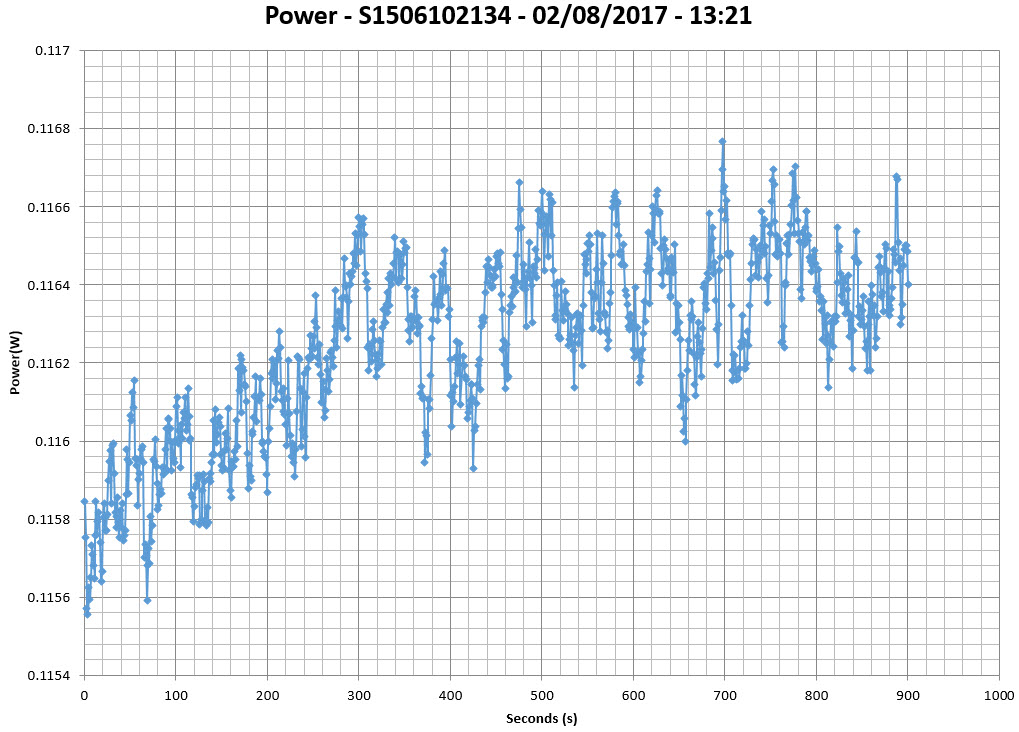

Vampire Power

Tables 115V

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

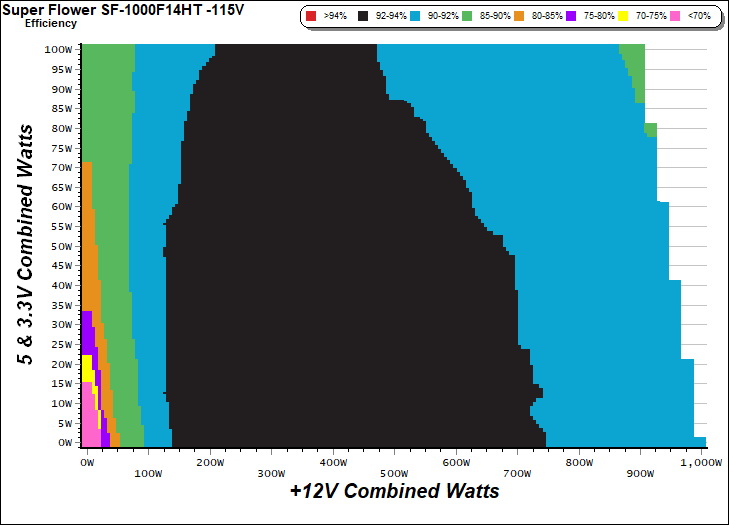

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

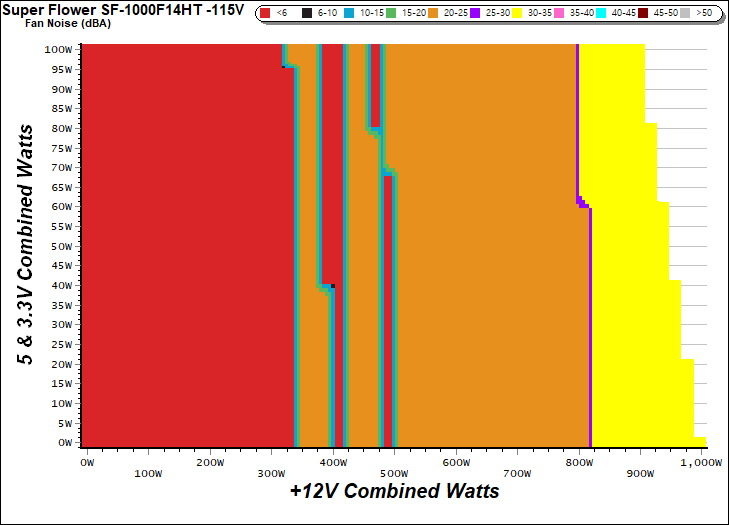

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

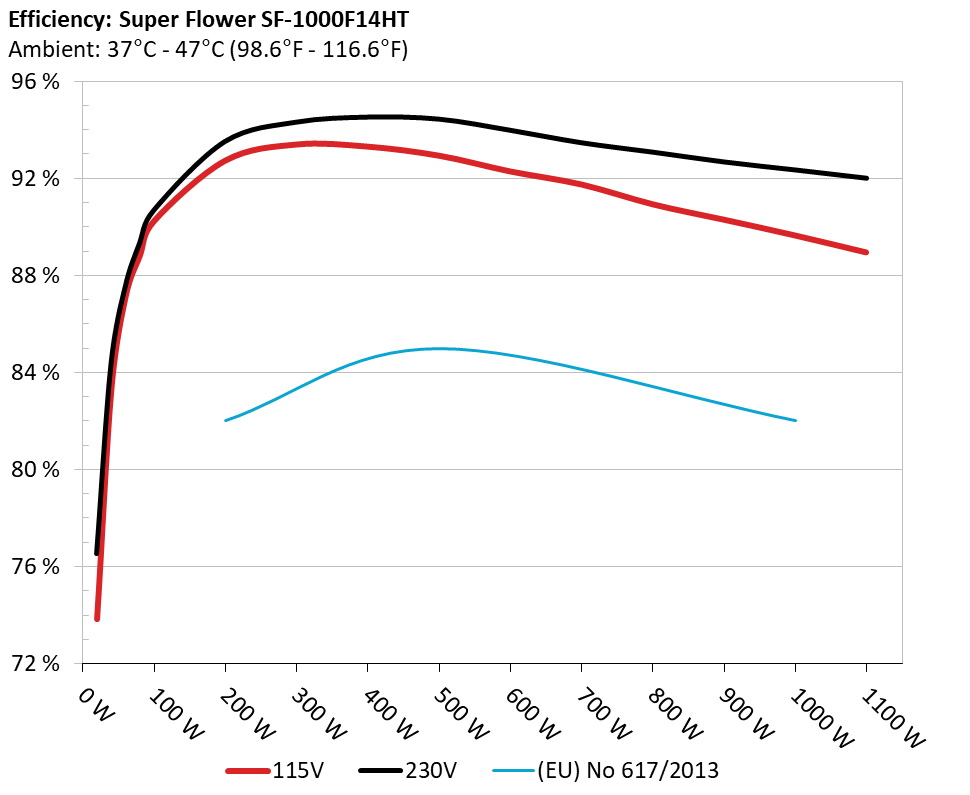

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

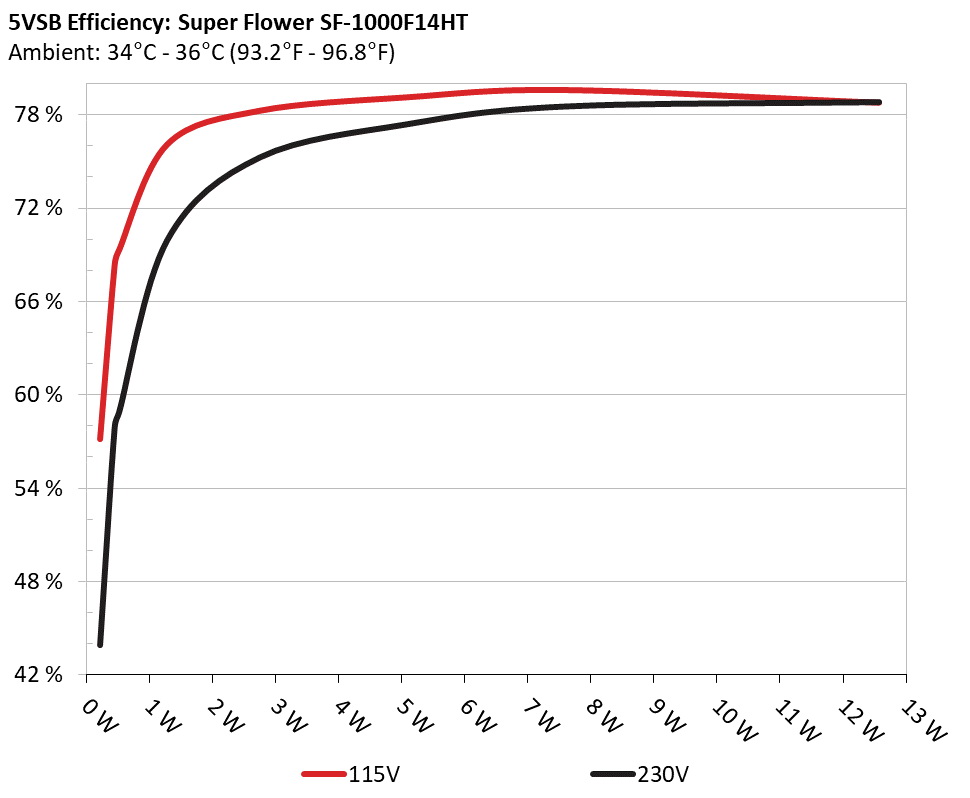

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.212 57.143% 0.023
5.076V 0.371 115.14V
2 0.087A 0.443 68.364% 0.041
5.074V 0.648 115.14V
3 0.542A 2.746 78.256% 0.196
5.065V 3.509 115.12V
4 1.002A 5.065 79.116% 0.300
5.055V 6.402 115.13V
5 1.502A 7.576 79.588% 0.370
5.045V 9.519 115.13V
6 2.501A 12.566 78.774% 0.445
5.024V 15.952 115.13V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.431A 1.985A 1.990A 0.986A 99.795 90.252% 0 | 6 43.75°C 0.975
12.163V 5.040V 3.310V 5.054V 110.574 38.40°C 115.18V
2 13.884A 2.972A 2.990A 1.186A 199.622 92.735% 0 | 6 44.24°C 0.989
12.157V 5.035V 3.306V 5.046V 215.260 38.65°C 115.18V
3 21.706A 3.478A 3.508A 1.386A 299.846 93.400% 0 | 6 45.30°C 0.996
12.152V 5.032V 3.304V 5.039V 321.033 39.13°C 115.17V
4 29.513A 3.976A 3.992A 1.586A 399.621 93.312% 0 | 6 46.29°C 0.995
12.146V 5.029V 3.301V 5.033V 428.265 39.82°C 115.16V
5 36.984A 4.975A 4.997A 1.790A 499.610 92.938% 920 23.0 41.17°C 0.996
12.144V 5.025V 3.298V 5.026V 537.574 48.14°C 115.16V
6 44.464A 5.977A 6.003A 1.990A 599.534 92.291% 920 23.0 41.42°C 0.997
12.139V 5.021V 3.296V 5.019V 649.615 49.52°C 115.16V
7 51.953A 6.981A 7.013A 2.195A 699.519 91.753% 920 23.0 41.82°C 0.997
12.134V 5.018V 3.293V 5.010V 762.390 51.07°C 115.16V
8 59.444A 7.977A 8.019A 2.395A 799.368 90.939% 1365 34.5 43.28°C 0.998
12.129V 5.014V 3.291V 5.004V 879.016 52.19°C 115.16V
9 67.370A 8.484A 8.537A 2.396A 899.367 90.303% 1830 41.2 44.05°C 0.998
12.124V 5.012V 3.288V 5.001V 995.947 52.99°C 115.16V
10 75.261A 8.992A 9.036A 2.500A 999.245 89.656% 1830 41.2 45.20°C 0.998
12.118V 5.009V 3.287V 4.996V 1114.533 55.04°C 115.16V
11 83.552A 8.996A 9.040A 2.500A 1099.111 88.957% 1830 41.2 46.77°C 0.998
12.111V 5.006V 3.285V 4.993V 1235.550 58.24°C 115.17V
CL1 0.097A 12.017A 12.004A 0.004A 101.163 85.422% 1365 34.5 44.04°C 0.978
12.165V 5.022V 3.300V 5.068V 118.428 51.13°C 115.21V
CL2 83.247A 1.003A 1.002A 1.002A 1021.920 89.921% 1830 41.2 45.93°C 0.998
12.115V 5.020V 3.295V 5.036V 1136.470 55.64°C 115.17V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) PF/AC Volts
1 1.201A 0.493A 0.479A 0.196A 19.685 73.854% 0 | 6 0.812
12.169V 5.046V 3.314V 5.073V 26.654 115.17V
2 2.421A 0.991A 0.993A 0.391A 39.725 83.316% 0 | 6 0.921
12.167V 5.043V 3.312V 5.068V 47.680 115.17V
3 3.653A 1.478A 1.508A 0.591A 59.881 87.155% 0 | 6 0.955
12.166V 5.042V 3.311V 5.064V 68.706 115.17V
4 4.867A 1.985A 1.988A 0.790A 79.782 88.825% 0 | 6 0.967
12.164V 5.040V 3.310V 5.058V 89.819 115.18V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.8 mV 7.5 mV 10.8 mV 8.5 mV Pass
20% Load 13.7 mV 10.5 mV 14.0 mV 10.6 mV Pass
30% Load 16.1 mV 11.5 mV 17.6 mV 11.8 mV Pass
40% Load 16.9 mV 13.7 mV 19.4 mV 11.8 mV Pass
50% Load 17.2 mV 15.5 mV 20.0 mV 13.3 mV Pass
60% Load 18.1 mV 18.3 mV 24.2 mV 14.5 mV Pass
70% Load 21.4 mV 20.4 mV 24.5 mV 14.9 mV Pass
80% Load 19.1 mV 21.2 mV 25.2 mV 14.0 mV Pass
90% Load 20.6 mV 23.2 mV 28.4 mV 15.5 mV Pass
100% Load 21.6 mV 25.0 mV 30.1 mV 16.1 mV Pass
110% Load 21.3 mV 27.0 mV 31.6 mV 14.9 mV Pass
Crossload 1 12.2 mV 10.2 mV 9.9 mV 20.6 mV Pass
Crossload 2 20.5 mV 25.0 mV 29.1 mV 16.2 mV Pass

The results above are not used in the certification process

Super Flower Leadex Titanium 1000W

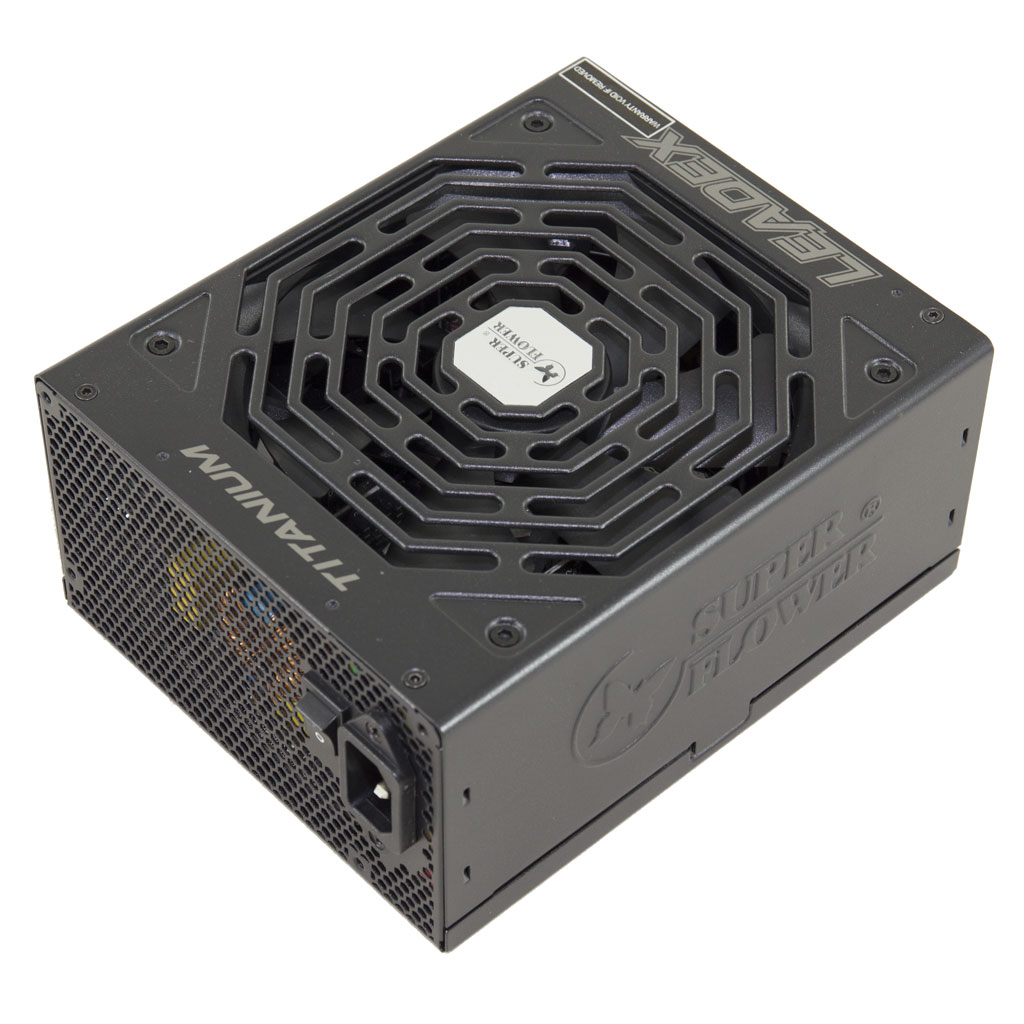

Top side

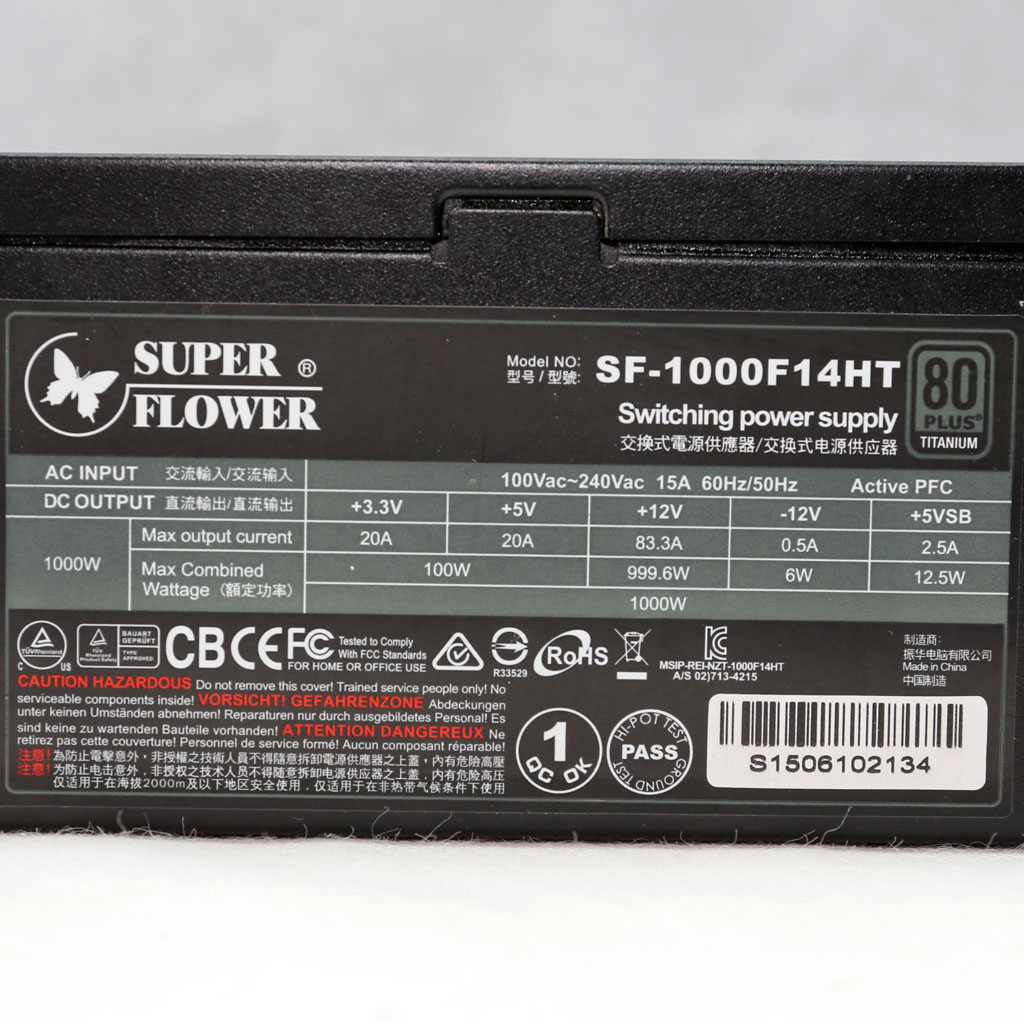

Power specifications label
