Cybenetics Test - SilverStone Decathlon DA1650

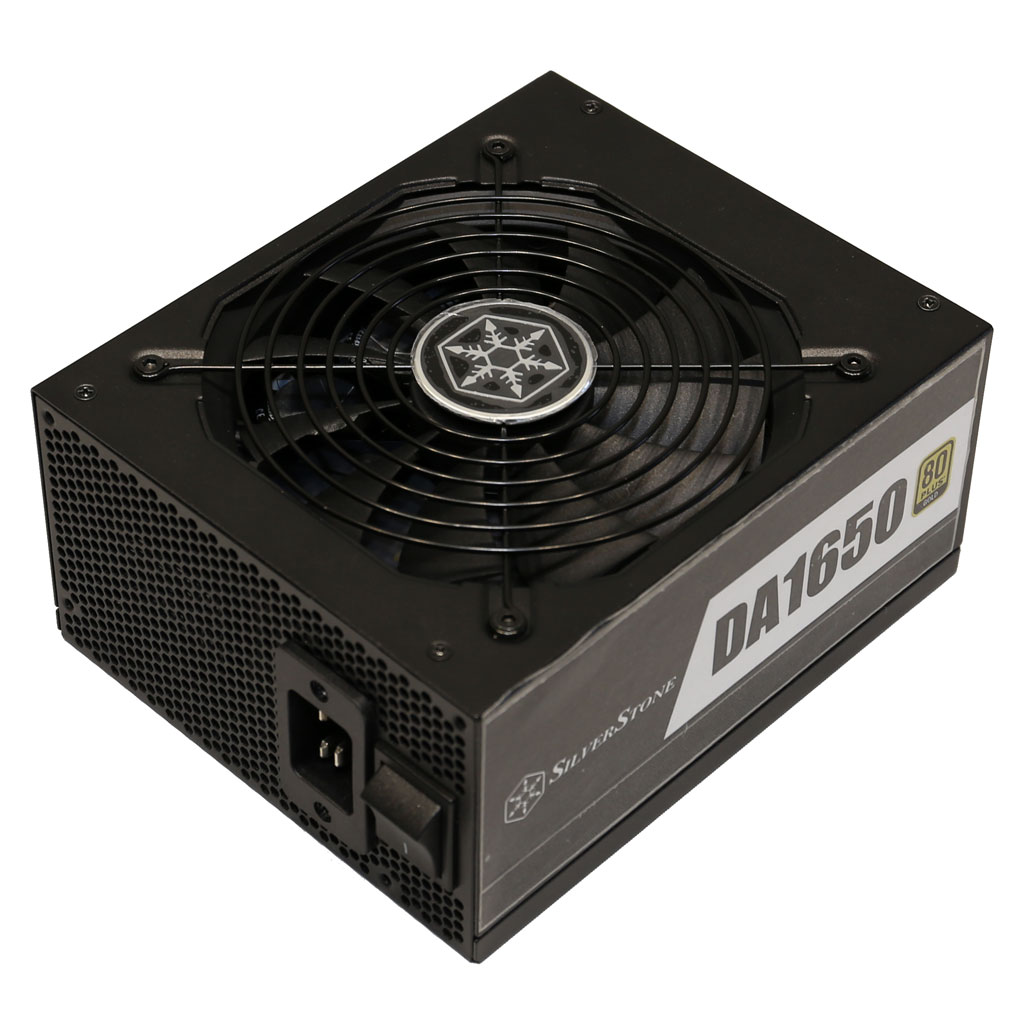

SilverStone Decathlon DA1650

Serial Number

Lab IDSL20165009

Certification ID251592

Test Result Report ID: 20PSA
Certificate Issue Date: Feb 11, 2020

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	SilverStone
Manufacturer (OEM)	High Power
Series	Decathlon
Model Number	DA1650-G
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	20
Rated Frequency (Hz)	50-60
Rated Power (W)	1650
Type	ATX12V
Dimensions (W x H x D)
Cooling	135mm Fluid Dynamic Bearing Fan (RL4Z S1352512HH)
Semi-Passive Operation	✓
Cable Design	Fully Modular

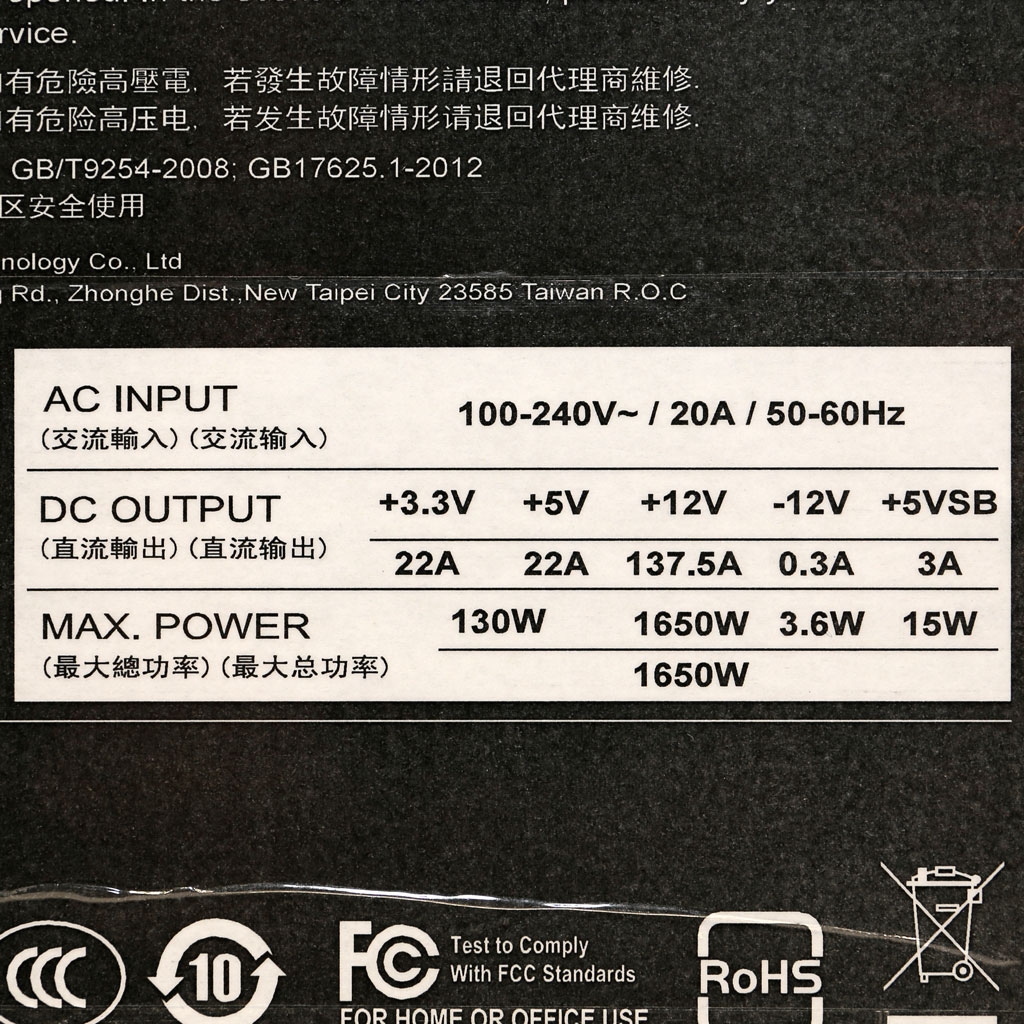

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	22	22	137.5	3	0.3
Max. Power	Watts	130		1650	15	3.6
Total Max. Power (W)		1650

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (610mm) / 6 pin sense wires (640mm)	1	1 / 1	16-22AWG	No
4+4 pin EPS12V (750mm)	2	2	16AWG	No
6+2 pin PCIe (610mm+150mm)	4	8	16-18AWG	No
8 pin PCIe (610mm)	4	4	16AWG	No
SATA (600mm+150mm+150mm+150mm)	4	16	18AWG	No
4-pin Molex (600mm+150mm+150mm)	1	3	18AWG	No
4-pin Molex (600mm+150mm+150mm) / FDD (+150mm)	1	3 / 1	18-22AWG	No
FDD Adapter (105mm)	1	1	22AWG	No
AC Power Cord (1680mm) - C19 coupler	1	1	16AWG	-

Parts Description

General Data	-
Manufacturer (OEM)	High Power
PCB Type	Double Sided
Primary Side	-
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor (SCK-057) & Relay
Bridge Rectifier(s)	2x GBJ5006 (600V, 50A @ 100°C)
APFC MOSFETs	2x Infineon IPW60R060P7 (650V, 30A @ 100°C, 0.06Ohm)
APFC Boost Diode	2x Infineon IDH08G65C5 (650V, 8A @ 145°C)
Hold-up Cap(s)	2x Rubycon (400V, 820uF, 3,000h @ 105°C, MXK)
Main Switchers	2x Infineon IPW60R080P7 (650V, 23A @ 100°C, 0.08Ohm)
APFC Controller	Infineon ICE3PCS01G
Resonant Controller	Champion CM6901X
Topology	Primary side: Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side	-
+12V MOSFETs	10x Toshiba TPHR8504PL (40V, 150A @ 25°C, 0.85mOhm)
5V & 3.3V	DC-DC Converters: 8x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm) PWM Controllers: ANPEC APW7159
Filtering Capacitors	Electrolytic: 11x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 3x Rubycon (3-6,000h @ 105°C, YXG) Polymer: 28x FPCAP, 2x United Chemi-Con
Supervisor IC	SITI PS232S (OCP, OVP, UVP, SCP, PG)
Micro Controller	STC15W408AS
Fan Model	Globe Fan RL4Z S1352512HH (135mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB Circuit	-
Rectifier	1x PFC P10V45SP SBR (45V, 10A)
Standby PWM Controller	SanKen STR-A6069H

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	ErP Lot 6 2010: ✓ ErP Lot 6 2013: ✓ ErP Lot 3 2014 & CEC: Partially
(EU) No 617/2013 Compliance	✓

Performance Summary

Efficiency Rating	PLATINUM
Noise Rating	Standard+
Average Efficiency (>1450 load combinations)	89.402%
Average Noise Output (>1450 Load Combinations)	39.89dBA
Average PF (>1450 Load Combinations)	0.994
Efficiency With 10W (≤500W) or 2% (>500W) Load	74.032%
Standby Power Consumption	0.0802W
12V Ripple (Full Load)	27.70mV
5V Ripple (Full Load)	12.77mV
3.3V Ripple (Full Load)	24.95mV
5VSB Ripple (Full Load)	21.81mV
12V Load Regulation	0.51%
5V Load Regulation	0.70%
3.3V Load Regulation	1.18%
5VSB Load Regulation	1.77%
Inrush Current	32.850A

Efficiency Rating	PLATINUM
Noise Rating	Standard+
Average Efficiency (>1450 load combinations)	91.513%
Average Noise Output (>1450 Load Combinations)	39.94dBA
Average PF (>1450 Load Combinations)	0.966
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
Standby Power Consumption	0.1082W
12V Ripple (Full Load)	24.23mV
5V Ripple (Full Load)	9.23mV
3.3V Ripple (Full Load)	19.41mV
5VSB Ripple (Full Load)	20.14mV
12V Load Regulation	0.47%
5V Load Regulation	0.78%
3.3V Load Regulation	1.54%
5VSB Load Regulation	1.74%
Inrush Current	65.870A
Hold-Up Time & Power Ok Signal	10.60ms
AC Loss to PWR_OK Hold Up Time	9.60ms
PWR_OK Inactive to DC Loss Delay	1.00ms
PSU Timings: T1 (20% / 100%)	118.0ms	110.0ms
PSU Timings: T3 (20% / 100%)	294.0ms	284.0ms
OPP (0.00°C / 0.00°C)	0.00%	0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	10.6
AC Loss to PWR_OK Hold Up Time (ms)	9.6
PWR_OK Inactive to DC Loss Delay (ms)	1

Vampire Power

Tables

Graphs

INFO

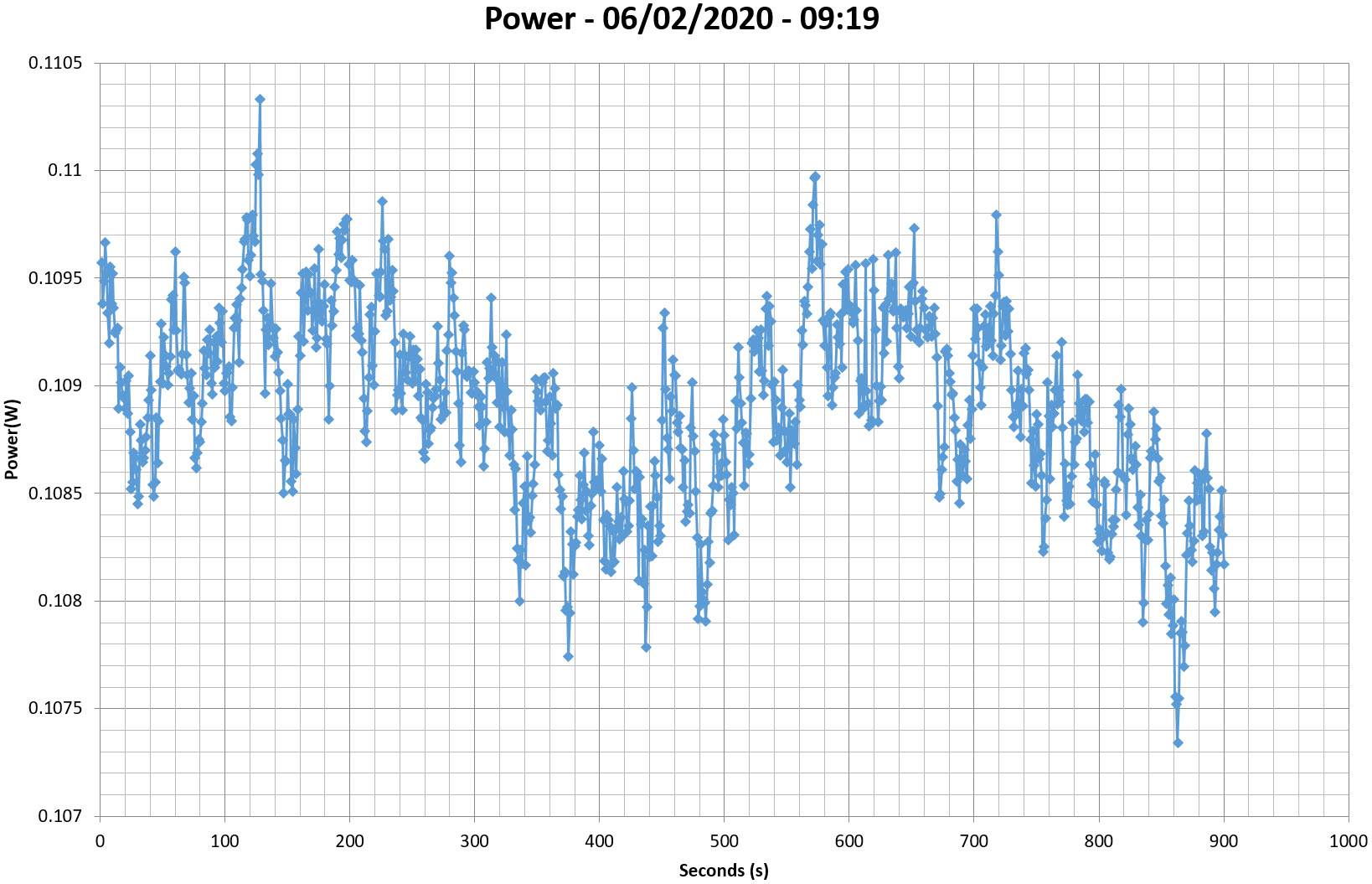

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

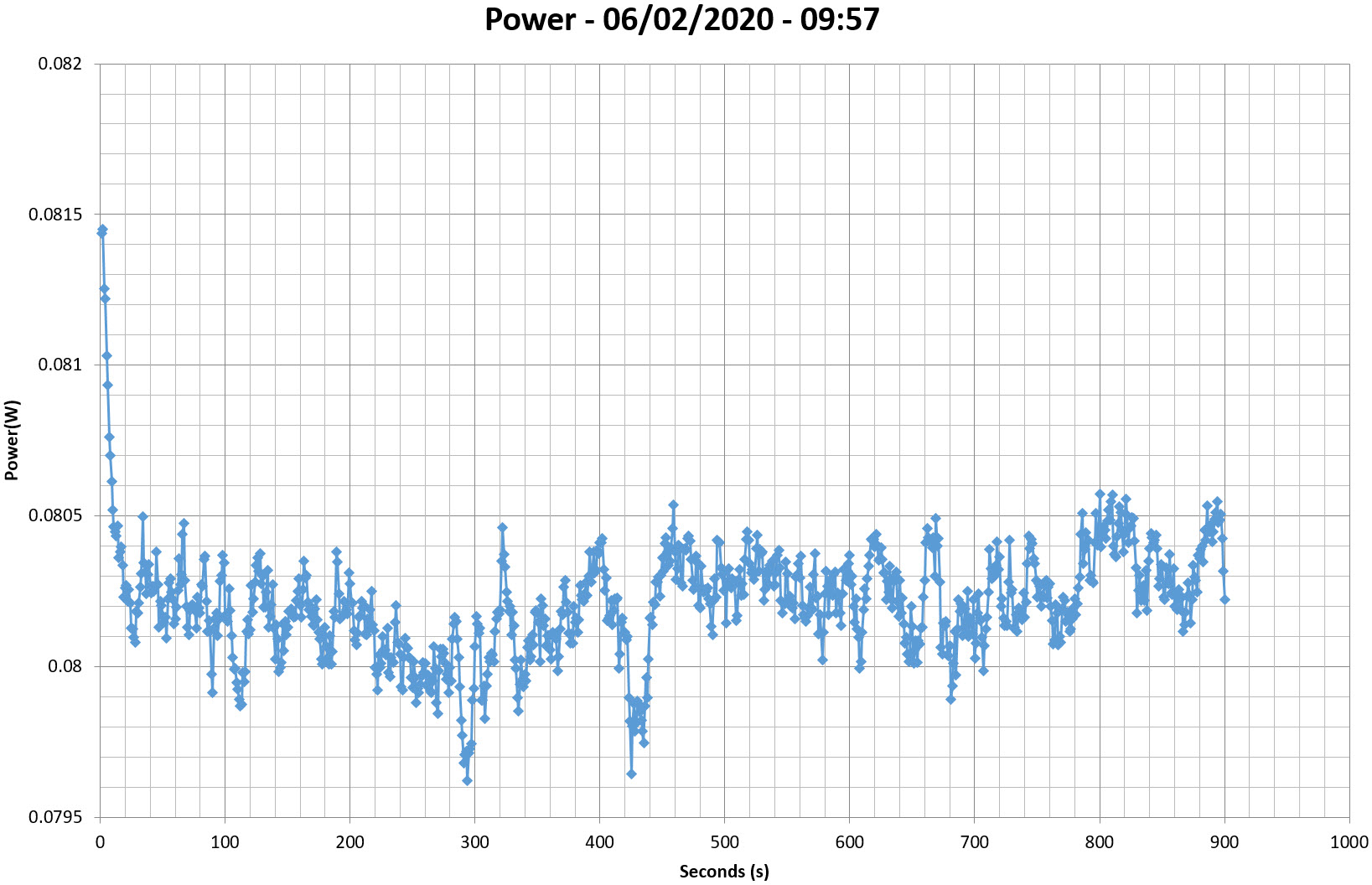

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

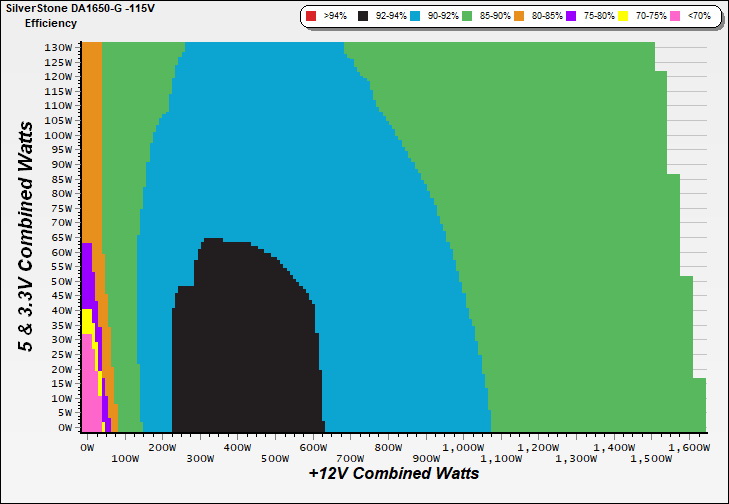

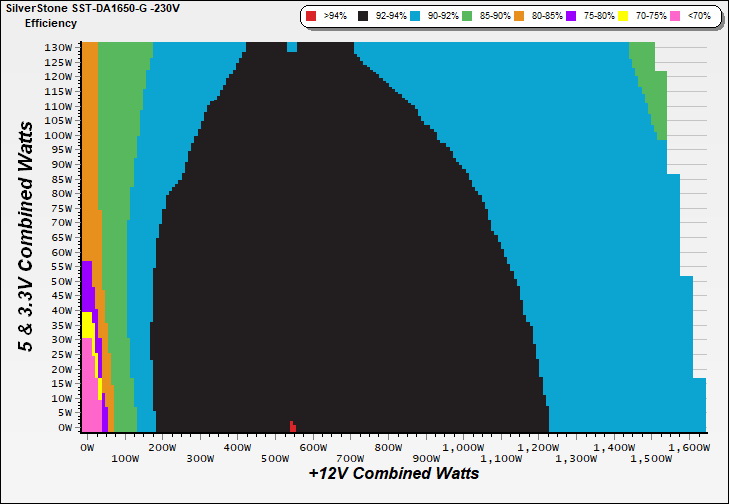

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

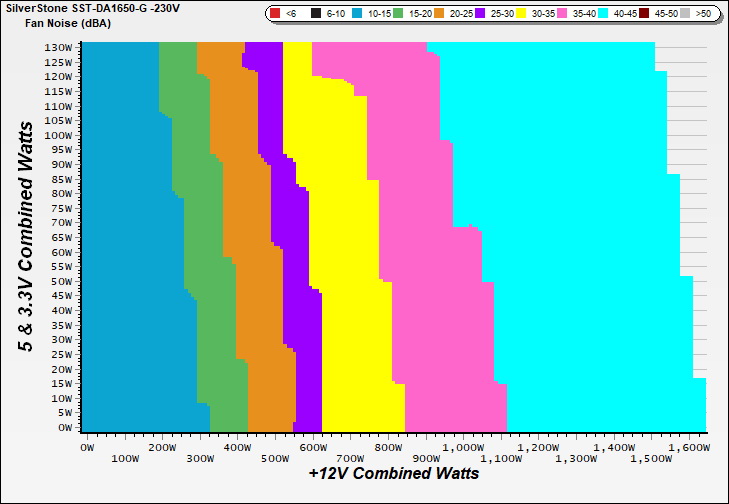

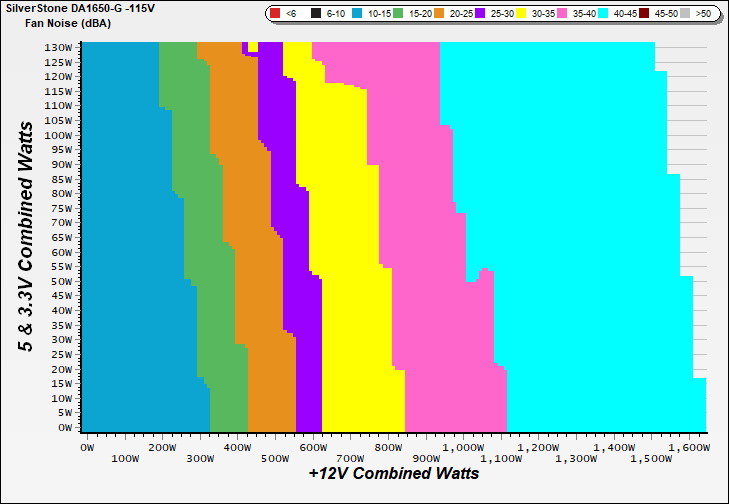

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

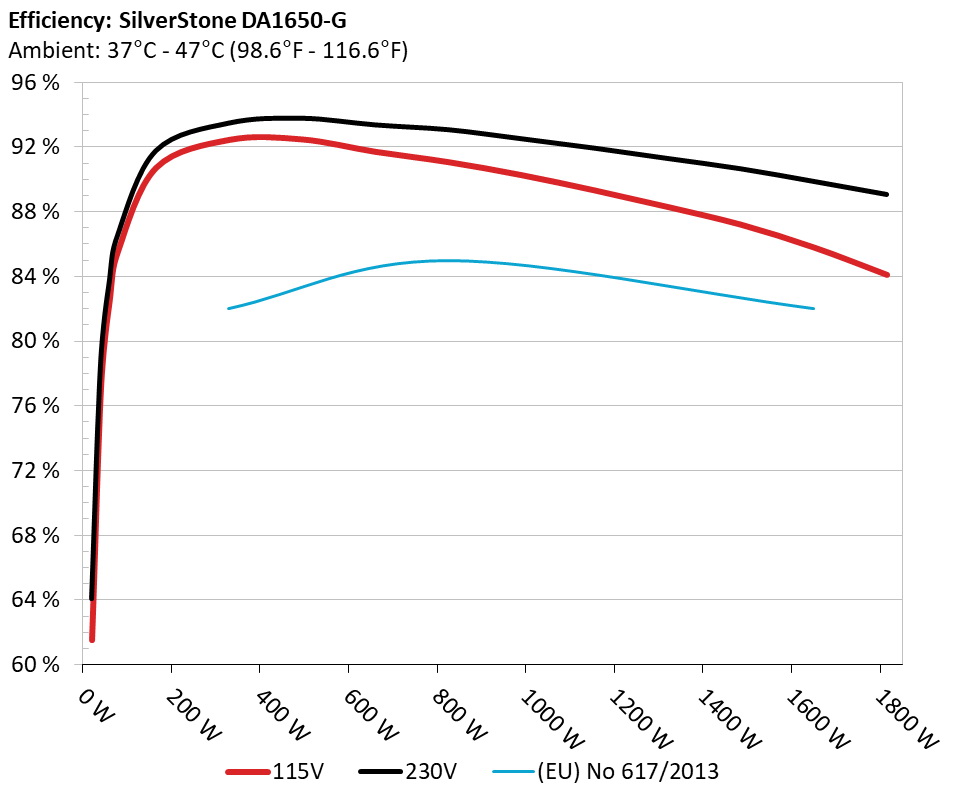

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

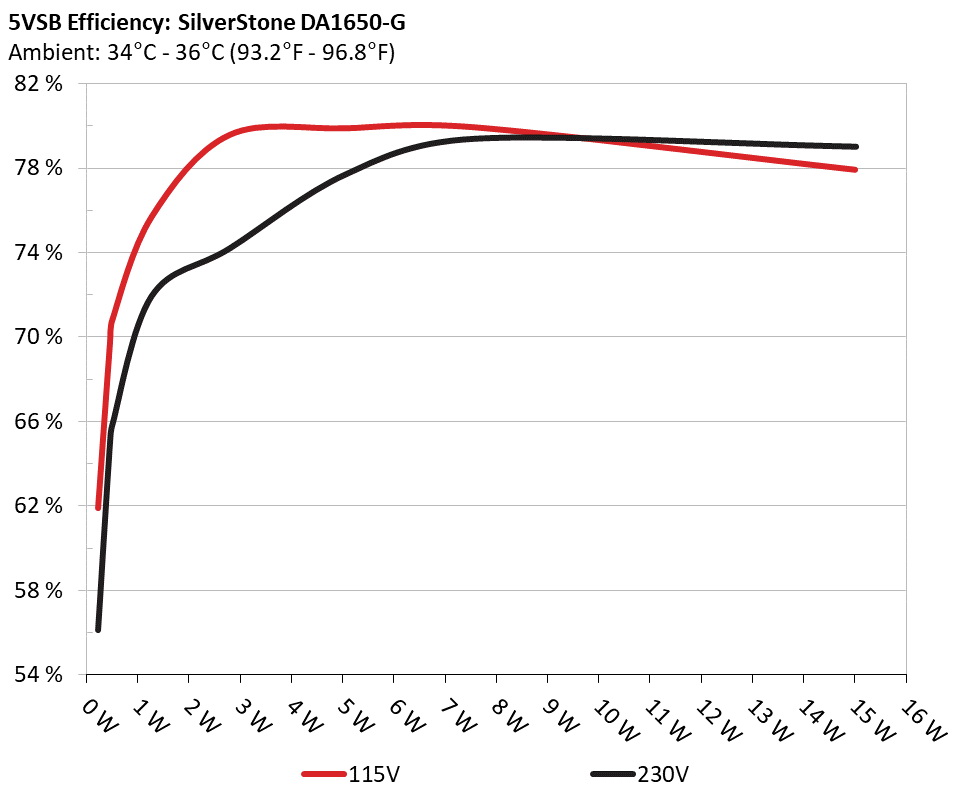

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.229	61.892%	0.050
1	5.099V	0.370	61.892%	115.11V
2	0.090A	0.459	69.651%	0.087
2	5.097V	0.659	69.651%	115.11V
3	0.550A	2.796	79.567%	0.301
3	5.083V	3.514	79.567%	115.12V
4	1.000A	5.070	79.880%	0.377
4	5.069V	6.347	79.880%	115.12V
5	1.500A	7.582	79.928%	0.418
5	5.054V	9.486	79.928%	115.11V
6	3.000A	15.011	77.919%	0.472
6	5.004V	19.265	77.919%	115.11V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.229	56.127%	0.018
1	5.098V	0.408	56.127%	230.22V
2	0.090A	0.459	64.922%	0.030
2	5.097V	0.707	64.922%	230.22V
3	0.550A	2.795	74.217%	0.145
3	5.081V	3.766	74.217%	230.20V
4	1.000A	5.068	77.742%	0.219
4	5.068V	6.519	77.742%	230.21V
5	1.500A	7.580	79.422%	0.275
5	5.053V	9.544	79.422%	230.22V
6	3.000A	15.014	79.042%	0.362
6	5.005V	18.995	79.042%	230.22V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	11.897A	1.997A	1.998A	1.004A	165.029	90.704%			43.83?	0.975
1	12.056V	5.005V	3.304V	4.982V	181.943	90.704%			40.16?	115.09V
2	24.826A	2.996A	3.000A	1.204A	330.047	92.421%			40.48?	0.994
2	12.050V	5.006V	3.299V	4.983V	357.111	92.421%			44.80?	115.08V
3	38.058A	3.499A	3.500A	1.407A	494.414	92.446%			41.34?	0.997
3	12.044V	5.002V	3.298V	4.974V	534.814	92.446%			46.32?	115.08V
4	51.338A	4.001A	4.006A	1.611A	659.615	91.684%			41.72?	0.997
4	12.046V	4.999V	3.294V	4.966V	719.443	91.684%			47.38?	115.08V
5	64.355A	5.004A	5.015A	1.813A	824.957	91.042%			42.16?	0.998
5	12.034V	4.997V	3.291V	4.964V	906.127	91.042%			48.14?	115.07V
6	77.137A	6.006A	6.044A	2.000A	989.379	90.244%			42.62?	0.998
6	12.052V	4.995V	3.276V	4.962V	1096.337	90.244%			49.35?	115.06V
7	90.159A	7.026A	7.060A	2.223A	1154.809	89.296%			43.54?	0.998
7	12.042V	4.983V	3.272V	4.950V	1293.241	89.296%			50.64?	115.06V
8	103.161A	8.003A	8.076A	2.426A	1320.005	88.273%			44.11?	0.998
8	12.037V	4.981V	3.268V	4.947V	1495.364	88.273%			51.83?	115.05V
9	116.512A	8.536A	8.571A	2.425A	1485.086	87.181%			44.94?	0.999
9	12.038V	4.980V	3.267V	4.950V	1703.452	87.181%			53.24?	115.04V
10	129.969A	9.039A	9.095A	3.045A	1649.850	85.776%			46.08?	0.999
10	12.004V	4.979V	3.265V	4.927V	1923.437	85.776%			55.05?	115.04V
11	143.492A	9.056A	9.121A	3.052A	1814.761	84.085%			46.88?	0.999
11	12.022V	4.970V	3.255V	4.916V	2158.258	84.085%			56.71?	115.04V
CL1	0.101A	16.002A	15.999A	0.000A	133.737	82.334%			48.26?	0.977
CL1	12.070V	4.994V	3.288V	5.145V	162.433	82.334%			42.21?	115.12V
CL2	137.516A	1.000A	0.999A	1.000A	1665.992	85.897%			46.53?	0.999
CL2	12.019V	4.982V	3.269V	4.940V	1939.517	85.897%			55.66?	115.05V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	11.902A	1.997A	1.997A	1.003A	165.089	91.779%	0	<6.0	43.92°C	0.887
1	12.056V	5.007V	3.305V	4.984V	179.876	91.779%	0	<6.0	40.30°C	230.26V
2	24.832A	2.999A	3.009A	1.205A	330.131	93.487%	595	15.0	40.40°C	0.936
2	12.050V	5.003V	3.290V	4.981V	353.129	93.487%	595	15.0	44.86°C	230.26V
3	38.068A	3.499A	3.514A	1.407A	494.588	93.786%	734	21.6	41.54°C	0.959
3	12.045V	5.002V	3.288V	4.977V	527.359	93.786%	734	21.6	46.43°C	230.26V
4	51.379A	4.001A	4.021A	1.610A	659.811	93.373%	1012	30.9	41.61°C	0.977
4	12.040V	4.999V	3.284V	4.970V	706.643	93.373%	1012	30.9	46.94°C	230.25V
5	64.375A	5.004A	5.031A	1.812A	825.132	93.076%	1150	34.6	42.58°C	0.989
5	12.033V	4.997V	3.280V	4.968V	886.516	93.076%	1150	34.6	48.47°C	230.25V
6	77.311A	6.007A	6.044A	2.000A	989.559	92.521%	1335	38.8	43.02°C	0.993
6	12.027V	4.995V	3.276V	4.967V	1069.553	92.521%	1335	38.8	49.72°C	230.25V
7	90.275A	7.014A	7.064A	2.216A	1154.964	91.937%	1537	42.8	43.21°C	0.995
7	12.028V	4.993V	3.272V	4.965V	1256.251	91.937%	1537	42.8	50.32°C	230.24V
8	103.265A	8.005A	8.078A	2.424A	1320.150	91.299%	1630	43.9	44.41°C	0.998
8	12.026V	4.981V	3.269V	4.953V	1445.958	91.299%	1630	43.9	52.45°C	230.25V
9	116.773A	8.539A	8.569A	2.422A	1485.211	90.660%	1623	43.9	44.93°C	0.998
9	12.012V	4.980V	3.268V	4.957V	1638.224	90.660%	1623	43.9	53.64°C	230.24V
10	129.960A	9.060A	9.124A	3.049A	1650.026	89.878%	1629	43.9	45.25°C	0.999
10	12.006V	4.969V	3.255V	4.922V	1835.854	89.878%	1629	43.9	54.54°C	230.23V
11	143.776A	9.059A	9.123A	3.050A	1814.885	89.071%	1629	43.9	47.17°C	0.999
11	11.999V	4.969V	3.255V	4.920V	2037.572	89.071%	1629	43.9	56.80°C	230.24V
CL1	0.102A	16.005A	15.998A	0.000A	133.761	83.102%	0	<6.0	48.33°C	0.874
CL1	12.066V	4.994V	3.288V	5.148V	160.960	83.102%	0	<6.0	42.23°C	230.27V
CL2	137.561A	1.000A	1.001A	1.000A	1666.122	90.062%	1627	43.9	45.95°C	0.999
CL2	12.016V	4.979V	3.269V	4.938V	1849.973	90.062%	1627	43.9	54.97°C	230.25V

The results above are not used in the certification process

Light Load Tests

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.229A	0.496A	0.499A	0.199A	19.986	61.528%			0.833
1	12.080V	5.020V	3.309V	5.016V	32.483	61.528%			115.09V
2	2.46A	0.995A	0.999A	0.400A	39.974	76.993%			0.902
2	12.066V	5.014V	3.304V	5.006V	51.919	76.993%			115.08V
3	3.696A	1.497A	1.499A	0.600A	60.004	82.547%			0.935
3	12.056V	5.008V	3.302V	4.997V	72.691	82.547%			115.09V
4	4.922A	1.994A	1.998A	0.800A	79.955	85.644%			0.953
4	12.060V	5.014V	3.302V	4.999V	93.357	85.644%			115.09V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.229A	0.499A	0.501A	0.200A	20.010	64.065%	0	<6.0	0.449
1	12.082V	5.012V	3.309V	5.008V	31.234	64.065%	0	<6.0	230.26V
2	2.462A	0.997A	0.999A	0.400A	39.996	78.491%	0	<6.0	0.579
2	12.060V	5.016V	3.303V	5.009V	50.956	78.491%	0	<6.0	230.25V
3	3.698A	1.494A	1.501A	0.600A	60.025	83.704%	0	<6.0	0.680
3	12.057V	5.011V	3.299V	5.000V	71.711	83.704%	0	<6.0	230.26V
4	4.926A	1.998A	1.996A	0.801A	79.974	86.652%	0	<6.0	0.770
4	12.054V	5.006V	3.304V	4.992V	92.293	86.652%	0	<6.0	230.26V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	9.70mV	6.80mV	10.20mV	4.20mV	Pass
20% Load	10.60mV	6.80mV	10.90mV	5.90mV	Pass
30% Load	10.80mV	6.70mV	10.80mV	7.60mV	Pass
40% Load	11.40mV	8.50mV	13.20mV	10.40mV	Pass
50% Load	12.70mV	9.60mV	14.90mV	12.70mV	Pass
60% Load	13.70mV	8.20mV	13.50mV	12.10mV	Pass
70% Load	15.60mV	13.20mV	22.30mV	19.30mV	Pass
80% Load	17.50mV	16.10mV	24.50mV	22.20mV	Pass
90% Load	18.90mV	11.30mV	21.30mV	18.80mV	Pass
100% Load	27.70mV	12.80mV	25.00mV	21.80mV	Pass
110% Load	30.20mV	15.00mV	30.30mV	25.60mV	Pass
Crossload1	12.10mV	10.10mV	14.70mV	6.80mV	Pass
Crossload2	27.40mV	10.40mV	22.60mV	21.40mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	9.20mV	5.90mV	9.10mV	3.90mV	Pass
20% Load	12.10mV	7.30mV	11.00mV	5.70mV	Pass
30% Load	11.80mV	7.40mV	11.90mV	7.20mV	Pass
40% Load	10.70mV	9.80mV	15.60mV	10.20mV	Pass
50% Load	10.30mV	9.20mV	13.60mV	12.50mV	Pass
60% Load	11.90mV	7.00mV	12.50mV	12.40mV	Pass
70% Load	13.00mV	12.90mV	18.40mV	19.70mV	Pass
80% Load	13.80mV	13.30mV	20.20mV	21.70mV	Pass
90% Load	15.30mV	8.90mV	18.50mV	18.10mV	Pass
100% Load	24.20mV	9.20mV	19.40mV	20.10mV	Pass
110% Load	26.30mV	10.30mV	20.40mV	23.10mV	Pass
Crossload1	11.70mV	11.10mV	15.50mV	6.80mV	Pass
Crossload2	24.40mV	8.40mV	16.30mV	20.40mV	Pass

The results above are not used in the certification process

SilverStone Decathlon DA1650

Top side

Power specifications label
