Cybenetics Test - Asus ROG-THOR-850P (#3)

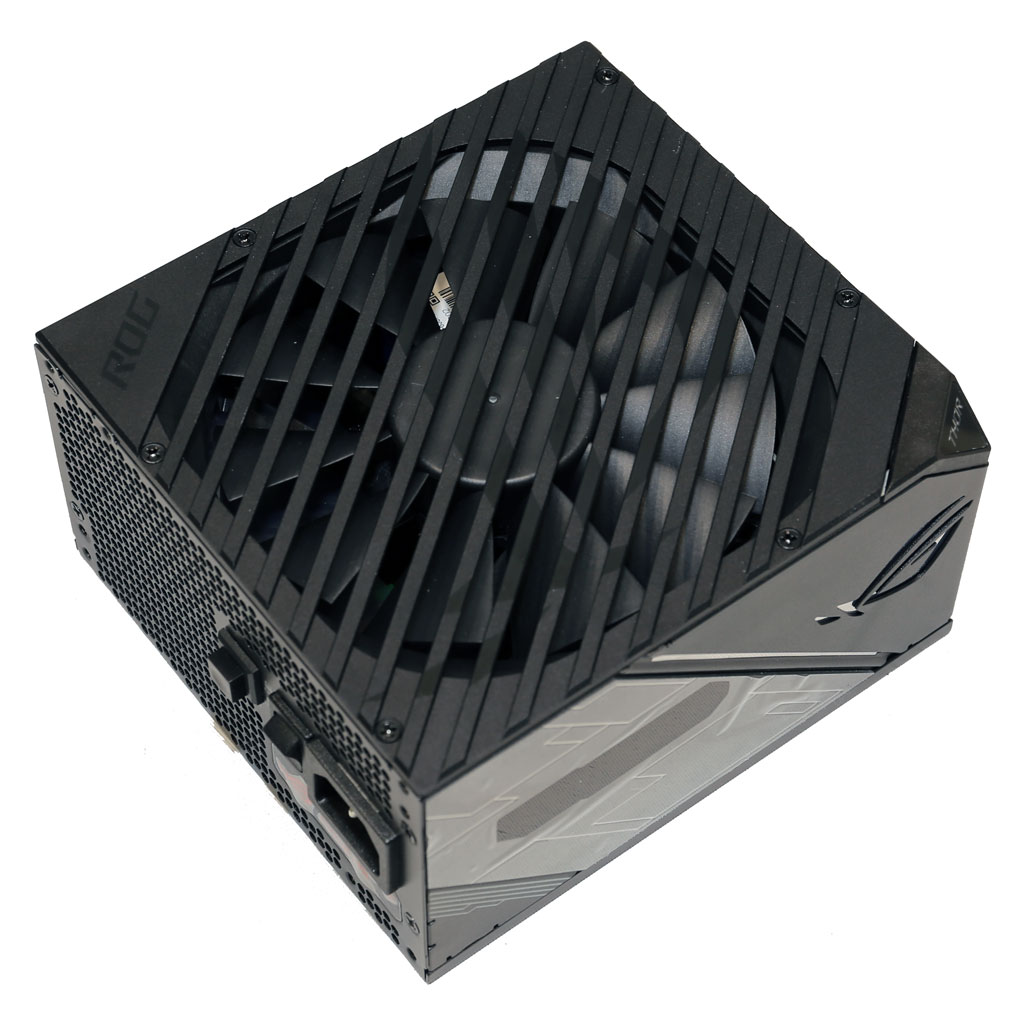

Asus ROG-THOR-850P (#3)

Serial NumberKCYEKG000013GB7

Lab IDAS85001630

Certification ID251630

Test Result Report ID: 20PS1630A
Certificate Issue Date: Apr 3, 2020

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

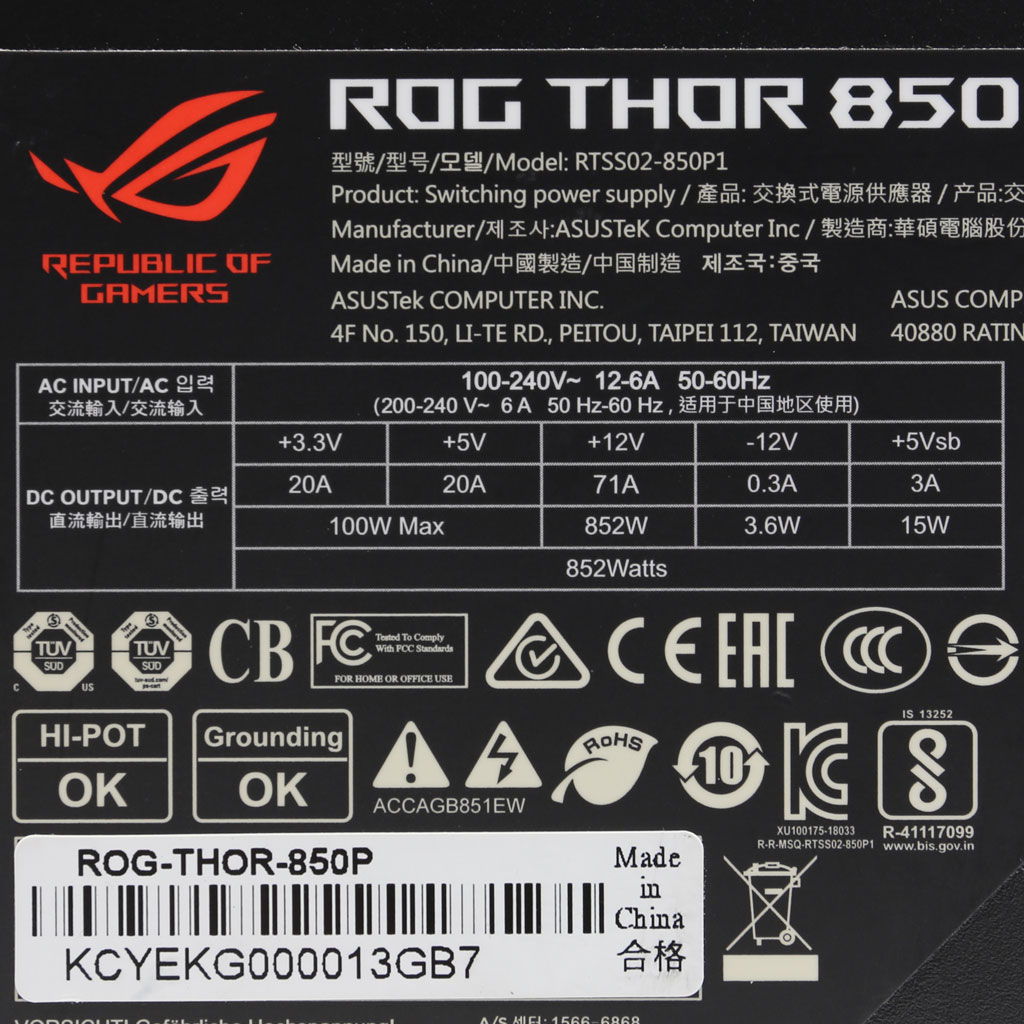

DUT Information

Brand	Asus
製造商 (OEM)	Seasonic
Series	Rog Thor Platinum
Model Number	RTSS02-850P1
Serial Number	KCYEKG000013GB7
DUT Notes	RTSS02 - 850P1

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	12-6
Rated Frequency (Hz)	50-60
Rated Power (W)	850
Type	ATX12V
Dimensions (W x H x D)
Cooling	135mm Double Ball Bearing Fan (PLA13525B12M)
Semi-Passive Operation	✓ (selectable)
Cable Design	Fully Modular

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	71	3	0.3
Max. Power	Watts	100		852	15	3.6
Total Max. Power (W)		850

Test Equipment

Electronic Loads	Chroma 63601-5 x4 Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
AC Sources	Chroma 6530, Keysight AC6804B
Power Analyzers	N4L PPA1530 x2
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Data Loggers	Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer	UNI-T UT372 x2
Digital Multimeter	Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS	CyberPower OLS3000E 3kVA x2
Transformer	3kVA x2
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (610mm)	1	1	18AWG	No
4+4 pin EPS12V (650mm)	2	2	18AWG	No
6+2 pin PCIe (680mm)	2	2	18AWG	No
6+2 pin PCIe (680mm+80mm)	1	2	18AWG	Yes
SATA (450mm+115mm)	1	2	18AWG	No
SATA (450mm+115mm+115mm+115mm)	2	8	18AWG	No
4 pin Molex (350mm+115mm)	1	2	18AWG	No
4 pin Molex (450mm+115mm+115mm)	1	3	18AWG	No
FDD Adapter (+105mm)	1	1	22AWG	No
3 pin Addressable RGB Cable (800mm)	1	1	24AWG	No
4+1 pin Addressable RGB Cable (800mm)	1	1	22AWG	No
AC Power Cord (1400mm) - C13 coupler	1	1	16AWG	-

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	ErP Lot 6 2010: ✓ ErP Lot 6 2013: ✓ ErP Lot 3 2014 & CEC: Partially
(EU) No 617/2013 Compliance	✓

Performance Summary

效率評比	GOLD
噪音評比	A
Average Efficiency (>1450 load combinations)	89.215%
Average Noise Output (>1450 Load Combinations)	24.55dBA
Average PF (>1450 Load Combinations)	0.974
Efficiency With 10W (≤500W) or 2% (>500W) Load	64.207%
Standby Power Consumption	0.0435W
12V Ripple (Full Load)	19.27mV
5V Ripple (Full Load)	10.44mV
3.3V Ripple (Full Load)	20.40mV
5VSB Ripple (Full Load)	10.71mV
12V Load Regulation	0.21%
5V Load Regulation	0.28%
3.3V Load Regulation	0.57%
5VSB Load Regulation	2.50%
Inrush Current	24.840A

效率評比	PLATINUM
噪音評比	A
Average Efficiency (>1450 load combinations)	91.126%
Average Noise Output (>1450 Load Combinations)	24.10dBA
Average PF (>1450 Load Combinations)	0.939
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
Standby Power Consumption	0.0697W
12V Ripple (Full Load)	18.82mV
5V Ripple (Full Load)	11.09mV
3.3V Ripple (Full Load)	19.67mV
5VSB Ripple (Full Load)	8.55mV
12V Load Regulation	0.20%
5V Load Regulation	0.26%
3.3V Load Regulation	0.51%
5VSB Load Regulation	2.44%
Inrush Current	81.480A
Hold-Up Time & Power Ok Signal	23.60ms
AC Loss to PWR_OK Hold Up Time	19.60ms
PWR_OK Inactive to DC Loss Delay	4.00ms
PSU Timings: T1 (20% / 100%)	102.0ms	82.0ms
PSU Timings: T3 (20% / 100%)	322.0ms	324.0ms
OPP (0.00°C / 0.00°C)	132.32%	0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	23.6
AC Loss to PWR_OK Hold Up Time (ms)	19.6
PWR_OK Inactive to DC Loss Delay (ms)	4

待機電源消耗

Tables

Graphs

INFO

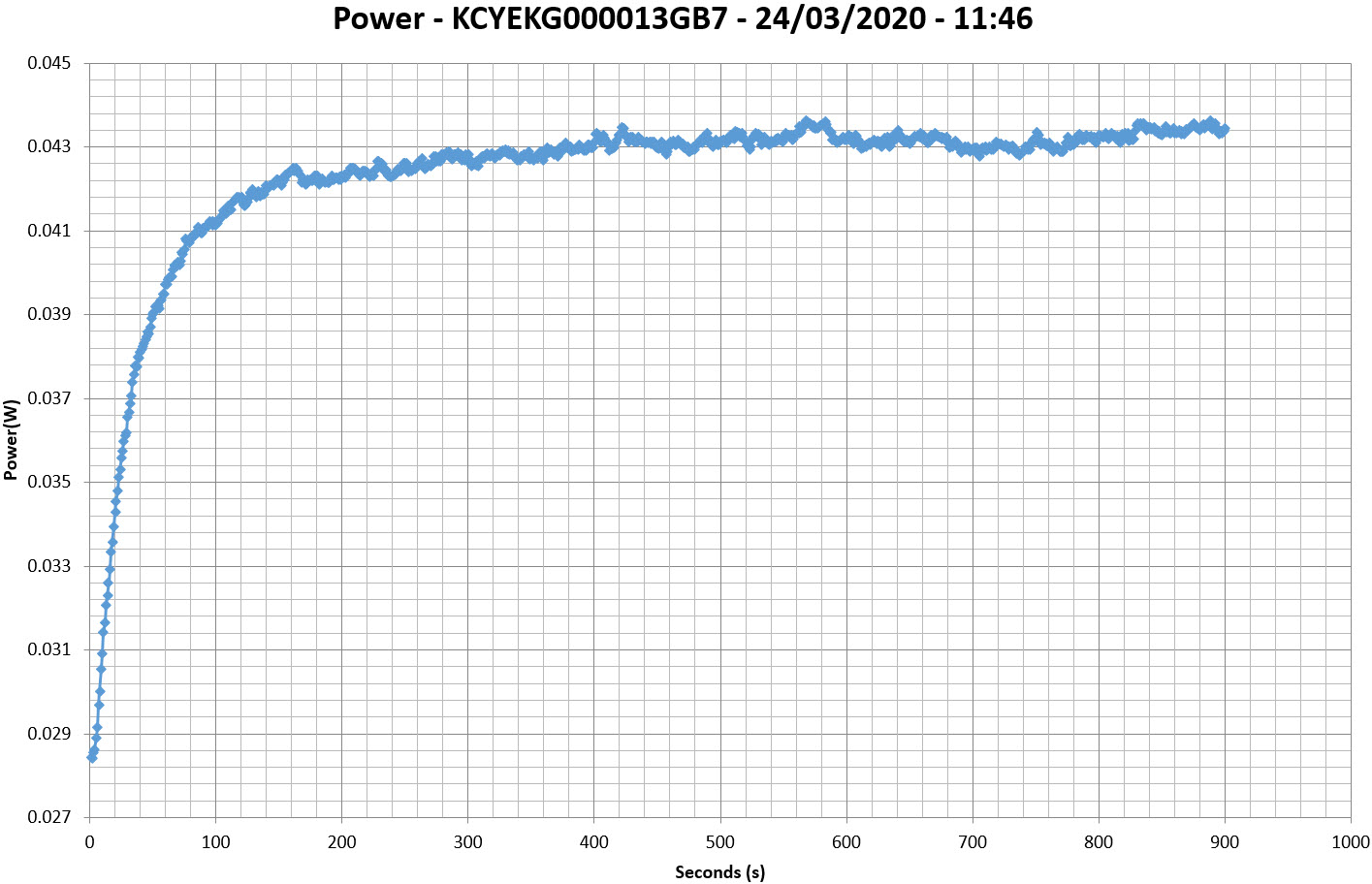

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

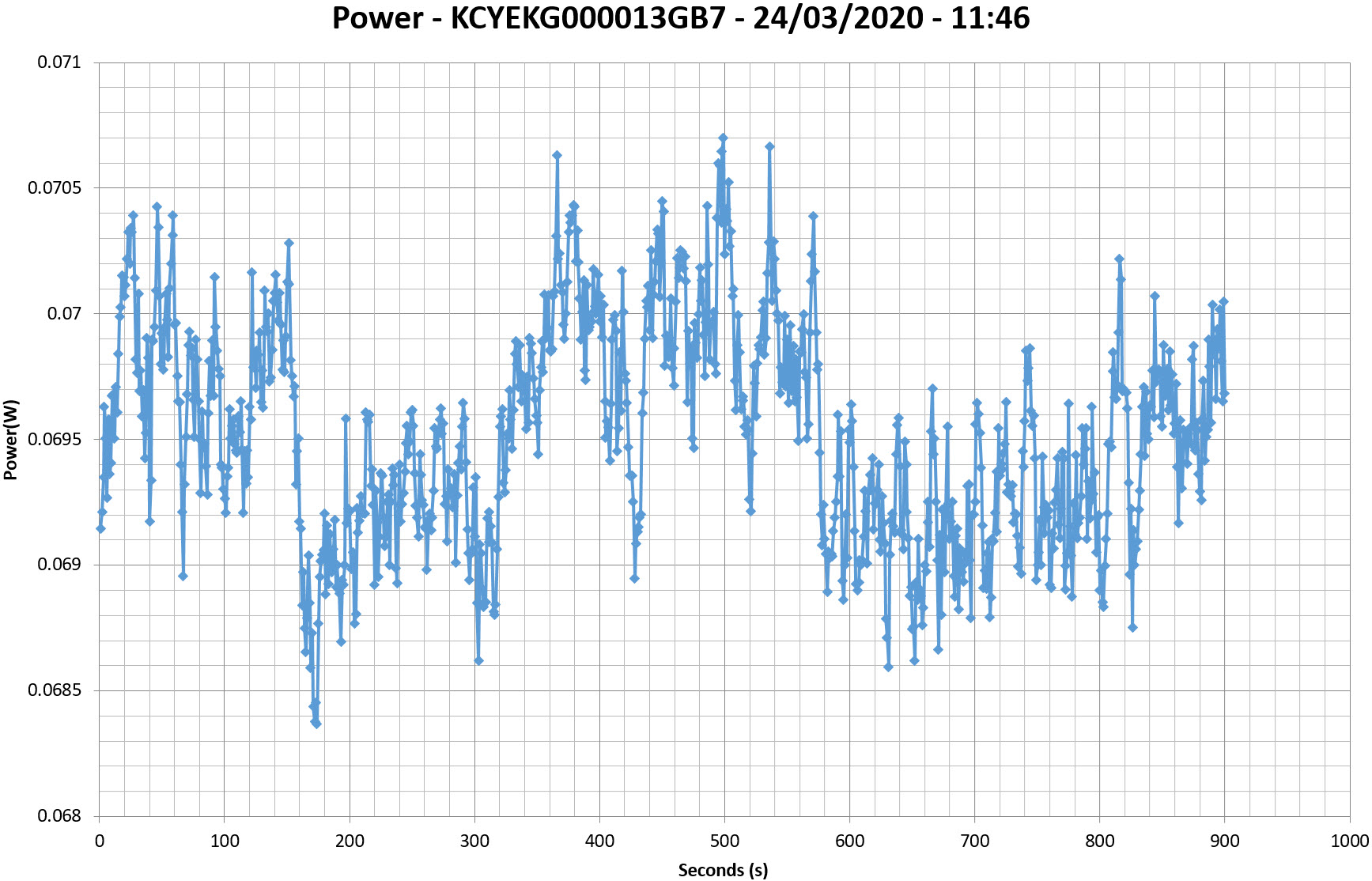

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

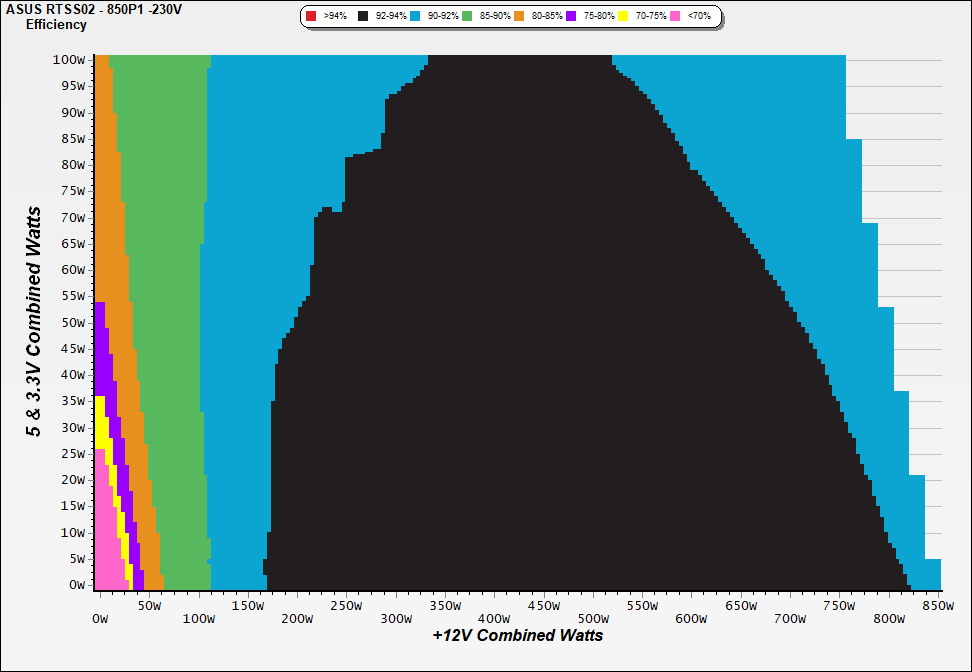

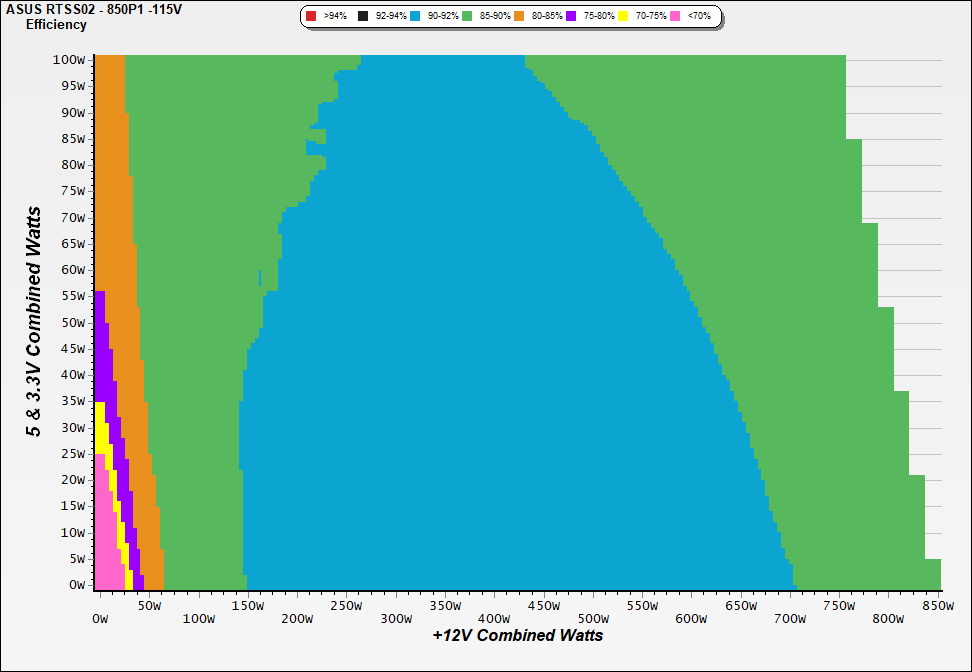

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

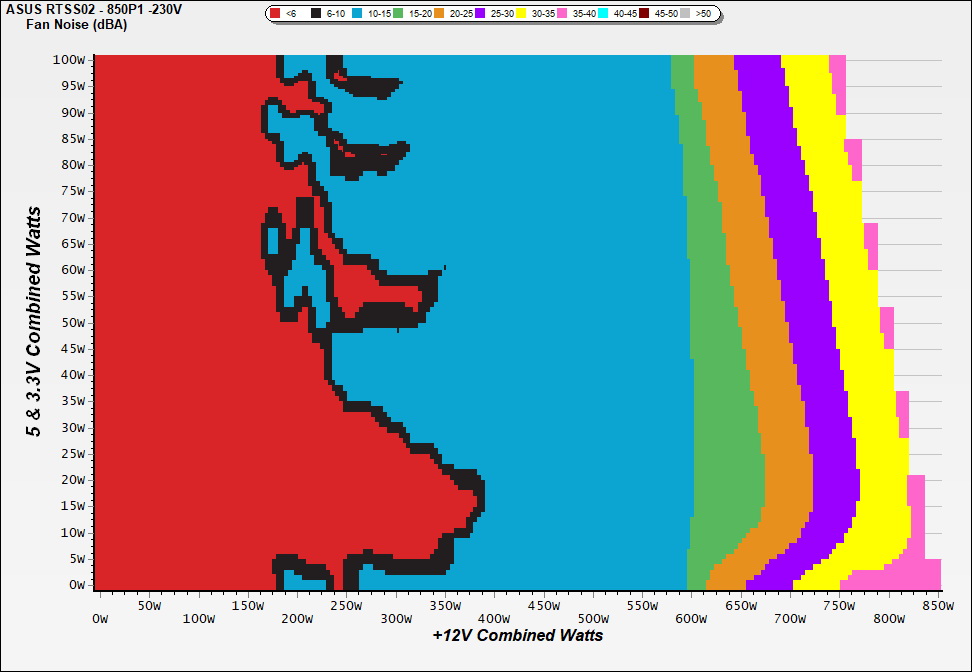

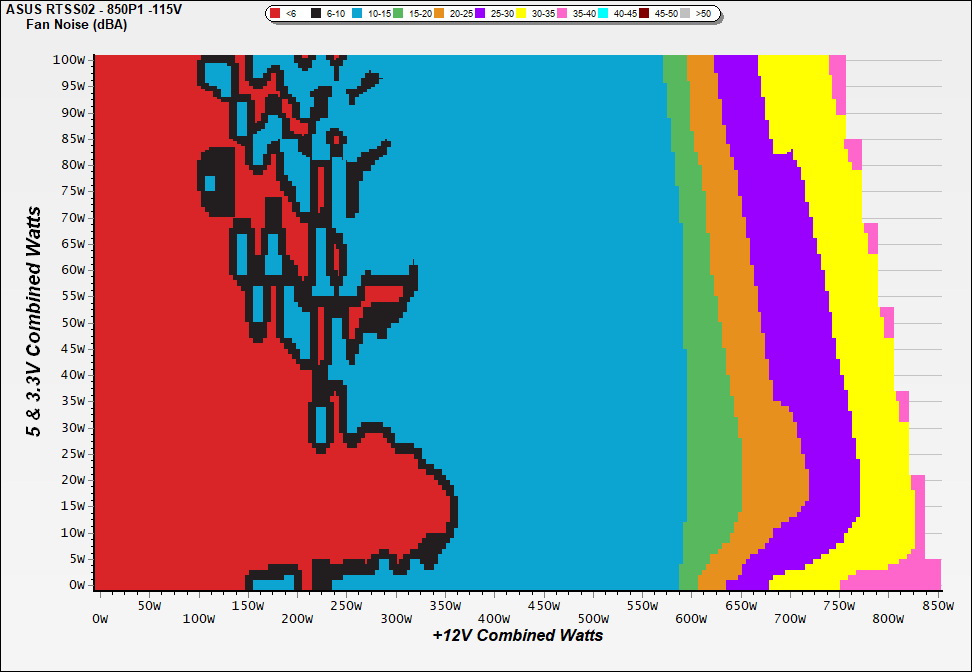

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

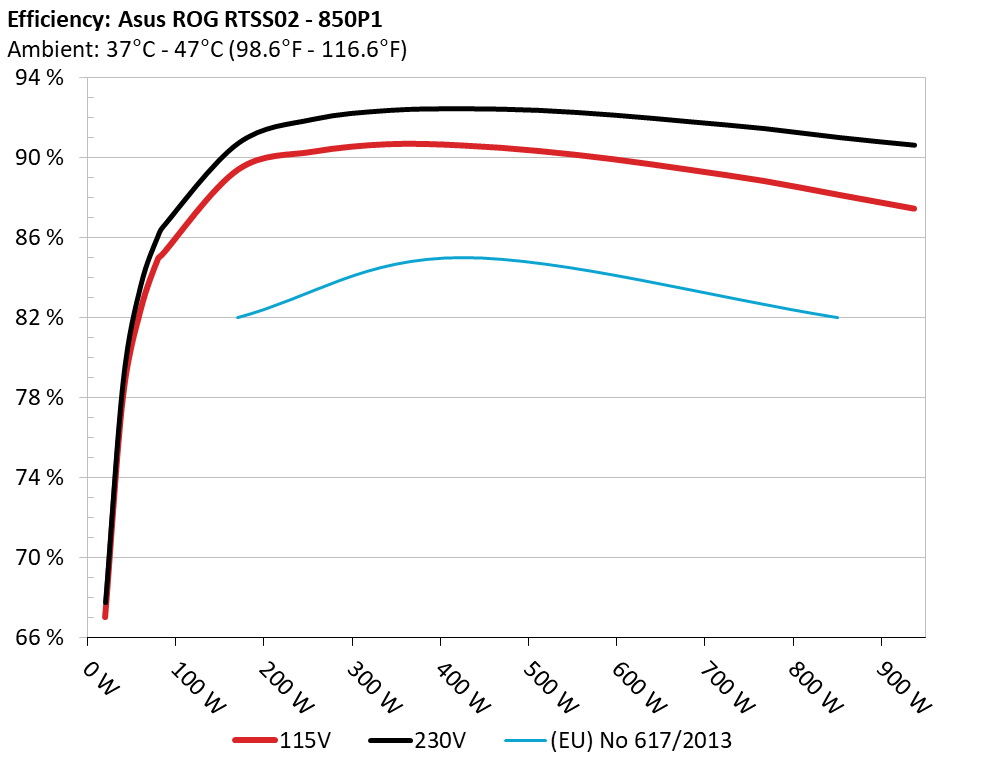

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

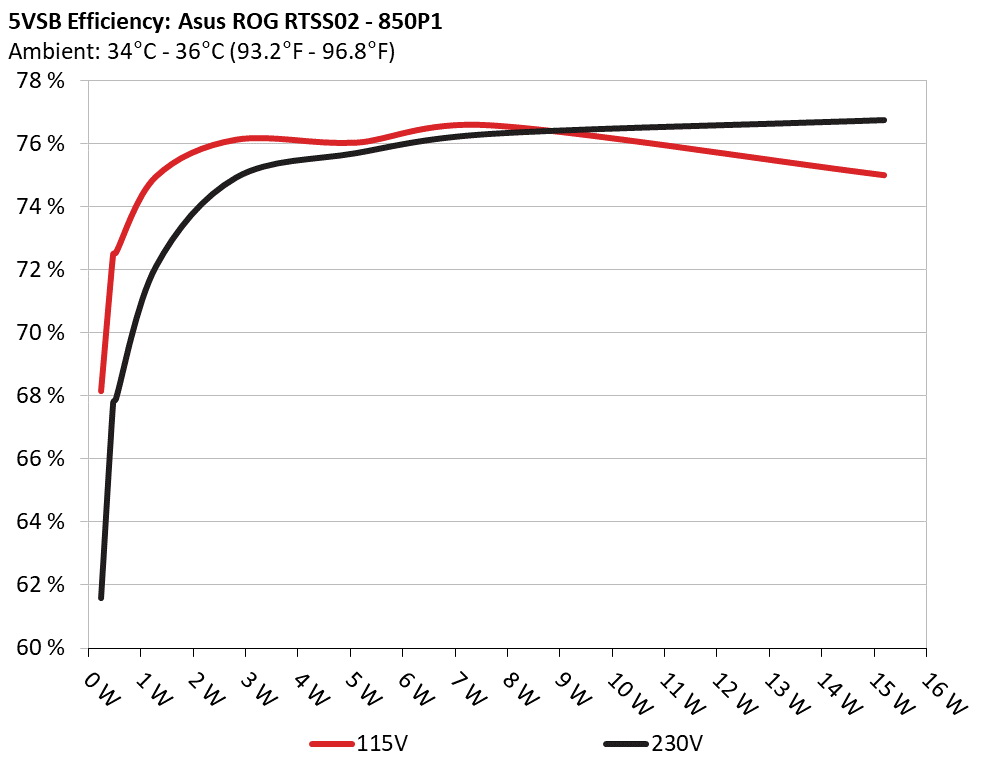

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.231	68.142%	0.054
1	5.124V	0.339	68.142%	115.10V
2	0.090A	0.461	72.484%	0.099
2	5.123V	0.636	72.484%	115.10V
3	0.550A	2.813	76.109%	0.337
3	5.114V	3.696	76.109%	115.10V
4	1.000A	5.105	76.013%	0.409
4	5.104V	6.716	76.013%	115.10V
5	1.500A	7.642	76.565%	0.443
5	5.095V	9.981	76.565%	115.10V
6	3.000A	15.184	74.983%	0.488
6	5.061V	20.250	74.983%	115.10V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.231	61.600%	0.019
1	5.124V	0.375	61.600%	230.23V
2	0.090A	0.461	67.794%	0.033
2	5.123V	0.680	67.794%	230.23V
3	0.550A	2.813	74.933%	0.160
3	5.113V	3.754	74.933%	230.23V
4	1.000A	5.104	75.705%	0.240
4	5.104V	6.742	75.705%	230.23V
5	1.500A	7.641	76.311%	0.295
5	5.094V	10.013	76.311%	230.23V
6	3.000A	15.188	76.750%	0.372
6	5.063V	19.789	76.750%	230.23V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	5.258A	1.987A	1.978A	0.981A	85.190	85.171%	0	<6.0	42.87°C	0.933
1	12.096V	5.029V	3.335V	5.096V	100.022	85.171%	0	<6.0	40.30°C	115.09V
2	11.535A	2.982A	2.971A	1.180A	170.389	89.388%	0	<6.0	44.02°C	0.961
2	12.093V	5.028V	3.333V	5.085V	190.618	89.388%	0	<6.0	40.97°C	115.09V
3	18.158A	3.480A	3.467A	1.380A	255.599	90.293%	598	14.2	41.62°C	0.975
3	12.091V	5.028V	3.332V	5.074V	283.076	90.293%	598	14.2	45.80°C	115.09V
4	24.786A	3.977A	3.963A	1.580A	340.802	90.668%	599	14.3	41.77°C	0.981
4	12.088V	5.027V	3.330V	5.063V	375.880	90.668%	599	14.3	46.78°C	115.09V
5	31.040A	4.975A	4.956A	1.781A	425.647	90.604%	606	14.5	42.44°C	0.983
5	12.086V	5.025V	3.329V	5.053V	469.786	90.604%	606	14.5	48.26°C	115.09V
6	37.339A	5.973A	5.954A	1.984A	510.979	90.330%	613	15.5	42.52°C	0.985
6	12.083V	5.024V	3.326V	5.041V	565.683	90.330%	613	15.5	48.93°C	115.08V
7	43.642A	6.973A	6.950A	2.188A	596.319	89.914%	715	19.9	43.29°C	0.987
7	12.080V	5.022V	3.324V	5.029V	663.214	89.914%	715	19.9	50.96°C	115.08V
8	49.945A	7.971A	7.948A	2.392A	681.648	89.392%	1050	31.7	43.54°C	0.989
8	12.078V	5.020V	3.321V	5.018V	762.535	89.392%	1050	31.7	51.87°C	115.08V
9	56.652A	8.472A	8.431A	2.395A	766.580	88.829%	1410	40.7	44.60°C	0.990
9	12.075V	5.018V	3.320V	5.012V	862.980	88.829%	1410	40.7	53.17°C	115.07V
10	63.119A	8.972A	8.949A	3.006A	851.798	88.131%	1724	46.1	45.87°C	0.991
10	12.074V	5.016V	3.318V	4.991V	966.516	88.131%	1724	46.1	55.13°C	115.07V
11	70.192A	8.975A	8.953A	3.010A	936.988	87.444%	1733	46.0	46.56°C	0.992
11	12.071V	5.015V	3.316V	4.984V	1071.532	87.444%	1733	46.0	56.46°C	115.07V
CL1	0.100A	11.999A	11.999A	0.000A	101.388	83.267%	609	15.0	42.63°C	0.939
CL1	12.089V	5.022V	3.327V	5.103V	121.763	83.267%	609	15.0	48.45°C	115.10V
CL2	70.997A	1.000A	0.998A	1.000A	870.521	88.583%	1723	46.2	46.09°C	0.991
CL2	12.073V	5.019V	3.320V	5.041V	982.715	88.583%	1723	46.2	55.04°C	115.08V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	5.259A	1.989A	1.980A	0.982A	85.204	86.530%	0	<6.0	42.80°C	0.813
1	12.093V	5.029V	3.334V	5.095V	98.468	86.530%	0	<6.0	39.44°C	230.24V
2	11.541A	2.983A	2.970A	1.180A	170.436	90.708%	379	7.8	40.20°C	0.905
2	12.091V	5.028V	3.332V	5.084V	187.896	90.708%	379	7.8	44.13°C	230.24V
3	18.166A	3.481A	3.469A	1.380A	255.649	91.908%	600	14.3	41.01°C	0.936
3	12.088V	5.028V	3.331V	5.073V	278.156	91.908%	600	14.3	45.64°C	230.24V
4	24.794A	3.980A	3.965A	1.580A	340.870	92.351%	603	14.3	41.93°C	0.952
4	12.086V	5.027V	3.330V	5.063V	369.101	92.351%	603	14.3	47.34°C	230.24V
5	31.060A	4.975A	4.958A	1.782A	425.800	92.435%	608	15.0	42.48°C	0.963
5	12.083V	5.025V	3.328V	5.052V	460.649	92.435%	608	15.0	48.52°C	230.24V
6	37.361A	5.973A	5.955A	1.984A	511.130	92.353%	616	15.7	42.81°C	0.968
6	12.080V	5.023V	3.326V	5.040V	553.453	92.353%	616	15.7	49.31°C	230.24V
7	43.664A	6.972A	6.953A	2.188A	596.451	92.114%	662	17.6	43.02°C	0.973
7	12.077V	5.021V	3.324V	5.029V	647.513	92.114%	662	17.6	50.82°C	230.25V
8	49.973A	7.973A	7.948A	2.392A	681.787	91.787%	1036	31.0	43.18°C	0.977
8	12.074V	5.019V	3.321V	5.017V	742.796	91.787%	1036	31.0	51.45°C	230.25V
9	56.676A	8.472A	8.435A	2.396A	766.715	91.441%	1384	40.1	44.15°C	0.979
9	12.072V	5.018V	3.320V	5.011V	838.481	91.441%	1384	40.1	52.72°C	230.25V
10	63.149A	8.974A	8.950A	3.006A	851.920	90.991%	1726	46.1	45.95°C	0.981
10	12.070V	5.016V	3.318V	4.991V	936.265	90.991%	1726	46.1	55.24°C	230.25V
11	70.223A	8.976A	8.955A	3.010A	937.105	90.610%	1734	46.0	46.66°C	0.983
11	12.067V	5.015V	3.317V	4.985V	1034.219	90.610%	1734	46.0	56.51°C	230.25V
CL1	0.101A	11.999A	11.999A	0.000A	101.401	84.411%	608	15.0	42.58°C	0.842
CL1	12.089V	5.022V	3.327V	5.103V	120.127	84.411%	608	15.0	48.55°C	230.25V
CL2	71.006A	0.999A	1.001A	1.000A	870.423	91.505%	1727	46.1	46.10°C	0.981
CL2	12.070V	5.020V	3.321V	5.042V	951.234	91.505%	1727	46.1	55.61°C	230.24V

The results above are not used in the certification process

Light Load Tests

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.226A	0.497A	0.494A	0.195A	19.980	67.002%	0	<6.0	0.798
1	12.099V	5.029V	3.337V	5.119V	29.820	67.002%	0	<6.0	115.07V
2	2.452A	0.995A	0.988A	0.391A	39.968	77.938%	0	<6.0	0.879
2	12.099V	5.030V	3.337V	5.113V	51.282	77.938%	0	<6.0	115.07V
3	3.682A	1.493A	1.483A	0.587A	59.998	82.342%	0	<6.0	0.910
3	12.098V	5.029V	3.336V	5.107V	72.864	82.342%	0	<6.0	115.08V
4	4.906A	1.988A	1.980A	0.784A	79.949	84.939%	0	<6.0	0.931
4	12.097V	5.029V	3.336V	5.101V	94.125	84.939%	0	<6.0	115.09V

The results above are not used in the certification process

Test #

12V

5V

3.3V

5VSB

DC/AC (Watts)

Efficiency

Fan Speed (RPM)

PSU Noise (dB[A])

PF/AC Volts

1

1.227A

0.497A

0.496A

0.195A

19.992

67.717%

0

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	9.30mV	8.50mV	12.80mV	6.70mV	Pass
20% Load	11.50mV	9.30mV	14.60mV	7.00mV	Pass
30% Load	13.60mV	9.40mV	15.90mV	7.00mV	Pass
40% Load	13.80mV	9.90mV	16.10mV	7.20mV	Pass
50% Load	13.90mV	10.10mV	16.00mV	7.00mV	Pass
60% Load	12.20mV	9.70mV	15.50mV	8.00mV	Pass
70% Load	12.40mV	9.50mV	16.70mV	7.70mV	Pass
80% Load	12.60mV	10.20mV	16.50mV	10.00mV	Pass
90% Load	13.20mV	10.60mV	17.80mV	10.80mV	Pass
100% Load	19.30mV	10.40mV	20.40mV	10.70mV	Pass
110% Load	20.80mV	10.80mV	19.20mV	11.10mV	Pass
Crossload1	15.40mV	9.20mV	14.70mV	5.20mV	Pass
Crossload2	19.50mV	10.30mV	16.90mV	9.30mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	8.70mV	7.20mV	12.40mV	5.80mV	Pass
20% Load	11.60mV	7.20mV	13.70mV	5.90mV	Pass
30% Load	13.30mV	8.20mV	14.60mV	6.50mV	Pass
40% Load	13.20mV	8.90mV	14.80mV	6.80mV	Pass
50% Load	11.50mV	8.90mV	16.30mV	6.70mV	Pass
60% Load	11.60mV	9.00mV	16.30mV	7.30mV	Pass
70% Load	11.90mV	9.20mV	17.40mV	7.00mV	Pass
80% Load	12.60mV	9.30mV	18.10mV	7.80mV	Pass
90% Load	13.50mV	9.70mV	18.60mV	7.60mV	Pass
100% Load	18.80mV	11.10mV	19.70mV	8.60mV	Pass
110% Load	21.00mV	11.00mV	19.40mV	8.40mV	Pass
Crossload1	13.40mV	7.90mV	14.40mV	4.50mV	Pass
Crossload2	19.00mV	10.10mV	19.50mV	7.70mV	Pass

The results above are not used in the certification process

Asus ROG-THOR-850P (#3)

Top side

Power specifications label

CYBENETICS提供ETA和LAMBDA自願性認證方案以推廣高效及靜音之電源供應器

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

www.cybenetics.com - info@cybenetics.com
