CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

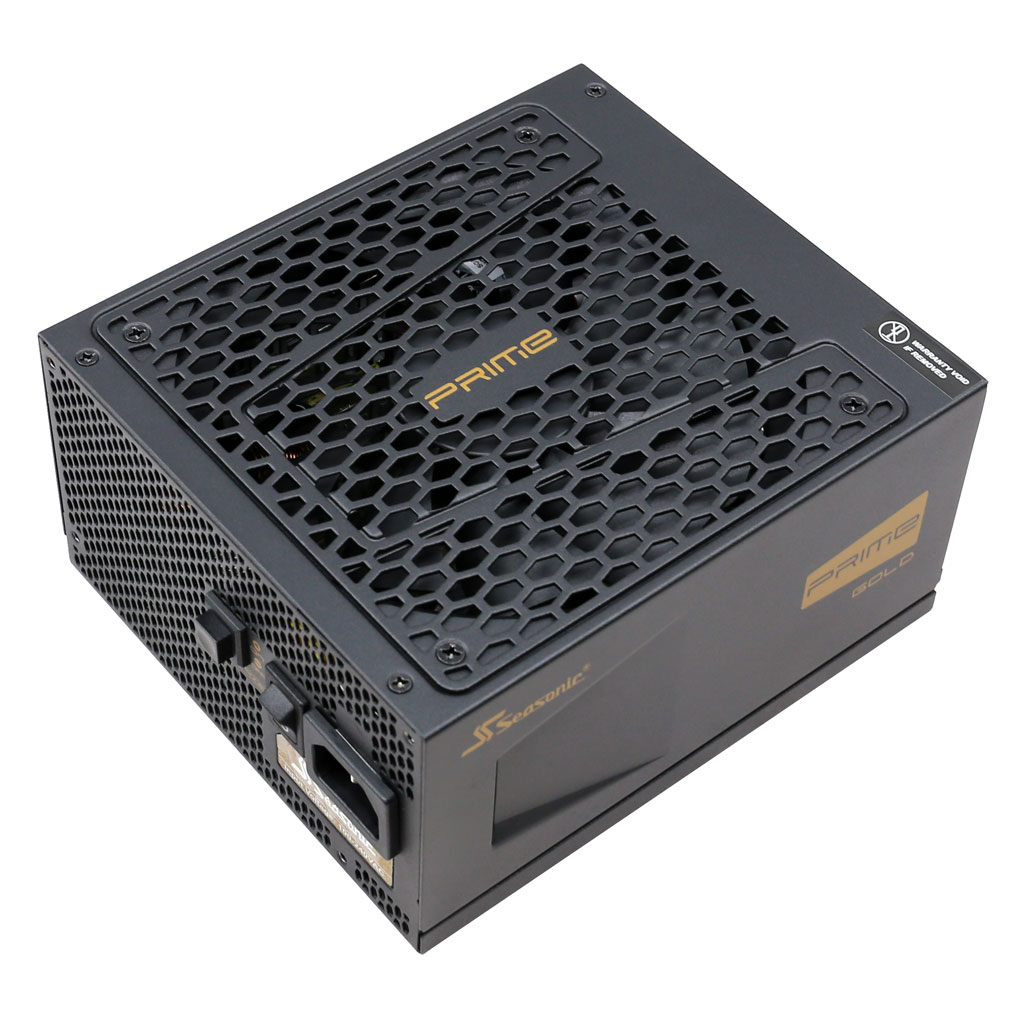

SeaSonic Prime Gold Ultra 1000W (#2)
Serial NumberR1709AA181090047
Lab IDSS10001658
Certification ID251658
  • Test Result Report ID: 20PS1658A
  • Certificate Issue Date: Jun 15, 2020
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
This product certification body is accredited in accordance with the recognized International Standard ISO/IEC 17065:2012 Requirements for bodies certifying products, processes and services. This product certification body also meets the A2LA R308 - Specific Requirements - ISO-IEC 17065 - Telecommunication Certification Body Accreditation Program and R322 - Specific Requirements - Notified Body Accreditation Requirements. This accreditation demonstrates technical competence for a defined scope and the operation of a management system
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSeasonic
製造商 (OEM)Seasonic
SeriesPrime Gold Ultra
Model NumberSSR-1000GD Ultra
Serial NumberR1709AA181090047
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)13-6.5
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525H12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

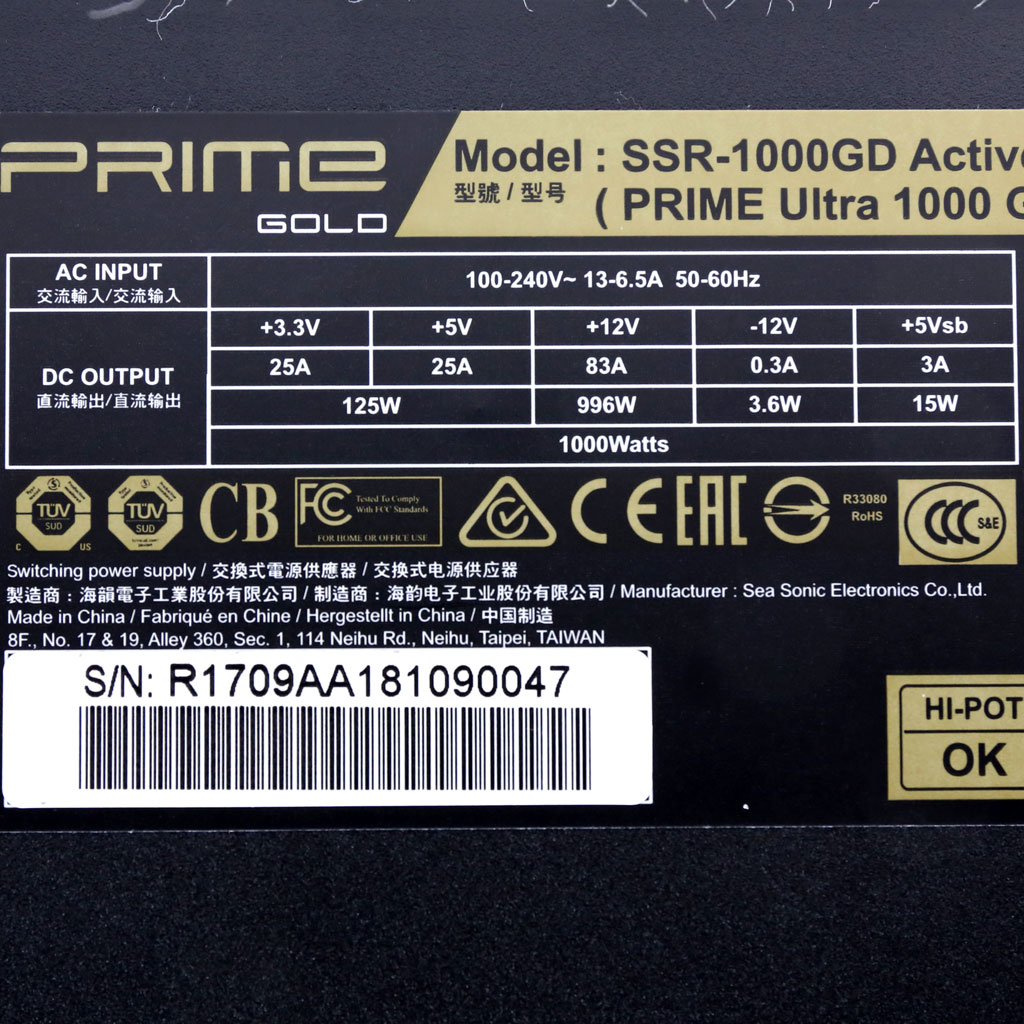

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps25258330.3
Watts125996153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18-22AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (680mm+80mm) 4 8 18AWG No
SATA (350mm+150mm+150mm+150mm) 1 4 18AWG No
SATA (400mm+120mm+120mm+120mm) 2 8 18AWG No
4 pin Molex (450mm+120mm+120mm) 1 3 18AWG No
4 pin Molex (350mm+120mm) 1 2 18AWG No
4-pin Molex Adapter / SATA (150mm+150mm) 1 2 18AWG No
FDD Adapter (+100mm) 1 1 22AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

效率評比PLATINUM
噪音評比Standard+
Average Efficiency (>1450 load combinations)90.005%
Average Noise Output (>1450 Load Combinations)39.75dBA
Average PF (>1450 Load Combinations)0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load72.978%
Standby Power Consumption0.0560W
12V Ripple (Full Load)14.85mV
5V Ripple (Full Load)12.25mV
3.3V Ripple (Full Load)16.40mV
5VSB Ripple (Full Load)27.03mV
12V Load Regulation0.12%
5V Load Regulation0.79%
3.3V Load Regulation1.20%
5VSB Load Regulation4.99%
Inrush Current26.580A
效率評比PLATINUM
噪音評比Standard
Average Efficiency (>1450 load combinations)92.103%
Average Noise Output (>1450 Load Combinations)41.21dBA
Average PF (>1450 Load Combinations)0.958
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0860W
12V Ripple (Full Load)14.69mV
5V Ripple (Full Load)9.52mV
3.3V Ripple (Full Load)16.53mV
5VSB Ripple (Full Load)23.17mV
12V Load Regulation0.11%
5V Load Regulation0.77%
3.3V Load Regulation1.14%
5VSB Load Regulation4.99%
Inrush Current55.080A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal32.80ms
AC Loss to PWR_OK Hold Up Time28.20ms
PWR_OK Inactive to DC Loss Delay4.60ms
PSU Timings: T1 (20% / 100%)108.0ms68.0ms
PSU Timings: T3 (20% / 100%)322.0ms326.0ms
OPP (0.00°C / 0.00°C)131.44%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)32.8
AC Loss to PWR_OK Hold Up Time (ms)28.2
PWR_OK Inactive to DC Loss Delay (ms)4.6

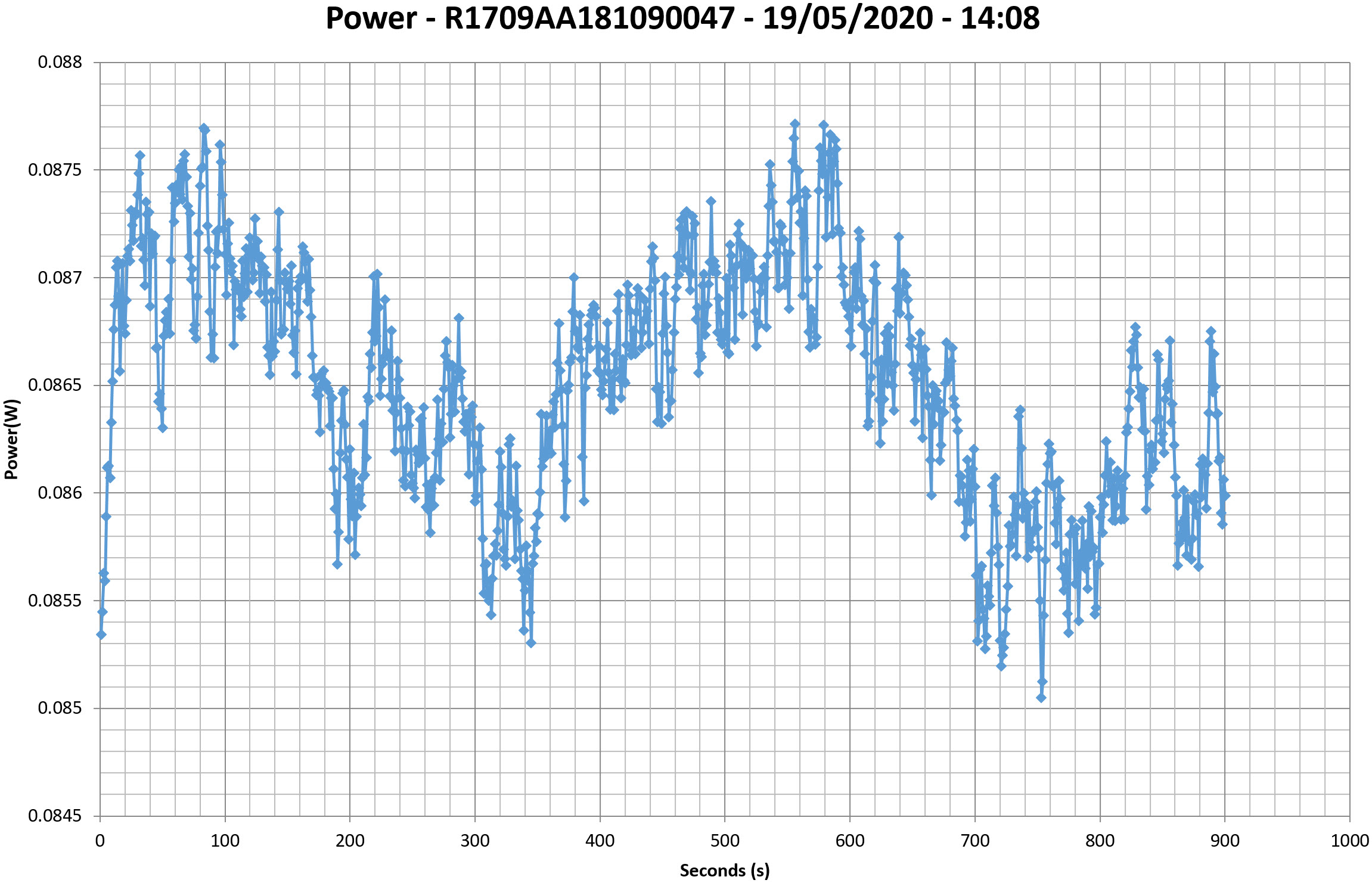

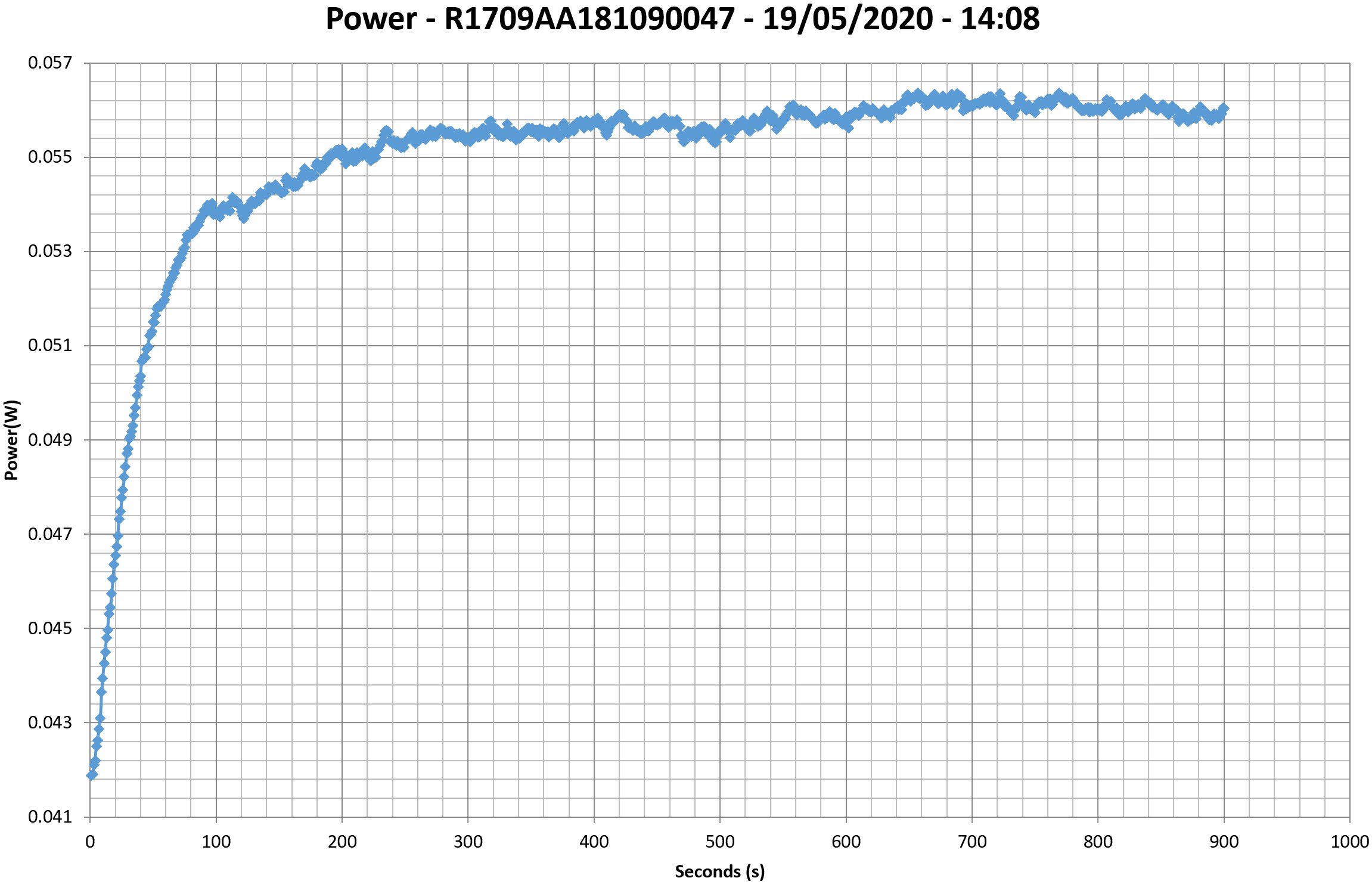

待機電源消耗

Tables

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

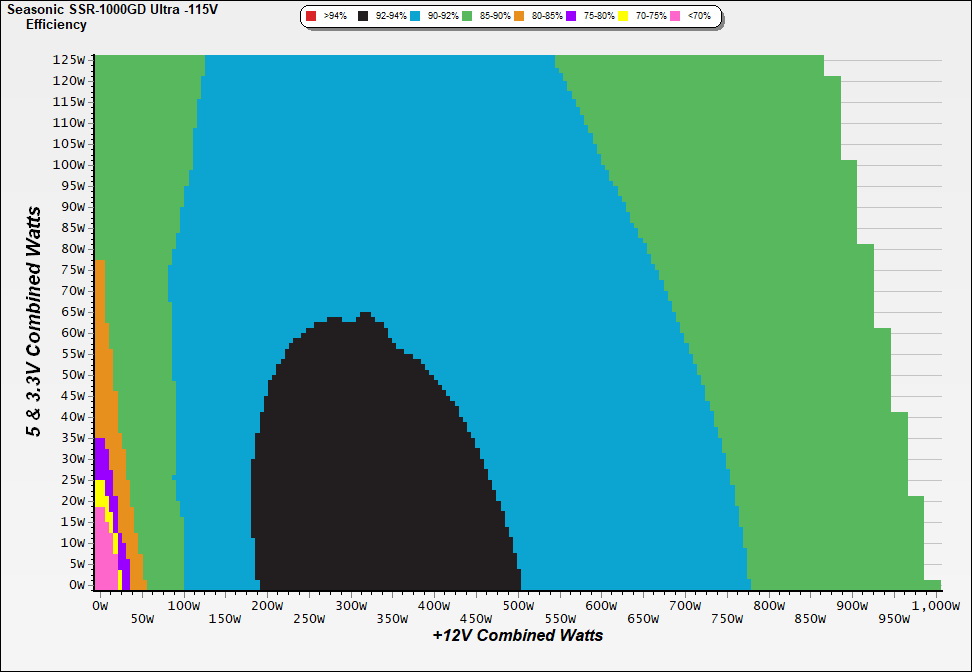

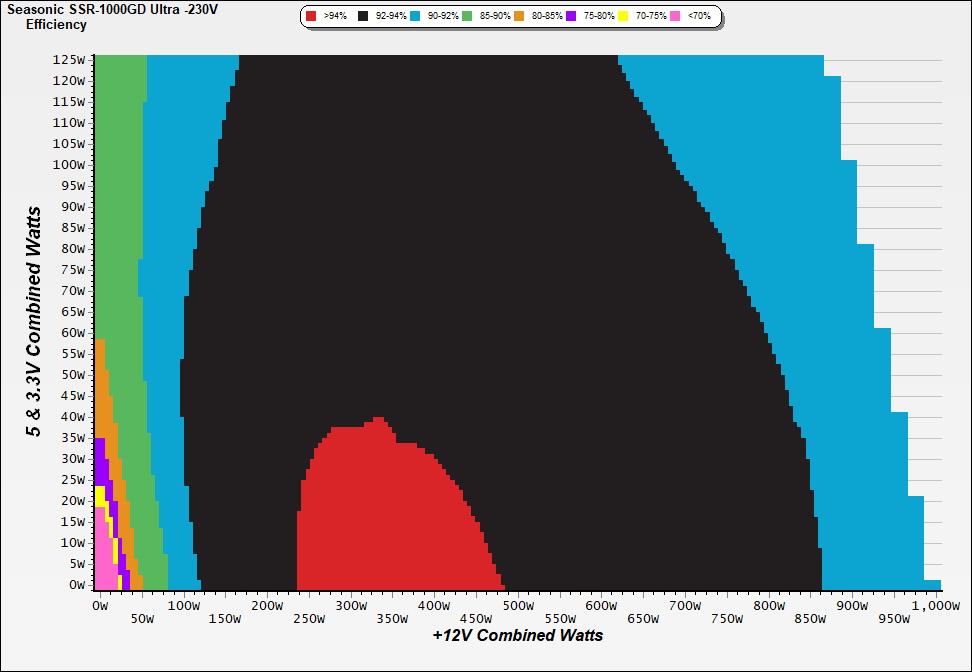

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

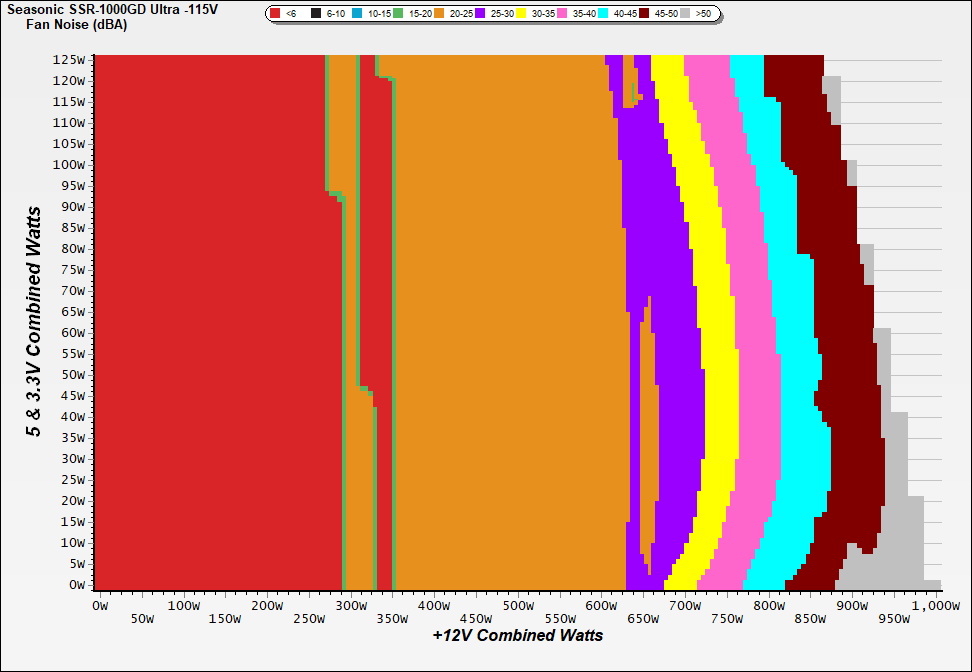

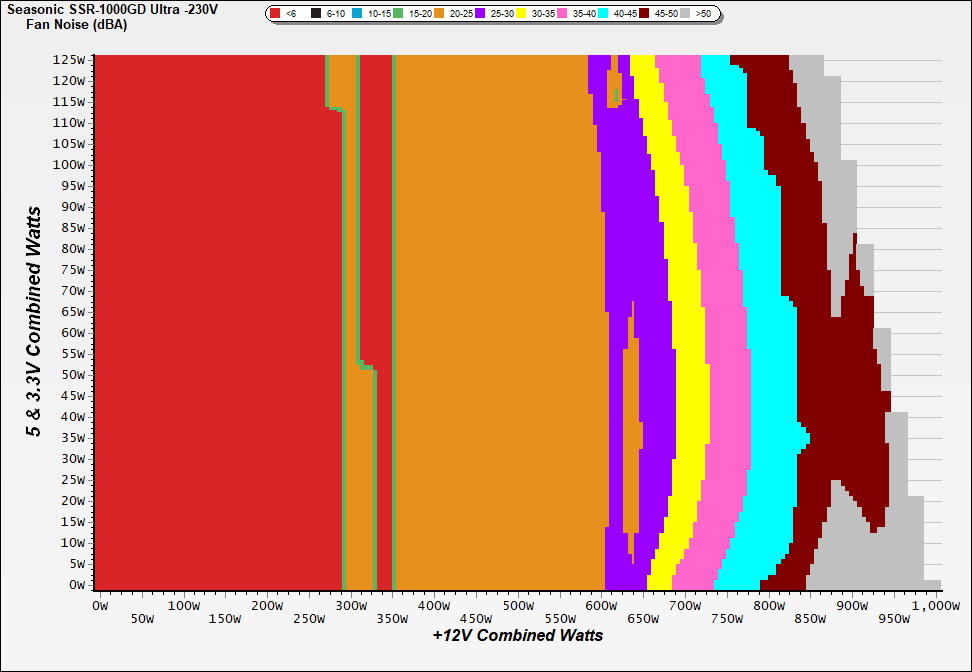

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

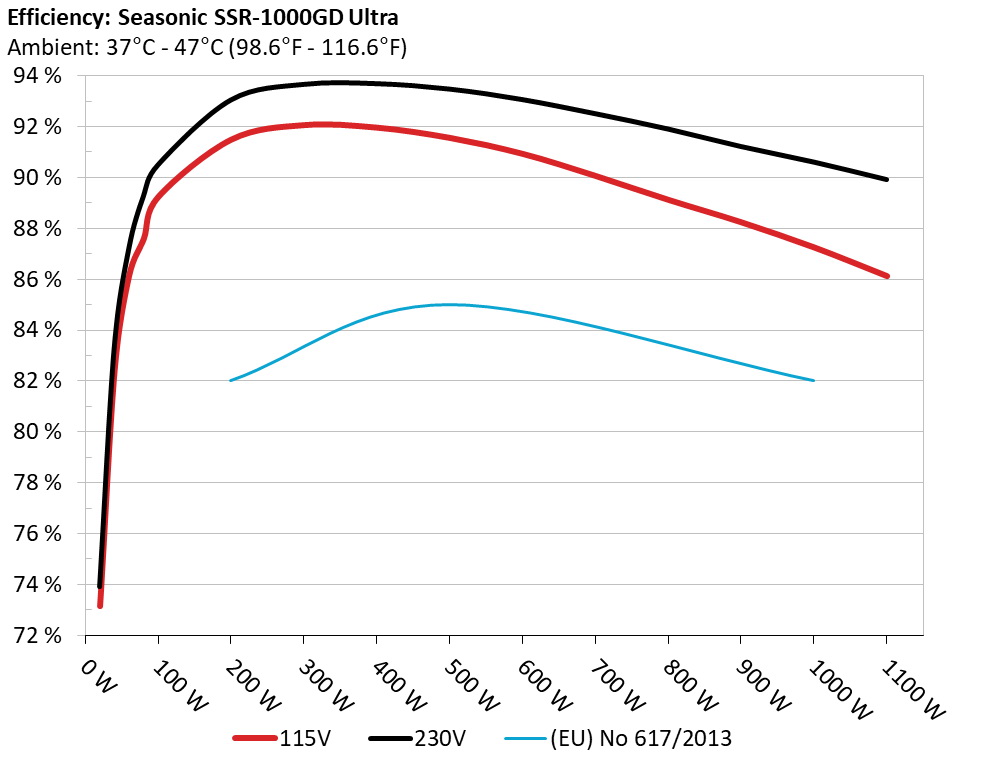

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

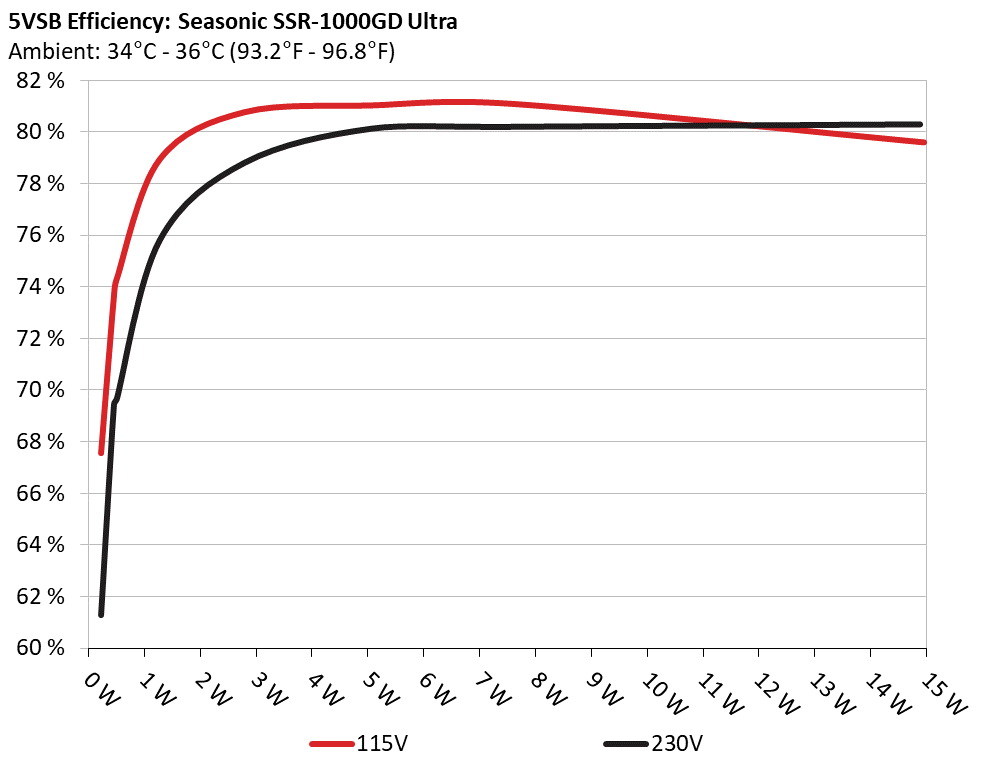

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 67.544% 0.037
5.120V 0.342 115.14V
2 0.090A 0.461 73.642% 0.066
5.117V 0.626 115.14V
3 0.550A 2.803 80.778% 0.272
5.094V 3.470 115.14V
4 1.000A 5.073 81.038% 0.364
5.072V 6.260 115.14V
5 1.500A 7.574 81.101% 0.418
5.048V 9.339 115.14V
6 3.001A 14.957 79.605% 0.489
4.984V 18.789 115.14V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.100A 0.512 69.660% 0.023
5.117V 0.735 230.27V
2 0.250A 1.278 75.801% 0.052
5.108V 1.686 230.27V
3 0.550A 2.802 78.819% 0.106
5.093V 3.555 230.28V
4 1.000A 5.067 80.136% 0.174
5.066V 6.323 230.27V
5 1.500A 7.558 80.208% 0.233
5.038V 9.423 230.27V
6 3.001A 14.880 80.302% 0.336
4.959V 18.530 230.26V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.417A 1.980A 1.989A 0.989A 100.034 89.246% 0 <6.0 45.26°C 0.980
12.222V 5.053V 3.319V 5.055V 112.088 40.21°C 115.14V
2 13.844A 2.969A 2.987A 1.192A 200.082 91.501% 0 <6.0 46.81°C 0.988
12.221V 5.049V 3.315V 5.035V 218.666 40.99°C 115.14V
3 21.605A 3.470A 3.489A 1.396A 300.072 92.070% 0 <6.0 47.84°C 0.987
12.220V 5.045V 3.311V 5.014V 325.919 41.43°C 115.14V
4 29.360A 3.970A 3.992A 1.603A 399.875 91.972% 601 23.3 41.79°C 0.990
12.216V 5.040V 3.307V 4.993V 434.780 48.77°C 115.13V
5 36.796A 4.965A 4.999A 1.811A 499.988 91.569% 606 24.2 42.14°C 0.993
12.215V 5.037V 3.303V 4.972V 546.023 49.92°C 115.13V
6 44.236A 5.964A 6.004A 2.000A 600.026 90.940% 705 27.0 42.54°C 0.995
12.214V 5.033V 3.299V 4.952V 659.806 50.86°C 115.13V
7 51.651A 6.964A 7.016A 2.233A 699.899 90.073% 1503 48.1 43.03°C 0.996
12.212V 5.028V 3.295V 4.928V 777.031 51.93°C 115.12V
8 59.130A 7.968A 8.027A 2.447A 800.415 89.125% 1918 53.5 44.11°C 0.996
12.210V 5.023V 3.290V 4.906V 898.085 53.91°C 115.12V
9 66.929A 8.469A 8.522A 2.451A 899.665 88.250% 2020 52.7 44.81°C 0.997
12.209V 5.020V 3.287V 4.897V 1019.446 55.24°C 115.12V
10 74.569A 8.973A 9.047A 3.092A 1000.063 87.256% 2015 52.6 45.39°C 0.997
12.208V 5.017V 3.283V 4.853V 1146.119 56.34°C 115.11V
11 82.760A 8.978A 9.055A 3.098A 1100.066 86.126% 2014 52.6 46.63°C 0.998
12.208V 5.015V 3.280V 4.844V 1277.268 58.40°C 115.10V
CL1 0.102A 15.006A 15.001A 0.000A 126.276 86.044% 725 28.9 42.35°C 0.982
12.221V 5.030V 3.303V 5.093V 146.757 49.61°C 115.15V
CL2 83.026A 1.000A 1.000A 1.000A 1026.970 87.369% 2018 52.7 45.28°C 0.997
12.209V 5.034V 3.296V 4.977V 1175.443 56.56°C 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.418A 1.979A 1.987A 0.989A 100.022 90.505% 0 <6.0 44.71°C 0.833
12.220V 5.053V 3.319V 5.055V 110.516 40.03°C 230.27V
2 13.845A 2.972A 2.986A 1.192A 200.063 93.063% 0 <6.0 46.15°C 0.930
12.218V 5.049V 3.315V 5.034V 214.977 40.92°C 230.27V
3 21.608A 3.469A 3.489A 1.396A 300.045 93.678% 0 <6.0 47.19°C 0.959
12.217V 5.046V 3.312V 5.014V 320.294 41.40°C 230.27V
4 29.358A 3.969A 3.993A 1.603A 399.823 93.706% 601 23.3 41.81°C 0.971
12.215V 5.041V 3.307V 4.992V 426.676 48.37°C 230.27V
5 36.798A 4.966A 4.997A 1.811A 499.938 93.494% 609 24.7 42.13°C 0.981
12.213V 5.037V 3.303V 4.972V 534.725 49.62°C 230.27V
6 44.239A 5.963A 6.002A 2.000A 599.973 93.081% 798 29.7 42.44°C 0.983
12.212V 5.034V 3.300V 4.951V 644.572 50.61°C 230.26V
7 51.649A 6.964A 7.011A 2.233A 699.814 92.526% 1276 41.9 43.12°C 0.988
12.211V 5.029V 3.295V 4.928V 756.341 51.77°C 230.27V
8 59.131A 7.965A 8.023A 2.447A 800.304 91.919% 1808 50.7 44.30°C 0.989
12.208V 5.025V 3.291V 4.906V 870.665 53.81°C 230.27V
9 66.936A 8.468A 8.518A 2.452A 899.612 91.234% 2024 53.0 44.59°C 0.989
12.207V 5.021V 3.287V 4.897V 986.045 54.69°C 230.27V
10 74.578A 8.972A 9.045A 3.093A 1000.033 90.620% 2020 52.7 45.34°C 0.990
12.206V 5.018V 3.284V 4.852V 1103.546 56.35°C 230.27V
11 82.777A 8.976A 9.054A 3.099A 1100.031 89.932% 2016 52.6 46.46°C 0.991
12.205V 5.016V 3.281V 4.843V 1223.181 58.19°C 230.26V
CL1 0.102A 15.003A 15.000A 0.000A 126.287 87.323% 719 27.8 42.39°C 0.884
12.220V 5.031V 3.304V 5.094V 144.620 49.38°C 230.28V
CL2 83.017A 1.000A 1.002A 1.000A 1026.709 90.816% 2018 52.7 45.31°C 0.990
12.207V 5.037V 3.298V 4.978V 1130.537 56.01°C 230.27V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.215A 0.494A 0.496A 0.196A 20.002 73.136% 0 <6.0 0.812
12.223V 5.062V 3.327V 5.108V 27.349 115.14V
2 2.429A 0.989A 0.993A 0.393A 39.993 82.439% 0 <6.0 0.915
12.223V 5.057V 3.323V 5.096V 48.512 115.14V
3 3.647A 1.484A 1.491A 0.590A 60.025 86.165% 0 <6.0 0.954
12.222V 5.055V 3.321V 5.083V 69.663 115.14V
4 4.858A 1.980A 1.987A 0.789A 79.976 87.597% 0 <6.0 0.965
12.222V 5.053V 3.320V 5.069V 91.300 115.14V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.215A 0.494A 0.496A 0.196A 20.000 73.907% 0 <6.0 0.498
12.221V 5.062V 3.326V 5.108V 27.061 230.27V
2 2.430A 0.988A 0.992A 0.393A 39.990 83.309% 0 <6.0 0.654
12.220V 5.057V 3.323V 5.096V 48.002 230.27V
3 3.648A 1.482A 1.491A 0.590A 60.021 87.203% 0 <6.0 0.743
12.220V 5.055V 3.321V 5.083V 68.829 230.27V
4 4.858A 1.980A 1.988A 0.789A 79.971 89.268% 0 <6.0 0.798
12.220V 5.054V 3.320V 5.069V 89.585 230.28V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load6.30mV6.00mV11.00mV6.90mVPass
20% Load8.20mV7.00mV11.10mV7.40mVPass
30% Load8.20mV7.00mV11.40mV8.30mVPass
40% Load8.50mV6.70mV12.20mV9.30mVPass
50% Load7.60mV7.70mV11.70mV11.20mVPass
60% Load8.60mV8.10mV12.90mV13.20mVPass
70% Load9.50mV9.10mV13.20mV15.50mVPass
80% Load10.00mV9.60mV14.00mV15.20mVPass
90% Load11.20mV10.80mV14.60mV18.50mVPass
100% Load14.90mV12.30mV16.40mV27.00mVPass
110% Load21.50mV12.50mV16.70mV25.40mVPass
Crossload110.00mV7.70mV13.20mV6.20mVPass
Crossload214.90mV10.30mV14.80mV18.60mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load5.90mV6.30mV11.40mV7.20mVPass
20% Load7.70mV7.00mV12.10mV7.30mVPass
30% Load9.30mV7.20mV12.30mV8.10mVPass
40% Load7.60mV6.90mV12.40mV9.50mVPass
50% Load7.40mV6.60mV12.90mV10.70mVPass
60% Load7.60mV7.40mV12.40mV13.90mVPass
70% Load8.50mV7.50mV14.30mV14.80mVPass
80% Load9.10mV7.60mV15.00mV14.10mVPass
90% Load9.80mV8.40mV16.40mV16.00mVPass
100% Load14.70mV9.50mV16.50mV23.20mVPass
110% Load21.20mV9.90mV18.30mV24.40mVPass
Crossload19.90mV8.30mV14.30mV6.40mVPass
Crossload215.80mV8.90mV15.60mV17.50mVPass

The results above are not used in the certification process

SeaSonic Prime Gold Ultra 1000W (#2)

Top side
Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
