SilverStone Strider Titanium 1500W
Serial NumberDB17250301STK50TI0
Lab IDSL15001662
Certification ID251662
  • Test Result Report ID: 20PS1662A
  • Certificate Issue Date: Jun 18, 2020
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSilverStone
Manufacturer (OEM)Enhance Electronics
SeriesStrider Titanium
Model NumberST1500-TI
Serial NumberDB17250301STK50TI0
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)17.6-8.8
Rated Frequency (Hz)50-60
Rated Power (W)1500
TypeATX12V
Dimensions (W x H x D)
Cooling140mm Double Ball-Bearing Fan
(D14BH-12)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252212530.3
Watts1201500153.6
Total Max. Power (W)1500

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 16-22AWG No
4+4 pin EPS12V (750mm) 1 1 16AWG No
4+4 pin EPS12V (550mm) 1 1 16AWG No
6+2 pin PCIe (550mm) 8 8 16AWG No
SATA (600mm+140mm+140mm140mm) 4 16 18AWG No
4 pin Molex (600mm+150mm+150mm) 2 6 18AWG No
FDD Adapter (+120mm) 1 1 22AWG No
AC Power Cord (1380mm) - C19 coupler 1 1 16AWG -

Parts Description

General Data
Manufacturer (OEM) CWT
Primary Side
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor
Bridge Rectifier(s) 2x GBJ1510 (700V, 15A @ 100°C)
APFC MOSFETS 2x Vishay SiHF22N60E  (650V, 13A @ 100°C, 0.18 Ohm )
APFC Boost Diode 1x Power Integrations QH08TZ600 (600V, 8A @ 150°C)
Hold-up Cap(s) 2x Nichicon (400V, 470uF each or 940uF combined, 2000h @ 105°C, GG)
Main Switchers 2x Vishay SiHG20N50C
(560V, 11A @ 100°C, 0.27Ohm)
APFC Controller Infineon ICE3PCS01G - CM03X
Switching Controller Infineon ICE2HS01G
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 6xInte ational Rectifier IRFH7004TRPBF (40V, 164A @ 100°C, 1.4 mOhm)
5V & 3.3V DC-DC Converters: 4x QM3004D (30V, 40A @ 100°C, 8.5 mOhm)
2x QM3006D (30V, 57A @ 100°C, 5.5 mOhm)
PWM Controller: ANPEC APW7159
Filtering Capacitors Electrolytics: Nippon Chemi-Con (1-5,000 @ 105°C, KZE), Nippon Chemi-Con (4-10,000 @ 105°C, KY), Nippon Chemi-Con (5-6,000 @ 105°C, KZH)
Polymers: FPCAP
Supervisor IC Weltrend WT7502 (OVP, UVP, SCP, PG), LM358
Fan Model NR135L (12V, 0.22A, Rifle Bearing)
5VSB Circuit
Rectifier SD04N65A, QM3004D,  MBRU2045CT SBR (45V, 20A @ 125°C)
Standby PWM Controller On-Bright OB5269CP

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 3/6 2010: ✓
ErP Lot 3/6 2013: ✓
ErP Lot 3/6 2014, CEC: Partially
(EU) No 617/2013 Compliance✓

Performance Summary

Efficiency RatingPLATINUM
Noise Rating
Average Efficiency (>1450 load combinations)90.955%
Average Noise Output (>1450 Load Combinations)46.05dBA
Average PF (>1450 Load Combinations)0.981
Efficiency With 10W (≤500W) or 2% (>500W) Load69.988%
Standby Power Consumption0.1094W
12V Ripple (Full Load)21.25mV
5V Ripple (Full Load)14.10mV
3.3V Ripple (Full Load)27.08mV
5VSB Ripple (Full Load)7.15mV
12V Load Regulation1.39%
5V Load Regulation3.22%
3.3V Load Regulation5.33%
5VSB Load Regulation5.38%
Inrush Current29.130A
Efficiency RatingPLATINUM
Noise Rating
Average Efficiency (>1450 load combinations)91.870%
Average Noise Output (>1450 Load Combinations)46.51dBA
Average PF (>1450 Load Combinations)0.944
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1536W
12V Ripple (Full Load)20.97mV
5V Ripple (Full Load)12.71mV
3.3V Ripple (Full Load)24.92mV
5VSB Ripple (Full Load)7.15mV
12V Load Regulation1.35%
5V Load Regulation3.20%
3.3V Load Regulation5.39%
5VSB Load Regulation5.34%
Inrush Current60.800A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal11.20ms
AC Loss to PWR_OK Hold Up Time16.60ms
PWR_OK Inactive to DC Loss Delay-5.40ms
PSU Timings: T1 (20% / 100%)184.0ms186.0ms
PSU Timings: T3 (20% / 100%)290.0ms290.0ms
OPP (0.00°C / 0.00°C)118.16%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)11.2
AC Loss to PWR_OK Hold Up Time (ms)16.6
PWR_OK Inactive to DC Loss Delay (ms)-5.4

Vampire Power

Tables

Graphs

INFO

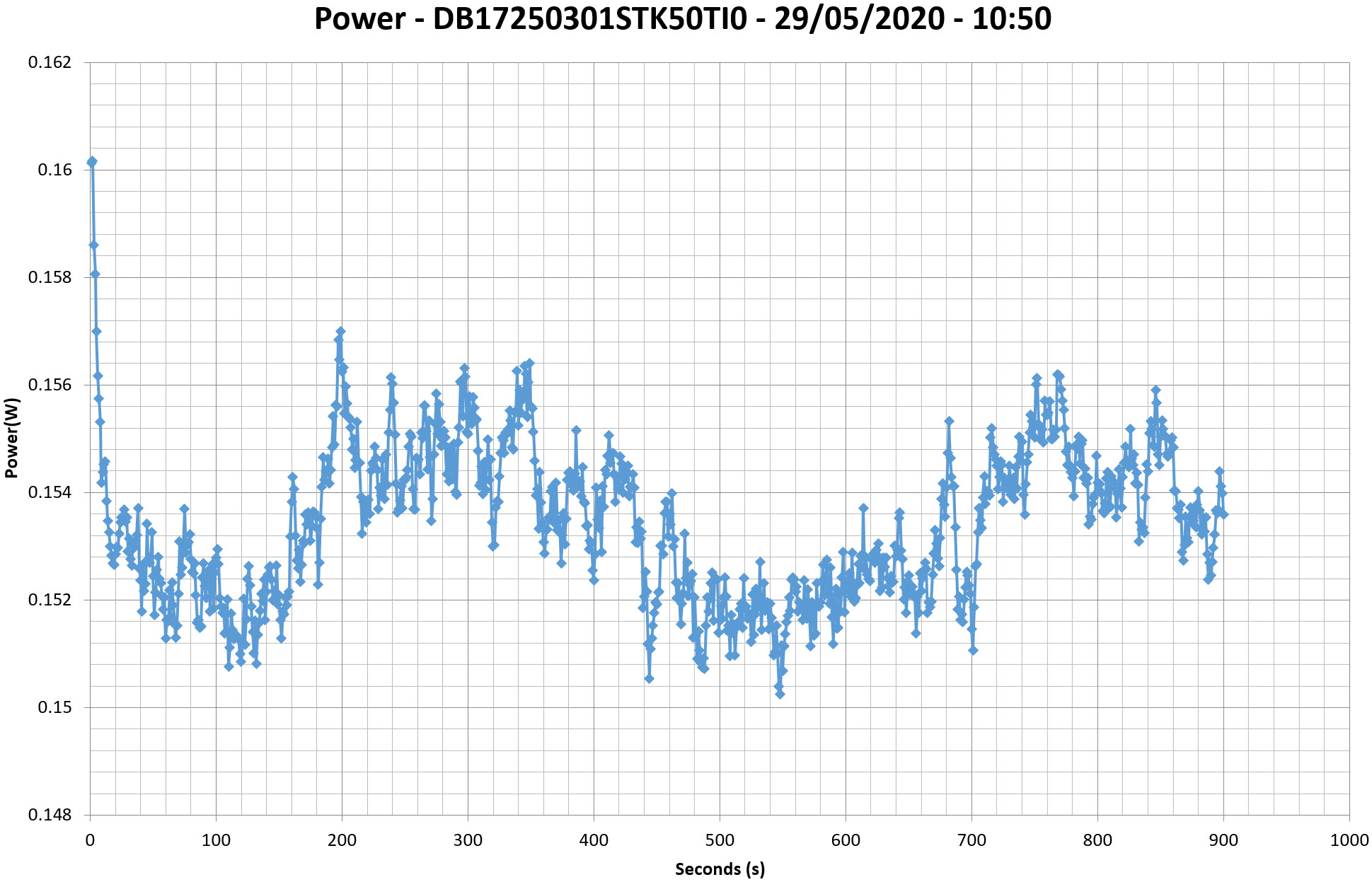

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

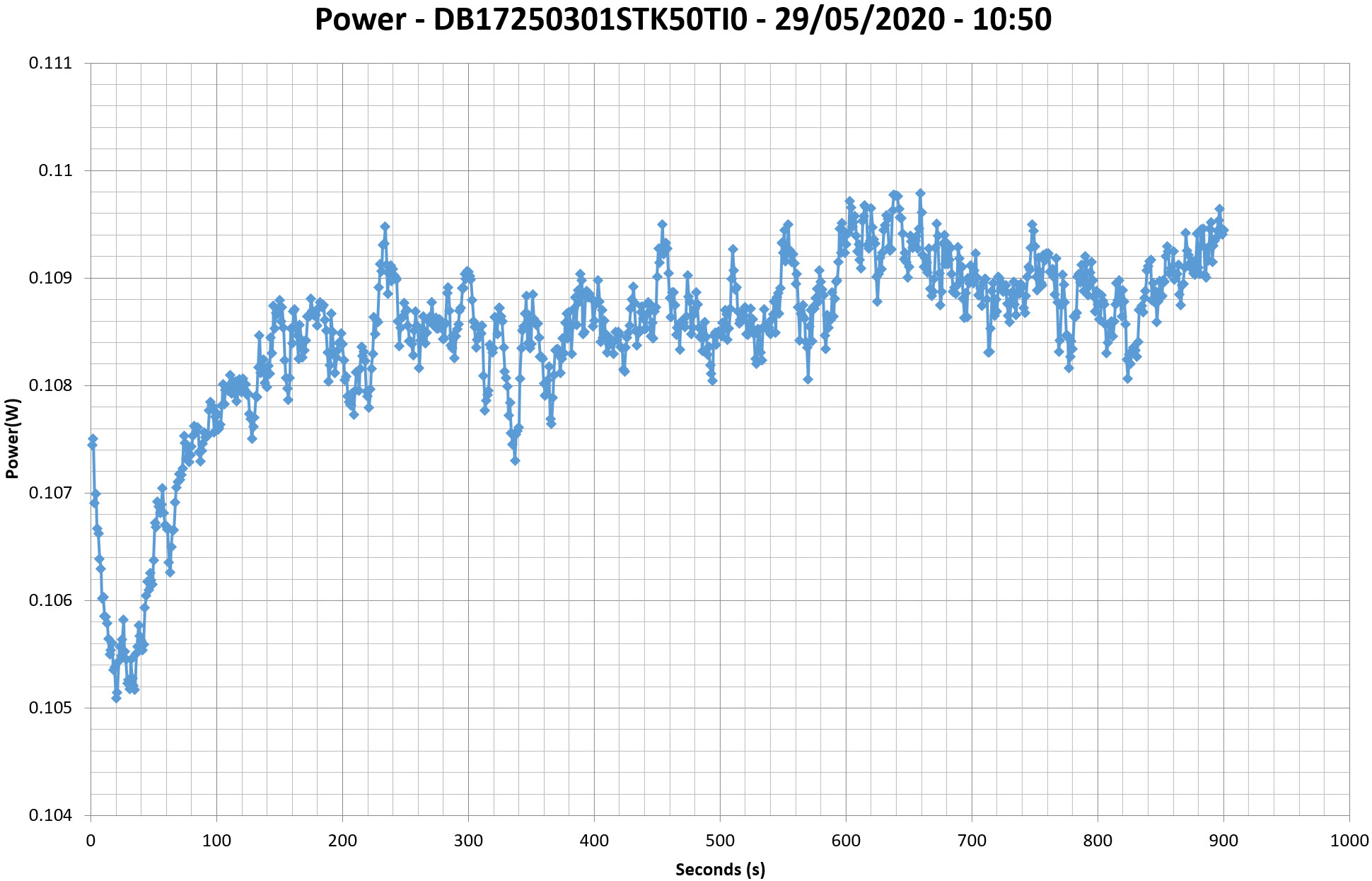

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

Efficiency Graph

INFO

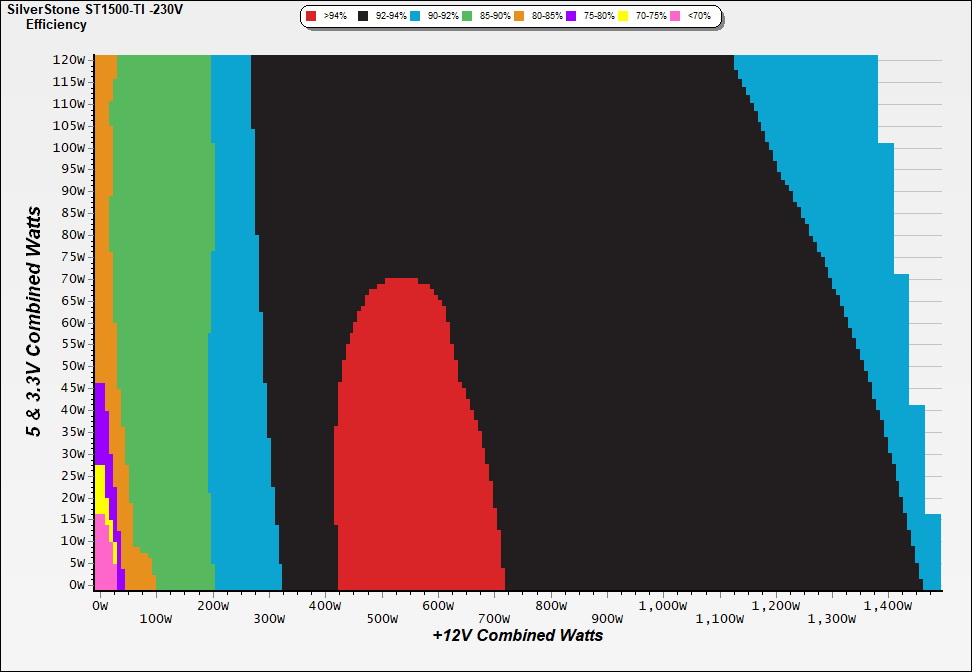

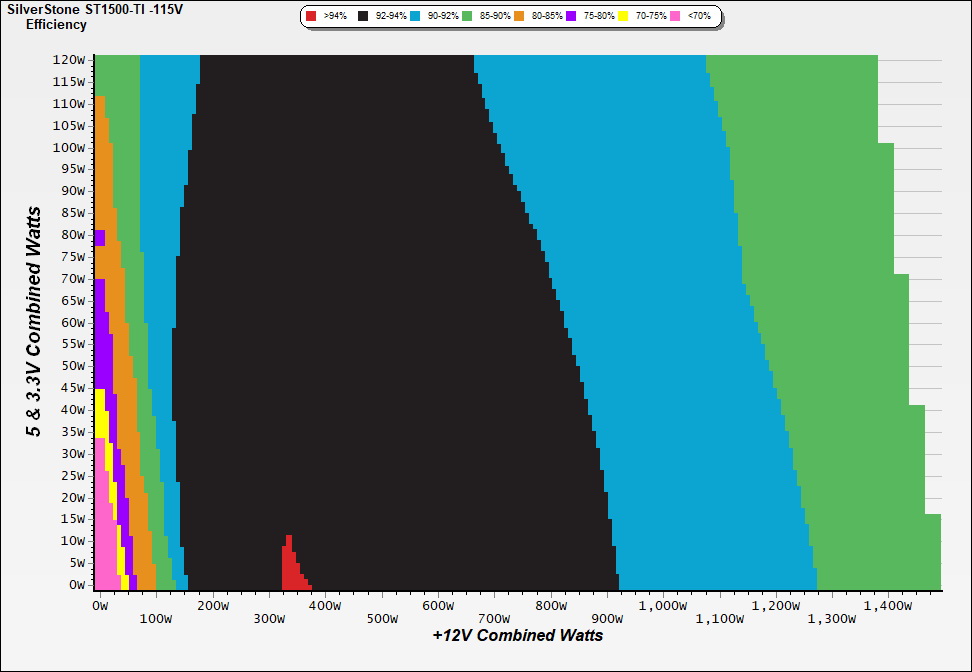

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

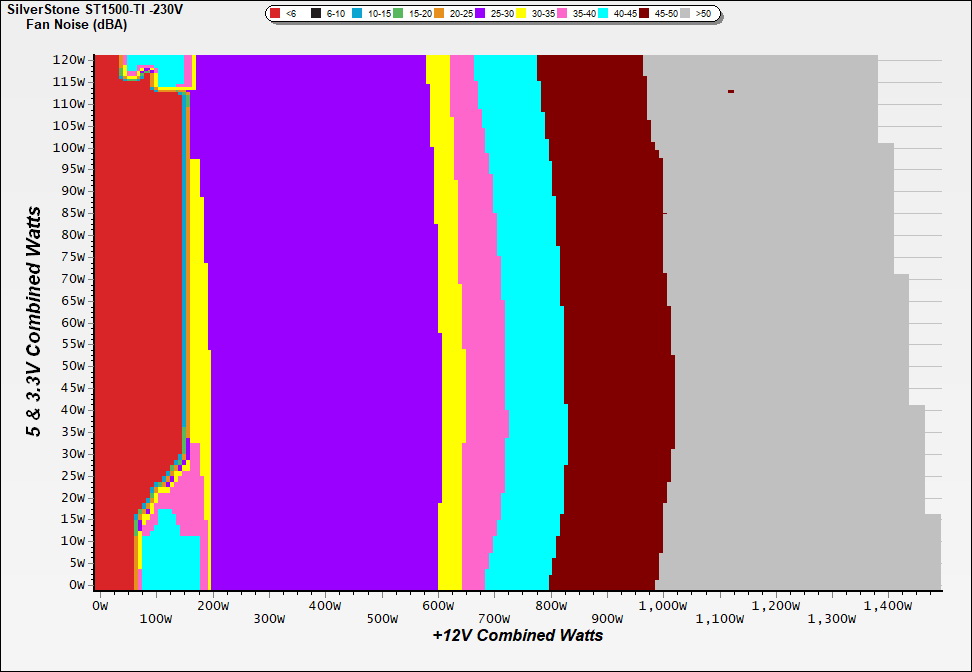

Noise Graph

INFO

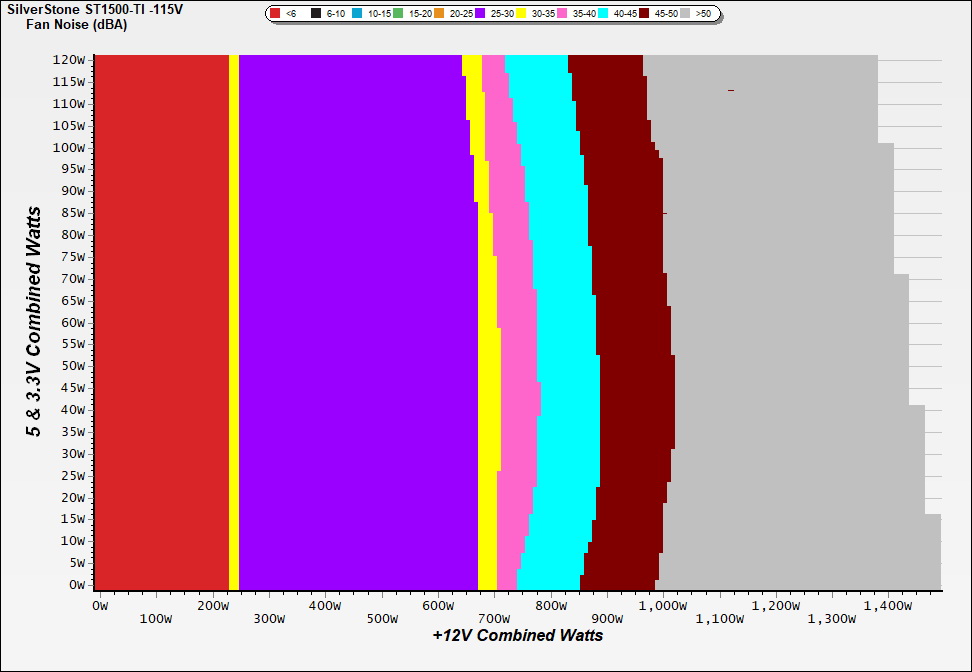

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

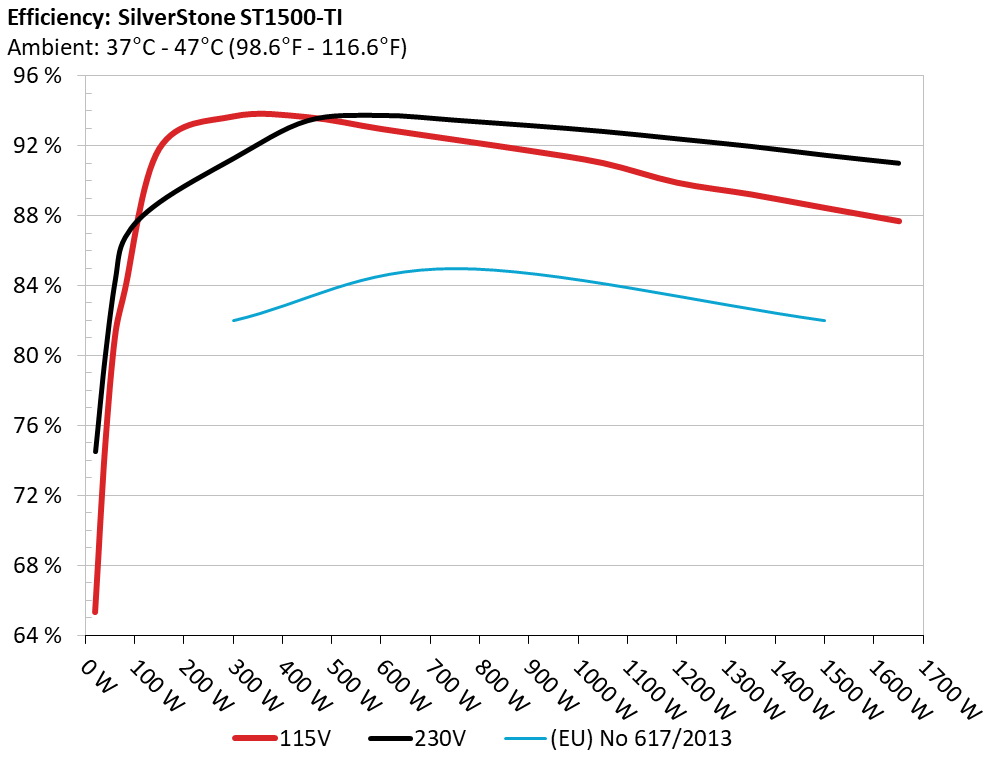

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

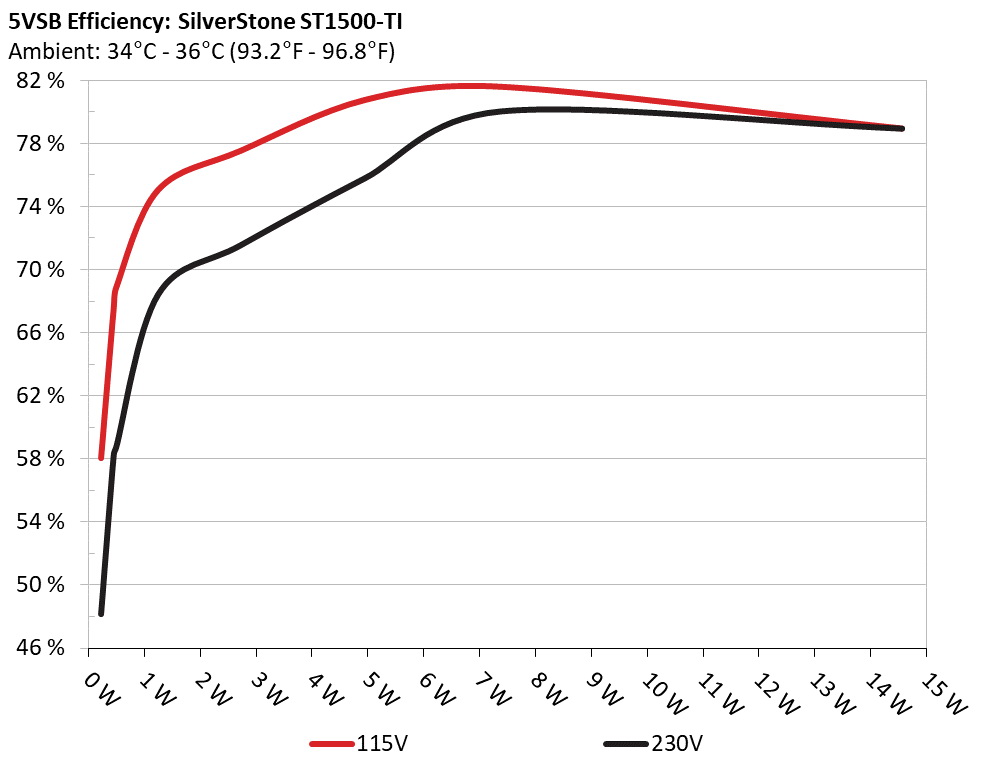

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.224 58.031% 0.019
4.984V 0.386 115.14V
2 0.090A 0.449 67.519% 0.032
4.981V 0.665 115.14V
3 0.550A 2.729 77.528% 0.159
4.960V 3.520 115.14V
4 1.000A 4.942 80.738% 0.252
4.941V 6.121 115.14V
5 1.500A 7.381 81.576% 0.331
4.920V 9.048 115.14V
6 3.001A 14.558 78.931% 0.466
4.851V 18.444 115.14V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.046A 0.224 48.172% 0.117
4.921V 0.465 230.29V
2 0.090A 0.449 58.236% 0.011
4.981V 0.771 230.29V
3 0.550A 2.729 71.571% 0.055
4.960V 3.813 230.29V
4 1.000A 4.942 75.798% 0.092
4.941V 6.520 230.29V
5 1.500A 7.381 80.046% 0.128
4.920V 9.221 230.29V
6 3.001A 14.563 78.954% 0.231
4.853V 18.445 230.29V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 10.628A 1.966A 1.972A 0.990A 150.030 91.842% 0 <6.0 43.59°C 0.957
12.084V 5.088V 3.346V 5.050V 163.356 40.57°C 115.12V
2 22.327A 2.959A 2.974A 1.194A 300.099 93.688% 944 28.1 40.91°C 0.974
12.057V 5.070V 3.328V 5.027V 320.317 44.68°C 115.12V
3 34.396A 3.463A 3.486A 1.399A 449.848 93.647% 1025 30.0 41.04°C 0.982
12.030V 5.057V 3.313V 5.005V 480.368 45.15°C 115.11V
4 46.543A 3.968A 4.001A 1.606A 599.817 92.971% 1618 43.6 41.21°C 0.985
12.002V 5.042V 3.299V 4.982V 645.165 46.25°C 115.11V
5 58.420A 4.979A 5.032A 1.816A 749.981 92.349% 1945 47.8 42.07°C 0.987
11.973V 5.023V 3.280V 4.958V 812.113 47.72°C 115.11V
6 70.343A 5.996A 6.071A 2.000A 899.930 91.727% 2093 50.4 42.98°C 0.988
11.945V 5.005V 3.262V 4.935V 981.092 49.28°C 115.11V
7 82.270A 7.022A 7.129A 2.242A 1050.206 91.015% 2083 50.3 43.43°C 0.990
11.925V 4.987V 3.242V 4.909V 1153.888 50.62°C 115.10V
8 94.091A 8.000A 8.202A 2.458A 1200.092 89.897% 2074 50.1 43.95°C 0.992
11.924V 4.968V 3.219V 4.884V 1334.965 51.66°C 115.10V
9 106.205A 8.586A 8.752A 2.466A 1350.078 89.223% 2078 50.2 45.12°C 0.993
11.935V 4.952V 3.199V 4.869V 1513.149 53.43°C 115.09V
10 118.006A 9.119A 9.336A 3.111A 1500.131 88.452% 2076 50.1 45.86°C 0.993
11.952V 4.937V 3.181V 4.823V 1695.979 54.96°C 115.09V
11 130.306A 9.140A 9.376A 3.120A 1650.149 87.693% 2073 50.1 46.73°C 0.994
11.975V 4.926V 3.168V 4.810V 1881.735 56.40°C 115.09V
CL1 0.102A 14.006A 14.001A 0.000A 117.633 82.533% 2056 49.7 42.60°C 0.936
12.088V 5.019V 3.293V 5.088V 142.529 48.20°C 115.14V
CL2 125.080A 1.000A 1.000A 1.000A 1510.750 88.793% 2077 50.2 45.50°C 0.993
11.973V 4.990V 3.240V 4.938V 1701.424 54.38°C 115.09V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 10.638A 1.965A 1.974A 0.991A 150.022 88.770% 0 <6.0 43.33°C 0.860
12.072V 5.087V 3.343V 5.050V 169.001 40.26°C 230.25V
2 22.346A 2.959A 2.979A 1.194A 300.087 91.269% 1052 30.6 40.94°C 0.925
12.046V 5.070V 3.324V 5.027V 328.793 44.67°C 230.26V
3 34.396A 3.463A 3.493A 1.399A 449.814 93.421% 1637 44.0 41.39°C 0.944
12.029V 5.055V 3.309V 5.004V 481.489 45.39°C 230.26V
4 46.546A 3.970A 4.011A 1.607A 599.820 93.729% 1857 46.8 41.44°C 0.959
12.001V 5.040V 3.293V 4.981V 639.949 46.28°C 230.25V
5 58.419A 4.979A 5.043A 1.816A 749.967 93.457% 2084 50.3 42.11°C 0.965
11.973V 5.023V 3.273V 4.957V 802.469 47.60°C 230.26V
6 70.336A 5.995A 6.088A 2.000A 899.912 93.153% 2077 50.2 42.85°C 0.972
11.946V 5.005V 3.253V 4.935V 966.057 49.19°C 230.26V
7 82.250A 7.022A 7.150A 2.242A 1050.218 92.815% 2070 50.1 43.40°C 0.976
11.928V 4.987V 3.233V 4.909V 1131.513 50.54°C 230.27V
8 94.065A 8.005A 8.219A 2.458A 1200.095 92.393% 2067 50.0 43.96°C 0.979
11.927V 4.969V 3.212V 4.884V 1298.899 51.96°C 230.27V
9 106.187A 8.585A 8.765A 2.465A 1350.084 91.961% 2068 50.0 44.72°C 0.982
11.937V 4.953V 3.195V 4.870V 1468.103 53.11°C 230.27V
10 117.976A 9.118A 9.350A 3.111A 1500.131 91.457% 2065 49.9 45.96°C 0.984
11.955V 4.937V 3.177V 4.824V 1640.260 55.12°C 230.27V
11 130.271A 9.143A 9.392A 3.120A 1650.127 91.001% 2065 49.9 46.57°C 0.985
11.978V 4.925V 3.163V 4.809V 1813.300 56.30°C 230.27V
CL1 0.102A 14.005A 14.002A 0.000A 117.506 80.555% 2043 49.2 42.46°C 0.838
12.079V 5.018V 3.285V 5.087V 145.871 47.84°C 230.29V
CL2 124.994A 1.000A 0.999A 1.000A 1511.340 91.766% 2068 50.0 46.08°C 0.984
11.978V 4.989V 3.240V 4.937V 1646.956 55.70°C 230.27V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.228A 0.490A 0.489A 0.196A 19.999 65.328% 0 <6.0 0.811
12.095V 5.105V 3.365V 5.097V 30.613 115.13V
2 2.455A 0.981A 0.982A 0.393A 39.989 74.650% 0 <6.0 0.894
12.092V 5.101V 3.360V 5.087V 53.569 115.13V
3 3.687A 1.471A 1.475A 0.591A 60.020 81.019% 0 <6.0 0.897
12.089V 5.097V 3.356V 5.076V 74.081 115.13V
4 4.912A 1.964A 1.970A 0.790A 79.971 83.716% 0 <6.0 0.941
12.086V 5.092V 3.351V 5.065V 95.526 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.227A 0.490A 0.492A 0.196A 19.993 74.515% 0 <6.0 0.346
12.093V 5.104V 3.364V 5.097V 26.831 230.25V
2 2.456A 0.980A 0.981A 0.393A 39.983 80.056% 0 <6.0 0.562
12.089V 5.100V 3.359V 5.086V 49.944 230.25V
3 3.688A 1.471A 1.475A 0.591A 60.015 84.322% 0 <6.0 0.678
12.086V 5.096V 3.354V 5.075V 71.174 230.26V
4 4.913A 1.964A 1.971A 0.790A 79.967 86.753% 0 <6.0 0.743
12.083V 5.092V 3.349V 5.064V 92.178 230.26V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load17.60mV7.80mV17.70mV3.30mVPass
20% Load11.50mV10.20mV19.10mV5.20mVPass
30% Load12.30mV10.00mV18.40mV5.10mVPass
40% Load13.30mV9.10mV19.90mV3.90mVPass
50% Load15.70mV9.30mV20.30mV4.60mVPass
60% Load20.70mV10.30mV22.20mV5.20mVPass
70% Load69.40mV12.00mV22.80mV7.30mVPass
80% Load16.40mV12.70mV25.80mV5.70mVPass
90% Load16.90mV12.60mV24.40mV5.90mVPass
100% Load21.30mV14.10mV27.10mV7.20mVPass
110% Load22.70mV14.70mV27.40mV7.30mVPass
Crossload137.40mV11.00mV22.10mV4.80mVPass
Crossload220.80mV12.30mV25.40mV6.40mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.20mV8.00mV15.90mV3.20mVPass
20% Load15.80mV10.10mV17.20mV5.40mVPass
30% Load16.40mV9.00mV17.20mV4.50mVPass
40% Load13.60mV9.50mV18.80mV4.60mVPass
50% Load14.90mV9.90mV17.60mV4.60mVPass
60% Load14.20mV10.10mV19.20mV4.90mVPass
70% Load15.70mV10.60mV21.40mV5.50mVPass
80% Load16.30mV11.90mV25.20mV5.90mVPass
90% Load16.70mV12.10mV22.60mV6.10mVPass
100% Load21.00mV12.70mV24.90mV7.20mVPass
110% Load22.60mV13.70mV25.90mV7.10mVPass
Crossload110.90mV10.70mV19.70mV4.10mVPass
Crossload220.80mV11.80mV21.40mV6.50mVPass

The results above are not used in the certification process

SilverStone Strider Titanium 1500W

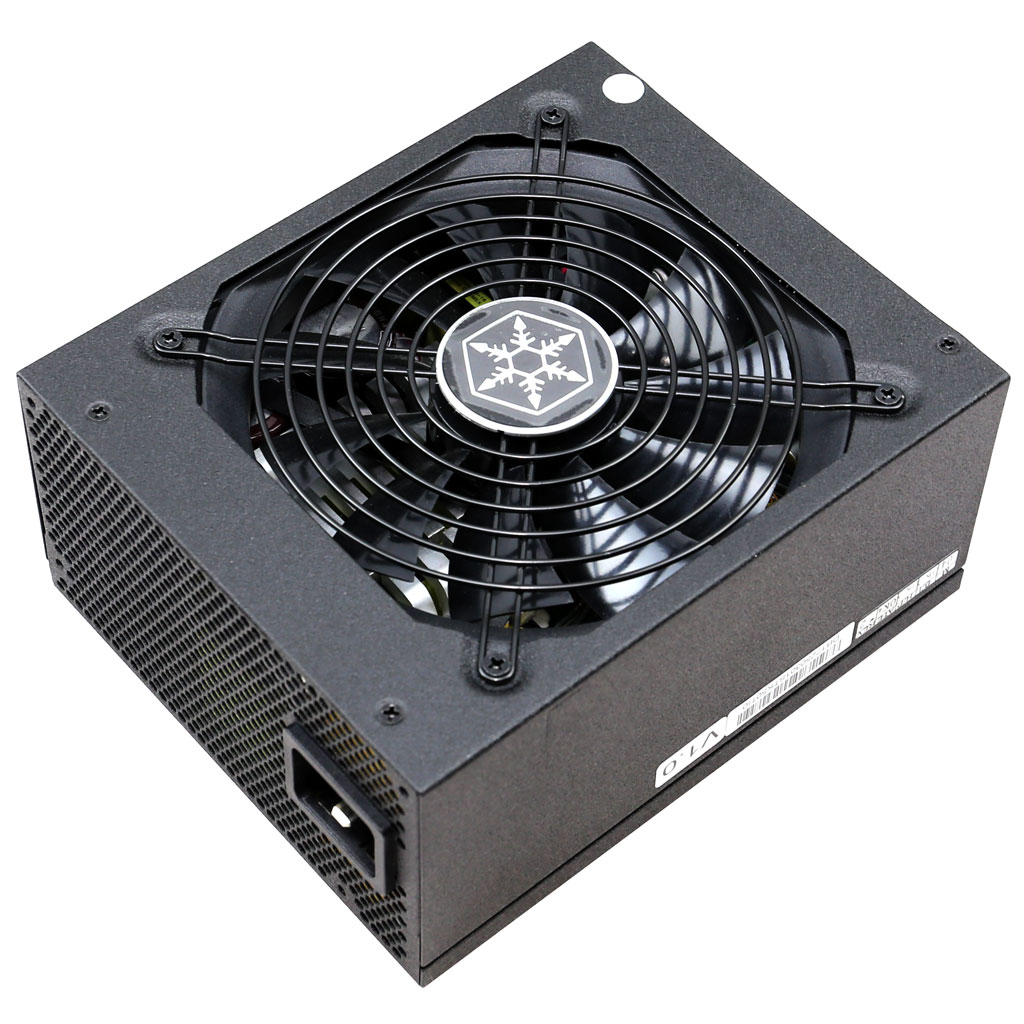

Top side

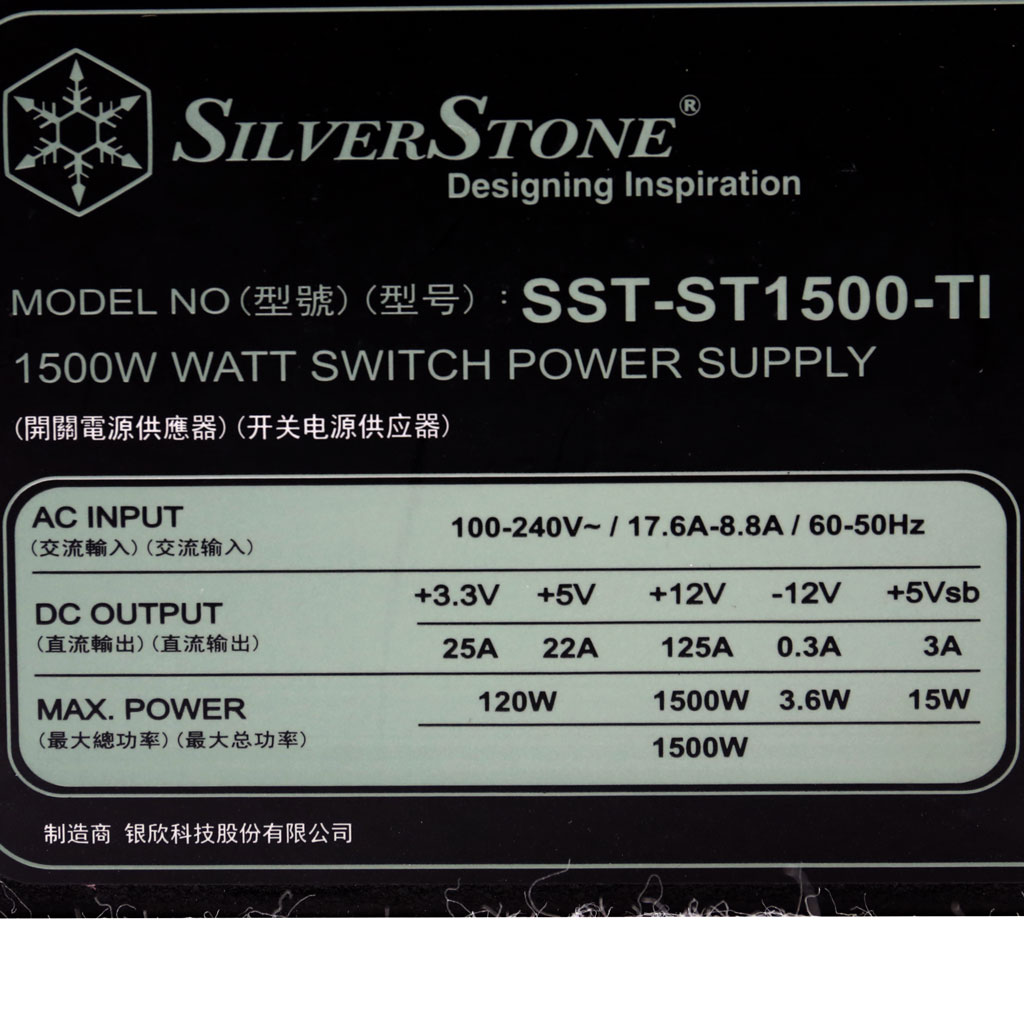

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
