CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
EVGA 450 BT (#3)
Serial Number1703430401802531
Lab IDEV45001757
Certification ID251757
  • Test Result Report ID: 20PS1757A
  • Certificate Issue Date: Dec 18, 2020
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandEVGA
Hersteller (OEM)RSY
SeriesBT
Model Number
Serial Number1703430401802531
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6
Rated Frequency (Hz)50-60
Rated Power (W)450
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Sleeve Bearing Fan
(S1202512L)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps1818352.50.3
Watts9042012.53.6
Total Max. Power (W)450

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Native Cables
Description Cable Count Connector Count (Total) Gauge In Cable Caps
ATX connector 20+4 pin (560mm) 1 1 20-24AWG No
4+4 pin EPS12V (620mm) 1 1 20AWG No
6+2 pin PCIe (570mm+150mm) 1 2 20-22AWG No
SATA (480mm+120mm) 2 4 20AWG No
4 pin Molex (480mm+120mm+120mm) / FDD (+120mm) 1 3 / 1 20-22AWG No
Modular Cables
AC Power Cord (1070mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

WirkungsgradBRONZE
LautstärkeklasseStandard+
Average Efficiency (>1450 load combinations)83.594%
Average Noise Output (>1450 Load Combinations)36.07dBA
Average PF (>1450 Load Combinations)0.974
Efficiency With 10W (≤500W) or 2% (>500W) Load57.306%
Standby Power Consumption0.0460W
12V Ripple (Full Load)24.42mV
5V Ripple (Full Load)23.34mV
3.3V Ripple (Full Load)24.43mV
5VSB Ripple (Full Load)21.30mV
12V Load Regulation0.90%
5V Load Regulation1.49%
3.3V Load Regulation1.59%
5VSB Load Regulation2.54%
Inrush Current25.460A
Wirkungsgrad
LautstärkeklasseStandard+
Average Efficiency (>1450 load combinations)85.503%
Average Noise Output (>1450 Load Combinations)35.95dBA
Average PF (>1450 Load Combinations)0.868
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0887W
12V Ripple (Full Load)22.93mV
5V Ripple (Full Load)23.29mV
3.3V Ripple (Full Load)24.15mV
5VSB Ripple (Full Load)20.89mV
12V Load Regulation1.00%
5V Load Regulation1.77%
3.3V Load Regulation1.68%
5VSB Load Regulation2.62%
Inrush Current87.920A
Hold-Up Time & Power Ok Signal13.30ms
AC Loss to PWR_OK Hold Up Time12.20ms
PWR_OK Inactive to DC Loss Delay1.10ms
PSU Timings: T1 (20% / 100%)54.0ms52.0ms
PSU Timings: T3 (20% / 100%)276.0ms274.0ms
OPP (25.46°C / 33.10°C)115.51%115.52%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)13.3
AC Loss to PWR_OK Hold Up Time (ms)12.2
PWR_OK Inactive to DC Loss Delay (ms)1.1

Stromverbrauch im Ruhezustand

Tables

Graphs

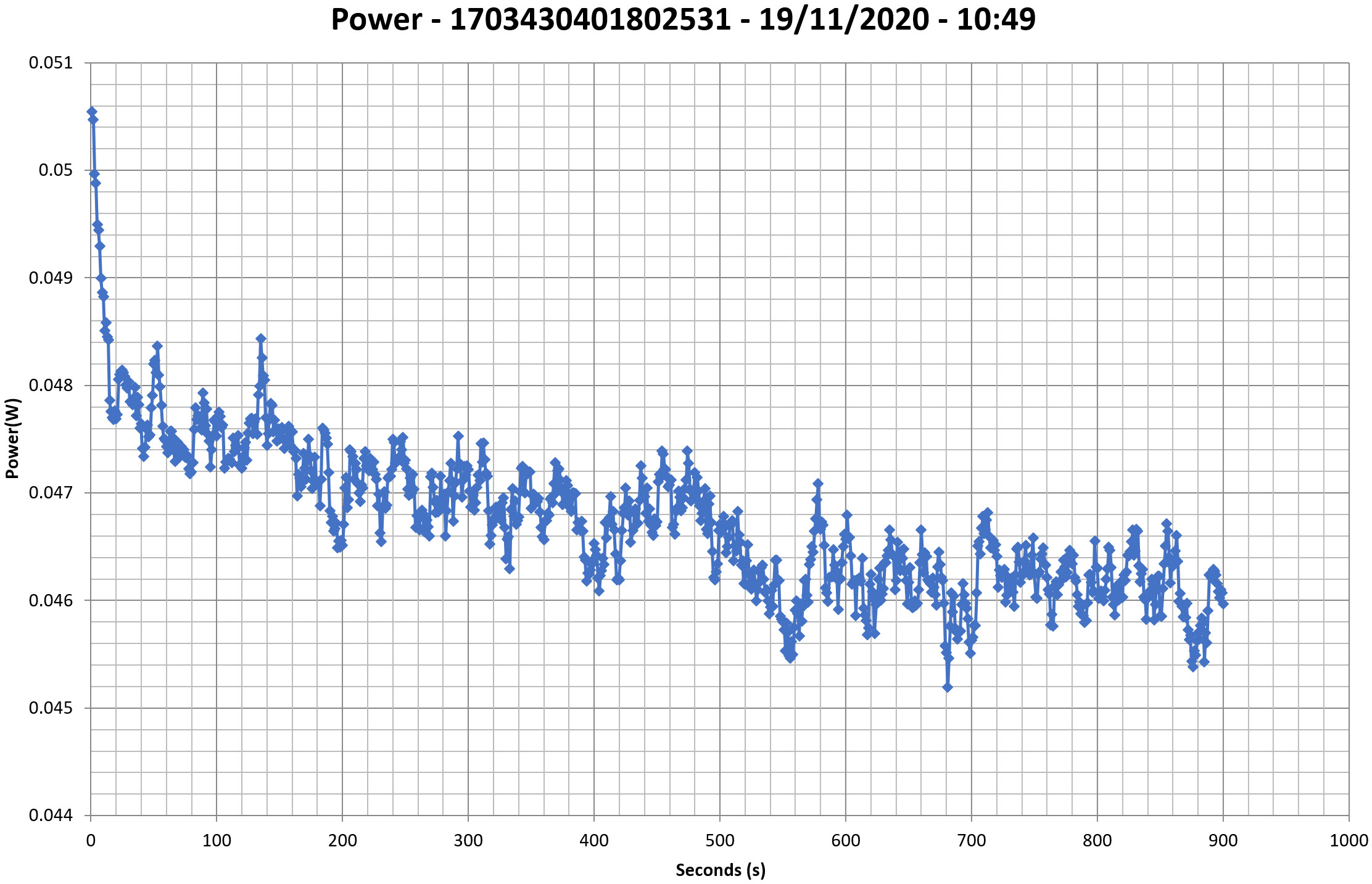

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

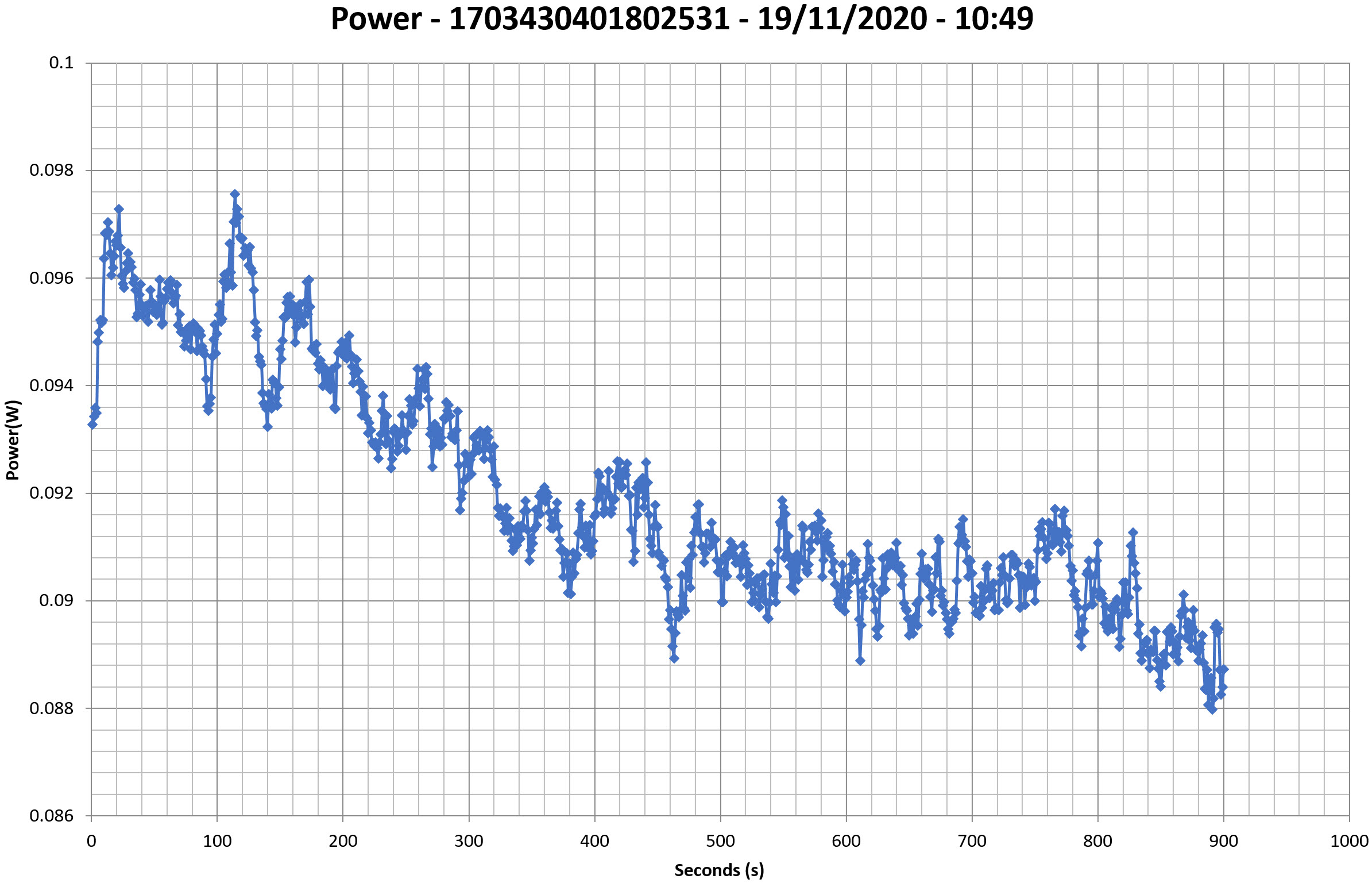

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

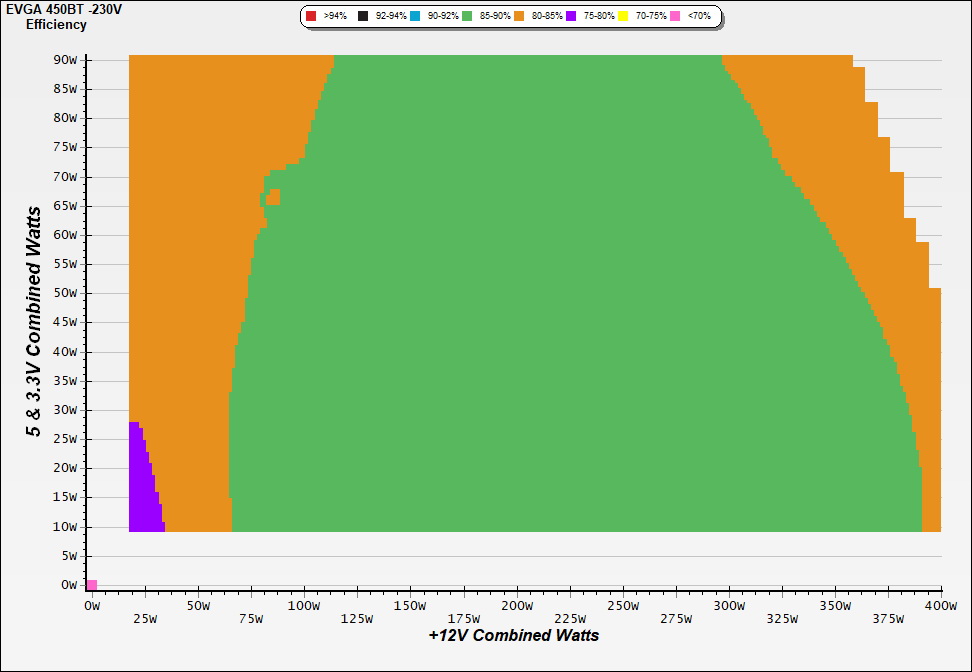

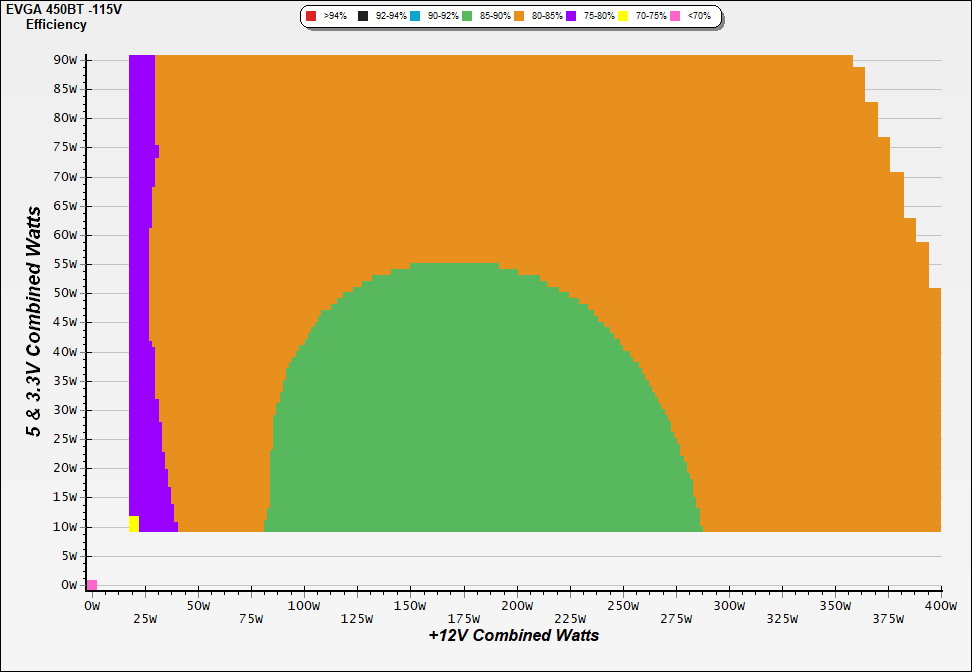

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

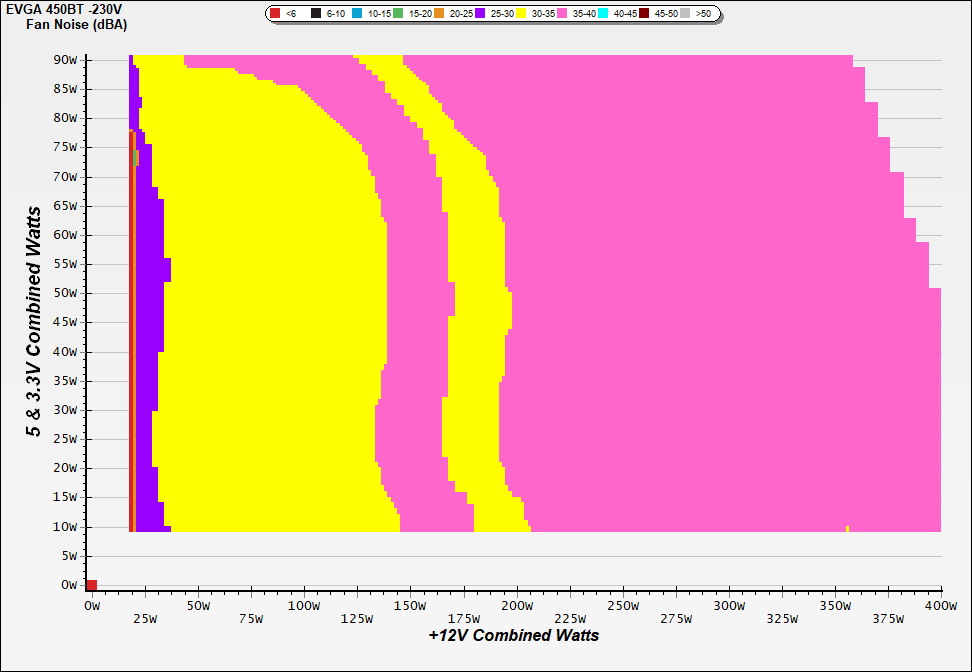

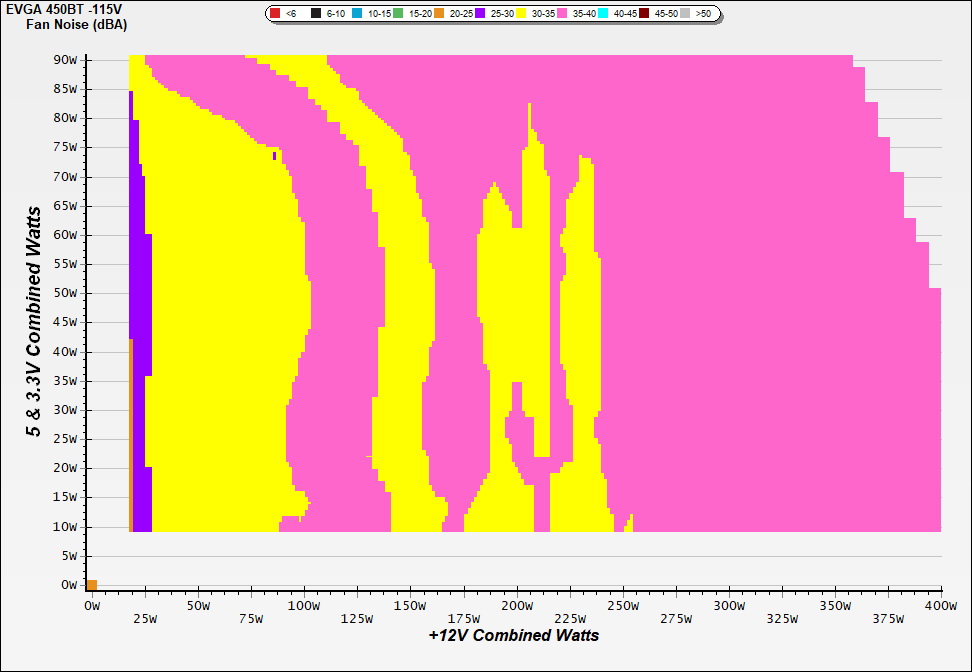

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

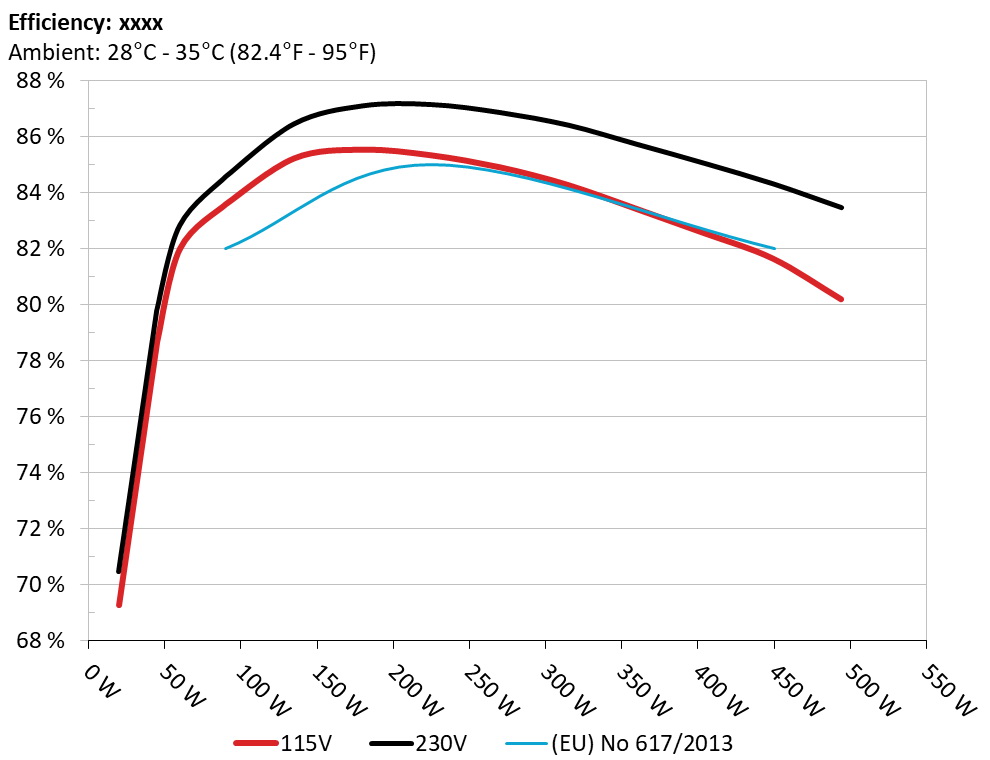

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

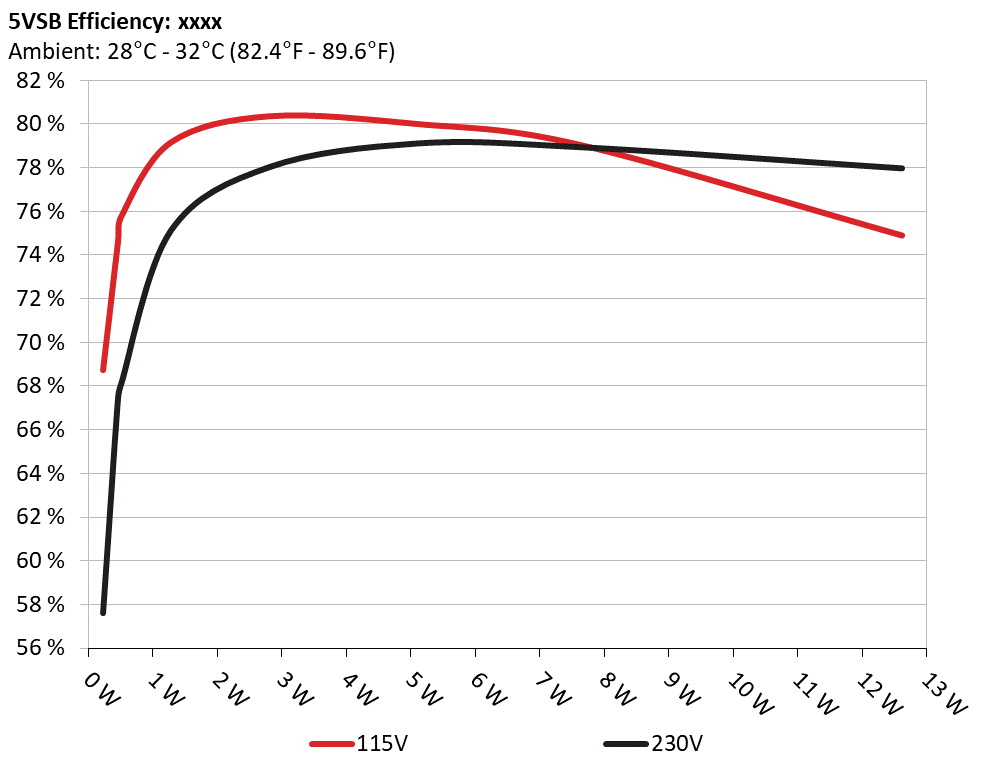

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 68.750% 0.021
5.128V 0.336 115.17V
2 0.090A 0.461 74.595% 0.039
5.127V 0.618 115.17V
3 0.550A 2.811 80.360% 0.196
5.112V 3.498 115.16V
4 1.000A 5.098 80.006% 0.301
5.098V 6.372 115.16V
5 1.500A 7.622 79.050% 0.374
5.082V 9.642 115.16V
6 2.499A 12.613 74.908% 0.454
5.047V 16.838 115.17V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 57.606% 0.008
5.128V 0.401 230.33V
2 0.090A 0.461 67.398% 0.013
5.127V 0.684 230.32V
3 0.550A 2.811 78.040% 0.066
5.112V 3.602 230.32V
4 1.000A 5.097 79.121% 0.115
5.098V 6.442 230.32V
5 1.500A 7.622 78.952% 0.164
5.081V 9.654 230.32V
6 2.499A 12.614 77.980% 0.244
5.047V 16.176 230.33V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 1.972A 1.975A 1.978A 0.981A 44.947 77.530% 1079 25.1 30.57°C 0.742
11.845V 5.058V 3.337V 5.095V 57.974 32.59°C 115.14V
2 4.993A 2.971A 2.973A 1.180A 90.011 83.414% 1083 25.2 30.63°C 0.929
11.839V 5.049V 3.330V 5.083V 107.909 33.27°C 115.14V
3 8.372A 3.466A 3.476A 1.380A 134.983 85.229% 1146 28.7 31.00°C 0.971
11.816V 5.050V 3.325V 5.072V 158.376 34.24°C 115.14V
4 11.771A 3.961A 3.977A 1.581A 179.977 85.540% 1316 31.6 31.82°C 0.972
11.789V 5.051V 3.320V 5.059V 210.401 35.62°C 115.14V
5 14.807A 4.959A 4.979A 1.783A 224.962 85.337% 1424 35.9 32.26°C 0.982
11.783V 5.041V 3.313V 5.046V 263.617 36.37°C 115.14V
6 17.842A 5.961A 5.986A 1.987A 269.947 84.912% 1507 35.8 32.85°C 0.988
11.779V 5.030V 3.308V 5.033V 317.912 37.38°C 115.13V
7 20.892A 6.970A 6.996A 2.190A 315.003 84.274% 1615 37.2 33.52°C 0.992
11.770V 5.023V 3.302V 5.020V 373.784 38.86°C 115.13V
8 23.925A 7.983A 8.008A 2.396A 359.977 83.420% 1689 39.0 33.78°C 0.995
11.769V 5.012V 3.296V 5.008V 431.522 39.72°C 115.13V
9 27.419A 8.476A 8.504A 2.398A 404.644 82.552% 1727 40.2 34.08°C 0.996
11.750V 5.013V 3.291V 5.002V 490.170 40.71°C 115.12V
10 30.856A 8.981A 9.036A 2.502A 449.352 81.652% 1737 40.6 34.77°C 0.997
11.738V 5.009V 3.285V 4.994V 550.329 42.01°C 115.12V
11 34.762A 8.971A 9.050A 2.505A 494.206 80.199% 1751 41.0 35.26°C 0.998
11.709V 5.015V 3.281V 4.988V 616.227 43.17°C 115.12V
CL1 0.115A 10.998A 10.998A 0.002A 90.423 77.037% 1584 36.7 32.68°C 0.943
12.318V 4.775V 3.317V 5.109V 117.376 36.93°C 115.15V
CL2 35.003A 2.001A 2.001A 1.000A 423.270 82.398% 1625 37.5 34.43°C 0.997
11.463V 5.184V 3.300V 5.055V 513.687 41.82°C 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 1.971A 1.978A 1.978A 0.981A 44.950 78.933% 1013 26.5 30.83°C 0.540
11.846V 5.058V 3.336V 5.095V 56.947 32.86°C 230.31V
2 4.993A 2.971A 2.973A 1.180A 90.011 84.463% 1172 28.7 31.02°C 0.603
11.839V 5.049V 3.330V 5.083V 106.568 33.56°C 230.32V
3 8.376A 3.464A 3.474A 1.380A 134.996 86.452% 1242 29.5 31.54°C 0.755
11.814V 5.050V 3.325V 5.071V 156.152 34.80°C 230.32V
4 11.773A 3.960A 3.977A 1.581A 179.991 87.096% 1333 32.1 31.74°C 0.852
11.789V 5.051V 3.319V 5.059V 206.659 35.73°C 230.33V
5 14.795A 4.965A 4.981A 1.784A 224.971 87.144% 1372 34.7 32.16°C 0.898
11.792V 5.036V 3.313V 5.046V 258.160 36.80°C 230.32V
6 17.842A 5.965A 5.986A 1.987A 269.961 86.860% 1524 36.0 33.68°C 0.923
11.779V 5.030V 3.307V 5.033V 310.799 38.86°C 230.33V
7 20.892A 6.973A 6.997A 2.191A 315.025 86.406% 1609 37.1 33.70°C 0.941
11.771V 5.021V 3.301V 5.019V 364.587 39.98°C 230.32V
8 23.934A 7.983A 8.007A 2.396A 359.998 85.725% 1682 38.8 33.91°C 0.952
11.766V 5.012V 3.295V 5.007V 419.947 40.83°C 230.32V
9 27.421A 8.479A 8.504A 2.398A 404.686 85.039% 1727 40.2 34.15°C 0.960
11.751V 5.011V 3.290V 5.002V 475.883 41.35°C 230.32V
10 30.890A 8.986A 9.049A 2.505A 449.416 84.312% 1744 40.8 34.64°C 0.966
11.727V 5.006V 3.281V 4.988V 533.040 42.21°C 230.24V
11 34.783A 8.980A 9.062A 2.508A 494.189 83.464% 1757 40.9 35.08°C 0.970
11.701V 5.011V 3.277V 4.983V 592.101 43.02°C 230.24V
CL1 0.115A 10.999A 10.997A 0.002A 90.368 78.106% 1542 36.3 32.46°C 0.613
12.314V 4.772V 3.315V 5.107V 115.699 36.92°C 230.25V
CL2 35.000A 1.999A 2.000A 1.000A 423.103 85.034% 1666 38.4 34.39°C 0.963
11.460V 5.181V 3.297V 5.052V 497.567 42.24°C 230.25V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.259A 0.490A 0.494A 0.195A 19.982 69.274% 792 16.0 0.521
11.779V 5.104V 3.342V 5.124V 28.845 115.16V
2 2.514A 0.982A 0.989A 0.391A 39.970 78.676% 778 15.2 0.700
11.804V 5.085V 3.338V 5.115V 50.803 115.16V
3 3.773A 1.475A 1.484A 0.587A 59.999 82.004% 779 15.3 0.774
11.811V 5.076V 3.336V 5.107V 73.166 115.14V
4 5.027A 1.972A 1.979A 0.784A 79.951 83.589% 969 23.5 0.872
11.808V 5.071V 3.333V 5.098V 95.648 115.14V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.259A 0.489A 0.494A 0.195A 19.979 70.470% 795 16.1 0.282
11.782V 5.103V 3.342V 5.124V 28.351 230.32V
2 2.515A 0.983A 0.987A 0.391A 39.969 79.793% 793 16.0 0.520
11.799V 5.087V 3.338V 5.115V 50.091 230.32V
3 3.775A 1.476A 1.484A 0.587A 60.000 82.824% 968 23.4 0.579
11.803V 5.079V 3.336V 5.106V 72.443 230.32V
4 5.027A 1.972A 1.978A 0.785A 79.951 84.562% 1025 25.8 0.598
11.807V 5.072V 3.333V 5.098V 94.547 230.32V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load23.90mV17.70mV14.70mV42.60mVPass
20% Load20.40mV15.30mV15.20mV36.70mVPass
30% Load20.10mV15.90mV15.40mV16.30mVPass
40% Load11.60mV15.60mV14.80mV16.80mVPass
50% Load12.50mV15.90mV15.40mV17.60mVPass
60% Load25.30mV18.20mV17.10mV39.00mVPass
70% Load14.30mV18.50mV19.20mV19.30mVPass
80% Load16.40mV19.50mV22.70mV19.80mVPass
90% Load18.90mV21.80mV23.50mV20.10mVPass
100% Load24.40mV23.30mV24.40mV21.30mVPass
110% Load26.70mV24.20mV25.20mV21.90mVPass
Crossload120.00mV22.00mV31.80mV21.60mVPass
Crossload224.20mV20.70mV18.40mV18.60mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load13.10mV13.90mV14.70mV14.50mVPass
20% Load11.20mV14.60mV15.10mV14.90mVPass
30% Load21.00mV16.10mV14.50mV30.80mVPass
40% Load10.90mV15.10mV14.00mV16.30mVPass
50% Load19.20mV19.30mV15.20mV17.50mVPass
60% Load12.50mV17.40mV17.40mV17.80mVPass
70% Load13.80mV17.60mV19.00mV19.00mVPass
80% Load14.90mV18.30mV21.70mV18.50mVPass
90% Load18.20mV20.40mV23.00mV20.20mVPass
100% Load22.90mV23.30mV24.20mV20.90mVPass
110% Load26.10mV23.40mV24.60mV21.10mVPass
Crossload124.60mV24.10mV32.50mV22.60mVPass
Crossload223.20mV20.30mV19.00mV17.50mVPass

The results above are not used in the certification process

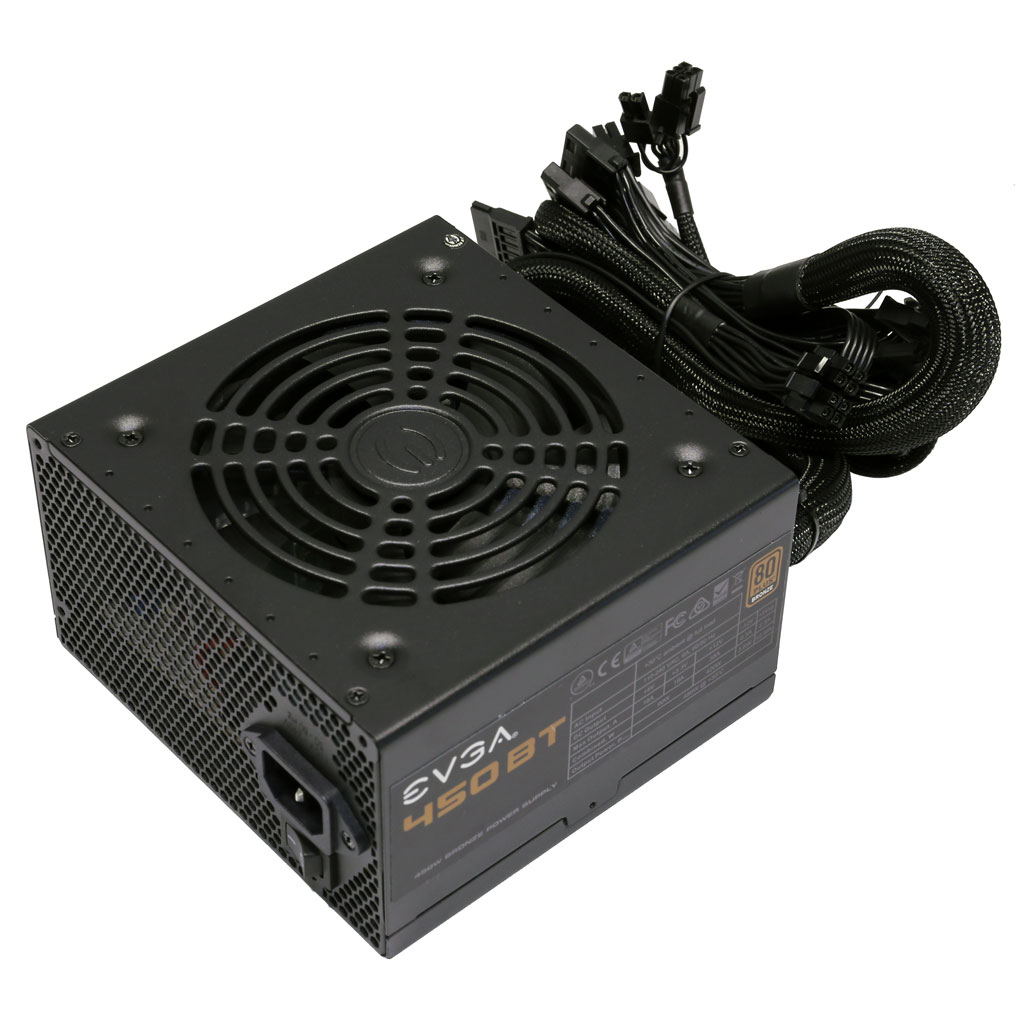

EVGA 450 BT (#3)

Top side

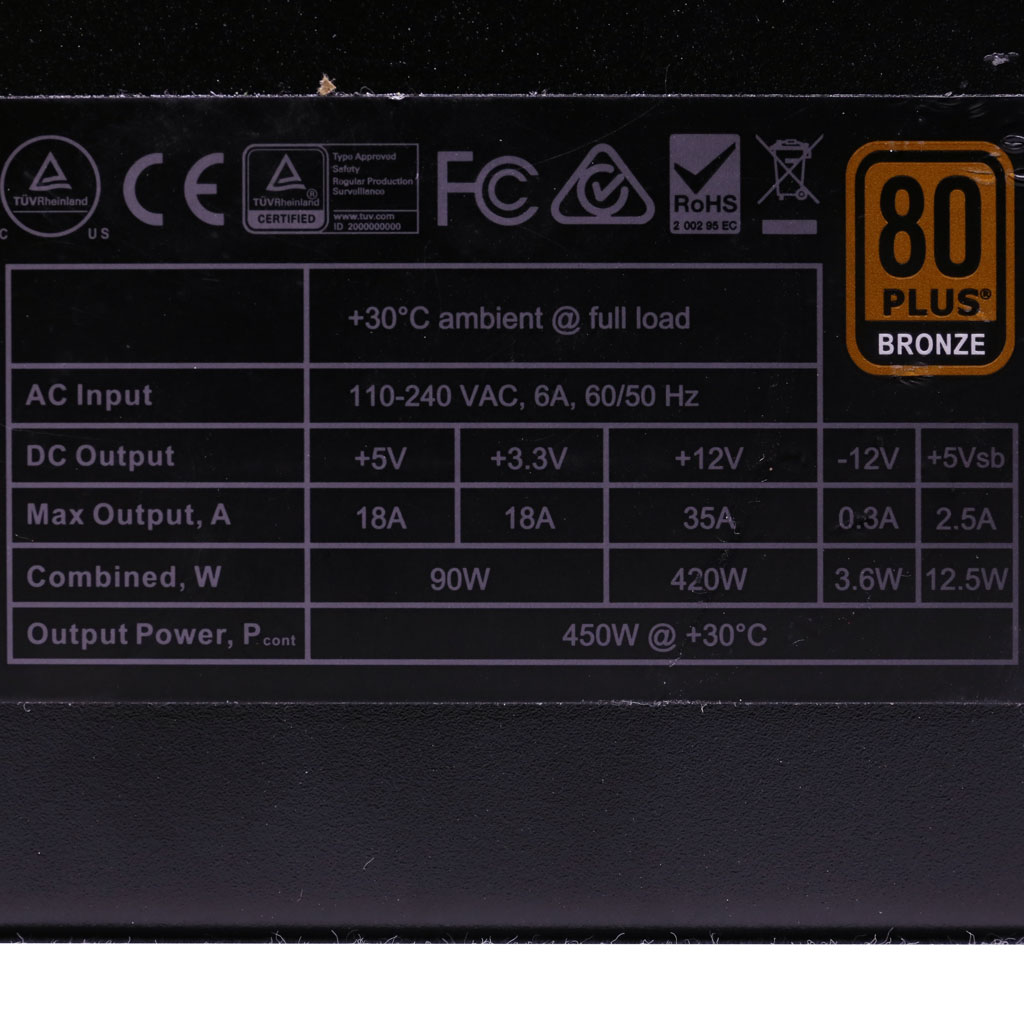

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
