CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

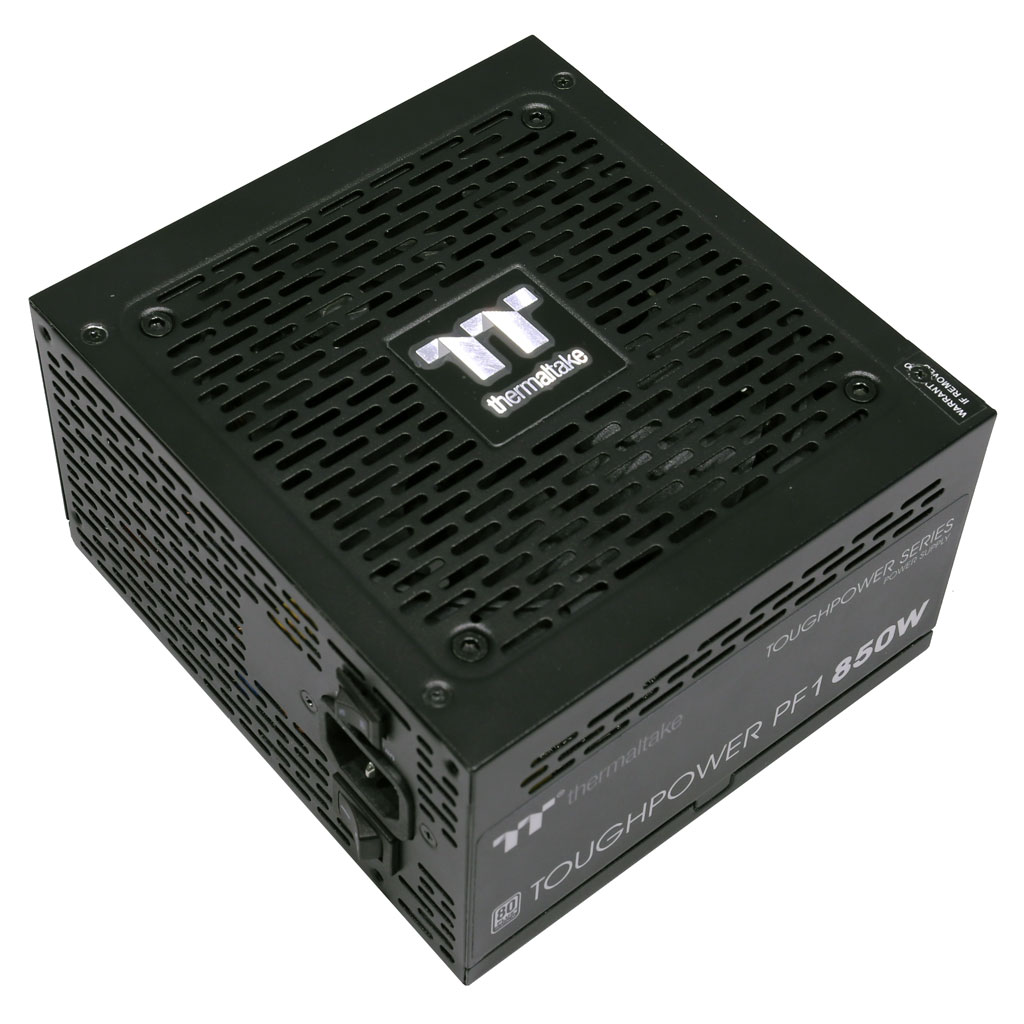

Thermaltake Toughpower PF1 850W (#2)
Serial NumberPSTPD0850FNFAPU1XA001004
Lab IDTT85001767
Certification ID251767
  • Test Result Report ID: 20PS1767A
  • Certificate Issue Date: Dec 30, 2020
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)Jiu Zhou Yang Guang Power Supply (HKC)
SeriesToughpower PF1
Model NumberTTP-850AH2FKP
Serial NumberPSTPD0850FNFAPU1XA001004
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Hydraulic Bearing Fan
[TT-1225(BDK12025MS)]
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

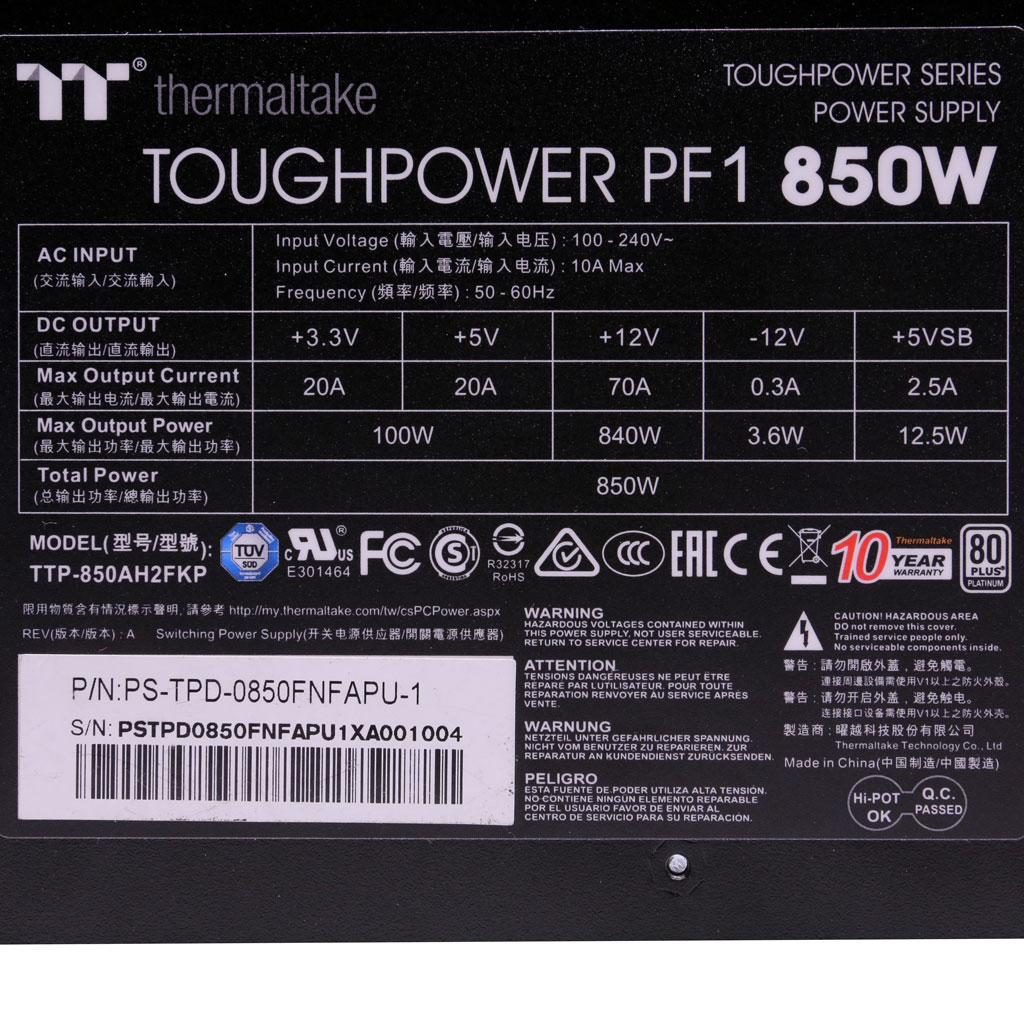

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020702.50.3
Watts10084012.53.6
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-18AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (500mm+150mm) 3 6 16-18AWG No
SATA (520mm+150mm+150mm+150mm) 3 12 18AWG No
4-pin Molex (490mm+150mm+150mm+150mm) 1 4 18AWG No
FDD Adapter (+100mm) 1 1 22AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) HKC
PCB Type Double Sided
Primary Side -
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes
Inrush Protection NTC Thermistor 2.5D-15 (2.5Ohm) & Relay
Bridge Rectifier(s) 2x  GBU1506L (600V, 15A @ 100°C)
APFC MOSFETs 2x Lonten LSB65R070GF (650V, 30A @ 100°C, Rds(on): 0.07Ohm)
APFC Boost Diode 1x Global Power Technology G3S06510H (650V, 10A @ 120°C)
Bulk Cap(s) 2x Rubycon (420V, 390uF each or 780uF combined, 2,000h @ 105°C, MXH)
Main Switchers 2x NCE Power NCE65TF130F (650V, 18A @ 100°C, Rds(on): 0.13Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CM6901X
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 6x Advanced Power AP4N1R8CMT-A (45V, 32A @ 70°C, Rds(on): 1.8mOhm)
5V & 3.3V DC-DC Converters: 4x Advanced Power AP4024GEMT (30V, 20.9A @ 70°C, Rds(on): 4.5mOhm)
PWM Controllers: 2x ANPEC APW7164
Filtering Capacitors Electrolytic: 1x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 2x Nippon Chemi-Con (4-10,000h @ 105°C, KYA), 5x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 1x Nippon Chemi-Con (6-10,000h @ 105°C, KZM)
Polymer: 21x NIC
Supervisor IC Sitronix ST9S313-DAG (OVP, UVP, SCP)
Fan Model Thermaltake TT-1225 (XW12025MS) (120mm, 12V, 0.30A, Hydraulic Bearing Fan)
5VSB Circuit -
Rectifier 1x SB1045L SBR (45V, 10A)
Standby PWM Controller Excelliance MOS Corporation EM8564A

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)90.420%
Average Noise Output (>1450 Load Combinations)27.90dBA
Average PF (>1450 Load Combinations)0.985
Efficiency With 10W (≤500W) or 2% (>500W) Load71.271%
Standby Power Consumption0.0763W
12V Ripple (Full Load)22.12mV
5V Ripple (Full Load)21.86mV
3.3V Ripple (Full Load)14.34mV
5VSB Ripple (Full Load)12.33mV
12V Load Regulation0.04%
5V Load Regulation0.18%
3.3V Load Regulation0.27%
5VSB Load Regulation3.59%
Inrush Current33.500A
Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)92.360%
Average Noise Output (>1450 Load Combinations)27.89dBA
Average PF (>1450 Load Combinations)0.935
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1197W
12V Ripple (Full Load)22.19mV
5V Ripple (Full Load)22.17mV
3.3V Ripple (Full Load)14.53mV
5VSB Ripple (Full Load)11.75mV
12V Load Regulation0.05%
5V Load Regulation0.20%
3.3V Load Regulation0.27%
5VSB Load Regulation3.53%
Inrush Current65.690A
Hold-Up Time & Power Ok Signal20.00ms
AC Loss to PWR_OK Hold Up Time16.60ms
PWR_OK Inactive to DC Loss Delay3.40ms
PSU Timings: T1 (20% / 100%)84.0ms86.0ms
PSU Timings: T3 (20% / 100%)268.0ms252.0ms
OPP (28.00°C / 37.00°C)136.47%136.47%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20
AC Loss to PWR_OK Hold Up Time (ms)16.6
PWR_OK Inactive to DC Loss Delay (ms)3.4

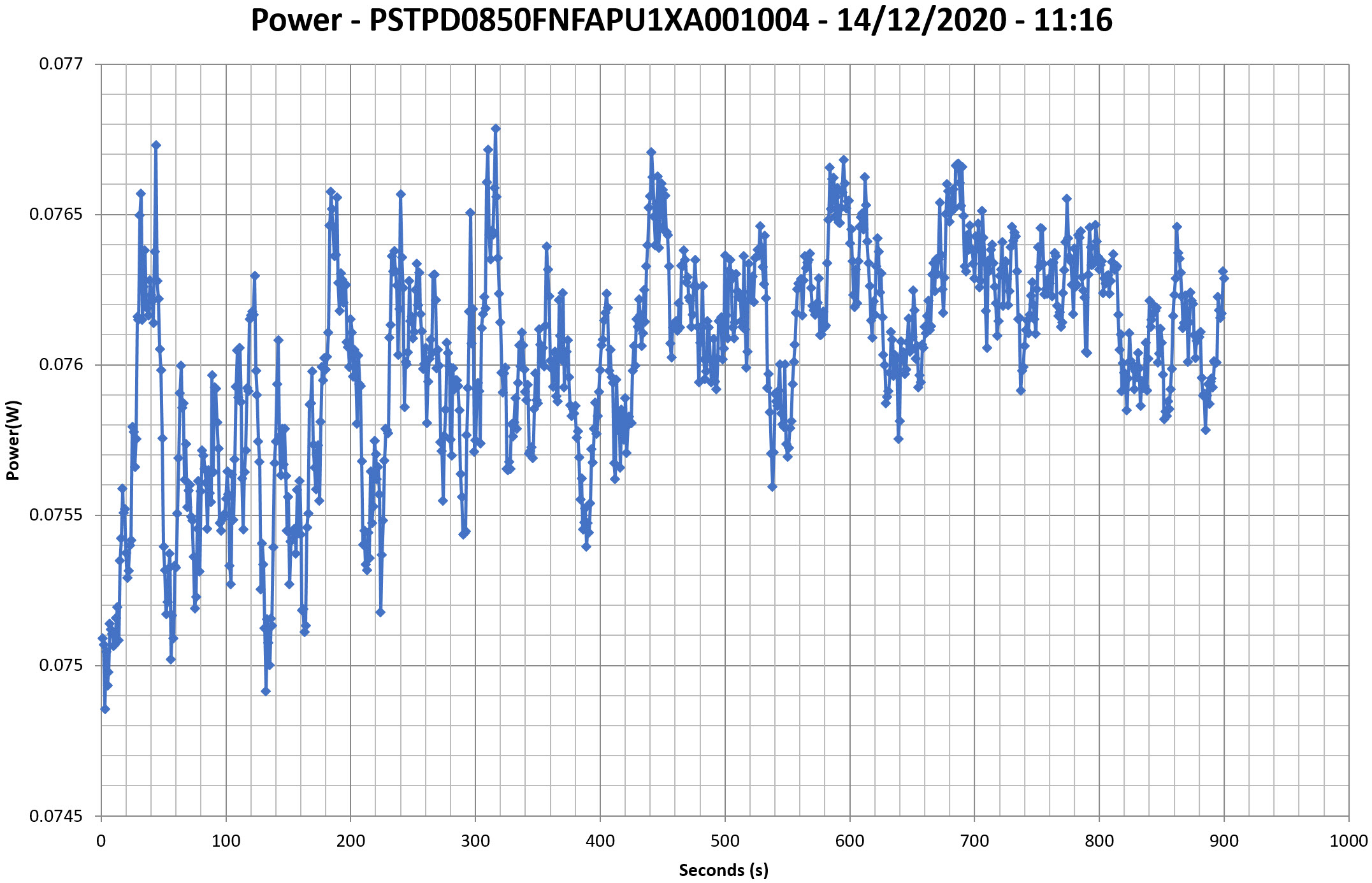

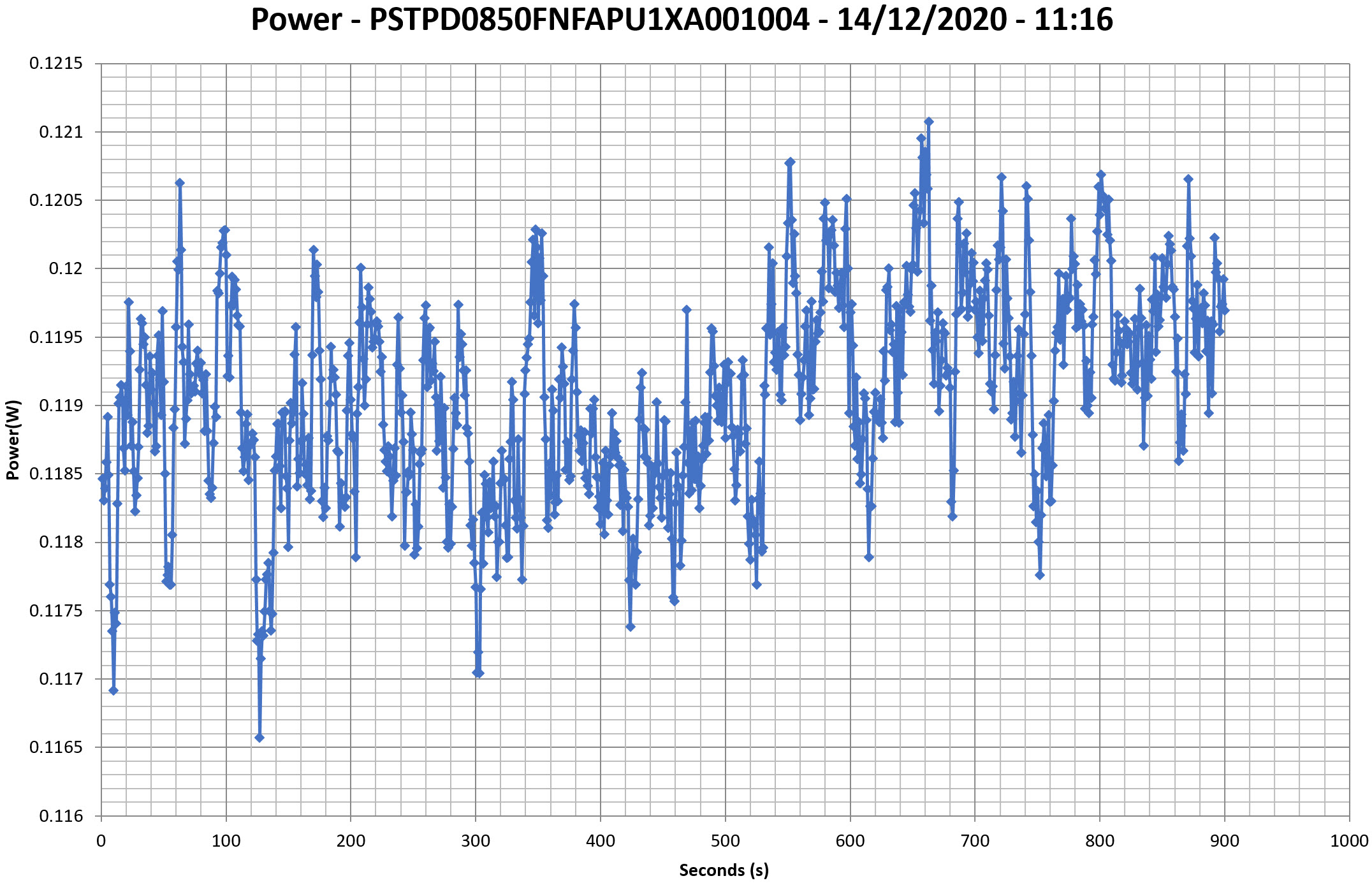

Vampire Power

Tables

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

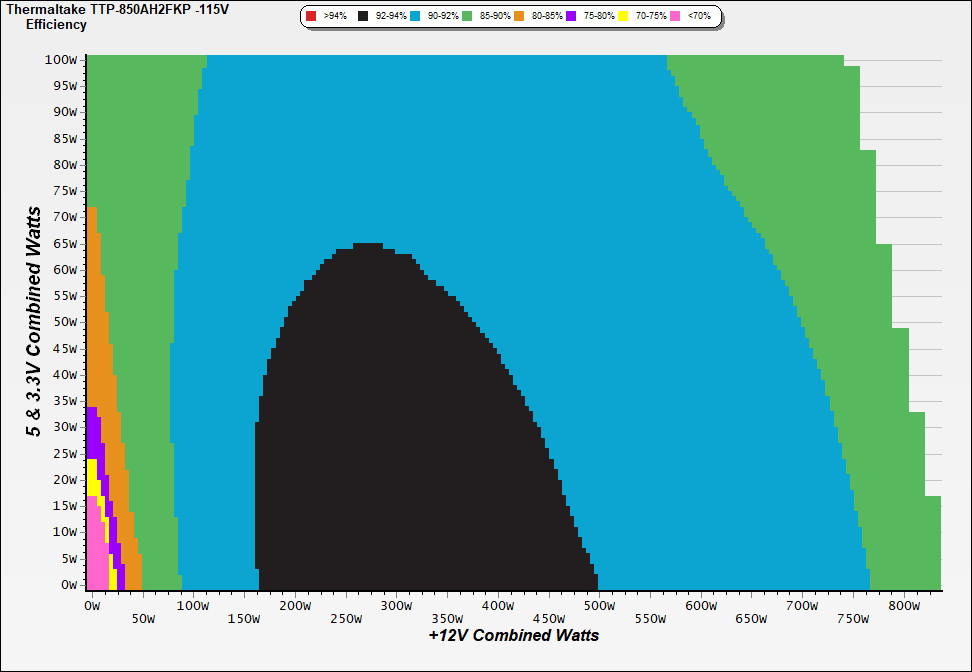

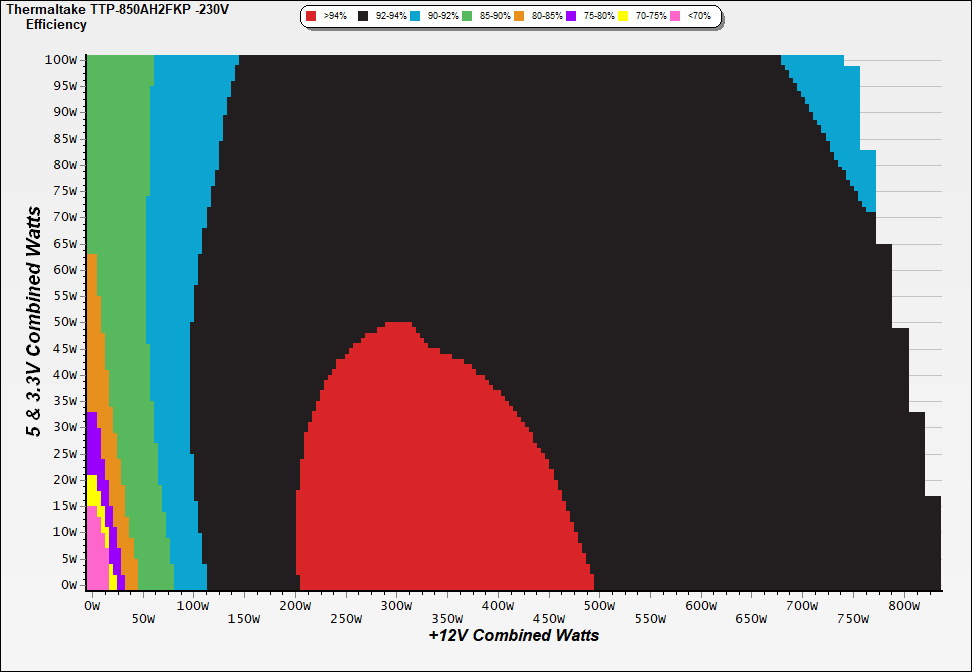

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

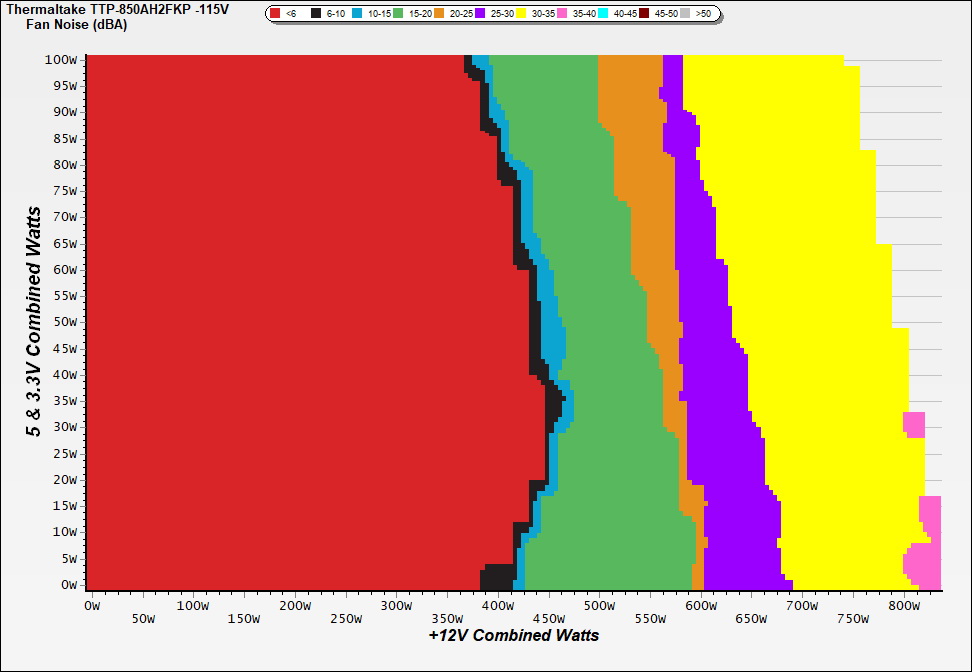

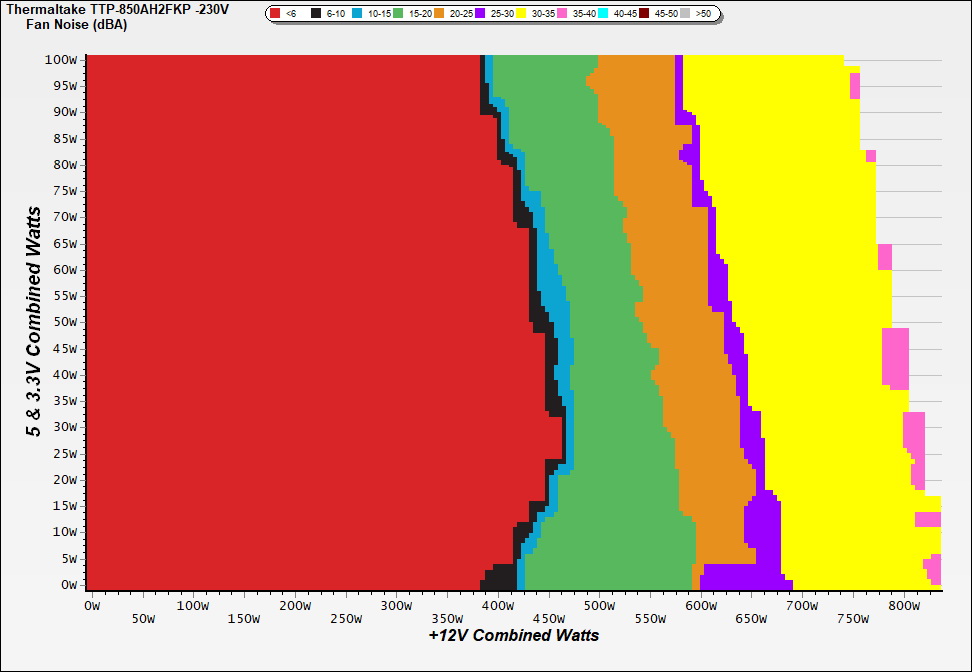

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

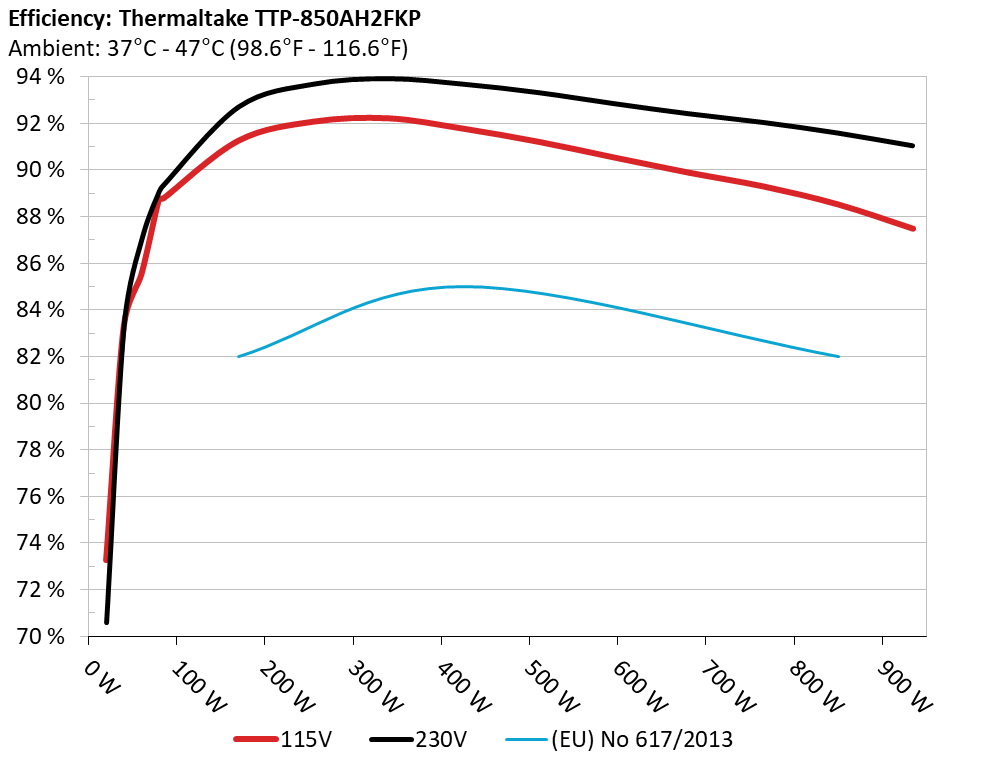

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

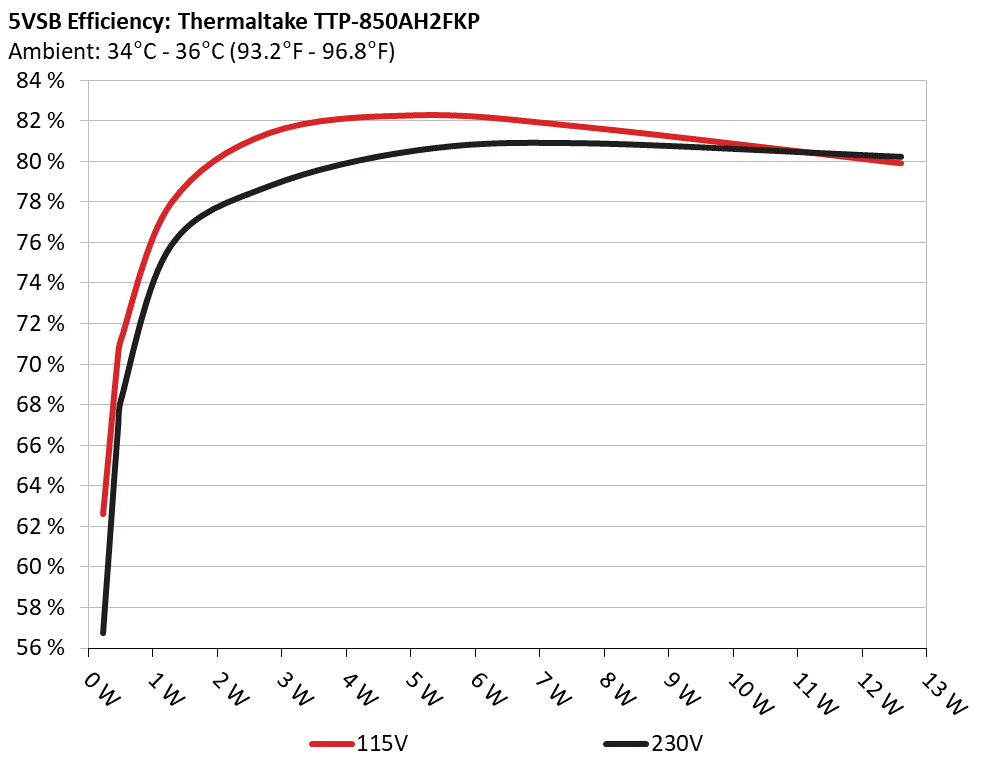

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 62.602% 0.036
5.131V 0.369 115.14V
2 0.090A 0.461 70.382% 0.063
5.129V 0.655 115.14V
3 0.550A 2.811 81.384% 0.251
5.113V 3.454 115.13V
4 1.000A 5.096 82.260% 0.337
5.097V 6.195 115.13V
5 1.500A 7.618 81.703% 0.387
5.079V 9.324 115.13V
6 2.499A 12.601 79.890% 0.435
5.043V 15.773 115.13V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 56.757% 0.012
5.131V 0.407 230.30V
2 0.090A 0.461 66.812% 0.020
5.129V 0.690 230.30V
3 0.550A 2.811 78.784% 0.098
5.113V 3.568 230.30V
4 1.000A 5.096 80.544% 0.160
5.097V 6.327 230.30V
5 1.500A 7.618 80.896% 0.214
5.079V 9.417 230.30V
6 2.499A 12.602 80.227% 0.286
5.043V 15.708 230.30V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.283A 1.967A 1.976A 0.983A 84.951 88.799% 0 <6.0 45.50°C 0.974
11.991V 5.086V 3.339V 5.087V 95.667 40.43°C 115.16V
2 11.602A 2.950A 2.968A 1.183A 170.013 91.277% 0 <6.0 46.61°C 0.975
11.990V 5.085V 3.338V 5.070V 186.260 40.85°C 115.16V
3 18.259A 3.442A 3.460A 1.385A 255.016 92.094% 0 <6.0 48.00°C 0.985
11.992V 5.085V 3.339V 5.053V 276.908 41.42°C 115.16V
4 24.920A 3.935A 3.957A 1.589A 340.019 92.236% 561 <6.0 41.84°C 0.989
11.991V 5.083V 3.336V 5.036V 368.640 49.27°C 115.15V
5 31.216A 4.920A 4.946A 1.794A 424.811 91.790% 575 <6.0 42.01°C 0.992
11.991V 5.082V 3.335V 5.018V 462.810 50.24°C 115.15V
6 37.486A 5.905A 5.940A 2.000A 509.346 91.234% 820 16.5 42.56°C 0.994
11.992V 5.081V 3.335V 5.000V 558.288 51.49°C 115.14V
7 43.820A 6.892A 6.931A 2.207A 594.648 90.562% 1166 28.9 43.49°C 0.995
11.993V 5.080V 3.334V 4.982V 656.619 52.82°C 115.14V
8 50.174A 7.879A 7.923A 2.417A 679.937 89.904% 1515 36.8 43.70°C 0.996
11.989V 5.078V 3.331V 4.965V 756.289 53.96°C 115.13V
9 56.918A 8.370A 8.408A 2.421A 764.822 89.311% 1778 40.9 44.09°C 0.996
11.988V 5.077V 3.330V 4.955V 856.357 54.88°C 115.13V
10 63.589A 8.860A 8.917A 2.530A 849.545 88.536% 1782 41.0 45.34°C 0.996
11.989V 5.077V 3.330V 4.941V 959.550 56.96°C 115.12V
11 70.651A 8.864A 8.918A 2.534A 934.285 87.495% 2113 45.4 47.28°C 0.995
11.990V 5.076V 3.329V 4.932V 1067.820 60.10°C 115.13V
CL1 0.116A 11.998A 11.997A 0.000A 102.640 85.366% 576 <6.0 42.04°C 0.971
12.007V 5.094V 3.345V 5.107V 120.235 50.32°C 115.16V
CL2 69.996A 1.001A 1.001A 1.000A 852.611 89.096% 1780 40.9 45.08°C 0.996
11.989V 5.076V 3.332V 5.013V 956.958 56.45°C 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.284A 1.966A 1.977A 0.983A 84.950 89.351% 0 <6.0 44.57°C 0.766
11.989V 5.086V 3.338V 5.088V 95.075 40.15°C 230.31V
2 11.604A 2.950A 2.965A 1.183A 170.006 92.698% 0 <6.0 45.64°C 0.898
11.988V 5.086V 3.337V 5.071V 183.397 40.68°C 230.31V
3 18.263A 3.441A 3.461A 1.385A 255.005 93.672% 0 <6.0 46.86°C 0.935
11.989V 5.085V 3.338V 5.054V 272.231 41.00°C 230.31V
4 24.923A 3.936A 3.957A 1.588A 340.008 93.906% 473 <6.0 41.62°C 0.955
11.989V 5.083V 3.336V 5.037V 362.071 48.27°C 230.31V
5 31.214A 4.920A 4.946A 1.793A 424.725 93.669% 573 <6.0 42.08°C 0.967
11.989V 5.082V 3.335V 5.020V 453.433 49.57°C 230.31V
6 37.483A 5.905A 5.938A 1.999A 509.263 93.311% 819 16.3 42.73°C 0.971
11.991V 5.082V 3.334V 5.002V 545.771 50.91°C 230.32V
7 43.816A 6.890A 6.931A 2.207A 594.592 92.841% 1156 28.6 43.57°C 0.977
11.993V 5.081V 3.333V 4.983V 640.441 52.63°C 230.31V
8 50.170A 7.879A 7.926A 2.416A 679.894 92.403% 1576 38.0 43.64°C 0.979
11.989V 5.079V 3.330V 4.965V 735.791 53.73°C 230.31V
9 56.920A 8.370A 8.408A 2.421A 764.783 92.029% 1778 40.9 44.61°C 0.982
11.987V 5.077V 3.329V 4.956V 831.021 55.54°C 230.31V
10 63.587A 8.863A 8.916A 2.529A 849.521 91.573% 1780 40.9 45.16°C 0.984
11.989V 5.076V 3.330V 4.942V 927.699 57.20°C 230.31V
11 70.657A 8.865A 8.918A 2.534A 934.282 91.029% 2112 45.4 46.60°C 0.986
11.989V 5.075V 3.329V 4.932V 1026.353 59.43°C 230.31V
CL1 0.116A 11.999A 11.998A 0.000A 102.626 86.638% 578 <6.0 41.85°C 0.815
12.007V 5.093V 3.344V 5.107V 118.454 49.30°C 230.32V
CL2 70.000A 1.000A 1.002A 1.000A 852.521 92.134% 1780 40.9 44.55°C 0.984
11.987V 5.078V 3.334V 5.013V 925.303 56.76°C 230.31V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.237A 0.491A 0.495A 0.195A 19.979 73.258% 0 <6.0 0.770
11.989V 5.086V 3.337V 5.125V 27.272 115.15V
2 2.475A 0.982A 0.989A 0.391A 39.968 83.307% 0 <6.0 0.906
11.989V 5.085V 3.338V 5.115V 47.977 115.15V
3 3.716A 1.474A 1.483A 0.588A 60.000 85.544% 0 <6.0 0.953
11.989V 5.086V 3.338V 5.105V 70.139 115.15V
4 4.950A 1.967A 1.976A 0.785A 79.951 88.772% 0 <6.0 0.972
11.990V 5.086V 3.338V 5.095V 90.063 115.15V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.237A 0.491A 0.493A 0.195A 19.977 70.580% 0 <6.0 0.432
11.993V 5.086V 3.338V 5.125V 28.304 230.31V
2 2.475A 0.981A 0.989A 0.391A 39.966 83.323% 0 <6.0 0.557
11.990V 5.086V 3.338V 5.115V 47.965 230.31V
3 3.716A 1.475A 1.481A 0.588A 59.998 87.013% 0 <6.0 0.668
11.989V 5.086V 3.338V 5.105V 68.953 230.31V
4 4.951A 1.964A 1.978A 0.785A 79.950 89.083% 0 <6.0 0.751
11.989V 5.086V 3.338V 5.096V 89.748 230.31V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load10.20mV8.00mV6.60mV5.00mVPass
20% Load11.10mV9.50mV6.90mV5.10mVPass
30% Load11.10mV10.60mV7.60mV5.80mVPass
40% Load30.30mV20.00mV13.10mV6.80mVPass
50% Load13.70mV13.80mV8.90mV7.30mVPass
60% Load14.00mV15.00mV9.60mV7.80mVPass
70% Load27.20mV26.30mV12.30mV9.20mVPass
80% Load14.20mV18.30mV12.60mV9.50mVPass
90% Load14.50mV20.20mV13.10mV10.30mVPass
100% Load22.10mV21.90mV14.30mV12.30mVPass
110% Load23.30mV22.80mV14.90mV13.10mVPass
Crossload114.90mV13.80mV13.50mV9.40mVPass
Crossload221.70mV19.30mV10.80mV11.60mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.20mV7.40mV6.40mV4.30mVPass
20% Load10.50mV8.90mV7.40mV5.00mVPass
30% Load11.50mV10.30mV7.60mV5.70mVPass
40% Load12.80mV12.20mV8.10mV6.50mVPass
50% Load13.90mV13.60mV9.40mV7.40mVPass
60% Load12.80mV14.00mV9.30mV7.50mVPass
70% Load13.40mV16.60mV9.90mV8.50mVPass
80% Load12.70mV17.40mV11.40mV9.30mVPass
90% Load14.00mV20.10mV13.30mV10.30mVPass
100% Load22.20mV22.20mV14.50mV11.80mVPass
110% Load23.30mV22.80mV15.00mV12.60mVPass
Crossload114.40mV13.70mV13.60mV9.70mVPass
Crossload221.80mV19.60mV10.80mV10.90mVPass

The results above are not used in the certification process

Thermaltake Toughpower PF1 850W (#2)

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
