CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Casecom 650W
Serial Number
Lab IDCC65001805
Certification ID251805
  • Test Result Report ID: 21PS1805A
  • Certificate Issue Date: Mar 9, 2021
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandCasecom
Manufacturer (OEM)Casecom
Series
Model Number
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Fluid Dynamic Bearing Fan
(SU1225FD12M-CHP)
Semi-Passive Operation✗
Cable DesignSemi Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020542.50.3
Watts12064812.53.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Native Cables
Description Cable Count Connector Count (Total) Gauge In Cable Caps
ATX connector 20+4 pin (600mm) 1 1 18-22AWG No
4+4 pin EPS12V (680mm) 1 1 18AWG No
Modular Cables
4+4 pin EPS12V (650mm) 1 1 18AWG No
6+2 pin PCIe (600mm+150mm) 1 2 18AWG No
SATA (450mm+150mm+150mm+150mm) 1 4 18AWG No
SATA (450mm+150mm) / 4-pin Molex (+150mm+150mm) 2 4 / 4 18AWG No

Parts Description

General Data -
Manufacturer (OEM) Casecom
PCB Type Single Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF72-3D15 (3 Ohm)
Bridge Rectifier(s) 1x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETs 2x IPS SJTA20N65FC (650V, 20A, Rds(on): 0.16Ohm)
APFC Boost Diode 1x WeEn BYC8X-600P (600V, 6A @ 100°C)
Bulk Cap(s) 2x Teapo (400V, 220uF each or 440uf combined, 2,000h @ 105°C, LG)
Main Switchers 2x IPS ITA15N50A (500V, 10A @ 100°C, Rds(on): 0.45Ohm)
PFC / PWM Combo Controller Champion CM6800TX
Topology Primary side: APFC, Double Forward
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 4x IPS FTP03N06NA (60V, 145A @ 100°C, Rds(on): 3.6mOhm)
5V & 3.3V DC-DC Converters: 4x UBIQ QM3004D (30V, 40A @ 100°C, Rds(on): 8.5mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 10x Teapo (3-6,000h @ 105°C, SY), 4x Teapo (1-3,000h @ 105°C, SC)
Polymer: 4x no info
Synchronous Rectifier Driver IC Sync Power SP6019
Supervisor IC Grenergy GR8329N (OCP, OVP, UVP, SCP, PG)
Fan Model Scythe SU1225FD12M-CHP (120mm, 12V, 0.13A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Standby PWM Controller Developer MIcroelectronics DP2358

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Efficiency RatingBRONZE
Noise RatingStandard++
Average Efficiency (>1450 load combinations)84.735%
Average Noise Output (>1450 Load Combinations)33.96dBA
Average PF (>1450 Load Combinations)0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load60.044%
Standby Power Consumption0.0516W
12V Ripple (Full Load)26.09mV
5V Ripple (Full Load)35.23mV
3.3V Ripple (Full Load)19.81mV
5VSB Ripple (Full Load)22.35mV
12V Load Regulation1.66%
5V Load Regulation0.39%
3.3V Load Regulation0.94%
5VSB Load Regulation0.23%
Inrush Current75.670A
Efficiency RatingSILVER
Noise RatingStandard++
Average Efficiency (>1450 load combinations)87.694%
Average Noise Output (>1450 Load Combinations)33.46dBA
Average PF (>1450 Load Combinations)0.941
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1323W
12V Ripple (Full Load)28.73mV
5V Ripple (Full Load)36.50mV
3.3V Ripple (Full Load)22.62mV
5VSB Ripple (Full Load)22.12mV
12V Load Regulation1.64%
5V Load Regulation0.39%
3.3V Load Regulation1.03%
5VSB Load Regulation0.21%
Inrush Current89.790A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal18.40ms
AC Loss to PWR_OK Hold Up Time15.60ms
PWR_OK Inactive to DC Loss Delay2.80ms
PSU Timings: T1 (20% / 100%)68.0ms66.0ms
PSU Timings: T3 (20% / 100%)296.0ms290.0ms
OPP (27.97°C / 46.27°C)120.27%118.42%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)18.4
AC Loss to PWR_OK Hold Up Time (ms)15.6
PWR_OK Inactive to DC Loss Delay (ms)2.8

Vampire Power

Tables

Graphs

INFO

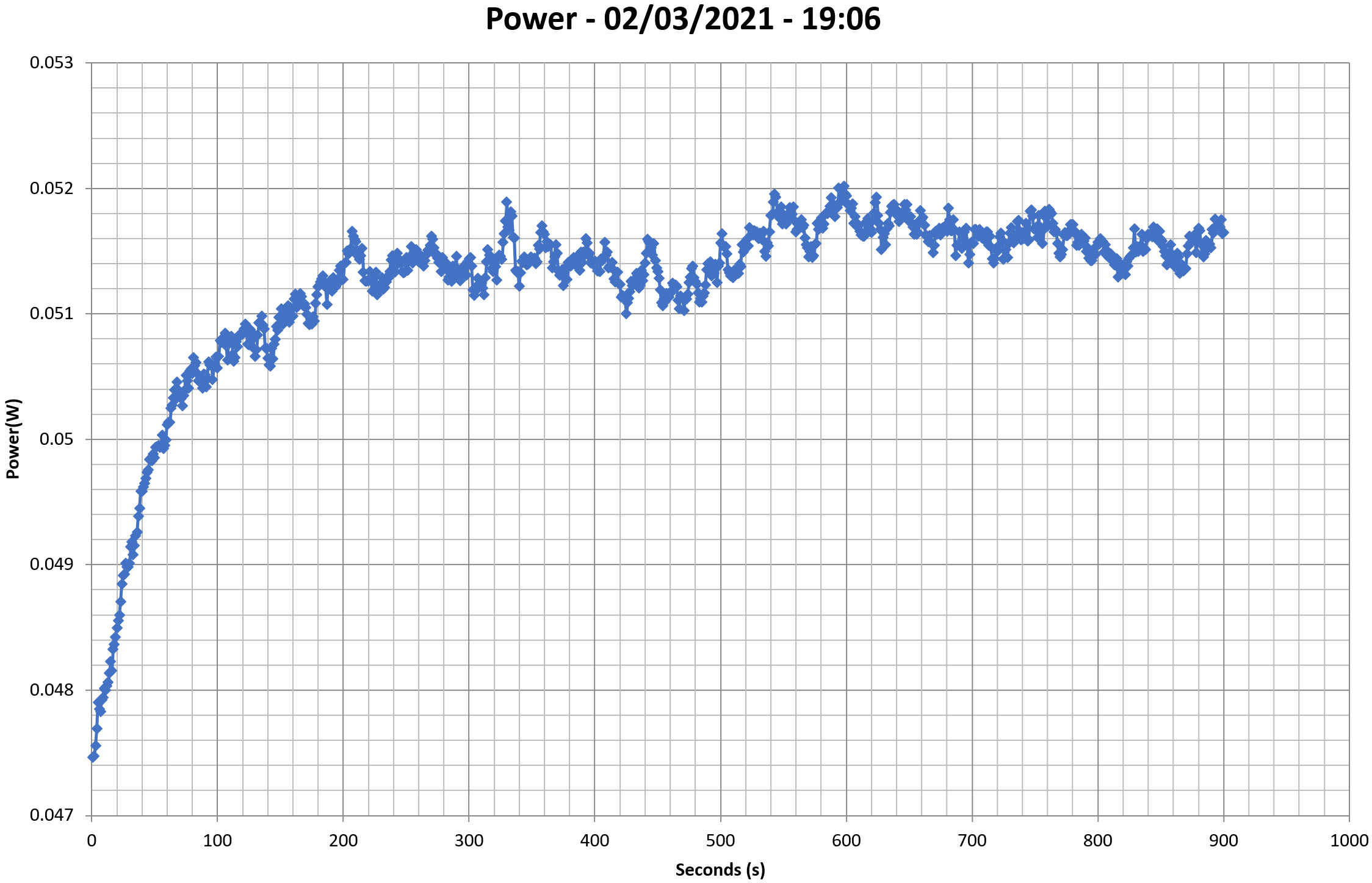

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

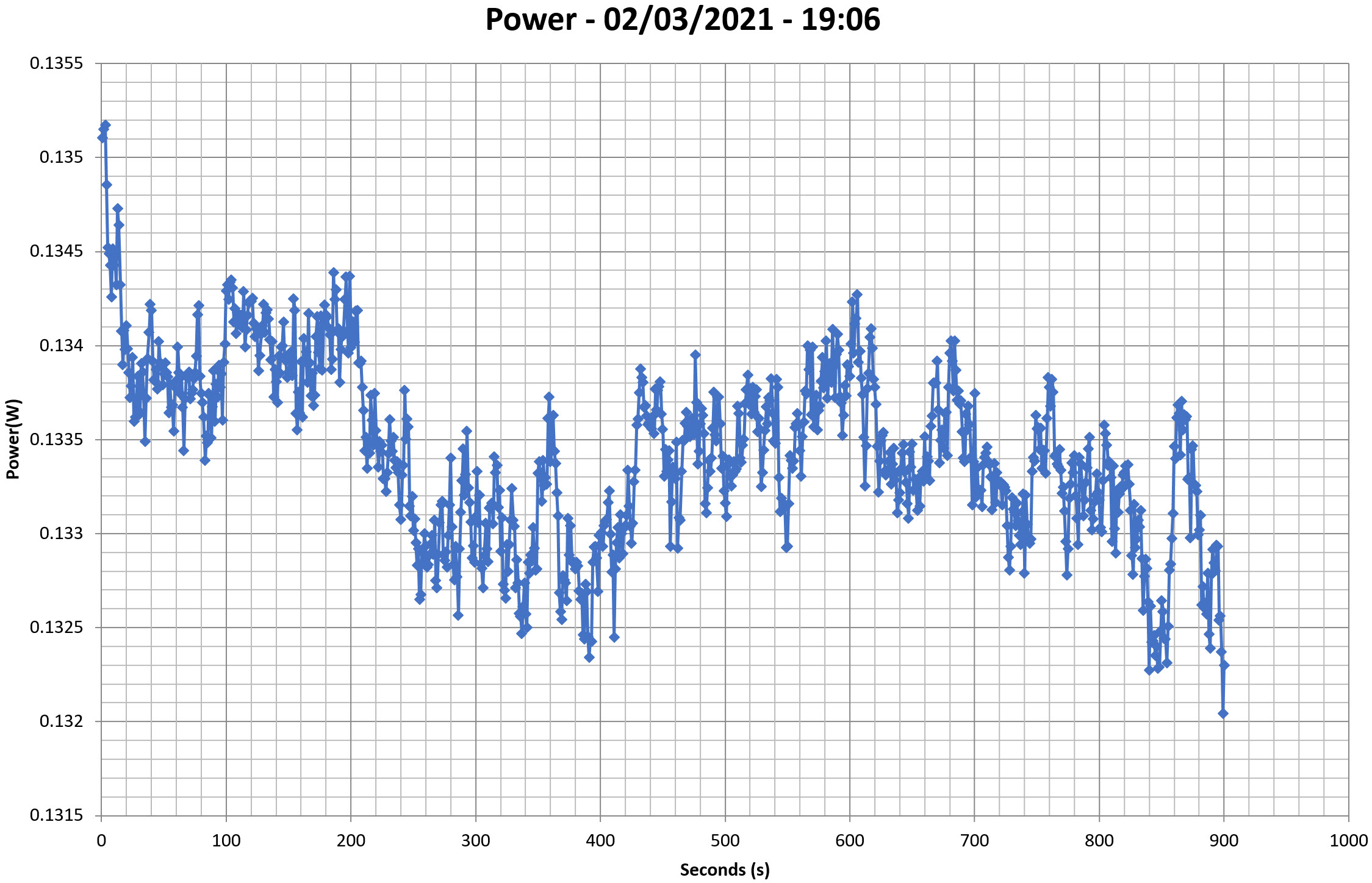

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

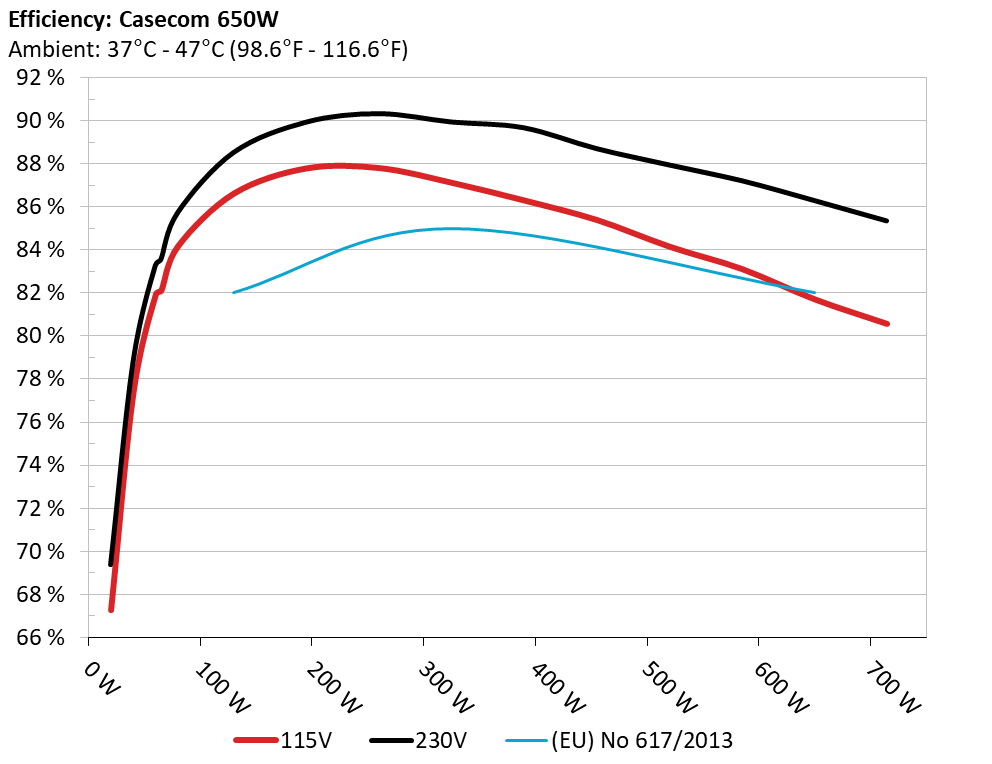

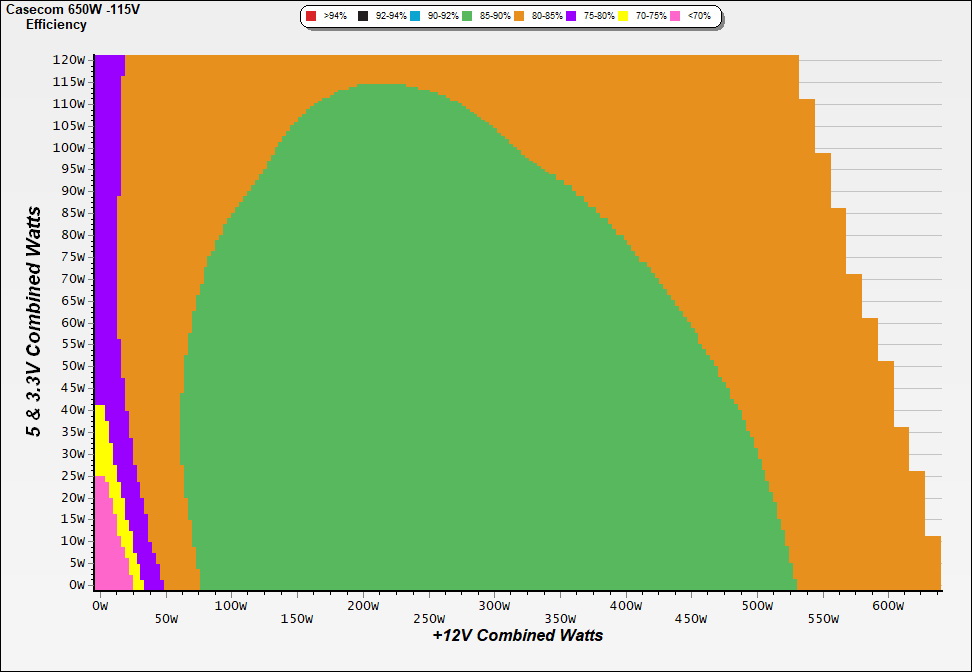

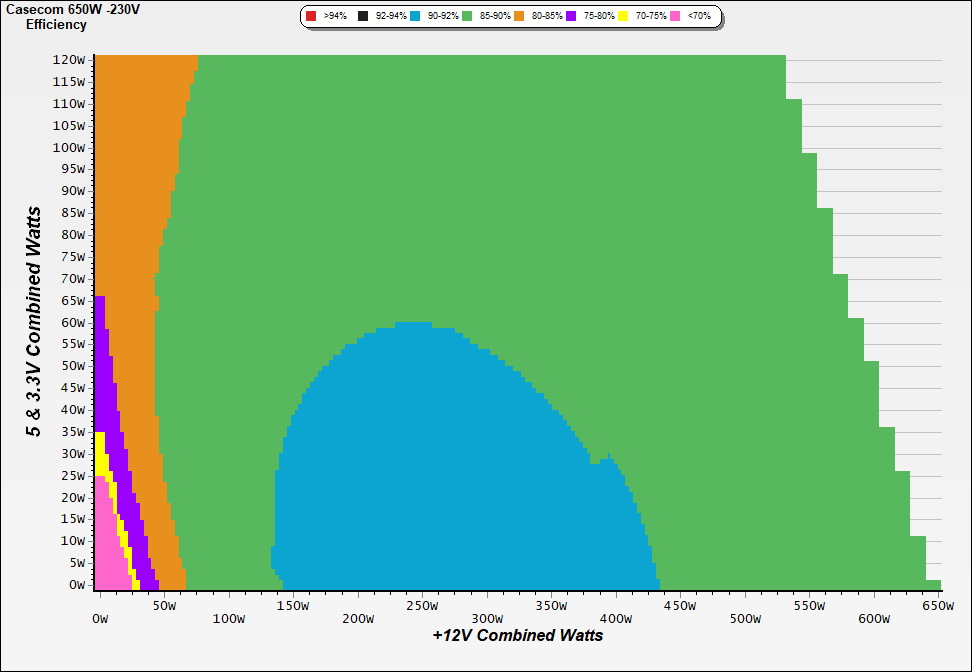

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

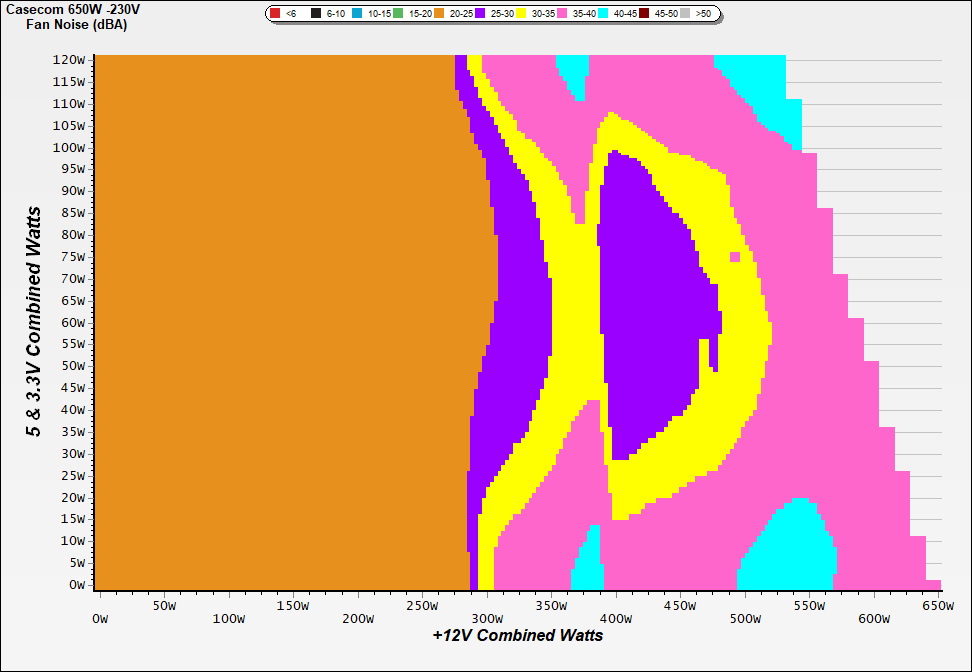

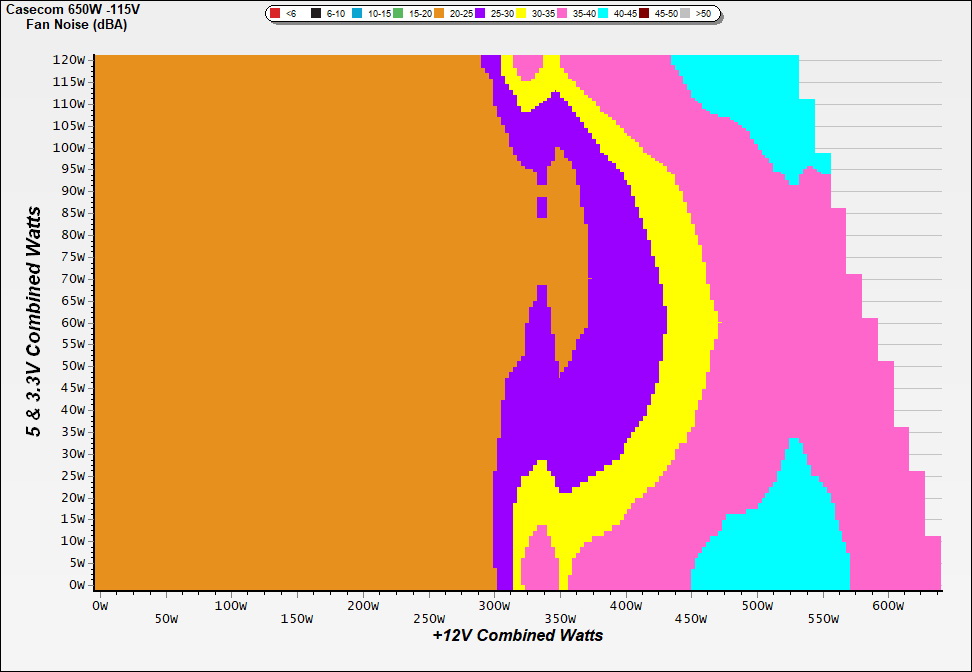

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

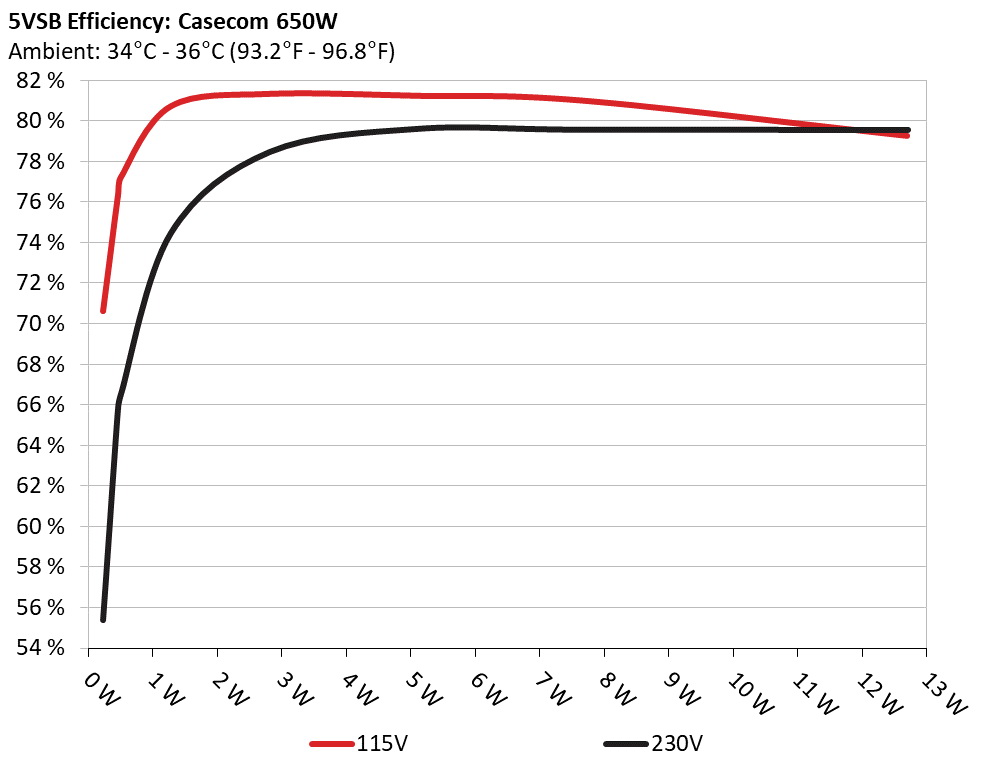

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 70.642% 0.038
5.125V 0.327 115.12V
2 0.090A 0.461 76.325% 0.068
5.124V 0.604 115.12V
3 0.550A 2.814 81.329% 0.278
5.116V 3.460 115.12V
4 1.000A 5.108 81.234% 0.361
5.108V 6.288 115.12V
5 1.500A 7.651 81.006% 0.406
5.100V 9.445 115.11V
6 2.500A 12.700 79.266% 0.451
5.080V 16.022 115.11V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 55.396% 0.014
5.126V 0.417 230.25V
2 0.090A 0.461 65.763% 0.024
5.124V 0.701 230.24V
3 0.550A 2.814 78.472% 0.113
5.115V 3.586 230.24V
4 1.000A 5.108 79.613% 0.182
5.108V 6.416 230.24V
5 1.500A 7.649 79.569% 0.240
5.099V 9.613 230.24V
6 2.500A 12.709 79.561% 0.311
5.083V 15.974 230.24V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.539A 1.963A 1.940A 0.977A 64.966 82.119% 839 24.4 40.12°C 0.959
12.252V 5.096V 3.404V 5.117V 79.112 43.36°C 115.12V
2 8.104A 2.945A 2.911A 1.173A 130.032 86.636% 844 24.6 40.45°C 0.959
12.232V 5.094V 3.401V 5.117V 150.090 44.34°C 115.12V
3 13.020A 3.437A 3.400A 1.368A 195.031 87.804% 846 24.6 41.41°C 0.979
12.210V 5.093V 3.398V 5.117V 222.120 46.29°C 115.11V
4 17.954A 3.928A 3.889A 1.564A 260.045 87.819% 951 28.2 41.62°C 0.988
12.189V 5.091V 3.395V 5.117V 296.116 47.06°C 115.11V
5 22.564A 4.914A 4.867A 1.759A 325.086 87.135% 1429 39.7 42.20°C 0.993
12.169V 5.088V 3.391V 5.116V 373.083 48.71°C 115.11V
6 27.140A 5.902A 5.847A 1.955A 389.508 86.316% 1642 43.5 42.91°C 0.996
12.148V 5.085V 3.386V 5.116V 451.260 49.99°C 115.11V
7 31.809A 6.891A 6.832A 2.151A 454.838 85.406% 1718 44.7 43.50°C 0.997
12.126V 5.081V 3.382V 5.115V 532.560 51.47°C 115.10V
8 36.503A 7.875A 7.813A 2.346A 520.219 84.159% 1831 46.3 43.61°C 0.998
12.103V 5.082V 3.379V 5.116V 618.141 52.47°C 115.09V
9 41.607A 8.370A 8.297A 2.345A 585.064 83.117% 1842 46.4 44.73°C 0.998
12.079V 5.076V 3.375V 5.119V 703.901 54.07°C 115.09V
10 46.679A 8.865A 8.805A 2.442A 649.794 81.717% 1842 46.4 45.62°C 0.998
12.052V 5.078V 3.373V 5.120V 795.174 55.75°C 115.09V
11 52.173A 8.871A 8.814A 2.441A 714.531 80.576% 1855 46.6 46.67°C 0.999
12.024V 5.074V 3.368V 5.123V 886.777 57.49°C 115.08V
CL1 0.118A 14.003A 13.999A 0.000A 120.309 77.482% 1657 43.6 42.08°C 0.965
12.285V 5.099V 3.390V 5.146V 155.274 48.70°C 115.12V
CL2 54.004A 1.000A 0.999A 0.000A 657.263 82.896% 1628 43.1 45.16°C 0.998
12.014V 5.079V 3.383V 5.161V 792.877 55.57°C 115.08V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.540A 1.962A 1.938A 0.977A 64.967 83.545% 842 24.4 39.75°C 0.851
12.251V 5.098V 3.404V 5.117V 77.763 43.77°C 230.26V
2 8.105A 2.943A 2.911A 1.173A 130.027 88.512% 848 24.7 40.19°C 0.870
12.231V 5.095V 3.400V 5.117V 146.904 45.35°C 230.26V
3 13.021A 3.434A 3.401A 1.368A 195.024 89.921% 858 25.1 40.30°C 0.907
12.209V 5.094V 3.398V 5.118V 216.883 46.24°C 230.25V
4 17.956A 3.927A 3.890A 1.563A 260.026 90.313% 890 26.1 41.11°C 0.936
12.187V 5.092V 3.394V 5.117V 287.917 47.74°C 230.25V
5 22.568A 4.913A 4.869A 1.759A 325.067 89.927% 1179 34.6 41.23°C 0.955
12.166V 5.089V 3.389V 5.117V 361.480 48.48°C 230.24V
6 27.143A 5.902A 5.854A 1.955A 389.430 89.662% 1334 38.0 42.08°C 0.967
12.144V 5.083V 3.383V 5.116V 434.333 49.86°C 230.24V
7 31.812A 6.885A 6.835A 2.150A 454.771 88.696% 1766 45.3 42.76°C 0.976
12.123V 5.084V 3.381V 5.117V 512.729 51.47°C 230.23V
8 36.502A 7.875A 7.821A 2.345A 520.097 87.931% 1836 46.3 43.54°C 0.980
12.100V 5.082V 3.376V 5.117V 591.480 52.89°C 230.24V
9 41.614A 8.369A 8.300A 2.344A 585.001 87.202% 1844 46.6 44.64°C 0.984
12.075V 5.080V 3.373V 5.120V 670.859 54.50°C 230.23V
10 46.683A 8.863A 8.812A 2.441A 649.735 86.286% 1844 46.6 46.02°C 0.987
12.050V 5.078V 3.370V 5.122V 753.005 56.10°C 230.23V
11 52.200A 8.865A 8.818A 2.439A 714.556 85.339% 1845 46.6 46.62°C 0.988
12.018V 5.078V 3.368V 5.126V 837.316 57.44°C 230.23V
CL1 0.116A 14.004A 13.997A 0.000A 120.365 79.186% 1730 44.9 40.97°C 0.879
12.284V 5.105V 3.390V 5.147V 152.002 48.26°C 230.24V
CL2 54.003A 0.999A 1.001A 1.000A 661.856 87.000% 1843 46.4 45.85°C 0.987
12.004V 5.079V 3.382V 5.145V 760.751 55.86°C 230.24V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.211A 0.490A 0.483A 0.195A 19.993 67.267% 832 24.2 0.924
12.262V 5.097V 3.407V 5.127V 29.722 115.12V
2 2.422A 0.981A 0.970A 0.390A 39.984 77.361% 834 24.2 0.968
12.256V 5.096V 3.405V 5.125V 51.685 115.12V
3 3.637A 1.472A 1.454A 0.586A 60.016 81.936% 837 24.3 0.967
12.252V 5.096V 3.405V 5.123V 73.247 115.12V
4 4.848A 1.963A 1.939A 0.781A 79.968 84.186% 837 24.3 0.948
12.246V 5.095V 3.403V 5.120V 94.990 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.211A 0.490A 0.483A 0.195A 19.996 69.392% 841 24.4 0.607
12.262V 5.101V 3.409V 5.128V 28.816 230.26V
2 2.422A 0.982A 0.968A 0.390A 39.986 78.768% 841 24.4 0.764
12.256V 5.098V 3.406V 5.125V 50.764 230.25V
3 3.638A 1.472A 1.454A 0.586A 60.018 83.277% 840 24.4 0.838
12.250V 5.096V 3.404V 5.122V 72.070 230.26V
4 4.848A 1.963A 1.940A 0.781A 79.970 85.717% 843 24.6 0.878
12.245V 5.097V 3.403V 5.120V 93.295 230.26V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load8.40mV14.00mV11.90mV6.40mVPass
20% Load9.70mV14.60mV12.10mV6.90mVPass
30% Load10.60mV15.60mV12.70mV7.80mVPass
40% Load10.30mV17.00mV12.40mV8.50mVPass
50% Load10.90mV18.50mV14.00mV9.30mVPass
60% Load14.00mV23.10mV13.60mV10.60mVPass
70% Load14.20mV28.50mV15.40mV11.40mVPass
80% Load17.00mV33.90mV18.00mV14.50mVPass
90% Load20.30mV34.10mV18.10mV14.70mVPass
100% Load26.10mV35.20mV19.80mV22.40mVPass
110% Load30.90mV37.40mV21.40mV23.40mVPass
Crossload111.40mV19.50mV18.10mV15.70mVPass
Crossload228.10mV33.70mV17.20mV13.30mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load7.60mV14.00mV13.00mV6.50mVPass
20% Load8.40mV14.70mV13.40mV7.30mVPass
30% Load9.70mV15.90mV13.00mV8.30mVPass
40% Load9.60mV16.10mV13.70mV8.40mVPass
50% Load10.70mV17.80mV14.20mV9.70mVPass
60% Load12.50mV22.00mV15.60mV10.60mVPass
70% Load14.40mV27.30mV16.30mV11.30mVPass
80% Load17.00mV31.20mV17.00mV13.40mVPass
90% Load19.80mV34.10mV19.00mV13.40mVPass
100% Load28.70mV36.50mV22.60mV22.10mVPass
110% Load31.50mV38.60mV23.50mV22.10mVPass
Crossload110.60mV19.00mV22.10mV16.40mVPass
Crossload229.00mV33.70mV19.90mV16.50mVPass

The results above are not used in the certification process

Casecom 650W

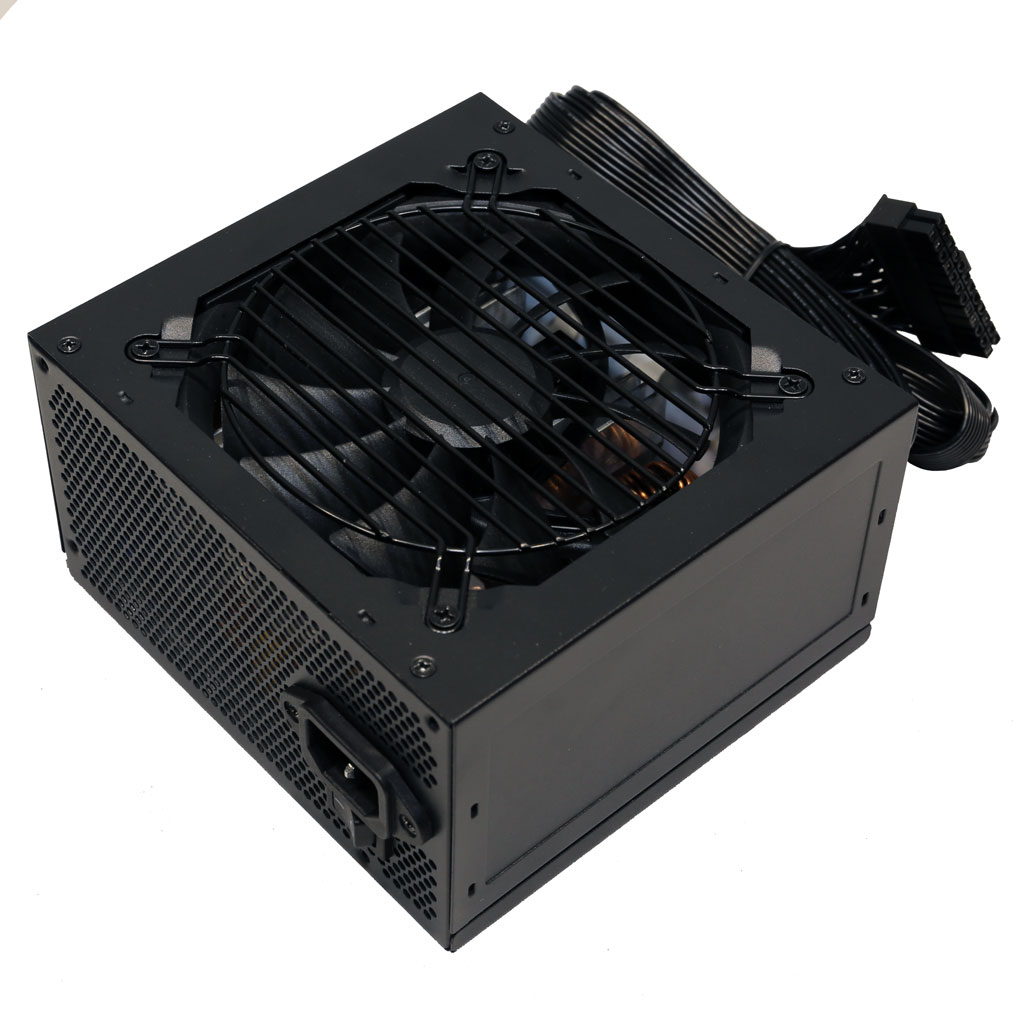

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
