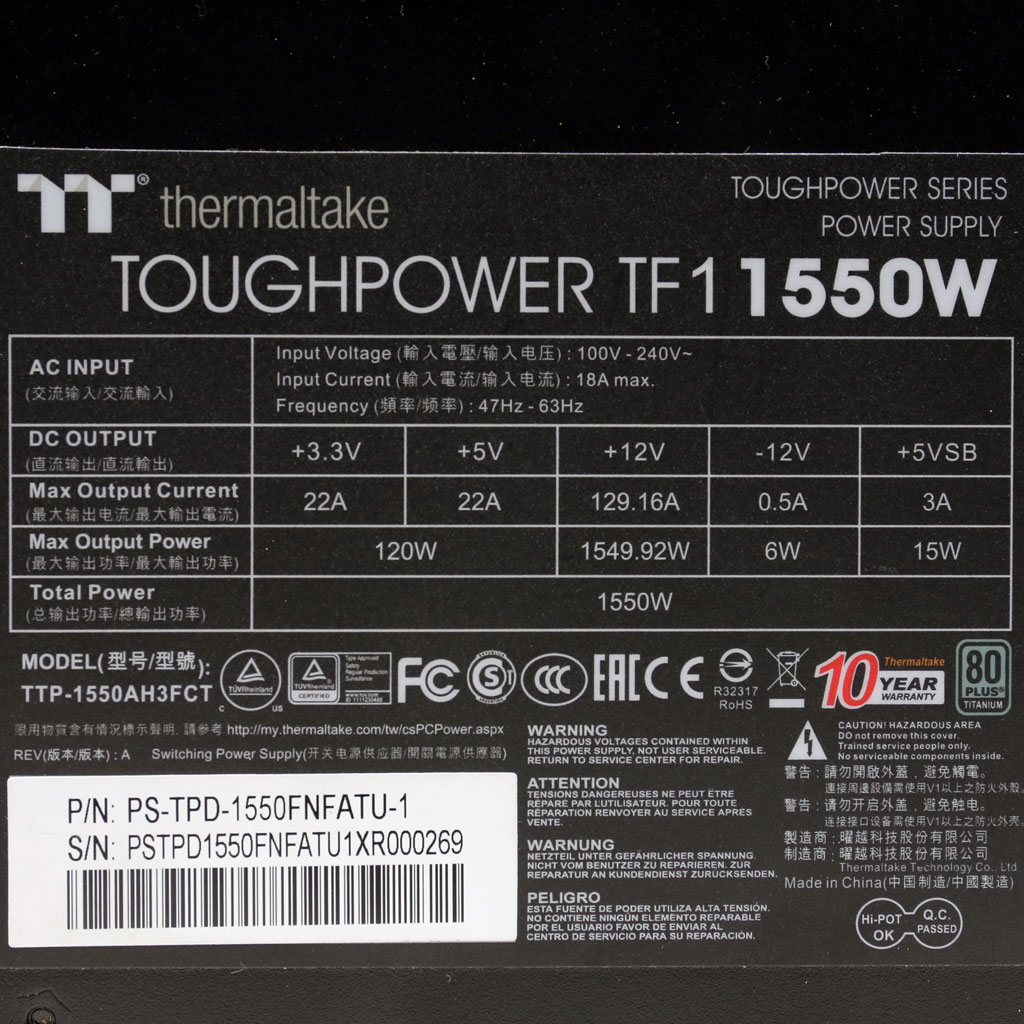

| General Data | - |
| Manufacturer (OEM) | CWT |
| PCB Type | Double Sided |
| Primary Side | - |
| Transient Filter | 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Sync Power SP687 (Discharge IC) |
| Inrush Protection | NTC Thermistor SCK-0510 (5 Ohm) & Relay |
| Bridge Rectifier(s) | 2x Vishay LVB2560 (600V, 25A @ 105°C) |
| APFC MOSFETs | 1x On Semiconductor FCH040N65S3 (650V, 41A @ 100°C, Rds(on): 0.04Ohm)
2x On Semiconductor FCPF067N65S3 (650V, 28A @ 100°C, Rds(on): 0.067Ohm)
1x Sync Power SPN5003 FET (for reduced no-load consumption) |
| APFC Boost Diode | 2x Infineon IDH10G65C6 (650V, 10A @ 140°C) |
| Bulk Cap(s) | 2x Nippon Chemi-Con (400V, 820uF each or 1640 combined, 2,000h @ 105°C, KMW) &
1x Nippon Chemi-Con (400V, 470uF, 2,000h @ 105°C, KMW) |
| Main Switchers | 4x Alpha & Omega AOTF29S50 (500V, 18A @ 100°C, Rds(on): 0.15Ohm) |
| Main FET Drivers | 2x Silicon Labs Si8233BD |
| APFC FET Drivers | 2x On Semiconductor NCP81071 |
| Digital Controllers | 2x Texas Instruments UCD3138A |
| Topology | Primary side: Semi-Digital, Interleaved PFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters |
| Secondary Side | - |
| +12V MOSFETs | 12x On Semiconductor NTMFS5C612N (60V, 160A @ 100°C, Rds(on): 1.6mOhm) |
| 5V & 3.3V | DC-DC Converters: 6x UBIQ QM3054M6 (30V, 61A @ 100°C, Rds(on): 4.8mOhm)
PWM Controller(s): 1x |
| Filtering Capacitors | Electrolytic: 4x Nichicon (2-4,000h @ 105°C, HD), 2x Nichicon (4-10,000h @ 105°C, HE), 2x Rubycon(6-10,000h @ 105°C, ZLH), 3x Nichicon (1,000h @ 105°C, VZ), 1x Nippon Chemi-Con (6-10,000h @ 105°C, KZN), 3x Nippon Chemi-Con (4-10,000h @ 105°C, KY)
Polymer: 52x APAQ |
| Supervisor IC | Weltrend WT7513 (OCP, OVP, UVP, SCP, PG) & IN1S315I |
| Fan Model | Thermaltake TT-13525 (Hong Hua HA13525H12SF-Z) (135mm, 12V, 0.50A, Fluid Dynamic Bearing Fan) |

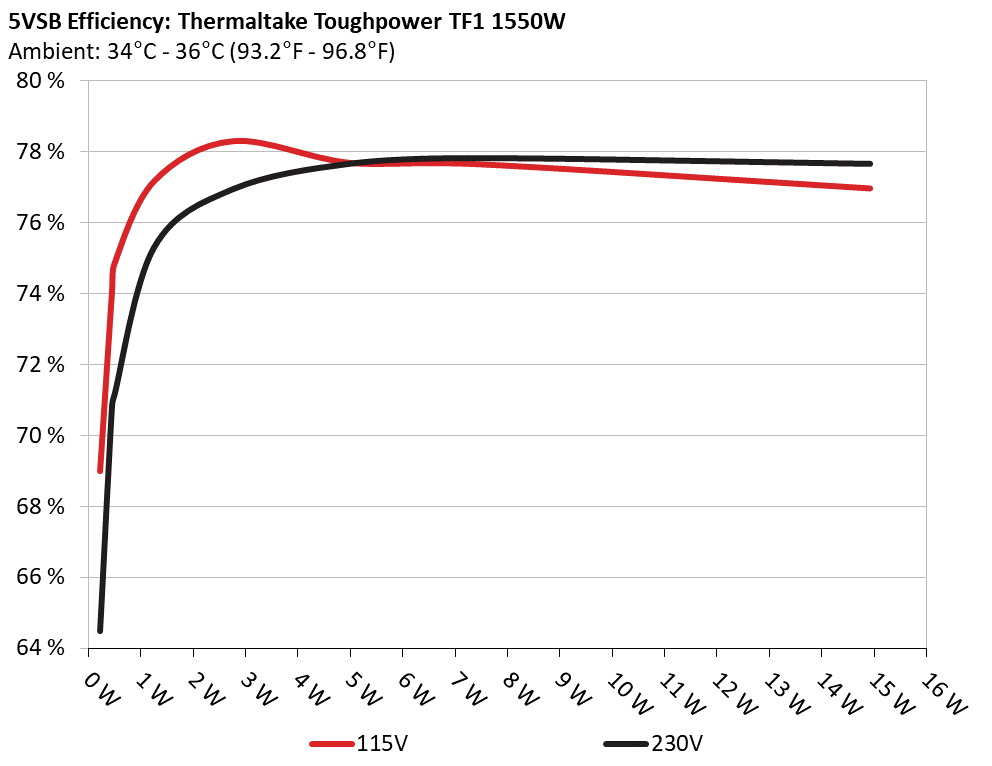

| 5VSB Circuit | - |
| Rectifier | 1x UTC 4N65L FET (650V, 4A, Rds(on): 2.5Ohm) & 1x PS1045L SBR (45V, 10A) |
| Standby PWM Controller | On-Bright OB5282 |
