Cables and Connectors(Non-accredited measurements)
Modular Cables
Description
Cable Count
Connector Count (Total)
Gauge
In Cable Capacitors
ATX connector 20+4 pin (610mm)
1
1
18-22AWG
No
4+4 pin EPS12V (700mm)
2
2
18AWG
No
6+2 pin PCIe (700mm+125mm)
2
4
16-18AWG
No
6+2 pin PCIe (700mm)
2
2
18AWG
No
SATA (560mm+110mm+110mm)
3
9
18AWG
No
4-pin Molex (560mm+100mm+100mm+100mm)
1
4
18AWG
No
FDD Adapter (105mm)
1
1
22AWG
No
AC Power Cord (1400mm) - C13 coupler
1
1
16AWG
-
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
Performance Summary
效率評比
GOLD
噪音評比
A-
Average Efficiency (>1450 load combinations)
88.438%
Average Noise Output (>1450 Load Combinations)
26.99dBA
Average PF (>1450 Load Combinations)
0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load
72.209%
Standby Power Consumption
0.0588W
12V Ripple (Full Load)
15.15mV
5V Ripple (Full Load)
14.66mV
3.3V Ripple (Full Load)
15.87mV
5VSB Ripple (Full Load)
15.33mV
12V Load Regulation
0.55%
5V Load Regulation
0.84%
3.3V Load Regulation
1.12%
5VSB Load Regulation
3.25%
Inrush Current
36.720A
效率評比
GOLD
噪音評比
A-
Average Efficiency (>1450 load combinations)
90.679%
Average Noise Output (>1450 Load Combinations)
26.72dBA
Average PF (>1450 Load Combinations)
0.939
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.1159W
12V Ripple (Full Load)
15.72mV
5V Ripple (Full Load)
15.00mV
3.3V Ripple (Full Load)
16.60mV
5VSB Ripple (Full Load)
14.74mV
12V Load Regulation
0.54%
5V Load Regulation
0.80%
3.3V Load Regulation
1.09%
5VSB Load Regulation
3.21%
Inrush Current
91.490A
12V Transient Response (150%)
0.00V
5V Transient Response (150%)
V
3.3V Transient Response (150%)
V
5VSB Transient Response (150%)
V
Hold-Up Time & Power Ok Signal
25.50ms
AC Loss to PWR_OK Hold Up Time
21.20ms
PWR_OK Inactive to DC Loss Delay
4.30ms
PSU Timings: T1 (20% / 100%)
88.0ms
88.0ms
PSU Timings: T3 (20% / 100%)
134.0ms
134.0ms
OPP (31.00°C / 44.34°C)
124.46%
123.53%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
25.5
AC Loss to PWR_OK Hold Up Time (ms)
21.2
PWR_OK Inactive to DC Loss Delay (ms)
4.3

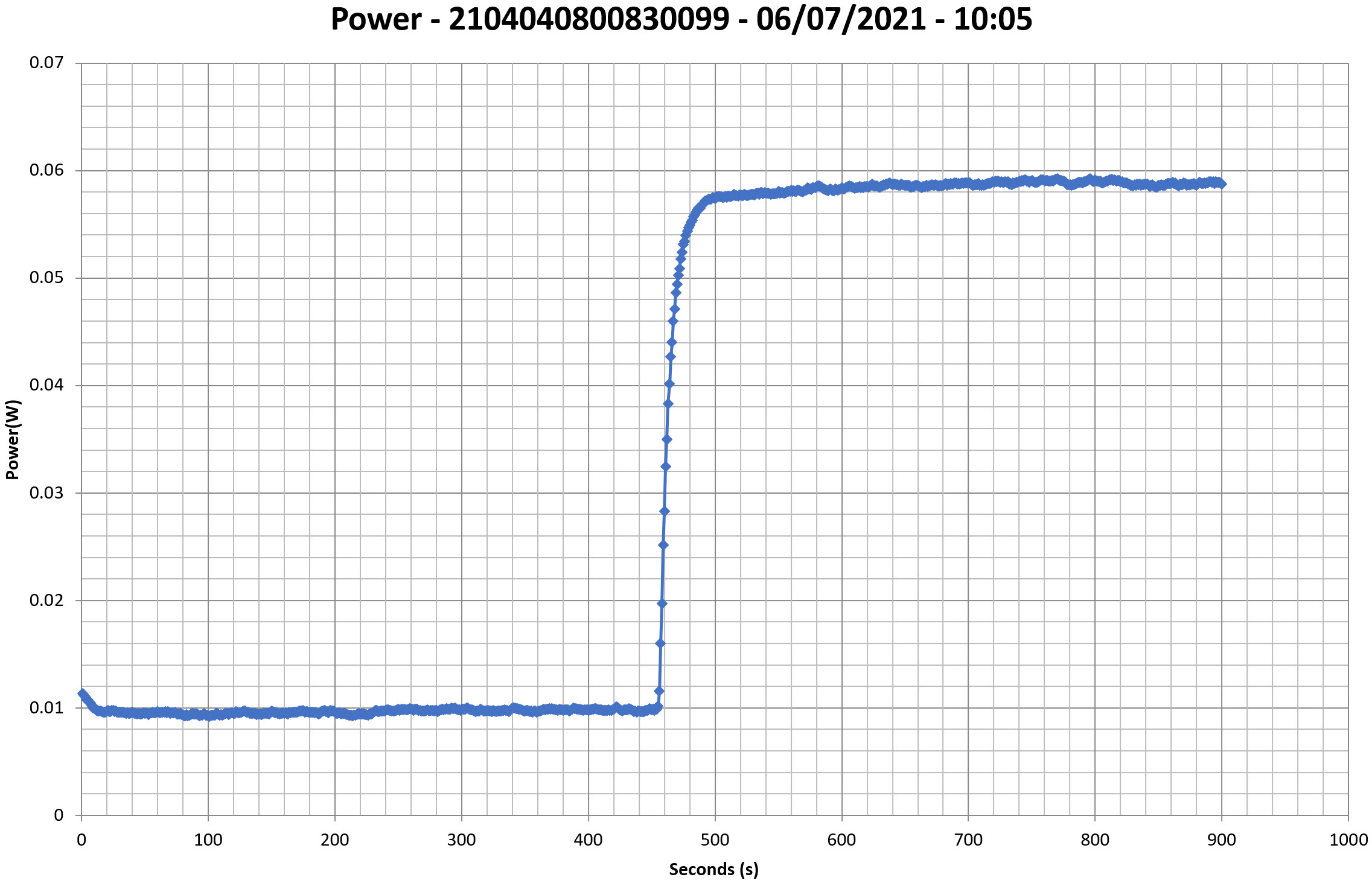

待機電源消耗
Tables
Graphs
INFO

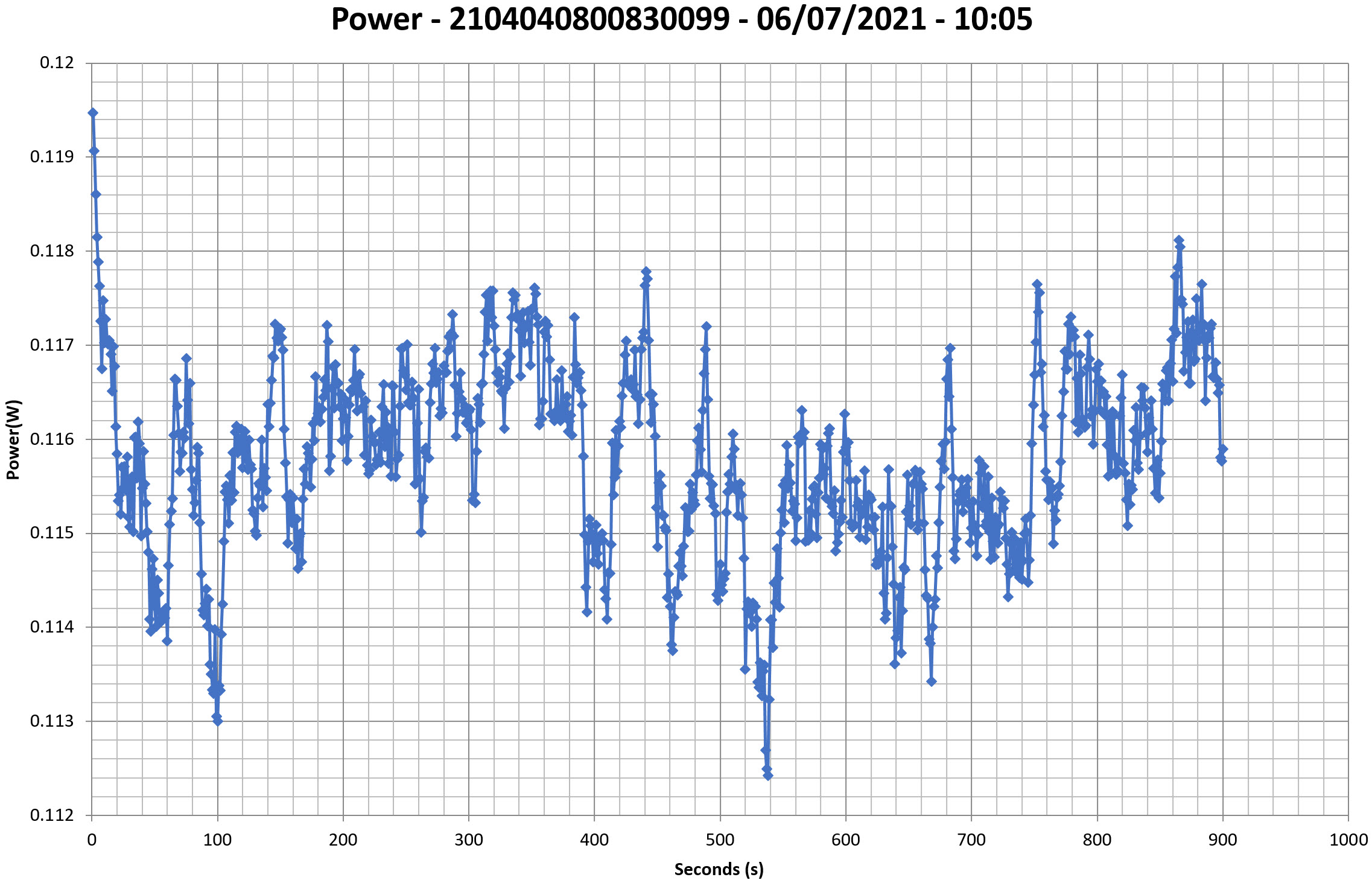

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing
INFO
This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

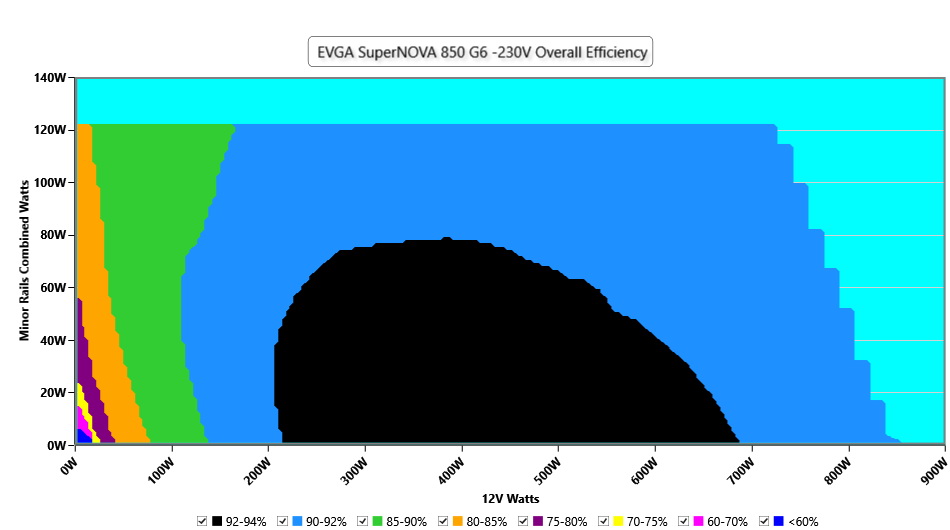

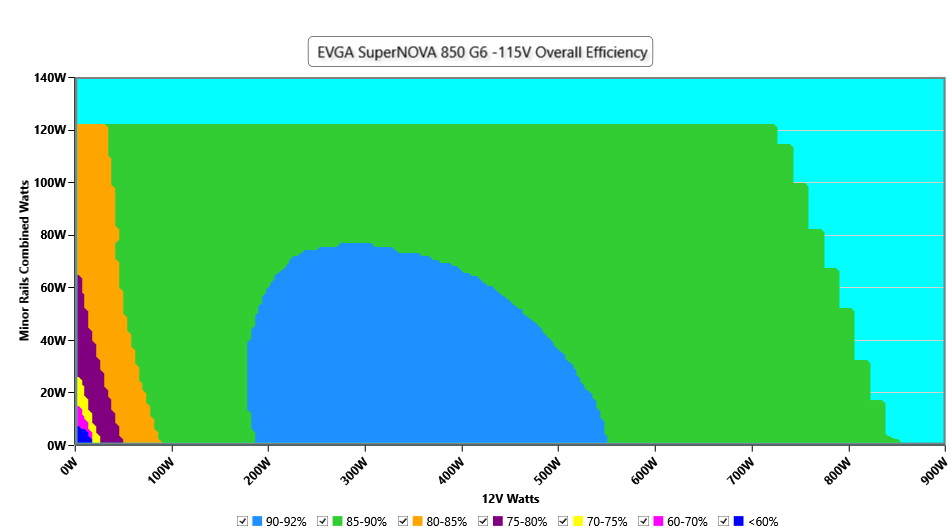

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

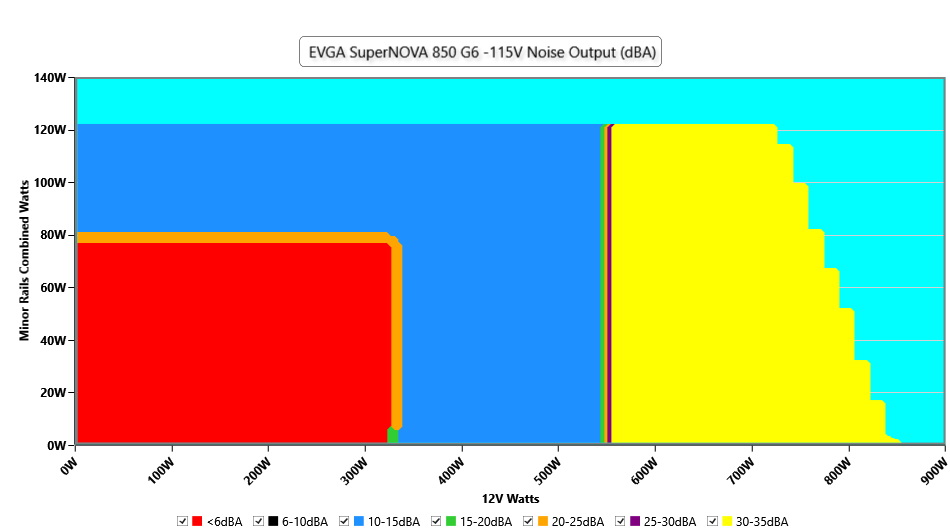

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Conducted Emissions EN55032 & CISPR 32
Indicative Performance

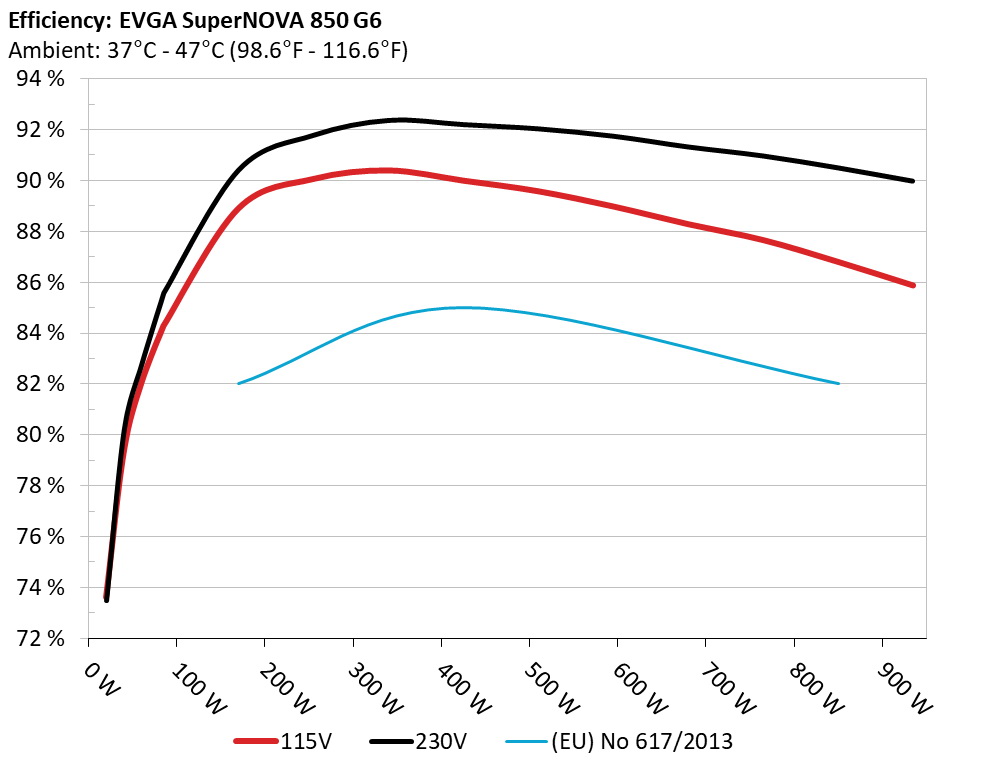

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

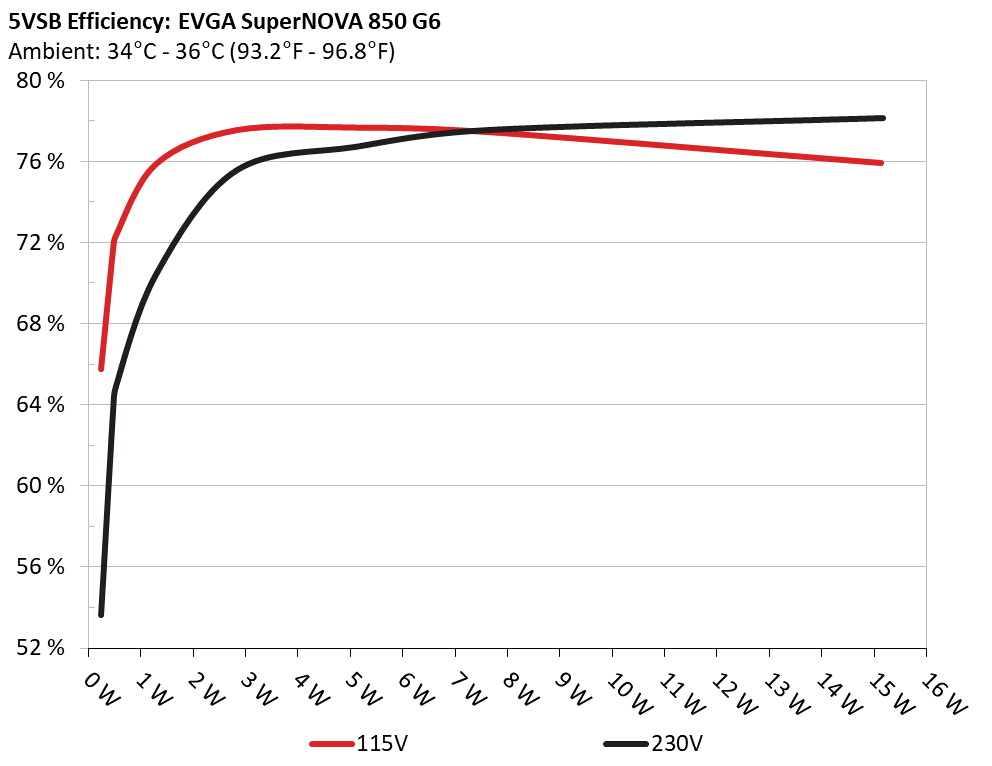

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
5VSB Efficiency (ERP LOT 3/6 & CEC)
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.231W
65.782%
0.033
5.124V
0.351W
115.12V
2
0.09A
0.461W
71.707%
0.06
5.123V
0.643W
115.12V
3
0.55A
2.813W
77.558%
0.264
5.113V
3.627W
115.12V
4
1A
5.103W
77.688%
0.363
5.102V
6.569W
115.12V
5
1.5A
7.637W
77.465%
0.42
5.091V
9.858W
115.11V
6
3A
15.138W
75.942%
0.492
5.045V
19.934W
115.12V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.231W
53.614%
0.012
5.124V
0.431W
230.25V
2
0.09A
0.461W
63.737%
0.021
5.123V
0.723W
230.25V
3
0.55A
2.812W
75.559%
0.103
5.112V
3.722W
230.24V
4
1A
5.103W
76.74%
0.17
5.102V
6.65W
230.24V
5
1.5A
7.638W
77.568%
0.228
5.091V
9.847W
230.24V
6
3A
15.175W
78.154%
0.334
5.058V
19.417W
230.24V
Protection Features
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
5.215A
1.982A
1.981A
0.982A
85.018
83.812%
591
11.8
40.58°C
0.962
12.160V
5.045V
3.332V
5.09V
101.439
44.65°C
115.14V
20%
11.450A
2.976A
2.975A
1.182A
169.992
88.921%
591
11.8
40.87°C
0.973
12.148V
5.042V
3.328V
5.075V
191.171
45.47°C
115.14V
30%
18.052A
3.474A
3.475A
1.383A
255.016
90.082%
592
11.9
41.32°C
0.974
12.130V
5.038V
3.324V
5.062V
283.093
46.66°C
115.14V
40%
24.653A
3.973A
3.975A
1.585A
340.125
90.415%
589
11.8
41.74°C
0.979
12.125V
5.035V
3.321V
5.049V
376.183
47.56°C
115.13V
50%
30.920A
4.972A
4.976A
1.788A
425.198
90.013%
1391
39.2
42.02°C
0.982
12.118V
5.029V
3.316V
5.033V
472.374
48.37°C
115.13V
60%
37.145A
5.972A
5.978A
1.993A
509.702
89.597%
1393
39.3
42.67°C
0.984
12.111V
5.025V
3.313V
5.018V
568.884
49.65°C
115.12V
70%
43.442A
6.973A
6.981A
2.199A
595.024
88.996%
1395
39.4
43.24°C
0.986
12.105V
5.021V
3.31V
5.004V
668.597
51.21°C
115.12V
80%
49.739A
7.978A
7.987A
2.304A
679.86
88.302%
1754
45.9
43.69°C
0.987
12.102V
5.016V
3.306V
4.992V
769.926
52.15°C
115.11V
90%
56.428A
8.481A
8.48A
2.411A
765.281
87.672%
1758
45.9
44.76°C
0.989
12.100V
5.013V
3.302V
4.979V
872.887
53.77°C
115.11V
100%
62.856A
8.985A
9.004A
3.028A
850.092
86.815%
1761
45.9
45.51°C
0.99
12.097V
5.011V
3.299V
4.955V
979.2
55.26°C
115.1V
110%
69.137A
9.989A
10.103A
3.035A
934.664
85.892%
1764
46.0
46.92°C
0.99
12.097V
5.007V
3.296V
4.944V
1088.185
57.67°C
115.1V
CL1
0.116A
14.316A
14.272A
0A
121.335
82.205%
1406
40.0
42.11°C
0.98
12.167V
5.045V
3.342V
5.091V
147.599
48.22°C
115.14V
CL2
0.115A
23.785A
0A
0A
121.442
80.038%
1747
45.7
43.22°C
0.98
12.160V
5.047V
3.324V
5.098V
151.731
49.86°C
115.14V
CL3
0.115A
0A
23.61A
0A
80.592
74.938%
1744
45.6
44.9°C
0.964
12.153V
5.042V
3.354V
5.095V
107.545
52.08°C
115.14V
CL4
70.264A
0A
0A
0.001A
849.752
87.636%
1759
45.9
45.86°C
0.989
12.094V
5.017V
3.296V
5.04V
969.638
55.31°C
115.1V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
5.214A
1.982A
1.981A
0.982A
85.016
85.556%
0
<6.0
44.85°C
0.797
12.162V
5.046V
3.332V
5.09V
99.369
40.09°C
230.28V
20%
11.449A
2.976A
2.975A
1.182A
169.982
90.43%
590
11.8
40.63°C
0.901
12.148V
5.042V
3.328V
5.076V
187.971
45.99°C
230.28V
30%
18.050A
3.474A
3.475A
1.383A
255.001
91.797%
591
11.8
41.13°C
0.936
12.130V
5.038V
3.324V
5.062V
277.789
46.94°C
230.28V
40%
24.652A
3.973A
3.976A
1.585A
340.104
92.38%
591
11.8
41.48°C
0.95
12.124V
5.034V
3.32V
5.049V
368.158
47.83°C
230.28V
50%
30.918A
4.972A
4.976A
1.788A
425.148
92.214%
1388
39.2
42.38°C
0.959
12.117V
5.029V
3.316V
5.034V
461.044
49.42°C
230.28V
60%
37.143A
5.973A
5.978A
1.993A
509.662
92.049%
1391
39.2
42.61°C
0.963
12.111V
5.024V
3.312V
5.02V
553.683
50.11°C
230.28V
70%
43.433A
6.974A
6.981A
2.199A
594.943
91.759%
1393
39.3
43.37°C
0.967
12.106V
5.02V
3.309V
5.005V
648.377
51.51°C
230.28V
80%
49.731A
7.977A
7.986A
2.304A
679.803
91.336%
1753
45.9
43.6°C
0.971
12.103V
5.017V
3.306V
4.993V
744.287
52.51°C
230.28V
90%
56.429A
8.483A
8.481A
2.41A
765.243
90.979%
1754
45.9
44.31°C
0.973
12.099V
5.012V
3.302V
4.981V
841.118
53.6°C
230.28V
100%
62.857A
8.988A
9.005A
3.027A
850.066
90.512%
1759
45.9
45.16°C
0.975
12.096V
5.009V
3.298V
4.957V
939.172
55.44°C
230.28V
110%
69.151A
9.991A
10.102A
3.034A
934.635
89.99%
1761
45.9
46.74°C
0.976
12.095V
5.006V
3.296V
4.945V
1038.602
57.68°C
230.28V
CL1
0.115A
14.318A
14.266A
0A
121.332
83.721%
1404
39.9
42.59°C
0.87
12.166V
5.044V
3.343V
5.091V
144.925
49.1°C
230.28V
CL2
0.115A
23.782A
0A
0A
121.441
81.415%
1743
45.5
43.24°C
0.874
12.161V
5.048V
3.324V
5.098V
149.162
50.22°C
230.28V
CL3
0.115A
0A
23.585A
0A
80.594
76.003%
1745
45.6
44.08°C
0.813
12.155V
5.044V
3.358V
5.095V
106.04
51.68°C
230.28V
CL4
70.269A
0A
0A
0.001A
849.731
91.283%
1758
45.9
45.95°C
0.974
12.093V
5.017V
3.296V
5.041V
930.879
54.7°C
230.28V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.228A
0.495A
0.495A
0.195A
20.015
73.631%
0
<6.0
39.04°C
0.803
12.105V
5.053V
3.336V
5.116V
27.182
36.89°C
115.14V
40W
2.700A
0.693A
0.693A
0.294A
40.014
79.344%
0
<6.0
39.89°C
0.927
12.111V
5.052V
3.336V
5.112V
50.431
37.4°C
115.14V
60W
4.154A
0.891A
0.891A
0.392A
60.015
82.056%
0
<6.0
41.33°C
0.95
12.164V
5.051V
3.334V
5.108V
73.138
38.34°C
115.14V
80W
5.619A
1.09A
1.089A
0.49A
79.982
84.302%
0
<6.0
42.75°C
0.962
12.164V
5.049V
3.333V
5.103V
94.876
39.22°C
115.14V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.228A
0.495A
0.495A
0.196A
20.009
73.475%
0
<6.0
39.43°C
0.45
12.099V
5.049V
3.334V
5.116V
27.233
37.22°C
230.28V
40W
2.701A
0.693A
0.693A
0.294A
40.01
80.173%
0
<6.0
41.21°C
0.611
12.106V
5.049V
3.334V
5.112V
49.905
38.28°C
230.28V
60W
4.156A
0.892A
0.891A
0.392A
60.011
82.776%
0
<6.0
42.28°C
0.714
12.159V
5.048V
3.332V
5.108V
72.498
38.86°C
230.28V
80W
5.620A
1.09A
1.09A
0.49A
79.974
85.588%
0
<6.0
43.23°C
0.78
12.160V
5.046V
3.332V
5.103V
93.44
39.28°C
230.28V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
8.04mV
10.32mV
11.45mV
4.86mV
Pass
20% Load
18.24mV
10.37mV
10.84mV
5.48mV
Pass
30% Load
10.80mV
10.16mV
11.20mV
6.09mV
Pass
40% Load
10.18mV
11.29mV
11.87mV
7.11mV
Pass
50% Load
10.39mV
11.95mV
16.01mV
11.31mV
Pass
60% Load
10.69mV
12.82mV
12.53mV
8.75mV
Pass
70% Load
10.54mV
13.53mV
12.63mV
14.53mV
Pass
80% Load
10.95mV
13.64mV
14.11mV
12.49mV
Pass
90% Load
11.26mV
13.17mV
13.76mV
11.77mV
Pass
100% Load
15.15mV
14.66mV
15.87mV
15.33mV
Pass
110% Load
15.46mV
17.23mV
18.05mV
15.33mV
Pass
Crossload1
9.38mV
12.12mV
12.60mV
6.20mV
Pass
Crossload2
8.04mV
10.98mV
11.30mV
5.58mV
Pass
Crossload3
8.96mV
10.01mV
13.30mV
5.43mV
Pass
Crossload4
15.22mV
13.82mV
14.33mV
13.78mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
9.98mV
10.88mV
19.07mV
4.76mV
Pass
20% Load
19.57mV
10.83mV
12.37mV
5.37mV
Pass
30% Load
11.31mV
10.37mV
11.04mV
6.14mV
Pass
40% Load
9.57mV
10.42mV
11.66mV
7.06mV
Pass
50% Load
11.05mV
11.49mV
12.53mV
11.82mV
Pass
60% Load
10.23mV
13.13mV
12.83mV
8.85mV
Pass
70% Load
10.08mV
12.97mV
12.48mV
14.07mV
Pass
80% Load
10.49mV
12.41mV
13.65mV
10.75mV
Pass
90% Load
10.95mV
13.33mV
13.91mV
11.62mV
Pass
100% Load
15.72mV
15.00mV
16.60mV
14.74mV
Pass
110% Load
15.95mV
16.75mV
17.80mV
15.19mV
Pass
Crossload1
9.48mV
12.48mV
13.72mV
6.01mV
Pass
Crossload2
8.29mV
11.59mV
11.20mV
5.83mV
Pass
Crossload3
8.44mV
9.70mV
13.25mV
5.17mV
Pass
Crossload4
15.88mV
15.06mV
16.01mV
13.66mV
Pass
The results above are not used in the certification process
