SilverStone GM500 Silver

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Serial NumberDXGM50SU21090201

Lab IDSL50001971

Certification ID251971

Test Result Report ID: 22PS1971A
Certificate Issue Date: Feb 7, 2022

	115V	230V
Scheme: ETA-EMI PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brand	SilverStone
Model	GM500 Silver
OEM/ODM	TC Sure Star Computer Co.
Serial Number	DXGM50SU21090201
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)	100-240
Rated Current (Arms)	8-4
Rated Frequency (Hz)	47-63
Rated Power (W)	500
Operating Temperature (Continuous Full Load) (°C)
Type	1U
Cable Design	Fixed cables
Warranty	-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling	40mm Magnetic Levitation Bearing Fan (MF40201VX-10000-A99)
Semi-Passive Operation	✗
Cybenetics Testing Information
Lab ID	SL50001971
Date of receipt	-
Testing Date	Feb 2, 2022
Report Issued Date	Feb 7, 2022
Engineer Name	-
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (490mm)	1	1	18-20AWG	No
8 pin EPS12V (490mm)	2	2	18AWG	No
6 pin PCIe (490mm)	1	1	18AWG	No
6 pin PCIe (430mm)	1	1	18AWG	No
4-pin Molex (490mm+150mm+150mm)	3	9	18AWG	No
4-pin Molex (490mm+150mm+150mm) / FDD (+150mm)	1	3 / 1	18-22AWG	No

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	NaN	NaN	41	3.5	0.8
Max. Power	Watts	NaN		492	17.5	9.6
Total Max. Power (W)		500

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	28-32 / 82.4-89.6

Performance Summary 230V

Accredited
Average Efficiency (>1450 load combinations)	85.266%
Average PF (>1450 Load Combinations)	0.910
Efficiency With 10W (≤500W) or 2% (>500W) Load	-
Standby Power Consumption	1.3072W
Non-Accredited
12V Ripple (Full Load)	52.14mV
5VSB Ripple (Full Load)	27.91mV
12V Load Regulation	0.90%
5VSB Load Regulation	7.13%
Inrush Current	50.410A
Hold-Up Time & PWR_OK Signal	19.00ms
AC Loss to PWR_OK Hold Up Time	15.00ms
PWR_OK Inactive to DC Loss Delay	4.00ms
PSU Timings: T1 (20% / 100%)	121.0ms	123.0ms
PSU Timings: T3 (20% / 100%)	268.0ms	261.0ms

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)	19
AC Loss to PWR_OK Hold Up Time (ms)	15
PWR_OK Inactive to DC Loss Delay (ms)	4

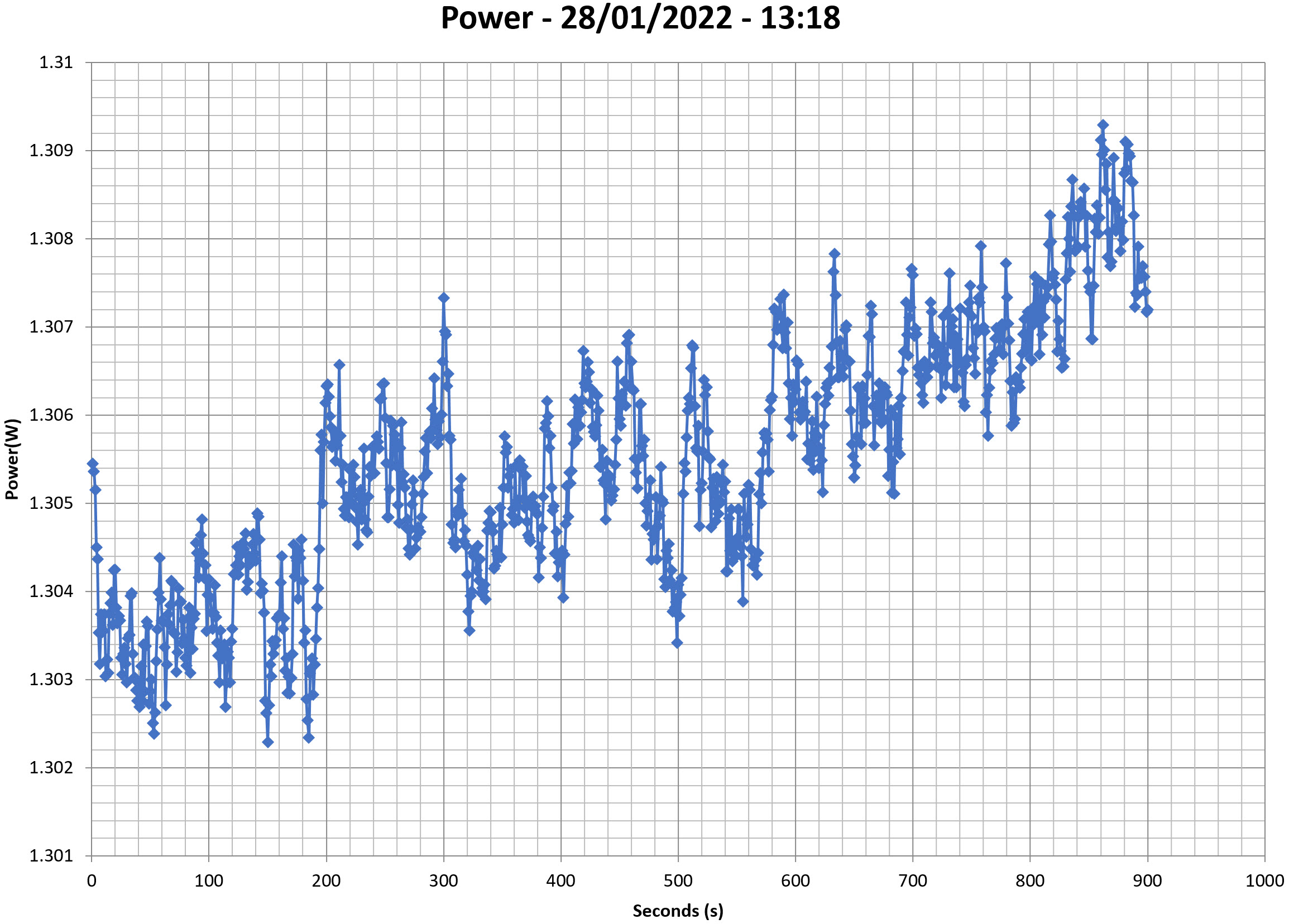

Vampire Power

Tables 230V

Graphs 230V

Efficiency Graph

230V

INFO

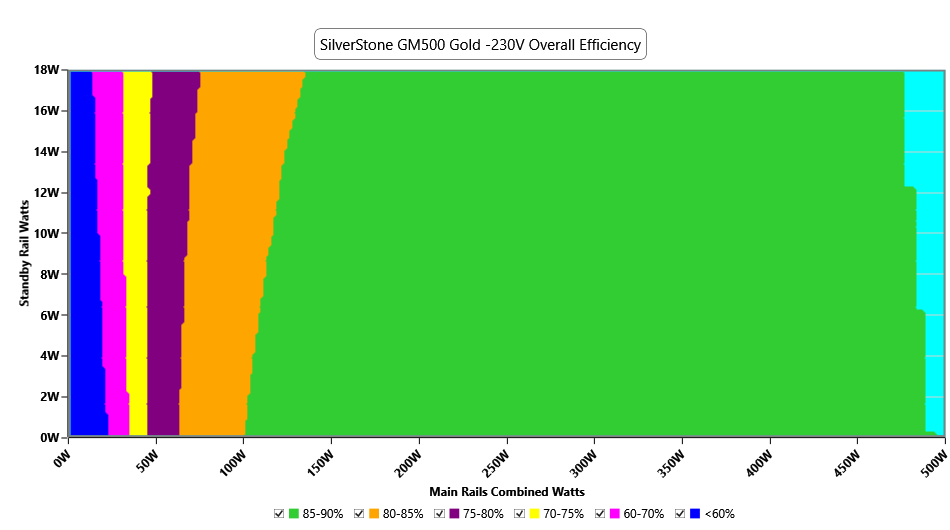

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

230V

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

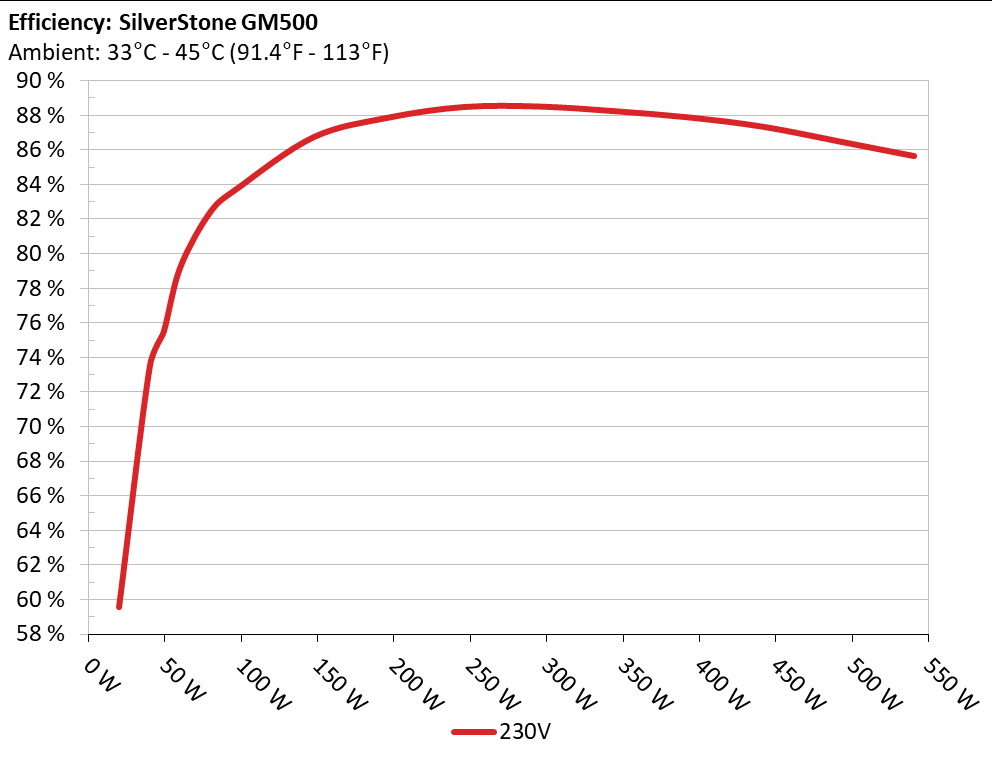

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.235W	14.46%	0.04
1	5.219V	1.625W	14.46%	230.35V
2	0.09A	0.468W	24.182%	0.047
2	5.198V	1.935W	24.182%	230.36V
3	0.55A	2.818W	55.969%	0.118
3	5.124V	5.035W	55.969%	230.34V
4	1A	5.083W	63.53%	0.178
4	5.083V	8.001W	63.53%	230.35V
5	1.5A	7.566W	67.285%	0.233
5	5.044V	11.245W	67.285%	230.35V
6	3.5A	17.094W	69.717%	0.369
6	4.885V	24.519W	69.717%	230.35V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test	Main Rail	Standby Rail	DC/AC (Watts)	Efficiency	Temps (In/Out)	PF/AC Volts
10%	3.670A	0.984A	49.19	75.46%	37.22°C	0.73
10%	12.039V	5.081V	65.187	75.46%	43.19°C	230.24V
20%	7.684A	1.186A	98.37	83.819%	37.58°C	0.824
20%	12.022V	5.057V	117.359	83.819%	44.14°C	230.24V
30%	11.702A	1.391A	147.533	86.73%	38.66°C	0.886
30%	12.008V	5.033V	170.106	86.73%	45.64°C	230.25V
40%	15.734A	1.596A	196.787	87.86%	39.24°C	0.922
40%	12.000V	5.013V	223.978	87.86%	46.69°C	230.26V
50%	19.758A	1.804A	245.94	88.469%	39.96°C	0.947
50%	11.992V	4.988V	277.996	88.469%	47.86°C	230.25V
60%	23.801A	2A	295.117	88.492%	40.57°C	0.958
60%	11.982V	4.966V	333.496	88.492%	49.28°C	230.25V
70%	27.783A	2.224A	343.6	88.232%	41.19°C	0.969
70%	11.971V	4.945V	389.429	88.232%	50.42°C	230.27V
80%	31.891A	2.33A	392.951	87.867%	42.06°C	0.974
80%	11.961V	4.933V	447.214	87.867%	52.19°C	230.27V
90%	36.004A	2.438A	442.268	87.32%	42.85°C	0.976
90%	11.951V	4.92V	506.489	87.32%	53.53°C	230.27V
100%	39.726A	3.625A	491.78	86.473%	43.43°C	0.978
100%	11.939V	4.826V	568.71	86.473%	54.61°C	230.27V
110%	43.856A	3.631A	540.607	85.632%	44.5°C	0.98
110%	11.928V	4.819V	631.315	85.632%	56.27°C	230.27V

The results above are not used in the certification process

Light Load Tests 230V

Test	Main Rail	Standby Rail	DC/AC (Watts)	Efficiency	Temps (In/Out)	PF/AC Volts
20W	1.576A	0.193A	19.987	59.556%	33.28°C	0.54
20W	12.047V	5.17V	33.56	59.556%	36.38°C	230.23V
40W	3.196A	0.291A	39.992	73.417%	34.13°C	0.685
40W	12.042V	5.152V	54.473	73.417%	38.08°C	230.23V
60W	4.818A	0.389A	59.99	79.187%	35.45°C	0.76
60W	12.036V	5.138V	75.757	79.187%	39.94°C	230.23V
80W	6.436A	0.488A	79.913	82.42%	36.38°C	0.8
80W	12.029V	5.125V	96.959	82.42%	41.29°C	230.23V

The results above are not used in the certification process

Ripple Measurements 230V

Test	12V	VSB	Pass/Fail
10% Load	12.71mV	8.35mV	Pass
20% Load	14.58mV	9.01mV	Pass
30% Load	16.81mV	8.60mV	Pass
40% Load	19.75mV	11.74mV	Pass
50% Load	23.09mV	10.02mV	Pass
60% Load	27.44mV	10.98mV	Pass
70% Load	33.01mV	16.95mV	Pass
80% Load	37.62mV	19.99mV	Pass
90% Load	43.74mV	22.42mV	Pass
100% Load	52.14mV	27.91mV	Pass
110% Load	59.56mV	31.08mV	Pass

The results above are not used in the certification process

SilverStone GM500 Silver

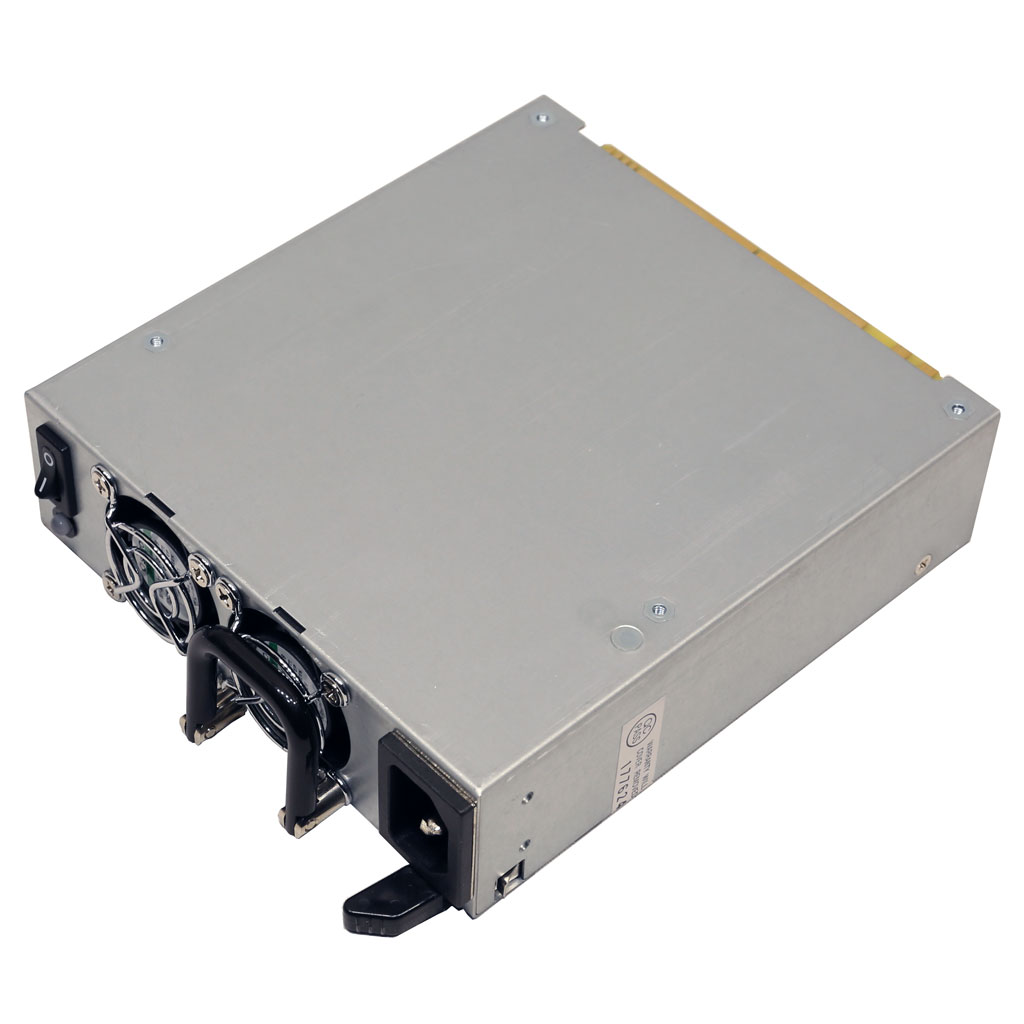

Top side

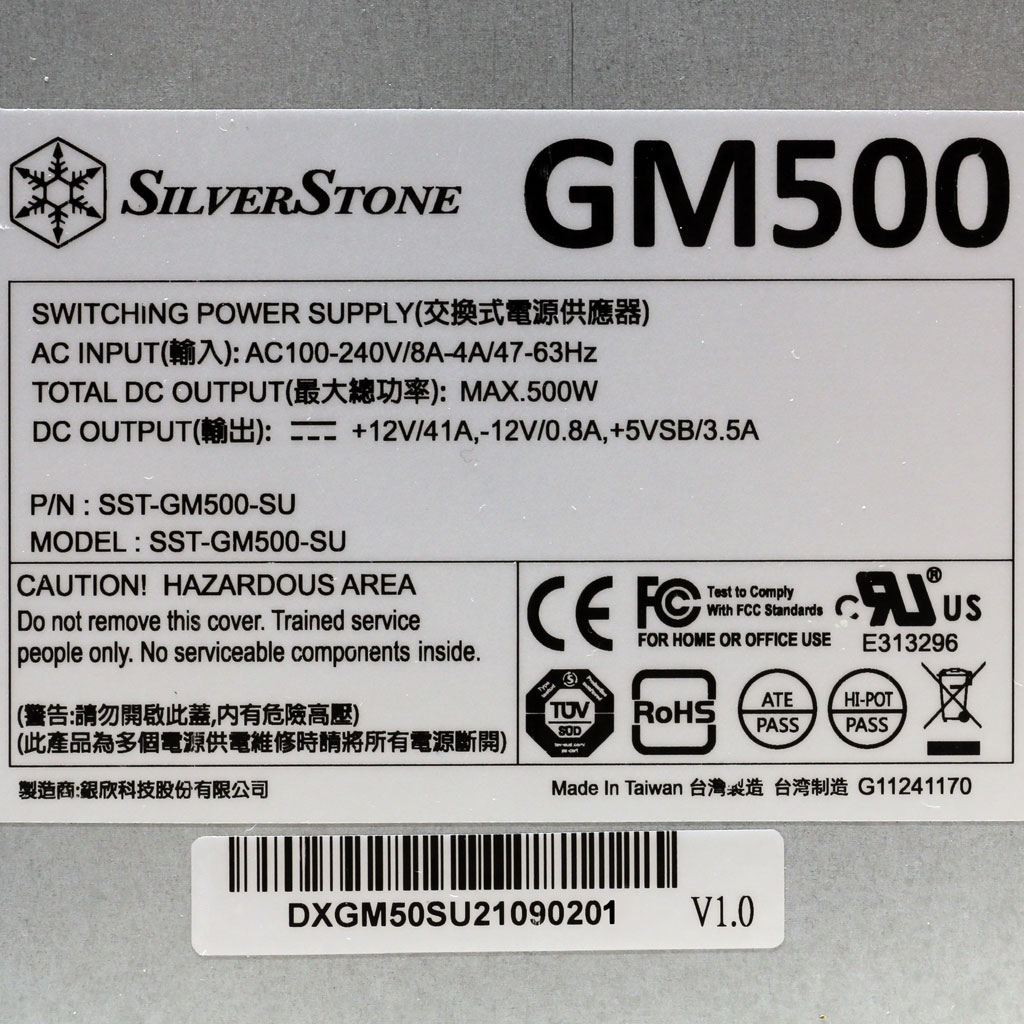

Power specifications label
