CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

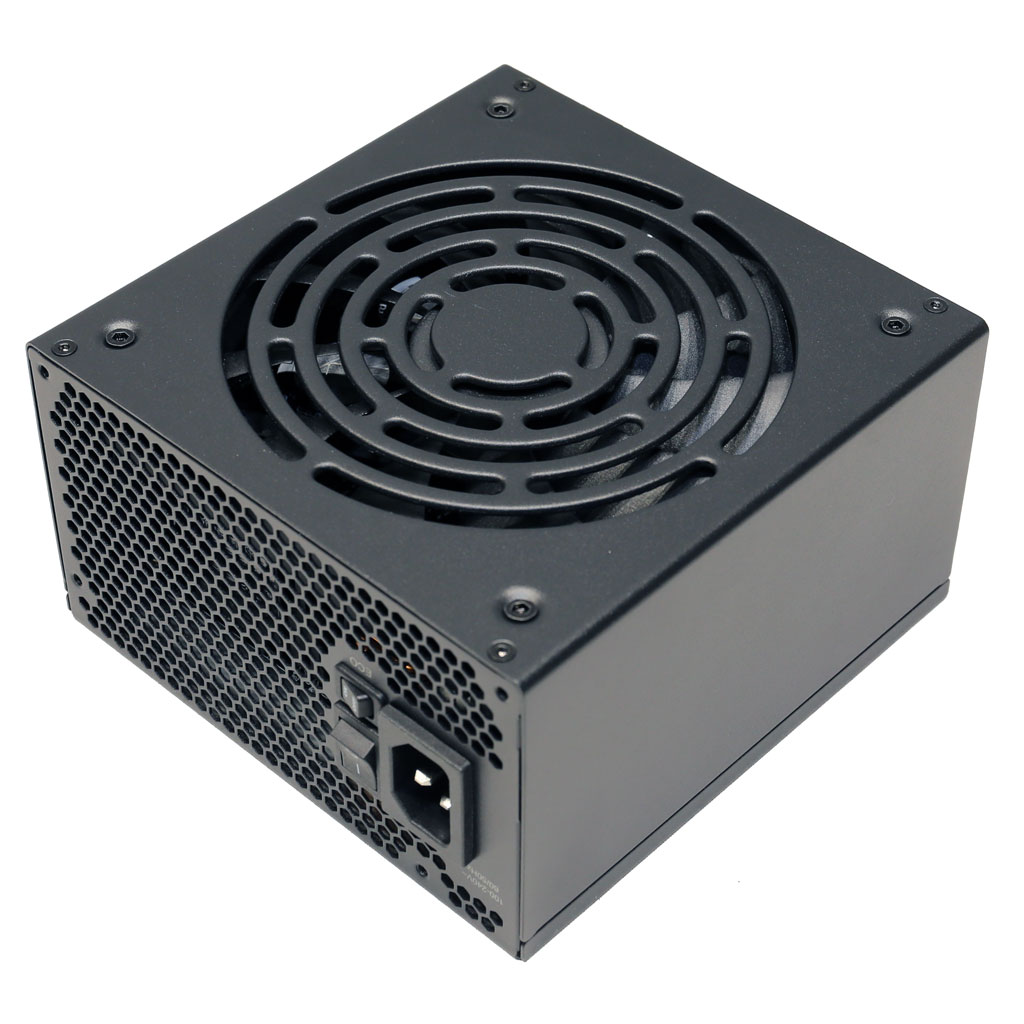

High Power HP1-O21000GD-F14C
Serial Number
Lab IDHP10002055
Certification ID252055
  • Test Result Report ID: 22PS2055A
  • Certificate Issue Date: Aug 29, 2022
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandHigh Power
Manufacturer (OEM)High Power
Series
Model NumberHP1-O21000GD-F14C
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing Fan
(RL4Z S1352512HH)
Semi-Passive Operation✓
Cable DesignFully Modular

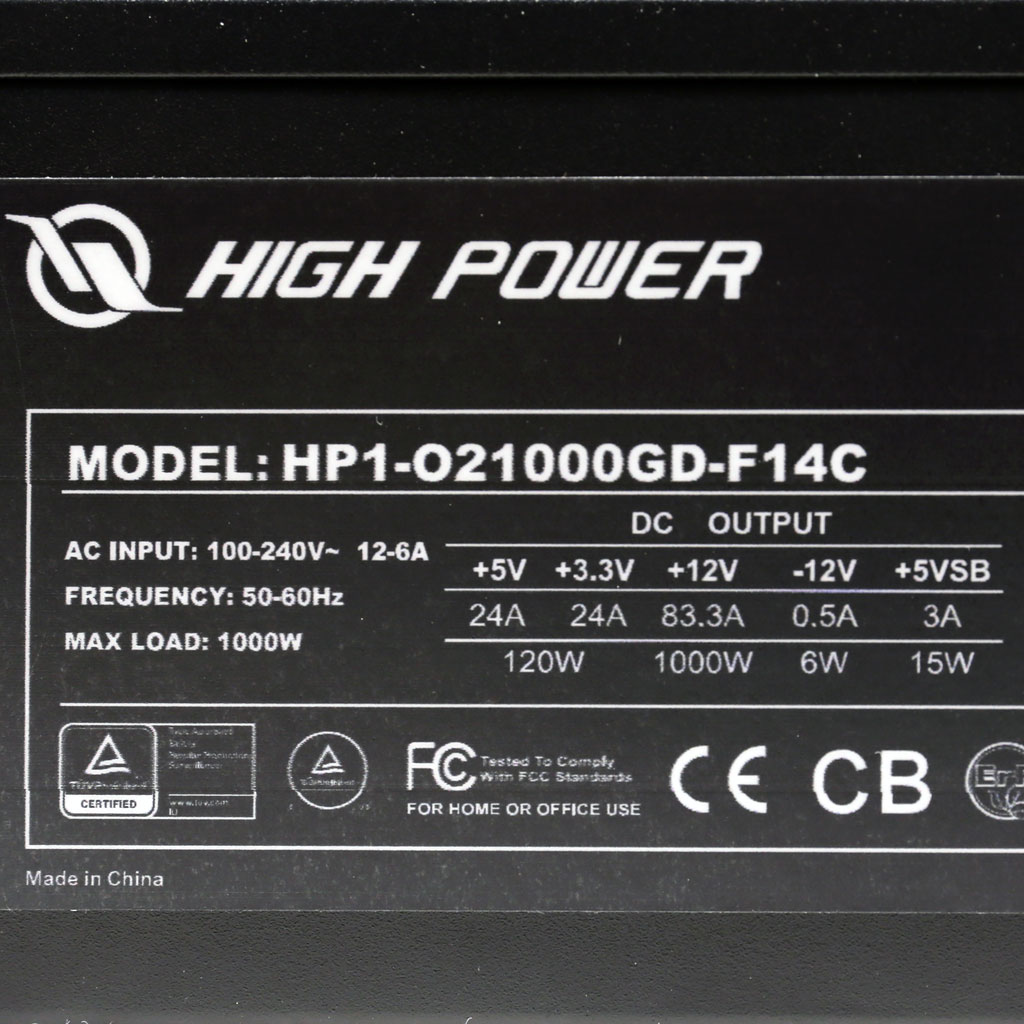

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps242483.330.5
Watts1201000156
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (700mm) 2 2 16AWG No
6+2 pin PCIe (700mm+150mm) 1 2 16-18AWG No
12+4 pin PCIe (750mm) (max power 450W) 1 1 16-24AWG No
SATA (560mm+100mm+100mm) 4 12 18AWG No
4 pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No
FDD Adapter (105mm) 1 1 22AWG No

Parts Description

General Data
Manufacturer (OEM) High Power
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x CM02X (Discharge IC)
Inrush Protection 1x NTC Thermistor SCK-057 (5 Ohm) & Relay
Bridge Rectifier(s) 2x HY GBJ2506L (600V, 25A @ 100°C)
APFC MOSFETs 2x Infineon IPW60R099P7 (600V, 20A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode 1x Toshiba TRS10E65F (650V, 10A)
Bulk Cap(s) 2x Rubycon (420V, 560uF each or 1,120uf combined, 2,000h @ 105°C, MXH)
Main Switchers 2x Infineon IPA60R099P7 (600V, 20A @ 100°C, Rds(on): 0.099Ohm)
APFC Controller Infineon ICE3PCS01G
Resonant Controller Champion CU6901VAC
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 6x Infineon BSC010N04LS (40V, 178A @ 100°C, Rds(on): 1mOhm)
5V & 3.3V DC-DC Converters: 8x Infineon BSC0906NS (30V, 40A @ 100°C, Rds(on): 4.5mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 2x Rubycon (3-6,000h @ 105°C, YXG), 2x Rubycon (4-10,000h @ 105°C, YXJ), 2x Nichicon (4-10,000h @ 105°C, HE), 2x Rubycon (6-10,000h @ 105°C, ZLH), 2x Nippon Chemi-Con (4-10,000h @ 105°C, KY)
Polymer: 23x FPCAP
Supervisor IC Weltrend WT7527RA (OVP, UVP, OCP, SCP, PG)
Fan Controller STCmicro STC15W408AS
Fan Model Globe Fan RL4Z S1352512HH (135mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier 1x P10V45 SBR (45V, 10A)
Standby PWM Controller SI8016HSP8

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)89.320%
Average Noise Output (>1450 Load Combinations)31.33dBA
Average PF (>1450 Load Combinations)0.991
Efficiency With 10W (≤500W) or 2% (>500W) Load72.949%
Standby Power Consumption0.0909W
12V Ripple (Full Load)21.47mV
5V Ripple (Full Load)8.19mV
3.3V Ripple (Full Load)11.17mV
5VSB Ripple (Full Load)22.28mV
12V Load Regulation0.76%
5V Load Regulation0.30%
3.3V Load Regulation0.73%
5VSB Load Regulation3.04%
Inrush Current25.060A
Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)91.291%
Average Noise Output (>1450 Load Combinations)31.01dBA
Average PF (>1450 Load Combinations)0.964
Efficiency With 10W (≤500W) or 2% (>500W) Load72.017%
Standby Power Consumption0.1479W
12V Ripple (Full Load)20.77mV
5V Ripple (Full Load)7.89mV
3.3V Ripple (Full Load)11.20mV
5VSB Ripple (Full Load)21.17mV
12V Load Regulation0.75%
5V Load Regulation0.32%
3.3V Load Regulation0.76%
5VSB Load Regulation3.04%
Inrush Current83.310A
12V Transient Response (200%)11.29V
5V Transient Response (200%)4.904V
3.3V Transient Response (200%)3.166V
5VSB Transient Response (200%)4.878V
Hold-Up Time & Power Ok Signal25.40ms
AC Loss to PWR_OK Hold Up Time19.00ms
PWR_OK Inactive to DC Loss Delay6.40ms
PSU Timings: T1 (20% / 100%)52.0ms88.0ms
PSU Timings: T3 (20% / 100%)122.0ms122.0ms
OPP (32.09°C / 41.15°C)143.15%143.15%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)25.4
AC Loss to PWR_OK Hold Up Time (ms)19
PWR_OK Inactive to DC Loss Delay (ms)6.4

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.93 V 114.89 V 113.85 V 114.96 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.14 % 0.12 % N/A 0.19 % 2.00 % PASS
Real Power: 0.091 W 0.077 W N/A 0.106 W N/A N/A
Apparent Power: 8.810 W 8.793 W N/A 8.830 W N/A N/A
Power Factor: 0.010 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.88 V 229.84 V 227.70 V 229.93 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.14 % 0.12 % N/A 0.16 % 2.00 % PASS
Real Power: 0.148 W 0.115 W N/A 0.191 W N/A N/A
Apparent Power: 30.674 W 30.612 W N/A 30.729 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

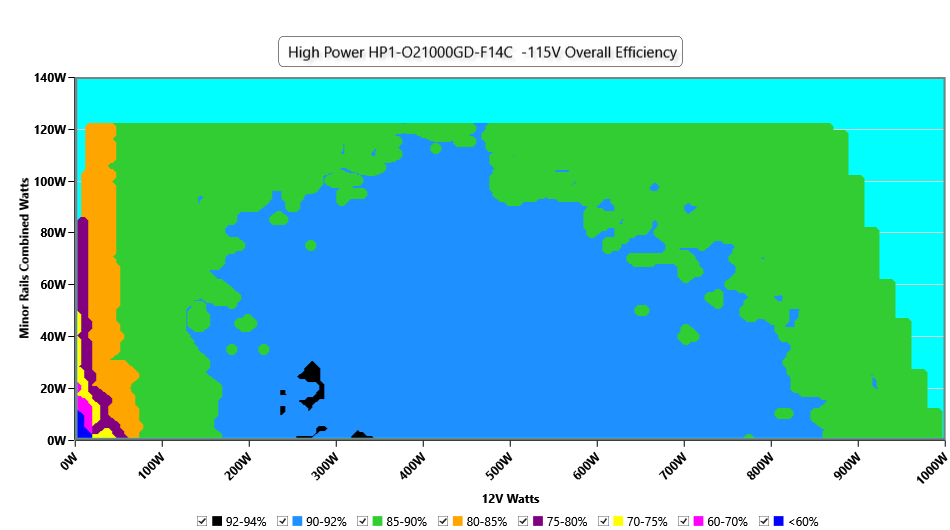

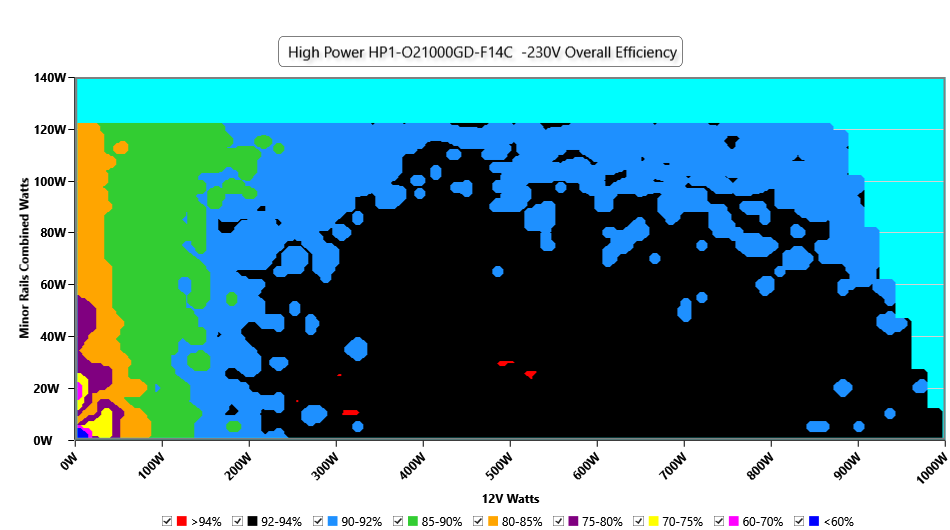

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

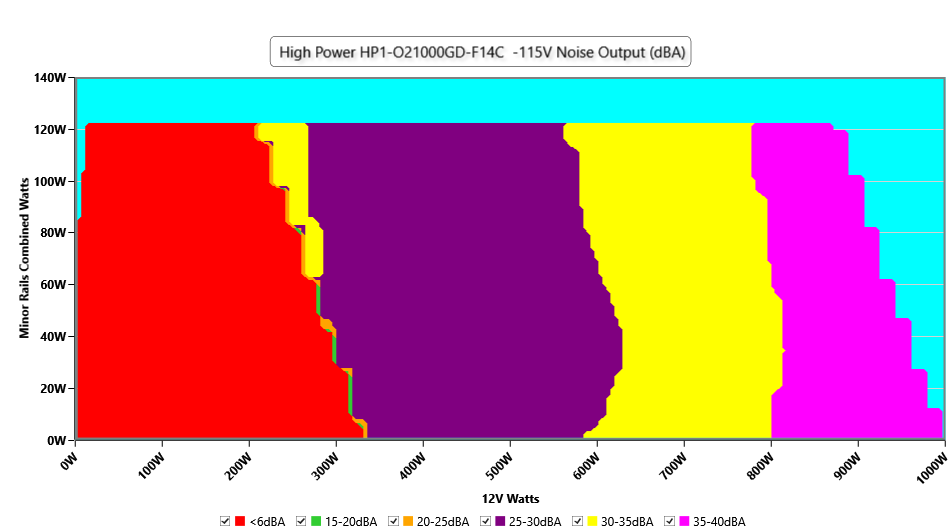

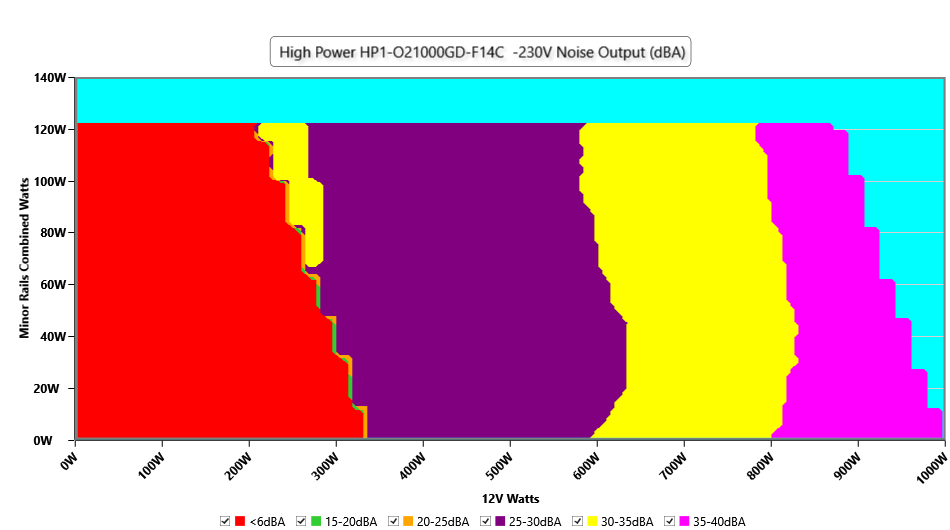

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

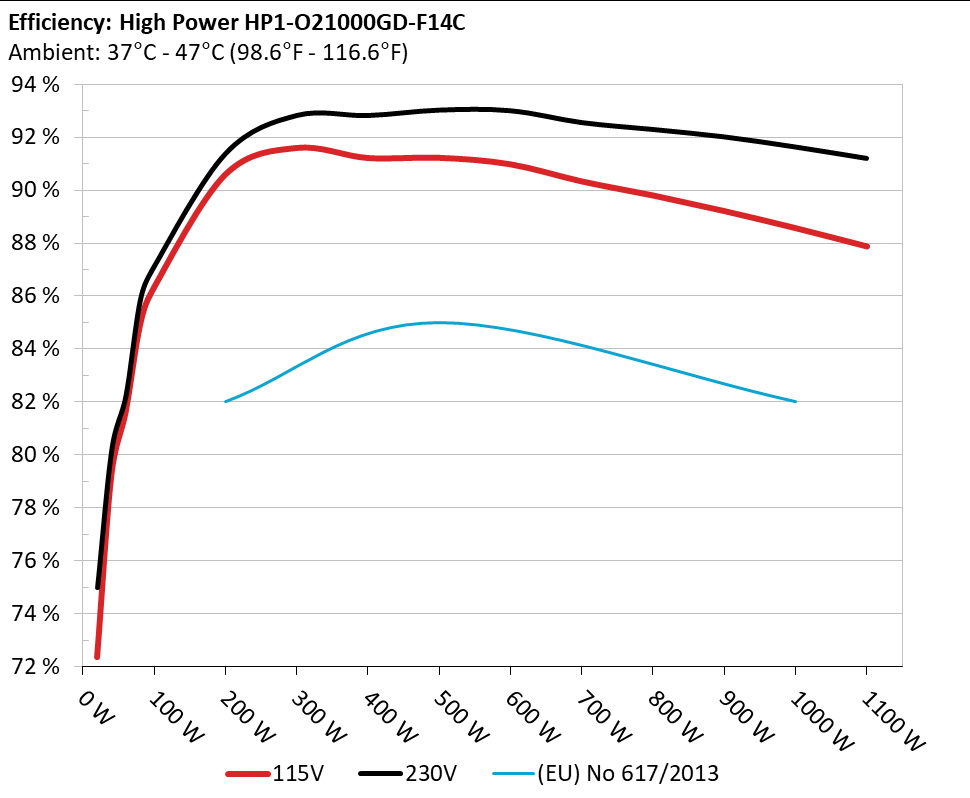

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

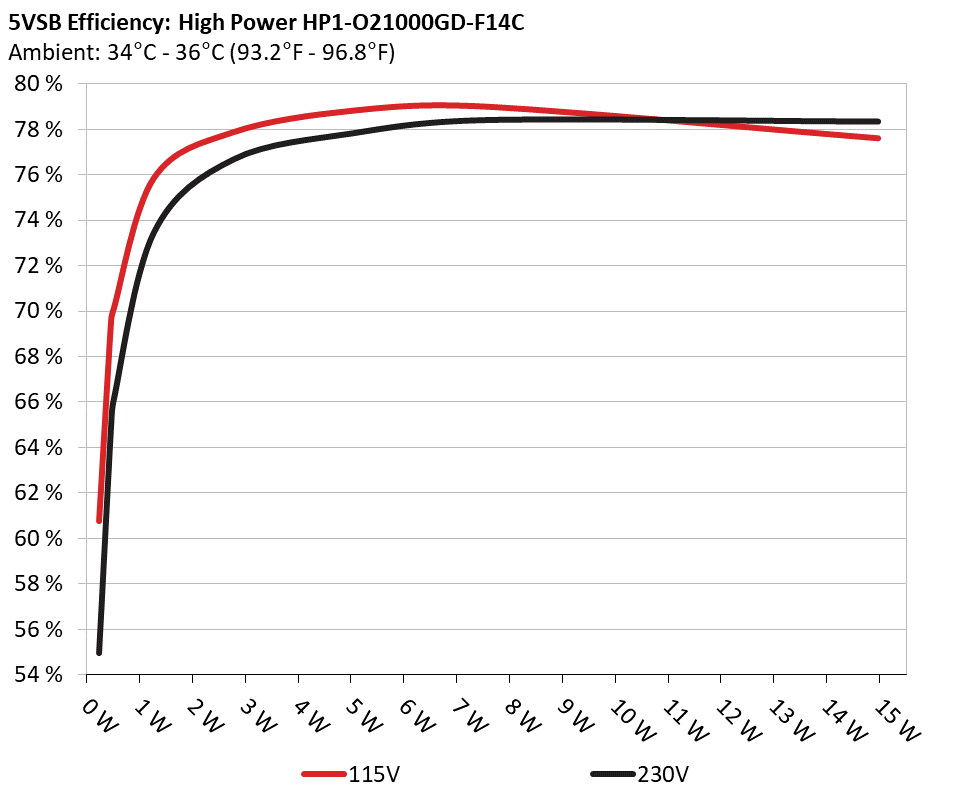

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 60.782% 0.042
5.061V 0.375W 114.93V
2 0.09A 0.456W 69.602% 0.072
5.06V 0.656W 114.93V
3 0.55A 2.778W 77.883% 0.286
5.049V 3.567W 114.93V
4 1A 5.04W 78.826% 0.367
5.038V 6.393W 114.94V
5 1.5A 7.541W 79.001% 0.417
5.026V 9.546W 114.93V
6 3.001A 14.973W 77.611% 0.481
4.99V 19.291W 114.93V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 54.968% 0.013
5.061V 0.416W 229.89V
2 0.09A 0.456W 64.99% 0.023
5.06V 0.703W 229.89V
3 0.55A 2.778W 76.693% 0.111
5.049V 3.623W 229.89V
4 1A 5.04W 77.838% 0.183
5.038V 6.476W 229.88V
5 1.5A 7.541W 78.417% 0.233
5.026V 9.617W 229.88V
6 3.001A 14.973W 78.351% 0.338
4.99V 19.11W 229.88V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.490A 1.988A 1.988A 0.994A 100.029 86.344% 0 <6.0 45.01°C 0.969
12.085V 5.03V 3.32V 5.03V 115.873 40.88°C 114.9V
20% 13.999A 2.983A 2.984A 1.196A 199.993 90.604% 0 <6.0 45.62°C 0.986
12.079V 5.029V 3.318V 5.017V 220.743 41.26°C 114.88V
30% 21.860A 3.481A 3.484A 1.399A 300.063 91.609% 0 <6.0 46.23°C 0.995
12.077V 5.028V 3.316V 5.004V 327.581 41.53°C 114.86V
40% 29.750A 3.981A 3.986A 1.603A 399.928 91.228% 956 27.6 42°C 0.995
12.058V 5.025V 3.312V 4.992V 438.291 47.08°C 114.83V
50% 37.262A 4.978A 4.986A 1.807A 499.531 91.236% 1070 30.9 42.32°C 0.995
12.051V 5.023V 3.309V 4.98V 547.493 47.82°C 114.81V
60% 44.858A 5.975A 5.988A 2A 600.018 90.989% 1162 33.6 42.98°C 0.997
12.044V 5.022V 3.307V 4.967V 659.427 48.99°C 114.78V
70% 52.405A 6.974A 6.992A 2.221A 699.826 90.344% 1166 33.8 43.13°C 0.997
12.035V 5.02V 3.305V 4.954V 774.604 50.24°C 114.75V
80% 60.000A 7.973A 7.995A 2.328A 799.872 89.813% 1370 38.0 43.46°C 0.997
12.032V 5.019V 3.302V 4.942V 890.755 51.56°C 114.73V
90% 67.959A 8.475A 8.486A 2.434A 899.661 89.227% 1441 39.6 44.52°C 0.998
12.025V 5.017V 3.3V 4.932V 1008.344 53.71°C 114.7V
100% 75.719A 8.976A 9.008A 3.057A 999.676 88.582% 1544 41.3 45.36°C 0.998
12.018V 5.016V 3.297V 4.908V 1128.491 55.37°C 114.67V
110% 83.413A 9.976A 10.107A 3.063A 1100.286 87.889% 1845 45.7 46.94°C 0.998
12.012V 5.014V 3.295V 4.899V 1251.954 57.82°C 114.64V
CL1 0.116A 14.371A 14.366A 0A 121.315 82.148% 0 <6.0 46.39°C 0.978
12.079V 5.026V 3.32V 5.041V 147.664 40.96°C 114.9V
CL2 0.115A 23.92A 0A 0A 121.432 79.484% 0 <6.0 48.61°C 0.978
12.095V 5.018V 3.32V 5.047V 152.787 42.46°C 114.9V
CL3 0.115A 0A 23.898A 0A 80.586 72.659% 0 <6.0 50.27°C 0.968
12.100V 5.026V 3.314V 5.041V 110.926 43.16°C 114.92V
CL4 83.091A 0A 0A 0A 1000.098 89.263% 1554 41.5 45.37°C 0.998
12.036V 5.025V 3.302V 4.992V 1120.35 55.36°C 114.69V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.486A 1.987A 1.988A 0.995A 100.035 87.126% 0 <6.0 43.97°C 0.857
12.092V 5.033V 3.321V 5.028V 114.805 39.71°C 229.88V
20% 13.991A 2.982A 2.983A 1.197A 200.002 91.371% 0 <6.0 45.48°C 0.937
12.086V 5.031V 3.319V 5.015V 218.909 40.74°C 229.86V
30% 21.850A 3.48A 3.483A 1.399A 300.073 92.806% 0 <6.0 46.83°C 0.961
12.083V 5.03V 3.317V 5.003V 323.441 41.59°C 229.85V
40% 29.737A 3.979A 3.985A 1.603A 399.85 92.801% 924 26.6 41.78°C 0.974
12.061V 5.027V 3.313V 4.992V 430.884 47.51°C 229.84V
50% 37.271A 4.976A 4.985A 1.808A 499.581 93.006% 1165 33.8 42.39°C 0.98
12.049V 5.025V 3.31V 4.979V 537.196 48.51°C 229.83V
60% 44.867A 5.974A 5.987A 2A 600.048 92.984% 1165 33.8 42.86°C 0.985
12.042V 5.023V 3.308V 4.966V 645.324 49.77°C 229.82V
70% 52.405A 6.972A 6.99A 2.222A 699.856 92.537% 1212 35.2 43.15°C 0.99
12.035V 5.022V 3.306V 4.952V 756.241 51.11°C 229.81V
80% 60.014A 7.971A 7.993A 2.328A 799.88 92.277% 1374 38.1 43.81°C 0.992
12.030V 5.021V 3.303V 4.941V 866.941 52.01°C 229.8V
90% 67.965A 8.472A 8.484A 2.434A 899.656 92% 1449 39.8 44.74°C 0.994
12.024V 5.019V 3.301V 4.931V 977.938 53.71°C 229.78V
100% 75.722A 8.973A 9.006A 3.058A 999.674 91.618% 1564 41.7 45.69°C 0.996
12.017V 5.018V 3.298V 4.907V 1091.161 55.71°C 229.77V
110% 83.410A 9.972A 10.104A 3.063A 1100.28 91.185% 1851 46.0 46.8°C 0.996
12.012V 5.016V 3.296V 4.898V 1206.658 57.73°C 229.76V
CL1 0.116A 14.373A 14.37A 0A 121.343 82.115% 796 22.4 42.34°C 0.896
12.079V 5.026V 3.319V 5.04V 147.769 47.83°C 229.88V
CL2 0.116A 23.899A 0A 0A 121.446 80.215% 803 22.6 43.8°C 0.9
12.082V 5.023V 3.323V 5.047V 151.461 50.88°C 229.87V
CL3 0.116A 0A 23.861A 0A 80.597 73.544% 790 22.4 44.81°C 0.851
12.081V 5.034V 3.319V 5.041V 109.801 52.82°C 229.88V
CL4 83.135A 0A 0A 0A 1000.253 92.331% 1544 41.3 45.07°C 0.996
12.031V 5.025V 3.301V 4.991V 1083.372 55.01°C 229.77V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.236A 0.497A 0.497A 0.198A 20.011 72.378% 0 <6.0 39.85°C 0.824
12.015V 5.031V 3.321V 5.057V 27.776 36.75°C 114.93V
40W 2.724A 0.696A 0.696A 0.297A 40.011 79.267% 0 <6.0 42.01°C 0.921
12.008V 5.031V 3.321V 5.053V 50.468 38.63°C 114.92V
60W 4.212A 0.895A 0.895A 0.396A 60.012 81.63% 0 <6.0 43.53°C 0.948
11.998V 5.031V 3.321V 5.048V 73.512 39.81°C 114.92V
80W 5.654A 1.093A 1.093A 0.496A 79.978 84.883% 0 <6.0 43.99°C 0.962
12.089V 5.031V 3.32V 5.044V 94.283 40.05°C 114.92V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.236A 0.497A 0.497A 0.198A 20.013 74.98% 0 <6.0 40.12°C 0.452
12.024V 5.034V 3.323V 5.056V 27.01 37.04°C 229.88V
40W 2.722A 0.695A 0.695A 0.297A 40.013 80.186% 0 <6.0 40.88°C 0.651
12.014V 5.033V 3.322V 5.052V 49.927 37.55°C 229.88V
60W 4.211A 0.894A 0.894A 0.396A 60.013 82.234% 0 <6.0 41.55°C 0.758
12.002V 5.033V 3.322V 5.048V 72.957 38.09°C 229.88V
80W 5.652A 1.093A 1.093A 0.496A 79.981 85.811% 0 <6.0 42.35°C 0.819
12.092V 5.033V 3.322V 5.043V 93.333 38.62°C 229.88V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load8.11mV5.21mV5.78mV13.56mVPass
20% Load12.00mV6.03mV6.03mV13.25mVPass
30% Load13.95mV5.36mV5.98mV14.64mVPass
40% Load15.48mV5.46mV6.19mV14.69mVPass
50% Load15.02mV5.67mV6.60mV15.61mVPass
60% Load14.55mV6.08mV6.85mV16.89mVPass
70% Load14.35mV6.43mV6.96mV17.09mVPass
80% Load14.09mV6.89mV10.07mV18.22mVPass
90% Load14.20mV7.05mV10.33mV18.63mVPass
100% Load21.47mV8.19mV11.17mV22.28mVPass
110% Load21.05mV8.14mV11.15mV23.16mVPass
Crossload115.08mV9.55mV11.87mV17.84mVPass
Crossload29.80mV12.05mV8.85mV14.79mVPass
Crossload39.21mV6.59mV14.63mV15.15mVPass
Crossload420.13mV6.14mV7.65mV23.06mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load7.85mV5.11mV5.73mV13.72mVPass
20% Load12.97mV5.41mV6.09mV13.97mVPass
30% Load13.89mV5.77mV6.03mV13.66mVPass
40% Load14.91mV5.67mV6.14mV14.64mVPass
50% Load14.15mV5.57mV6.55mV15.40mVPass
60% Load13.74mV5.62mV6.09mV15.97mVPass
70% Load10.08mV5.72mV6.29mV16.79mVPass
80% Load14.09mV6.38mV9.25mV16.94mVPass
90% Load13.43mV7.41mV9.72mV18.42mVPass
100% Load20.77mV7.89mV11.20mV21.17mVPass
110% Load20.32mV8.45mV11.52mV21.49mVPass
Crossload114.62mV9.41mV12.15mV16.46mVPass
Crossload29.74mV10.98mV8.54mV14.07mVPass
Crossload37.70mV6.38mV13.81mV14.48mVPass
Crossload420.65mV6.20mV6.72mV21.63mVPass

The results above are not used in the certification process

High Power HP1-O21000GD-F14C

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
