Corsair SF850L

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Corsair SF850L

Serial Number22304850000001500307

Lab IDCR85002091

Certification ID252091

Test Result Report ID: 22PS2091A
Certificate Issue Date: Nov 23, 2022

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

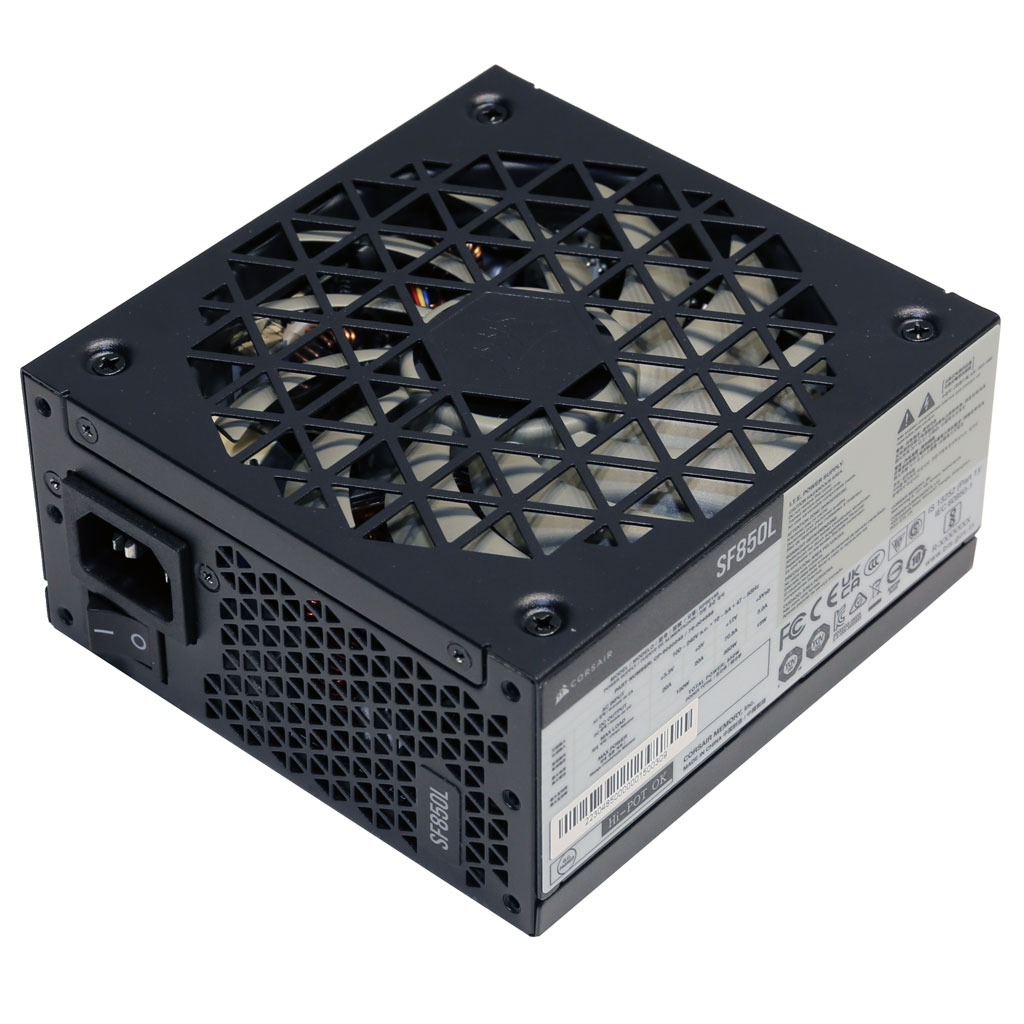

Product Identification Details
Brand	Corsair
Model	SF850L
OEM/ODM	Great Wall
Serial Number	22304850000001500307

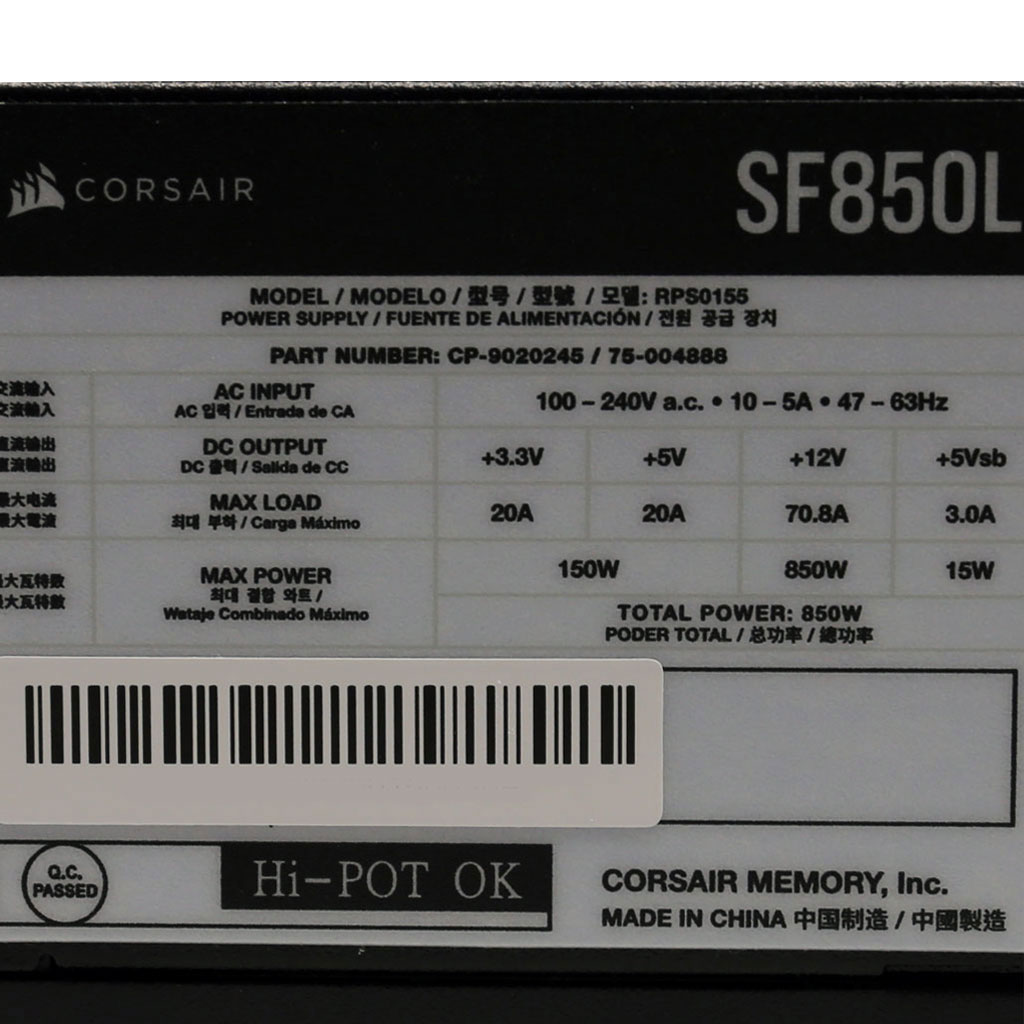

Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)	100-240
Rated Current (Arms)	10-5
Rated Frequency (Hz)	47-63
Rated Power (W)	850
Operating Temperature (Continuous Full Load) (°C)
Type	SFX-L
Cable Design	Fully Modular
Warranty	-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling	120mm Fluid Dynamic Bearing Fan (NR1215)
Semi-Passive Operation	✓
Cybenetics Testing Information
Lab ID	CR85002091
Date of receipt	Nov 11, 2022
Testing Date	Nov 22, 2022
Report Issued Date	Nov 23, 2022
Engineer Name	-
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (300mm)	1	1	16-20AWG	No
4+4 pin EPS12V (400mm)	2	2	16AWG	No
12+2 pin PCIe (410mm) (600W)	1	1	16-24AWG	No
6+2 pin PCIe (410mm)	2	2	16AWG	No
6+2 pin PCIe (400mm+100mm)	1	2	16-18AWG	No
SATA (110mm+115mm+115mm+115mm)	2	8	18AWG	No
4 pin Molex (100mm+110mm+110mm)	1	3	18AWG	No
AC Power Cord (1380mm) - C13 coupler	1	1	18AWG	-

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	70.8	3	0
Max. Power	Watts	150		850	15	0
Total Max. Power (W)		850

Parts Description

General Data

Manufacturer (OEM)

Great Wall

PCB Type

Double Sided

Primary Side

Transient Filter

4x Y caps, 2x X caps, 3x CM chokes, 1x MOV

Inrush Protection

1x NTC Thermistor SCK-056 (5 Ohm) & Relay

Bridge Rectifier(s)

2x Shindengen US30KB8R (800V, 10A @ 97°C)

APFC MOSFETs

1xVishay SiHG065N60E (600V, 25A @ 100°C, Rds(on): 0.065Ohm)

APFC Boost Diode

1x ROHM SCS310AH (650V, 10A @ 135°C)

Bulk Cap(s)

2x Rubycon (420V, 470uF & 330uF each or 800uf combined, 3,000h @ 105°C, MXK)

Main Switchers

2x On Semiconductor FCP104N60F (600V, 24A @ 100°C, Rds(on): 0.104Ohm)

Driver IC

1x NOVOSENSE NSi6602BD

APFC Controller

Champion CM6502UHHX

Resonant Controller

Champion CM6901X

Topology

Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters

Secondary Side

+12V MOSFETs

6x Infineon BSC014N04LS (40V, 125A @ 100°C, Rds(on): 1.4mOhm)

5V & 3.3V

DC-DC Converters: 4x Advanced Power AP4024GEMT (30V, 60A, Rds(on): 4.5mOhm)
PWM Controller(s): ANPEC APW7159C

Filtering Capacitors

Electrolytic: 2x Rubycon (3-6,000h @ 105°C, YXG), 2x Rubycon (4-10,000h @ 105°C, YXF),
Polymer: 9x NIC, 3x United Chemi-Con, 20x FPCAP, 4x Nichicon

Supervisor IC

IN1S429I-SCG (OCP,OVP, UVP, SCP, PG)

Fan Controller

Microchip PIC16F1824

Fan Model

Corsair NR1215 (120mm, 12V, 0.55A, Fluid Dynamic Bearing Fan)

5VSB Circuit

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	28-32 / 82.4-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.0 Compliance	✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)	90.577%
Average Noise Output (>1450 Load Combinations)	36.09dBA
Average PF (>1450 Load Combinations)	0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load	74.797%
Standby Power Consumption	0.0501W
Non-Accredited
12V Ripple (Full Load)	16.44mV
5V Ripple (Full Load)	11.99mV
3.3V Ripple (Full Load)	12.50mV
5VSB Ripple (Full Load)	12.56mV
12V Load Regulation	0.06%
5V Load Regulation	0.34%
3.3V Load Regulation	0.54%
5VSB Load Regulation	2.31%
Inrush Current	32.390A

Accredited
Average Efficiency (>1450 load combinations)	92.333%
Average Noise Output (>1450 Load Combinations)	35.92dBA
Average PF (>1450 Load Combinations)	0.951
Efficiency With 10W (≤500W) or 2% (>500W) Load	73.661%
Standby Power Consumption	0.0988W
Non-Accredited
12V Ripple (Full Load)	16.69mV
5V Ripple (Full Load)	12.73mV
3.3V Ripple (Full Load)	12.64mV
5VSB Ripple (Full Load)	9.63mV
12V Load Regulation	0.24%
5V Load Regulation	0.36%
3.3V Load Regulation	0.51%
5VSB Load Regulation	2.17%
Inrush Current	63.720A
12V Transient Response (200%)	11.62V
5V Transient Response (200%)	4.950V
3.3V Transient Response (200%)	3.239V
5VSB Transient Response (200%)	4.846V
Hold-Up Time & PWR_OK Signal	21.00ms
AC Loss to PWR_OK Hold Up Time	18.50ms
PWR_OK Inactive to DC Loss Delay	2.50ms
PSU Timings: T1 (20% / 100%)	47.0ms	39.0ms
PSU Timings: T3 (20% / 100%)	118.0ms	120.0ms
OPP (25.68°C / 45.14°C)	120.56%	119.49%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)	21
AC Loss to PWR_OK Hold Up Time (ms)	18.5
PWR_OK Inactive to DC Loss Delay (ms)	2.5

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	114.85 V	114.80 V	113.85 V	114.89 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.98 Hz	59.40 Hz	60.02 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.15 %	0.12 %	N/A	0.21 %	2.00 %	PASS
Real Power:	0.050 W	0.042 W	N/A	0.058 W	N/A	N/A
Apparent Power:	10.264 W	10.235 W	N/A	10.298 W	N/A	N/A
Power Factor:	0.005	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	229.88 V	229.82 V	227.70 V	229.94 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.417	1.490	PASS
Mains Voltage THD:	0.19 %	0.17 %	N/A	0.22 %	2.00 %	PASS
Real Power:	0.099 W	0.080 W	N/A	0.119 W	N/A	N/A
Apparent Power:	34.634 W	34.603 W	N/A	34.658 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs

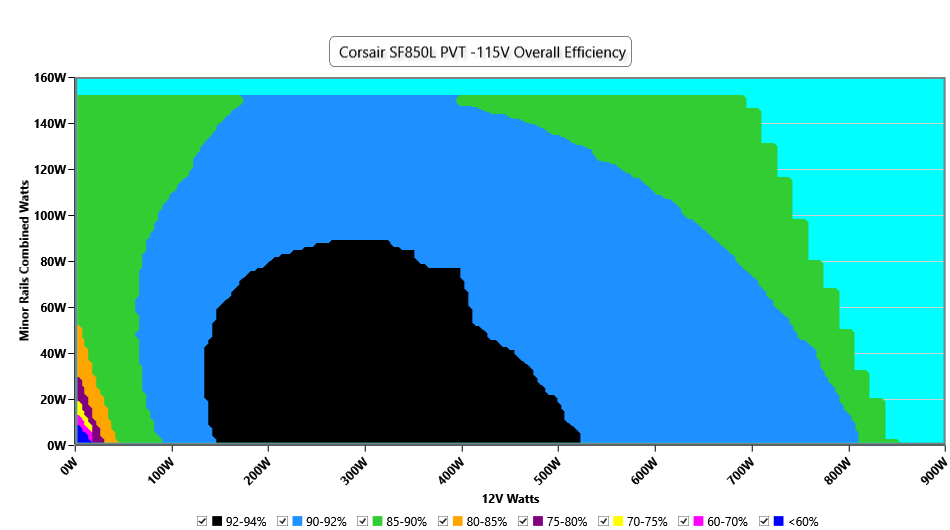

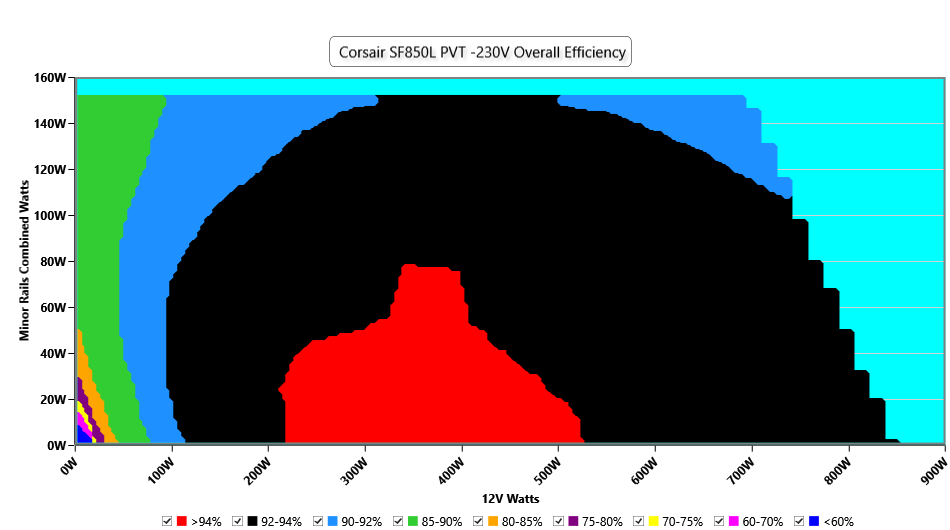

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

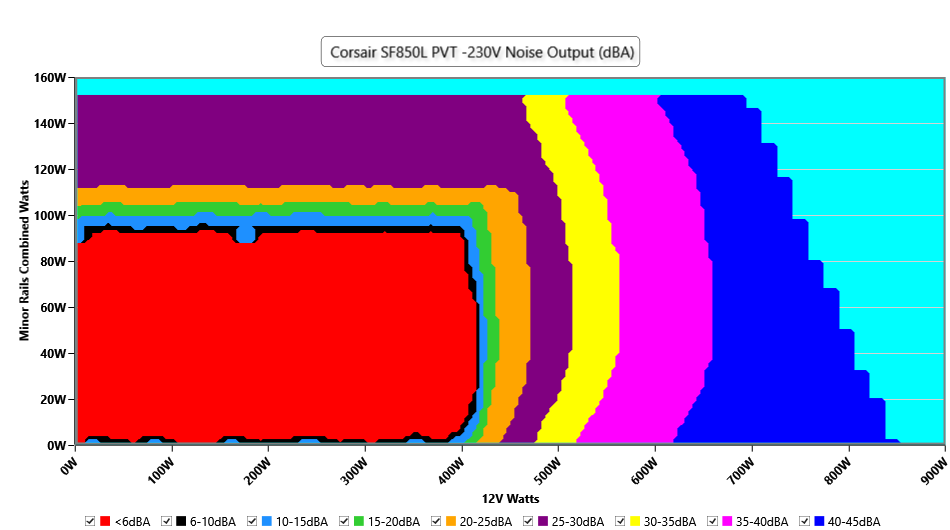

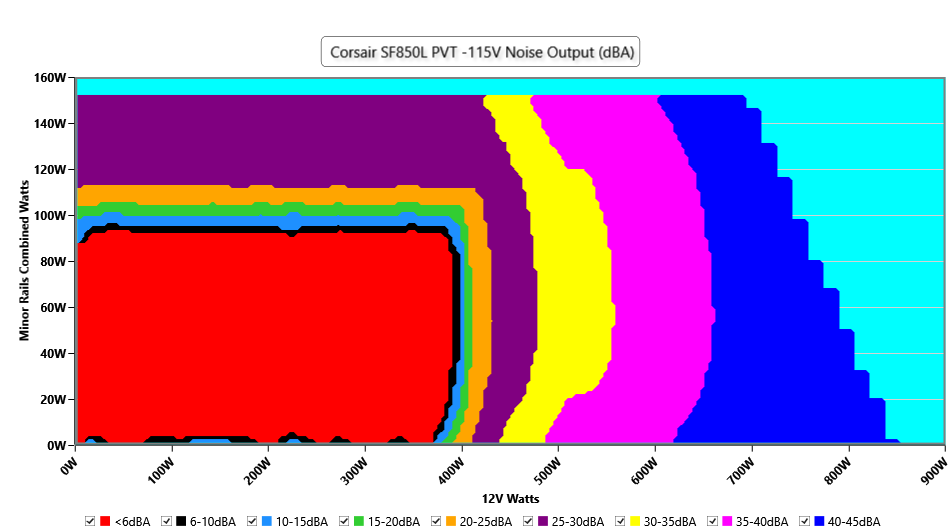

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

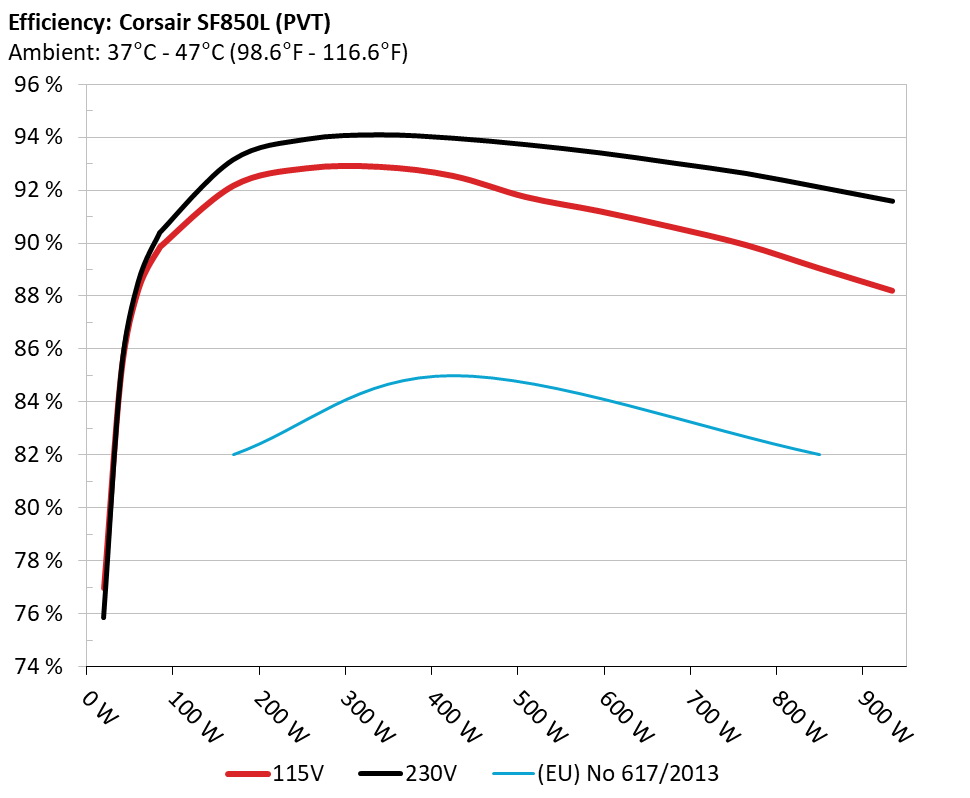

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

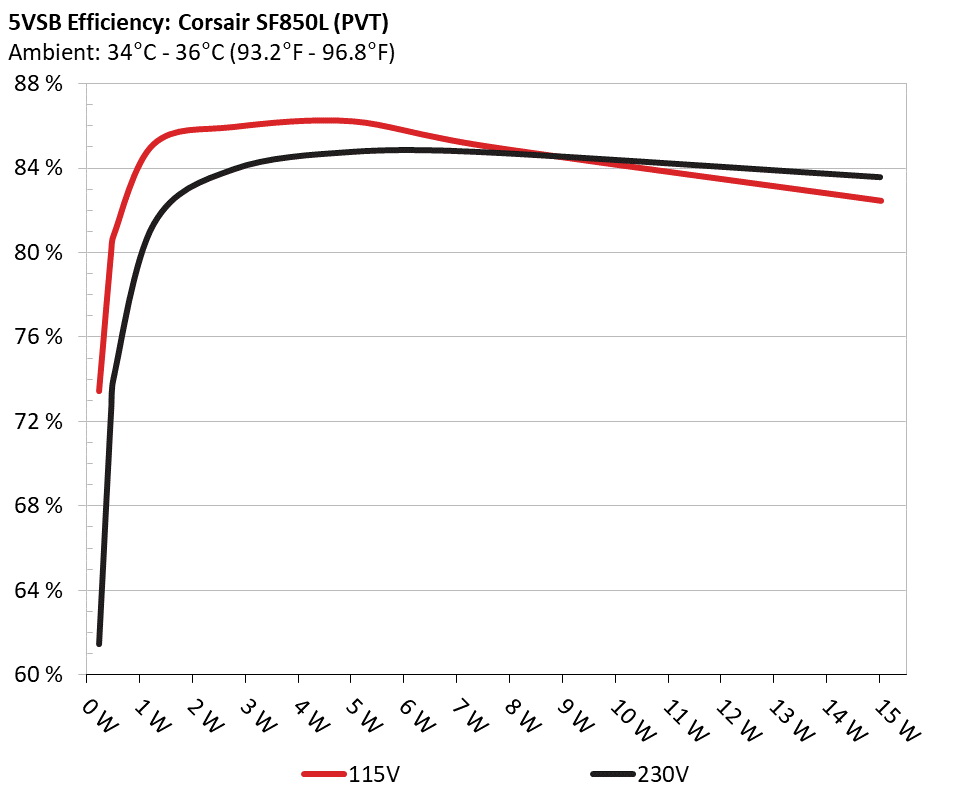

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.227W	72.957%	0.03
1	5.052V	0.311W	72.957%	114.86V
2	0.09A	0.454W	79.51%	0.055
2	5.051V	0.571W	79.51%	114.84V
3	0.55A	2.772W	85.476%	0.249
3	5.042V	3.243W	85.476%	114.84V
4	1A	5.035W	85.744%	0.338
4	5.036V	5.872W	85.744%	114.85V
5	1.5A	7.543W	84.567%	0.399
5	5.029V	8.92W	84.567%	114.84V
6	2.999A	15.023W	81.979%	0.475
6	5.01V	18.325W	81.979%	114.84V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.227W	60.945%	0.011
1	5.051V	0.373W	60.945%	229.89V
2	0.09A	0.454W	71.96%	0.018
2	5.05V	0.63W	71.96%	229.89V
3	0.55A	2.771W	83.458%	0.092
3	5.04V	3.32W	83.458%	229.89V
4	1A	5.029W	84.289%	0.156
4	5.029V	5.967W	84.289%	229.89V
5	1.5A	7.534W	84.263%	0.214
5	5.023V	8.941W	84.263%	229.88V
6	2.999A	14.999W	83.086%	0.317
6	5.001V	18.051W	83.086%	229.89V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.232A	1.986A	1.979A	0.996A	84.989	89.749%	0	<6.0	44.24°C	0.958
10%	12.115V	5.036V	3.335V	5.02V	94.693	89.749%	0	<6.0	39.89°C	114.83V
20%	11.476A	2.98A	2.97A	1.197A	169.919	92.165%	0	<6.0	44.83°C	0.97
20%	12.113V	5.034V	3.333V	5.011V	184.364	92.165%	0	<6.0	40.21°C	114.8V
30%	18.070A	3.477A	3.466A	1.399A	254.914	92.824%	0	<6.0	46.18°C	0.977
30%	12.112V	5.033V	3.332V	5.003V	274.62	92.824%	0	<6.0	41.08°C	114.79V
40%	24.669A	3.975A	3.964A	1.602A	339.987	92.878%	0	<6.0	47.15°C	0.984
40%	12.112V	5.032V	3.33V	4.994V	366.056	92.878%	0	<6.0	41.53°C	114.76V
50%	30.903A	4.972A	4.958A	1.805A	424.745	92.537%	783	20.2	42.25°C	0.988
50%	12.110V	5.029V	3.328V	4.985V	459.001	92.537%	783	20.2	48.25°C	114.74V
60%	37.102A	5.969A	5.953A	2A	509.214	91.741%	1250	35.1	42.81°C	0.99
60%	12.114V	5.026V	3.326V	4.975V	555.057	91.741%	1250	35.1	49.33°C	114.72V
70%	43.387A	6.968A	6.95A	2.215A	594.581	91.205%	1456	38.7	43.06°C	0.992
70%	12.112V	5.024V	3.324V	4.964V	651.914	91.205%	1456	38.7	50.13°C	114.69V
80%	49.670A	7.967A	7.943A	2.32A	679.404	90.601%	1747	43.3	43.42°C	0.993
80%	12.110V	5.022V	3.322V	4.956V	749.889	90.601%	1747	43.3	51.43°C	114.67V
90%	56.349A	8.464A	8.428A	2.425A	764.793	89.927%	1997	46.5	44.72°C	0.994
90%	12.109V	5.021V	3.321V	4.947V	850.46	89.927%	1997	46.5	53.97°C	114.64V
100%	62.764A	8.964A	8.945A	3.043A	849.618	89.05%	2265	49.2	45.55°C	0.995
100%	12.108V	5.019V	3.319V	4.928V	954.09	89.05%	2265	49.2	55.59°C	114.62V
110%	69.044A	9.962A	10.034A	3.048A	934.2	88.206%	2379	50.4	46.58°C	0.996
110%	12.107V	5.018V	3.317V	4.921V	1059.112	88.206%	2379	50.4	57.52°C	114.59V
CL1	0.114A	17.938A	17.918A	0A	151.27	85.297%	1309	35.8	42.76°C	0.971
CL1	12.118V	5.034V	3.325V	5.024V	177.342	85.297%	1309	35.8	48.28°C	114.8V
CL2	0.114A	19.838A	0A	0A	101.382	84.65%	1077	30.4	43.19°C	0.974
CL2	12.121V	5.041V	3.329V	5.036V	119.766	84.65%	1077	30.4	50.26°C	114.82V
CL3	0.114A	0A	19.794A	0A	67.363	81.52%	1307	35.7	44.04°C	0.953
CL3	12.117V	5.032V	3.334V	5.033V	82.632	81.52%	1307	35.7	52.07°C	114.83V
CL4	70.146A	0A	0A	0A	849.396	89.842%	2049	47.6	45.51°C	0.995
CL4	12.109V	5.022V	3.324V	4.992V	945.43	89.842%	2049	47.6	55.44°C	114.62V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.224A	1.986A	1.979A	0.996A	84.991	90.258%	0	<6.0	44.46°C	0.833
10%	12.134V	5.036V	3.335V	5.018V	94.168	90.258%	0	<6.0	40.16°C	229.88V
20%	11.467A	2.98A	2.97A	1.198A	169.936	93.131%	0	<6.0	45.17°C	0.919
20%	12.125V	5.034V	3.333V	5.01V	182.472	93.131%	0	<6.0	40.36°C	229.87V
30%	18.060A	3.477A	3.467A	1.4A	254.935	93.906%	0	<6.0	46.42°C	0.945
30%	12.120V	5.033V	3.332V	5.001V	271.479	93.906%	0	<6.0	41.2°C	229.87V
40%	24.660A	3.976A	3.964A	1.602A	340.013	94.073%	581	9.4	41.79°C	0.958
40%	12.117V	5.031V	3.33V	4.993V	361.44	94.073%	581	9.4	47.62°C	229.85V
50%	30.896A	4.973A	4.959A	1.806A	424.806	93.946%	877	23.7	42.68°C	0.964
50%	12.115V	5.028V	3.328V	4.984V	452.183	93.946%	877	23.7	48.86°C	229.84V
60%	37.109A	5.97A	5.954A	2A	509.267	93.704%	1134	31.5	42.86°C	0.969
60%	12.113V	5.026V	3.326V	4.975V	543.489	93.704%	1134	31.5	49.42°C	229.83V
70%	43.389A	6.968A	6.95A	2.214A	594.593	93.396%	1374	37.0	43.05°C	0.974
70%	12.111V	5.024V	3.324V	4.966V	636.643	93.396%	1374	37.0	50.19°C	229.82V
80%	49.665A	7.966A	7.941A	2.318A	679.333	93.013%	1666	42.0	43.88°C	0.977
80%	12.110V	5.022V	3.322V	4.959V	730.363	93.013%	1666	42.0	51.93°C	229.81V
90%	56.339A	8.462A	8.426A	2.423A	764.689	92.615%	1906	45.1	44.1°C	0.979
90%	12.109V	5.021V	3.321V	4.95V	825.663	92.615%	1906	45.1	53.12°C	229.8V
100%	62.755A	8.963A	8.942A	3.039A	849.503	92.098%	2143	48.5	45.36°C	0.981
100%	12.108V	5.019V	3.32V	4.933V	922.395	92.098%	2143	48.5	55.43°C	229.79V
110%	69.039A	9.961A	10.031A	3.044A	934.074	91.572%	2337	50.1	46.55°C	0.983
110%	12.107V	5.018V	3.318V	4.926V	1020.047	91.572%	2337	50.1	57.43°C	229.78V
CL1	0.114A	17.938A	17.915A	0A	151.256	86.409%	1166	32.5	42.58°C	0.916
CL1	12.128V	5.034V	3.326V	5.026V	175.047	86.409%	1166	32.5	48.05°C	229.87V
CL2	0.113A	19.84A	0A	0A	101.371	85.547%	1072	30.3	43.77°C	0.873
CL2	12.135V	5.04V	3.329V	5.037V	118.498	85.547%	1072	30.3	50.01°C	229.88V
CL3	0.113A	0A	19.793A	0A	67.355	82.127%	1299	35.6	44.9°C	0.809
CL3	12.134V	5.032V	3.334V	5.034V	82.01	82.127%	1299	35.6	52.16°C	229.88V
CL4	70.145A	0A	0A	0A	849.263	92.903%	1869	44.7	55.42°C	0.98
CL4	12.108V	5.021V	3.325V	4.996V	914.142	92.903%	1869	44.7	45.44°C	229.79V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.225A	0.496A	0.494A	0.198A	19.987	76.984%	0	<6.0	40.37°C	0.852
20W	12.113V	5.036V	3.337V	5.042V	25.964	76.984%	0	<6.0	37.23°C	114.85V
40W	2.698A	0.695A	0.692A	0.298A	39.987	85.121%	0	<6.0	41.06°C	0.923
40W	12.113V	5.036V	3.337V	5.038V	46.98	85.121%	0	<6.0	37.75°C	114.84V
60W	4.170A	0.893A	0.89A	0.397A	59.986	88.274%	0	<6.0	41.89°C	0.948
60W	12.114V	5.036V	3.337V	5.033V	67.954	88.274%	0	<6.0	38.11°C	114.83V
80W	5.638A	1.092A	1.088A	0.497A	79.935	89.863%	0	<6.0	43.44°C	0.953
80W	12.114V	5.036V	3.337V	5.029V	88.949	89.863%	0	<6.0	39.45°C	114.83V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.224A	0.496A	0.494A	0.198A	19.993	75.867%	0	<6.0	40.28°C	0.497
20W	12.129V	5.037V	3.337V	5.04V	26.354	75.867%	0	<6.0	37.18°C	229.89V
40W	2.693A	0.695A	0.692A	0.298A	39.991	85.046%	0	<6.0	40.99°C	0.66
40W	12.137V	5.037V	3.337V	5.036V	47.022	85.046%	0	<6.0	37.73°C	229.89V
60W	4.164A	0.893A	0.89A	0.397A	59.989	88.514%	0	<6.0	42.03°C	0.765
60W	12.134V	5.037V	3.337V	5.031V	67.774	88.514%	0	<6.0	38.57°C	229.89V
80W	5.631A	1.092A	1.088A	0.497A	79.946	90.386%	0	<6.0	43.31°C	0.822
80W	12.133V	5.037V	3.336V	5.027V	88.45	90.386%	0	<6.0	39.59°C	229.88V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	6.83mV	6.86mV	6.32mV	5.37mV	Pass
20% Load	26.99mV	14.08mV	7.43mV	30.05mV	Pass
30% Load	29.01mV	13.16mV	8.39mV	32.58mV	Pass
40% Load	33.62mV	15.14mV	7.64mV	33.65mV	Pass
50% Load	8.35mV	8.64mV	7.48mV	6.53mV	Pass
60% Load	31.14mV	16.16mV	9.76mV	35.32mV	Pass
70% Load	27.90mV	18.80mV	15.16mV	29.60mV	Pass
80% Load	33.27mV	18.60mV	19.16mV	32.74mV	Pass
90% Load	10.58mV	15.09mV	14.11mV	7.08mV	Pass
100% Load	16.44mV	11.99mV	12.50mV	12.56mV	Pass
110% Load	17.16mV	11.10mV	12.02mV	14.38mV	Pass
Crossload1	11.96mV	12.47mV	12.53mV	8.73mV	Pass
Crossload2	9.87mV	12.35mV	7.64mV	8.20mV	Pass
Crossload3	32.55mV	15.35mV	10.72mV	32.89mV	Pass
Crossload4	15.10mV	8.93mV	11.27mV	9.43mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	22.41mV	14.33mV	6.37mV	29.40mV	Pass
20% Load	22.58mV	17.69mV	6.88mV	37.24mV	Pass
30% Load	9.29mV	8.08mV	6.78mV	5.77mV	Pass
40% Load	8.28mV	9.10mV	7.18mV	6.07mV	Pass
50% Load	23.85mV	16.36mV	7.89mV	35.52mV	Pass
60% Load	30.33mV	17.84mV	10.62mV	37.14mV	Pass
70% Load	30.93mV	19.46mV	16.83mV	32.23mV	Pass
80% Load	28.76mV	17.94mV	19.11mV	30.81mV	Pass
90% Load	35.04mV	17.33mV	15.12mV	34.31mV	Pass
100% Load	16.69mV	12.73mV	12.64mV	9.63mV	Pass
110% Load	17.83mV	12.12mV	12.52mV	10.47mV	Pass
Crossload1	16.89mV	13.42mV	13.17mV	8.78mV	Pass
Crossload2	32.25mV	18.45mV	10.16mV	28.49mV	Pass
Crossload3	35.08mV	18.04mV	12.64mV	35.82mV	Pass
Crossload4	16.08mV	11.25mV	11.68mV	8.64mV	Pass

The results above are not used in the certification process

Corsair SF850L

Top side

Power specifications label

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics runs voluntary certification programs for power supplies - ETA for efficiency, LAMBDA for noise and SAFE for safety and correct operation - and for cooling products, with DELTA for chassis soundproofing and PHI for fan airflow and static pressure

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
