Blitzwolf BW-CP1 600W
Serial NumberBW2107B0675
Lab IDBW60002168
Certification ID252168
  • Test Result Report ID: 23PS2168A
  • Certificate Issue Date: Apr 11, 2023
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandBlitzwolf
Hersteller (OEM)
SeriesBW-CP1
Model Number
Serial NumberBW2107B0675
DUT Notes

DUT Specifications

Rated Voltage (Vrms)200-240
Rated Current (Arms)5
Rated Frequency (Hz)50-60
Rated Power (W)600
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Rifle Bearing Fan
(BOK BDH12025S)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020462.50.3
Watts12055212.53.6
Total Max. Power (W)600

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (520mm) 1 1 18-22AWG No
4+4 pin EPS12V (700mm+100mm) 1 2 18AWG No
6+2 pin PCIe (530mm+150mm) 1 2 18AWG No
SATA (500mm+150mm) / 4-pin Molex (+150mm) 2 4 18AWG No
Modular Cables
AC Power Cord (1340mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) no info
PCB Type Single Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes
Inrush Protection -
Bridge Rectifier(s) 1x  GBU1006 (without heat sink) (600V, 10A @ 100°C)
APFC MOSFETs 1x Maplesemi SLF20N50S (500V, 13A @ 100°C, Rds(on): 0.27Ohm)
APFC Boost Diode 1x Diodes Inc LTTH806RFW (600V, 8A @ 125°C)
Bulk Cap(s) 1x Ltec (420V, 270uF, 2,000h @ 85°C, LP)
Main Switchers 2x Maplesemi SLF16N50C (500V, 9.6A @ 100°C, Rds(on): 0.366Ohm)
PFC / PWM Combo Controller OnSemiconductor FAN4800A
Topology Primary side: APFC, Double Forward
Secondary side: Semi - Synchronous Rectification
Secondary Side -
+12V MOSFETs 2x PSM40U60YCT
5V & 3.3V 1x Vishay MBR3045CT SBR (45V, 30A) &
1x SBT30V45CT (45V, 40A)
Filtering Capacitors Electrolytic: 3x Jicon (2,000h @ 105°C, ZC), 4x Chengx (2-4,000h @ 105°C, GR), 3x Nicon (2-3,000h @ 105°C, KME)
Supervisor IC XF295M
Fan Model BOK BDH12025S (120mm, 12V, 0.30A, Rifle Bearing Fan)
5VSB Circuit -
Standby PWM Controller Power Integrations TNY286PG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 230V

Wirkungsgrad
LautstärkeklasseStandard
Average Efficiency (>1450 load combinations)83.088%
Average Noise Output (>1450 Load Combinations)42.96dBA
Average PF (>1450 Load Combinations)0.908
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1491W
12V Ripple (Full Load)80.04mV
5V Ripple (Full Load)26.01mV
3.3V Ripple (Full Load)31.14mV
5VSB Ripple (Full Load)42.65mV
12V Load Regulation3.22%
5V Load Regulation2.66%
3.3V Load Regulation3.67%
5VSB Load Regulation3.89%
Inrush Current84.340A
Hold-Up Time & Power Ok Signal13.60ms
AC Loss to PWR_OK Hold Up Time10.00ms
PWR_OK Inactive to DC Loss Delay3.60ms
PSU Timings: T1 (20% / 100%)55.0ms49.0ms
PSU Timings: T3 (20% / 100%)246.0ms242.0ms
OPP (24.78°C / 0.00°C)127.62%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)13.6
AC Loss to PWR_OK Hold Up Time (ms)10
PWR_OK Inactive to DC Loss Delay (ms)3.6

Stromverbrauch im Ruhezustand

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.23 V 230.08 V 227.70 V 230.28 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.23 % 2.00 % PASS
Real Power: 0.149 W 0.128 W N/A 0.193 W N/A N/A
Apparent Power: 21.658 W 21.519 W N/A 21.782 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A

Graphs 230V

Efficiency Graph

230V

INFO

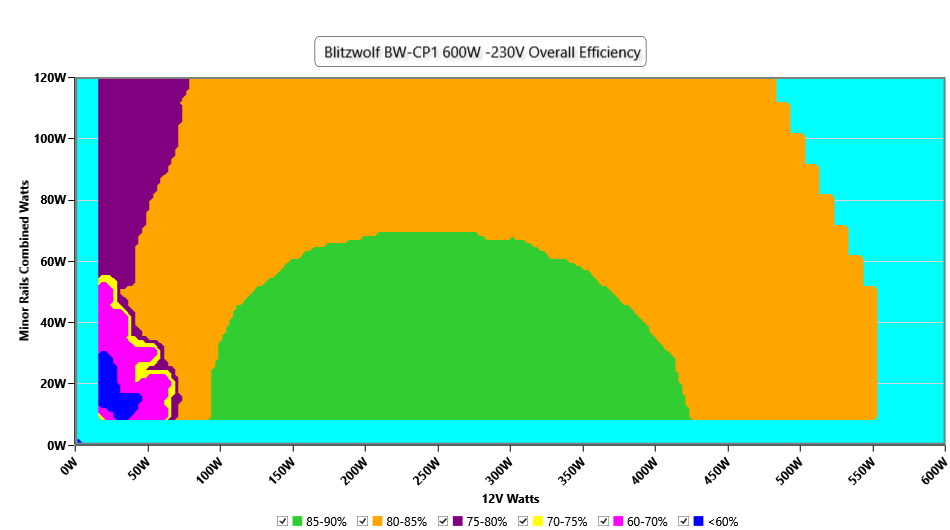

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

230V

INFO

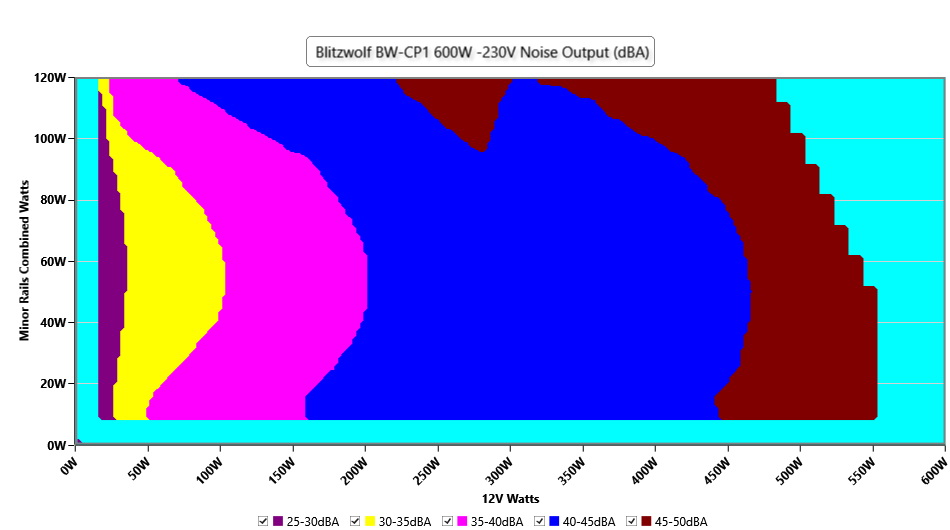

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

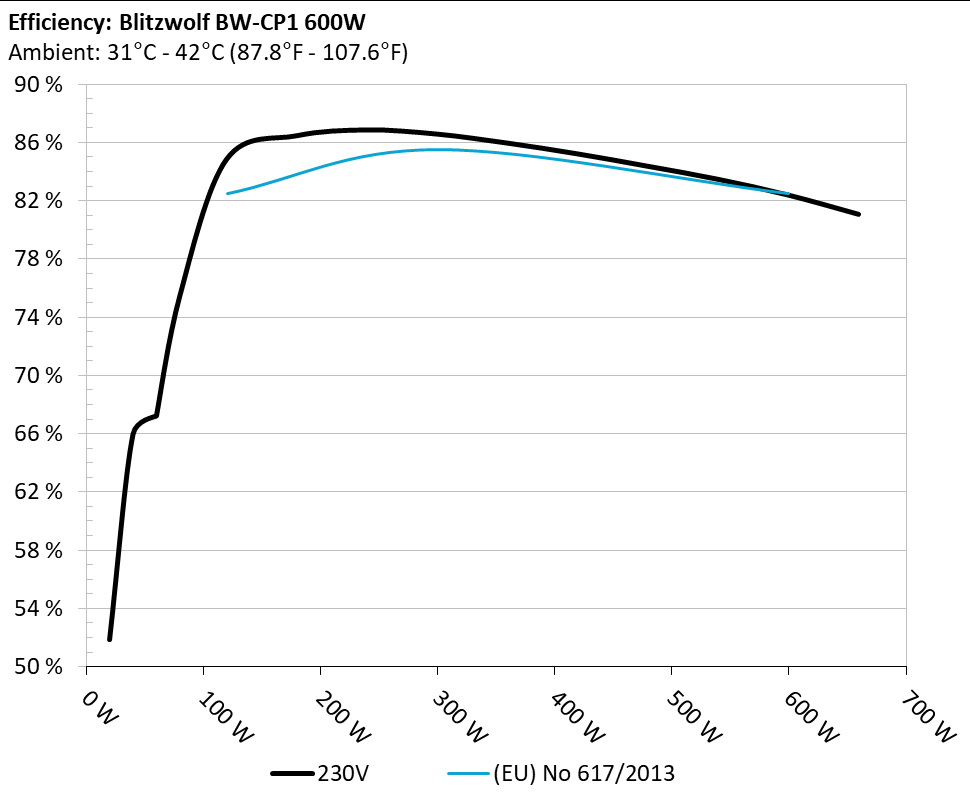

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

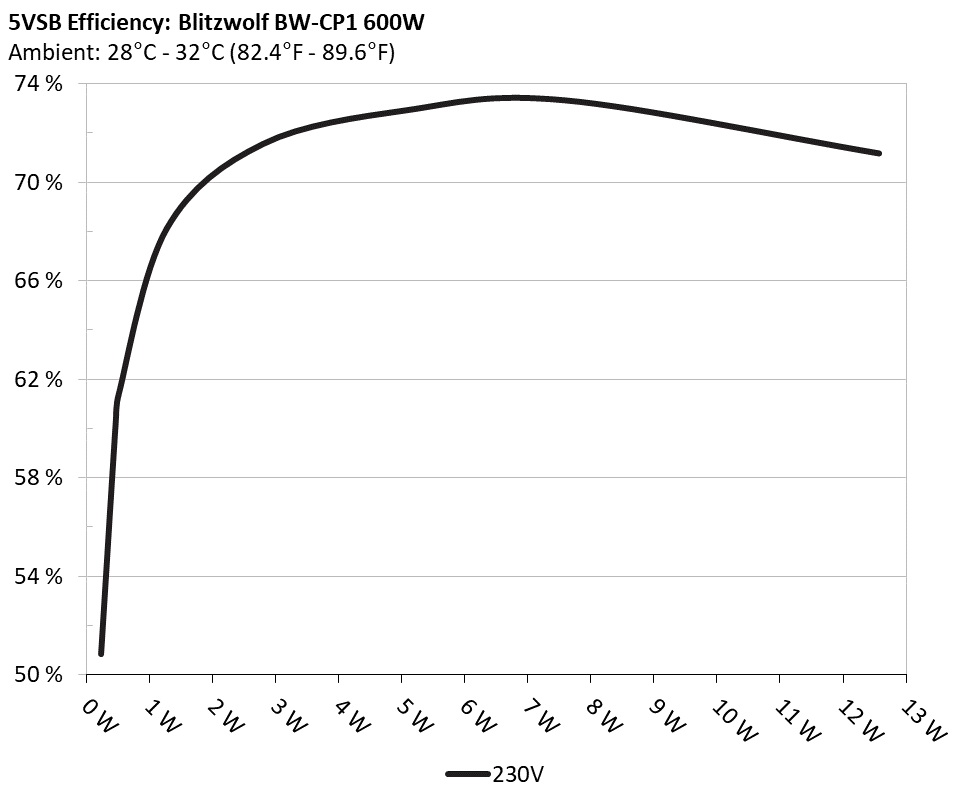

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 50.837% 0.021
5.109V 0.453W 230.21V
2 0.09A 0.459W 60.106% 0.035
5.107V 0.764W 230.21V
3 0.55A 2.8W 71.55% 0.154
5.092V 3.915W 230.21V
4 1A 5.078W 72.922% 0.216
5.079V 6.961W 230.21V
5 1.5A 7.594W 73.323% 0.255
5.063V 10.357W 230.21V
6 2.499A 12.574W 71.167% 0.297
5.031V 17.671W 230.21V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.136A 1.988A 1.984A 0.986A 59.976 66.353% 1655 38.3 34.57°C 0.638
12.237V 5.03V 3.325V 5.069V 74.534 38.58°C 230.22V
20% 7.296A 2.991A 2.986A 1.188A 119.885 84.356% 2019 43.9 34.96°C 0.805
12.200V 5.014V 3.315V 5.051V 142.118 39.22°C 230.21V
30% 11.837A 3.493A 3.495A 1.39A 179.91 85.966% 2029 43.8 35.52°C 0.858
12.154V 5.009V 3.304V 5.034V 209.279 40.28°C 230.2V
40% 16.412A 3.996A 4.008A 1.594A 239.939 86.364% 2039 44 35.87°C 0.891
12.110V 5.005V 3.293V 5.017V 277.821 40.91°C 230.2V
50% 20.641A 5.01A 5.028A 1.8A 299.879 86.075% 2216 45.9 36.46°C 0.913
12.082V 4.989V 3.281V 4.999V 348.398 41.94°C 230.19V
60% 24.922A 6.033A 6.056A 2A 359.863 85.456% 2331 47.1 37.07°C 0.929
12.041V 4.973V 3.269V 4.98V 421.104 43.15°C 230.18V
70% 29.137A 7.059A 7.093A 2.216A 419.141 84.726% 2376 47.4 38.88°C 0.939
12.014V 4.959V 3.256V 4.96V 494.707 45.93°C 230.17V
80% 33.503A 8.087A 8.134A 2.325A 479.11 83.875% 2384 47.4 38.78°C 0.946
11.977V 4.944V 3.243V 4.944V 571.228 46.86°C 230.16V
90% 38.301A 8.6A 8.658A 2.433A 538.925 82.984% 2382 47.4 39.35°C 0.952
11.918V 4.94V 3.232V 4.929V 649.431 48.38°C 230.15V
100% 43.227A 9.116A 9.219A 2.543A 599.62 81.89% 2380 47.4 40.34°C 0.957
11.855V 4.934V 3.219V 4.912V 732.214 50.43°C 230.15V
110% 47.702A 10.168A 10.382A 2.552A 659.464 80.572% 2383 47.4 42.04°C 0.961
11.817V 4.916V 3.206V 4.896V 818.472 53.01°C 230.13V
CL1 1.894A 15.116A 14.537A 0.496A 146.358 76.183% 2442 48.3 39.06°C 0.845
12.662V 4.776V 3.28V 5.039V 192.118 44.53°C 230.21V
CL2 1.874A 20.391A 1.002A 0.494A 126.472 78.827% 2177 45.5 35.52°C 0.82
12.799V 4.742V 3.293V 5.057V 160.45 42.54°C 230.21V
CL3 1.962A 1A 18.47A 0.494A 92.462 70.858% 2117 44.8 34.71°C 0.794
12.220V 5.003V 3.302V 5.056V 130.493 43.75°C 230.21V
CL4 51.421A 0.977A 1.018A 0.5A 599.205 82.311% 2310 47 41.49°C 0.957
11.443V 5.119V 3.242V 4.996V 728.001 52.39°C 230.15V

The results above are not used in the certification process

Light Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.216A 0.493A 0.494A 0.196A 19.974 51.377% 1158 28.3 30.61°C 0.408
12.198V 5.065V 3.337V 5.103V 29.638 33.65°C 230.22V
40W 2.682A 0.691A 0.693A 0.294A 39.976 65.479% 1216 30 31.66°C 0.551
12.180V 5.063V 3.333V 5.096V 51.787 34.99°C 230.22V
60W 4.154A 0.889A 0.891A 0.393A 59.975 66.737% 1473 35.3 32.75°C 0.645
12.160V 5.059V 3.33V 5.09V 75.501 36.22°C 230.22V
80W 5.618A 1.087A 1.091A 0.491A 79.9 74.957% 1427 34.1 33.45°C 0.695
12.152V 5.056V 3.326V 5.083V 94.928 37.23°C 230.22V

The results above are not used in the certification process

Ripple Measurements 230V

Test12V5V3.3V5VSBPass/Fail
10% Load18.12mV5.84mV15.67mV26.92mVPass
20% Load21.47mV15.91mV14.71mV26.77mVPass
30% Load34.28mV17.13mV20.17mV25.45mVPass
40% Load40.25mV17.08mV16.53mV23.02mVPass
50% Load26.53mV8.03mV18.91mV24.29mVPass
60% Load49.11mV21.14mV18.85mV21.00mVPass
70% Load45.11mV20.53mV21.49mV27.98mVPass
80% Load57.16mV25.15mV23.76mV28.79mVPass
90% Load55.34mV23.48mV26.24mV32.44mVPass
100% Load80.04mV26.01mV31.14mV42.65mVPass
110% Load99.35mV31.28mV33.38mV51.43mVPass
Crossload129.23mV25.48mV21.87mV21.83mVPass
Crossload220.35mV23.43mV12.49mV21.56mVPass
Crossload333.87mV16.87mV23.36mV21.10mVPass
Crossload494.04mV22.46mV34.64mV48.97mVPass

The results above are not used in the certification process

Blitzwolf BW-CP1 600W

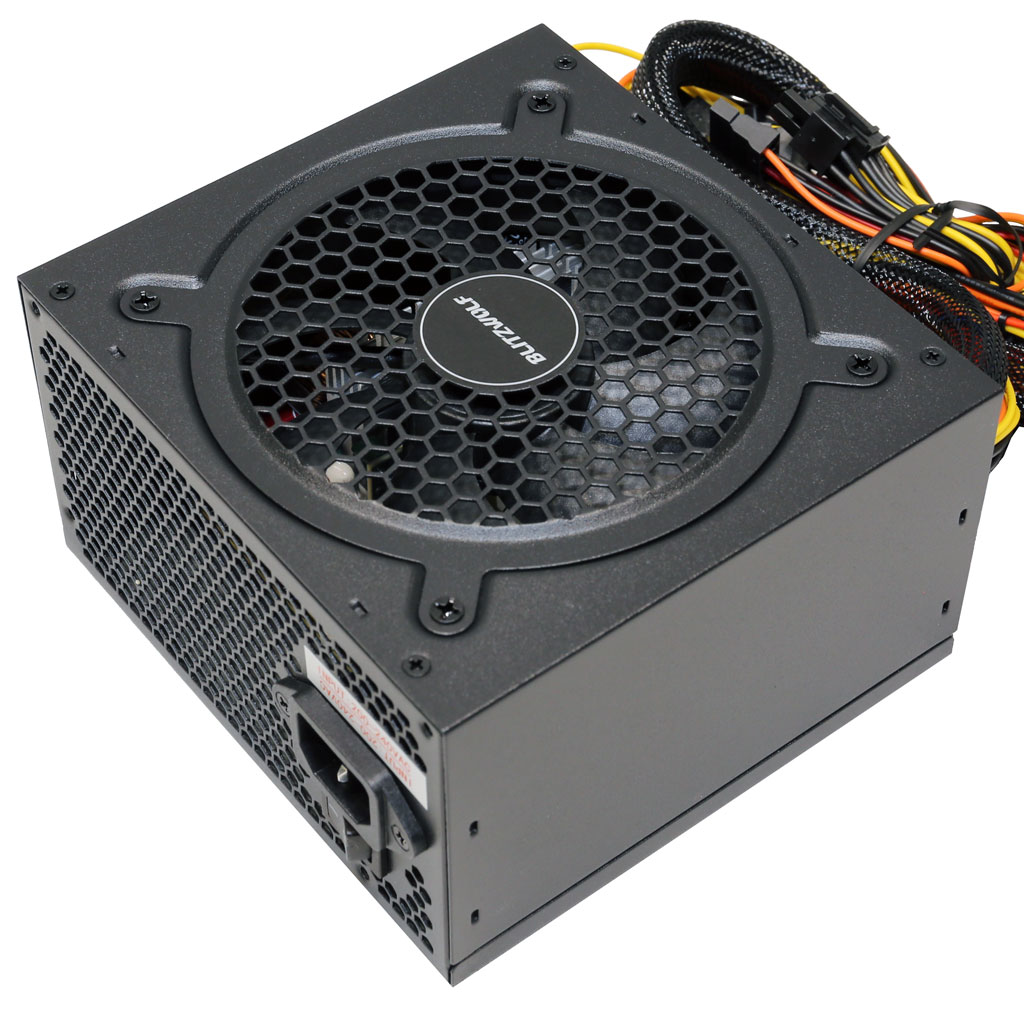

Top side

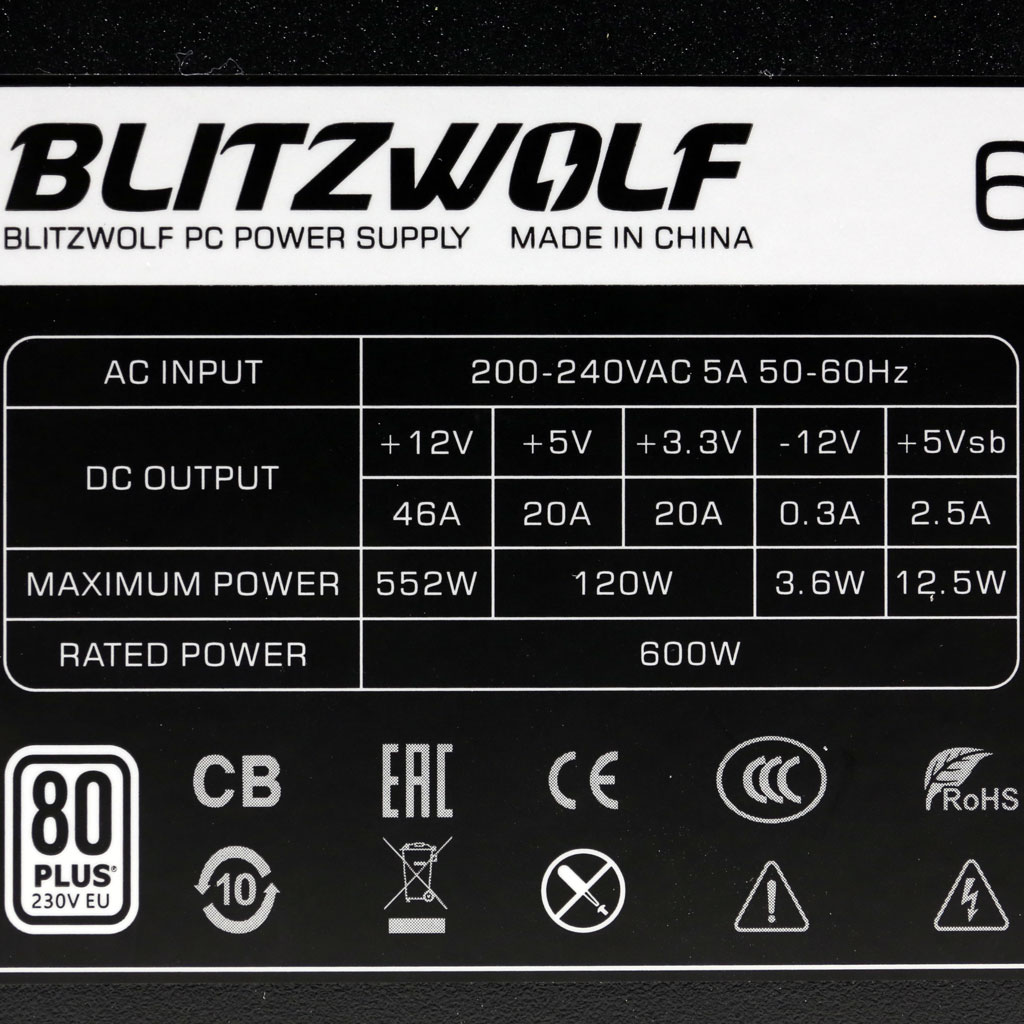

Power specifications label
