Cybenetics Test - Gamer Storm PX1300P

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

Gamer Storm PX1300P

Serial Number2023000002

Lab IDGA13002177

Certification ID252177

Test Result Report ID: 23PS2177A
Certificate Issue Date: Sep 15, 2024

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	Gamer Storm
Manufacturer (OEM)	CWT
Series	PXP
Model Number	PXD00P-FC
Serial Number	2023000002
DUT Notes

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	15-7.5
Rated Frequency (Hz)	50-60
Rated Power (W)	1300
Type	ATX12V
Dimensions (W x H x D)
Cooling	120mm Fluid Dynamic Bearing Fan (HA1225H12SF-Z)
Semi-Passive Operation	✓ (selectable)
Cable Design	Fully Modular

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	25	25	108.3	3	0.3
Max. Power	Watts	130		1300	15	3.6
Total Max. Power (W)		1300

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 63640-80-80 x10 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P
Power Analyzers	RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes	Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A, Keithley 2015 - THD
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer	4kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (600mm)	1	1	16AWG	No
4+4 pin EPS12V (700mm)	2	2	16AWG	No
6+2 pin PCIe (650mm)	5	5	16AWG	No
2x 8 pin connector to 12+2 pin PCIe (650mm) (600W)	1	1	16-24AWG	No
12+4 pin PCIe (650mm) (600W)	1	1	16-24AWG	No
SATA (500mm+150mm+150mm+150mm)	2	8	18AWG	No
4-pin Molex (500mm+150mm+150mm+150mm)	1	4	18AWG	No

Parts Description

General Data	-
Manufacturer (OEM)	CWT
Platform	CTT
PCB Type	Double Sided
Primary Side	-
Transient Filter	6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor SCK-0510 (5 Ohm) & Relay
Bridge Rectifier(s)	2x GBJ2506 (600V, 25A @ 100°C)
APFC MOSFETs	2x Infineon IPA60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm) & 1x SYNC Power SPN5003 (to reduce no load consumption)
APFC Boost Diode	2x CREE C3D10060A (600V, 10A @ 153°C)
Bulk Cap(s)	2x Rubycon (420V, 680uF each or 1360uF, 2,000h @ 105°C, MXE)
Main Switchers	4x Alpha & Omega AOTF29S50 (500V, 18A @ 100°C, Rds(on): 0.15Ohm)
IC Drivers	2x Novosense NSi6602 & 1x Infineon 2EDN752x
Digital APFC Controller	Texas Instruments UCD3138RMH
Digital Resonant Controller	Texas Instruments UCD3138A
Topology	Primary side: Semi-Digital, Interleaved PFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side	-
+12V MOSFETs	8x Infineon BSC014N06NS (60V, 152A @ 100°C, Rds(on): 1.45mOhm)
5V & 3.3V	DC-DC Converters: 3x UBIQ QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm) & 2x UBIQ QM3054M6 (30V, 61A @ 100°C, Rds(on): 4.8mOhm) PWM Controller(s): uPIsemi uP3861P
Filtering Capacitors	Electrolytic: 6x Nippon Chemi-Con (105°C, W), 2x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 1x Rubycon (4-10,000h @ 105°C, YXJ), 3x Rubycon (4-10,000h @ 105°C, YXF), 1x Nichicon (4-10,000h @ 105°C, HE) Polymer: 6x Nippon Chemi-Con, 25x FPCAP, 6x NIC
Supervisor IC	Weltrend WT7502R (OVP, UVP, SCP, PG)
Fan Model	Hong Hua HA1225H12SF-Z (120mm, 12V, 0.58A, Fluid Dynamic Bearing Fan)
5VSB Circuit	-
Rectifier(s)	1x PS1045L SBR (45V, 10A) & 1x UBIQ QM3016D FET (30V, 68A @ 100°C, Rds(on): 4mOhm)
Standby PWM Controller	On Bright OB2365T

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.0 Compliance	✓

Performance Summary 115V

Efficiency Rating	PLATINUM
Noise Rating	Standard+
Average Efficiency (>1450 load combinations)	89.880%
Average Noise Output (>1450 Load Combinations)	37.91dBA
Average PF (>1450 Load Combinations)	0.986
Efficiency With 10W (≤500W) or 2% (>500W) Load	69.168%
Standby Power Consumption	0.0228W
12V Ripple (Full Load)	24.16mV
5V Ripple (Full Load)	9.69mV
3.3V Ripple (Full Load)	12.93mV
5VSB Ripple (Full Load)	10.45mV
12V Load Regulation	0.94%
5V Load Regulation	1.02%
3.3V Load Regulation	0.49%
5VSB Load Regulation	1.65%
Inrush Current	33.130A

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	25.5
AC Loss to PWR_OK Hold Up Time (ms)	17.4
PWR_OK Inactive to DC Loss Delay (ms)	8.1

Vampire Power

Tables 115V

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.13 V	115.12 V	113.85 V	115.16 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.415	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.13 %	0.11 %	N/A	0.15 %	2.00 %	PASS
Real Power:	0.023 W	0.020 W	N/A	0.025 W	N/A	N/A
Apparent Power:	12.508 W	12.504 W	N/A	12.512 W	N/A	N/A
Power Factor:	0.002	N/A	N/A	N/A	N/A	N/A

Graphs 115V

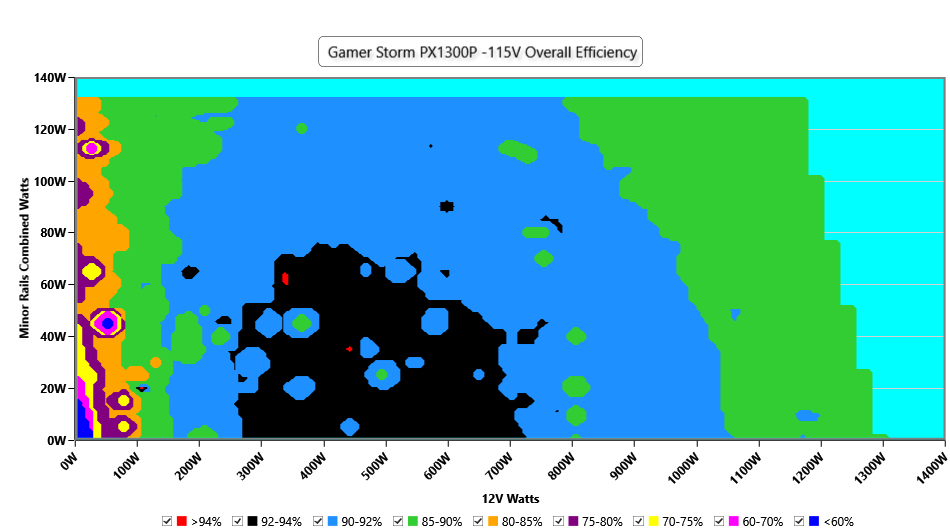

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

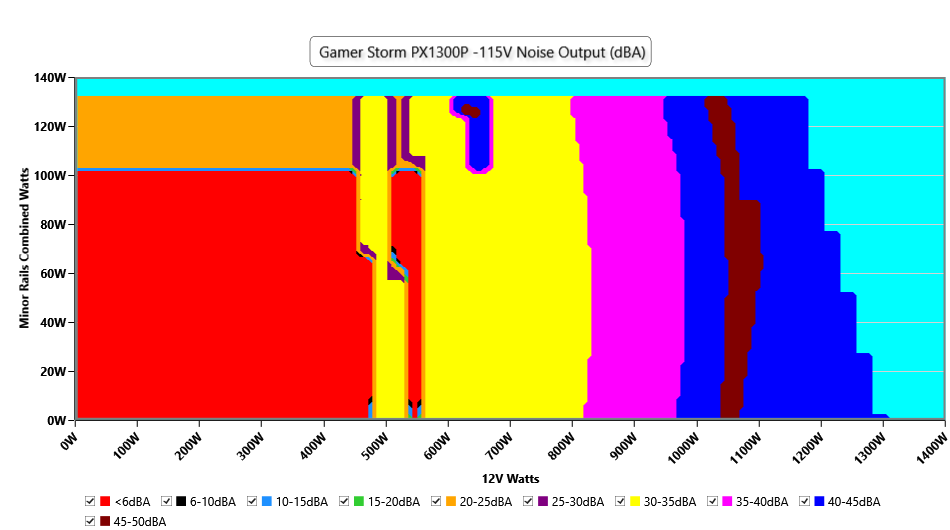

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

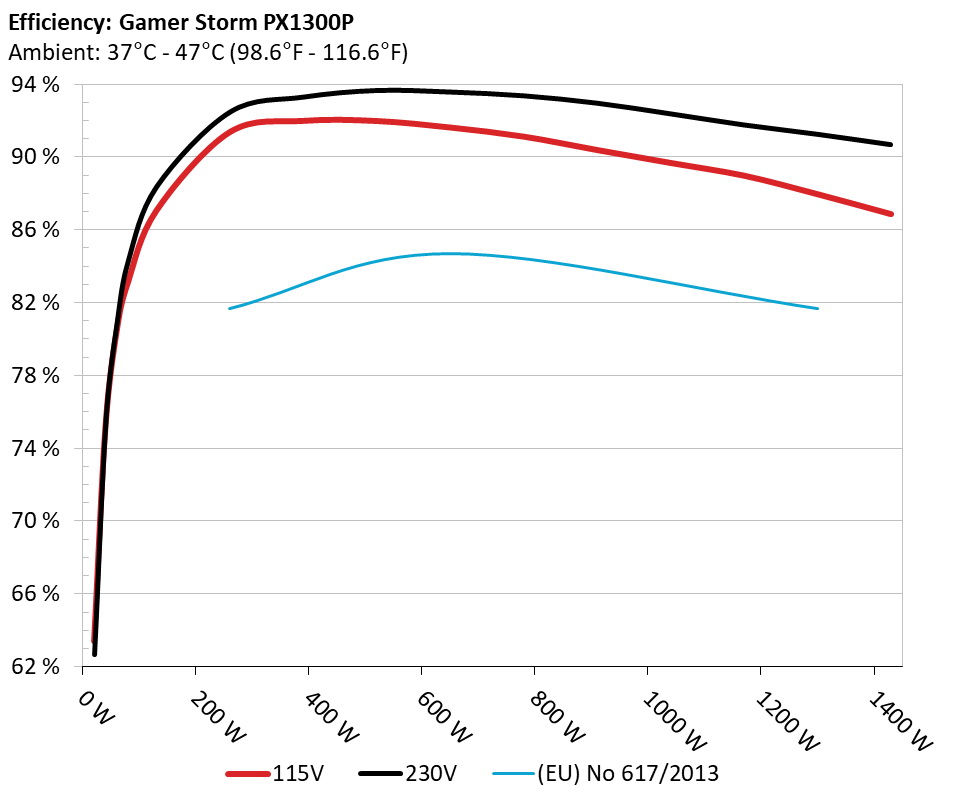

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

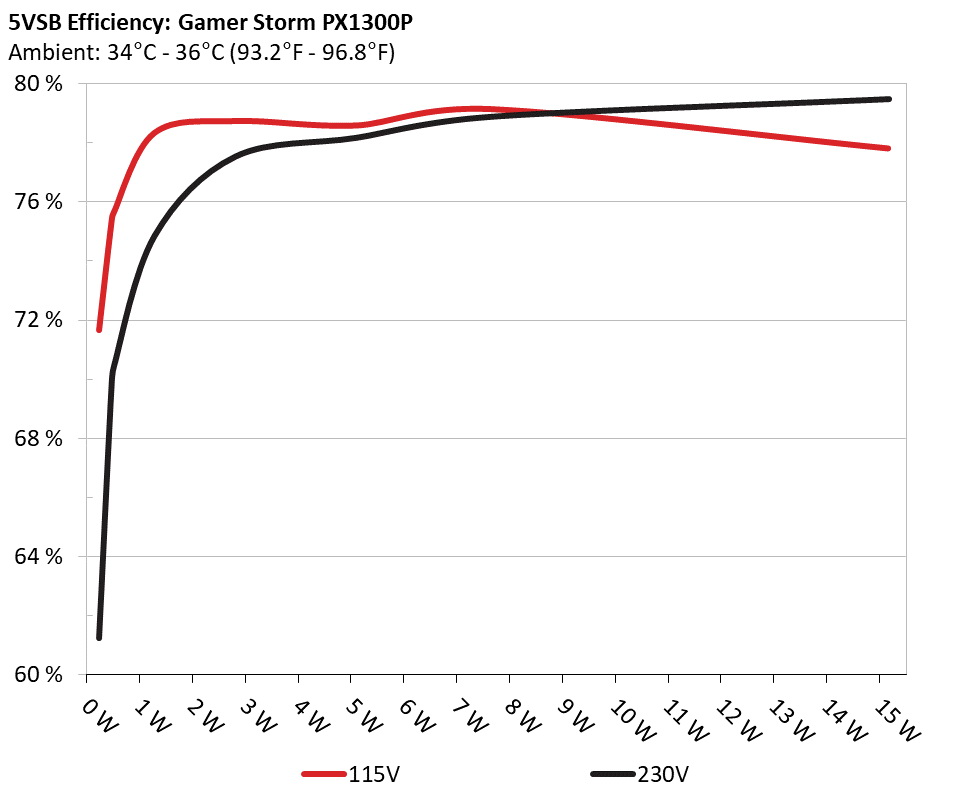

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	71.681%	0.026
1	5.113V	0.321W	71.681%	115.16V
2	0.09A	0.46W	75.27%	0.048
2	5.112V	0.611W	75.27%	115.16V
3	0.55A	2.807W	78.748%	0.235
3	5.102V	3.564W	78.748%	115.16V
4	1A	5.095W	78.596%	0.339
4	5.093V	6.482W	78.596%	115.16V
5	1.5A	7.627W	79.153%	0.398
5	5.084V	9.636W	79.153%	115.16V
6	3A	15.167W	77.822%	0.479
6	5.055V	19.49W	77.822%	115.14V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	8.964A	1.983A	2.001A	0.994A	130.024	87.356%	0	<6.0	44.16°C	0.979
10%	12.095V	5.046V	3.299V	5.034V	147.366	87.356%	0	<6.0	40.15°C	115.13V
20%	18.964A	2.976A	3.002A	1.193A	259.999	91.676%	0	<6.0	45.23°C	0.993
20%	12.080V	5.042V	3.298V	5.029V	283.671	91.676%	0	<6.0	40.94°C	115.1V
30%	29.300A	3.475A	3.504A	1.395A	389.728	92.294%	1197	30.3	41.01°C	0.996
30%	12.071V	5.037V	3.297V	5.021V	422.296	92.294%	1197	30.3	45.72°C	115.06V
40%	39.662A	3.978A	4.009A	1.597A	519.753	92.289%	1199	30.5	41.57°C	0.997
40%	12.065V	5.029V	3.293V	5.011V	563.108	92.289%	1199	30.5	46.65°C	115.03V
50%	49.731A	4.975A	5.01A	1.798A	649.905	91.93%	1216	31	42.47°C	0.998
50%	12.053V	5.027V	3.294V	5.008V	706.873	91.93%	1216	31	48.01°C	115V
60%	59.810A	5.972A	6.013A	1.999A	779.997	91.428%	1539	37.1	42.99°C	0.998
60%	12.041V	5.025V	3.294V	5.004V	853.742	91.428%	1539	37.1	48.99°C	114.96V
70%	69.910A	6.972A	7.016A	2.201A	910.035	90.691%	1823	41.9	43.48°C	0.998
70%	12.029V	5.022V	3.293V	4.999V	1003.438	90.691%	1823	41.9	50.54°C	114.91V
80%	80.032A	7.972A	8.017A	2.304A	1039.603	89.982%	2044	44.5	44.44°C	0.999
80%	12.017V	5.017V	3.292V	4.993V	1155.333	89.982%	2044	44.5	52.47°C	114.88V
90%	90.592A	8.475A	8.505A	2.405A	1169.855	89.281%	2047	44.6	45.33°C	0.999
90%	12.003V	5.014V	3.291V	4.99V	1310.222	89.281%	2047	44.6	54.34°C	114.85V
100%	100.930A	8.979A	9.022A	3.013A	1299.507	88.265%	2047	44.6	45.16°C	0.999
100%	11.987V	5.011V	3.291V	4.979V	1472.204	88.265%	2047	44.6	55.25°C	114.99V
110%	111.220A	9.986A	10.12A	3.015A	1429.705	87.17%	2047	44.6	46.54°C	0.999
110%	11.971V	5.007V	3.289V	4.976V	1640.147	87.17%	2047	44.6	57.45°C	114.84V
CL1	0.116A	15.517A	15.642A	0A	131.279	80.049%	1607	38	43.07°C	0.88
CL1	12.082V	5.045V	3.298V	5.065V	163.407	80.049%	1607	38	48.58°C	115.14V
CL2	0.115A	24.686A	0A	0A	126.381	81.362%	1201	30.5	41.34°C	0.943
CL2	12.097V	5.063V	3.301V	5.104V	156.226	81.362%	1201	30.5	48.37°C	115.13V
CL3	0.115A	0A	24.909A	0A	83.876	73.718%	1196	30.3	40.04°C	0.774
CL3	12.089V	5.055V	3.311V	5.046V	114.304	73.718%	1196	30.3	49.21°C	115.15V
CL4	108.451A	0A	0A	0A	1300.209	88.223%	2046	44.6	45.2°C	0.999
CL4	11.989V	5.029V	3.303V	5.037V	1473.775	88.223%	2046	44.6	56.15°C	114.81V

The results above are not used in the certification process

Light Load Tests 115V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.228A	0.494A	0.499A	0.198A	19.999	63.701%	0	<6.0	40.47°C	0.699
20W	12.100V	5.062V	3.307V	5.061V	31.53	63.701%	0	<6.0	37.37°C	115.16V
40W	2.702A	0.692A	0.699A	0.297A	39.997	75.441%	0	<6.0	40.75°C	0.744
40W	12.097V	5.056V	3.305V	5.054V	53.146	75.441%	0	<6.0	37.44°C	115.15V
60W	4.177A	0.892A	0.9A	0.397A	59.996	80.769%	0	<6.0	42.27°C	0.759
60W	12.096V	5.048V	3.301V	5.045V	74.24	80.769%	0	<6.0	38.48°C	115.15V
80W	5.650A	1.09A	1.1A	0.496A	79.965	83.429%	0	<6.0	43.73°C	0.776
80W	12.095V	5.047V	3.3V	5.042V	95.482	83.429%	0	<6.0	39.76°C	115.16V

The results above are not used in the certification process

Ripple Measurements 115V

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	12.56mV	6.19mV	6.30mV	6.27mV	Pass
20% Load	11.85mV	8.08mV	5.58mV	8.92mV	Pass
30% Load	12.62mV	5.98mV	5.22mV	6.88mV	Pass
40% Load	14.66mV	6.19mV	6.19mV	7.29mV	Pass
50% Load	16.91mV	6.44mV	7.22mV	7.60mV	Pass
60% Load	16.34mV	7.16mV	8.70mV	7.75mV	Pass
70% Load	17.21mV	7.77mV	7.11mV	8.46mV	Pass
80% Load	20.43mV	8.59mV	12.23mV	9.58mV	Pass
90% Load	20.63mV	9.46mV	12.74mV	10.71mV	Pass
100% Load	24.16mV	9.69mV	12.93mV	10.45mV	Pass
110% Load	26.54mV	11.47mV	15.60mV	12.24mV	Pass
Crossload1	13.35mV	7.89mV	12.61mV	7.84mV	Pass
Crossload2	12.41mV	9.67mV	6.91mV	8.16mV	Pass
Crossload3	12.67mV	7.06mV	15.51mV	7.60mV	Pass
Crossload4	24.24mV	7.88mV	8.39mV	8.20mV	Pass

The results above are not used in the certification process

Gamer Storm PX1300P

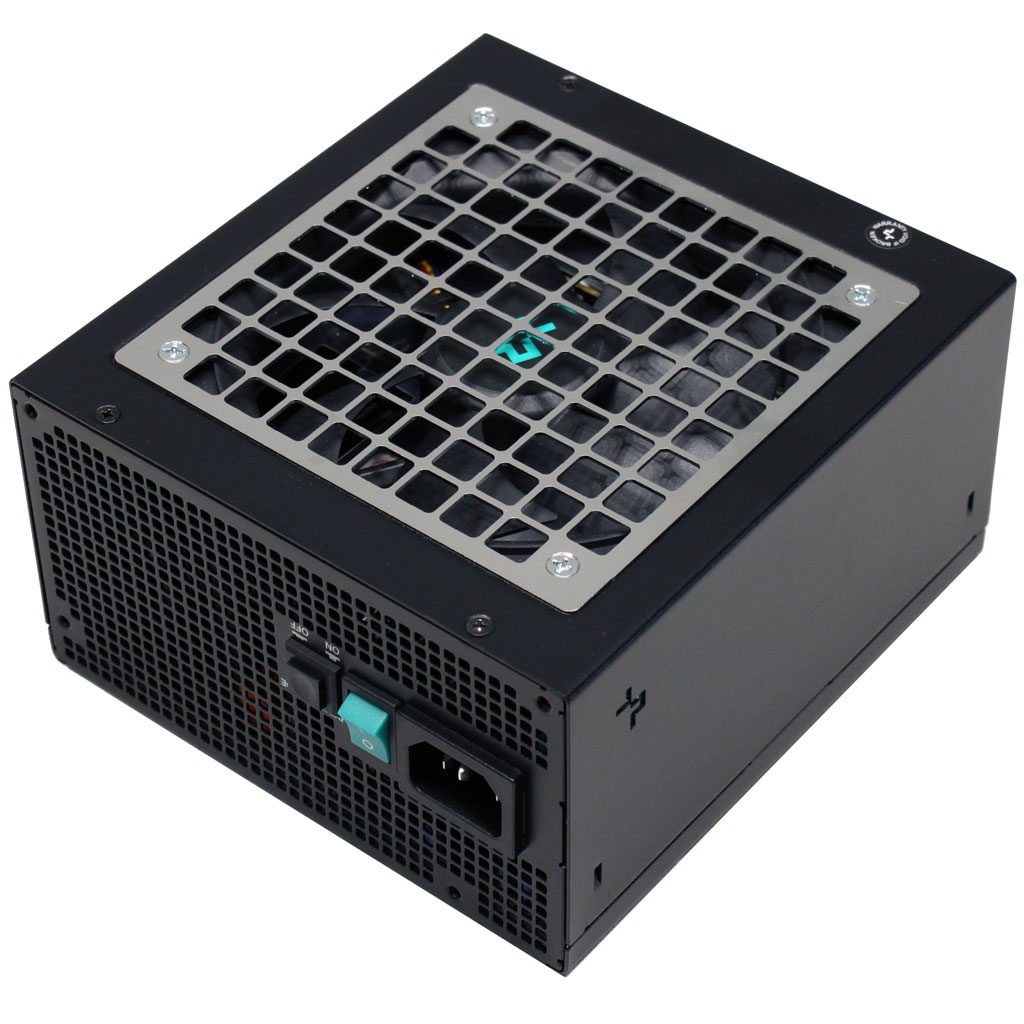

Top side

Power specifications label
