Cables and Connectors(Non-accredited measurements)
Modular Cables
Description
Cable Count
Connector Count (Total)
Gauge
In Cable Capacitors
ATX connector 20+4 pin (650mm)
1
1
16-22AWG
No
4+4 pin EPS12V (700mm)
2
2
16AWG
No
6+2 pin PCIe (700mm)
3
3
16AWG
No
12+4 pin PCIe (700mm) (600W)
1
1
16-28AWG
No
SATA (500mm+95mm+95mm+95mm)
2
8
18AWG
No
SATA (500mm+150mm+150mm+150mm)
1
4
18AWG
No
4-pin Molex (500mm+150mm+150mm+150mm)
1
4
18AWG
No
FDD Adapter (105mm)
1
1
22AWG
No
AC Power Cord (1700mm) - C19 coupler
1
1
16AWG
-
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
ATX v3.0 Compliance
✓
Performance Summary
Efficiency Rating
TITANIUM
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
91.148%
Average Noise Output (>1450 Load Combinations)
33.66dBA
Average PF (>1450 Load Combinations)
0.986
Efficiency With 10W (≤500W) or 2% (>500W) Load
62.826%
Standby Power Consumption
0.0780W
12V Ripple (Full Load)
26.79mV
5V Ripple (Full Load)
8.01mV
3.3V Ripple (Full Load)
12.66mV
5VSB Ripple (Full Load)
17.75mV
12V Load Regulation
0.13%
5V Load Regulation
0.87%
3.3V Load Regulation
0.39%
5VSB Load Regulation
2.16%
Inrush Current
Too low to detect
Efficiency Rating
TITANIUM
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
92.957%
Average Noise Output (>1450 Load Combinations)
33.13dBA
Average PF (>1450 Load Combinations)
0.954
Efficiency With 10W (≤500W) or 2% (>500W) Load
61.144%
Standby Power Consumption
0.1029W
12V Ripple (Full Load)
25.73mV
5V Ripple (Full Load)
7.87mV
3.3V Ripple (Full Load)
12.39mV
5VSB Ripple (Full Load)
17.36mV
12V Load Regulation
0.30%
5V Load Regulation
0.85%
3.3V Load Regulation
0.33%
5VSB Load Regulation
2.12%
Inrush Current
Too low to detect
12V Transient Response (200%)
11.04V
5V Transient Response (200%)
4.888V
3.3V Transient Response (200%)
3.170V
5VSB Transient Response (200%)
4.796V
Hold-Up Time & Power Ok Signal
21.90ms
AC Loss to PWR_OK Hold Up Time
19.90ms
PWR_OK Inactive to DC Loss Delay
2.00ms
PSU Timings: T1 (20% / 100%)
89.5ms
86.5ms
PSU Timings: T3 (20% / 100%)
121.5ms
121.5ms
OPP (27.58°C / 44.99°C)
150.29%
150.29%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
21.9
AC Loss to PWR_OK Hold Up Time (ms)
19.9
PWR_OK Inactive to DC Loss Delay (ms)
2
Vampire Power
Tables
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
115.14 V
115.12 V
113.85 V
115.17 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
59.91 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.415
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.13 %
0.11 %
N/A
0.15 %
2.00 %
PASS
Real Power:
0.078 W
0.070 W
N/A
0.089 W
N/A
N/A
Apparent Power:
7.173 W
7.169 W
N/A
7.178 W
N/A
N/A
Power Factor:
0.011
N/A
N/A
N/A
N/A
N/A
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
230.38 V
230.36 V
227.70 V
230.39 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
50.00 Hz
49.50 Hz
50.00 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.415
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.14 %
0.13 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.103 W
0.087 W
N/A
0.117 W
N/A
N/A
Apparent Power:
24.048 W
24.039 W
N/A
24.057 W
N/A
N/A
Power Factor:
0.004
N/A
N/A
N/A
N/A
N/A
Graphs

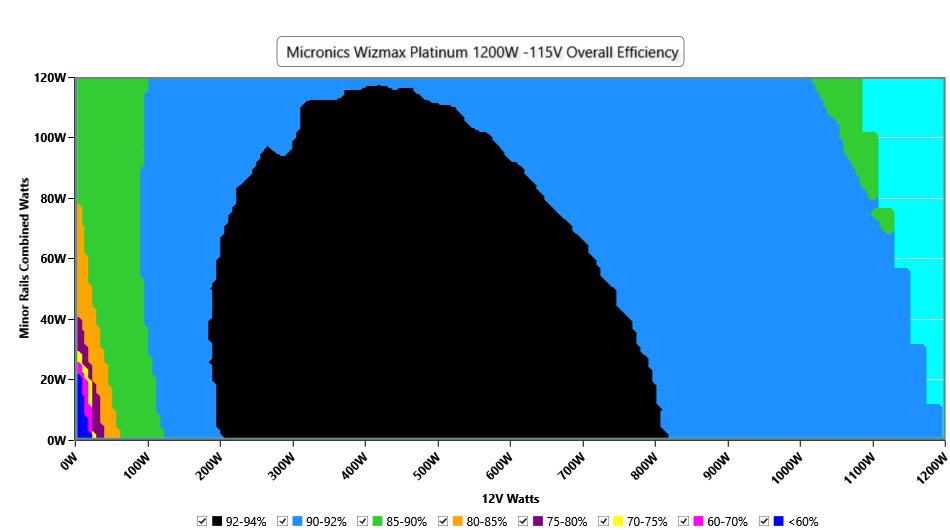

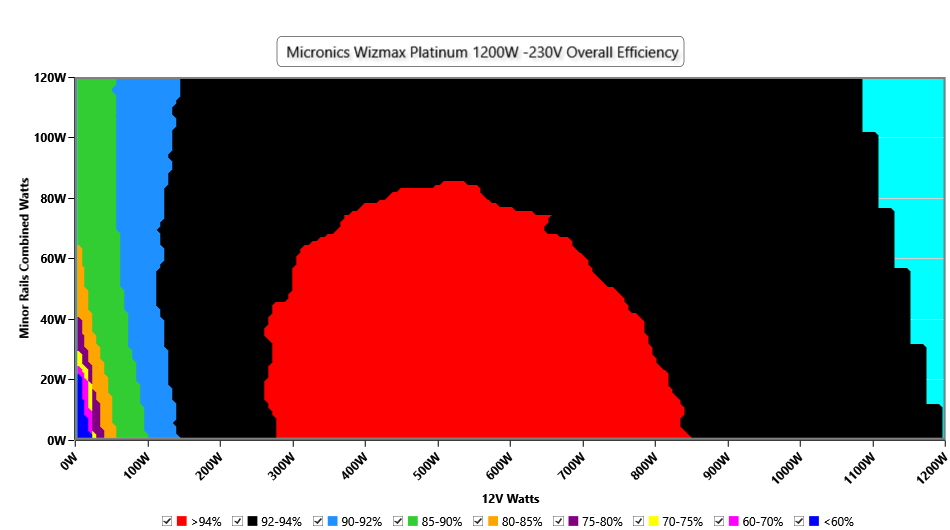

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

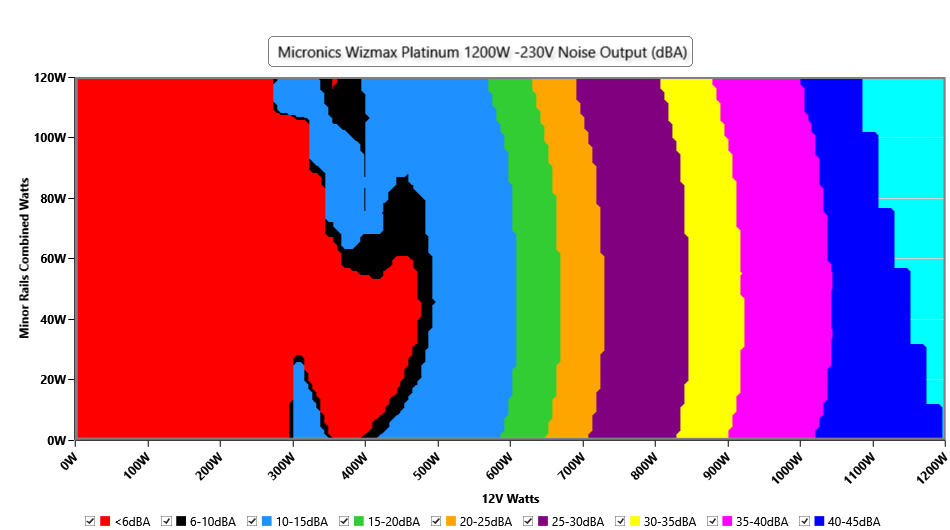

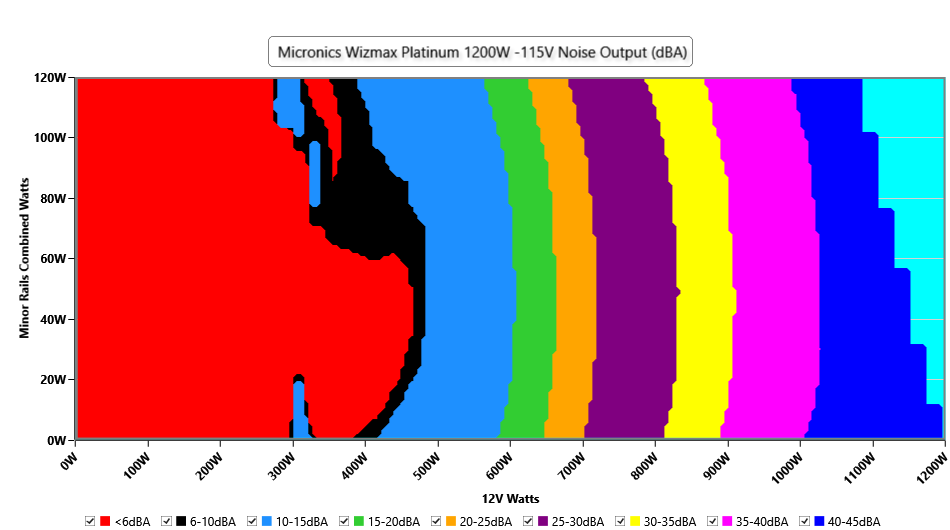

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Conducted Emissions EN55032 & CISPR 32
Indicative Performance

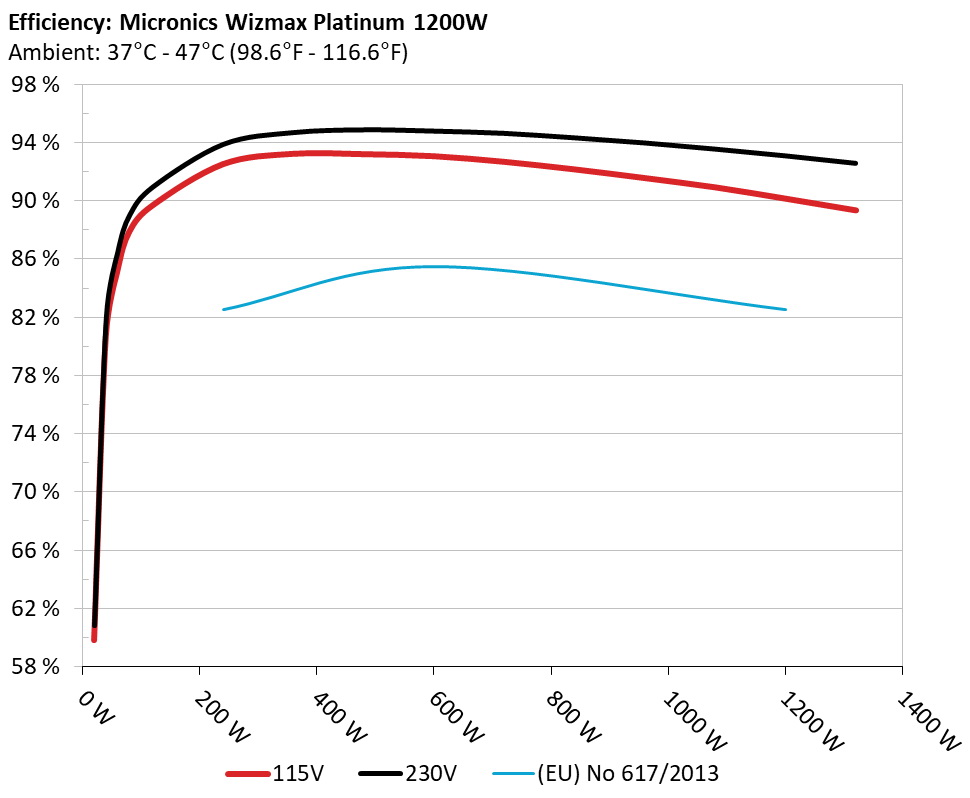

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

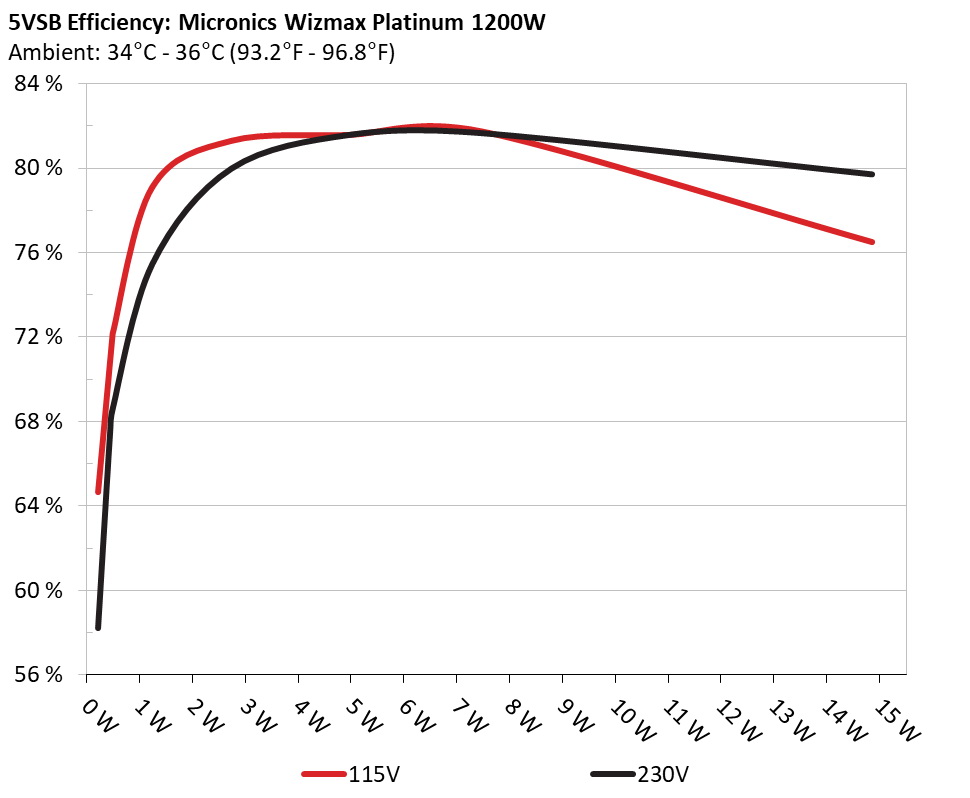

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
5VSB Efficiency (ERP LOT 3/6 & CEC)
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.225W
64.641%
0.048
5V
0.348W
115.16V
2
0.09A
0.45W
72.16%
0.084
4.999V
0.624W
115.17V
3
0.55A
2.746W
81.311%
0.308
4.991V
3.377W
115.16V
4
1A
4.986W
81.59%
0.392
4.984V
6.112W
115.16V
5
1.5A
7.466W
81.76%
0.429
4.976V
9.131W
115.15V
6
3.001A
14.852W
76.508%
0.485
4.95V
19.412W
115.15V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.225W
58.213%
0.016
4.999V
0.388W
230.38V
2
0.09A
0.45W
67.4%
0.028
4.999V
0.667W
230.39V
3
0.55A
2.746W
79.975%
0.131
4.991V
3.432W
230.39V
4
1A
4.985W
81.571%
0.207
4.984V
6.109W
230.39V
5
1.5A
7.465W
81.653%
0.268
4.976V
9.144W
230.38V
6
3.001A
14.852W
79.7%
0.36
4.95V
18.633W
230.38V
Protection Features
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
8.135A
2A
1.984A
1.004A
119.994
89.223%
0
<6.0
44.73°C
0.972
12.095V
5V
3.326V
4.98V
134.482
40.52°C
115.12V
20%
17.284A
3.002A
2.977A
1.207A
239.951
92.051%
0
<6.0
45.47°C
0.977
12.095V
4.996V
3.325V
4.97V
260.676
40.86°C
115.08V
30%
26.721A
3.505A
3.474A
1.411A
359.305
92.761%
0
<6.0
46.26°C
0.983
12.097V
4.993V
3.324V
4.962V
387.342
41.23°C
115.05V
40%
36.240A
4.009A
3.971A
1.616A
479.714
92.735%
696
17.3
41.99°C
0.987
12.100V
4.989V
3.324V
4.952V
517.299
47.52°C
115.02V
50%
45.367A
5.015A
4.966A
1.82A
599.47
92.596%
930
26.1
42.55°C
0.99
12.101V
4.985V
3.323V
4.945V
647.404
48.59°C
114.99V
60%
54.557A
6.023A
5.961A
2A
719.882
92.21%
1177
33.4
42.95°C
0.991
12.101V
4.982V
3.322V
4.938V
780.693
49.49°C
114.95V
70%
63.683A
7.033A
6.957A
2.232A
839.726
91.691%
1398
38.3
43.09°C
0.992
12.100V
4.978V
3.321V
4.93V
915.819
50.17°C
114.93V
80%
72.880A
8.042A
7.951A
2.335A
959.727
91.095%
1655
42.9
44.06°C
0.993
12.100V
4.974V
3.32V
4.925V
1053.547
52.16°C
114.9V
90%
82.392A
8.551A
8.435A
2.439A
1079.552
90.457%
1926
46.7
44.18°C
0.993
12.102V
4.97V
3.319V
4.92V
1193.439
53.27°C
114.86V
100%
91.688A
9.061A
8.949A
3.061A
1199.617
89.683%
2055
48.0
45.43°C
0.993
12.105V
4.966V
3.318V
4.9V
1337.635
55.47°C
114.83V
110%
100.887A
10.075A
10.035A
3.062A
1320.242
88.874%
2054
48.0
47.26°C
0.993
12.112V
4.963V
3.318V
4.899V
1485.525
58.19°C
114.8V
CL1
0.116A
14.454A
14.358A
0A
121.296
85.451%
908
25.3
44.16°C
0.975
12.127V
4.995V
3.322V
5.016V
141.948
49.61°C
115.13V
CL2
0.115A
22.002A
0A
0A
111.387
84.653%
462
8.2
41.74°C
0.97
12.126V
4.999V
3.322V
5.04V
131.58
48.82°C
115.13V
CL3
0.115A
0A
21.788A
0A
73.987
80.348%
157
<6.0
43.05°C
0.958
12.125V
5.004V
3.332V
4.996V
92.089
52.12°C
115.14V
CL4
99.051A
0A
0A
0A
1200.36
89.832%
2051
47.9
46.32°C
0.993
12.118V
4.978V
3.327V
4.985V
1336.214
57.26°C
114.84V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
8.140A
2A
1.984A
1.004A
119.997
90.435%
0
<6.0
44.35°C
0.865
12.088V
5V
3.325V
4.979V
132.689
40.11°C
230.37V
20%
17.290A
3.003A
2.977A
1.207A
239.954
93.347%
0
<6.0
45.22°C
0.934
12.091V
4.996V
3.325V
4.97V
257.063
40.55°C
230.36V
30%
26.731A
3.505A
3.474A
1.411A
359.309
94.156%
0
<6.0
46.39°C
0.955
12.093V
4.993V
3.324V
4.962V
381.609
41.38°C
230.35V
40%
36.230A
4.009A
3.971A
1.615A
479.663
94.341%
597
11.8
41.55°C
0.965
12.102V
4.989V
3.323V
4.953V
508.43
47.19°C
230.33V
50%
45.378A
5.016A
4.967A
1.821A
599.456
94.258%
866
24.4
42.33°C
0.97
12.097V
4.985V
3.322V
4.944V
635.976
48.34°C
230.32V
60%
54.574A
6.024A
5.962A
2A
719.873
94.101%
1177
33.4
42.76°C
0.974
12.097V
4.981V
3.321V
4.937V
764.997
49.32°C
230.3V
70%
63.698A
7.033A
6.958A
2.232A
839.723
93.799%
1346
37.3
43.24°C
0.978
12.098V
4.977V
3.32V
4.929V
895.233
50.32°C
230.28V
80%
72.894A
8.043A
7.952A
2.336A
959.722
93.448%
1633
42.2
43.48°C
0.98
12.098V
4.973V
3.319V
4.924V
1027.017
51.55°C
230.27V
90%
82.400A
8.552A
8.435A
2.44A
1079.556
93.026%
1911
46.3
44.32°C
0.981
12.100V
4.97V
3.319V
4.919V
1160.497
53.4°C
230.26V
100%
91.722A
9.061A
8.949A
3.062A
1199.627
92.564%
2056
48.0
45.65°C
0.983
12.101V
4.966V
3.318V
4.9V
1296.006
55.74°C
230.24V
110%
100.903A
10.075A
10.035A
3.063A
1320.265
92.051%
2060
48.1
46.54°C
0.984
12.110V
4.963V
3.318V
4.898V
1434.271
57.43°C
230.23V
CL1
0.116A
14.456A
14.359A
0A
121.299
86.653%
857
23.9
43.4°C
0.872
12.126V
4.994V
3.322V
5.015V
139.985
48.85°C
230.38V
CL2
0.115A
22.005A
0A
0A
111.387
85.973%
272
<6.0
42.01°C
0.86
12.124V
4.999V
3.322V
5.039V
129.562
49.05°C
230.39V
CL3
0.115A
0A
21.789A
0A
73.988
81.373%
157
<6.0
42.87°C
0.801
12.124V
5.004V
3.332V
4.996V
90.926
51.93°C
230.39V
CL4
99.079A
0A
0A
0A
1200.384
92.759%
2053
48.0
45.41°C
0.983
12.115V
4.978V
3.326V
4.985V
1294.08
56.38°C
230.25V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.228A
0.499A
0.495A
0.2A
20.001
59.339%
0
<6.0
40.47°C
0.863
12.089V
5.009V
3.331V
5.006V
33.708
37.41°C
115.16V
40W
2.702A
0.699A
0.694A
0.3A
39.997
80.228%
0
<6.0
41.39°C
0.917
12.098V
5.008V
3.33V
5.002V
49.858
38.12°C
115.15V
60W
4.177A
0.899A
0.892A
0.4A
59.994
84.754%
0
<6.0
42.31°C
0.947
12.096V
5.006V
3.329V
4.998V
70.788
38.45°C
115.14V
80W
5.648A
1.099A
1.091A
0.501A
79.947
87.405%
0
<6.0
42.98°C
0.958
12.095V
5.003V
3.327V
4.992V
91.469
39°C
115.13V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.230A
0.499A
0.496A
0.2A
19.998
60.336%
0
<6.0
39.62°C
0.553
12.065V
5.008V
3.329V
5.004V
33.141
36.55°C
230.38V
40W
2.706A
0.699A
0.694A
0.3A
39.997
81.456%
0
<6.0
40.94°C
0.652
12.076V
5.007V
3.329V
5V
49.105
37.61°C
230.38V
60W
4.184A
0.899A
0.892A
0.4A
59.995
86.016%
0
<6.0
41.74°C
0.743
12.077V
5.005V
3.328V
4.996V
69.75
38.22°C
230.38V
80W
5.656A
1.1A
1.091A
0.501A
79.948
88.486%
0
<6.0
42.69°C
0.802
12.080V
5.002V
3.326V
4.99V
90.348
38.82°C
230.37V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
7.82mV
4.60mV
5.01mV
8.72mV
Pass
20% Load
8.92mV
5.06mV
5.43mV
9.33mV
Pass
30% Load
9.66mV
5.11mV
5.63mV
11.11mV
Pass
40% Load
10.52mV
5.01mV
5.53mV
11.67mV
Pass
50% Load
11.14mV
5.16mV
5.83mV
12.44mV
Pass
60% Load
12.52mV
5.47mV
5.73mV
12.90mV
Pass
70% Load
14.45mV
6.19mV
5.99mV
13.51mV
Pass
80% Load
15.12mV
7.16mV
10.44mV
14.79mV
Pass
90% Load
17.37mV
7.31mV
11.21mV
14.73mV
Pass
100% Load
26.79mV
8.01mV
12.66mV
17.75mV
Pass
110% Load
38.21mV
18.62mV
18.89mV
31.98mV
Pass
Crossload1
11.38mV
7.24mV
13.21mV
9.09mV
Pass
Crossload2
7.92mV
6.75mV
5.68mV
8.01mV
Pass
Crossload3
6.69mV
5.73mV
13.66mV
7.24mV
Pass
Crossload4
25.76mV
6.66mV
6.03mV
16.84mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
7.56mV
4.60mV
5.07mV
9.08mV
Pass
20% Load
8.29mV
5.27mV
5.58mV
9.33mV
Pass
30% Load
9.40mV
5.16mV
5.94mV
10.65mV
Pass
40% Load
10.68mV
5.22mV
5.53mV
11.88mV
Pass
50% Load
11.29mV
5.63mV
6.19mV
12.34mV
Pass
60% Load
12.46mV
5.88mV
5.94mV
13.10mV
Pass
70% Load
14.25mV
6.03mV
5.94mV
14.99mV
Pass
80% Load
15.32mV
6.60mV
10.80mV
15.55mV
Pass
90% Load
17.83mV
7.67mV
10.95mV
14.73mV
Pass
100% Load
25.73mV
7.87mV
12.39mV
17.36mV
Pass
110% Load
30.26mV
8.65mV
12.58mV
18.14mV
Pass
Crossload1
11.34mV
7.26mV
13.58mV
9.07mV
Pass
Crossload2
7.46mV
7.31mV
5.73mV
8.11mV
Pass
Crossload3
6.89mV
6.03mV
14.33mV
7.29mV
Pass
Crossload4
25.84mV
7.32mV
5.98mV
17.55mV
Pass
The results above are not used in the certification process
Micronics Wizmax Platinum 1200W

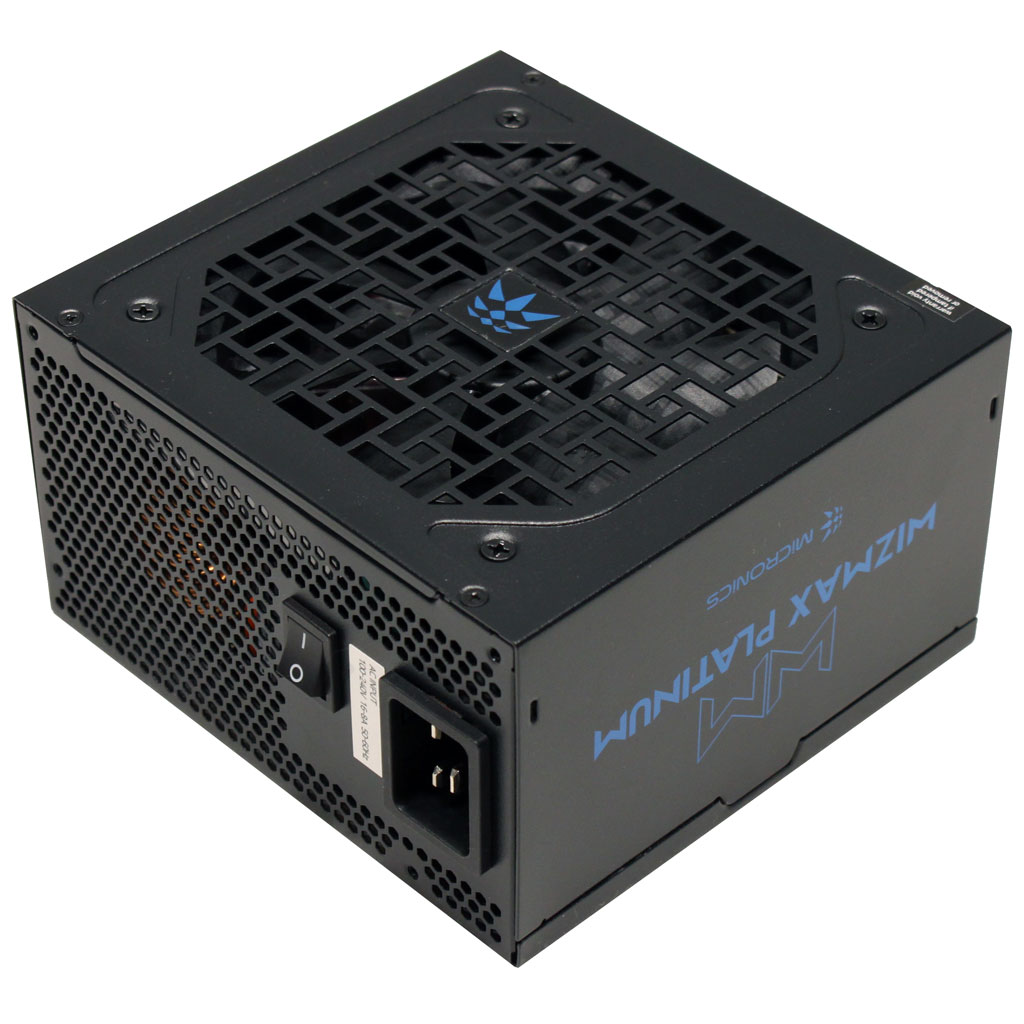

Top side

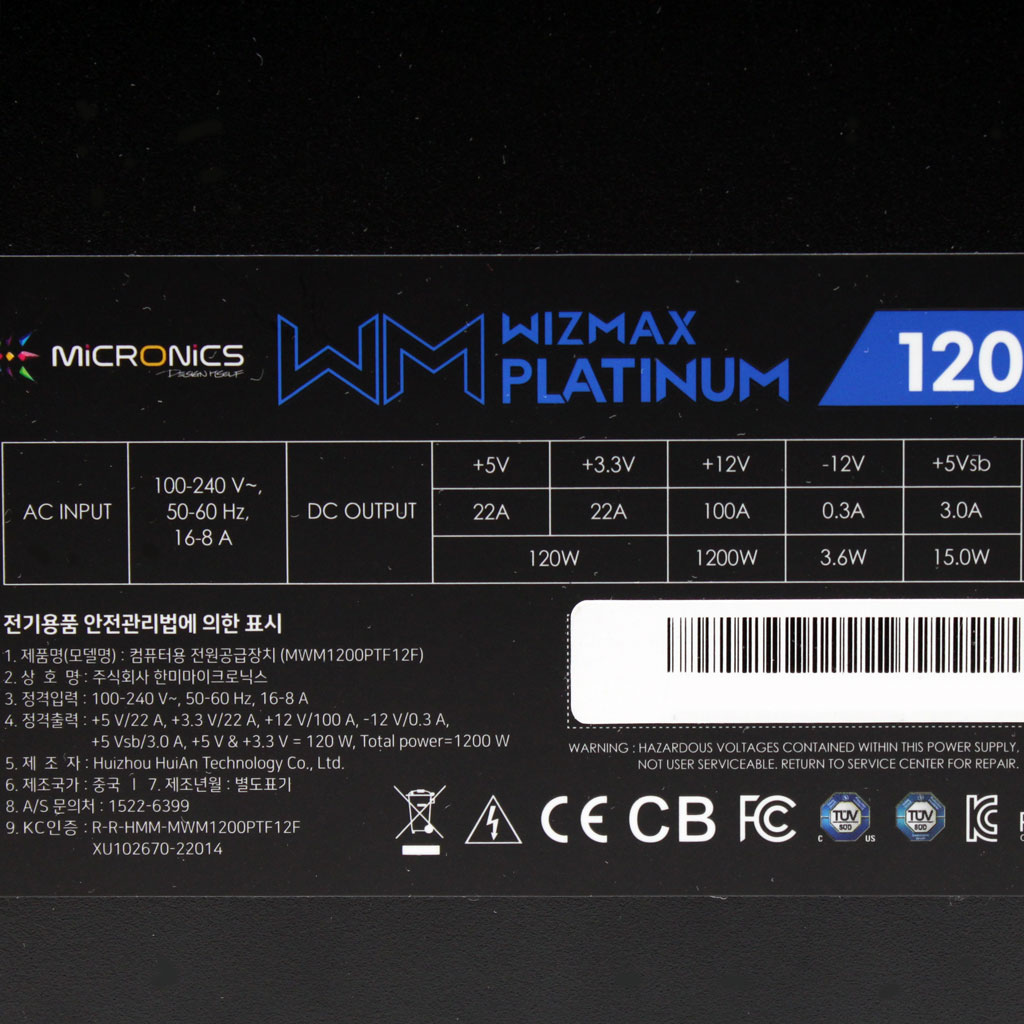

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
Outside Validation Scope
