XPG KYBER 650

Serial Number4N1581012949

Lab IDAD65002219

Certification ID252219

Test Result Report ID: 23PS2219A
Certificate Issue Date: Aug 18, 2023

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brand	XPG
Model	KYBER 650
OEM	CWT
Serial Number	4N1581012949
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)	100-240
Rated Current (Arms)	10
Rated Frequency (Hz)	47-63
Rated Power (W)	650
Operating Temperature (Continuous Full Load) (°C)
Type	ATX12V
Cable Design	Fixed cables
Warranty	-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling	120mm Fluid Dynamic Bearing Fan (DF1202512FDHN)
Semi-Passive Operation	✗
Cybenetics Testing Information
Lab ID	AD65002219
Date of receipt	Aug 3, 2023
Testing Date	Aug 17, 2023
Report Issued Date	Aug 18, 2023
Engineer Name	-
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (650mm)	1	1	18-20AWG	No
8 pin EPS12V (670mm) / 4+4 EPS12V (150mm)	1	1 / 1	18AWG	No
6+2 pin PCIe (600mm+150mm)	1	2	18AWG	No
SATA (450mm+150mm+150mm) / 4-pin Molex (150mm)	2	6 / 2	18AWG	No
Modular Cables
AC Power Cord (1400mm) - C13 coupler	1	1	18AWG	-

Protection Features(Manufacturer)

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	54	3	0.3
Max. Power	Watts	100		648	15	3.6
Total Max. Power (W)		650

Parts Description

General Data	-
Manufacturer (OEM)	CWT
PCB Type	Single-Side
Primary Side	-
Transient Filter	2x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor SCK-056 5Ohm & Relay
Bridge Rectifier(s)	1x GBU15005 (600V, 15A @ 100°C)
APFC MOSFETs	2x Wayon WML28N50C4 (500V, 16A , Rds(on): 0.125Ohm) & 1x Syncpower SPN5003 FET (for reduced the no-load consumption)
APFC Boost Diode	1x CRMICRO CRXI06D065G2(600V, 6A @ 167°C)
Bulk Cap(s)	1x Elite (400V, 470uF, 2000h @ 85°C, GM)
Main Switchers	4x Silan Microelectroinics SVF20N50F (500V, 12.6A @ 100°C, Rds(on): 0.27Ohm)
APFC Controller	1x Champion CM6500UNX
Resonant Controller	Champion CM6901X
Topology	Primary side: APFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side	-
+12V MOSFETs	4x Infineon BSC014N04LS (40V, 100A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V	DC-DC Converters: 4x InfineonSPN3006 (30V, 57A @ 100°C, Rds(on): 5.5mOhm) PWM Controller(s): APW7159C
Filtering Capacitors	Electrolytic: 11x Chengx (2-3,000h @ 105°C ,GR) Polymer: 14x CapXon
Supervisor IC	IN1S313I-DAG
Fan Model	Martech DF1202512FDHN (120mm, 12V, 0.42A, Fluid Dynamic Bearing Fan)
5VSB Circuit	-
Standby PWM Controller	Power Integrations TNY290

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)	88.214%
Average Noise Output (>1450 Load Combinations)	31.87dBA
Average PF (>1450 Load Combinations)	0.976
Efficiency With 10W (≤500W) or 2% (>500W) Load	63.829%
Standby Power Consumption	0.0478W
Non-Accredited
12V Ripple (Full Load)	43.74mV
5V Ripple (Full Load)	27.91mV
3.3V Ripple (Full Load)	22.20mV
5VSB Ripple (Full Load)	26.50mV
12V Load Regulation	1.01%
5V Load Regulation	0.70%
3.3V Load Regulation	1.10%
5VSB Load Regulation	3.92%
Inrush Current	35.930A

Accredited
Average Efficiency (>1450 load combinations)	90.410%
Average Noise Output (>1450 Load Combinations)	31.66dBA
Average PF (>1450 Load Combinations)	0.924
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
Standby Power Consumption	0.1115W
Non-Accredited
12V Ripple (Full Load)	42.50mV
5V Ripple (Full Load)	27.91mV
3.3V Ripple (Full Load)	21.29mV
5VSB Ripple (Full Load)	26.69mV
12V Load Regulation	1.00%
5V Load Regulation	0.70%
3.3V Load Regulation	1.10%
5VSB Load Regulation	3.92%
Inrush Current	Too low to detect
Hold-Up Time & PWR_OK Signal	16.00ms
AC Loss to PWR_OK Hold Up Time	13.40ms
PWR_OK Inactive to DC Loss Delay	2.60ms
PSU Timings: T1 (20% / 100%)	47.0ms	46.0ms
PSU Timings: T3 (20% / 100%)	115.0ms	115.0ms
OPP (28.53°C / 37.21°C)	137.10%	129.42%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)	16
AC Loss to PWR_OK Hold Up Time (ms)	13.4
PWR_OK Inactive to DC Loss Delay (ms)	2.6

Stromverbrauch im Ruhezustand

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	114.88 V	114.82 V	113.85 V	114.93 V	116.15 V	PASS
Mains Frequency:	59.99 Hz	59.97 Hz	59.40 Hz	60.02 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.419	1.417	1.340	1.421	1.490	PASS
Mains Voltage THD:	0.16 %	0.09 %	N/A	0.27 %	2.00 %	PASS
Real Power:	0.048 W	-0.003 W	N/A	0.069 W	N/A	N/A
Apparent Power:	11.388 W	11.363 W	N/A	11.423 W	N/A	N/A
Power Factor:	0.004	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	229.97 V	229.86 V	227.70 V	230.02 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.18 %	0.15 %	N/A	0.23 %	2.00 %	PASS
Real Power:	0.111 W	0.062 W	N/A	0.164 W	N/A	N/A
Apparent Power:	39.344 W	39.297 W	N/A	39.394 W	N/A	N/A
Power Factor:	0.002	N/A	N/A	N/A	N/A	N/A

Graphs

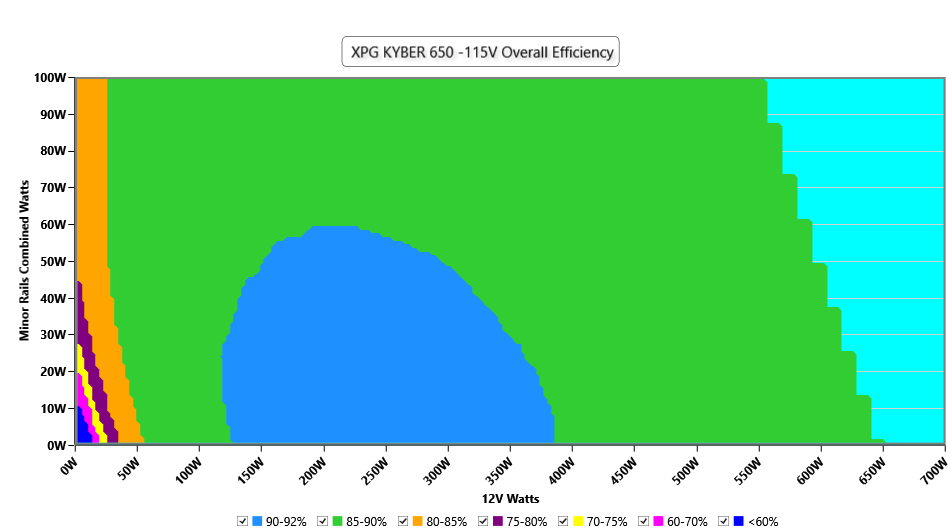

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

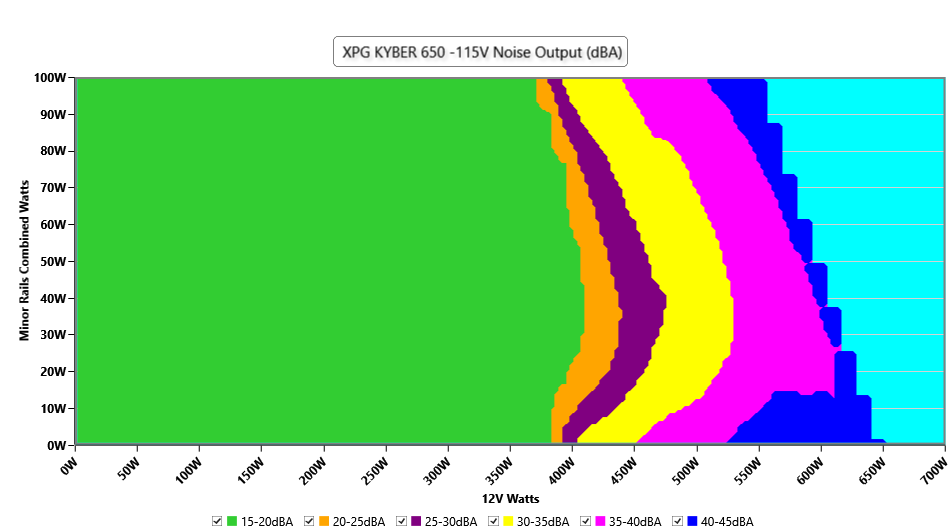

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

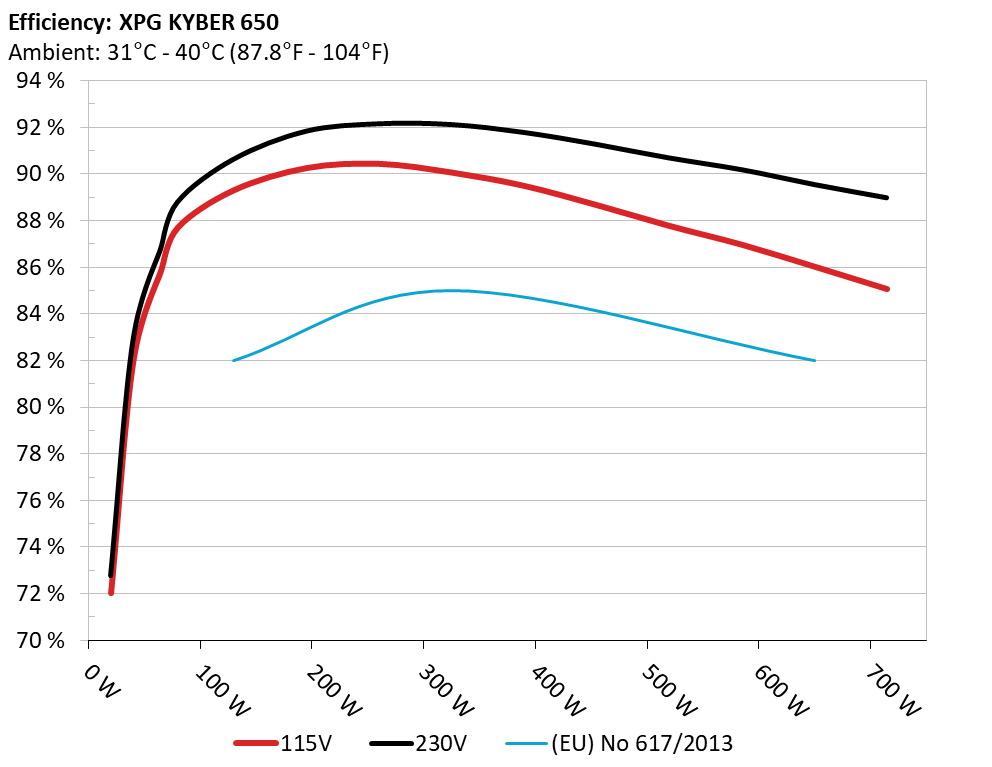

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

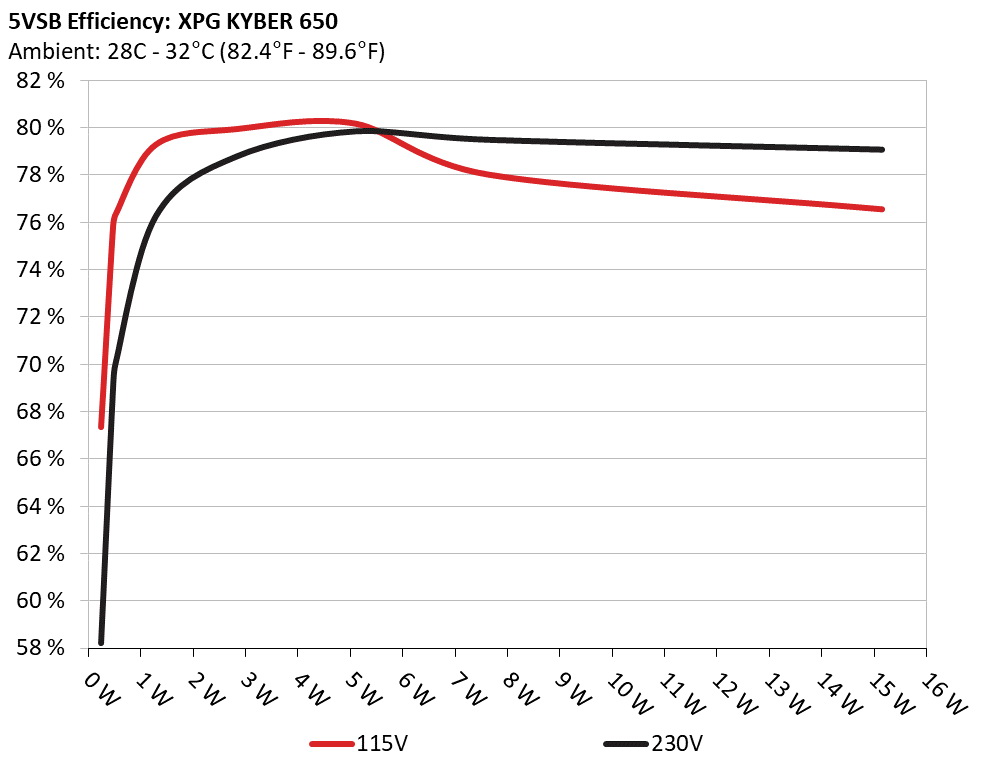

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.231W	67.332%	0.029
1	5.124V	0.297W	67.332%	114.87V
2	0.09A	0.461W	75.854%	0.058
2	5.123V	0.608W	75.854%	114.87V
3	0.55A	2.811W	79.938%	0.261
3	5.111V	3.517W	79.938%	114.88V
4	1A	5.1W	80.165%	0.359
4	5.099V	6.362W	80.165%	114.87V
5	1.5A	7.63W	78.013%	0.404
5	5.086V	9.781W	78.013%	114.88V
6	3A	15.146W	76.545%	0.475
6	5.048V	19.786W	76.545%	114.88V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.231W	58.215%	0.011
1	5.123V	0.397W	58.215%	229.95V
2	0.09A	0.461W	69.049%	0.019
2	5.122V	0.668W	69.049%	229.94V
3	0.55A	2.811W	78.769%	0.098
3	5.111V	3.569W	78.769%	229.94V
4	1A	5.1W	79.842%	0.163
4	5.1V	6.387W	79.842%	229.94V
5	1.5A	7.632W	79.481%	0.205
5	5.088V	9.602W	79.481%	229.94V
6	3A	15.144W	79.065%	0.315
6	5.048V	19.154W	79.065%	229.94V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	3.592A	1.994A	2.002A	0.983A	65.004	85.723%	893	19.7	34.22°C	0.946
10%	12.084V	5.015V	3.296V	5.085V	75.83	85.723%	893	19.7	38.37°C	114.85V
20%	8.204A	2.994A	3.007A	1.184A	129.944	89.309%	898	19.7	34.91°C	0.969
20%	12.072V	5.012V	3.293V	5.07V	145.502	89.309%	898	19.7	39.31°C	114.84V
30%	13.174A	3.495A	3.512A	1.385A	194.944	90.261%	901	19.7	35.29°C	0.977
30%	12.061V	5.008V	3.289V	5.054V	215.978	90.261%	901	19.7	40.2°C	114.8V
40%	18.160A	3.996A	4.018A	1.588A	260.026	90.44%	905	19.8	35.76°C	0.981
40%	12.049V	5.005V	3.286V	5.037V	287.512	90.44%	905	19.8	41.4°C	114.79V
50%	22.806A	5A	5.028A	1.794A	325.027	90.068%	911	20.0	36.26°C	0.98
50%	12.037V	5.001V	3.282V	5.019V	360.872	90.068%	911	20.0	42.42°C	114.76V
60%	27.412A	6.004A	6.04A	2A	389.426	89.499%	916	20.3	36.74°C	0.981
60%	12.024V	4.998V	3.278V	5V	435.117	89.499%	916	20.3	43.41°C	114.73V
70%	32.105A	7.009A	7.054A	2.209A	454.745	88.671%	1204	29.4	37.35°C	0.981
70%	12.011V	4.995V	3.275V	4.981V	512.845	88.671%	1204	29.4	44.52°C	114.71V
80%	36.811A	8.002A	8.071A	2.316A	519.5	87.78%	1588	37.2	37.8°C	0.982
80%	11.998V	4.991V	3.271V	4.966V	591.823	87.78%	1588	37.2	45.61°C	114.68V
90%	41.920A	8.52A	8.569A	2.424A	584.936	86.962%	2008	43.0	38.77°C	0.983
90%	11.985V	4.988V	3.267V	4.951V	672.632	86.962%	2008	43.0	47.74°C	114.66V
100%	46.781A	9.027A	9.1A	3.047A	649.767	86.023%	2351	46.5	39.45°C	0.984
100%	11.972V	4.985V	3.264V	4.923V	755.339	86.023%	2351	46.5	49.15°C	114.63V
110%	51.518A	10.039A	10.215A	3.057A	714.402	85.067%	2350	46.5	40.26°C	0.986
110%	11.959V	4.981V	3.26V	4.908V	839.818	85.067%	2350	46.5	51.15°C	114.6V
CL1	0.115A	12.055A	12.09A	0A	101.288	83.919%	914	20.1	35.07°C	0.964
CL1	12.071V	4.994V	3.283V	5.086V	120.699	83.919%	914	20.1	40.84°C	114.84V
CL2	0.115A	20.059A	0A	0A	101.366	82.09%	917	20.3	34.78°C	0.965
CL2	12.077V	4.984V	3.297V	5.094V	123.485	82.09%	917	20.3	40.17°C	114.84V
CL3	0.116A	0A	20.121A	0A	67.396	76.87%	904	19.7	34.72°C	0.953
CL3	12.075V	5.016V	3.28V	5.091V	87.675	76.87%	904	19.7	39.54°C	114.85V
CL4	54.208A	0A	0A	0A	649.577	87.403%	2159	44.2	39.27°C	0.985
CL4	11.983V	5.006V	3.277V	5.021V	743.207	87.403%	2159	44.2	46.73°C	114.64V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	3.592A	1.994A	2.002A	0.983A	65.005	86.723%	892	19.7	34.26°C	0.757
10%	12.084V	5.015V	3.297V	5.084V	74.957	86.723%	892	19.7	38.49°C	229.92V
20%	8.204A	2.994A	3.007A	1.184A	129.945	90.65%	896	19.7	34.87°C	0.873
20%	12.072V	5.011V	3.293V	5.07V	143.349	90.65%	896	19.7	39.52°C	229.92V
30%	13.175A	3.495A	3.511A	1.385A	194.946	91.855%	900	19.7	35.38°C	0.915
30%	12.060V	5.008V	3.289V	5.054V	212.231	91.855%	900	19.7	40.47°C	229.9V
40%	18.162A	3.996A	4.017A	1.588A	260.025	92.173%	904	19.7	35.99°C	0.933
40%	12.048V	5.005V	3.286V	5.037V	282.104	92.173%	904	19.7	41.45°C	229.89V
50%	22.807A	5A	5.028A	1.793A	325.022	92.138%	909	19.9	36.35°C	0.945
50%	12.036V	5.001V	3.282V	5.019V	352.753	92.138%	909	19.9	42.52°C	229.88V
60%	27.413A	6.004A	6.04A	2A	389.426	91.804%	914	20.1	36.82°C	0.953
60%	12.024V	4.998V	3.279V	5.001V	424.194	91.804%	914	20.1	43.74°C	229.87V
70%	32.107A	7.009A	7.054A	2.208A	454.74	91.287%	1210	29.6	37.35°C	0.957
70%	12.011V	4.995V	3.275V	4.982V	498.146	91.287%	1210	29.6	44.86°C	229.86V
80%	36.808A	8.002A	8.07A	2.316A	519.465	90.708%	1582	37.1	37.77°C	0.961
80%	11.998V	4.991V	3.271V	4.967V	572.679	90.708%	1582	37.1	45.82°C	229.85V
90%	41.921A	8.52A	8.568A	2.423A	584.911	90.2%	1990	43.0	38.6°C	0.963
90%	11.985V	4.988V	3.268V	4.952V	648.462	90.2%	1990	43.0	47.63°C	229.84V
100%	46.781A	9.027A	9.099A	3.047A	649.751	89.564%	2352	46.5	39.58°C	0.965
100%	11.972V	4.985V	3.264V	4.924V	725.459	89.564%	2352	46.5	49.61°C	229.83V
110%	51.520A	10.039A	10.214A	3.056A	714.379	88.998%	2353	46.5	40.41°C	0.967
110%	11.958V	4.981V	3.26V	4.909V	802.696	88.998%	2353	46.5	51.32°C	229.82V
CL1	0.115A	12.055A	12.088A	0A	101.292	84.882%	916	20.3	35.04°C	0.848
CL1	12.071V	4.994V	3.284V	5.085V	119.332	84.882%	916	20.3	41.47°C	229.93V
CL2	0.115A	20.06A	0A	0A	101.364	83.194%	919	20.4	35.51°C	0.851
CL2	12.077V	4.984V	3.297V	5.094V	121.84	83.194%	919	20.4	40.74°C	229.92V
CL3	0.116A	0A	20.12A	0A	67.397	77.766%	904	19.7	34.73°C	0.791
CL3	12.075V	5.016V	3.28V	5.09V	86.668	77.766%	904	19.7	39.61°C	229.93V
CL4	54.217A	0A	0A	0A	649.594	90.83%	2171	44.3	39.41°C	0.965
CL4	11.981V	5.007V	3.277V	5.021V	715.177	90.83%	2171	44.3	44.47°C	229.83V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.228A	0.498A	0.5A	0.195A	19.998	72.009%	876	19.3	30.53°C	0.84
20W	12.093V	5.02V	3.3V	5.116V	27.77	72.009%	876	19.3	33.62°C	114.88V
40W	2.704A	0.697A	0.7A	0.294A	40	81.991%	880	19.4	31.37°C	0.919
40W	12.089V	5.019V	3.299V	5.111V	48.786	81.991%	880	19.4	34.57°C	114.87V
60W	4.181A	0.897A	0.901A	0.392A	60	85.898%	884	19.5	32.24°C	0.944
60W	12.086V	5.018V	3.298V	5.104V	69.851	85.898%	884	19.5	35.74°C	114.86V
80W	5.654A	1.096A	1.101A	0.49A	79.948	87.714%	889	19.7	33.21°C	0.955
80W	12.082V	5.017V	3.297V	5.098V	91.145	87.714%	889	19.7	36.93°C	114.85V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.228A	0.498A	0.5A	0.196A	19.998	72.784%	872	19.3	30.56°C	0.465
20W	12.092V	5.02V	3.3V	5.116V	27.477	72.784%	872	19.3	33.7°C	229.93V
40W	2.704A	0.697A	0.7A	0.294A	39.999	82.882%	878	19.4	31.39°C	0.64
40W	12.089V	5.019V	3.299V	5.11V	48.26	82.882%	878	19.4	34.65°C	229.93V
60W	4.181A	0.897A	0.9A	0.392A	60.001	86.851%	883	19.4	32.83°C	0.737
60W	12.085V	5.018V	3.298V	5.104V	69.085	86.851%	883	19.4	36.28°C	229.93V
80W	5.654A	1.097A	1.101A	0.49A	79.951	88.821%	887	19.6	33.35°C	0.799
80W	12.082V	5.017V	3.297V	5.098V	90.014	88.821%	887	19.6	37.13°C	229.92V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	16.62mV	17.05mV	15.46mV	13.99mV	Pass
20% Load	20.79mV	18.03mV	15.31mV	14.56mV	Pass
30% Load	24.66mV	19.27mV	17.43mV	19.56mV	Pass
40% Load	26.26mV	19.06mV	18.36mV	18.63mV	Pass
50% Load	23.87mV	20.09mV	18.25mV	19.10mV	Pass
60% Load	24.64mV	23.34mV	17.84mV	20.59mV	Pass
70% Load	25.78mV	23.59mV	19.19mV	22.66mV	Pass
80% Load	29.33mV	25.50mV	20.37mV	26.79mV	Pass
90% Load	32.02mV	26.53mV	21.15mV	25.65mV	Pass
100% Load	43.74mV	27.91mV	22.20mV	26.50mV	Pass
110% Load	47.22mV	29.34mV	24.11mV	28.94mV	Pass
Crossload1	33.91mV	20.80mV	18.79mV	13.40mV	Pass
Crossload2	25.78mV	31.22mV	15.26mV	13.73mV	Pass
Crossload3	27.27mV	19.68mV	22.24mV	13.11mV	Pass
Crossload4	37.20mV	27.88mV	19.19mV	18.32mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	18.16mV	16.64mV	14.48mV	12.65mV	Pass
20% Load	22.96mV	17.41mV	14.94mV	13.99mV	Pass
30% Load	25.18mV	18.03mV	17.07mV	16.41mV	Pass
40% Load	27.91mV	19.32mV	17.79mV	17.08mV	Pass
50% Load	22.75mV	20.40mV	17.84mV	18.48mV	Pass
60% Load	23.20mV	22.10mV	17.17mV	19.41mV	Pass
70% Load	25.42mV	22.72mV	18.25mV	22.92mV	Pass
80% Load	28.56mV	23.49mV	20.11mV	25.81mV	Pass
90% Load	31.91mV	26.69mV	20.94mV	25.39mV	Pass
100% Load	42.50mV	27.91mV	21.29mV	26.69mV	Pass
110% Load	46.59mV	28.69mV	23.01mV	23.78mV	Pass
Crossload1	34.09mV	20.72mV	18.74mV	11.92mV	Pass
Crossload2	25.68mV	30.60mV	14.32mV	12.65mV	Pass
Crossload3	26.96mV	19.16mV	22.13mV	12.34mV	Pass
Crossload4	36.63mV	27.32mV	18.27mV	17.13mV	Pass

The results above are not used in the certification process

XPG KYBER 650

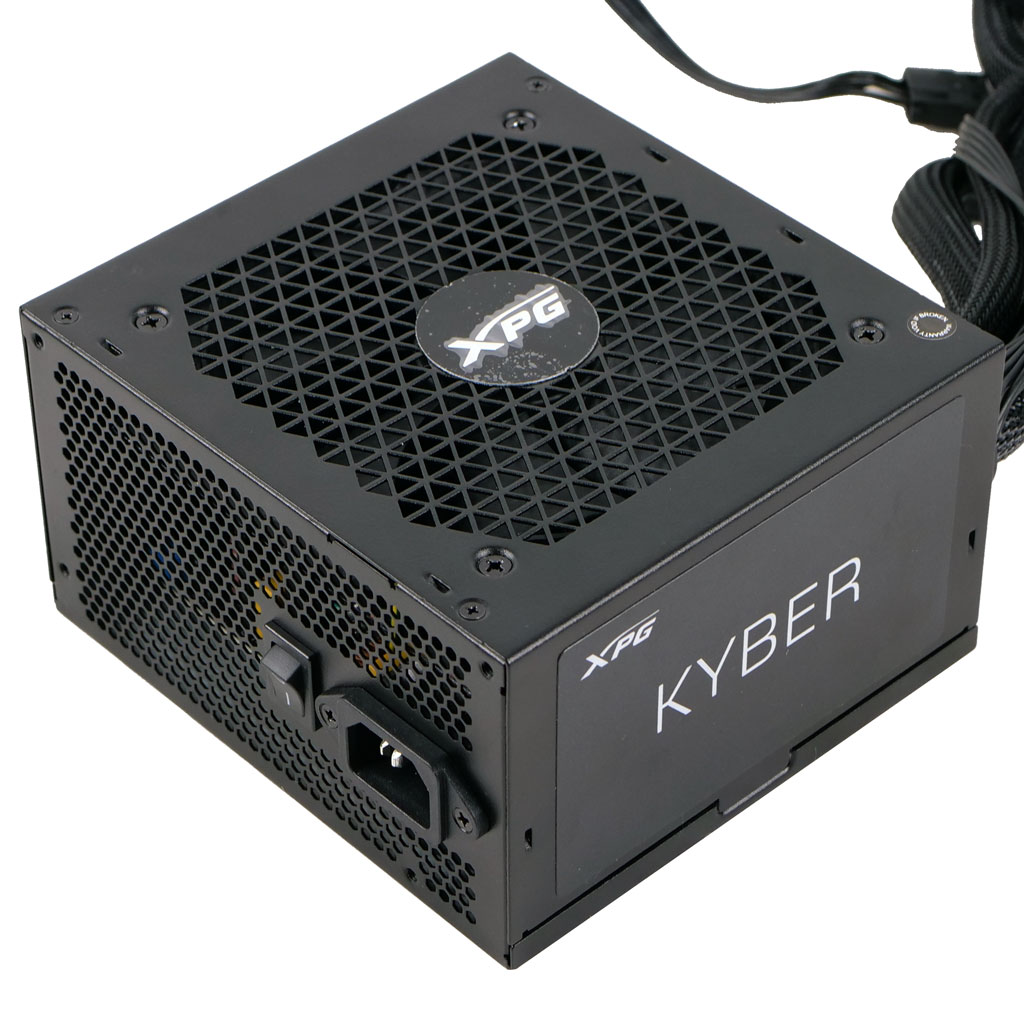

Top side

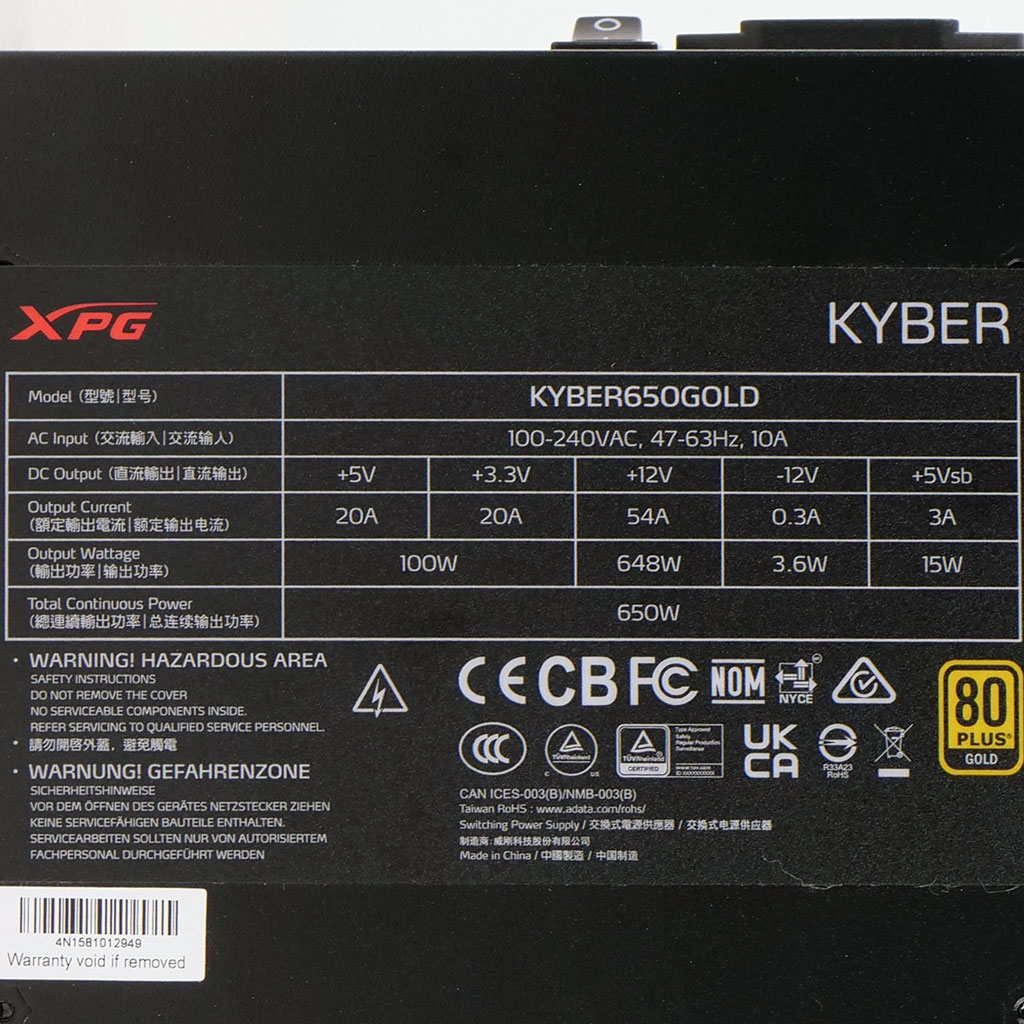

Power specifications label
