CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
PCCooler YS1200
Serial Number
Lab IDPL12002344
Certification ID252344
  • Test Result Report ID: 24PS2344A
  • Certificate Issue Date: Feb 6, 2024
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandPCCooler
Manufacturer (OEM)Seasonic
SeriesYS
Model NumberP5-YS1200-G1F
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7.5
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Dimensions (W x H x D)

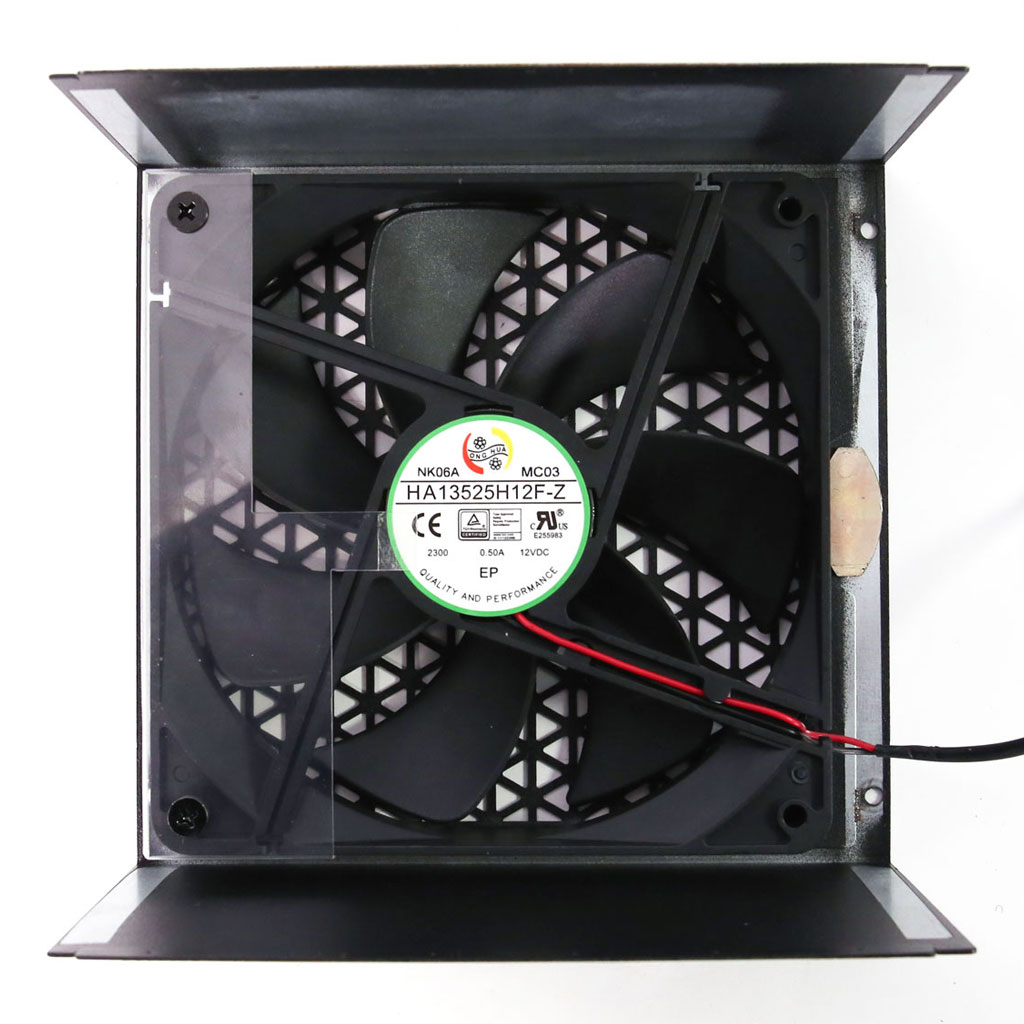

Cooling135mm Fluid Dynamic Bearing Fan (HA13525H12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252510030.3
Watts1251200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 16-18AWG No
4+4 pin EPS12V (710mm) 2 2 16AWG No
6+2 pin PCIe (760mm) 2 2 16-18AWG No
12+4 pin PCIe (700mm) (600W) 1 1 16-28AWG No
SATA (410mm+155mm) 1 2 18AWG No
SATA (500mm+155mm+155mm+155mm) 2 8 18AWG No
4-pin Molex (450mm+125mm+125mm) 1 3 18AWG No

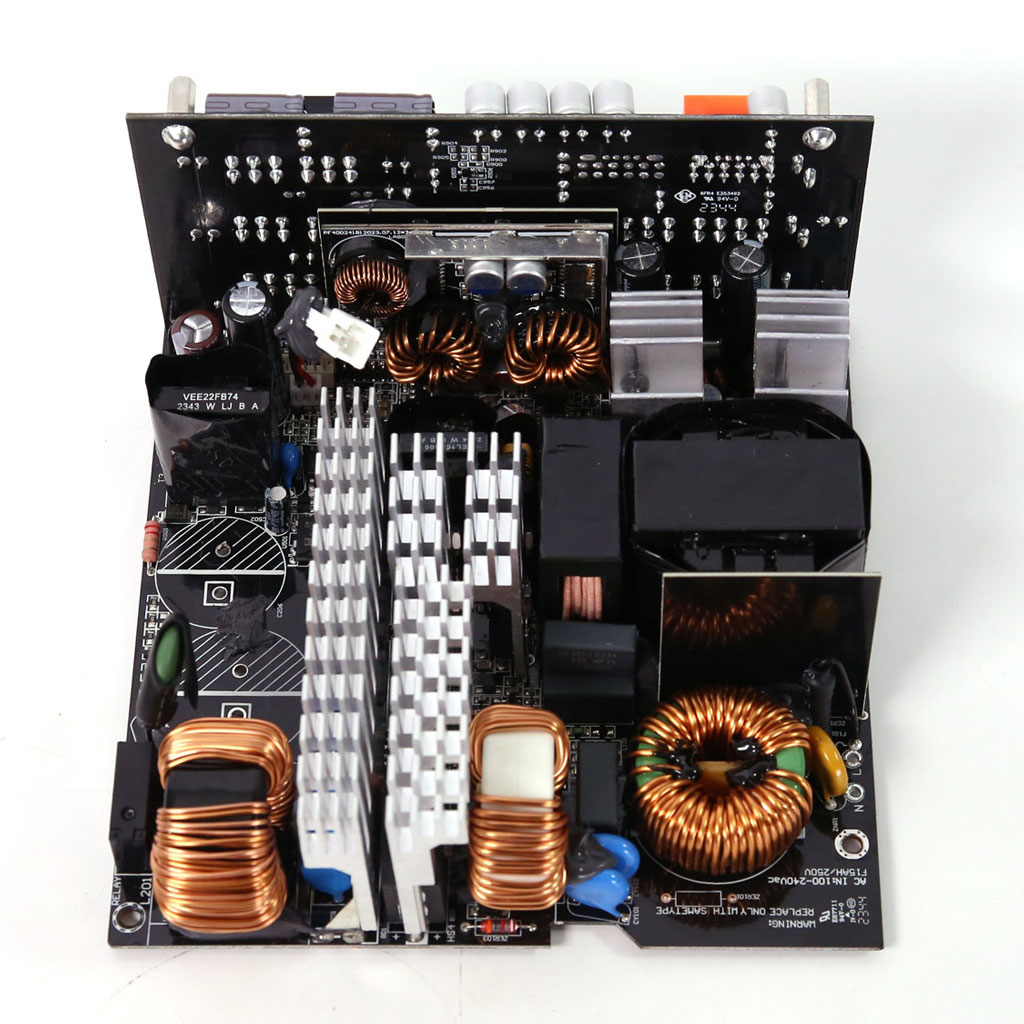

Parts Description

General Data
Manufacturer (OEM) Seasonic
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x CM02X (Discharge IC)
Inrush Protection NTC Thermistor MF72-5D20L (5 Ohm) & Relay
Bridge Rectifier(s)
2x
APFC MOSFETs
2x Toshiba TK31E60W (600V, 30.8A, Rds(on): 0.088Ohm)
APFC Boost Diode
CREE C3D10060A (600V, 10A @ 150°C)
Bulk Cap(s)
Nippon Chemi-Con (420V, 470uF, 2,000h @ 105°C, KMZ) &
Nippon Chemi-Con (420V, 680uF, 2,000h @ 105°C, KMZ)
Main Switchers
4x Infineon IPA60R180P7 (650V, 11A @ 100°C, Rds(on): 0.180Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CU6901VPA
Topology
Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 8x Nexperia PSMN1R0-40YLD (40V, 198A @ 100°C, Rds(on): 1.93mOhm)
5V & 3.3V DC-DC Converters: 6x Nexperia PSMN4R0-30YLD (30V, 67A @ 100°C, Rds(on): 6.6mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors

Electrolytic:
8x Nippon Chemi-Con (5-6,000h @ 105°C, KZH)
3x Nichicon (2-5,000h @ 105°C, HD),
2x Rubycon (3-6,000h @ 105°C, YXG),
Nippon Chemi-Con (1-5,000h @ 105°C, KZE)
Polymer:
8x FCAP, 23x FPCAP, 2x Rubycon
Supervisor IC Weltrend WT7527 (OCP, OVP, UVP, SCP, PG) Fan Model Hong Hua HA13525H12F-Z (135mm, 12V, 0.50A, Fluid Dynamic Bearing Fan) 5VSB Circuit
Standby PWM Controller Excelliance MOS EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingA-
Average Efficiency (>1450 load combinations)88.866%
Average Noise Output (>1450 Load Combinations)28.46dBA
Average PF (>1450 Load Combinations)0.976
Efficiency With 10W (≤500W) or 2% (>500W) Load76.820%
Standby Power Consumption0.0654W
12V Ripple (Full Load)25.92mV
5V Ripple (Full Load)20.51mV
3.3V Ripple (Full Load)24.14mV
5VSB Ripple (Full Load)31.94mV
12V Load Regulation0.82%
5V Load Regulation0.58%
3.3V Load Regulation0.82%
5VSB Load Regulation2.60%
Inrush Current35.300A
Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)91.325%
Average Noise Output (>1450 Load Combinations)28.43dBA
Average PF (>1450 Load Combinations)0.949
Efficiency With 10W (≤500W) or 2% (>500W) Load75.611%
Standby Power Consumption0.1376W
12V Ripple (Full Load)28.50mV
5V Ripple (Full Load)20.85mV
3.3V Ripple (Full Load)23.99mV
5VSB Ripple (Full Load)47.14mV
12V Load Regulation0.90%
5V Load Regulation0.58%
3.3V Load Regulation0.79%
5VSB Load Regulation2.58%
Inrush Current69.300A
12V Transient Response (200%)11.25V
5V Transient Response (200%)4.902V
3.3V Transient Response (200%)3.147V
5VSB Transient Response (200%)4.852V
Hold-Up Time & Power Ok Signal27.20ms
AC Loss to PWR_OK Hold Up Time22.40ms
PWR_OK Inactive to DC Loss Delay4.80ms
PSU Timings: T1 (20% / 100%)71.0ms67.0ms
PSU Timings: T3 (20% / 100%)124.0ms124.0ms
12V OCP (27°C / 38°C)132.4A (132.4%), 12.165V 5V132A (132%), 12.174V 5V
5V OCP (27°C / 38°C)
3.3V OCP (27°C / 38°C)
5VSB OCP (27°C / 38°C)
OPP (27.38°C / 39.55°C)132.98%124.25%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)27.2
AC Loss to PWR_OK Hold Up Time (ms)22.4
PWR_OK Inactive to DC Loss Delay (ms)4.8

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.92 V 114.84 V 113.85 V 115.01 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.420 1.419 1.340 1.422 1.490 PASS
Mains Voltage THD: 0.29 % 0.21 % N/A 0.38 % 2.00 % PASS
Real Power: 0.065 W 0.055 W N/A 0.078 W N/A N/A
Apparent Power: 10.233 W 10.215 W N/A 10.253 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.89 V 229.78 V 227.70 V 229.98 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.18 % 0.14 % N/A 0.26 % 2.00 % PASS
Real Power: 0.138 W 0.094 W N/A 0.197 W N/A N/A
Apparent Power: 34.465 W 34.434 W N/A 34.500 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

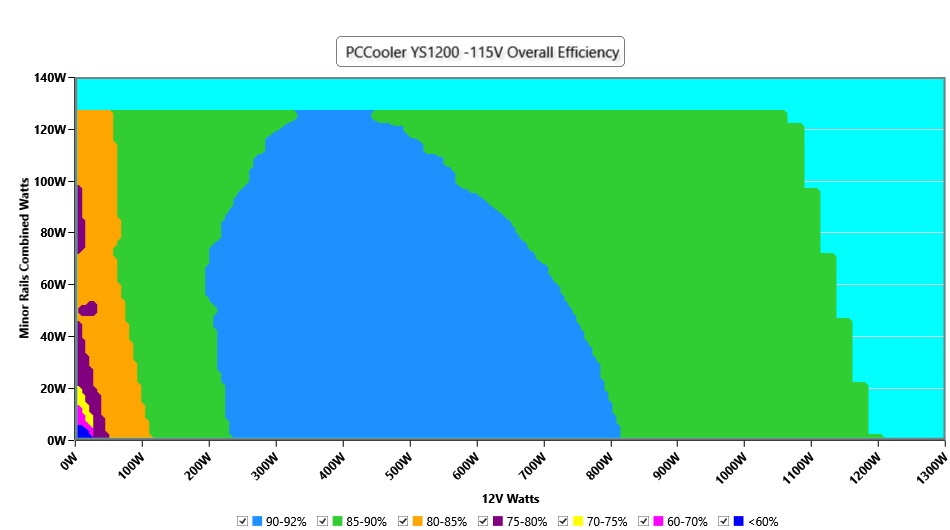

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

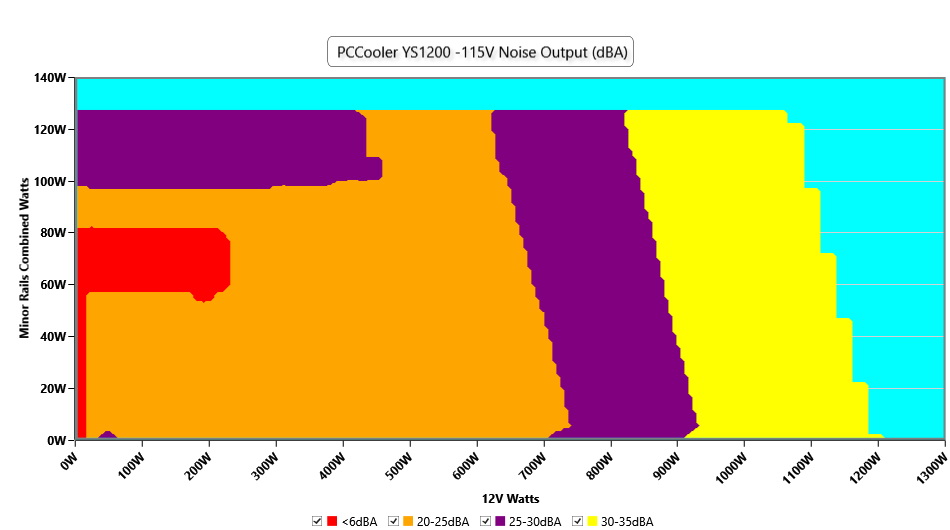

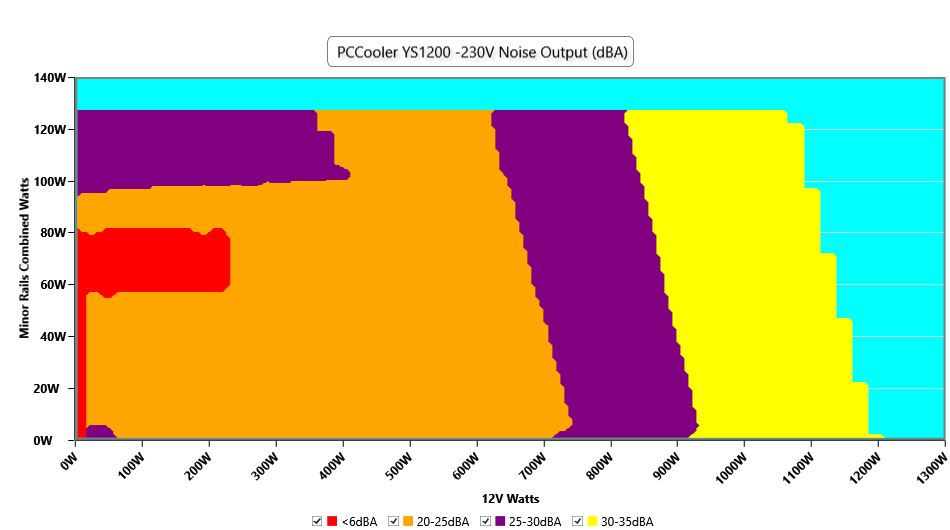

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 63.042% 0.031
5.138V 0.32W 114.93V
2 0.09A 0.462W 73.281% 0.06
5.137V 0.63W 114.92V
3 0.55A 2.82W 81.86% 0.261
5.128V 3.445W 114.91V
4 1A 5.118W 82.403% 0.352
5.119V 6.211W 114.91V
5 1.5A 7.662W 81.904% 0.411
5.108V 9.355W 114.9V
6 3A 15.225W 80.424% 0.485
5.076V 18.931W 114.9V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 53.021% 0.013
5.139V 0.436W 229.89V
2 0.09A 0.462W 64.335% 0.021
5.138V 0.719W 229.89V
3 0.55A 2.82W 79.283% 0.099
5.128V 3.557W 229.88V
4 1A 5.118W 81.338% 0.163
5.118V 6.292W 229.88V
5 1.5A 7.662W 82.032% 0.212
5.108V 9.341W 229.88V
6 3A 15.228W 81.56% 0.324
5.077V 18.673W 229.88V

Protection Features

Protection Features
OCP (Cold @ 27°C) 12V: 132.4A (132.4%), 12.165V 5V: 35.3A (141.2%), 5.002V 3.3V: 34.6A (138.4%), 3.299V 5VSB: 6.4A (213.33%), 5.004V
OCP (Hot @ 38°C) 12V: 132A (132%), 12.174V 5V: 35.1A (140.4%), 5.001V 3.3V: 34.5A (138%), 3.299V 5VSB: 6.3A (210%), 5.004V
OPP (Cold @ 27°C) 1595.71W (132.98%)
OPP (Hot @ 40°C) 1491.06W (124.25%)
OTP ✓ (135°C @ secondary side)
SCP 12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK Proper operation
NLO ✓
Fan Failure Protection ✗
SIP Surge: MOV Inrush: NTC Thermistor & Bypass relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.095A 1.987A 1.983A 0.978A 119.996 86.036% 0 <6.0 44.72°C 0.957
12.155V 5.031V 3.329V 5.114V 139.475 40.47°C 114.87V
20% 17.198A 2.983A 2.977A 1.176A 239.957 90.134% 0 <6.0 45.16°C 0.967
12.156V 5.028V 3.326V 5.102V 266.221 40.56°C 114.83V
30% 26.622A 3.482A 3.475A 1.375A 359.201 91.232% 861 24.9 41.25°C 0.969
12.138V 5.026V 3.324V 5.091V 393.724 46.38°C 114.79V
40% 36.124A 3.98A 3.974A 1.575A 479.57 91.384% 857 24.8 41.82°C 0.974
12.135V 5.025V 3.322V 5.08V 524.786 47.35°C 114.75V
50% 45.219A 4.978A 4.972A 1.776A 599.323 91.038% 851 24.6 42.43°C 0.979
12.137V 5.022V 3.319V 5.068V 658.329 48.51°C 114.7V
60% 54.353A 5.978A 5.971A 1.978A 719.837 90.418% 844 24.4 42.66°C 0.983
12.143V 5.019V 3.316V 5.056V 796.126 49.28°C 114.66V
70% 63.425A 6.979A 6.973A 2.18A 839.576 89.698% 948 28.0 43.27°C 0.986
12.148V 5.016V 3.314V 5.045V 936.004 50.35°C 114.61V
80% 72.525A 7.979A 7.975A 2.284A 959.569 88.854% 1045 30.8 43.86°C 0.989
12.157V 5.013V 3.311V 5.036V 1079.943 51.95°C 114.56V
90% 81.925A 8.482A 8.463A 2.388A 1079.36 87.921% 1135 33.1 44.42°C 0.991
12.168V 5.01V 3.308V 5.026V 1227.653 53.48°C 114.51V
100% 91.195A 8.984A 8.983A 2.997A 1199.389 86.893% 2251 49.1 45.08°C 0.992
12.168V 5.009V 3.306V 5.006V 1380.306 55.18°C 114.46V
110% 100.397A 9.987A 10.081A 3.001A 1320.006 85.758% 2248 49.1 46.75°C 0.993
12.169V 5.006V 3.303V 4.998V 1539.227 57.69°C 114.4V
CL1 0.115A 15.034A 15A 0A 126.304 81.315% 894 26.1 41.58°C 0.965
12.193V 5.008V 3.307V 5.128V 155.327 47.09°C 114.85V
CL2 0.114A 24.932A 0A 0A 126.248 79.947% 1088 31.9 40.35°C 0.963
12.183V 5.008V 3.318V 5.13V 157.916 47.43°C 114.86V
CL3 0.114A 0A 24.948A 0A 83.903 73.285% 1087 31.9 40.44°C 0.959
12.178V 5.017V 3.307V 5.13V 114.492 49.45°C 114.87V
CL4 98.756A 0A 0A 0A 1199.958 87.563% 1222 35.4 45.41°C 0.991
12.150V 5.024V 3.322V 5.074V 1370.406 56.38°C 114.47V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.096A 1.987A 1.983A 0.978A 119.981 87.345% 0 <6.0 44.44°C 0.878
12.151V 5.032V 3.328V 5.114V 137.365 40.2°C 229.87V
20% 17.202A 2.983A 2.977A 1.176A 239.933 91.548% 0 <6.0 45.25°C 0.93
12.152V 5.029V 3.326V 5.103V 262.088 40.71°C 229.85V
30% 26.622A 3.481A 3.475A 1.375A 359.113 92.841% 864 25.0 41.38°C 0.948
12.135V 5.027V 3.324V 5.092V 386.804 46.47°C 229.83V
40% 36.120A 3.98A 3.974A 1.574A 479.5 93.218% 858 24.8 41.55°C 0.958
12.134V 5.025V 3.322V 5.081V 514.383 47.06°C 229.8V
50% 45.217A 4.978A 4.971A 1.775A 599.24 93.164% 853 24.7 42.24°C 0.965
12.135V 5.022V 3.319V 5.069V 643.207 48.29°C 229.79V
60% 54.360A 5.977A 5.971A 1.977A 719.755 92.904% 849 24.5 42.81°C 0.97
12.140V 5.019V 3.316V 5.058V 774.725 49.34°C 229.77V
70% 63.425A 6.978A 6.972A 2.18A 839.512 92.532% 949 24.5 43.38°C 0.973
12.147V 5.016V 3.314V 5.046V 907.266 50.39°C 229.75V
80% 72.531A 7.978A 7.974A 2.283A 959.507 92.095% 1051 30.8 43.94°C 0.975
12.155V 5.013V 3.311V 5.037V 1041.861 52.04°C 229.72V
90% 81.916A 8.481A 8.462A 2.387A 1079.312 91.608% 1134 33.1 44.56°C 0.978
12.168V 5.01V 3.309V 5.027V 1178.182 53.65°C 229.71V
100% 91.174A 8.983A 8.982A 2.996A 1199.358 91.019% 2253 49.1 44.89°C 0.98
12.170V 5.009V 3.307V 5.007V 1317.698 54.96°C 229.68V
110% 100.384A 9.987A 10.08A 3A 1319.977 90.401% 2250 49.1 46.59°C 0.981
12.170V 5.006V 3.304V 5V 1460.145 57.51°C 229.66V
CL1 0.113A 15.022A 14.995A 0A 126.274 82.909% 898 26.3 40.94°C 0.888
12.151V 5.012V 3.308V 5.128V 152.302 46.45°C 229.87V
CL2 0.113A 24.921A 0A 0A 126.239 81.237% 1092 32.0 41.75°C 0.89
12.164V 5.01V 3.319V 5.13V 155.402 49.03°C 229.87V
CL3 0.113A 0A 24.943A 0A 83.896 74.506% 1091 32.0 41.11°C 0.855
12.170V 5.019V 3.308V 5.13V 112.6 50.27°C 229.87V
CL4 98.783A 0A 0A 0A 1199.904 91.611% 1225 35.5 45.49°C 0.978
12.146V 5.024V 3.323V 5.074V 1309.772 56.41°C 229.69V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.229A 0.496A 0.495A 0.195A 20 74.953% 0 <6.0 39.72°C 0.868
12.082V 5.038V 3.333V 5.136V 26.68 36.67°C 114.9V
40W 2.708A 0.695A 0.693A 0.292A 39.999 80.899% 0 <6.0 40.94°C 0.924
12.075V 5.036V 3.332V 5.132V 49.44 37.67°C 114.9V
60W 4.186A 0.894A 0.891A 0.39A 59.998 83.463% 0 <6.0 41.93°C 0.938
12.069V 5.035V 3.331V 5.129V 71.884 38.16°C 114.89V
80W 5.620A 1.092A 1.09A 0.488A 79.945 82.148% 0 <6.0 43.79°C 0.947
12.156V 5.034V 3.331V 5.126V 97.324 39.81°C 114.88V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.496A 0.495A 0.195A 19.994 76.493% 0 <6.0 39.65°C 0.496
12.071V 5.038V 3.333V 5.136V 26.122 36.57°C 229.9V
40W 2.708A 0.695A 0.693A 0.292A 39.993 82.736% 0 <6.0 40.37°C 0.686
12.066V 5.036V 3.331V 5.133V 48.299 37.05°C 229.9V
60W 4.190A 0.894A 0.891A 0.39A 59.993 84.693% 0 <6.0 41.58°C 0.776
12.061V 5.035V 3.331V 5.13V 70.806 38.11°C 229.87V
80W 5.622A 1.092A 1.09A 0.488A 79.932 83.408% 0 <6.0 43.22°C 0.831
12.150V 5.035V 3.331V 5.127V 95.828 39.35°C 229.87V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load15.35mV14.00mV18.67mV18.67mVPass
20% Load20.57mV13.74mV17.70mV17.80mVPass
30% Load19.53mV14.05mV16.93mV28.24mVPass
40% Load17.34mV14.40mV16.68mV26.29mVPass
50% Load18.83mV14.92mV16.47mV27.52mVPass
60% Load16.78mV14.41mV16.88mV26.55mVPass
70% Load18.93mV15.99mV18.01mV27.88mVPass
80% Load17.24mV16.86mV18.83mV28.34mVPass
90% Load17.14mV18.24mV21.23mV29.11mVPass
100% Load25.92mV20.51mV24.14mV31.94mVPass
110% Load25.12mV21.42mV25.30mV31.80mVPass
Crossload115.07mV16.03mV22.20mV32.24mVPass
Crossload216.93mV23.04mV22.76mV28.18mVPass
Crossload315.96mV17.11mV25.93mV29.05mVPass
Crossload425.81mV20.44mV24.21mV35.07mVPass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 16.1 mV 16.0 mV 20.3 mV 19.9 mV Pass
20% Load 23.7 mV 13.7 mV 17.7 mV 18.3 mV Pass
30% Load 21.3 mV 14.1 mV 16.8 mV 28.1 mV Pass
40% Load 17.2 mV 14.3 mV 18.2 mV 26.7 mV Pass
50% Load 18.4 mV 15.0 mV 17.9 mV 29.2 mV Pass
60% Load 17.9 mV 14.8 mV 17.4 mV 28.2 mV Pass
70% Load 18.2 mV 15.9 mV 18.5 mV 28.4 mV Pass
80% Load 17.4 mV 17.9 mV 20.4 mV 29.5 mV Pass
90% Load 19.2 mV 20.1 mV 21.4 mV 29.8 mV Pass
100% Load 28.5 mV 20.9 mV 24.0 mV 47.1 mV Pass
110% Load 28.6 mV 23.1 mV 24.5 mV 50.7 mV Fail
Crossload 1 16.9 mV 17.6 mV 23.1 mV 30.7 mV Pass
Crossload 2 17.9 mV 25.0 mV 25.1 mV 30.0 mV Pass
Crossload 3 16.6 mV 18.0 mV 26.7 mV 30.2 mV Pass
Crossload 4 27.5 mV 20.2 mV 25.4 mV 48.8 mV Pass

The results above are not used in the certification process

PCCooler YS1200

Top side
Power specifications label
Internals
Cooling Fan
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
