Sharkoon Rebel P20 750

Serial Number

Lab IDSK75002392

Certification ID252392

Test Result Report ID: 24PS2392A
Certificate Issue Date: Mar 15, 2024

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brand	Sharkoon
Model	Rebel P20 750
OEM/ODM	Andyson
Serial Number
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)	100-240
Rated Current (Arms)	9-4.5
Rated Frequency (Hz)	50-60
Rated Power (W)	750
Operating Temperature (Continuous Full Load) (°C)
Type	ATX12V
Cable Design	Fully Modular
Warranty	-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling	120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z)
Semi-Passive Operation	✓ (selectable)
Cybenetics Testing Information
Lab ID	SK75002392
Date of receipt	Feb 12, 2024
Testing Date	Mar 15, 2024
Report Issued Date	Mar 15, 2024
DUT Notes	Applicable to both black and white color models.
Engineer Name	-
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (600mm)	1	1	18AWG	No
4+4 pin EPS12V (700mm)	2	2	18AWG	No
6+2 pin PCIe (550mm+150mm)	2	4	18AWG	No
12+4 pin PCIe (600mm) (600W)	1	1	16-26AWG	No
SATA (500mm+150mm+150mm)	1	3	18AWG	No
SATA (500mm+150mm+150mm+150mm)	2	8	18AWG	No
4-pin Molex Adapter (+150mm)	1	1	18AWG	No
AC Power Cord (1380mm) - C13 coupler	1	1	18AWG	-

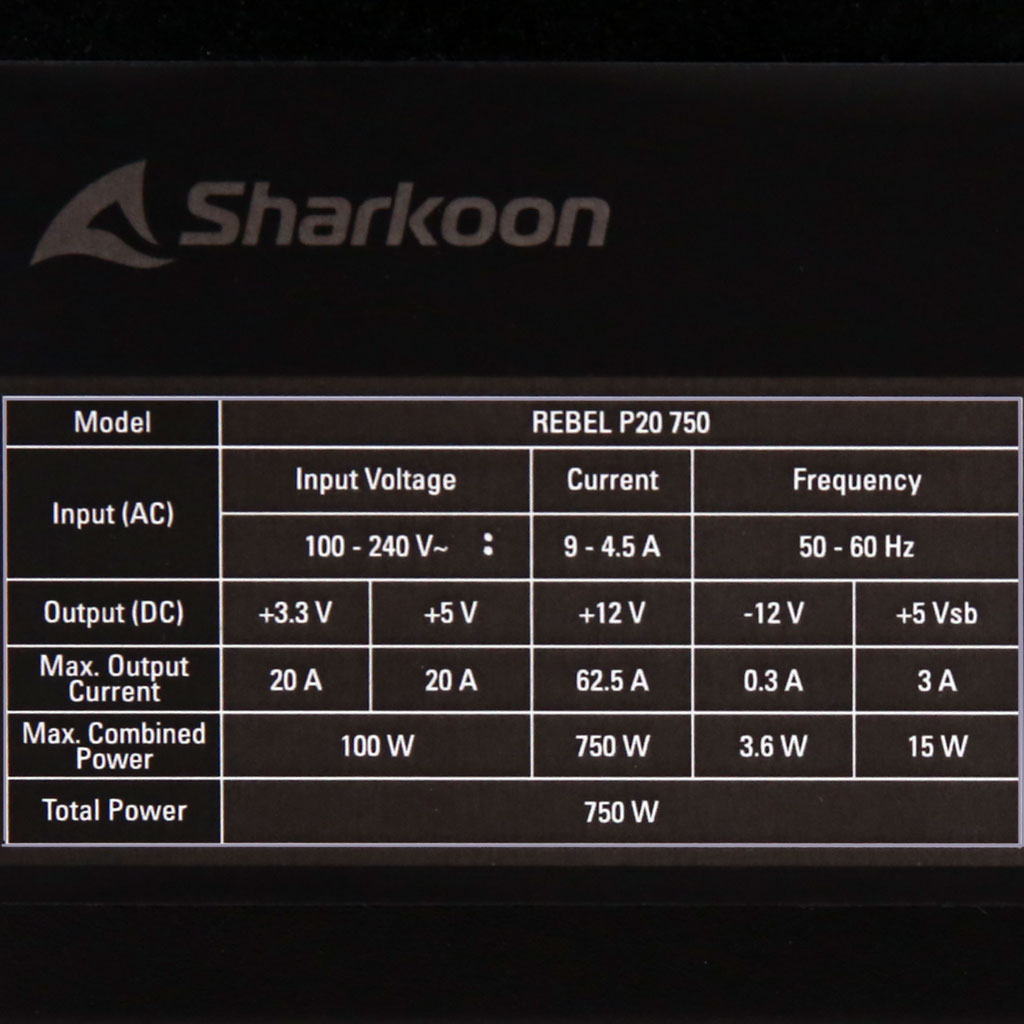

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	62.5	3	0.3
Max. Power	Watts	100		750	15	3.6
Total Max. Power (W)		750

Parts Description

`General Data`
Manufacturer (OEM)	Andyson
PCB Type	Double-Sided
`Primary Side`
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor SCK205R0 (5 Ohm @ 25°C) & Relay
Bridge Rectifier(s)	2x GBU1006 (420V, 15A @ 100°C)
APFC MOSFETs	2x Wayon WML28N65F2 (650V, 13A @ 100°C, Rds(on): 0.19Ohm)
APFC Boost Diode	1x WeEn BYC10-600P (600V, 20A @ 127°C)
Bulk Cap(s)	2x Nippon Chemicon (420V, 330uF each or 660uf combined, 2000h @ 105°C, KMR)
Main Switchers	4x Chongqing Pingwei 18N50MF (500V, 18A @ 25°C, Rds(on): 0.3Ohm)
APFC Controller	Champion CM6500UNX
Resonant Controller	Champion CU6901VPA
Topology	Primary side: APFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
`Secondary Side`
+12V MOSFETs	6x Allpower APG013N04G-AU (40V, 100A @ 100°C, Rds(on): 1.3mOhm)
5V & 3.3V	DC-DC Converters: 6x Nexperia PSMN4R0-30YLD (30V, 95A @ 25°C, Rds(on): 4mOhm) PWM Controller(s): ANPEC APW7159C
Filtering Capacitors	Electrolytic: 6x Nippon Chemi-Con (2-5,000 @ 105°C, KZE), 4x Rubycon (6-10000 @ 105°C, ZLH), 1x Nichicon (4-10,000 @ 105°C, HE), Polymer: 24x Polycap, 5x FPCAP, 1x Nippon Chemi-Con LE
Supervisor IC	Weltrend WT7527RA (OCP, OTP, OVP, UVP, SCP, PG)
Micro Controller / Fan Controller	Weltrend WT51F104
Fan Model	Hong Hua HA1225M12F-Z (120mm, 12V, 0.45A, Fluid Dynamic Bearing)
`5VSB Circuit`
Rectifier	PJ335M
Standby PWM Controller	Excelliance MOS EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	28-32 / 82.4-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)	88.326%
Average Noise Output (>1450 Load Combinations)	9.21dBA
Average PF (>1450 Load Combinations)	0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load	73.586%
Standby Power Consumption	0.0624W
Non-Accredited
12V Ripple (Full Load)	15.49mV
5V Ripple (Full Load)	13.89mV
3.3V Ripple (Full Load)	15.98mV
5VSB Ripple (Full Load)	23.91mV
12V Load Regulation	0.73%
5V Load Regulation	0.30%
3.3V Load Regulation	0.88%
5VSB Load Regulation	5.05%
Inrush Current	34.280A

Accredited
Average Efficiency (>1450 load combinations)	90.737%
Average Noise Output (>1450 Load Combinations)	10.00dBA
Average PF (>1450 Load Combinations)	0.940
Efficiency With 10W (≤500W) or 2% (>500W) Load	71.180%
Standby Power Consumption	0.1369W
Non-Accredited
12V Ripple (Full Load)	15.74mV
5V Ripple (Full Load)	13.66mV
3.3V Ripple (Full Load)	16.21mV
5VSB Ripple (Full Load)	22.57mV
12V Load Regulation	0.96%
5V Load Regulation	0.38%
3.3V Load Regulation	0.73%
5VSB Load Regulation	4.70%
Inrush Current	65.060A
12V Transient Response (200%)	11.58V
5V Transient Response (200%)	4.950V
3.3V Transient Response (200%)	3.172V
5VSB Transient Response (200%)	4.992V
Hold-Up Time & PWR_OK Signal	22.90ms
AC Loss to PWR_OK Hold Up Time	18.80ms
PWR_OK Inactive to DC Loss Delay	4.10ms
PSU Timings: T1 (20% / 100%)	89.0ms	89.0ms
PSU Timings: T3 (20% / 100%)	118.0ms	121.0ms
OPP (28.47°C / 41.71°C)	147.08%	136.36%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)	22.9
AC Loss to PWR_OK Hold Up Time (ms)	18.8
PWR_OK Inactive to DC Loss Delay (ms)	4.1

Stromverbrauch im Ruhezustand

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.04 V	115.01 V	113.85 V	115.09 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.96 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.418	1.490	PASS
Mains Voltage THD:	0.13 %	0.09 %	N/A	0.19 %	2.00 %	PASS
Real Power:	0.062 W	0.011 W	N/A	0.083 W	N/A	N/A
Apparent Power:	7.983 W	7.794 W	N/A	8.182 W	N/A	N/A
Power Factor:	0.008	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.00 V	230.89 V	227.70 V	231.06 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.17 %	0.14 %	N/A	0.26 %	2.00 %	PASS
Real Power:	0.137 W	0.118 W	N/A	0.171 W	N/A	N/A
Apparent Power:	26.154 W	25.880 W	N/A	26.442 W	N/A	N/A
Power Factor:	0.005	N/A	N/A	N/A	N/A	N/A

Graphs

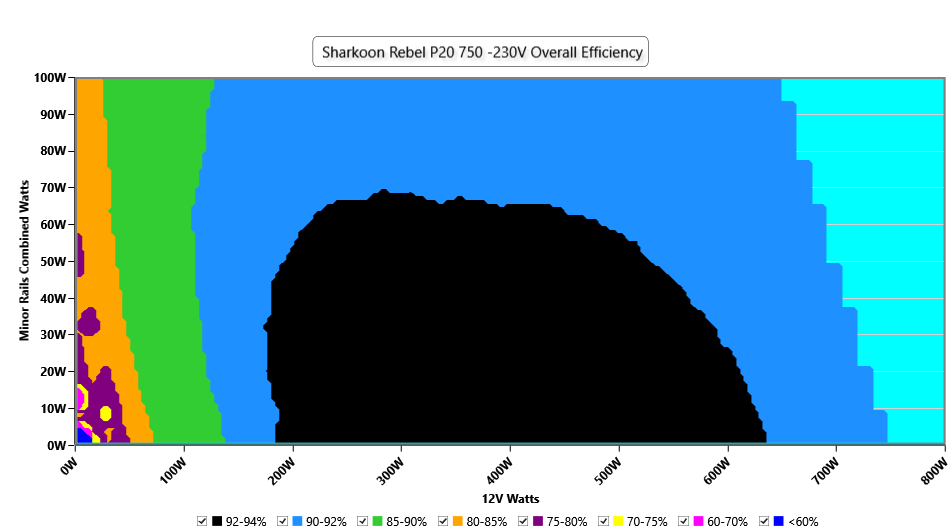

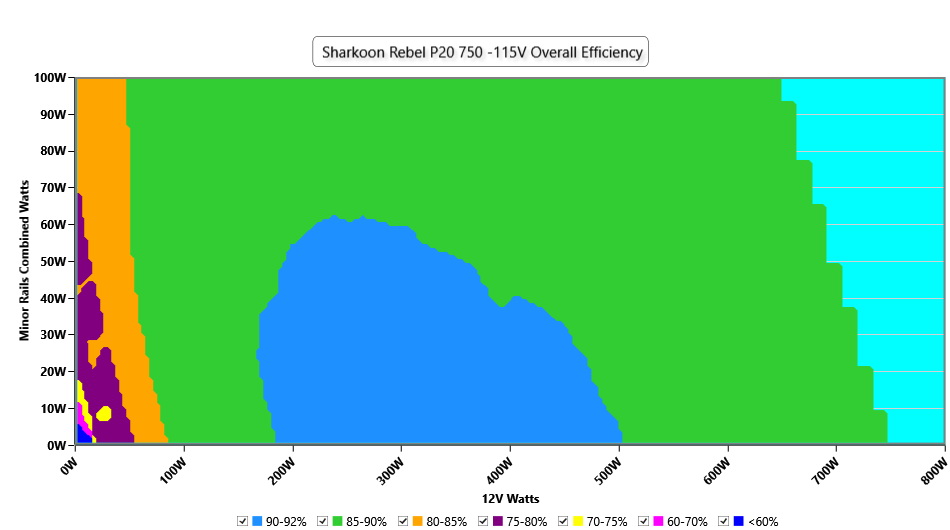

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

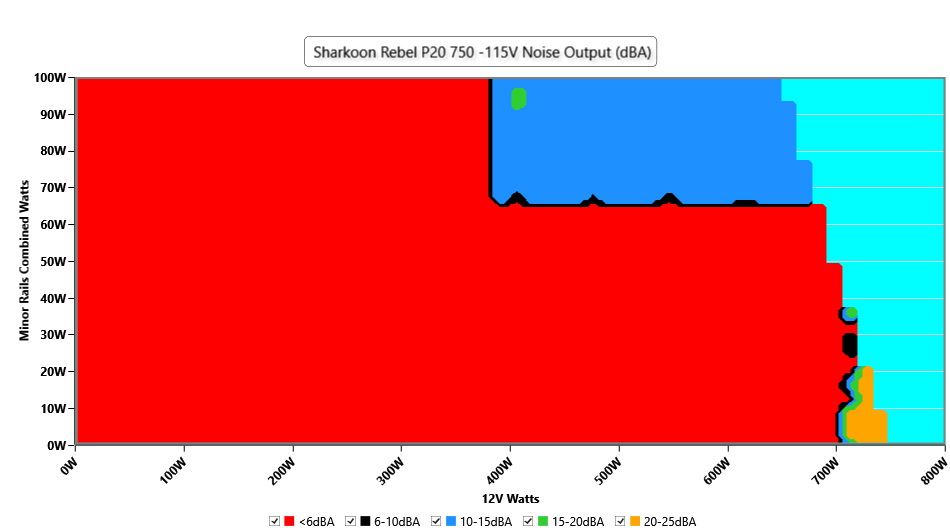

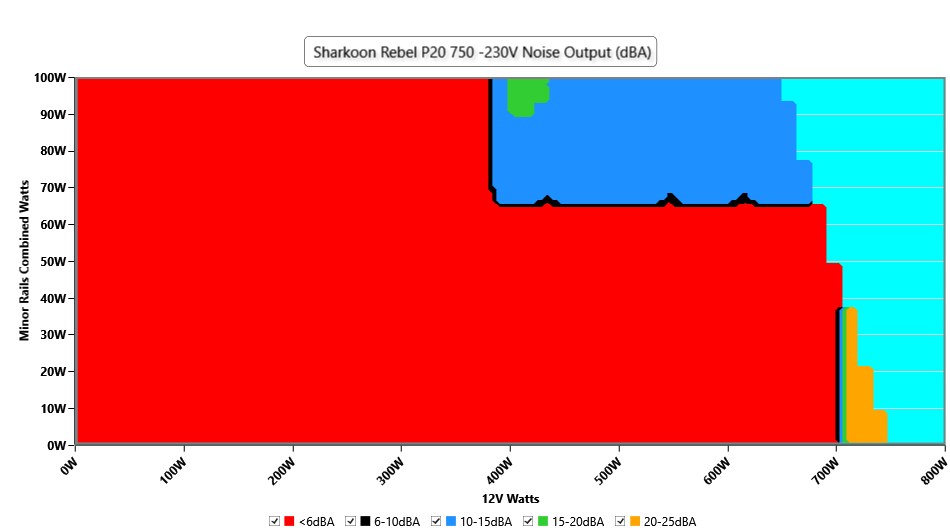

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Noise under high ambient temperature (indicative)

115V

Load	Normal ambient fan · noise · intake	High ambient fan · noise · intake	Noise change
10%	0 RPM · <6.0 dB(A) · 44.5 °C	0 RPM · <6.0 dB(A) · 44.5 °C	fan off in both
20%	0 RPM · <6.0 dB(A) · 45.0 °C	0 RPM · <6.0 dB(A) · 45.0 °C	fan off in both
50%	0 RPM · <6.0 dB(A) · 47.8 °C	0 RPM · <6.0 dB(A) · 47.8 °C	fan off in both
100%	772 RPM · 14.6 dB(A) · 46.1 °C	772 RPM · 14.6 dB(A) · 46.1 °C	+0.0 dB(A)

230V

Load	Normal ambient fan · noise · intake	High ambient fan · noise · intake	Noise change
10%	0 RPM · <6.0 dB(A) · 44.5 °C	0 RPM · <6.0 dB(A) · 44.5 °C	fan off in both
20%	0 RPM · <6.0 dB(A) · 45.2 °C	0 RPM · <6.0 dB(A) · 45.2 °C	fan off in both
50%	0 RPM · <6.0 dB(A) · 47.9 °C	0 RPM · <6.0 dB(A) · 47.9 °C	fan off in both
100%	772 RPM · 14.6 dB(A) · 45.4 °C	772 RPM · 14.6 dB(A) · 45.4 °C	+0.0 dB(A)

INFO

Fan speed, noise and the measured intake temperature at 10, 20, 50 and 100 % load, from the two load regulation tests: at normal ambient (about 30-32 °C) and at high ambient (about 40-47 °C). These are stabilized readings at fixed loads, not averages over the certification sweep, so they are indicative of how the fan behaves when it is hot. "<6.0" is the floor of our sound meter: the fan is stopped or too quiet to measure (the fan speed column says which); with the fan stopped, the intake sensor can read higher than the chamber air.

Informational. Not part of the ETA or LAMBDA rating.

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

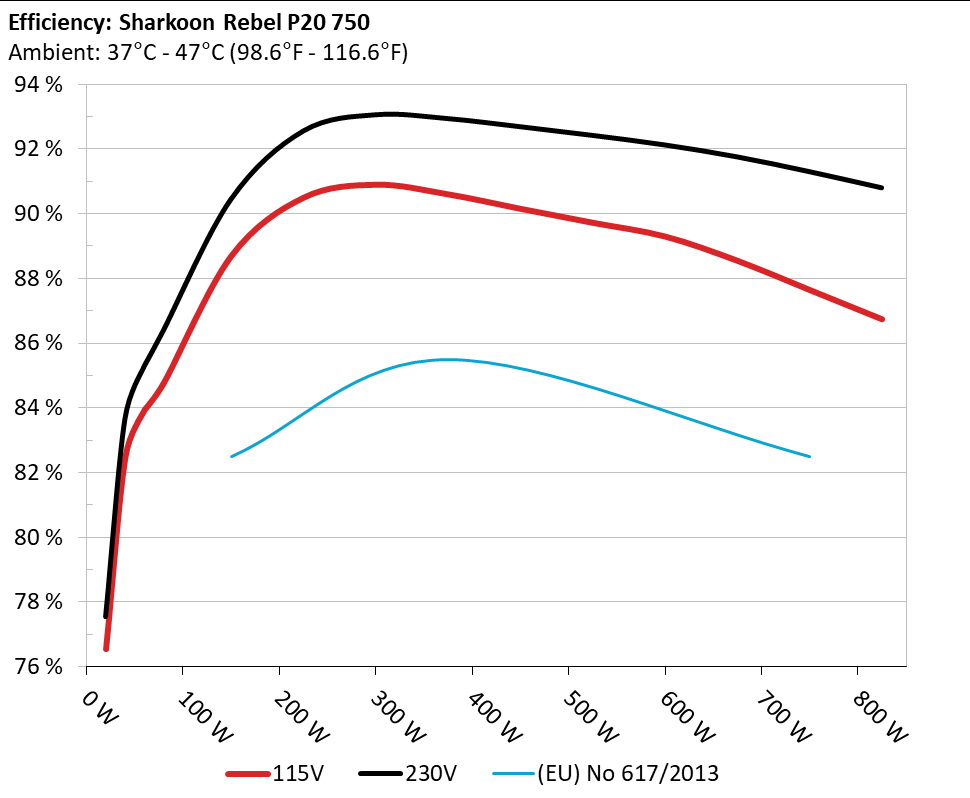

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

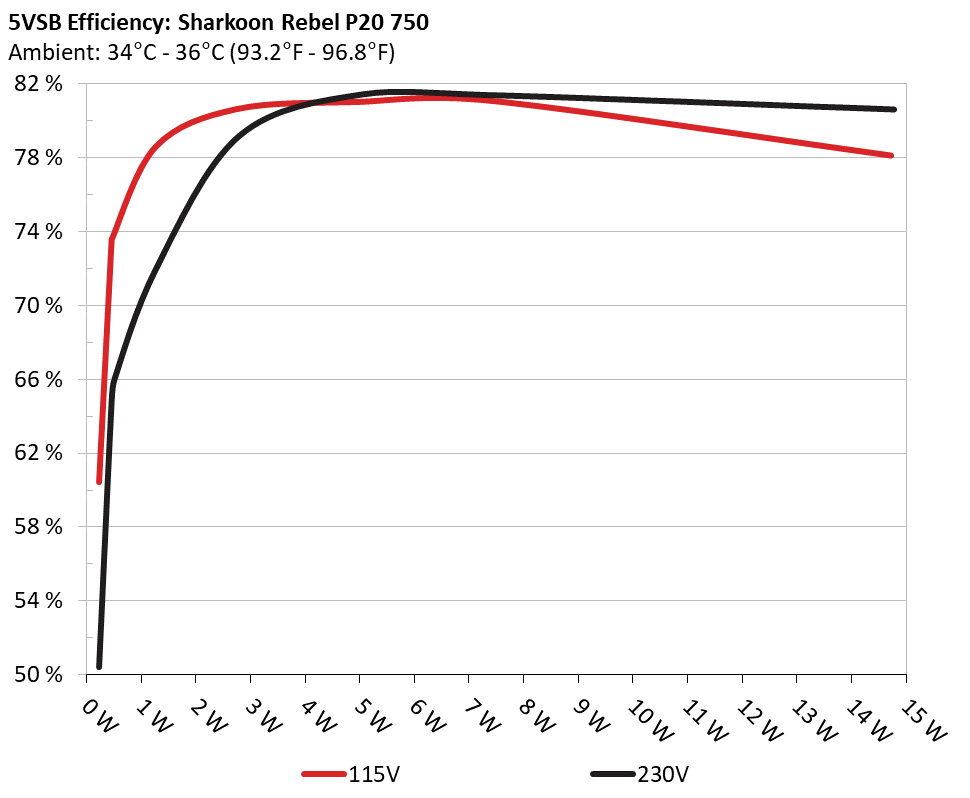

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	60.453%	0.047
1	5.116V	0.381W	60.453%	114.92V
2	0.09A	0.459W	73.646%	0.076
2	5.104V	0.623W	73.646%	114.93V
3	0.55A	2.745W	80.619%	0.297
3	4.991V	3.404W	80.619%	114.93V
4	1A	4.954W	81.004%	0.375
4	4.954V	6.115W	81.004%	114.92V
5	1.5A	7.411W	81.065%	0.425
5	4.94V	9.142W	81.065%	114.92V
6	3A	14.718W	78.107%	0.491
6	4.906V	18.843W	78.107%	114.91V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.231W	50.42%	0.017
1	5.127V	0.46W	50.42%	229.9V
2	0.09A	0.461W	64.803%	0.026
2	5.124V	0.713W	64.803%	229.9V
3	0.55A	2.802W	79.168%	0.121
3	5.095V	3.54W	79.168%	229.9V
4	1A	5.067W	81.409%	0.194
4	5.067V	6.223W	81.409%	229.9V
5	1.5A	7.553W	81.349%	0.239
5	5.035V	9.284W	81.349%	229.9V
6	3A	14.787W	80.587%	0.343
6	4.929V	18.348W	80.587%	229.9V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	4.376A	1.981A	1.979A	0.988A	75.002	83.433%	0	<6.0	44.45°C	0.954
10%	12.205V	5.048V	3.334V	5.061V	89.895	83.433%	0	<6.0	40.36°C	114.89V
20%	9.755A	2.972A	2.972A	1.191A	149.942	88.192%	0	<6.0	45.01°C	0.975
20%	12.203V	5.048V	3.331V	5.039V	170.016	88.192%	0	<6.0	40.73°C	114.86V
30%	15.495A	3.467A	3.469A	1.395A	224.949	89.994%	0	<6.0	45.95°C	0.982
30%	12.191V	5.047V	3.33V	5.018V	249.957	89.994%	0	<6.0	41.21°C	114.84V
40%	21.241A	3.964A	3.967A	1.601A	300.038	90.395%	0	<6.0	46.7°C	0.984
40%	12.186V	5.046V	3.328V	4.998V	331.921	90.395%	0	<6.0	41.66°C	114.8V
50%	26.580A	4.956A	4.962A	1.809A	374.484	90.099%	0	<6.0	47.79°C	0.986
50%	12.189V	5.045V	3.326V	4.977V	415.637	90.099%	0	<6.0	42.28°C	114.79V
60%	31.977A	5.952A	5.963A	2A	449.318	89.653%	787	15.2	42.86°C	0.986
60%	12.183V	5.041V	3.321V	4.959V	501.171	89.653%	787	15.2	48.88°C	114.75V
70%	37.387A	6.949A	6.968A	2.228A	524.32	89.222%	786	15.1	43.26°C	0.986
70%	12.175V	5.038V	3.316V	4.938V	587.656	89.222%	786	15.1	50.35°C	114.72V
80%	42.863A	7.941A	7.971A	2.334A	599.676	88.794%	784	15.1	44.97°C	0.987
80%	12.175V	5.036V	3.312V	4.928V	675.222	88.794%	784	15.1	53.02°C	114.7V
90%	48.598A	8.438A	8.459A	2.442A	674.538	88.046%	777	14.8	45.45°C	0.988
90%	12.182V	5.036V	3.31V	4.914V	766.116	88.046%	777	14.8	54.58°C	114.67V
100%	54.140A	8.934A	8.976A	3.078A	749.757	87.141%	772	14.6	46.11°C	0.989
100%	12.192V	5.036V	3.309V	4.873V	860.398	87.141%	772	14.6	56.17°C	114.64V
110%	59.590A	9.929A	10.074A	3.079A	824.78	86.235%	1351	32.8	46.98°C	0.99
110%	12.191V	5.035V	3.305V	4.872V	956.435	86.235%	1351	32.8	57.95°C	114.61V
CL1	0.114A	11.913A	11.962A	0A	101.296	81.431%	789	15.3	41.28°C	0.967
CL1	12.240V	5.053V	3.319V	5.113V	124.395	81.431%	789	15.3	46.79°C	114.87V
CL2	0.113A	19.771A	0A	0A	101.351	79.978%	1360	33	40.37°C	0.968
CL2	12.214V	5.056V	3.326V	5.116V	126.724	79.978%	1360	33	47.46°C	114.87V
CL3	0.113A	0A	19.9A	0A	67.398	74.304%	1360	33	40.41°C	0.955
CL3	12.200V	5.039V	3.317V	5.115V	90.705	74.304%	1360	33	49.51°C	114.89V
CL4	61.629A	0A	0A	0A	749.611	88.146%	1346	32.7	42.78°C	0.989
CL4	12.163V	5.035V	3.322V	5.065V	850.403	88.146%	1346	32.7	53.76°C	114.64V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	4.380A	1.982A	1.98A	0.986A	74.997	84.79%	0	<6.0	44.48°C	0.788
10%	12.191V	5.046V	3.333V	5.072V	88.453	84.79%	0	<6.0	40.42°C	229.88V
20%	9.763A	2.973A	2.972A	1.187A	149.929	89.944%	0	<6.0	45.18°C	0.899
20%	12.192V	5.045V	3.331V	5.053V	166.692	89.944%	0	<6.0	40.89°C	229.87V
30%	15.508A	3.469A	3.469A	1.39A	224.93	92.052%	0	<6.0	45.89°C	0.936
30%	12.179V	5.044V	3.329V	5.035V	244.347	92.052%	0	<6.0	41.18°C	229.86V
40%	21.255A	3.966A	3.967A	1.595A	300.021	92.556%	0	<6.0	46.97°C	0.953
40%	12.177V	5.043V	3.328V	5.016V	324.149	92.556%	0	<6.0	41.93°C	229.85V
50%	26.597A	4.96A	4.962A	1.802A	374.455	92.438%	0	<6.0	47.86°C	0.963
50%	12.180V	5.041V	3.325V	4.996V	405.088	92.438%	0	<6.0	42.41°C	229.84V
60%	32.002A	5.958A	5.965A	2A	449.338	92.189%	788	15.2	42.83°C	0.969
60%	12.174V	5.036V	3.32V	4.975V	487.411	92.189%	788	15.2	48.93°C	229.82V
70%	37.401A	6.956A	6.967A	2.22A	524.306	91.921%	786	15.1	43.16°C	0.972
70%	12.171V	5.033V	3.316V	4.954V	570.387	91.921%	786	15.1	50.18°C	229.81V
80%	42.838A	7.949A	7.968A	2.328A	599.516	91.625%	782	15	43.72°C	0.975
80%	12.177V	5.031V	3.313V	4.94V	654.313	91.625%	782	15	51.73°C	229.8V
90%	48.587A	8.448A	8.455A	2.435A	674.537	91.257%	777	14.8	44.27°C	0.977
90%	12.185V	5.03V	3.312V	4.927V	739.164	91.257%	777	14.8	53.38°C	229.78V
100%	54.115A	8.947A	8.972A	3.068A	749.748	90.799%	772	14.6	45.38°C	0.978
100%	12.197V	5.029V	3.31V	4.889V	825.723	90.799%	772	14.6	55.46°C	229.76V
110%	59.562A	9.946A	10.071A	3.071A	824.77	90.298%	1353	32.9	46.58°C	0.979
110%	12.197V	5.026V	3.307V	4.884V	913.387	90.298%	1353	32.9	57.55°C	229.75V
CL1	0.114A	11.939A	11.96A	0A	101.292	82.982%	790	15.3	40.04°C	0.854
CL1	12.241V	5.041V	3.32V	5.113V	122.065	82.982%	790	15.3	45.49°C	229.87V
CL2	0.113A	19.819A	0A	0A	101.345	81.341%	1362	33	40.92°C	0.858
CL2	12.214V	5.043V	3.326V	5.116V	124.591	81.341%	1362	33	47.99°C	229.87V
CL3	0.113A	0A	19.898A	0A	67.396	75.53%	1360	33	40.02°C	0.791
CL3	12.201V	5.04V	3.318V	5.115V	89.23	75.53%	1360	33	49.08°C	229.88V
CL4	61.663A	0A	0A	0A	749.569	91.664%	1348	32.7	45.03°C	0.978
CL4	12.156V	5.035V	3.323V	5.065V	817.738	91.664%	1348	32.7	56.01°C	229.76V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.226A	0.495A	0.494A	0.195A	20.001	76.036%	0	<6.0	39.72°C	0.784
20W	12.116V	5.051V	3.338V	5.119V	26.306	76.036%	0	<6.0	36.65°C	114.91V
40W	2.698A	0.693A	0.692A	0.293A	40	81.97%	0	<6.0	41.12°C	0.906
40W	12.120V	5.051V	3.338V	5.11V	48.799	81.97%	0	<6.0	37.79°C	114.9V
60W	4.142A	0.891A	0.89A	0.392A	59.999	81.313%	0	<6.0	42°C	0.944
60W	12.199V	5.051V	3.337V	5.102V	73.788	81.313%	0	<6.0	38.15°C	114.89V
80W	5.598A	1.089A	1.088A	0.491A	79.945	84.266%	0	<6.0	43.23°C	0.957
80W	12.204V	5.05V	3.336V	5.094V	94.876	84.266%	0	<6.0	39.25°C	114.88V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.228A	0.495A	0.495A	0.195A	19.993	77.05%	0	<6.0	39.73°C	0.449
20W	12.081V	5.048V	3.334V	5.119V	25.95	77.05%	0	<6.0	36.65°C	229.9V
40W	2.704A	0.693A	0.693A	0.293A	39.993	83.156%	0	<6.0	40.81°C	0.621
40W	12.086V	5.047V	3.334V	5.112V	48.094	83.156%	0	<6.0	37.49°C	229.89V
60W	4.152A	0.891A	0.891A	0.392A	59.993	82.611%	0	<6.0	41.82°C	0.74
60W	12.171V	5.048V	3.334V	5.105V	72.62	82.611%	0	<6.0	38.33°C	229.88V
80W	5.608A	1.09A	1.089A	0.49A	79.935	85.895%	0	<6.0	42.89°C	0.8
80W	12.179V	5.047V	3.333V	5.098V	93.062	85.895%	0	<6.0	39.08°C	229.88V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	12.38mV	11.19mV	9.72mV	16.01mV	Pass
20% Load	11.76mV	11.55mV	10.23mV	16.93mV	Pass
30% Load	12.28mV	11.14mV	10.28mV	16.62mV	Pass
40% Load	11.77mV	10.98mV	11.10mV	16.83mV	Pass
50% Load	11.56mV	13.18mV	12.07mV	17.65mV	Pass
60% Load	12.13mV	11.60mV	11.30mV	18.88mV	Pass
70% Load	12.59mV	11.85mV	11.76mV	20.00mV	Pass
80% Load	12.84mV	12.57mV	13.76mV	19.34mV	Pass
90% Load	11.97mV	13.03mV	14.22mV	20.41mV	Pass
100% Load	15.49mV	13.89mV	15.98mV	23.91mV	Pass
110% Load	15.40mV	13.57mV	16.81mV	23.59mV	Pass
Crossload1	11.61mV	12.06mV	12.33mV	15.76mV	Pass
Crossload2	12.63mV	14.92mV	10.54mV	15.86mV	Pass
Crossload3	11.46mV	11.29mV	13.56mV	13.20mV	Pass
Crossload4	15.16mV	12.96mV	14.54mV	19.35mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	12.28mV	10.88mV	9.72mV	15.75mV	Pass
20% Load	15.76mV	11.34mV	12.58mV	16.88mV	Pass
30% Load	13.16mV	11.29mV	11.26mV	17.39mV	Pass
40% Load	11.41mV	11.50mV	10.90mV	17.65mV	Pass
50% Load	11.15mV	12.57mV	11.97mV	19.23mV	Pass
60% Load	11.66mV	12.06mV	11.61mV	18.72mV	Pass
70% Load	11.51mV	11.65mV	12.38mV	19.49mV	Pass
80% Load	13.20mV	12.72mV	14.37mV	19.75mV	Pass
90% Load	11.72mV	12.88mV	14.37mV	21.74mV	Pass
100% Load	15.74mV	13.66mV	16.21mV	22.57mV	Pass
110% Load	15.51mV	13.93mV	16.98mV	22.58mV	Pass
Crossload1	13.19mV	13.56mV	13.44mV	15.94mV	Pass
Crossload2	13.30mV	16.50mV	10.39mV	15.45mV	Pass
Crossload3	11.56mV	11.49mV	14.88mV	14.22mV	Pass
Crossload4	16.64mV	14.45mV	14.63mV	18.94mV	Pass

The results above are not used in the certification process

Sharkoon Rebel P20 750

Top side

Power specifications label
