CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Gamer Storm PN1200M
Serial Number2024000025
Lab IDGA12002412
Certification ID252412
  • Test Result Report ID: 24PS2412A
  • Certificate Issue Date: Sep 10, 2024
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

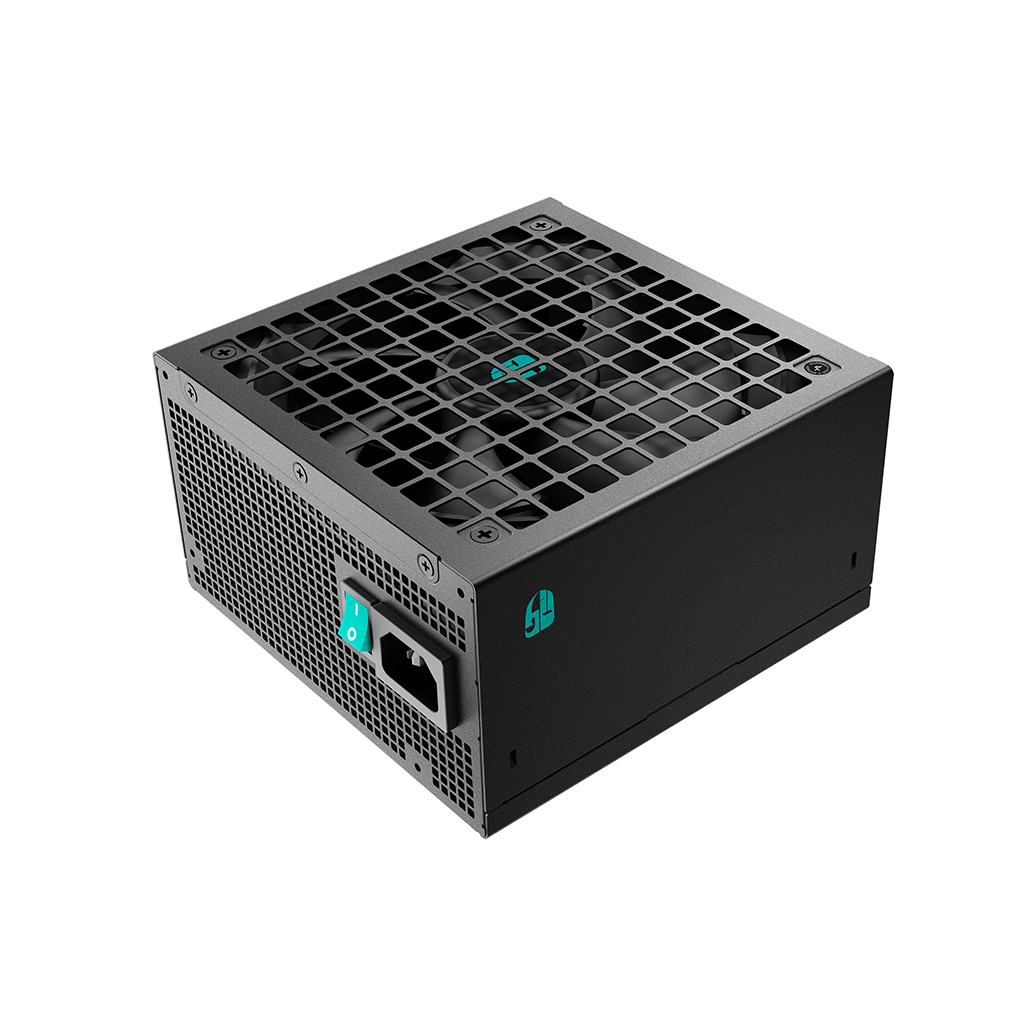

DUT Information

BrandGamer Storm
Hersteller (OEM)CWT
SeriesPN-M
Model NumberPNC00M-FC
Serial Number2024000025
DUT Notes

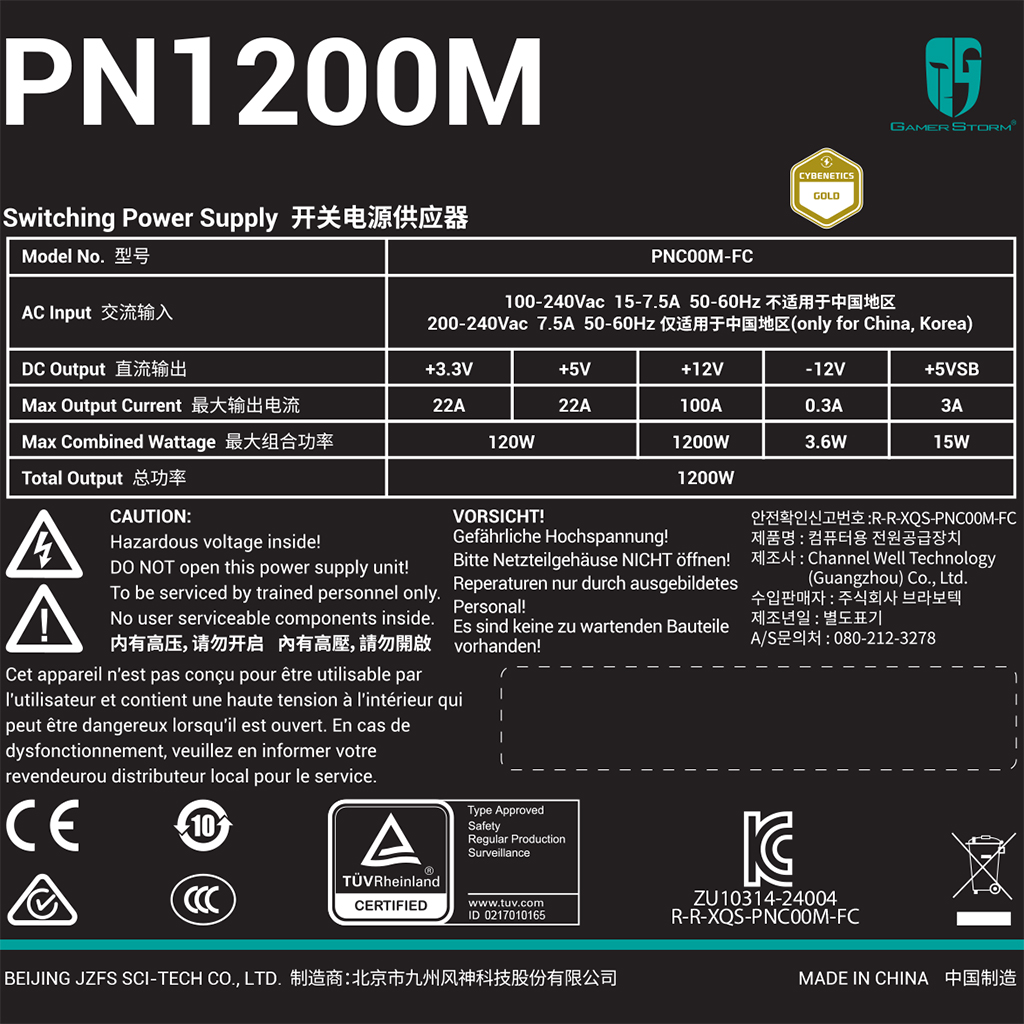

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7.5
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing Fan (HA13525H12SF-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222210030.3
Watts1201200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (540mm) 1 1 18AWG No
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (550mm) 3 3 16AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (450mm+120mm+120mm+120mm) / 4-pin Molex (+120mm) 2 8 / 2 18AWG No

Parts Description

General Data
Manufacturer (OEM) CWT
Platform CSZ
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 1x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK-207R0 (7 Ohm @25°C) & Relay
Bridge Rectifier(s) 2x WNB2560M (600V, 25A @ 127°C)
APFC MOSFETs 3x Infineon IPW60R099P6 (650V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode 1x OnSemi FFSP1665A (650V, 16A @ 135°C)
Bulk Cap(s) 1x Rubycon (420V, 820uF , 2000h @ 105°C, MXE)
Main Switchers 2x Infineon IPW60R099P6 (650V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Controller Champion 6500UNX &
1x Sync Power SPN5003 (No load consumption FET)
Resonant Controller Champion CU6901VAC
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 10x Infineon BSC014206NS (60V, 152A @ 100°C, Rds(on): 1.45mOhm)
5V & 3.3V DC-DC Converters: 2x UBIQ QM3054M6 (30V, 61A @ 100°C, Rds(on): 4.8mOhm) &
2x UBIQ QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm)
PWM Controller(s): uPI-Semi uP3861P
Filtering Capacitors Electrolytic:
1x Elite (2,000 @ 105°C, PF),
7x Chengx (6-10000 @ 105°C, GR),
Polymer: 15x Apaq , 10x Elite ,2x
Supervisor IC Weltrend WT7502 (OVD ,PGO, UVD, )
Fan Model Hong Hua HA13525H12SF-Z (135mm, 12V, 0.5A, Fluid Dynamic Bearing Fan)
5VSB Circuit
High Side Rectifier Chongqing-Pingwei-Tech R1MF (700V, 1A @ 90°C)
Standby PWM Controller On-Bright OB2365T

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

WirkungsgradGOLD
LautstärkeklasseStandard++
Average Efficiency (>1450 load combinations)88.040%
Average Noise Output (>1450 Load Combinations)33.42dBA
Average PF (>1450 Load Combinations)0.988
Efficiency With 10W (≤500W) or 2% (>500W) Load75.306%
Standby Power Consumption0.0376W
12V Ripple (Full Load)28.72mV
5V Ripple (Full Load)21.16mV
3.3V Ripple (Full Load)19.28mV
5VSB Ripple (Full Load)20.68mV
12V Load Regulation1.23%
5V Load Regulation0.92%
3.3V Load Regulation1.24%
5VSB Load Regulation3.72%
Inrush Current55.500A
WirkungsgradGOLD
LautstärkeklasseStandard++
Average Efficiency (>1450 load combinations)90.320%
Average Noise Output (>1450 Load Combinations)32.34dBA
Average PF (>1450 Load Combinations)0.965
Efficiency With 10W (≤500W) or 2% (>500W) Load74.096%
Standby Power Consumption0.0858W
12V Ripple (Full Load)28.06mV
5V Ripple (Full Load)21.30mV
3.3V Ripple (Full Load)19.66mV
5VSB Ripple (Full Load)16.78mV
12V Load Regulation1.25%
5V Load Regulation0.94%
3.3V Load Regulation1.27%
5VSB Load Regulation3.74%
Inrush Current60.020A
12V Transient Response (200%)11.18V
5V Transient Response (200%)4.836V
3.3V Transient Response (200%)3.159V
5VSB Transient Response (200%)4.814V
Hold-Up Time & Power Ok Signal15.20ms
AC Loss to PWR_OK Hold Up Time13.00ms
PWR_OK Inactive to DC Loss Delay2.20ms
PSU Timings: T1 (20% / 100%)62.0ms60.0ms
PSU Timings: T3 (20% / 100%)128.0ms128.0ms
OPP (27.59°C / 42.77°C)128.93%121.92%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)15.2
AC Loss to PWR_OK Hold Up Time (ms)13
PWR_OK Inactive to DC Loss Delay (ms)2.2

Stromverbrauch im Ruhezustand

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.87 V 114.81 V 113.85 V 114.92 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.422 1.490 PASS
Mains Voltage THD: 0.16 % 0.09 % N/A 0.29 % 2.00 % PASS
Real Power: 0.038 W 0.033 W N/A 0.042 W N/A N/A
Apparent Power: 10.067 W 10.050 W N/A 10.089 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.94 V 229.88 V 227.70 V 230.00 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.23 % 2.00 % PASS
Real Power: 0.086 W 0.076 W N/A 0.123 W N/A N/A
Apparent Power: 34.054 W 34.026 W N/A 34.086 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Graphs

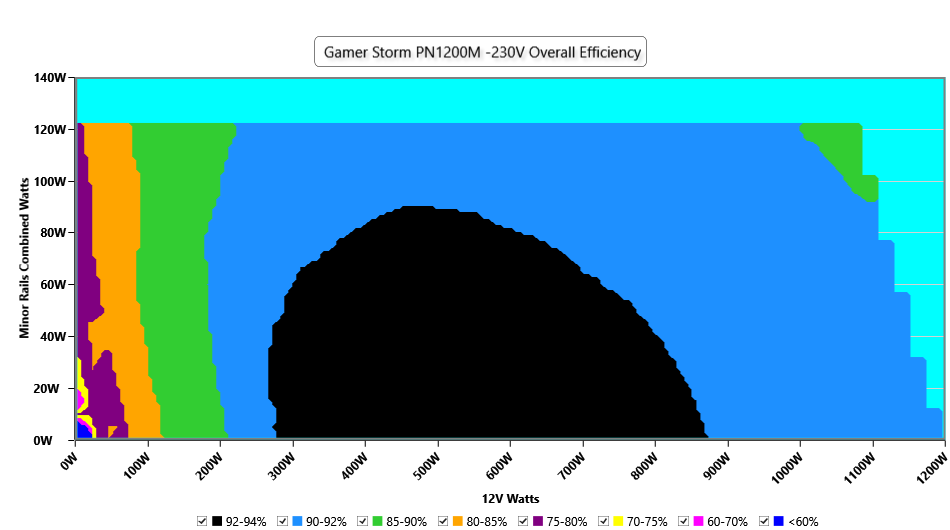

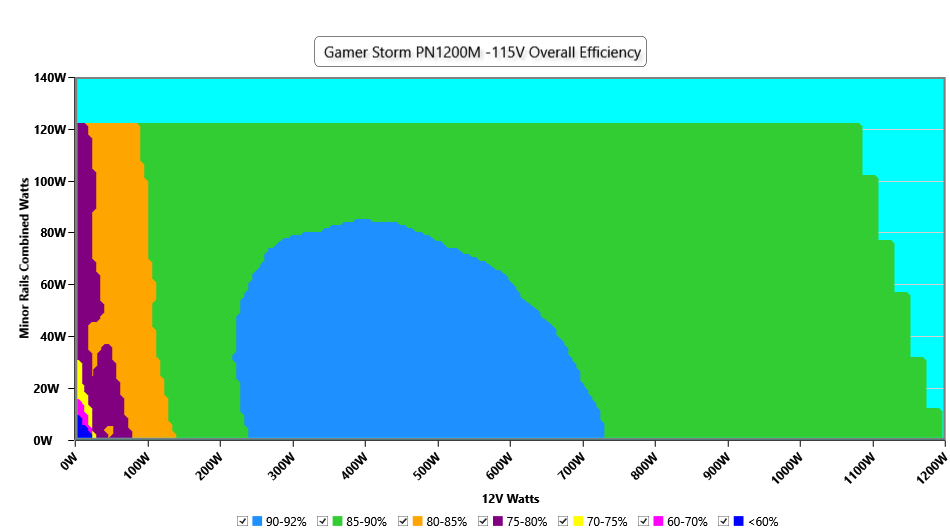

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

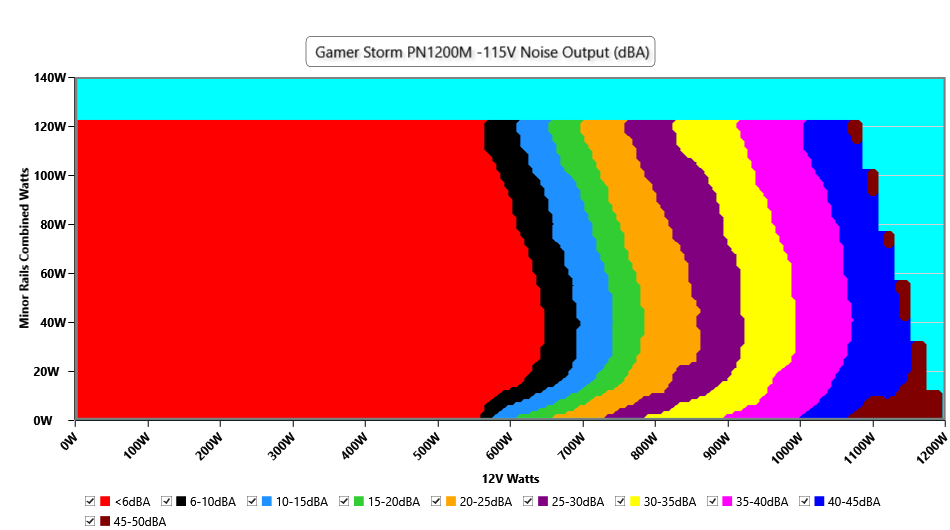

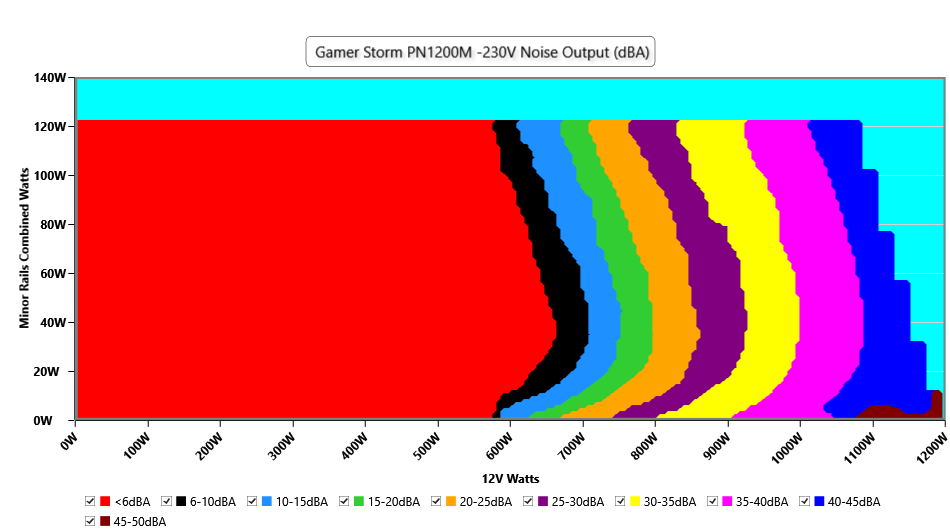

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

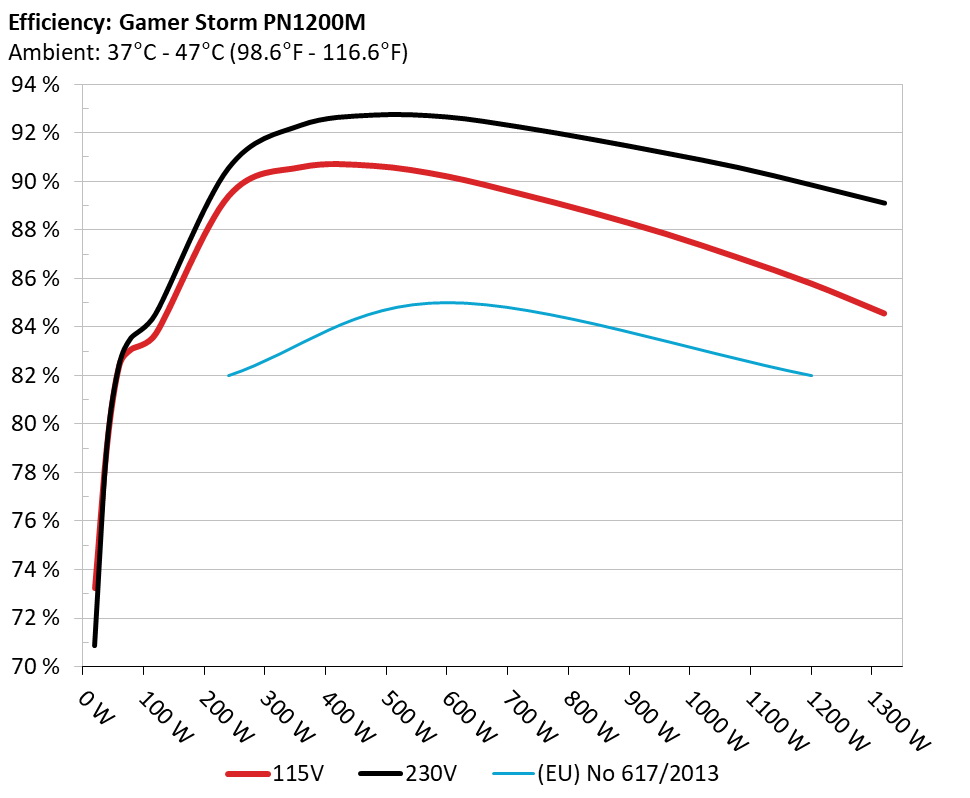

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

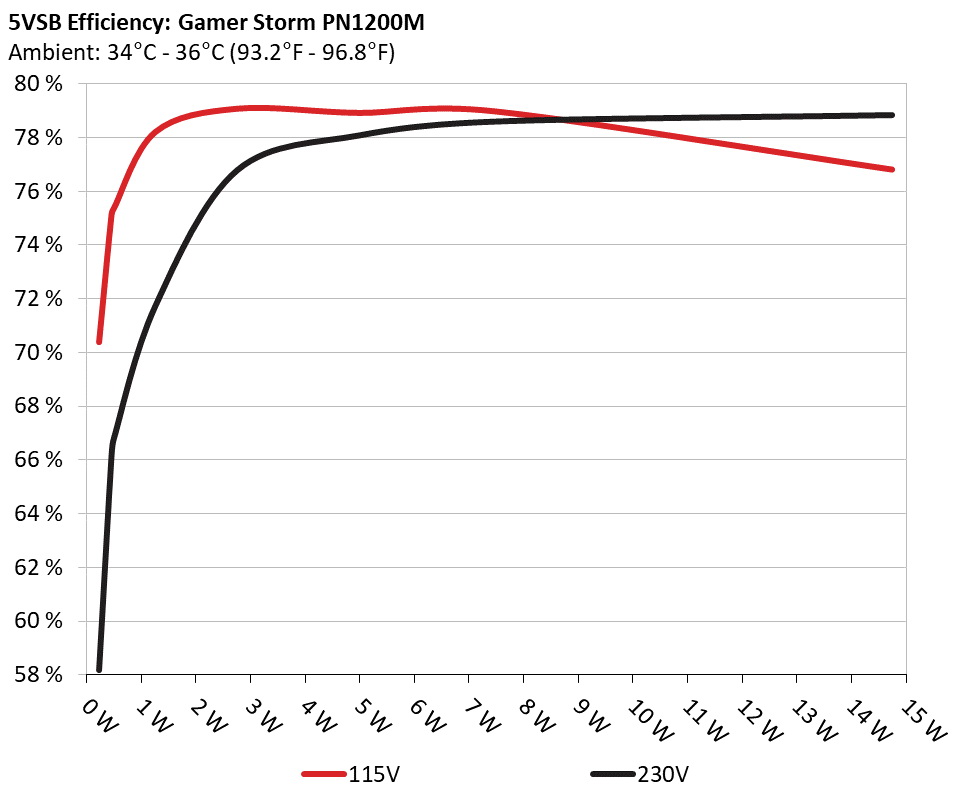

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.226W 70.368% 0.032
5.03V 0.321W 114.89V
2 0.09A 0.453W 75.12% 0.059
5.028V 0.603W 114.88V
3 0.55A 2.755W 79.087% 0.267
5.01V 3.483W 114.88V
4 1A 4.992W 78.93% 0.356
4.992V 6.325W 114.87V
5 1.5A 7.459W 78.991% 0.417
4.972V 9.443W 114.87V
6 3A 14.736W 76.815% 0.494
4.912V 19.184W 114.87V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.226W 58.182% 0.011
5.03V 0.389W 229.95V
2 0.09A 0.453W 66.157% 0.02
5.028V 0.686W 229.94V
3 0.55A 2.755W 76.797% 0.101
5.009V 3.587W 229.94V
4 1A 4.992W 78.095% 0.168
4.991V 6.392W 229.94V
5 1.5A 7.458W 78.607% 0.228
4.971V 9.489W 229.94V
6 3A 14.734W 78.847% 0.324
4.911V 18.686W 229.94V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.089A 1.981A 1.973A 1.005A 119.997 83.724% 406 <6.0 40.18°C 0.983
12.164V 5.05V 3.346V 4.977V 143.322 44.44°C 114.83V
20% 17.192A 2.974A 2.963A 1.21A 239.961 89.402% 408 <6.0 40.91°C 0.99
12.160V 5.045V 3.342V 4.96V 268.409 45.49°C 114.79V
30% 26.623A 3.472A 3.461A 1.417A 359.237 90.594% 408 <6.0 41.25°C 0.983
12.139V 5.041V 3.338V 4.942V 396.539 46.3°C 114.76V
40% 36.165A 3.972A 3.959A 1.615A 479.623 90.648% 409 <6.0 41.74°C 0.986
12.123V 5.037V 3.334V 4.953V 529.102 47.27°C 114.71V
50% 45.343A 4.97A 4.956A 1.823A 599.352 90.217% 409 <6.0 42.29°C 0.989
12.104V 5.032V 3.33V 4.937V 664.347 48.31°C 114.67V
60% 54.616A 5.97A 5.955A 2A 719.721 89.498% 776 17.4 42.89°C 0.991
12.085V 5.027V 3.325V 4.921V 804.178 49.45°C 114.62V
70% 63.859A 6.971A 6.958A 2.244A 839.588 88.715% 1165 30.5 43.19°C 0.992
12.065V 5.022V 3.32V 4.902V 946.387 50.2°C 114.58V
80% 73.198A 7.971A 7.962A 2.353A 959.548 87.848% 1567 40.5 43.83°C 0.993
12.045V 5.018V 3.315V 4.889V 1092.29 51.98°C 114.54V
90% 82.880A 8.475A 8.455A 2.461A 1079.31 86.863% 1987 48.6 44.57°C 0.994
12.027V 5.014V 3.311V 4.876V 1242.547 53.61°C 114.49V
100% 92.332A 8.981A 8.98A 3.1A 1199.35 85.799% 2216 49.4 45.98°C 0.994
12.018V 5.011V 3.307V 4.839V 1397.855 56.15°C 114.44V
110% 101.695A 9.99A 10.084A 3.107A 1319.957 84.562% 2219 49.4 46.95°C 0.995
12.013V 5.005V 3.302V 4.829V 1560.943 57.89°C 114.39V
CL1 0.114A 14.393A 14.316A 0A 121.298 78.052% 412 <6.0 41.66°C 0.986
12.167V 5.016V 3.332V 5.008V 155.41 53.65°C 114.83V
CL2 0.114A 21.993A 0A 0A 111.317 75.405% 411 <6.0 41.02°C 0.985
12.176V 4.998V 3.346V 5.015V 147.623 51.94°C 114.83V
CL3 0.114A 0A 21.826A 0A 73.982 71.227% 410 <6.0 41.13°C 0.975
12.174V 5.029V 3.326V 5.012V 103.866 52.68°C 114.84V
CL4 99.768A 0A 0A 0A 1199.907 86.387% 2215 49.4 45.78°C 0.994
12.027V 5.027V 3.319V 4.98V 1389.008 58.03°C 114.45V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.087A 1.981A 1.972A 1.005A 119.985 84.533% 406 <6.0 40.4°C 0.903
12.165V 5.049V 3.346V 4.977V 141.937 44.62°C 229.92V
20% 17.190A 2.974A 2.962A 1.21A 239.944 90.536% 408 <6.0 40.85°C 0.956
12.161V 5.044V 3.342V 4.96V 265.027 45.36°C 229.9V
30% 26.617A 3.472A 3.46A 1.416A 359.174 92.312% 408 <6.0 41.37°C 0.97
12.140V 5.04V 3.338V 4.943V 389.087 46.41°C 229.88V
40% 36.160A 3.972A 3.959A 1.615A 479.565 92.735% 408 <6.0 41.64°C 0.976
12.123V 5.036V 3.334V 4.954V 517.136 47.15°C 229.86V
50% 45.337A 4.97A 4.955A 1.823A 599.297 92.656% 409 <6.0 42.41°C 0.979
12.105V 5.031V 3.33V 4.938V 646.798 48.51°C 229.84V
60% 54.614A 5.97A 5.956A 2A 719.71 92.242% 864 21.1 42.7°C 0.98
12.086V 5.026V 3.325V 4.922V 780.245 49.38°C 229.83V
70% 63.856A 6.971A 6.959A 2.244A 839.576 91.732% 1211 31.6 43.36°C 0.983
12.065V 5.022V 3.32V 4.903V 915.254 50.39°C 229.81V
80% 73.203A 7.973A 7.964A 2.352A 959.576 91.169% 1570 40.6 43.74°C 0.984
12.045V 5.017V 3.315V 4.889V 1052.519 51.8°C 229.79V
90% 82.894A 8.477A 8.458A 2.462A 1079.372 90.573% 1965 49.4 44.05°C 0.985
12.026V 5.014V 3.31V 4.875V 1191.706 53.16°C 229.77V
100% 92.350A 8.983A 8.984A 3.1A 1199.396 89.858% 2215 49.4 45.23°C 0.986
12.016V 5.01V 3.306V 4.839V 1334.777 55.24°C 229.74V
110% 101.720A 9.992A 10.088A 3.107A 1320.004 89.11% 2215 49.4 46.25°C 0.986
12.011V 5.004V 3.301V 4.828V 1481.329 57.13°C 229.72V
CL1 0.115A 14.397A 14.319A 0A 121.3 79.472% 410 <6.0 41.87°C 0.91
12.166V 5.015V 3.331V 5.008V 152.632 57.31°C 229.93V
CL2 0.114A 21.996A 0A 0A 111.323 76.351% 409 <6.0 41.25°C 0.905
12.175V 4.998V 3.346V 5.015V 145.803 57.22°C 229.92V
CL3 0.114A 0A 21.834A 0A 73.983 71.618% 408 <6.0 40.35°C 0.847
12.172V 5.029V 3.325V 5.012V 103.306 55.37°C 229.93V
CL4 99.805A 0A 0A 0A 1199.976 90.501% 2214 49.4 45.21°C 0.986
12.023V 5.028V 3.318V 4.979V 1325.937 61.93°C 229.74V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.221A 0.494A 0.493A 0.199A 19.998 73.233% 400 <6.0 36.59°C 0.836
12.160V 5.057V 3.348V 5.019V 27.311 39.71°C 114.88V
40W 2.688A 0.692A 0.69A 0.299A 39.999 79.199% 402 <6.0 37.6°C 0.929
12.157V 5.056V 3.348V 5.014V 50.505 40.9°C 114.87V
60W 4.156A 0.89A 0.887A 0.399A 59.999 82.436% 403 <6.0 38.38°C 0.967
12.155V 5.055V 3.348V 5.008V 72.784 42.07°C 114.86V
80W 5.616A 1.089A 1.084A 0.5A 79.946 83.092% 405 <6.0 39.38°C 0.976
12.166V 5.053V 3.348V 5.002V 96.214 43.24°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.494A 0.493A 0.199A 19.991 70.89% 399 <6.0 36.71°C 0.448
12.159V 5.057V 3.347V 5.02V 27.967 39.83°C 229.96V
40W 2.688A 0.692A 0.69A 0.299A 39.993 79.044% 401 <6.0 37.45°C 0.652
12.158V 5.056V 3.348V 5.014V 50.595 40.83°C 229.95V
60W 4.156A 0.89A 0.887A 0.399A 59.993 82.408% 402 <6.0 38.57°C 0.76
12.155V 5.054V 3.348V 5.008V 72.799 42.22°C 229.94V
80W 5.614A 1.089A 1.084A 0.5A 79.934 83.562% 404 <6.0 39.08°C 0.835
12.166V 5.052V 3.348V 5.002V 96.817 42.93°C 229.93V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load12.74mV12.88mV13.39mV7.95mVPass
20% Load12.48mV12.83mV13.60mV8.88mVPass
30% Load14.59mV12.98mV13.65mV10.53mVPass
40% Load15.67mV13.35mV14.38mV10.17mVPass
50% Load15.47mV16.43mV15.00mV11.36mVPass
60% Load17.73mV25.19mV18.20mV12.75mVPass
70% Load17.53mV29.26mV18.87mV13.73mVPass
80% Load18.82mV20.14mV16.08mV15.28mVPass
90% Load20.21mV19.73mV16.70mV15.74mVPass
100% Load28.72mV21.16mV19.28mV20.68mVPass
110% Load28.76mV23.06mV19.58mV21.42mVPass
Crossload114.94mV15.31mV15.85mV7.93mVPass
Crossload215.26mV22.57mV13.44mV9.19mVPass
Crossload314.85mV13.60mV19.08mV9.03mVPass
Crossload427.39mV19.26mV18.68mV10.42mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load12.42mV11.90mV13.75mV9.03mVPass
20% Load13.41mV13.14mV14.22mV9.09mVPass
30% Load14.59mV13.14mV15.00mV9.40mVPass
40% Load14.23mV13.60mV13.44mV9.39mVPass
50% Load15.98mV14.68mV14.01mV9.96mVPass
60% Load17.79mV28.44mV18.00mV10.48mVPass
70% Load17.43mV29.57mV19.91mV14.19mVPass
80% Load18.77mV19.63mV18.72mV13.21mVPass
90% Load20.16mV19.06mV18.41mV13.78mVPass
100% Load28.06mV21.30mV19.66mV16.78mVPass
110% Load30.86mV22.49mV19.35mV18.94mVPass
Crossload113.64mV16.23mV15.81mV8.47mVPass
Crossload215.26mV24.57mV12.98mV9.34mVPass
Crossload313.72mV13.35mV18.72mV9.34mVPass
Crossload427.84mV18.74mV17.93mV11.13mVPass

The results above are not used in the certification process

Gamer Storm PN1200M

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
