CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

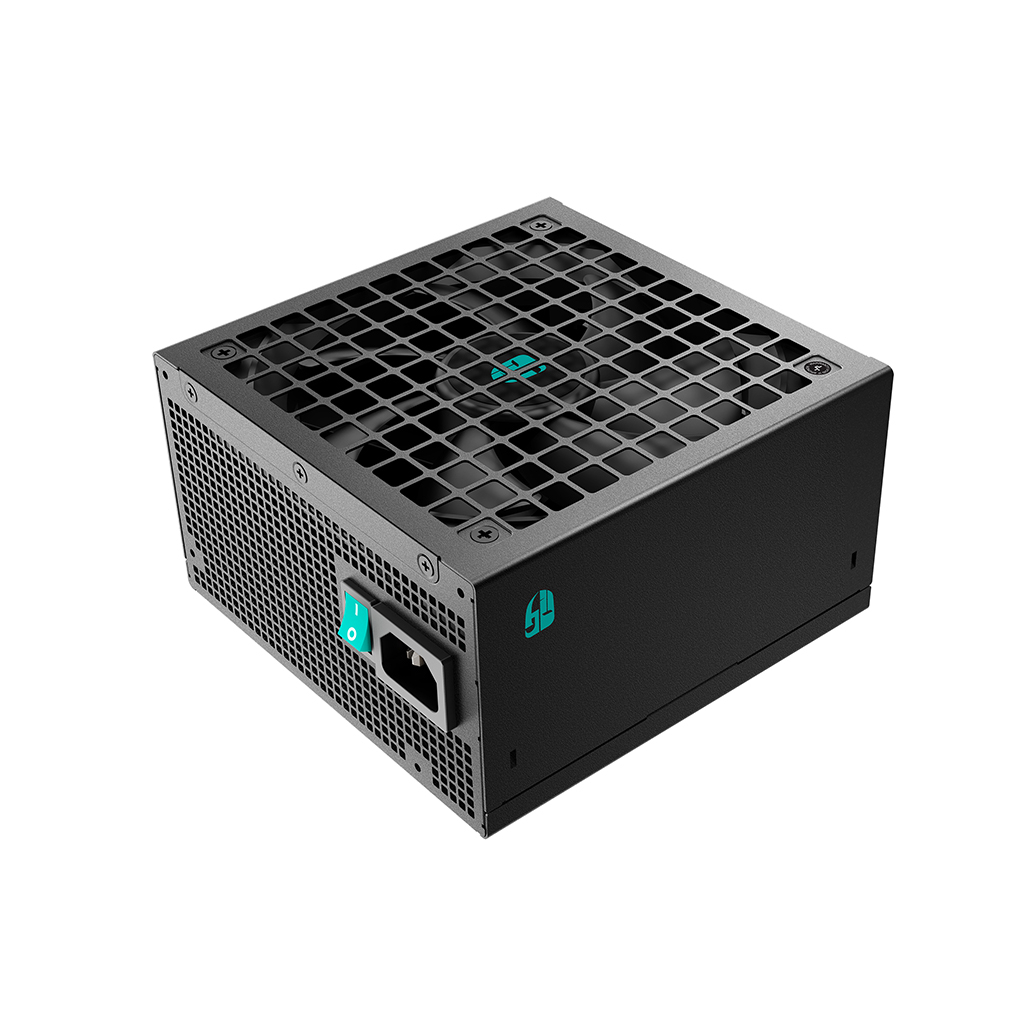

Gamer Storm PN1000M
Serial Number2024000024
Lab IDGA10002419
Certification ID252419
  • Test Result Report ID: 24PS2419A
  • Certificate Issue Date: Sep 10, 2024
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandGamer Storm
製造商 (OEM)CWT
SeriesPN-M
Model NumberPNA00M-FC
Serial Number2024000024
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)13-6.5
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing (HA13525H12SF-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

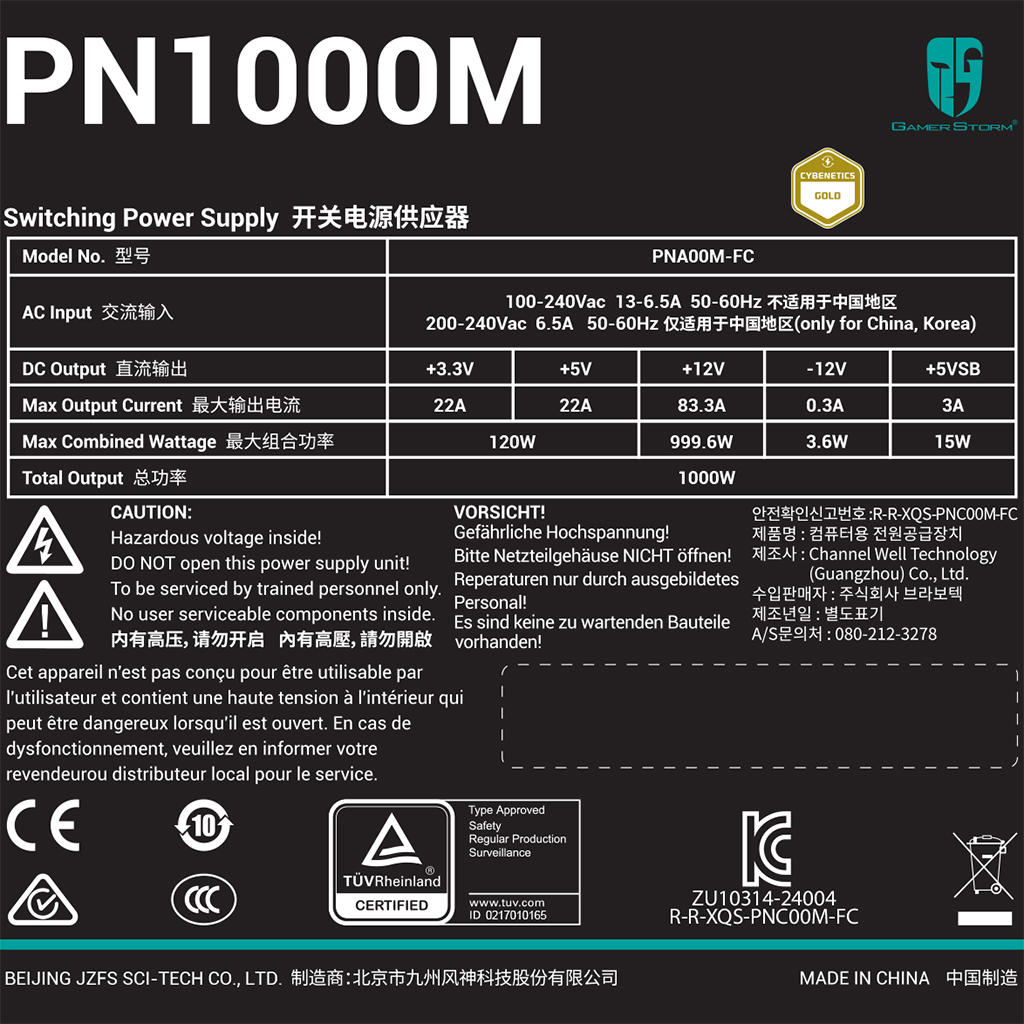

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222283.330.3
Watts120999.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (540mm) 1 1 18AWG No
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (550mm) 3 3 16AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (450mm+120mm+120mm+120mm) / 4-pin Molex (+120mm) 2 8 / 2 18AWG No

Parts Description

General Data
Manufacturer (OEM) CWT
Platform CSZ
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 1x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK-207R0 (7 Ohm @25°C) & Relay
Bridge Rectifier(s) 2x GBJ2510 (1000V , 25A @ 100°C)
APFC MOSFETs 2x Infineon IPW60R099P6 (650V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode 1x OnSemi FFSP1065(650V, 10A @ 152°C)
Bulk Cap(s) 1x Rubycon (420V, 820uF , 2000h @ 105°C, MXE)
Main Switchers 2x Infineon IPA60R125P6 (600V, 19A @ 100°C, Rds(on): 0.125Ohm)
APFC Controller Champion 6500UNX &
1x Sync Power SPN5003 (No load consumption FET)
Resonant Controller Champion CM6901X
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 8x On Semiconductor NTMFS5C430N (40V, 131A @ 100°C, Rds(on): 1.7mOhm)
5V & 3.3V DC-DC Converters: 2x UBIQ QM3054M6 (30V, 61A @ 100°C, Rds(on): 4.8mOhm) &
2x UBIQ QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm)
PWM Controller(s): uPI-Semi uP3861P
Filtering Capacitors Electrolytic:
8x Chengx (6-10000 @ 105°C, GR),
1x Elite (2,000 @ 105°C, PF)
Polymer: 15x Apaq , 9x Elite ,2x
Supervisor IC Weltrend WT7502 (OVD ,PGO, UVD, )
Fan Model Hong Hua HA13525H12SF-Z (135mm, 12V, 0.5A, Fluid Dynamic Bearing Fan)
5VSB Circuit
High Side Rectifier Chongqing-Pingwei-Tech R1MF (700V, 1A @ 90°C)
Standby PWM Controller On-Bright OB2365T

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

效率評比GOLD
噪音評比A
Average Efficiency (>1450 load combinations)88.339%
Average Noise Output (>1450 Load Combinations)24.12dBA
Average PF (>1450 Load Combinations)0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load74.575%
Standby Power Consumption0.0157W
12V Ripple (Full Load)30.62mV
5V Ripple (Full Load)21.14mV
3.3V Ripple (Full Load)16.95mV
5VSB Ripple (Full Load)19.66mV
12V Load Regulation1.24%
5V Load Regulation0.90%
3.3V Load Regulation1.12%
5VSB Load Regulation3.63%
Inrush Current24.240A
效率評比GOLD
噪音評比A
Average Efficiency (>1450 load combinations)90.551%
Average Noise Output (>1450 Load Combinations)24.00dBA
Average PF (>1450 Load Combinations)0.957
Efficiency With 10W (≤500W) or 2% (>500W) Load76.061%
Standby Power Consumption0.0827W
12V Ripple (Full Load)31.57mV
5V Ripple (Full Load)21.22mV
3.3V Ripple (Full Load)17.77mV
5VSB Ripple (Full Load)16.37mV
12V Load Regulation1.26%
5V Load Regulation0.92%
3.3V Load Regulation1.12%
5VSB Load Regulation3.67%
Inrush Current47.440A
12V Transient Response (200%)11.33V
5V Transient Response (200%)4.925V
3.3V Transient Response (200%)3.203V
5VSB Transient Response (200%)4.857V
Hold-Up Time & Power Ok Signal18.70ms
AC Loss to PWR_OK Hold Up Time16.50ms
PWR_OK Inactive to DC Loss Delay2.20ms
PSU Timings: T1 (20% / 100%)60.0ms59.0ms
PSU Timings: T3 (20% / 100%)130.0ms130.0ms
OPP (27.67°C / 43.51°C)121.90%121.90%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 18.7
AC Loss to PWR_OK Hold Up Time  (ms) 16.5
PWR_OK Inactive to DC Loss Delay (ms) 2.2

待機電源消耗

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.06 V 115.02 V 113.85 V 115.09 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.19 % 2.00 % PASS
Real Power: 0.016 W 0.011 W N/A 0.020 W N/A N/A
Apparent Power: 9.934 W 9.894 W N/A 9.988 W N/A N/A
Power Factor: 0.001 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.00 V 230.88 V 227.70 V 231.05 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.26 % 2.00 % PASS
Real Power: 0.083 W 0.071 W N/A 0.117 W N/A N/A
Apparent Power: 33.814 W 33.586 W N/A 34.000 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Graphs

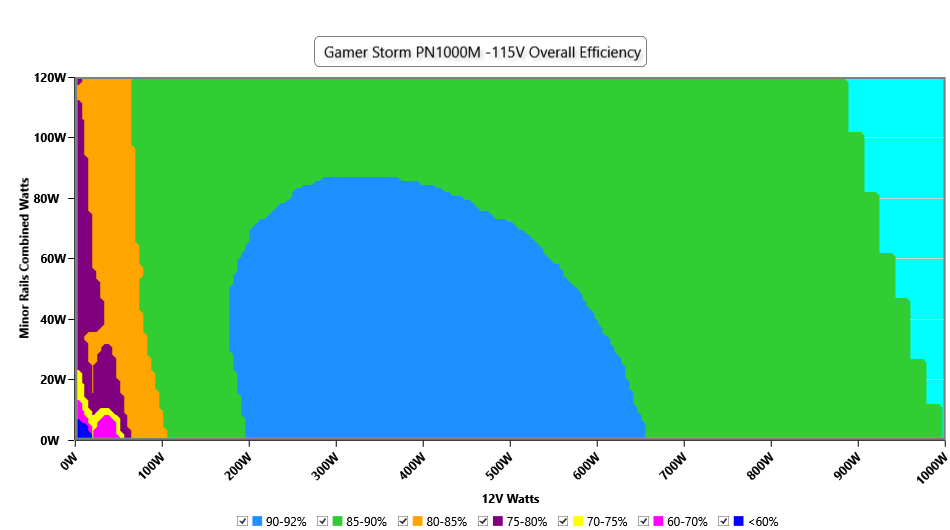

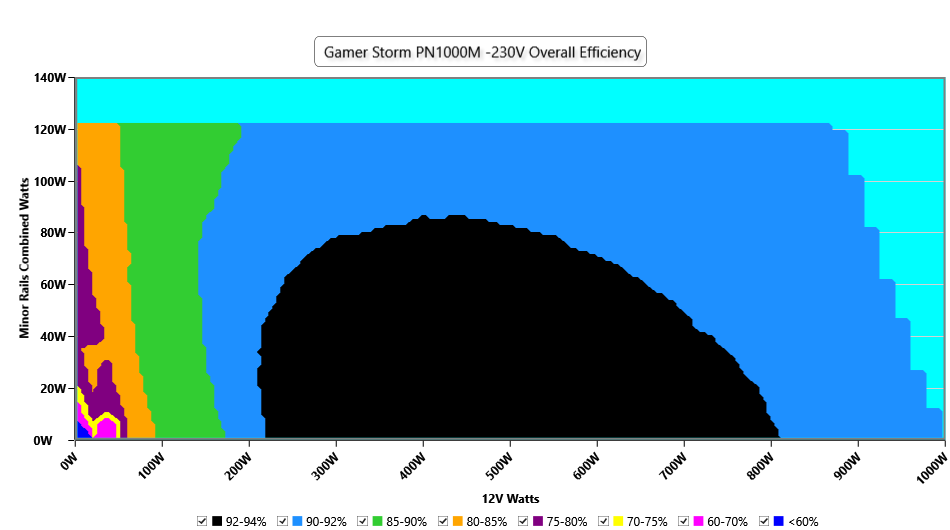

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

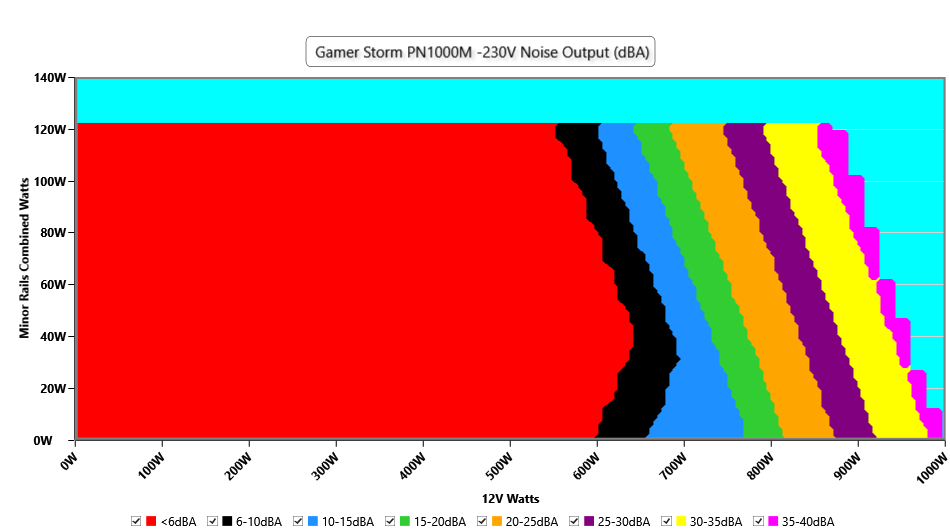

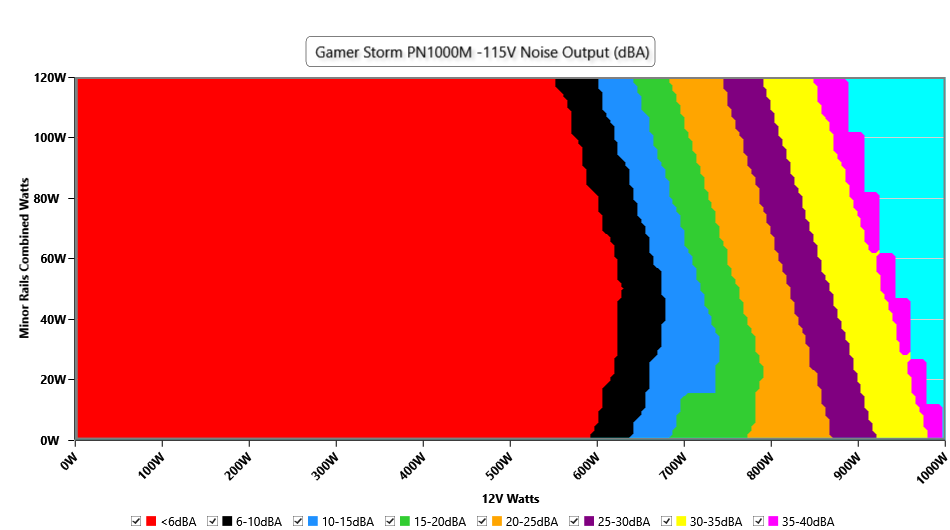

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

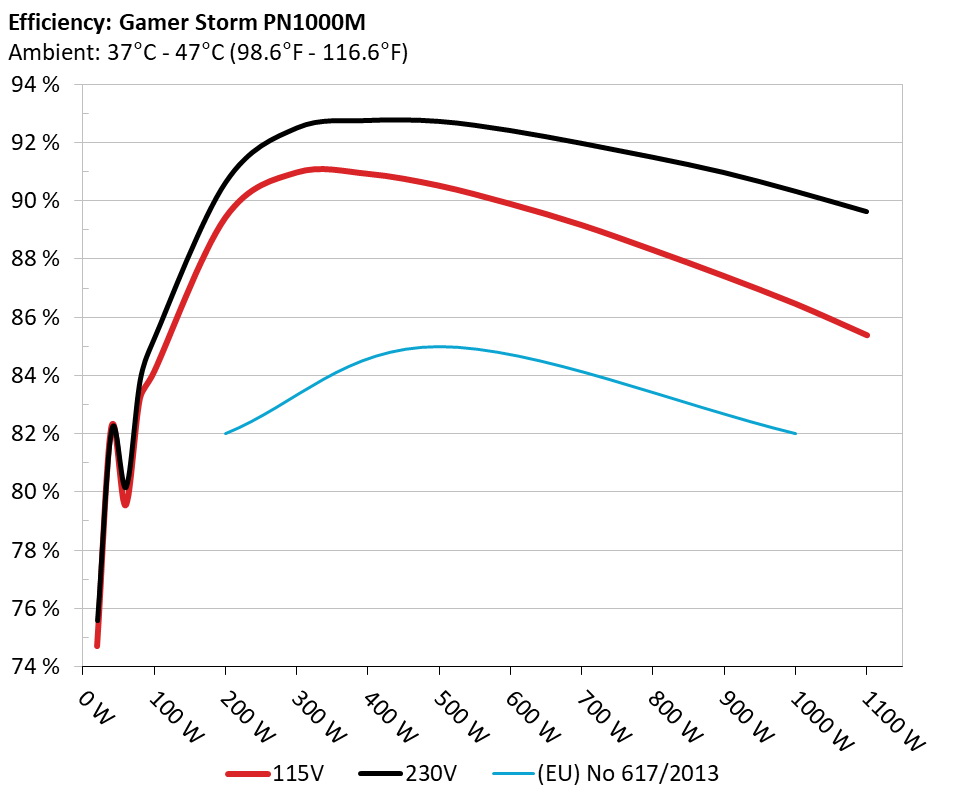

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

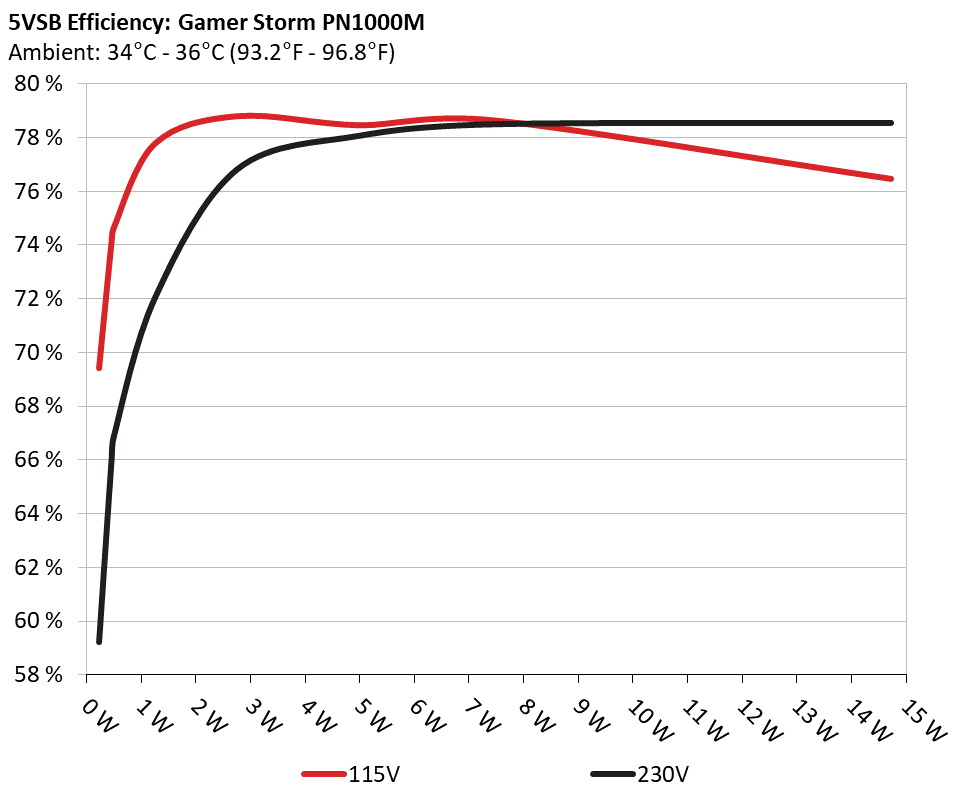

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 69.432% 0.032
5.036V 0.327W 114.87V
2 0.09A 0.453W 74.073% 0.06
5.037V 0.612W 114.87V
3 0.55A 2.76W 78.788% 0.272
5.017V 3.503W 114.87V
4 1A 4.998W 78.449% 0.378
4.998V 6.371W 114.87V
5 1.5A 7.465W 78.628% 0.426
4.976V 9.494W 114.87V
6 3A 14.733W 76.459% 0.505
4.911V 19.268W 114.86V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 59.232% 0.011
5.036V 0.384W 229.94V
2 0.09A 0.453W 65.948% 0.02
5.036V 0.687W 229.94V
3 0.55A 2.759W 76.822% 0.102
5.017V 3.591W 229.94V
4 1A 4.997W 78.069% 0.17
4.997V 6.401W 229.93V
5 1.5A 7.463W 78.495% 0.231
4.975V 9.508W 229.94V
6 3A 14.729W 78.544% 0.328
4.909V 18.754W 229.94V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.447A 1.98A 1.971A 1.004A 99.983 84.135% 404 <6.0 40.47°C 0.971
12.159V 5.05V 3.348V 4.979V 118.835 44.67°C 114.83V
20% 13.908A 2.973A 2.96A 1.209A 199.925 89.429% 405 <6.0 40.67°C 0.982
12.153V 5.045V 3.344V 4.962V 223.556 45.17°C 114.81V
30% 21.753A 3.471A 3.457A 1.41A 299.97 90.98% 407 <6.0 41.63°C 0.982
12.133V 5.042V 3.341V 4.964V 329.706 46.63°C 114.77V
40% 29.573A 3.97A 3.954A 1.614A 399.456 90.934% 407 <6.0 41.85°C 0.982
12.114V 5.038V 3.338V 4.957V 439.281 47.42°C 114.74V
50% 37.097A 4.967A 4.949A 1.821A 499.193 90.527% 407 <6.0 42.36°C 0.984
12.095V 5.033V 3.334V 4.941V 551.427 48.45°C 114.7V
60% 44.709A 5.967A 5.946A 2A 599.571 89.898% 449 <6.0 42.8°C 0.987
12.076V 5.028V 3.33V 4.926V 666.951 49.31°C 114.67V
70% 52.284A 6.969A 6.946A 2.241A 699.464 89.173% 717 14.7 43.32°C 0.989
12.056V 5.023V 3.326V 4.908V 784.385 50.35°C 114.63V
80% 59.956A 7.97A 7.948A 2.349A 799.471 88.315% 933 23.5 43.9°C 0.99
12.035V 5.018V 3.321V 4.896V 905.246 52.02°C 114.59V
90% 67.968A 8.474A 8.439A 2.457A 899.267 87.419% 1267 34.8 44.67°C 0.991
12.018V 5.015V 3.317V 4.884V 1028.674 53.82°C 114.56V
100% 75.736A 8.979A 8.963A 3.094A 999.277 86.468% 1665 41.1 45.85°C 0.992
12.010V 5.011V 3.313V 4.848V 1155.663 56.04°C 114.51V
110% 83.447A 9.987A 10.063A 3.099A 1099.891 85.387% 2076 47.8 46.78°C 0.993
12.003V 5.007V 3.309V 4.84V 1288.124 57.68°C 114.47V
CL1 0.114A 14.402A 14.312A 0A 121.29 80.372% 409 <6.0 40.83°C 0.982
12.159V 5.013V 3.333V 5.009V 150.911 53.13°C 114.82V
CL2 0.114A 22.009A 0A 0A 111.314 77.84% 408 <6.0 40.81°C 0.982
12.167V 4.995V 3.35V 5.016V 143.005 50.37°C 114.83V
CL3 0.114A 0A 21.823A 0A 73.98 72.534% 407 <6.0 40.27°C 0.972
12.164V 5.031V 3.327V 5.013V 101.993 47.29°C 114.84V
CL4 83.227A 0A 0A 0A 999.861 87.326% 1582 40.7 45.52°C 0.992
12.014V 5.03V 3.327V 4.997V 1144.987 54.71°C 114.52V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.447A 1.981A 1.971A 1.004A 99.992 85.295% 406 <6.0 40.13°C 0.881
12.159V 5.048V 3.348V 4.979V 117.229 44.39°C 229.93V
20% 13.910A 2.974A 2.961A 1.209A 199.946 90.647% 406 <6.0 40.59°C 0.938
12.153V 5.044V 3.343V 4.962V 220.573 45.13°C 229.91V
30% 21.759A 3.472A 3.458A 1.411A 299.994 92.512% 406 <6.0 41.34°C 0.957
12.131V 5.041V 3.34V 4.961V 324.277 46.4°C 229.9V
40% 29.586A 3.971A 3.956A 1.614A 399.549 92.767% 407 <6.0 41.74°C 0.965
12.112V 5.037V 3.337V 4.957V 430.703 47.27°C 229.88V
50% 37.112A 4.969A 4.951A 1.822A 499.282 92.738% 407 <6.0 42.08°C 0.971
12.092V 5.032V 3.333V 4.942V 538.376 48.16°C 229.86V
60% 44.726A 5.969A 5.948A 2A 599.664 92.421% 409 <6.0 42.64°C 0.974
12.073V 5.027V 3.329V 4.926V 648.837 49.22°C 229.84V
70% 52.301A 6.972A 6.948A 2.242A 699.552 91.984% 676 12.7 43.23°C 0.977
12.054V 5.022V 3.325V 4.908V 760.512 50.29°C 229.83V
80% 59.972A 7.973A 7.95A 2.349A 799.557 91.505% 921 23.1 43.95°C 0.978
12.033V 5.017V 3.32V 4.896V 873.783 52.04°C 229.81V
90% 67.984A 8.478A 8.443A 2.458A 899.349 90.982% 1228 32.9 44.7°C 0.979
12.016V 5.013V 3.316V 4.884V 988.488 53.76°C 229.8V
100% 75.759A 8.983A 8.967A 3.095A 999.364 90.34% 1645 40.5 45.96°C 0.98
12.008V 5.01V 3.312V 4.847V 1106.227 56.04°C 229.78V
110% 83.471A 9.991A 10.068A 3.101A 1099.964 89.637% 2041 48.4 46.67°C 0.982
12.000V 5.005V 3.307V 4.839V 1227.13 57.58°C 229.76V
CL1 0.116A 14.408A 14.317A 0A 121.305 81.049% 413 <6.0 40.67°C 0.912
12.158V 5.011V 3.331V 5.009V 149.67 50.6°C 229.93V
CL2 0.115A 22.019A 0A 0A 111.335 78.355% 412 <6.0 41.44°C 0.907
12.167V 4.993V 3.349V 5.015V 142.095 51.44°C 229.92V
CL3 0.114A 0A 21.831A 0A 73.985 73.373% 411 <6.0 40.47°C 0.861
12.163V 5.03V 3.325V 5.013V 100.837 50.35°C 229.93V
CL4 83.243A 0A 0A 0A 999.937 91.106% 1566 40.4 45.77°C 0.98
12.012V 5.029V 3.326V 4.996V 1097.556 55.19°C 229.77V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.494A 0.493A 0.199A 19.996 74.704% 399 <6.0 36.75°C 0.883
12.150V 5.056V 3.35V 5.024V 26.768 39.82°C 114.87V
40W 2.688A 0.692A 0.69A 0.299A 39.999 82.229% 401 <6.0 37.5°C 0.947
12.158V 5.055V 3.35V 5.017V 48.644 40.85°C 114.86V
60W 4.155A 0.89A 0.886A 0.399A 59.997 79.544% 402 <6.0 38.32°C 0.958
12.160V 5.054V 3.35V 5.011V 75.429 42.04°C 114.85V
80W 5.617A 1.089A 1.084A 0.5A 79.934 83.208% 403 <6.0 39.85°C 0.97
12.160V 5.053V 3.35V 5.005V 96.068 43.84°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.494A 0.493A 0.199A 19.994 75.584% 397 <6.0 36.72°C 0.506
12.146V 5.056V 3.348V 5.025V 26.45 39.82°C 229.96V
40W 2.690A 0.692A 0.69A 0.299A 39.995 82.151% 399 <6.0 37.28°C 0.703
12.154V 5.055V 3.348V 5.018V 48.688 40.57°C 229.95V
60W 4.156A 0.89A 0.887A 0.399A 59.996 80.166% 402 <6.0 38.35°C 0.808
12.158V 5.053V 3.349V 5.011V 74.843 41.8°C 229.94V
80W 5.618A 1.089A 1.084A 0.5A 79.938 83.856% 404 <6.0 39.2°C 0.848
12.159V 5.052V 3.349V 5.005V 95.328 42.88°C 229.93V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load14.08mV13.14mV12.10mV8.00mVPass
20% Load13.04mV12.83mV13.29mV8.78mVPass
30% Load16.62mV13.14mV12.52mV9.91mVPass
40% Load16.35mV14.22mV13.86mV11.51mVPass
50% Load16.50mV20.55mV14.84mV10.89mVPass
60% Load16.81mV22.41mV15.15mV12.59mVPass
70% Load18.30mV17.11mV14.69mV12.65mVPass
80% Load20.42mV17.52mV15.41mV14.30mVPass
90% Load21.09mV19.11mV15.98mV16.88mVPass
100% Load30.62mV21.14mV16.95mV19.66mVPass
110% Load31.33mV22.84mV18.25mV20.57mVPass
Crossload114.76mV15.44mV15.48mV10.10mVPass
Crossload216.24mV22.25mV12.05mV9.55mVPass
Crossload316.14mV13.24mV18.56mV9.96mVPass
Crossload428.76mV19.31mV16.64mV12.41mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load14.18mV12.98mV13.24mV8.47mVPass
20% Load13.04mV11.23mV11.90mV8.15mVPass
30% Load17.18mV14.01mV13.08mV9.70mVPass
40% Load16.86mV16.49mV12.88mV9.91mVPass
50% Load17.12mV21.33mV14.01mV9.96mVPass
60% Load17.53mV23.85mV14.74mV10.63mVPass
70% Load18.61mV16.28mV14.74mV11.20mVPass
80% Load19.08mV17.93mV16.08mV12.18mVPass
90% Load20.67mV19.53mV17.12mV12.75mVPass
100% Load31.57mV21.22mV17.77mV16.37mVPass
110% Load32.40mV23.23mV20.02mV18.18mVPass
Crossload115.27mV16.26mV15.68mV10.03mVPass
Crossload216.39mV23.18mV11.94mV9.70mVPass
Crossload315.88mV13.75mV19.29mV9.39mVPass
Crossload431.11mV19.12mV15.85mV11.92mVPass

The results above are not used in the certification process

Gamer Storm PN1000M

Top side
Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
