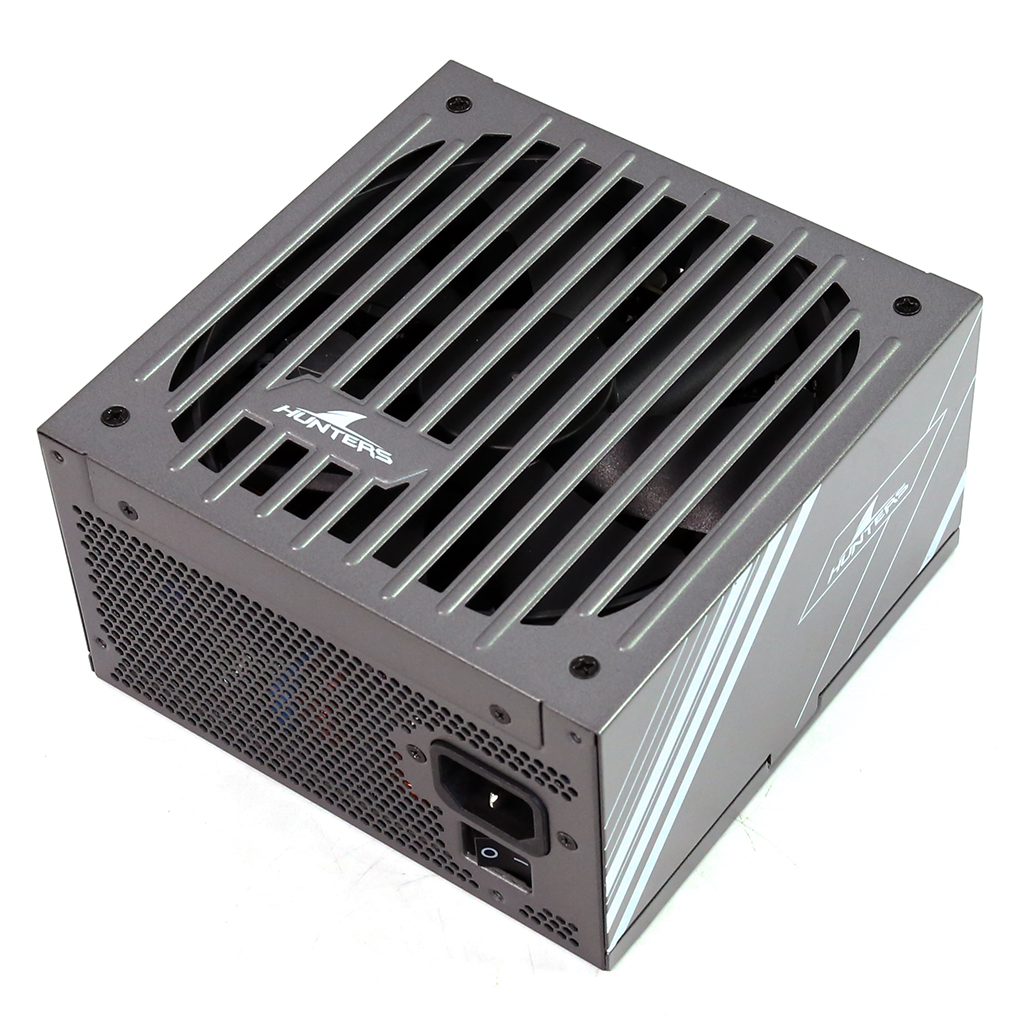

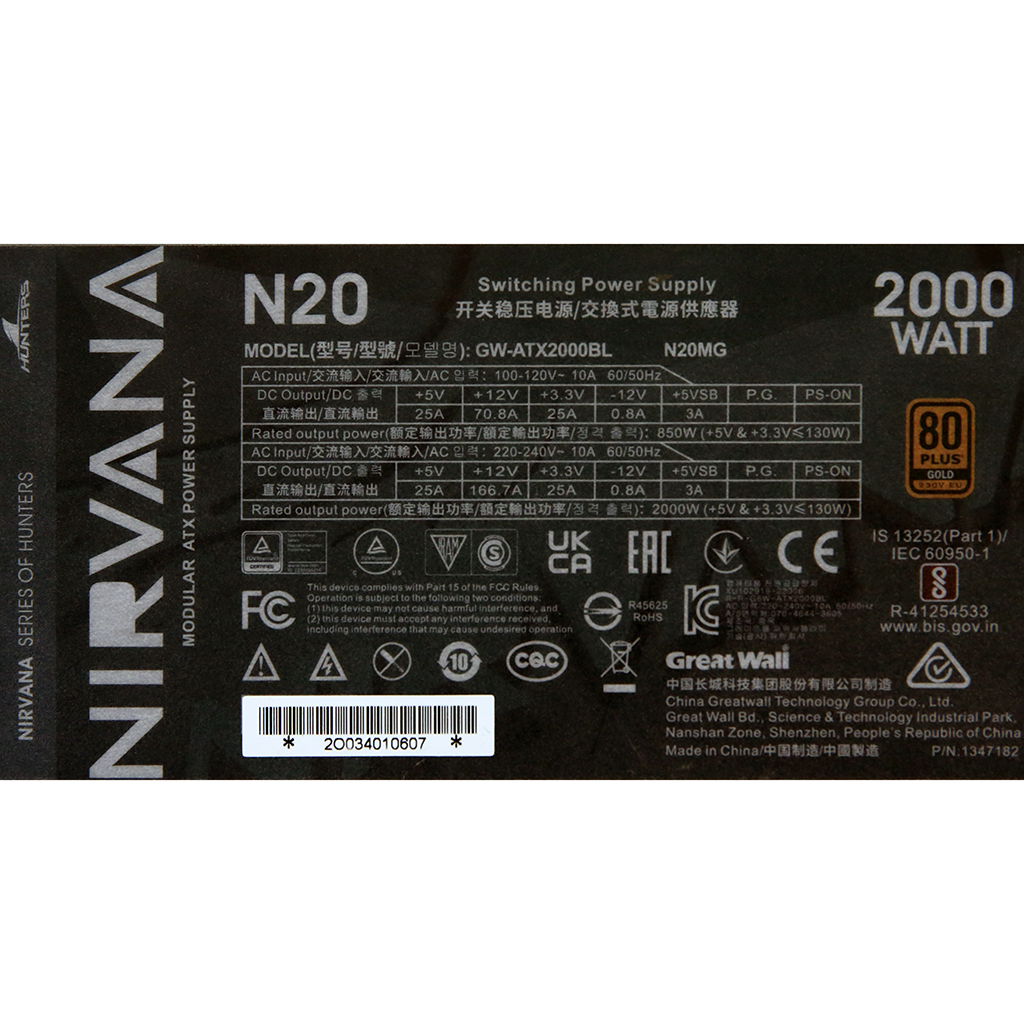

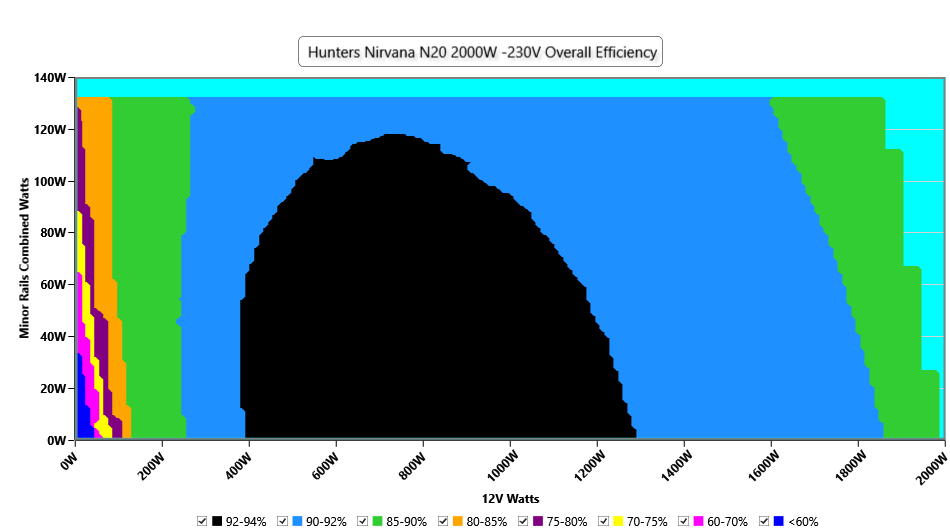

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
噪音值图表
230V
资讯

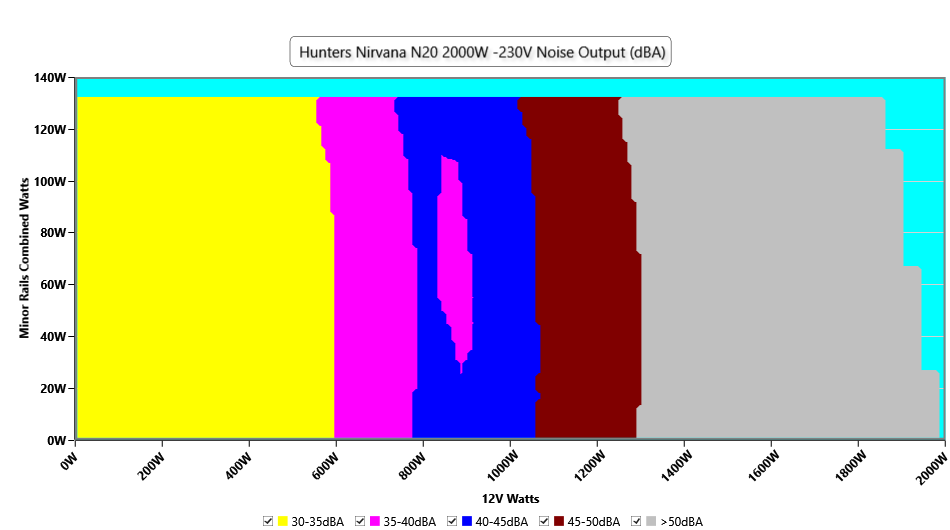

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Conducted Emissions EN55032 & CISPR 32
Indicative Performance
高环温电源转换效率
资讯

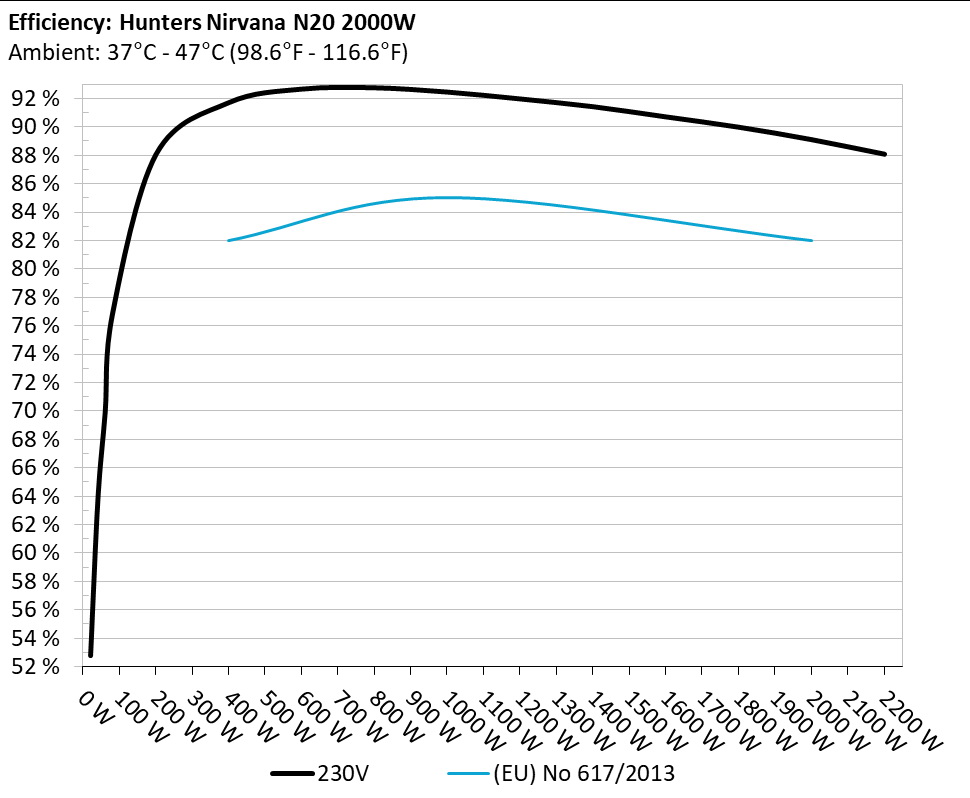

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used
5Vsb转换效率
资讯

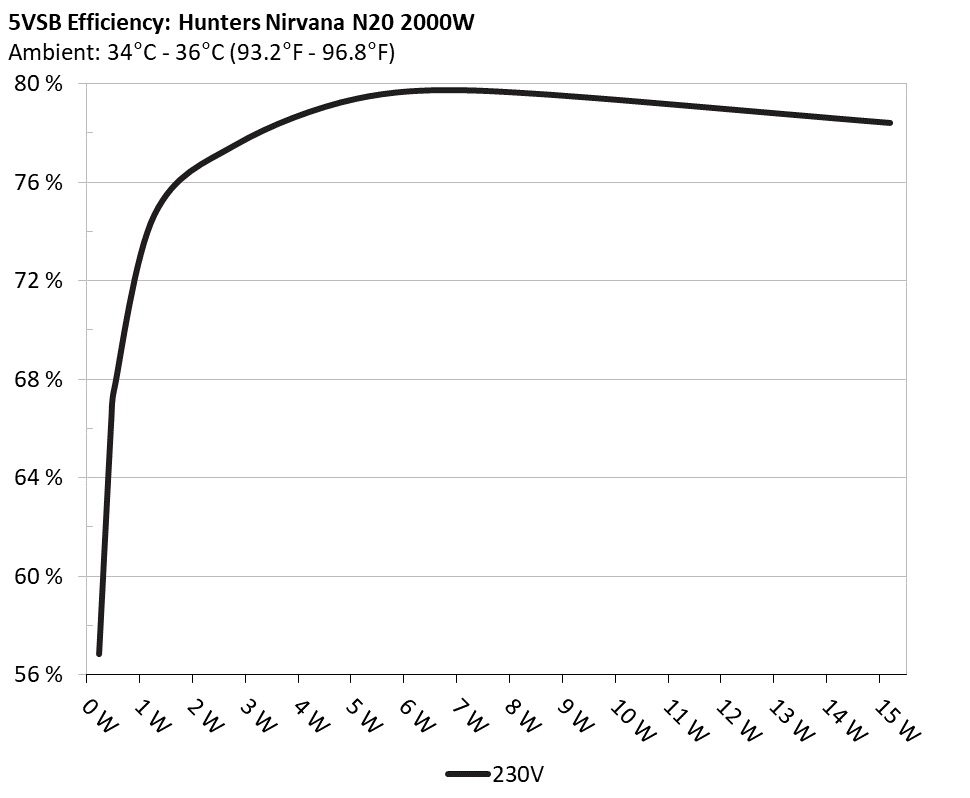

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC) 230V
测试 #
5VSB
DC/AC (瓦)
效率
PF/AC 电压
1
0.045A
0.23W
56.863%
0.012
5.125V
0.405W
229.94V
2
0.09A
0.461W
66.381%
0.021
5.125V
0.695W
229.94V
3
0.55A
2.813W
77.529%
0.102
5.115V
3.628W
229.94V
4
1A
5.106W
79.401%
0.168
5.106V
6.431W
229.94V
5
1.5A
7.643W
79.706%
0.213
5.096V
9.589W
229.94V
6
2.999A
15.197W
78.419%
0.323
5.067V
19.379W
229.94V
Protection Features
OTP
✓ (120°C @ Secondary Side)
SCP
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
NLO
✓
Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
10-110%负载测试 230V
测试
12V
5V
3.3V
5VSB
DC/AC (瓦)
效率
风扇转速 (RPM)
电源供应器噪音 (dB[A])
温度(输入/输出)
PF/AC 电压
10%
14.760A
1.979A
1.96A
0.982A
199.985
88.07%
1446
40.2
40.14°C
0.903
12.086V
5.053V
3.368V
5.093V
227.076
44.63°C
229.92V
20%
30.516A
2.97A
2.944A
1.182A
399.58
91.697%
1517
42.3
40.7°C
0.95
12.082V
5.051V
3.363V
5.077V
435.762
45.64°C
229.89V
30%
46.638A
3.466A
3.439A
1.383A
599.161
92.647%
1592
45.1
41.22°C
0.965
12.074V
5.05V
3.359V
5.062V
646.714
47.44°C
229.86V
40%
62.869A
3.963A
3.936A
1.586A
799.574
92.738%
1740
49
41.93°C
0.975
12.063V
5.047V
3.354V
5.045V
862.183
49.49°C
229.83V
50%
78.739A
4.955A
4.927A
1.79A
999.293
92.44%
1912
51.5
42.3°C
0.981
12.050V
5.046V
3.349V
5.029V
1081.011
51.38°C
229.8V
60%
94.695A
5.948A
5.921A
1.995A
1199.845
91.956%
2071
51
42.78°C
0.984
12.039V
5.044V
3.344V
5.013V
1304.802
53.53°C
229.76V
70%
110.612A
6.942A
6.918A
2.202A
1399.558
91.413%
2261
53.8
43.29°C
0.987
12.028V
5.043V
3.339V
4.997V
1531.023
56.54°C
229.73V
80%
126.630A
7.934A
7.917A
2.308A
1599.54
90.695%
2403
57.4
43.68°C
0.989
12.017V
5.041V
3.334V
4.982V
1763.65
59.38°C
229.7V
90%
143.008A
8.433A
8.409A
2.416A
1799.345
89.969%
2511
61.9
44.47°C
0.991
12.005V
5.04V
3.329V
4.968V
1999.961
62.91°C
229.66V
100%
159.203A
8.932A
8.932A
3.036A
1999.344
89.094%
2512
61.9
45.45°C
0.992
11.995V
5.038V
3.325V
4.942V
2244.092
67.61°C
229.63V
110%
175.373A
9.927A
10.03A
3.044A
2199.926
88.07%
2514
62
46.53°C
0.993
11.984V
5.037V
3.32V
4.928V
2497.933
72.48°C
229.58V
CL1
0.116A
15.465A
15.35A
0A
131.3
79.02%
1683
48.7
41.51°C
0.866
12.084V
5.063V
3.361V
5.108V
166.16
48.96°C
229.93V
CL2
0.115A
24.62A
0A
0A
126.263
77.908%
1553
43
40.87°C
0.864
12.089V
5.072V
3.373V
5.113V
162.067
46.26°C
229.93V
CL3
0.115A
0A
24.568A
0A
83.882
70.393%
1436
39.9
40.73°C
0.826
12.088V
5.055V
3.358V
5.11V
119.166
45.6°C
229.94V
CL4
166.677A
0A
0A
0A
1999.93
89.734%
2528
62.1
45.43°C
0.992
11.999V
5.034V
3.332V
5.014V
2228.746
64.36°C
229.62V
The results above are not used in the certification process
20-80瓦负载测试 230V
测试
12V
5V
3.3V
5VSB
DC/AC (瓦)
效率
风扇转速 (RPM)
电源供应器噪音 (dB[A])
温度(输入/输出)
PF/AC 电压
20W
1.228A
0.495A
0.489A
0.195A
20.001
52.801%
1196
34.8
36.8°C
0.591
12.098V
5.053V
3.372V
5.118V
37.881
41.38°C
229.95V
40W
2.703A
0.693A
0.685A
0.293A
39.997
63.758%
1197
34.8
37.19°C
0.707
12.095V
5.053V
3.371V
5.115V
62.731
42.55°C
229.95V
60W
4.178A
0.89A
0.881A
0.391A
59.995
69.924%
1200
34.8
38.74°C
0.767
12.094V
5.053V
3.371V
5.112V
85.799
44.47°C
229.94V
80W
5.648A
1.088A
1.077A
0.489A
79.933
76.813%
1237
36.1
39.32°C
0.803
12.093V
5.054V
3.371V
5.109V
104.066
45.3°C
229.94V
The results above are not used in the certification process
纹波测量 230V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
11.8 mV
11.8 mV
12.2 mV
10.1 mV
Pass
20% Load
23.6 mV
13.0 mV
13.3 mV
13.4 mV
Pass
30% Load
16.8 mV
12.0 mV
13.8 mV
14.2 mV
Pass
40% Load
18.0 mV
13.1 mV
14.4 mV
14.7 mV
Pass
50% Load
20.1 mV
14.3 mV
17.4 mV
18.1 mV
Pass
60% Load
20.0 mV
14.6 mV
16.9 mV
19.6 mV
Pass
70% Load
22.2 mV
16.2 mV
16.8 mV
23.0 mV
Pass
80% Load
24.8 mV
17.9 mV
18.2 mV
22.7 mV
Pass
90% Load
27.6 mV
18.6 mV
20.5 mV
23.7 mV
Pass
100% Load
35.9 mV
20.3 mV
23.7 mV
23.2 mV
Pass
110% Load
39.5 mV
21.6 mV
25.0 mV
24.3 mV
Pass
Crossload 1
30.1 mV
15.3 mV
16.7 mV
8.0 mV
Pass
Crossload 2
18.9 mV
26.2 mV
13.7 mV
8.1 mV
Pass
Crossload 3
14.7 mV
11.3 mV
18.4 mV
7.0 mV
Pass
Crossload 4
36.1 mV
20.5 mV
24.2 mV
15.8 mV
Pass
The results above are not used in the certification process
