CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

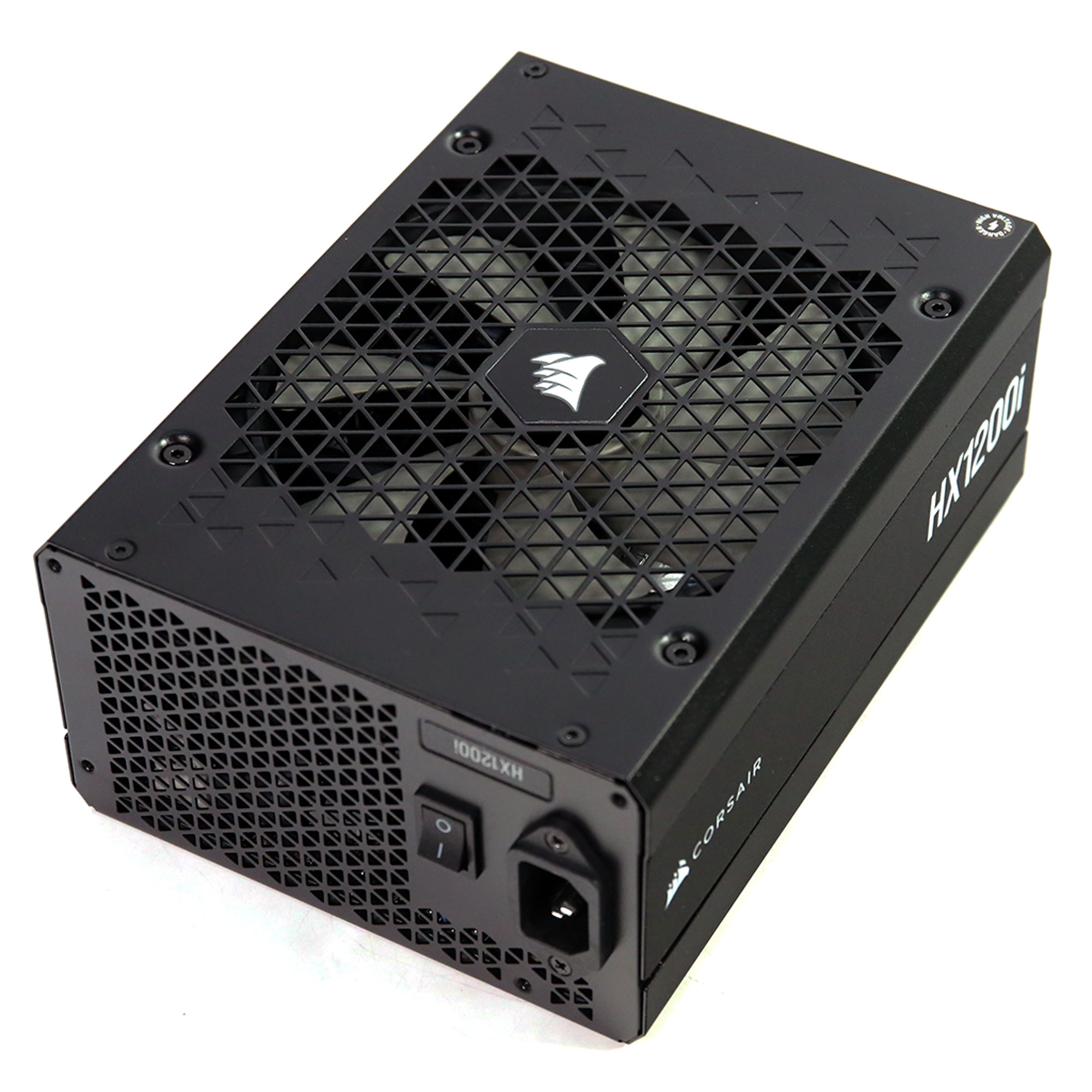

Corsair HX1200i (ATX v3.1)
Serial NumberA74PA40291D67D
Lab IDCR12002510
Certification ID252510
  • Test Result Report ID: 24PS2510A
  • Certificate Issue Date: Jul 24, 2024
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
This product certification body is accredited in accordance with the recognized International Standard ISO/IEC 17065:2012 Requirements for bodies certifying products, processes and services. This product certification body also meets the A2LA R308 - Specific Requirements - ISO-IEC 17065 - Telecommunication Certification Body Accreditation Program and R322 - Specific Requirements - Notified Body Accreditation Requirements. This accreditation demonstrates technical competence for a defined scope and the operation of a management system
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandCorsair
Hersteller (OEM)Channel Well Technology
SeriesHXi
Model NumberRPS0202
Serial NumberA74PA40291D67D
DUT Notes

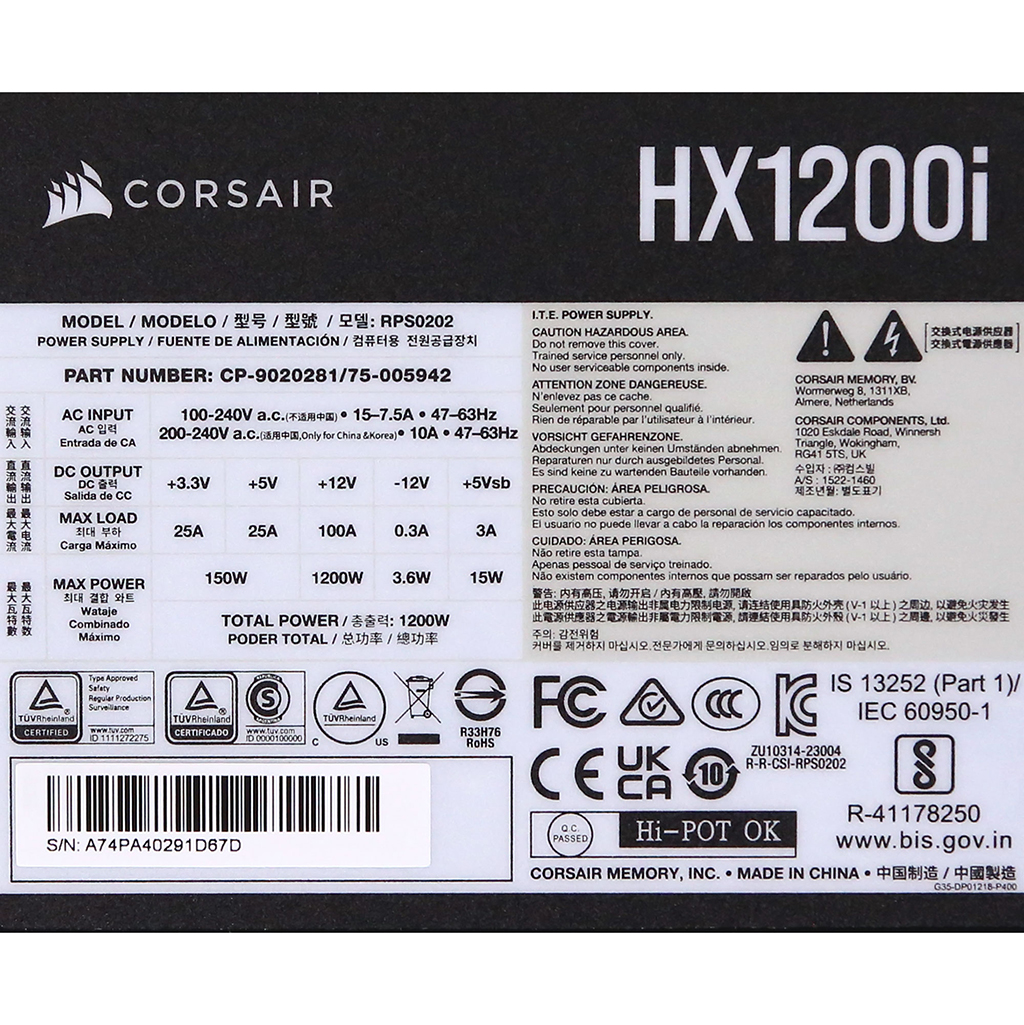

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7
Rated Frequency (Hz)47-63
Rated Power (W)1200
TypeATX12V
Dimensions (W x H x D)
Cooling140mm Fluid Dynamic Bearing Fan (NR140P)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252510030.3
Watts1501200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (610mm) 1 1 16-18AWG No
4+4 pin EPS12V (750mm) 2 2 16AWG No
6+2 pin PCIe (650mm) 4 4 16AWG No
12+2 pin PCIe (650mm) (600W) 1 1 16-18AWG No
SATA (460mm+110mm+110mm+110mm) 2 8 18AWG No
4-pin Molex (450mm+100mm+100mm+100mm) 2 8 18AWG No
USB Type C to Motherboard Header Cable (520mm) 1 1 24-28AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 16AWG -

Parts Description

General Data
Manufacturer (OEM) CWT
PCB Type Double-Sided
Primary Side
Transient Filter 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection 2x NTC Thermistor SCK-075 (7 Ohm) & Relay
Bridge Rectifier(s)

2x Vishay LVB2560 (600V, 25A @ 105°C)
APFC MOSFETs

2x Infineon IPW60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode

2x Infineon IDH08G65C6 (650V, 8A @ 145°C)
Driver IC(s)

1x Texas Instruments UCC27324-Q1
Bulk Cap(s)

2x Rubycon (420V, 470uF each or 940uF combined, 2,000h @ 105°C, MXE) & 1x Nippon Chemi-Con (420V, 560uF, 2,000h @ 105°C, KMR)
Main Switchers

4x Alpha & Omega AOTF29S50 (500V, 18A @ 100°C, Rds(on): 0.15Ohm)
Digital Controllers 2x Texas Instruments UCD3138A
MCU Microchip PIC32MM0064GPM036
Topology

Primary side: Semi-Digital, Interleaved PFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 8x Vishay SiR626DP (60V, 100A @ 61°C, Rds(on): 4.8mOhm)
5V & 3.3V DC-DC Converters: 8x Ubiq QM3054M (30V, 57A @ 100°C, 5.5mΩ) PWM Controller: uPI-Semi uP3861P
Filtering Capacitors

Electrolytic: 4x Nichicon (4,000h @ 105°C, HD), 4x Rubycon (4-10,000h @ 105°C, YXF), 6x Rubycon (6-10,000 @ 105, ZLH) 1x Rubycon (4-10,000h @ 105°C, YXJ), 1x Nichicon ((4-10,000h @ 105°C, HE(M)), Polymer: 13x FPCAP, 32x United Chemi-con, 1x Rubycon (YXF)
Driver IC(s)

2x Texas Instruments UCC27324-Q1
Supervisor IC Weltrend WT7502R (OVP, UVP, SCP, PG)
Fan Controller Microchip PIC32MM0064GPM036
Fan Model Corsair NR140P (140mm, 12V, 0.22A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier

1x Silan SVF4N65RD (650V, 2.5A @ 100°C, Rds(on): 2.7 Ohm) FET
Standby PWM Controller On Bright OB5282CP

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

WirkungsgradPLATINUM
LautstärkeklasseA+
Average Efficiency (>1450 load combinations)89.650%
Average Noise Output (>1450 Load Combinations)18.31dBA
Average PF (>1450 Load Combinations)0.994
Efficiency With 10W (≤500W) or 2% (>500W) Load74.075%
Standby Power Consumption0.0279W
12V Ripple (Full Load)24.75mV
5V Ripple (Full Load)16.12mV
3.3V Ripple (Full Load)16.06mV
5VSB Ripple (Full Load)10.51mV
12V Load Regulation0.64%
5V Load Regulation0.54%
3.3V Load Regulation0.73%
5VSB Load Regulation1.48%
Inrush Current13.540A
WirkungsgradPLATINUM
LautstärkeklasseA+
Average Efficiency (>1450 load combinations)91.473%
Average Noise Output (>1450 Load Combinations)18.33dBA
Average PF (>1450 Load Combinations)0.956
Efficiency With 10W (≤500W) or 2% (>500W) Load69.324%
Standby Power Consumption0.1162W
12V Ripple (Full Load)23.41mV
5V Ripple (Full Load)14.41mV
3.3V Ripple (Full Load)14.90mV
5VSB Ripple (Full Load)9.58mV
12V Load Regulation0.63%
5V Load Regulation0.52%
3.3V Load Regulation0.79%
5VSB Load Regulation1.48%
Inrush Current24.330A
12V Transient Response (200%)11.14V
5V Transient Response (200%)4.899V
3.3V Transient Response (200%)3.134V
5VSB Transient Response (200%)4.888V
Hold-Up Time & Power Ok Signal21.80ms
AC Loss to PWR_OK Hold Up Time18.70ms
PWR_OK Inactive to DC Loss Delay3.10ms
PSU Timings: T1 (20% / 100%)67.0ms70.0ms
PSU Timings: T3 (20% / 100%)137.0ms135.0ms
12V OCP (27.3°C / 42.0°C)124.40A (124.40%), 12.030V124.80A (124.80%), 12.032V
5V OCP (27.3°C / 42.0°C)34.6A (138.40%), 5.019V34.7A (138.80%), 5.019V
3.3V OCP (27.3°C / 42.0°C)34.5A (138.00%), 3.293V34.5A (138.00%), 3.291V
5VSB OCP (27.3°C / 42.0°C)5.6A (186.67%), 4.849V5.5A (183.33%), 4.842V
OPP (28.46°C / 43.27°C)121.22%123.84%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.8
AC Loss to PWR_OK Hold Up Time (ms)18.7
PWR_OK Inactive to DC Loss Delay (ms)3.1

Stromverbrauch im Ruhezustand

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.07 V 115.04 V 113.85 V 115.12 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.94 Hz 59.40 Hz 60.03 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.18 % 2.00 % PASS
Real Power: 0.028 W 0.024 W N/A 0.032 W N/A N/A
Apparent Power: 15.309 W 15.028 W N/A 15.601 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.03 V 230.95 V 227.70 V 231.11 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.26 % 2.00 % PASS
Real Power: 0.116 W 0.101 W N/A 0.198 W N/A N/A
Apparent Power: 51.489 W 50.950 W N/A 52.059 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Graphs

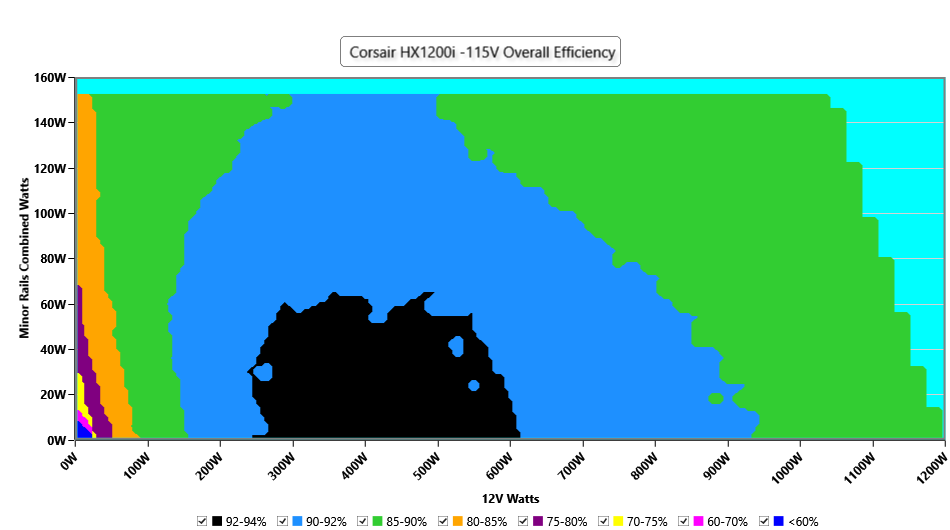

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

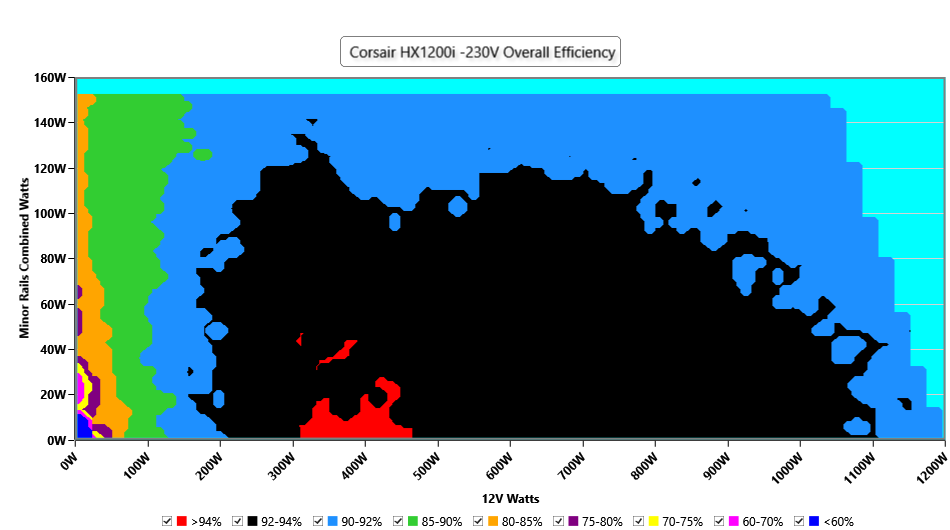

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

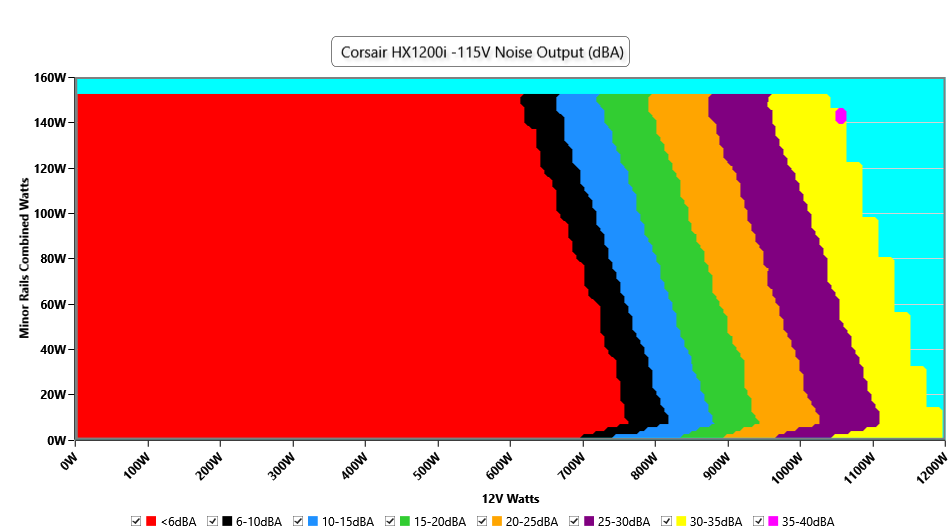

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

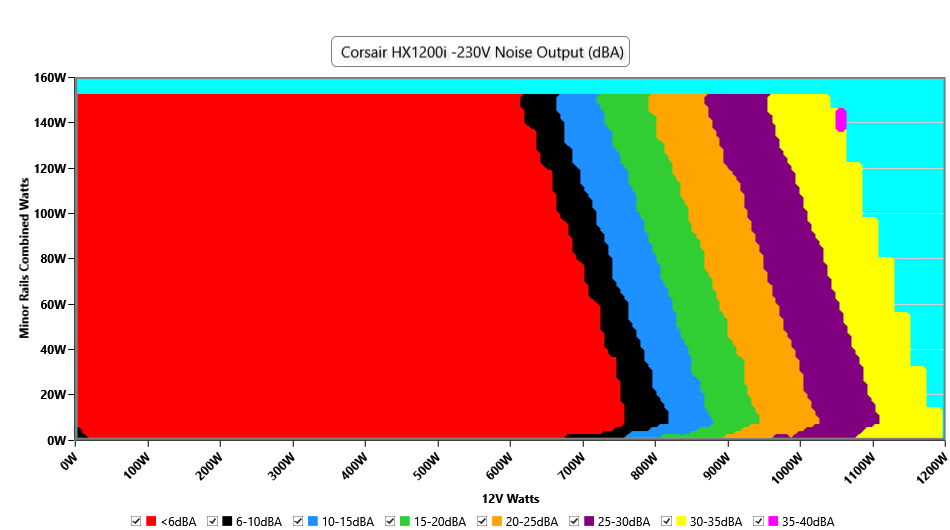

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

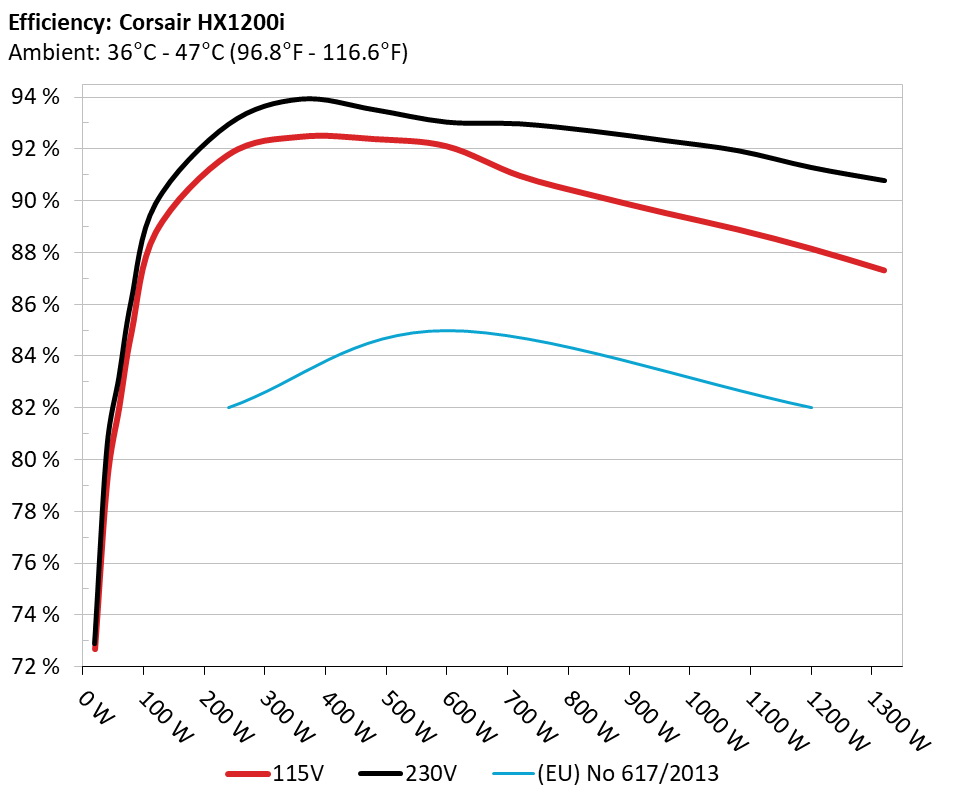

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

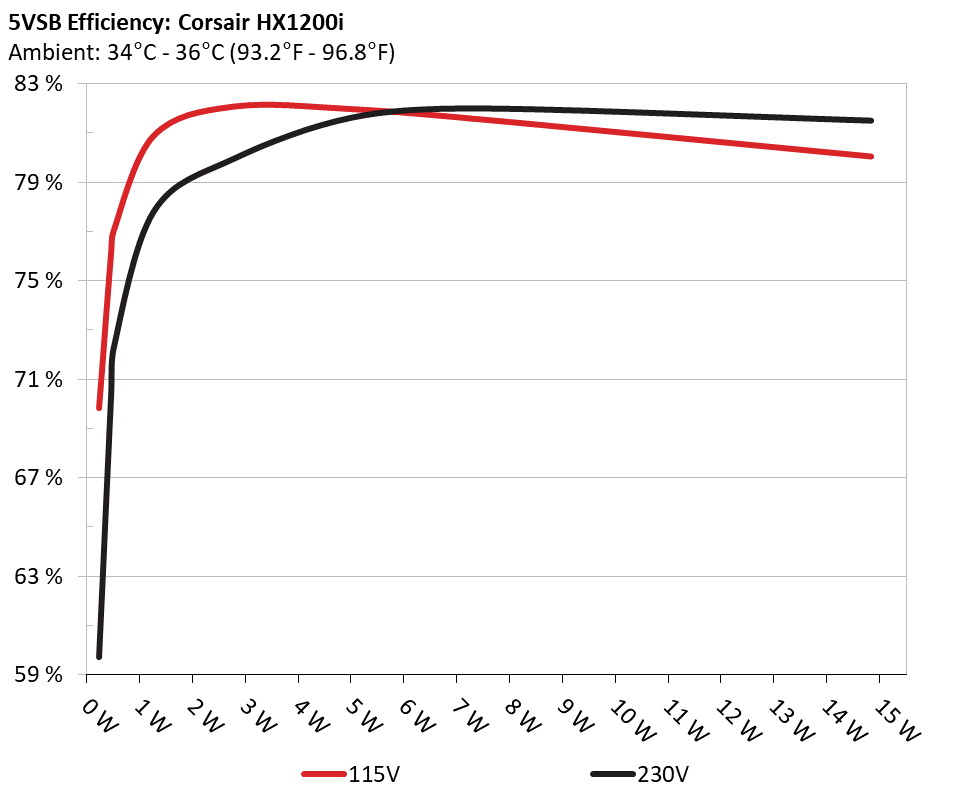

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 69.845% 0.022
5.051V 0.325W 114.85V
2 0.09A 0.454W 76.129% 0.04
5.049V 0.597W 114.85V
3 0.55A 2.768W 82.09% 0.204
5.033V 3.372W 114.84V
4 1A 5.017W 81.988% 0.319
5.017V 6.119W 114.85V
5 1.5A 7.5W 81.562% 0.404
4.999V 9.196W 114.84V
6 3A 14.839W 80.064% 0.518
4.946V 18.534W 114.83V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 59.722% 0.007
5.051V 0.382W 229.86V
2 0.09A 0.454W 70.298% 0.013
5.049V 0.646W 229.83V
3 0.55A 2.768W 79.936% 0.068
5.033V 3.463W 229.84V
4 1A 5.017W 81.617% 0.117
5.017V 6.147W 229.84V
5 1.5A 7.499W 81.982% 0.168
4.999V 9.147W 229.84V
6 3A 14.838W 81.489% 0.287
4.946V 18.209W 229.84V

Protection Features

OCP (Cold @ 27.3°C)12V: 124.40A (124.40%), 12.030V
5V: 34.6A (138.40%), 5.019V
3.3V: 34.5A (138.00%), 3.293V
5VSB: 5.6A (186.67%), 4.849V
OCP (Hot) @ 42.0°C)12V: 124.80A (124.80%), 12.032V
5V: 34.7A (138.80%), 5.019V
3.3V: 34.5A (138.00%), 3.291V
5VSB: 5.5A (183.33%), 4.842V
OPP (Cold @ 28.5°C)1454.70W (121.22%)
OPP (Hot @ 43.3°C)1486.13W (123.84%)
OTP✓ (130°C @ Secondary Side)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
NLO✓
Fan Failure Protection✓
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.137A 1.976A 2.002A 0.991A 119.983 88.77% 0 <6.0 43.46°C 0.984
12.092V 5.06V 3.297V 5.048V 135.123 40.13°C 114.81V
20% 17.296A 2.966A 3.005A 1.19A 239.934 91.774% 0 <6.0 41.95°C 0.991
12.085V 5.057V 3.294V 5.042V 261.431 40.59°C 114.78V
30% 26.749A 3.463A 3.506A 1.391A 359.088 92.465% 0 <6.0 46.57°C 0.993
12.077V 5.053V 3.294V 5.033V 388.348 41.39°C 114.73V
40% 36.314A 3.96A 4.01A 1.591A 479.471 92.376% 0 <6.0 47.94°C 0.997
12.069V 5.051V 3.292V 5.027V 519.029 41.85°C 114.7V
50% 45.497A 4.952A 5.018A 1.792A 599.248 92.095% 0 <6.0 50.02°C 0.998
12.061V 5.048V 3.288V 5.022V 650.7 42.28°C 114.65V
60% 54.745A 5.946A 6.026A 1.994A 719.792 90.954% 396 <6.0 42.6°C 0.999
12.056V 5.046V 3.286V 5.016V 791.467 51.16°C 114.6V
70% 63.945A 6.941A 7.037A 2.195A 839.505 90.203% 608 11.5 43.17°C 0.999
12.048V 5.043V 3.283V 5.01V 930.678 52.22°C 114.57V
80% 73.229A 7.935A 8.049A 2.297A 959.493 89.521% 800 20.9 43.73°C 0.999
12.039V 5.04V 3.28V 5.006V 1071.804 52.96°C 114.52V
90% 82.848A 8.436A 8.543A 2.4A 1079.35 88.883% 1064 30.3 44.25°C 0.999
12.032V 5.038V 3.277V 5.001V 1215.15 54.02°C 114.48V
100% 92.286A 8.936A 9.069A 3.008A 1199.372 88.146% 1389 38.4 45.98°C 0.998
12.024V 5.035V 3.275V 4.986V 1360.671 54.9°C 114.41V
110% 101.663A 9.936A 10.178A 3.01A 1319.985 87.307% 1641 42.4 46.79°C 0.998
12.017V 5.032V 3.271V 4.983V 1511.922 56.03°C 114.37V
CL1 0.116A 17.931A 18.202A 0A 151.277 83.555% 395 <6.0 41.2°C 0.989
12.080V 5.035V 3.274V 5.093V 181.053 51.81°C 114.79V
CL2 0.115A 24.789A 0A 0A 126.239 82.512% 771 19.6 40.02°C 0.986
12.086V 5.037V 3.282V 5.106V 153.027 46.21°C 114.8V
CL3 0.114A 0A 25.178A 0A 83.879 75.271% 776 19.7 41.13°C 0.981
12.086V 5.047V 3.276V 5.058V 111.538 46.03°C 114.83V
CL4 99.724A 0A 0A 0A 1199.93 88.758% 1208 34.3 45.13°C 0.998
12.033V 5.045V 3.286V 5.018V 1351.899 52.21°C 114.43V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.137A 1.976A 2.001A 0.99A 119.988 89.881% 0 <6.0 42.8°C 0.774
12.092V 5.061V 3.299V 5.049V 133.491 40.08°C 229.82V
20% 17.298A 2.965A 3.004A 1.19A 239.945 92.956% 0 <6.0 43°C 0.94
12.085V 5.058V 3.296V 5.043V 258.161 40.52°C 229.8V
30% 26.751A 3.461A 3.507A 1.39A 359.122 93.936% 0 <6.0 43.58°C 0.957
12.077V 5.056V 3.294V 5.036V 382.303 41.12°C 229.78V
40% 36.311A 3.957A 4.01A 1.591A 479.49 93.53% 0 <6.0 43.36°C 0.971
12.070V 5.054V 3.291V 5.03V 512.676 41.73°C 229.76V
50% 45.489A 4.949A 5.019A 1.791A 599.268 93.047% 0 <6.0 42.7°C 0.981
12.064V 5.051V 3.288V 5.024V 644.047 42.01°C 229.74V
60% 54.743A 5.943A 6.027A 1.993A 719.796 92.979% 398 <6.0 42.55°C 0.984
12.056V 5.048V 3.285V 5.018V 774.115 51.57°C 229.72V
70% 63.946A 6.938A 7.037A 2.194A 839.524 92.699% 708 17.2 43.26°C 0.985
12.048V 5.045V 3.283V 5.012V 905.595 52.54°C 229.7V
80% 73.230A 7.932A 8.049A 2.296A 959.519 92.331% 953 26.5 43.75°C 0.987
12.039V 5.042V 3.28V 5.008V 1039.304 53.07°C 229.68V
90% 82.849A 8.432A 8.542A 2.399A 1079.332 91.939% 1181 33.5 44.66°C 0.988
12.032V 5.04V 3.277V 5.003V 1173.994 54.2°C 229.66V
100% 92.284A 8.933A 9.069A 3.007A 1199.367 91.292% 1492 39.6 45.75°C 0.99
12.025V 5.037V 3.275V 4.988V 1313.841 55.36°C 229.64V
110% 101.663A 9.932A 10.177A 3.009A 1319.991 90.784% 1741 44 46.31°C 0.991
12.017V 5.034V 3.272V 4.985V 1454.036 55.65°C 229.61V
CL1 0.116A 17.925A 18.203A 0A 151.281 84.575% 396 <6.0 41.21°C 0.912
12.080V 5.037V 3.274V 5.095V 178.859 51.85°C 229.81V
CL2 0.115A 24.786A 0A 0A 126.242 83.406% 777 19.8 41.58°C 0.893
12.086V 5.037V 3.282V 5.107V 151.35 49°C 229.82V
CL3 0.114A 0A 25.184A 0A 83.882 76.041% 778 19.9 40.68°C 0.846
12.087V 5.048V 3.276V 5.059V 110.329 47.41°C 229.83V
CL4 99.723A 0A 0A 0A 1200.017 91.681% 1213 34.5 45.34°C 0.99
12.033V 5.047V 3.286V 5.02V 1308.952 53.24°C 229.64V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.494A 0.5A 0.198A 19.994 72.684% 0 <6.0 38.67°C 0.778
12.102V 5.061V 3.299V 5.06V 27.647 36.56°C 114.84V
40W 2.702A 0.691A 0.7A 0.296A 39.994 79.166% 0 <6.0 39.81°C 0.873
12.100V 5.061V 3.299V 5.059V 50.518 37.5°C 114.84V
60W 4.176A 0.889A 0.9A 0.395A 59.995 82.05% 0 <6.0 40.48°C 0.91
12.099V 5.062V 3.299V 5.057V 73.141 38.4°C 114.83V
80W 5.647A 1.086A 1.1A 0.494A 79.932 84.908% 0 <6.0 42.31°C 0.975
12.096V 5.062V 3.299V 5.056V 94.257 39.84°C 114.83V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.494A 0.5A 0.198A 20.004 72.88% 0 <6.0 34.66°C 0.394
12.101V 5.063V 3.301V 5.062V 27.544 36.91°C 229.84V
40W 2.702A 0.691A 0.7A 0.296A 40 80.409% 0 <6.0 36.34°C 0.551
12.099V 5.063V 3.301V 5.06V 49.87 37°C 229.83V
60W 4.177A 0.889A 0.9A 0.395A 59.999 83.173% 0 <6.0 40.94°C 0.64
12.098V 5.063V 3.301V 5.059V 72.175 38.53°C 229.83V
80W 5.648A 1.086A 1.1A 0.494A 79.939 86.106% 0 <6.0 41.86°C 0.692
12.096V 5.062V 3.301V 5.057V 92.835 39.47°C 229.82V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 17.2 mV 12.3 mV 12.6 mV 7.5 mV Pass
20% Load 17.7 mV 12.6 mV 12.8 mV 7.9 mV Pass
30% Load 18.1 mV 13.0 mV 13.6 mV 8.1 mV Pass
40% Load 18.3 mV 13.1 mV 13.9 mV 8.2 mV Pass
50% Load 18.3 mV 13.8 mV 14.4 mV 8.8 mV Pass
60% Load 16.6 mV 12.2 mV 11.8 mV 7.9 mV Pass
70% Load 19.6 mV 13.8 mV 14.2 mV 8.9 mV Pass
80% Load 20.1 mV 15.3 mV 16.7 mV 8.9 mV Pass
90% Load 14.2 mV 11.8 mV 12.5 mV 8.2 mV Pass
100% Load 24.8 mV 16.1 mV 16.1 mV 10.5 mV Pass
110% Load 25.9 mV 15.5 mV 17.6 mV 10.9 mV Pass
Crossload 1 23.5 mV 18.5 mV 18.4 mV 9.3 mV Pass
Crossload 2 20.8 mV 20.0 mV 14.0 mV 8.8 mV Pass
Crossload 3 17.3 mV 13.8 mV 15.1 mV 8.3 mV Pass
Crossload 4 25.1 mV 14.3 mV 15.5 mV 9.8 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 16.0 mV 12.3 mV 13.3 mV 8.2 mV Pass
20% Load 15.5 mV 12.1 mV 12.3 mV 7.3 mV Pass
30% Load 15.7 mV 12.1 mV 12.3 mV 7.9 mV Pass
40% Load 16.2 mV 12.4 mV 12.4 mV 8.0 mV Pass
50% Load 16.9 mV 13.0 mV 13.1 mV 8.3 mV Pass
60% Load 16.5 mV 14.3 mV 13.4 mV 8.4 mV Pass
70% Load 18.8 mV 13.8 mV 12.9 mV 8.8 mV Pass
80% Load 18.1 mV 13.7 mV 15.2 mV 8.7 mV Pass
90% Load 19.8 mV 13.6 mV 16.5 mV 8.8 mV Pass
100% Load 23.4 mV 14.4 mV 14.9 mV 9.6 mV Pass
110% Load 25.9 mV 15.0 mV 14.6 mV 9.2 mV Pass
Crossload 1 19.2 mV 17.7 mV 14.8 mV 8.1 mV Pass
Crossload 2 17.9 mV 19.2 mV 12.7 mV 7.6 mV Pass
Crossload 3 17.1 mV 13.8 mV 15.3 mV 7.9 mV Pass
Crossload 4 23.7 mV 14.5 mV 14.2 mV 9.2 mV Pass

The results above are not used in the certification process

Corsair HX1200i (ATX v3.1)

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
